Juwel EasyFeed User Manual

<–––>

A B

D

E

C

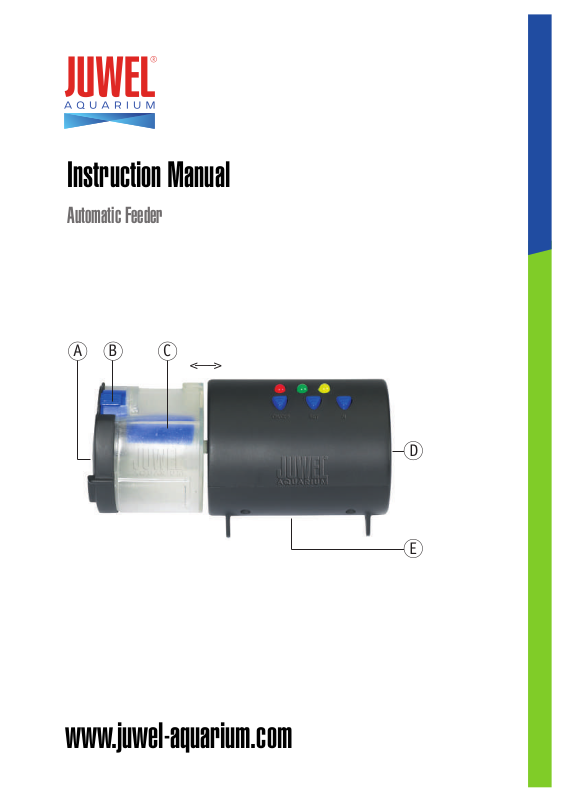

Instruction Manual

Automatic Feeder

www.juwel-aquarium.com

Introduction

Thank you for choosing a JUWEL Aquarium product.
Our products represent over 40 years experience in the manufacturing of aquariums

and their accessories applying the most modern production techniques in bringing
together the JUWEL Aquarium system, which is both easy to use and simple to
maintain.

Installing the JUWEL Automatic Feeder

The JUWEL automatic feeder is suitable for all aquariums. All that typically requires is
simply cutting an opening into the cover lid of the aquarium that is suitable for
retaining the holding jacket of the automatic feeder.

The holding jacket is designed in such a manner that it includes a small cover which
closes the feed opening while the automatic feeder is not being used. Accordingly, no
light enters through the cover.

The opening is pre-cut and closed with a cover in some JUWEL aquariums during
manufacturing.

1. Start by removing the cover that closes the opening for your JUWEL automatic
feeder in the lid (if applicable) or cut an opening into the lid.

2. Place the holding jacket included in the delivery into the opening.

3. Open the cover of the feed opening.

4. Properly position the automatic feeder above the opening in the holding jacket.

1.

2.+ 3.

4.

Note. Flap sets for Juwel automatic feeder

If the flap set on your Juwel aquarium does not have the feeder template marked
on it we recommend that you contact your supplying retailer.

An original Juwel flap set with the appropriate feeder template can be purchased
as a spare part.

2
