The IMPRESSA Z5 – Generation II Manual
The ‘IMPRESSA Manual’ has been awarded the seal of
approval by the independent German Technical Inspection
Agency, TÜV SÜD, due to its easy-to-understand style, its
thoroughness and coverage of safety aspects.
2
Your IMPRESSA Z5
IMPORTANT SAFEGUARDS 4
Control elements and accessories
8
Proper use
10
For your safety
10
The IMPRESSA Z5 Manual
13
Model variants ..............................................................................................................................................14
Symbol description ......................................................................................................................................14
Welcome to the world of IMPRESSA! 15
1 IMPRESSA Z5 – ‘Two at once’
16
JURA on the Internet ....................................................................................................................................17
2 Preparing and using for the first time 18
Supplied as standard ...................................................................................................................................18
Setting up ......................................................................................................................................................18
Filling the water tank ...................................................................................................................................18
Filling the bean container ...........................................................................................................................19
First-time use ................................................................................................................................................19
Using and activating filter ..........................................................................................................................21
Assessing and setting water hardness ....................................................................................................22
Adjusting grinder ........................................................................................................................................23
Switching on ................................................................................................................................................24
Switching off (Standby) ..............................................................................................................................25
3 Familiarising yourself with the control options 26
Preparation at the touch of a button .......................................................................................................26
One-off setting before and during preparation .....................................................................................27
Entering a permanent setting for the amount of water for a cup size..............................................28
Permanent settings in programming mode ..........................................................................................29
View information and care status ............................................................................................................32
4 Recipes 34
5 Preparation at the touch of a button
40
Barista tips ....................................................................................................................................................40
Ristretto .........................................................................................................................................................41
Espresso ........................................................................................................................................................42
Coffee ............................................................................................................................................................42
Special coffee ...............................................................................................................................................42
Cappuccino...................................................................................................................................................42
Latte macchiato ...........................................................................................................................................43
Table of contents
3
Table of contents
Pre-ground coffee .......................................................................................................................................45
Hot milk ........................................................................................................................................................46
Hot water .....................................................................................................................................................46
6 Permanent settings in Programming mode 48
Products ........................................................................................................................................................48
Energy-save mode .......................................................................................................................................51
Time and weekday ......................................................................................................................................52
Programmable Switch-on time ................................................................................................................53
Automatic switch-off ..................................................................................................................................54
Rinses ............................................................................................................................................................55
Unit amount of water/time format ..........................................................................................................56
Logo ...............................................................................................................................................................57
Language ......................................................................................................................................................58
Rename .........................................................................................................................................................58
7 Maintenance 60
Maintenance tips .........................................................................................................................................60
Rinse machine..............................................................................................................................................60
Changing the filter .......................................................................................................................................61
Clean machine .............................................................................................................................................63
Descale machine .........................................................................................................................................65
Rinsing the cappuccino nozzle .................................................................................................................68
Cleaning the cappuccino nozzle ...............................................................................................................68
Dismantling and rinsing the cappuccino nozzle ...................................................................................70
Removing foreign objects .........................................................................................................................70
Cleaning the bean container .....................................................................................................................70
Descaling the water tank ............................................................................................................................71
8 CLARIS plus filter cartridge – Water for perfect coffee 73
9 ‘The milk makes the difference’
81
10 Accessories and Service
82
11 Display messages
91
12 Troubleshooting
94
13 Transport and environmentally neutral disposal
96
Transport / Empty system .........................................................................................................................96
Disposal .........................................................................................................................................................96
14 Technical data 97
15 Key technologies and products
100
16 JURA contact details
105
Index
110
4
Important Safeguards
These safeguards apply for machines with UL safety test (see rating
plate and chapter 14, ‘Technical data’).
When using electrical appliances, basic safety precautions should
always be followed, to reduce the risk of fire, electric shock, and/or
injury to persons, including the following:
Read all instructions.
Do not touch hot surfaces. Use handles or knobs.
To protect against fire, electric shock and injury to persons, do
not immerse cord, plugs, or body of machine in water or other
liquid.
Close supervision is necessary when any appliance is used by
or near children.
Unplug from outlet when not in use and before cleaning.
Allow to cool before putting or taking off parts, and before
cleaning the appliance.
Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions, or has been damaged in any
manner. Return appliance to the nearest authorized service
facility for examination, repair or adjustment.
The use of accessory attachement not recommended by the
appliance manufacturer may result in fire, electric shock, or
injury to persons.
Do not use outdoors.
Do not let the cord hang over the edge of a table or counter,
or touch hot surfaces.
Do not place on or near a hot gas or electric burner, or in a
heated oven.
Always attach plug to appliance first, then plug cord into the
wall outlet. To disconnect, turn any control to ‘OFF’ then
remove plug from wall outlet.
Do not use appliance for other than intented use.
Use extreme caution when dispensing hot steam.
For household use only.
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Follow the basic safety
precautions
Follow the basic safety
precautions
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS
5
Important Safeguards
a. A short power supply cord is provided to reduce the risk
resulting from becoming entangled in or tripping over a long
cord.
Your IMPRESSA has a 3-pin grounded plug.
b. Longer extension cords are available and may be used if care
is exercised in their use.
c. If an extension cord is used,
1. the marked electrical rating of the extension cord should be
at least as great as the electrical rating of the appliance,
and
2. if the appliance is of the grounded type, the extension
courd should be a grounding type 3-wire cord, and
3. the longer cord shall be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children of tripped over.
As a safety feature, this plug will fit in a polarized outlet only
one way.
If the plug does not fit fully in the outlet, reverse the plug. If it
still does not fit, contact a qualified electrician.
Do not modify the plug in any way or attempt to defeat this
safety feature.
To reduce the risk of fire or electric shock, do not remove any service
covers. No user serviceable parts inside. Repair should be done by
authorized personnel only.
This appliance is for household use. Any servicing other than cleaning and user maintenance should be performed by an authorized
service representative:
Do not immerse base in water or try to disassemble.
To reduce the risk of fire or electric shock, do not remove the
base. No user serviceable parts inside. Repair should be done
by authorized service personnel only.
Check voltage to be sure that the voltage indicated on the
name plate agreees with your voltage.
Never use warm or hot water to fill the water container! Use
cold water only.
Z
Z
Z
Z
Z
Z
Z
Special cord set instructionsSpecial cord set instructions
WarningWarning
CautionCaution
6
Important Safeguards
Keep your hands and the cord away from hot parts of the
appliance during operation.
Never clean with scouring powders or hard implements.
Never fill instant coffee, chocolate mix etc. into the grinder or
ground coffee funnel (grunder by-pass). It will damage the
functioning of the brewing chamber.
Never fill sugar coated coffee beans into the bean hopper. In
case of doubt, call your dealer.
Never fill anything other than coffee beans into the bean container (no chocolate, no rice, no nuts, no spices, nothing other
than roasted coffee beans).
Never do anything with the machine which is not described in
the User‘s Manual. In case of doubt, call your dealer.
Z
Z
Z
Z
Z
Z
NEVER DO
(or you will void your
warranty protection):
NEVER DO
(or you will void your
warranty protection):
7
Important Safeguards
8
Control elements and accessories
Figure: IMPRESSA Z5 – Generation II Alu
Control elements and accessories
1 Bean container cover
2 Water tank cover
3 Water tank
4 Power switch and power cable (side)
5 One Touch Cappuccino nozzle, long spout
6 One Touch Cappuccino nozzle, short
spout
7 Coffee grounds container
8 Drip tray
9 Grinding wheel
10 Bean container with aroma preservation
cover
11 Filler funnel for pre-ground coffee
12 Height-adjustable coffee spout
13 Hot water spout
14 Cup platform
10
12
1
2
7
5
4
13
6
14
3
11
9
8
9
Control elements and accessories
Top of the machine
1 Q On/off button
2 f Rotary Switch
3 c Maintenance button
Front
4 z Milk button
5 q Latte macchiato button
6 p Cappuccino button
7 e Special Coffee button
8 Display
9 m Hot water button
10 u Ristretto button
11 i Espresso button
12 o Coffee button
231
4
9876511
1210
10
Important information
The machine has been designed and built for domestic use. It should
only be used to prepare coffee and to heat milk and water. Use for
any other purpose will be deemed improper. JURA cannot accept
any responsibility for the consequences of improper use.
Keep this manual close to the IMPRESSA and, if appropriate, pass it
on to the next user.
Please read and note carefully the following important safety information.
By doing this, you can avoid the life-threatening danger of electric
shock:
Never use a machine which has been damaged or with a
defective power cable.
For information on what to do in case of damage, for example
if there is a smell of burning, unplug the machine immedi ately
from the mains supply and contact the JURA service centre.
If the power cable for this machine is damaged, it must be
repaired either directly by JURA or by a JURA approved service
centre.
Make sure that the IMPRESSA and the power cable are not
located close to hot surfaces.
Be careful to ensure that the power cable does not get caught
and does not rub against sharp edges.
Never open and repair the machine yourself. Do not modify
the machine in any way that is not described in the IMPRESSA
Manual. The machine contains live parts. If opened, there is a
danger of serious injury. Repairs may only be carried out by
JURA approved service centres, using original spare parts and
accessories.
There is a risk of scalds or burns on the spouts or in the nozzle:
Place the machine out of the reach of children.
Do not touch any hot parts. Use the handles provided.
Z
Z
Z
Z
Z
Z
Z
Z
Proper use Proper use
For your safety For your safety
11
Important information
Be careful to ensure that the appropriate nozzle is installed
and clean. The nozzle or parts of the nozzle might come off if
the parts are not assembled correctly or a blockage occurs.
A defective machine is not safe and could cause injury or fire. To
avoid damage and any associated risk of injury or fire:
Never allow the power cable to loosely hang down. The power
cable can be tripped over or damaged.
Protect your IMPRESSA from environmental influences such
as rain, frost and direct sunlight.
Do not put the IMPRESSA, cable or connections in water.
Do not put the IMPRESSA or any individual parts in the dishwasher.
Turn your IMPRESSA off at the power switch before starting
any cleaning operation. Always wipe your IMPRESSA with a
damp cloth rather than a wet one, and protect it from prolonged water splash.
Only connect the machine to a power supply in accordance
with the technical data (see rating plate and Chapter 14,
‘Technical data’).
Use only original JURA care products. Use of accessories that
are not explicitly recommended by JURA could damage the
IMPRESSA.
Do not use any coffee beans treated with additives or caramelised coffee beans.
Always fill the water tank with cold, fresh mains water.
If you will be absent for an extended period, turn the machine
off and unplug.
Risk to children and persons with limited capabilities in operating
machines:
The machine is not designed to be operated by children and
persons with limited capabilities.
The machine may only be used by persons who are able to
operate the machine safely.
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
Z
12
Important information
Safe handling of the CLARIS plus filter cartridges:
CLARIS plus filter cartridges should be kept out of the reach of
children.
Store them dry in the sealed package.
Protect them from heat and direct sunlight.
Do NOT use damaged CLARIS plus filter cartridges.
Do NOT open CLARIS filter cartridges.
Z
Z
Z
Z
Z
13
The IMPRESSA Z5 Manual
You are holding the manual for your IMPRESSA Z5 in your hand. It
will help you to familiarize yourself with your IMPRESSA safely and
quickly and teach you the full range of facilities it offers.
Chapter 2, ‘Preparing and using your IMPRESSA for the first time’,
explains step-by-step how to set up and prepare the IMPRESSA.
Chapter 3, ‘Familiarising yourself with the control options’ is important for you to read as you are familiarising yourself with your
IMPRESSA. It invites you to actively explore all the different coffee
experiences that it offers.
As coffee and coffee specialities are very important to JURA, we have
compiled a selection of tasty suggestions for you in Chapter 4,
‘Recipes’.
All the other chapters are intended to help you when you have a
specific query.
If you use the IMPRESSA Z5 Manual, you will become a master at
preparing exciting coffee specialities, you will be a Barista!
The IMPRESSA Z5 ManualThe IMPRESSA Z5 Manual
14
The IMPRESSA Z5 – Generation II Manual covers all Z series IMPRESSAmodels.
Model variantsModel variants
Warnings
CAUTION
Always take note of any information marked
with the CAUTION or WARNING symbol. The
signal word WARNING points out potential risk
of serious injury, and the signal word CAUTION
potential risk of slight injury.
CAUTION
The CAUTION symbol is used to draw attention
to circumstances which could cause the
machine to become damaged.
Symbol descriptionSymbol description
Symbols used
E
Information and tips to make things easier for
you as you use your IMPRESSA.
@
References to the online JURA website, where
you can find interesting further information:
www.jura.com
T
Prompt to take action. This symbol means that
you are being prompted to perform some
action.
15
Welcome to the world of IMPRESSA!
Dear customer,
We thank you for the trust that you have placed in us by purchasing
a JURA IMPRESSA coffee machine. The machines, which are produced in Switzerland, have already impressed independent, critical
testers of goods and design award juries. We will do everything we
can to ensure that this fully automated, genuine 2-cup Espresso and
coffee machine continues to deliver perfect coffee specialities at the
press of a button to your family and your guests for years to come.
The IMPRESSA Manual will teach you everything you need to know
on the subject of operating and tailoring your IMPRESSA to your
particular preferences. Other subjects covered include how to solve
the problem of scale build-up and important tips on care. Our primary concern is to stimulate your imagination with attractive coffee
recipes and to invite you to put the wealth of possibilities offered by
the JURA fully automated machine to use on a daily basis.
We wish you many stimulating and enjoyable moments with your
IMPRESSA.
Yours sincerely,
Emanuel Probst
General Manager
Welcome to the world of IMPRESSA!Welcome to the world of IMPRESSA!
16
1 IMPRESSA Z5 – ‘Two at once’
Coffee specialities are extremely popular. An increasing number of
perfect hosts treat themselves, friends and families to a wide range
of coffee specialities in the comfort of their own homes. Milk is a
very important ingredient of a perfect cup of coffee, both foamed
and heated, as cappuccino, latte macchiato, and caffè latte, also
enhanced with different flavours, are now firm favourites on the
almost inexhaustible and varied list of coffee recipes alongside
alongside the classic ristretto, espresso and café crème.
JURA has now developed the second generation of the revolutionary
IMPRESSA Z line to satisfy the high demands of the growing community of speciality gourmets.
One Touch Cappuccino noz zle : The machines of t he IMPRE SSA
Z line, which are in the truest sense fully- automatic coffee speciality machines, can prepare two treats for the eye and palate
at the touch of a button with the One Touch cappuccino nozzle. ‘Two at once’ – the quickest, most direct and simple way
to delve into the world of coffee and to revel in all its variety.
Rotary Switch – Intuitive operation : You can ‘navigate’ reliably through all operating and programming steps by simply
turning and pressing the switch. The information on the plain
text and graphic display is in full view at all times. The focus is
fully on your own personal taste. Simply select the coffee
strength, amount of water and temperature according to your
individual preferences.
Stainless steel vacuum milk container : Your fully-automatic
coffee machine is equipped as standard with a vacuum milk
container which keeps the milk cool all day due to its clever
design.
Z
Z
Z
1 IMPRESSA Z5 – ‘Two at once’1 IMPRESSA Z5 – ‘Two at once’
Coffee that fulfils your
wildest dreams
Coffee that fulfils your
wildest dreams
17
1 IMPRESSA Z5 – ‘Two at once’
Active bean monitoring: The IMPRESSA Z5 banishes the
sound of empty rotating coffee grinders and half-full cups
once and for all. It always shows you when the coffee beans
need replenishing in good time. The filling level of the bean
container is continuously monitored optically.
Visit us on the Internet.
At www.jura.com you will find interesting and up-to-date
information on your IMPRESSA and on every aspect of
coffee.
You can familiarize yourself with your IMPRESSA Z5 in a fun way on
the PC.
The Knowledge Builder awaits you at www.jura.com. The
interactive assistant, LEO, will assist you and explain the
benefits of the IMPRESSA and how to use it.
Z
@
@
JURA on the Internet JURA on the Internet
Knowledge Builder Knowledge Builder
18
2 Preparing and using your IMPRESSA for the first time
This chapter provides you with the information you need to use your
IMPRESSA without any problems. You will prepare your IMPRESSA
step-by-step for your first coffee experience.
The following items are supplied as standard:
Your JURA IMPRESSA fully automatic coffee machine
Stainless steel vacuum milk container
Milk pipe
The Welcome Pack, which includes:
The IMPRESSA Z5 – Generation II Manual
IMPRESSA Z5 – Generation II: Quick Reference Guide
CLARIS plus filter cartridge (2x)
Filter cartridge extension
Grinder key
Measuring spoon for pre-ground coffee
JURA cleaning tablets
Aquadur® test strips
JURA Auto-Cappuccino Cleaner
JURAworld of Coffee gift
Keep the packaging of your IMPRESSA. It should be used to protect
the machine during transportation.
When setting up your IMPRESSA, please note the following:
Set the IMPRESSA down on a horizontal surface that is not
sensitive to water.
Choose a spot for your IMPRESSA which is protected against
overheating.
To enjoy perfect coffee we recommend changing the the water
every day.
Only use fresh, cold water to refill the water tank and never
milk, mineral water or other liquids.
Z
Z
Z
Z
U
U
U
U
U
U
U
U
Z
Z
Z
Z
E
2 Preparing and using for the first time2 Preparing and using for the first time
Supplied as standard Supplied as standard
Setting up Setting up
Filling the water tank Filling the water tank
19
2 Preparing and using your IMPRESSA for the first time
Remove the water tank and rinse it with cold water.
Fill the water tank with fresh, cold mains water and
reinsert.
The bean container has an aroma preservation cover. This will ensure
that your coffee beans retain their aroma for longer.
Coffee beans which have been treated with additives (e.g. sugar),
pre-ground or freeze-dried coffee will damage the grinder.
Only use untreated coffee beans to refill the bean container.
Open the cover of the bean container and remove the aroma
preservation cover.
Remove any dirt or foreign objects inside the bean con-
tainer.
New machines contain an information sheet in the bean
container. Remove this information sheet.
Fill the bean container with coffee beans, then close the
aroma preservation cover and the bean container cover.
If the machine is operated with a defective power cable, there is a
danger of electric shock.
Never use a machine which has a defective power cable.
Precondition: The water tank and bean container are full.
Insert the mains plug into a power socket.
3 T Switch on the IMPRESSA using the power switch on the left
side of the machine.
The On/Off button Q lights up (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
The Rotary Switch lights up.
SPRACHE DEUTSCH is
displayed.
g T Turn the Rotary Switch until the desired language is
displayed. For example
LANGUAGE ENGLISH.
T
T
T
T
T
T
T
T
T
Filling the bean
container
Filling the bean
container
CAUTIONCAUTION
First-time use First-time use
WARNINGWARNING
20
2 Preparing and using your IMPRESSA for the first time
k T Press the Rotary Switch to confirm the language.
CONFIRMED √ appears briefly on the display to confirm
the setting.
TIME HOURS --:--
g T Turn the Rotary Switch to set the hour.
TIME HOURS 12:00 (Example)
k T Press the Rotary Switch to confirm the hour setting.
TIME MINUTES 12:00
g T Turn the Rotary Switch to set the minutes.
TIME MINUTES 12:45 (Example)
k T Press the Rotary Switch to confirm the minute setting.
CONFIRMED √ appears briefly on the display.
WEEKDAY MONDAY
g T Turn the Rotary Switch to set the weekday.
WEEKDAY WEDNESDAY (Example)
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display.
PRESS RINSE, the maintenance button c lights up.
Place a receptacle under the hot water spout and below the
cappuccino nozzle.
c T Press the maintenance button.
SYSTEM FILLS, the system fills up with water and the
maintenance button c flashes. A small amount of water
flows from the cappuccino nozzle and the hot water spout.
This operation stops automatically.
WELCOME TO JURA
appears on the display.
UNIT IS HEATING
PRESS RINSE, the maintenance button c lights up.
Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
After first-time use do not disconnect the IMPRESSA from the
power supply for 24 hours to ensure that it is in the optimum
operating condition.
T
T
E
21
2 Preparing and using your IMPRESSA for the first time
When a coffee speciality has been prepared for the first time,
it is possible that
FILL BEANS appears on the display as
the grinder has not yet been completely filled with coffee
beans. In this case prepare a different coffee speciality.
Your IMPRESSA no longer has to be descaled if you use the CLARIS
plus filter cartridge.
You can also try out the ‘Insert filter’ operation online. Visit the
Knowledge Builder at www.jura.com.

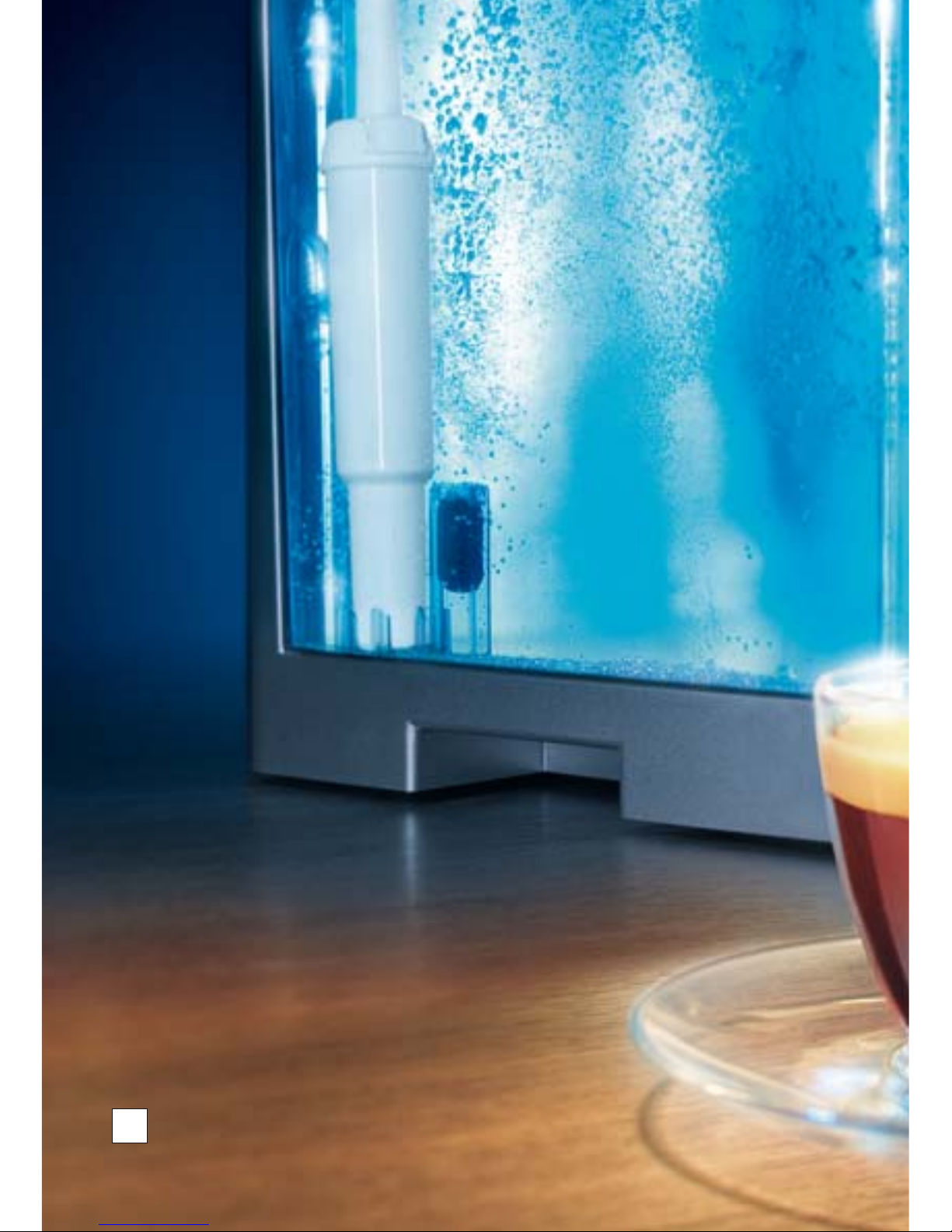

Further information on the CLARIS plus filter cartridge can be
found in Chapter 8, ‘CLARIS plus filter cartridge – Water for perfect
coffee’.
Perform the ‘Insert filter’ operation without interruption. This
will ensure that your IMPRESSA always produces its best.
Precondition:
COFFEE READY is shown on the display.
k T Keep the Rotary Switch pressed until
MAINTENANCE
appears on the display.
g T Turn the Rotary Switch until
FILTER I.P.W.S. is
displayed.
k T Press the Rotary Switch to enter the programme item.
FILTER NO
g T Turn the Rotary Switch until FILTER YES is displayed.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display to confirm
the setting.
INSERT FILTER / PRESS BUTTON, the mainte-
nance button c lights up.
Remove a CLARIS plus filter cartridge and the filter cartridge
extension from the Welcome Pack.
Place the extension on top of the filter cartridge.
Remove the water tank and empty it.
E
@
E
T
T
T
Using and activating
filter
Using and activating
filter
22
2 Preparing and using your IMPRESSA for the first time
Lift the cartridge holder and insert the filter cartridge into
the water tank, applying slight pressure.
Close the cartridge holder. It will click into place audibly.
Fill the water tank with fresh, cold water and reinsert.
Place a receptacle (containing at least 500 ml) under the
cappuccino nozzle.
Turn the selection lever of the nozzle to the steam position n.
c T Press the maintenance button.
FILTER RINS., water will flow out of the nozzle.
You can interrupt filter rinsing at any time by pressing any
button.
The water may be slightly discoloured. This is not harmful to
health and does not affect the taste.
Filter rinsing stops automatically after approx. 500 ml.
COFFEE READY appears on the display. The filter is now
activated.
The harder the water is, the more frequently the IMPRESSA needs to
be descaled. It is therefore important to adjust the water hardness.
The water hardness can be adjusted on a continuous scale between
1° dH and 30° dH. This can also be deactivated, which means that
the IMPRESSA will not let you know when it has to be descaled.
However, if you are using the CLARIS plus filter cartridge and
have activated it, you will not be able to adjust the water hardness.
You can find out what the water hardness is by using the Aquadur®
test strips supplied as standard.
Hold the test strip briefly (for one second) under flowing
water. Shake off the water.
T
T
T
T
T
E
E
E
T
Assessing and setting
water hardness
Assessing and setting
water hardness
23
2 Preparing and using your IMPRESSA for the first time
Wait for about one minute.
You will then be able to read the degree of water hardness
from the discolouration of the Aquadur® test strip and the
description on the packaging.
You can now adjust the water hardness.
Example: To change the water hardness from
16° dH to 25° dH,
proceed as follows:
Precondition:
COFFEE READY is shown on the display.
k T Keep the Rotary Switch pressed until
MAINTENANCE
appears.
g T Turn the Rotary Switch until
HARDNESS 16° dH is
displayed.
k T Press the Rotary Switch to enter the programme item.
HARDNESS 16° dH
g T Turn the Rotary Switch until HARDNESS 25° dH is
displayed.
k T Press the Rotary Switch to confirm the setting.
CONFIRMED √ appears briefly on the display to confirm
the setting.
HARDNESS 25° dH
g T Turn the Rotary Switch until EXIT is displayed.
k T Press the Rotary Switch to exit programming mode.
COFFEE READY is shown on the display.
You can adjust the grinder to suit the roast of your coffee.
Our recommendations:
Select a fine setting for a light roast.
Select a coarse setting for a darker roast.
If you adjust the fineness of grind when the grinder is not operating,
the grinding wheel could be damaged.
Only adjust the fineness of grind when the grinder is running.
T
T
Z
Z
T
Adjusting grinder Adjusting grinder
CAUTIONCAUTION
24
2 Preparing and using your IMPRESSA for the first time
Example: To change the fineness of grind during coffee preparation,
proceed as follows:
Open the cover of the bean container.
Place a cup under the coffee spout.
o T Press the Coffee button.
The grinder starts and
1 COFFEE appears on the display.
After this, the coffee strength is briefly displayed.
Turn the grinding wheel to the desired position while the
grinder is running.
The coffee will be prepared and the fineness of grind is
adjusted.
When the IMPRESSA is switched on, a prompt for the rinse operation
automatically appears which is initiated by pressing the maintenance button c.
This setting can be changed in programming mode so that the
machine automatically activates the switch-on rinse (see Chapter 6
‘Permanent settings in programming mode – Rinses’).
Precondition: Your IMPRESSA is switched on at the power switch
and the On/Off button Q is illuminated (standby).
Q T Press the On/Off button to switch the IMPRESSA on.
WELCOME TO JURA
UNIT IS HEATING
PRESS RINSE, the maintenance button c lights up.
Place a receptacle under the coffee spout.
c T Press the maintenance button.
The machine rinses itself, stopping automatically.
COFFEE READY appears on the display. Your IMPRESSA
is ready to use.
T
T
T
T
Switching on Switching on
25
2 Preparing and using your IMPRESSA for the first time
When you switch your IMPRESSA off, the spouts with which a coffee
speciality or milk have been prepared are rinsed.
Place a receptacle under the coffee spout and the cappuc-
cino nozzle.
Q T Press the On/Off button.
When you prepare a milk product, but have not performed
cappuccino cleaning,
CLEAN MILK SYSTEM appears
and the maintenance button lights up. For ten seconds you
can start the ‘Clean cappuccino nozzle’ procedure by pressing
the maintenance button c.
GOODBYE appears on the display, and the coffee spout is
rinsed.
RINSE LEFT SPOUT / PRESS BUTTON.
c T Press the maintenance button.
GOODBYE appears on the display, and the left coffee spout
is rinsed.
The IMPRESSA is switched off (standby mode), and the On/
Off symbol Q lights up.
When your IMPRESSA is switched off, a hissing noise may be
audible. This is normal and does not have any effect on the
machine.
T
E
E
Switching off
(Standby)
Switching off
(Standby)
26
3 Familiarising yourself with the control options
With the IMPRESSA you can prepare an excellent coffee or milk speciality at the touch of a button. You also have the option of adjusting
the coffee strength and temperature as well as the amount of water
to your personal taste.
This chapter will allow you to become familiar with all control
options with the aid of examples. To familiarise yourself with your
IMPRESSA, we recommend that you make a point of actively trying
the facilities described in this chapter. You will find this is well worthwhile.
Learn how to perform the following:
Preparation at the touch of a button
One-off settings before and during preparation
Adjusting the permanent amount of water to suit the cup
size
Permanent settings in programming mode
You can stop the machine at any time while a coffee or milk
speciality or hot water is being prepared. To do this, press any
button.
If you prefer to familiarise yourself with your IMPRESSA in a
fun way on the computer, the interactive Knowledge Builder
tutorial program can be found on the Internet at
www.jura.com.
Prepare your favourite coffee speciality at the touch of a button.
All coffee specialities are prepared following this model at the touch
of a button.
U
U
U
U
E
@
3 Familiarising yourself with the control options3 Familiarising yourself with the control options
Preparation at the
touch of a button
Preparation at the
touch of a button
27
3 Familiarising yourself with the control options
Example: Proceed as follows to prepare one espresso.
Precondition:
COFFEE READY is shown on the display.
Place an espresso cup under the coffee spout.
i T Press the Espresso button.
1 ESPRESSO and the coffee strength is displayed.
The pre-set amount of water flows into the cup and the
process stops automatically.
COFFEE READY is shown on the display.
Example: Proceed as follows to prepare two espressi.
Precondition:
COFFEE READY is shown on the display.
Place two espresso cups under the coffee spout.
i T Press the Espresso button twice (within two seconds).
2 ESPRESSI, the pre-set amount of water flows into the
cups.
Preparation stops automatically.
COFFEE READY
appears on the display.
The coffee strength can be changed before preparation or during
the grinding operation.
The following coffee strengths can be selected for 1 ristretto,
1 espresso, 1 coffee, 1 special coffee, 1 cappuccino and 1 latte macchiato:
Xmild
Mild
Normal
Strong
Xstrong
The pre-set amount of water can be changed during the
brewing operation by turning the Rotary Switch.
One-off settings before and during coffee preparation always follow
this model. These settings are not saved.
T
T
U
U
U
U
U
E
Preparing a coffee speciality
at the touch of a button
Preparing a coffee speciality
at the touch of a button
Preparing two coffee
specialities at the touch
of a button
Preparing two coffee
specialities at the touch
of a button
One-off setting before
and during preparation
One-off setting before
and during preparation
28
3 Familiarising yourself with the control options
Example: Proceed as follows to prepare a strong cup of coffee.
Precondition:
COFFEE READY is shown on the display.
Place a cup under the coffee spout.
g T Turn the Rotary Switch until STRONG appears on the dis-
play.
o T Press the Coffee button for as long as
STRONG is dis-
played.
1 COFFEE / STRONG.
The pre-set amount of water flows into the cup. Preparation
stops automatically.
COFFEE READY appears on the
display.
Example: Proceed as follows to prepare a
110 ML cup of coffee.
Precondition:
COFFEE READY is shown on the display.
Place a cup under the coffee spout.
o T Press the Coffee button.
The grinding operation starts.
1 COFFEE appears on the
display, and then the strength is shown.
g T Turn the Rotary Switch during the brewing operation until
110 ML is displayed.
The set amount of water flows into the cup. Preparation
stops automatically.
COFFEE READY appears on the
display.
It is easy to make permanent settings for the amount of water for all
coffee and milk specialities as well as hot water according to the cup
size. As in the following example, adjust the amount of water once.
Every time you prepare a drink in the future, this amount of water
will be dispensed.
The permanent settings for adapting the amount of water to to the
cup size for all coffee and milk specialities as well as hot water follow
this model.
Example: To enter permanent settings for the amount of water for
a ristretto, proceed as follows:
Precondition:
COFFEE READY is shown on the display.
Place an espresso cup under the coffee spout.
T
T
T
Changing the coffee
strength before preparation
Changing the coffee
strength before preparation
Changing the amount of
water during preparation
Changing the amount of
water during preparation
Entering a permanent
setting for the amount
of water for a cup size
Entering a permanent
setting for the amount
of water for a cup size
29
3 Familiarising yourself with the control options
u T Press and hold the Ristretto button.
1 RISTRETTO and the coffee strength is displayed.
u T Hold the Ristretto button down until
ENOUGH? / PRESS
BUTTON
appears.
u T Release the Ristretto button.
Coffee preparation starts and the ristretto flows into the
cup.
Press any button as soon as enough ristretto has flowed into
the cup.
Preparation stops automatically.
CONFIRMED √ appears
briefly on the display. The set amount of water for a ristretto
is saved as a permanent value.
COFFEE READY is shown
on the display.
You can alter these settings at any time by repeating the
above procedure.
You can easily adjust your IMPRESSA to your personal coffee blends
and specialities. Simply by turning and pressing the Rotary Switch,
you can navigate through the easy-to-understand program steps
and make permanent settings.
You can make the following settings with the Rotary Switch:
T
E
Permanent settings in
programming mode
Permanent settings in
programming mode
Programme item Subitem Explanation
MAINTENANCE CAPPUCCINO
CLEANING,
FILTER CHANGE,
MACHINE CLEAN,
CAPPUCCINO
RINSING,
MACHINE DESCALE,
MACHINE RINSE
Select the desired maintenance programme.
If no action is taken, programming
mode is exited automatically after approx.
five seconds.
T
PRODUCTS
SELECT PRODUCT Select your settings for the coffee and milk
specialities and hot water.
T
FILTER
I.P.W.S.
YES
NO
Indicate whether you operate your
IMPRESSA with or without a CLARIS plus filter
cartridge.
T
30
3 Familiarising yourself with the control options
Programme item Subitem Explanation
HARDNESS
(is only displayed
when the filter is not
activated)
NOT ACTIVE,
1° dH – 30° dH
Adjust the water hardness.T
ENERGY ESM
SAVE NO,
SAVE LEVEL1,
SAVE LEVEL2
Select an energy saving mode.T
TIME --:--
Set the time and weekday.T
UNIT ON --:--
MTWTFSS
Set the switch-on and switch-off time
individually for each weekday.
T
OFF AFTER
NOT ACTIVE,
0.5 HRS – 15 HRS
Set the number of hours after which the
IMPRESSA should switch off automatically.
T
RINSES
START RINSE,
CAPPU. RINSE
Set whether the switch-on rinse should
be started manually or automatically.
Set whether the prompt for cappuccino
rinsing should be started immediately or 10
minutes after preparation of a milk speciality.
T
T
RENAME
ABC...
PRODUCT NAME,
WELCOME MESSAGE,
CLOSING
Change the individual designations.T
LOGO
Select a logo which is displayed when
the graphic display is not used for other
information.
T
INFORMATION
Keep track of all prepared coffee and milk
specialities and view the care status.
T
DISPLAY
UNIT,
TIME FORMAT
Select the unit of the amount of water and
the time format.
T
LANGUAGE
DEUTSCH
ENGLISH
FRANCAIS
ITALIANO
NL
Select your language.T
EXIT
Exit programming mode.T
Loading...
