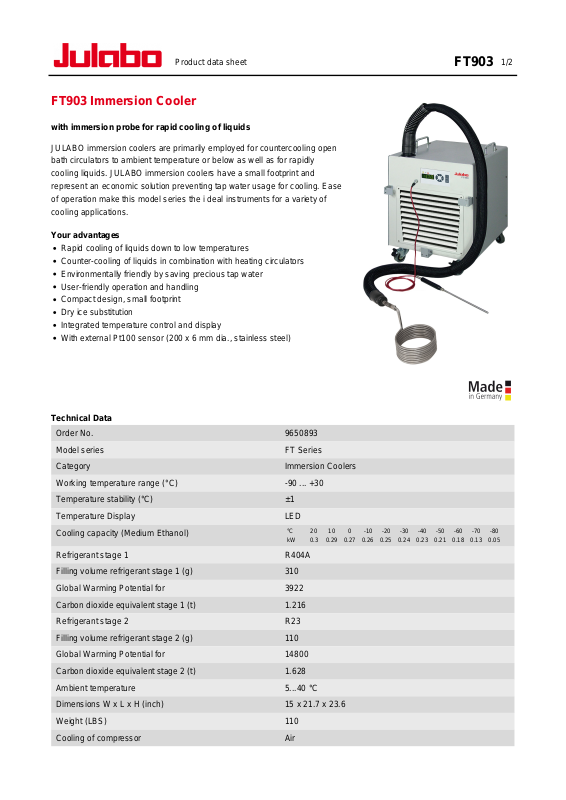

Julabo FT903 Data Sheet

Product data sheet 1/2

FT903 Immersion Cooler

with immersion probe for rapid cooling of liquids

JULABO immersion coolers are primarily employed for countercooling open
bath circulators to ambient temperature or below as well as for rapidly
cooling liquids. JULABO immersion coolers have a small footprint and
represent an economic solution preventing tap water usage for cooling. Ease
of operation make this model series the i deal instruments for a variety of
cooling applications.

Your advantages

Rapid cooling of liquids down to low temperatures
Counter-cooling of liquids in combination with heating circulators
Environmentally friendly by saving precious tap water
User-friendly operation and handling
Compact design, small footprint
Dry ice substitution
Integrated temperature control and display
With external Pt100 sensor (200 x 6 mm dia., stainless steel)

FT903

Technical Data

Order No. 9650893
Model series FT Series
Category Immersion Coolers
Working temperature range (°C) -90 ... +30
Temperature stability (°C) ±1
Temperature Display LED
Cooling capacity (Medium Ethanol)

Refrigerant stage 1 R404A
Filling volume refrigerant stage 1 (g) 310
Global Warming Potential for 3922
Carbon dioxide equivalent stage 1 (t) 1.216
Refrigerant stage 2 R23
Filling volume refrigerant stage 2 (g) 110
Global Warming Potential for 14800
Carbon dioxide equivalent stage 2 (t) 1.628
Ambient temperature 5...40 °C

°C 20 10 0 -10 -20 -30 -40 -50 -60 -70 -80
kW 0.3 0.29 0.27 0.26 0.25 0.24 0.23 0.21 0.18 0.13 0.05

Dimensions W x L x H (inch) 15 x 21.7 x 23.6
Weight (LBS) 110
Cooling of compressor Air

Product data sheet 2/2

Immersion probe 2.205 x 5.512
Connection tube (L) inch 63
Available voltage versions 230 V / 50-60 Hz

FT903
