Julabo FLW1703 Data Sheet

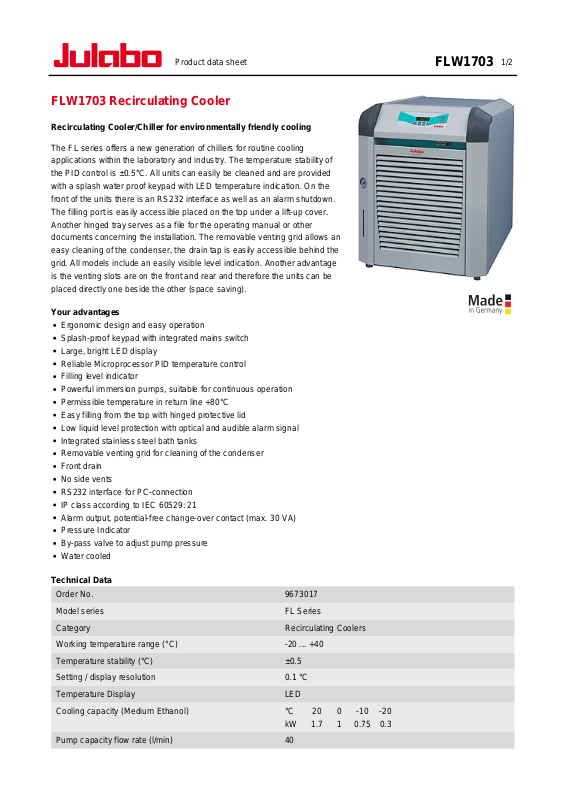

Product data sheet 1/2

FLW1703 Recirculating Cooler

Recirculating Cooler/Chiller for environmentally friendly cooling

The FL series offers a new generation of chillers for routine cooling applications within the laboratory and industry. The temperature stability of the PID control is ±0.5°C. All units can easily be cleaned and are provided with a splash water proof keypad with LED temperature indication. On the front of the units there is an RS232 interface as well as an alarm shutdown. The filling port is easily accessible placed on the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows an easy cleaning of the condenser, the drain tap is easily accessible behind the grid. All models include an easily visible level indication. Another advantage is the venting slots are on the front and rear and therefore the units can be placed directly one beside the other (space saving).

Your advantages

Ergonomic design and easy operation Splash-proof keypad with integrated mains switch Large, bright LED display Reliable Microprocessor PID temperature control Filling level indicator Powerful immersion pumps, suitable for continuous operation Permissible temperature in return line +80°C Easy filling from the top with hinged protective lid Low liquid level protection with optical and audible alarm signal Integrated stainless steel bath tanks Removable venting grid for cleaning of the condenser Front drain No side vents RS232 interface for PC-connection IP class according to IEC 60529: 21 Alarm output, potential-free change-over contact (max. 30 VA) Pressure Indicator By-pass valve to adjust pump pressure Water cooled

FLW1703

Technical Data

Order No. 9673017 Model series FL Series Category Recirculating Coolers Working temperature range (°C) -20 ... +40 Temperature stability (°C) ±0.5 Setting / display resolution 0.1 °C Temperature Display LED Cooling capacity (Medium Ethanol) °C 20 0 -10 -20

kW 1.7 1 0.75 0.3

Pump capacity flow rate (l/min) 40

Product data sheet 2/2

FLW1703

Pump capacity flow pressure (psi) 7.25...43.51 Pump connections G 3/4" Barbed fittings diameter (inner dia. / mm) 3/4" Filling volume liters 12 ... 17 Refrigerant stage 1 R404A Filling volume refrigerant stage 1 (g) 320 Global Warming Potential for 3922 Carbon dioxide equivalent stage 1 (t) 1.255 Digital interface RS232

Optional: Profibus Ambient temperature 5...40 °C Dimensions W x L x H (inch) 19.7 x 29.9 x 25.2 Weight (LBS) 201 Sound pressure level (distance 1 m) max. (dBA) 60 Included with each unit 2 barbed fittings for tubing 3/4" inner dia. (pump

connections G3/4" male). Cooling water connection G 3/4"

male with barbed fittings for tubing 1/2" inner dia. Cooling of compressor Water Power requirement V / Hz / A 230/60/10 Available voltage versions 230 V / 50 Hz

230 V / 60 Hz

Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids

Refrigerant specifications are valid for the 50 Hz version.

Characteristics

Display

Easy to read

Large LED temperature display for actual value and setpoint

Refrigeration Technology

Consistent cooling capacity

Easily removable venting grid for quick and easy cleaning

(resolution 0.1 °C)

Technical Features

Operation

Serial connection

Simple and fast

Convenient 3-key setpoint adjustment (FL models)

RS232 interface for PC connection, e.g. for data communication and recording of measured values

Temperature Control

Precise

PID Temperature control with set control parameters, temperature stability ±0.02...±0.2 °C

Refer to www.julabo.us for more information regarding the entire JULABO product portfolio. Technical changes without prior notification. Images may deviate from the original.
