juki PM-1 INSTRUCTION MANUAL

How to set up PM-1

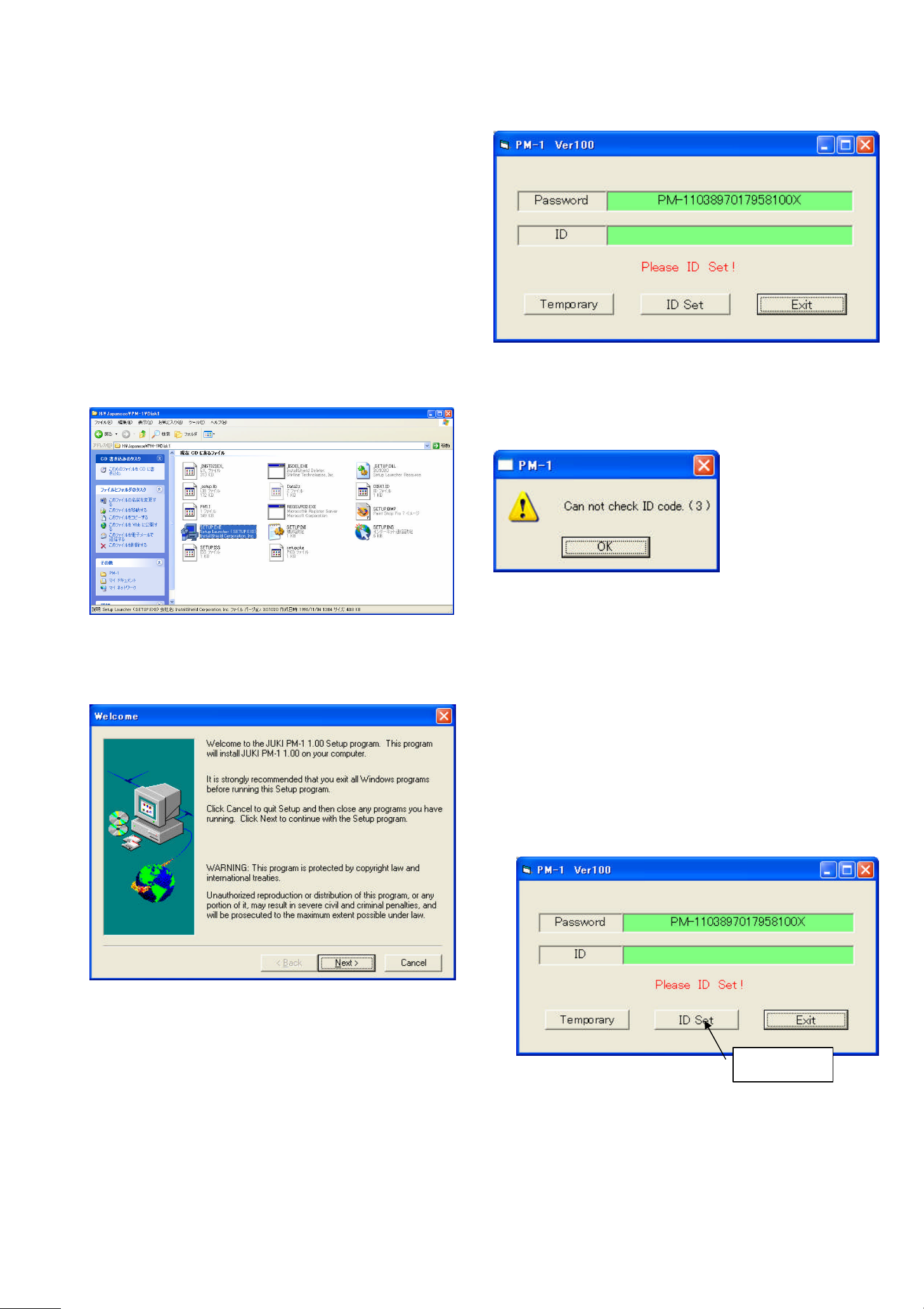

8. When PM-1 is started for the first time, the following dialog

JUKI CORPORATION

Installation of PM-1

1. Turn on the computer.
* Windows 2000 user must log in as ‘administrator.’

2. Insert the Installation CD-ROM to the CD drive.

3. From ‘My Computer,’browse through CD drive to

locate ‘SETUP.EXE’

4. (For English version) English¥PM-1¥Disk1

(For Japanese version) Japanese¥PM-1¥Disk1

box pops up.

In case the error message is given instead of the above, it
means it found the problem on SetJID. In such a case, click on
‘OK’to exit, install SetJID, then start PM-1 again.

5. Double click on ‘SETUP.EXE’willstartthe installation wizard.

Follow through the guidance.

9. Make a note of the password shown in the dialog. Click on
‘EXIT’to get out.

10. By telling (ｂｙ phone, E-mail, fax, etc…) the password to
Mike Miller [phone], Fax # [phone], Email
Miller@ Juki .com, you will be able to obtain an ID code that
releases protection.

11. Once you obtain an ID code, start PM-1, the password
dialog pops up. Click on ‘ID Set’to enter the code. Click on
‘EXIT’to get out

6. Installationwill be completed as you pass through the last part
of the wizard.

7. From ‘START’button, go to Program>JUKI PM-1 to start
PM-1 software.

Click here

Enter ID code which you obtain

12. PM-1 will start once the ID code provided is legitimate, and
the password dialog will not be displayed from next time.

If the ID code is not recognized as legitimate, an error
message (fig.) pops up and PM-1 will not start. In this case,
after clicking ‘OK’, start PM-1 again, and enter the right ID

Installation of SetJID

1. Insert the Installation CD-ROM to the CD drive.

2. From ‘My Computer,’browse through CD drive to locate
‘SETUP.EXE’
(For Japanese version) Japanese¥SetJID
(For English version) English¥SetJID

3. Double click on ‘SETUP.EXE’will start the installation
wizard. Follow through the guidance.

code.

1. JUKI holds the copyrights of this product.

2. Utilization or reproduction of this Instruction Manual and software of this product in whole or
in part without prior permission in writing of JUKI Corporation is prohibited.

3. This product is protected under the Japan Copyright Act and International Copyright Conventions.

4. In principle, the user is requested to purchase one set of this product for one unit of personal computer.

5. Please understand that JUKI assumes no responsibility for any effect exerted by results arising out of the use of
this product.

6. The design and specifications described in this Instruction Manual are subject to change without notice.

*Windows2000 is a registered trademark of Microsoft Corporation, U.S.A.

Copyright c 2003 JUKI Corporation. All rights reserved.
