JRC JLN-205MK2, NWZ-4610 Quick Reference

QUICKQUICK

REFERENCEREFERENCE

MULTI INFORMATION DISPLAYMULTI INFORMATION DISPLAY

NWZ-4610/JLN-205MK2NWZ-4610/JLN-205MK2

DOPPLER LODOPPLER LOG /ドップラログドップラログ

簡易取扱説明書簡易取扱説明書

i

General Information

Thank you for purchasing the Japan Radio Co., Ltd. NWZ-4610. This equipment can be used as a
display unit for Multi Information display (MID) and Doppler log (JLN-205MK2).

Multi Information display (MID)
The MID is the display unit that receives NMEA data items from various sensors to display them.

Doppler LOG
The JLN-205MK2 provides accurate displays of ship’s speed over a wide range from dead slow to
maximum.

● Before attempting to operate this equipment, read this instruction manual thoroughly to ensure

correct and safe operation in accordance with the warning instructions and operation
procedures.

● You are strongly recommended to store this instruction manual carefully for future reference.

In the event that you have an operational problem or malfunction, this manual will provide
useful instructions.

ii

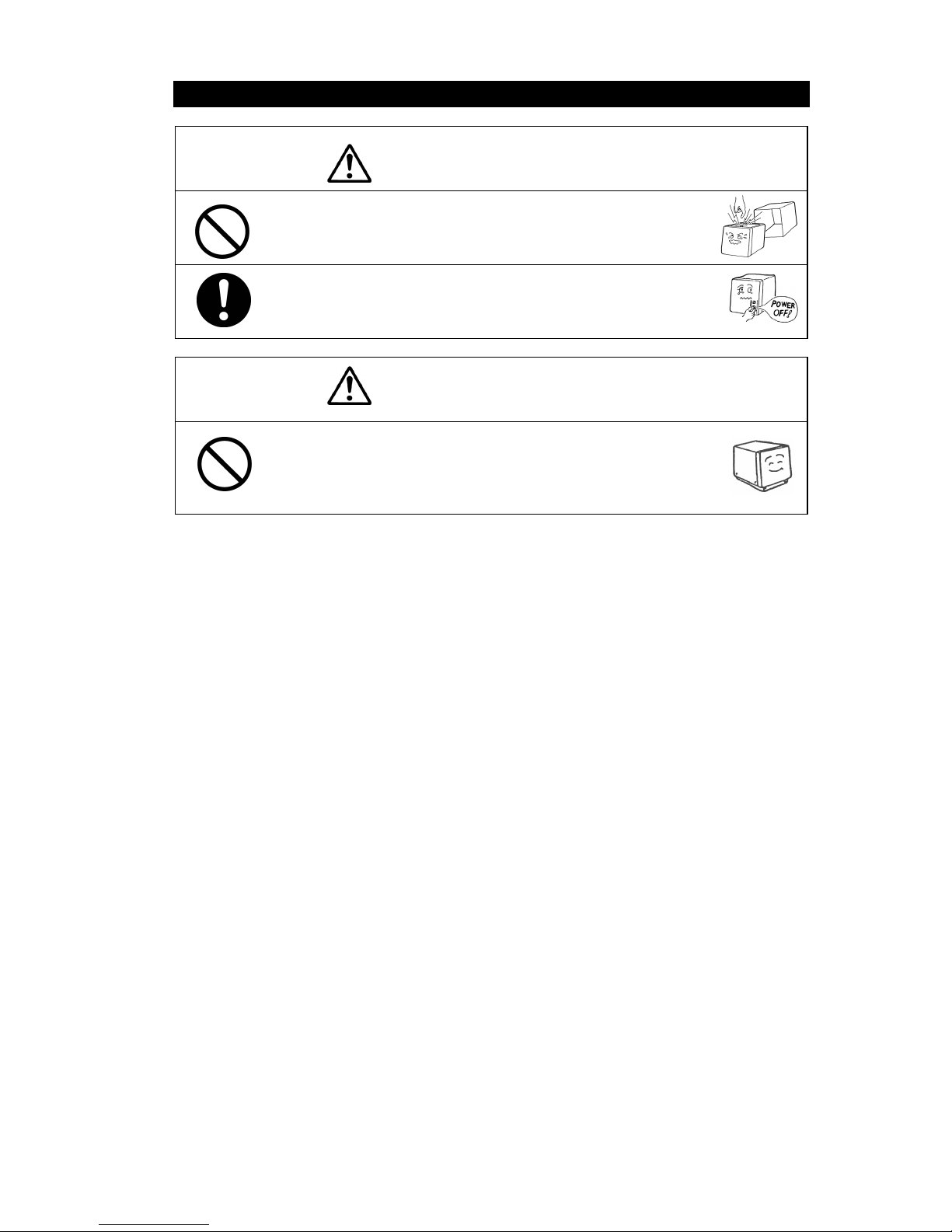

Before You Begin

Symbols Used In This Manual

In this manual, and on the equipment, we use several warning signs to call your attention
to important items that, if not handled correctly, could present danger to yourself or property.
These warning note classifications are as described below.
Please be fully aware of the importance of these items before using this manual.

Indicates warning items that, if ignored, may

result in serious personal injury or even death.

Indicates cautionary items that, if ignored, may

result in personal injury or physical damage.

Examples of Related Symbol Marks Used in this Manual and on the Unit

Each mark is intended to alert the user to the presence of
precautions including danger and warning items. The picture in

each

mark (“Electric shock” in the example on the left.) alerts

you to operations that should be carefully performed.

Each

mark is intended to alert the user to the presence of
prohibited activity. The picture/word in/beside each mark
(“Disassembling Prohibited” in the example on the left.) alerts you
to operations that are prohibited.

Each

mark is intended to alert the user to the presence of

necessary instructions. The picture in each

mark (“Disconnect

the power plug” in the example on the left.) alerts you to operations
that must be performed.

WARNING LABEL

You can see the warning label on the top of the unit.
Do not attempt to remove the warning label from the unit or impair or modify it.

iii

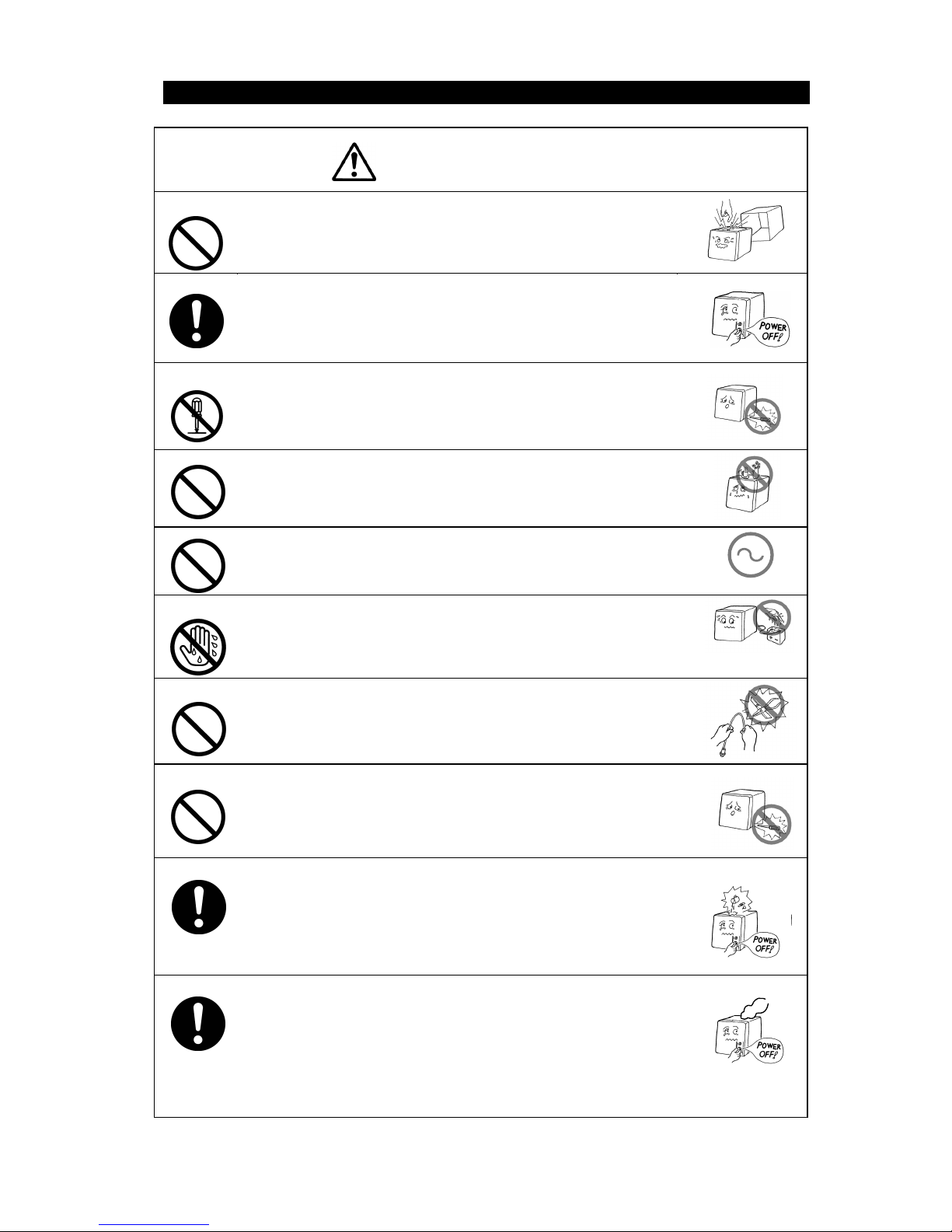

Usage Hints

Do not remove the cover of this unit. Otherwise, you may touch
a high-voltage part and suffer from an electric shock.

Turn off the power on/off switch, and turn off the power supply
breaker when you for maintenance check this unit for
maintenance. Otherwise, a fire, an electric shock, or a failure
may occur.

Do not disassemble or modify this unit. Otherwise, a fire, an
electric shock, or a failure may occur.

Do not place a vessel containing water, etc. or a metallic object
on this unit. When water spills or when water or the object
enters the unit, a fire, an electric shock, or a failure may occur.

Do not use this unit at a voltage other than the supply voltage
stated on the unit. Otherwise, a fire, an electric shock, or a
failure may occur.

Do not insert or remove the power cord or operate switches
with a wet hand. Otherwise, you may suffer from an electric
shock.

Do not damage or modify the power cord. Placing a heavy
object onto, heating, stretching or bending the cord may cause
a fire or an electric shock.

Do not check or repair in this unit. Please call our field
representative or your nearest JRC office for inspection and
repair services. Otherwise It may cause a fire or an electric
shock.

In the event that you spill or drop any liquids or metals etc., turn
off the unit, turn off the power supply breaker, and contact your
sales agent outlet or one of JRC branch offices, sales centers
or liaison offices. Otherwise continuing operation may cause a
fire, an electric shock or a malfunction.

In the event that smoking or burning odors are detected,
immediately terminate operation of the unit and contact your
sales agent outlet or one of JRC branch offices, sales centers
or liaison offices. Never attempt to check or repair the interior
of the unit. Otherwise continuing operation may cause a fire or
an electric shock.

ＡＣ

WARNING

iv

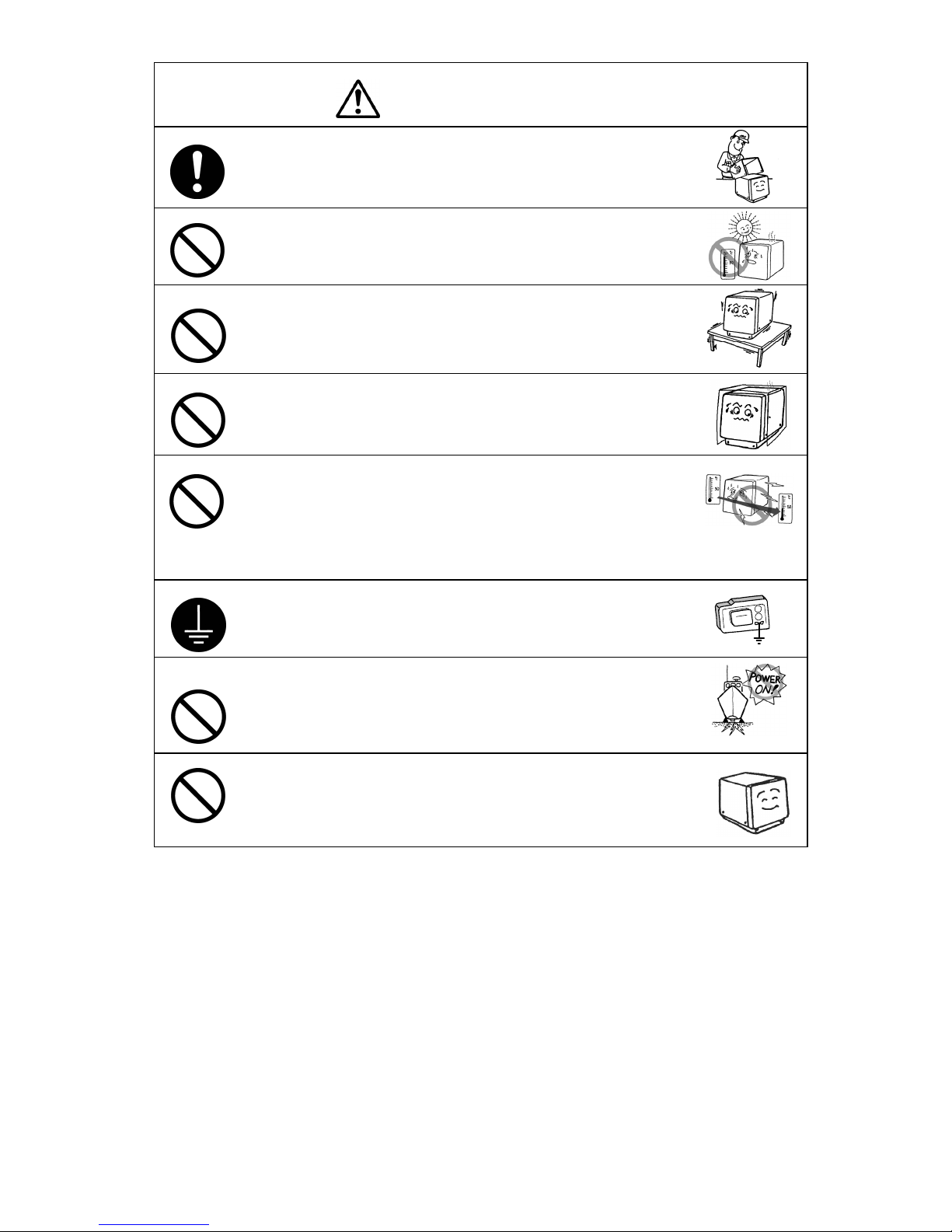

Without qualified service personnel, do not attempt to install
this unit. Contact our service center or agent for any electrical
work or installation of this unit. Otherwise it may cause a
malfunction.

Do not install this unit at the place exposed to direct sunlight for
a long time or hit by hot wind or where the temperature rises
above 55℃. Otherwise it may cause a fire or a breakdown.

Do not place the unit on a wobbly stand or any unsteady
foundation. Otherwise it may cause the unit to fall, resulting in
an injury or a damage.

Do not put this unit in the cabinet, and do not cover with the
nonporous thing such as cardboard. Heat shuts oneself up,
and it may cause a fire or a breakdown.

When this unit is suddenly moved from a cool place to a warm
place, drew condensation water may form on the inside
windows, and the liquid crystal part can become visually
difficult. In this case, leave the unit for a while until becoming
dry condition. Then operate the unit.

When installing this set, be sure to connect the grounding wire
or the grounding plate to the grounding terminal of the unit.
Otherwise you may suffer from an electric shock.

Do not turn on the power switch of the Doppler log while the
ship is on the shore. Otherwise, the transducer may
malfunction.

Do not use an organic solvent such as thinner or benzine when
you clean the surface of the unit. For cleaning the surface,
remove the dust and wipe with clean dry cloth.Otherwise, the
painting on the surface may be damaged

CAUTION

v

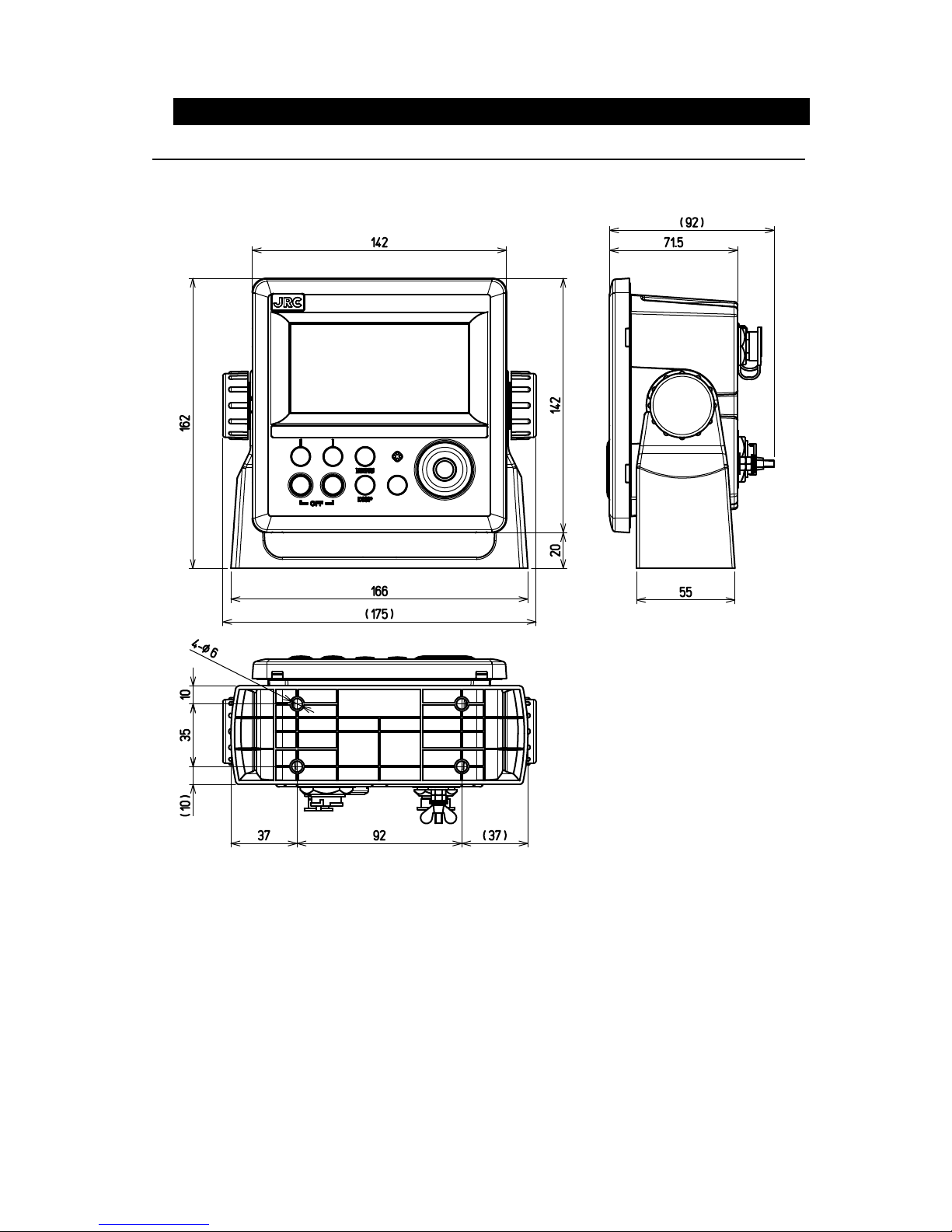

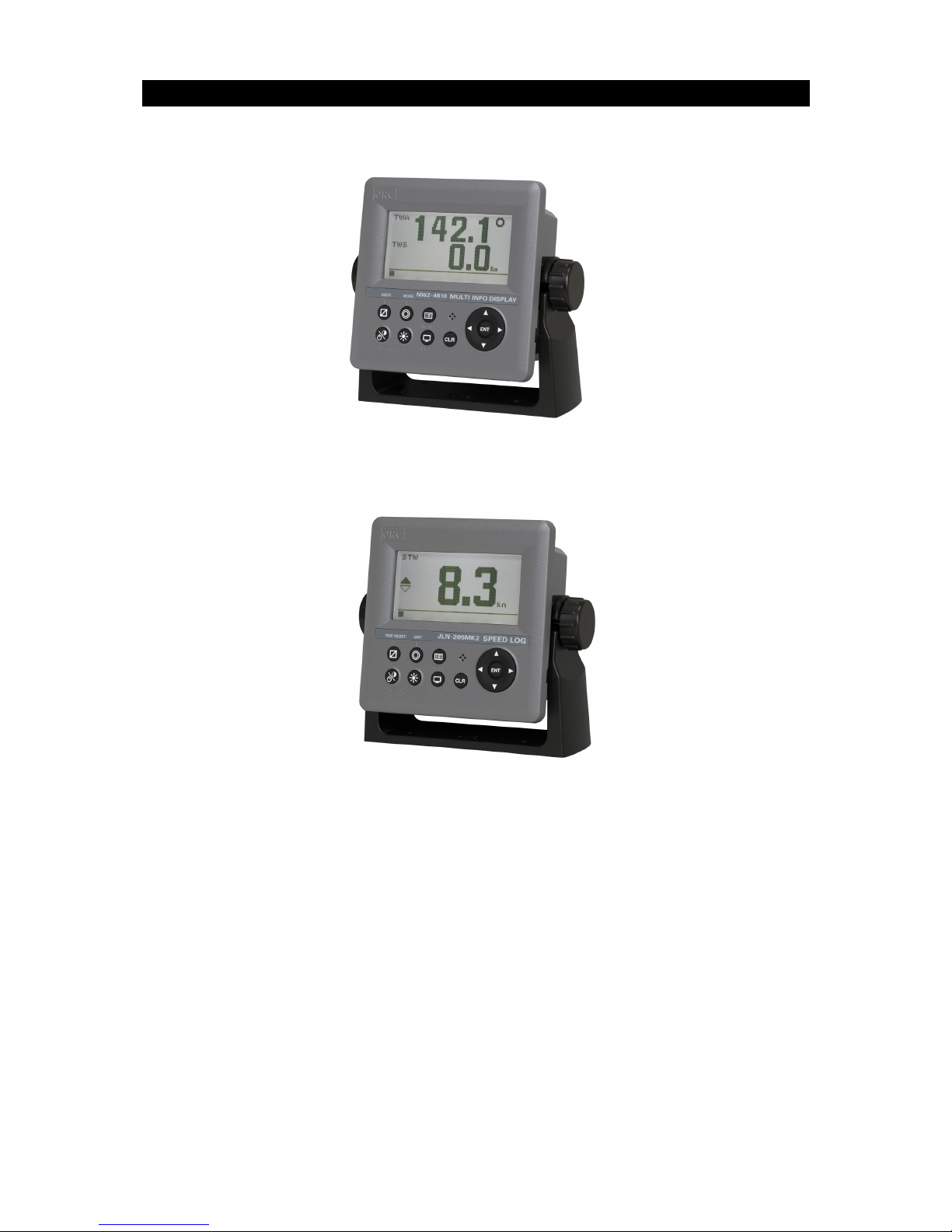

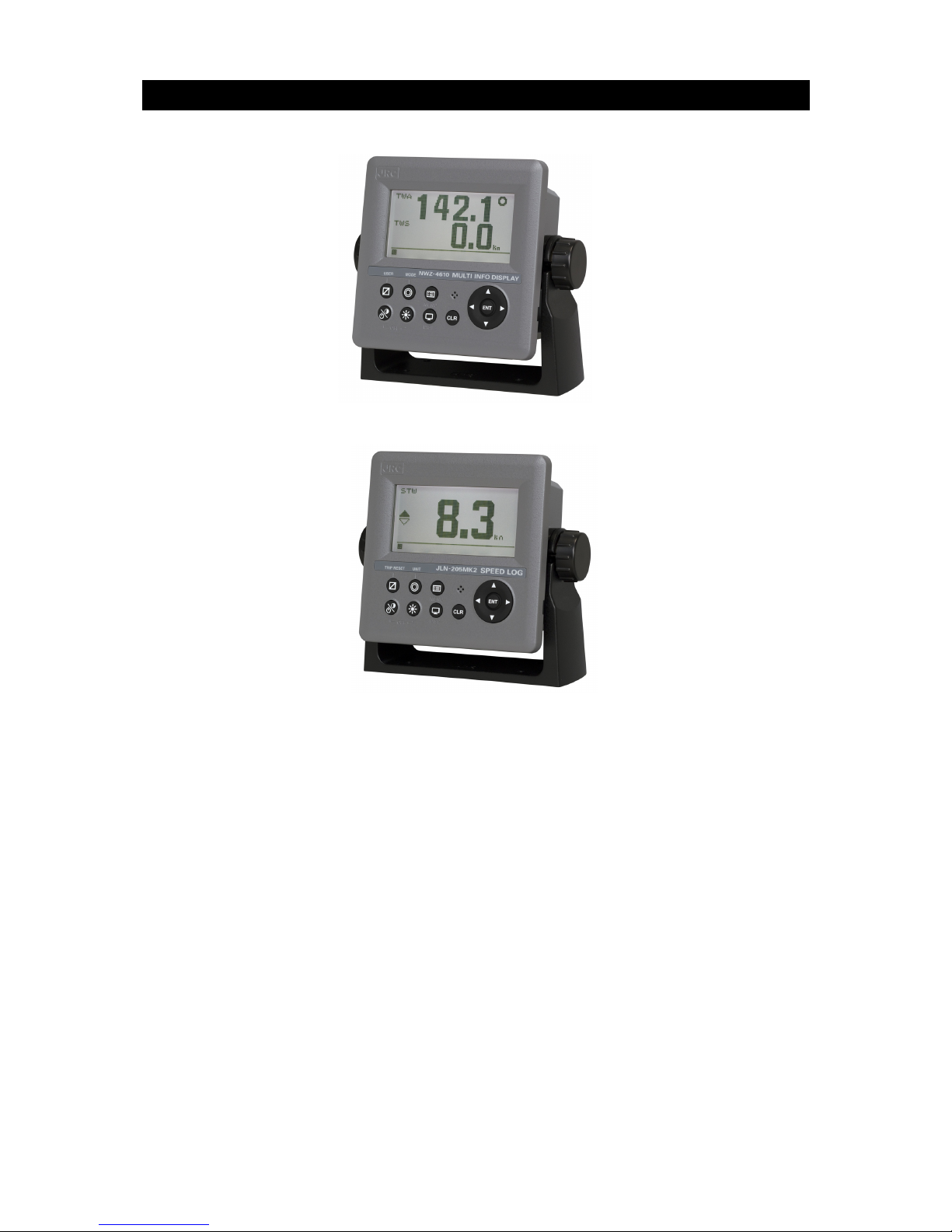

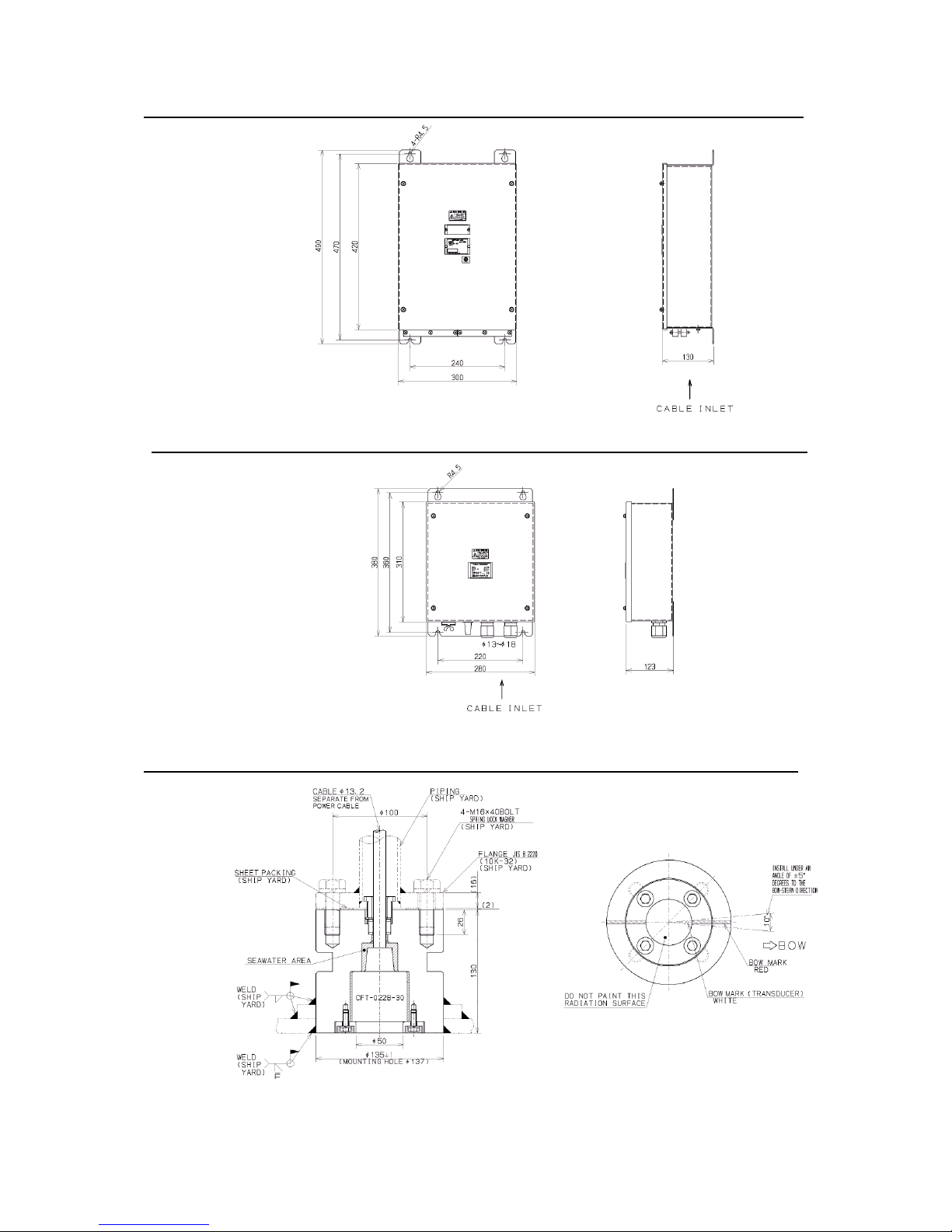

External View

● MID NWZ-4610 Display unit

● Doppler Log JLN-205MK2 Display unit

Contents

General Information .................................................................................................... ⅰ

Before You Begin .................................................................................................... ⅱ

Usage Hints .................................................................................................... ⅲ

External View .................................................................................................... ⅴ

Section 1 Introduction ..................................................................... 1-1

1.1 Function ..................................................................... 1-1

1.2 Feature ..................................................................... 1-1

1.3 Components ..................................................................... 1-2

1.3.1 Standard equipments ..................................................................... 1-2

1.3.2 Options ..................................................................... 1-3

1.4 Construction ..................................................................... 1-4

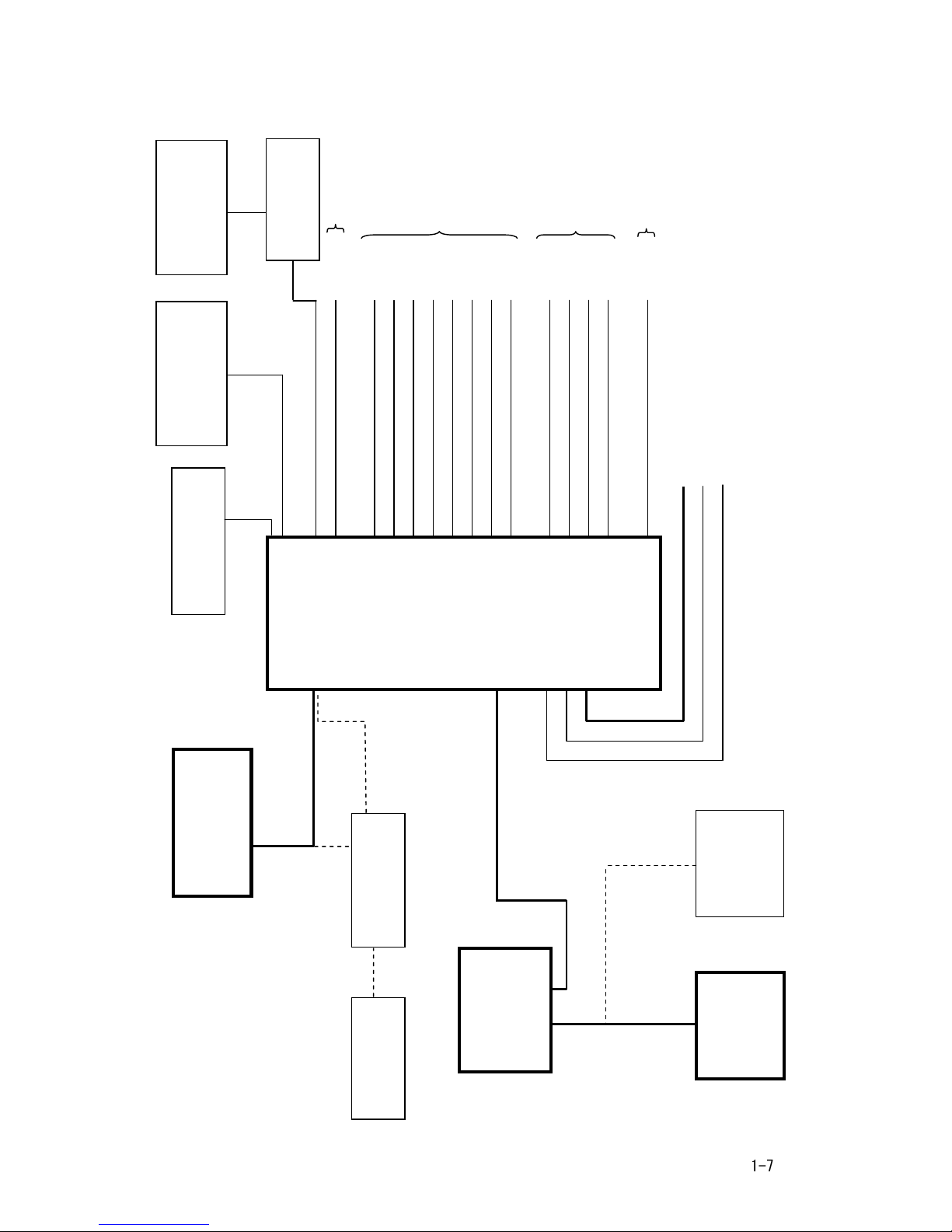

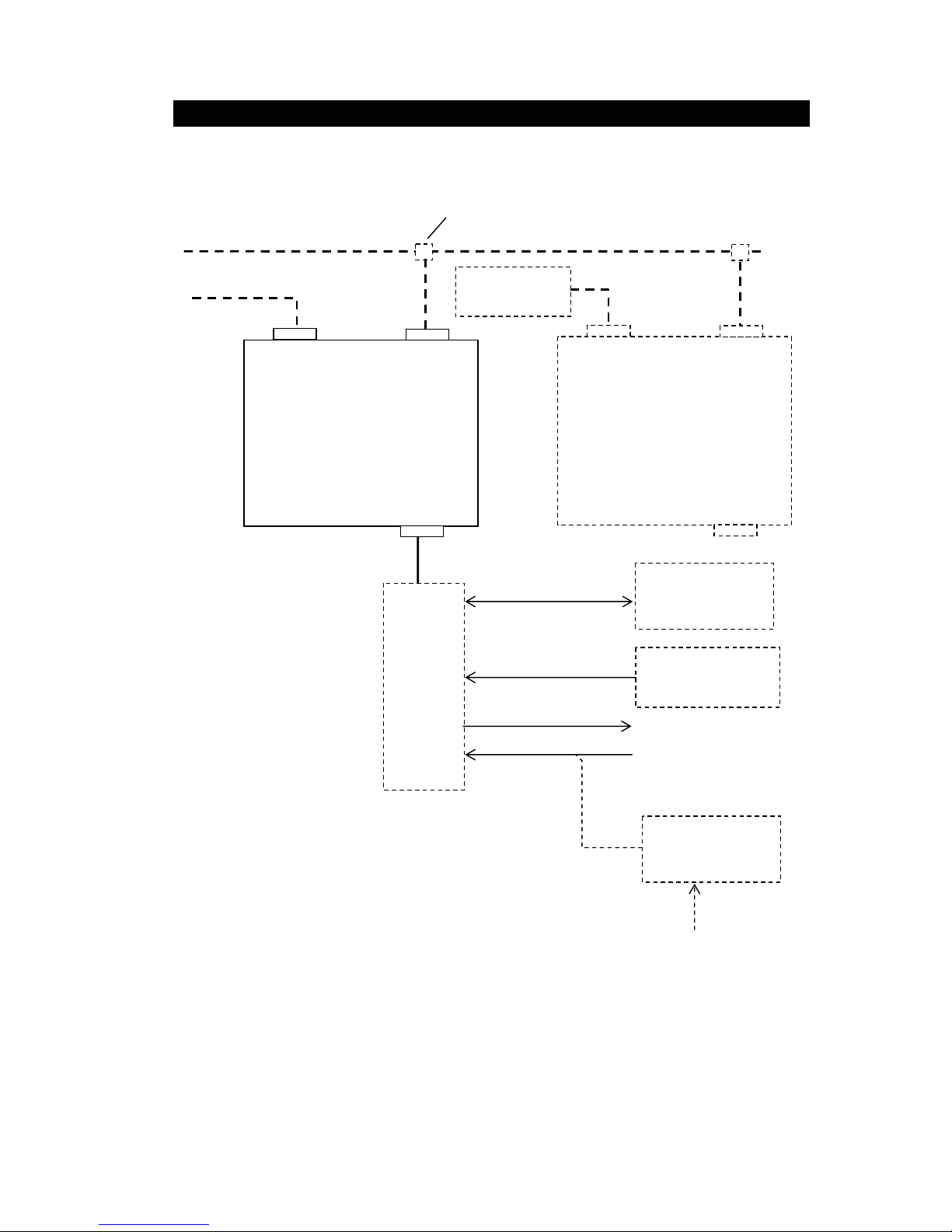

1.5 System Configuration ..................................................................... 1-6

Section 2 Names and Functions of the Components ........................................ 2-1

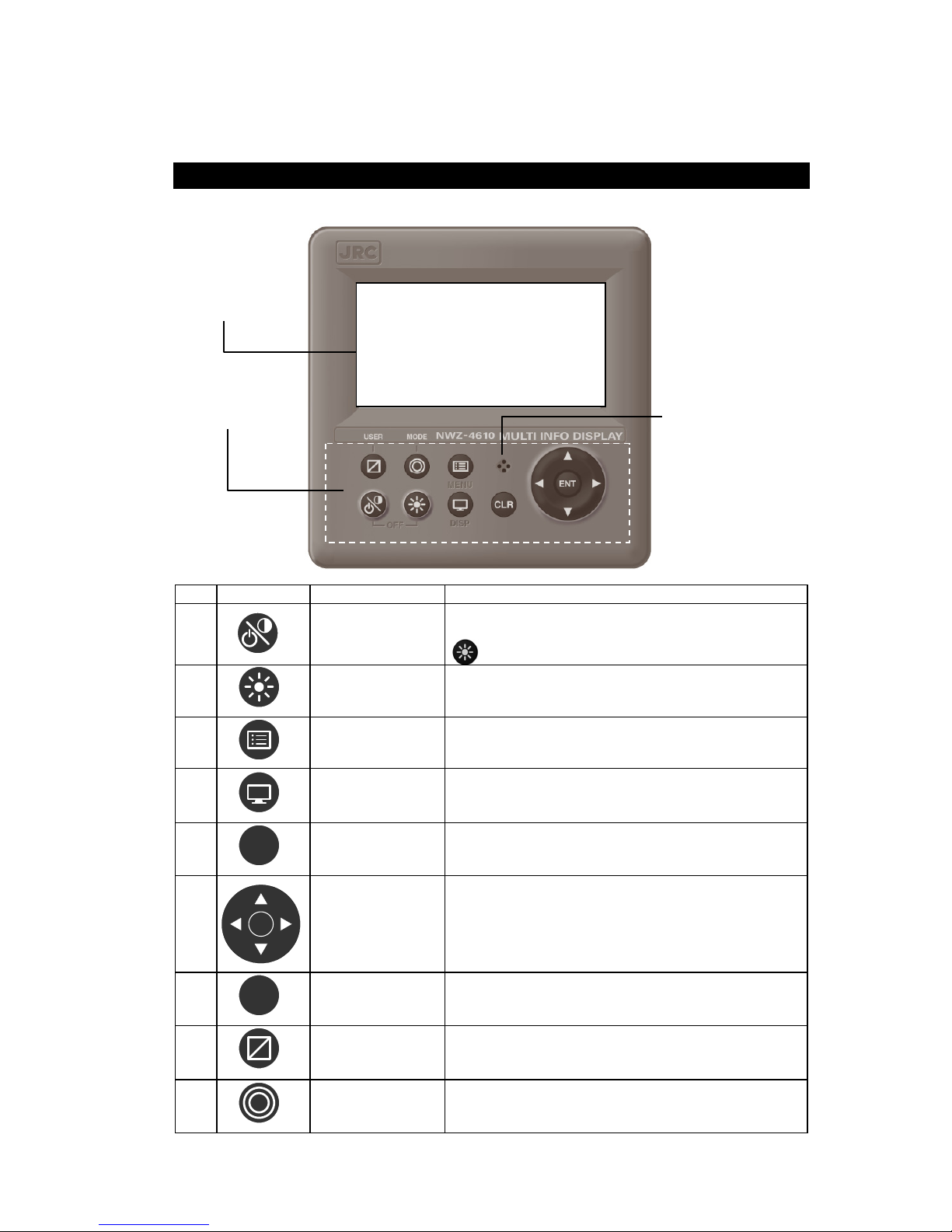

2.1 NWZ-4610 Display unit ..................................................................... 2-1

Section 3 Display Screen ..................................................................... 3-1

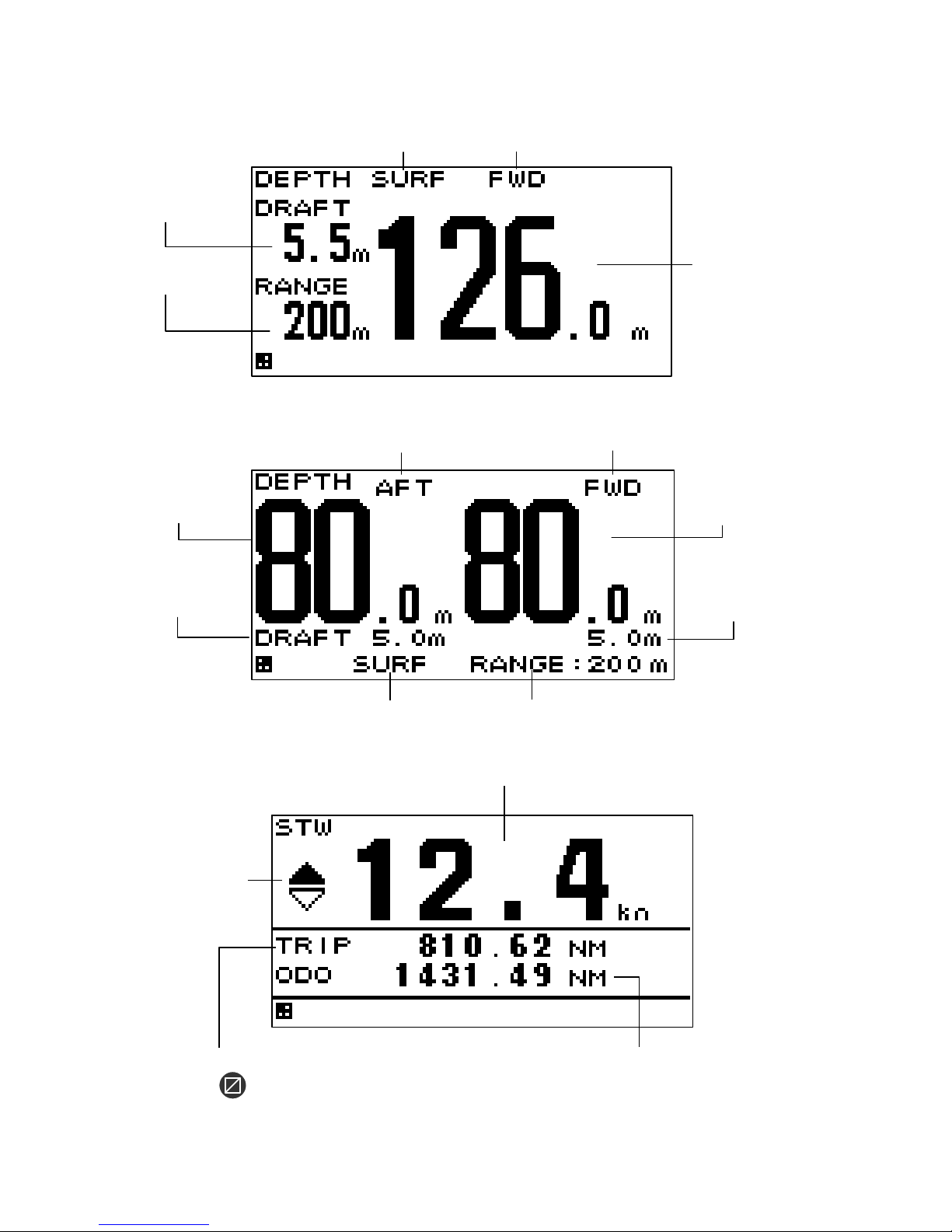

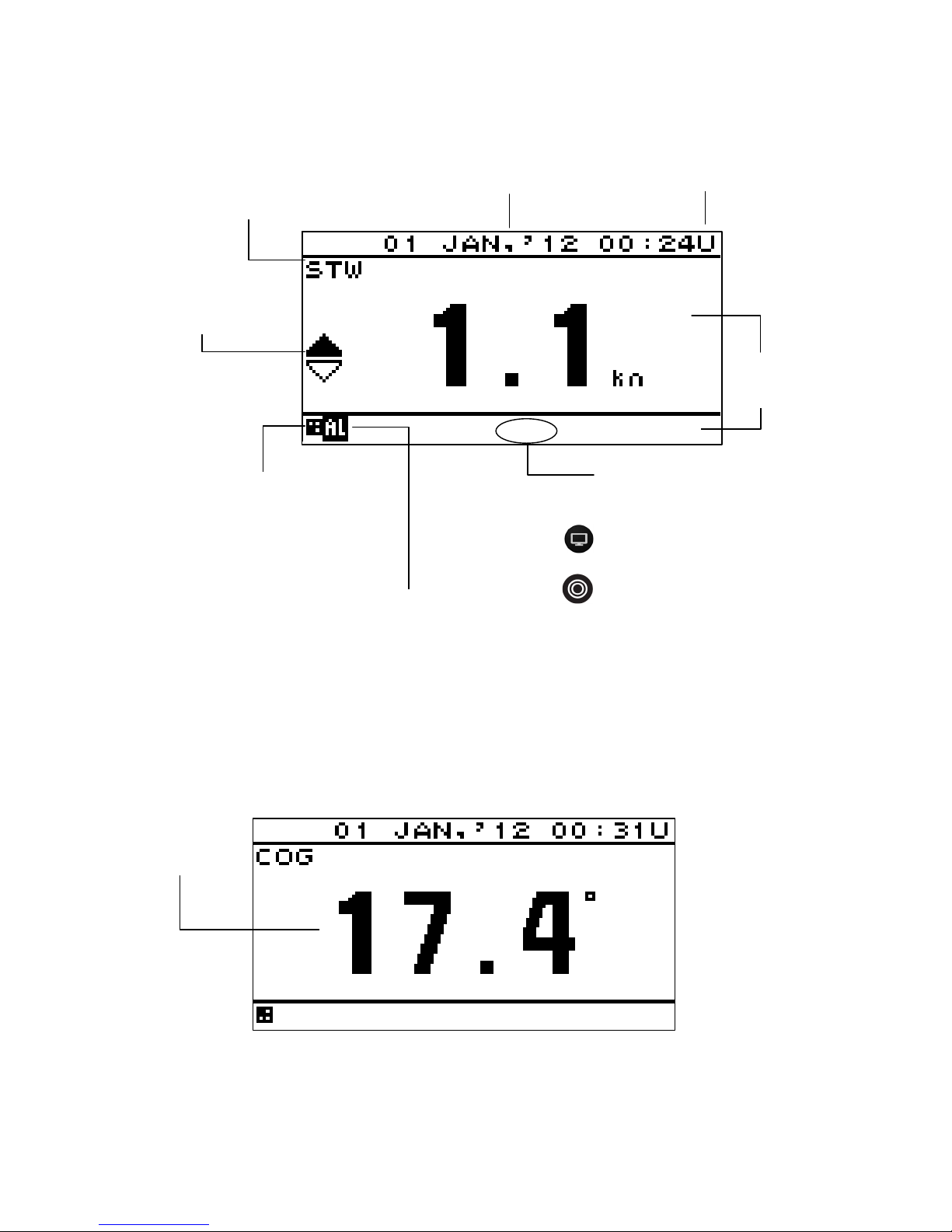

3.1 Display screen ..................................................................... 3-1

Section 4 Operation ..................................................................... 4-1

4.1 Basic Operation ..................................................................... 4-2

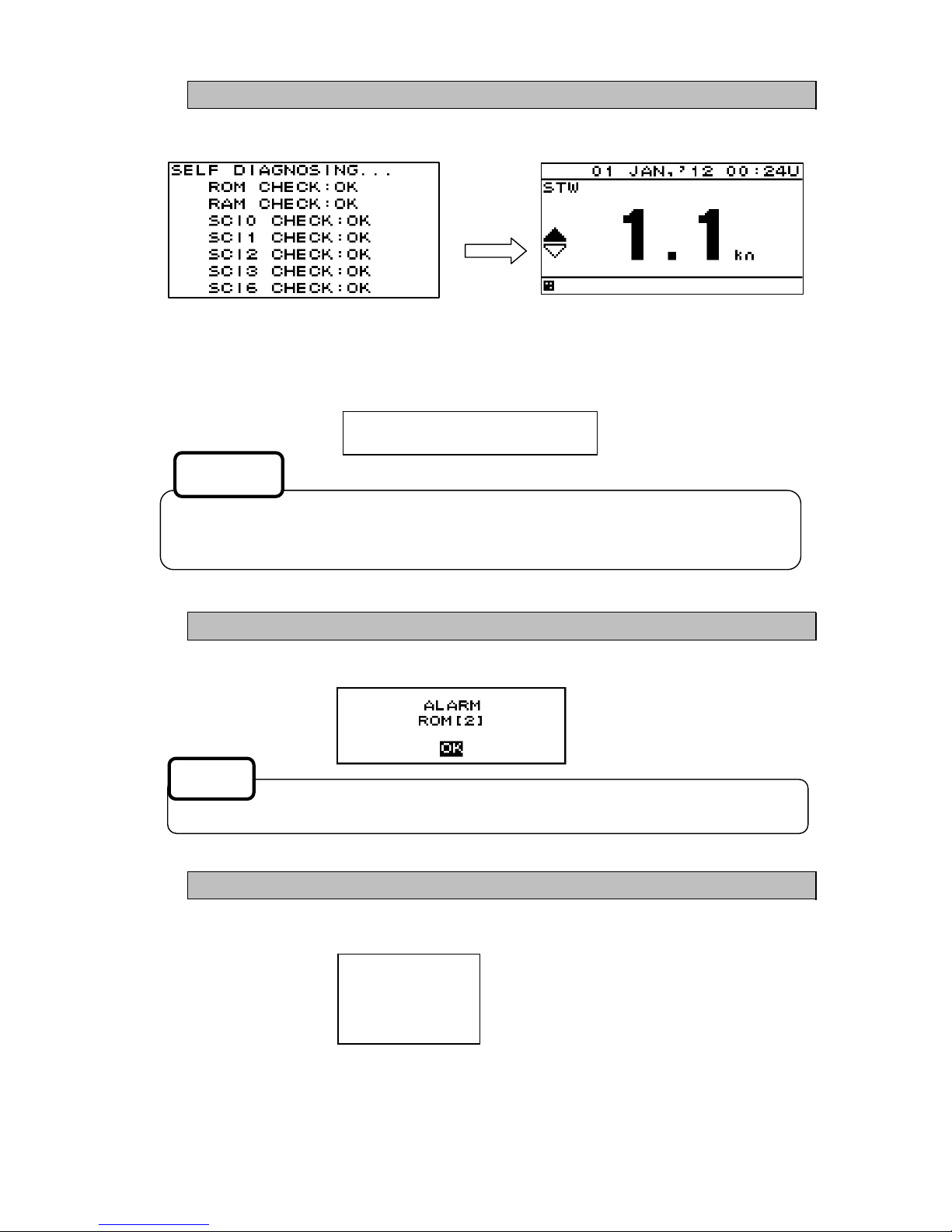

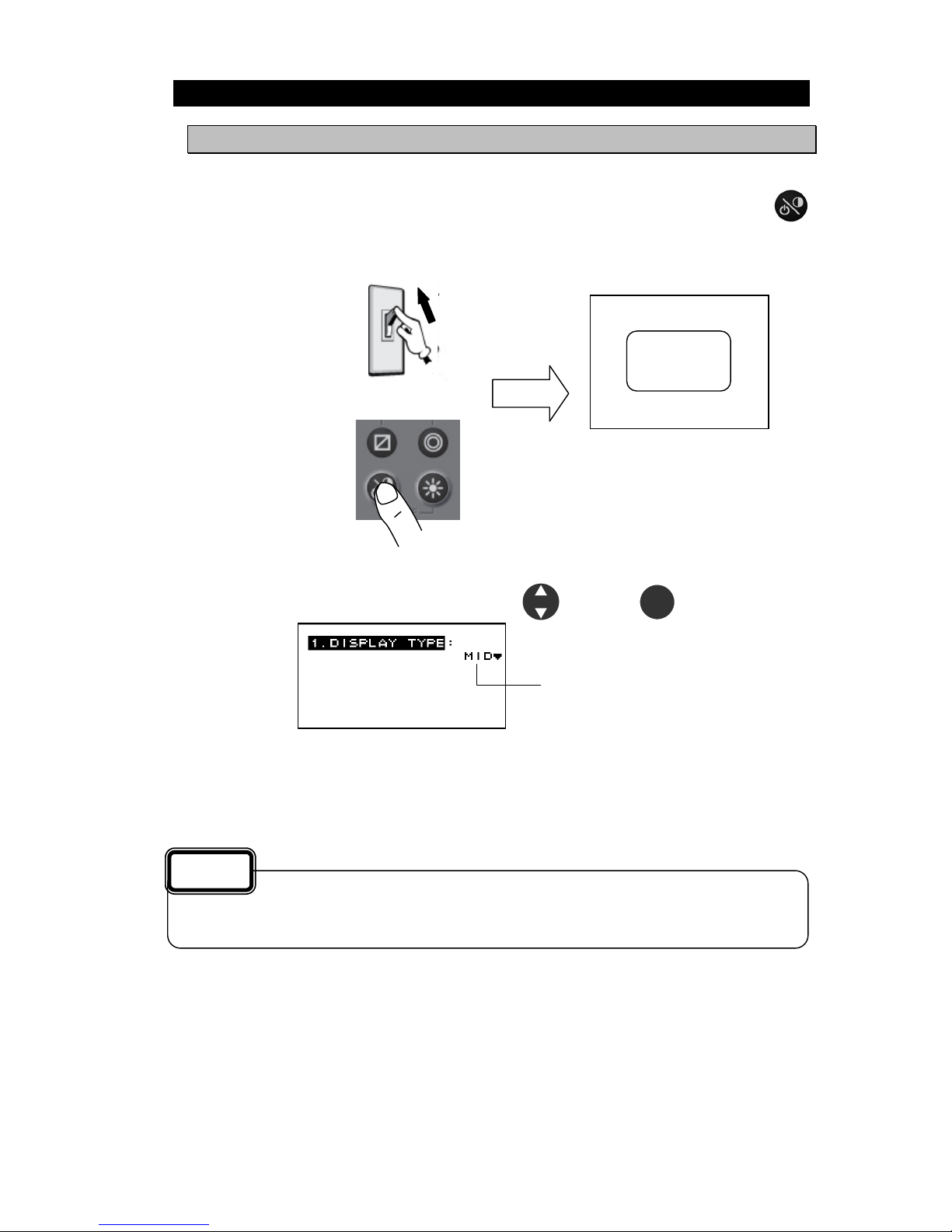

4.1.1 Turning on the power ..................................................................... 4-2

4.1.2 Starting (Normal) ..................................................................... 4-3

4.1.3 Starting (Abnormal) ..................................................................... 4-3

4.1.4 Starting (Abnormal) ..................................................................... 4-3

4.1.5 Turning off the power ..................................................................... 4-4

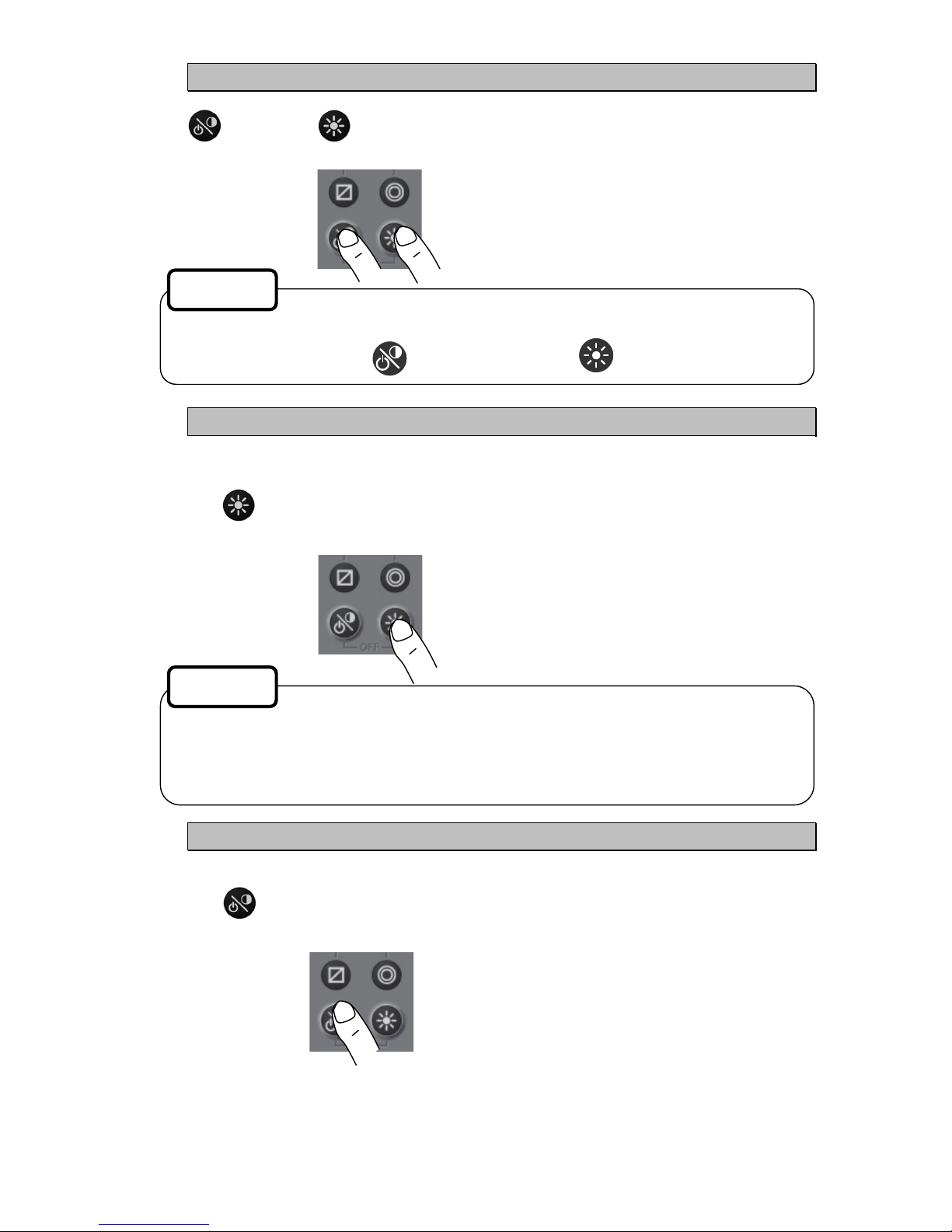

4.1.6 Adjusting the back light (lighting) by using the key.......................... 4-4

4.1.7 Adjusting contrast ..................................................................... 4-4

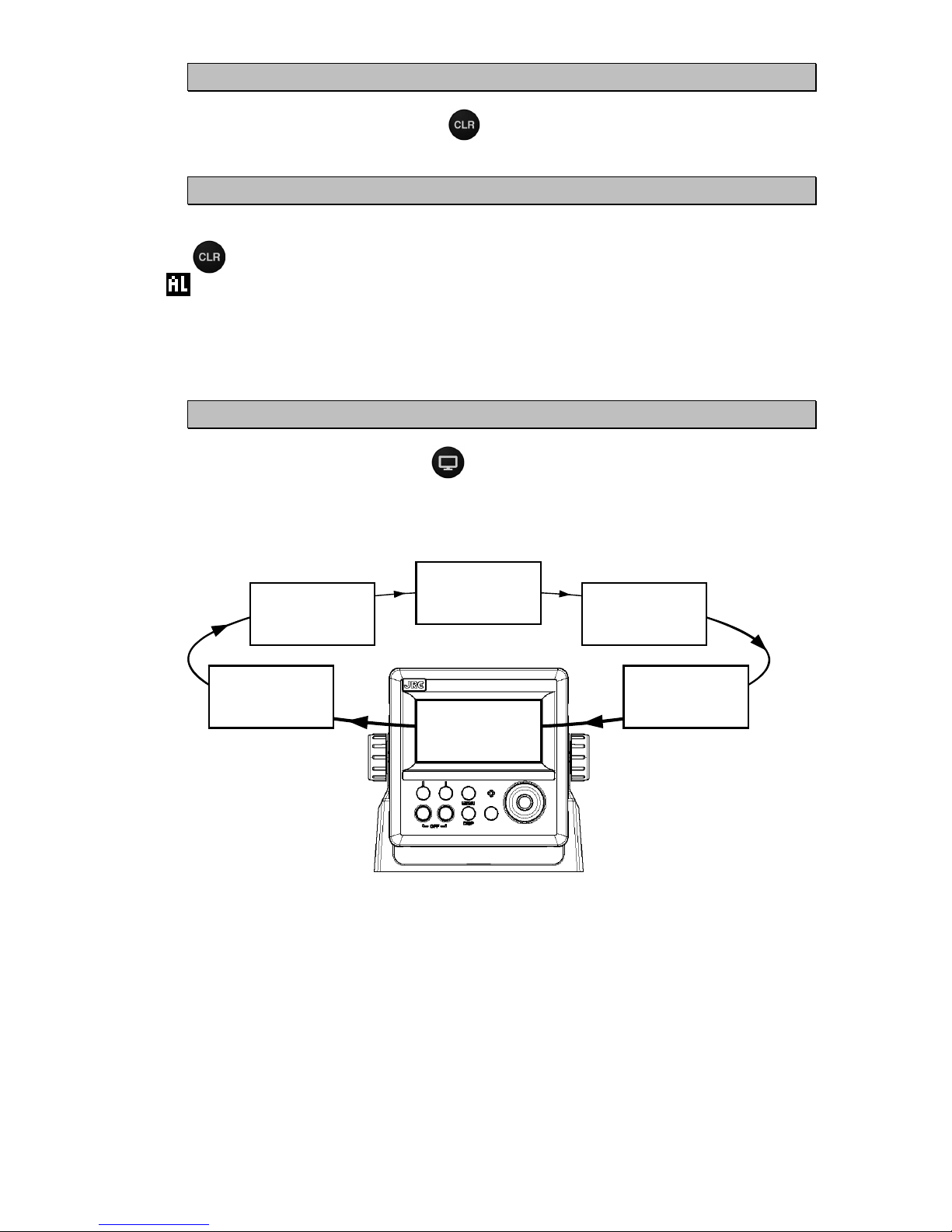

4.1.8 Turning off the alarm buzzer ....................................................... 4-5

4.1.9 Alarm display ..................................................................... 4-5

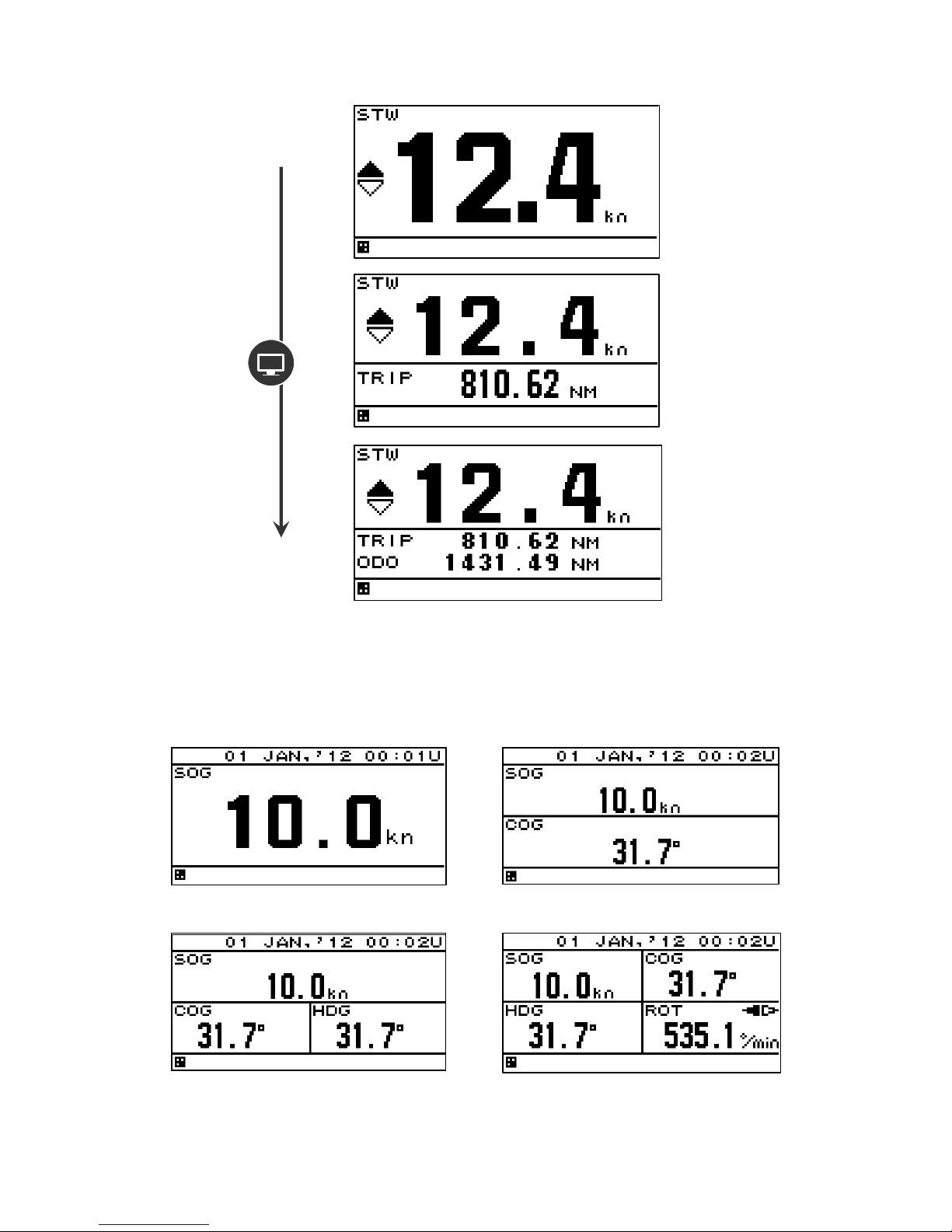

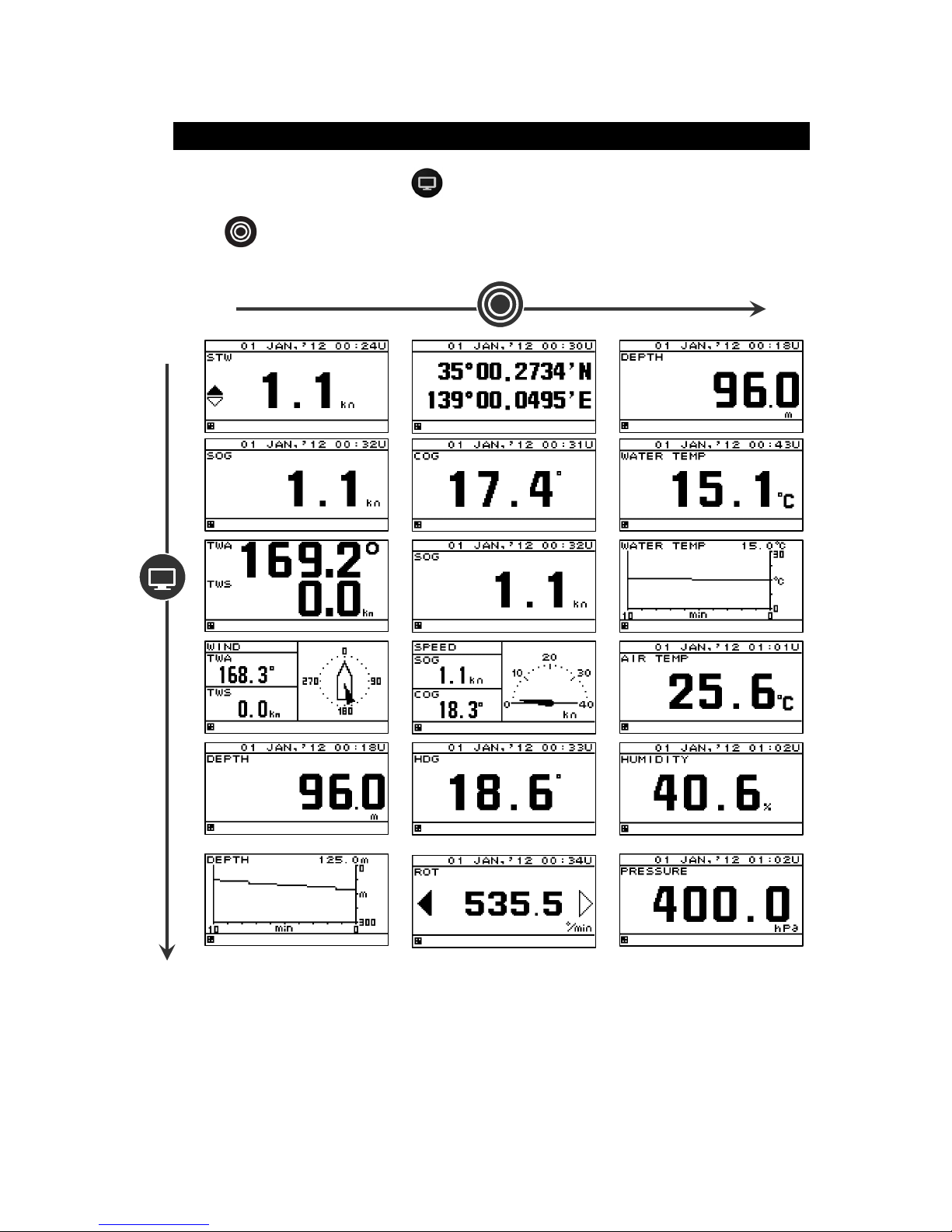

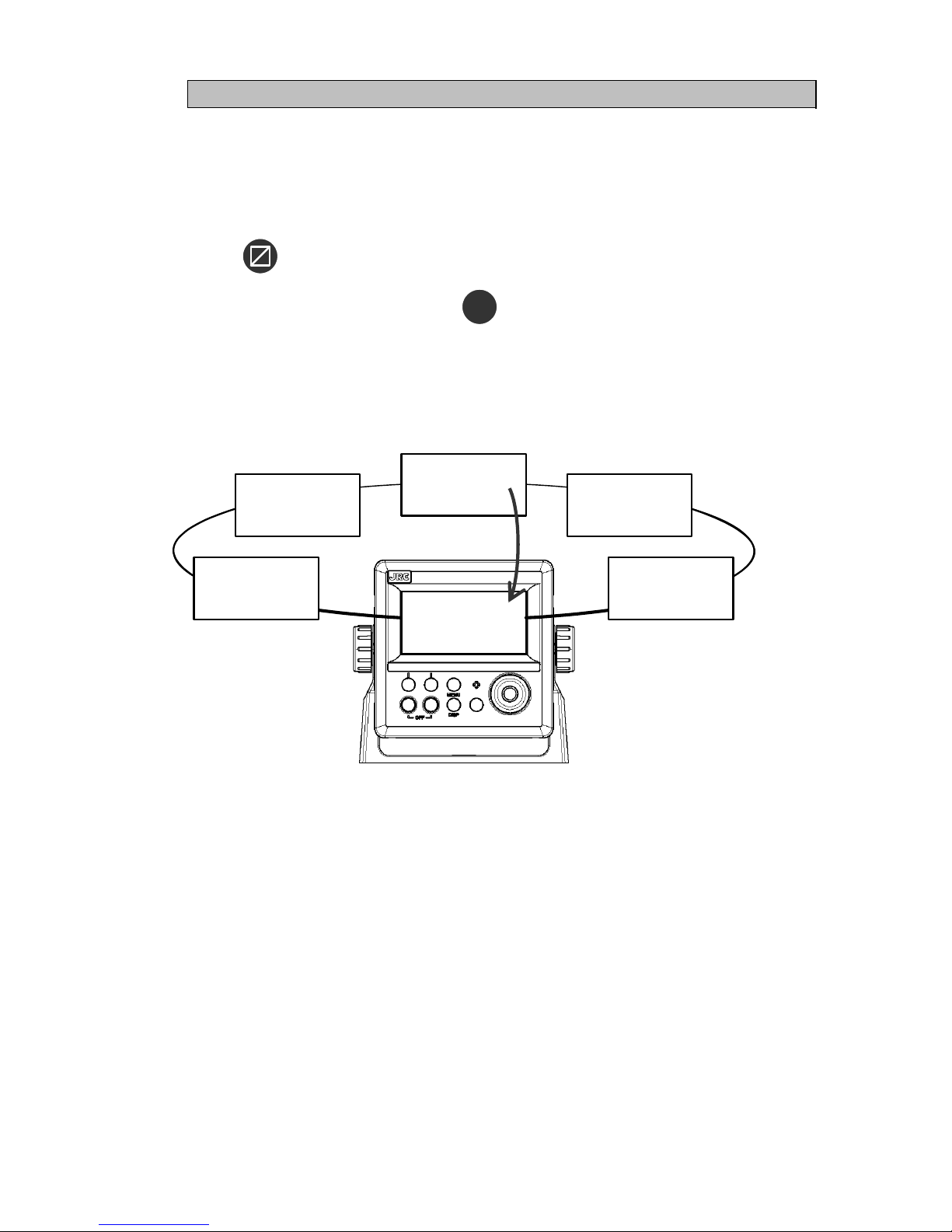

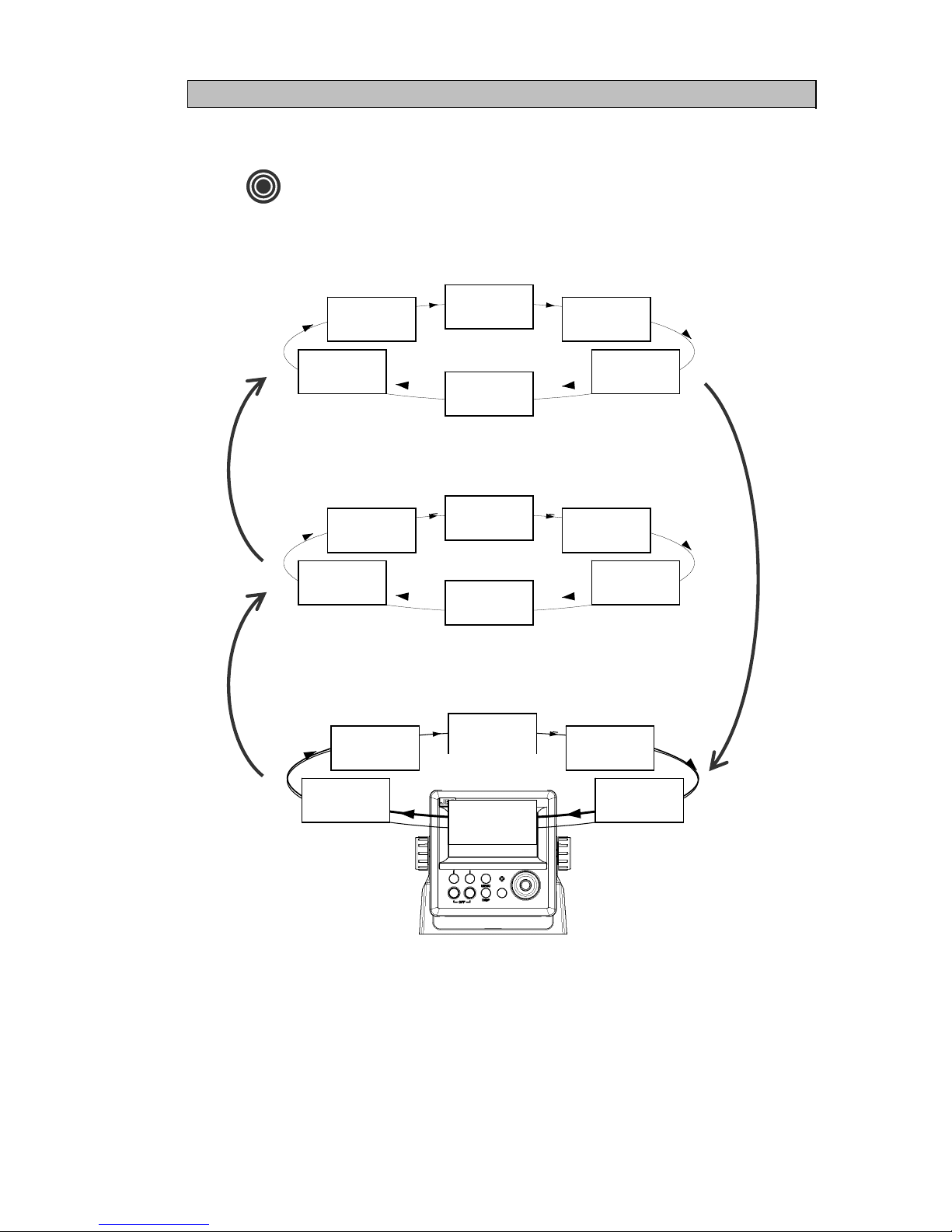

4.1.10 Switching display ..................................................................... 4-5

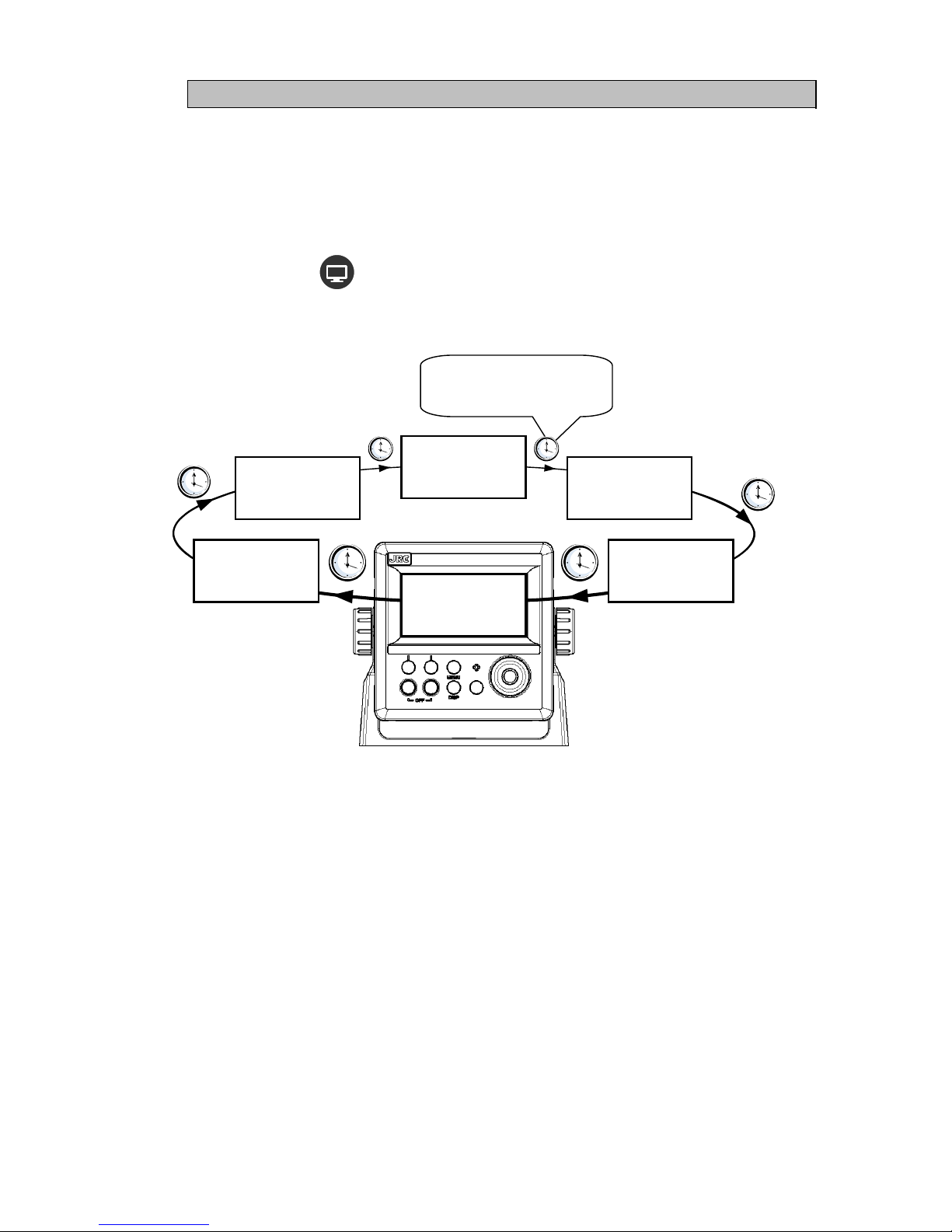

4.1.11 Switching display (automatic) ....................................................... 4-6

4.1.12 User Mode change (MID) ....................................................... 4-7

4.1.13 User setting screen display (MID) ......................................... 4-8

4.1.14 Resetting a TRIP (LOG) ....................................................... 4-9

4.1.15 Changing a unit of the vessel speed (LOG) .......................... 4-9

4.2 Menu Operation ..................................................................... 4-10

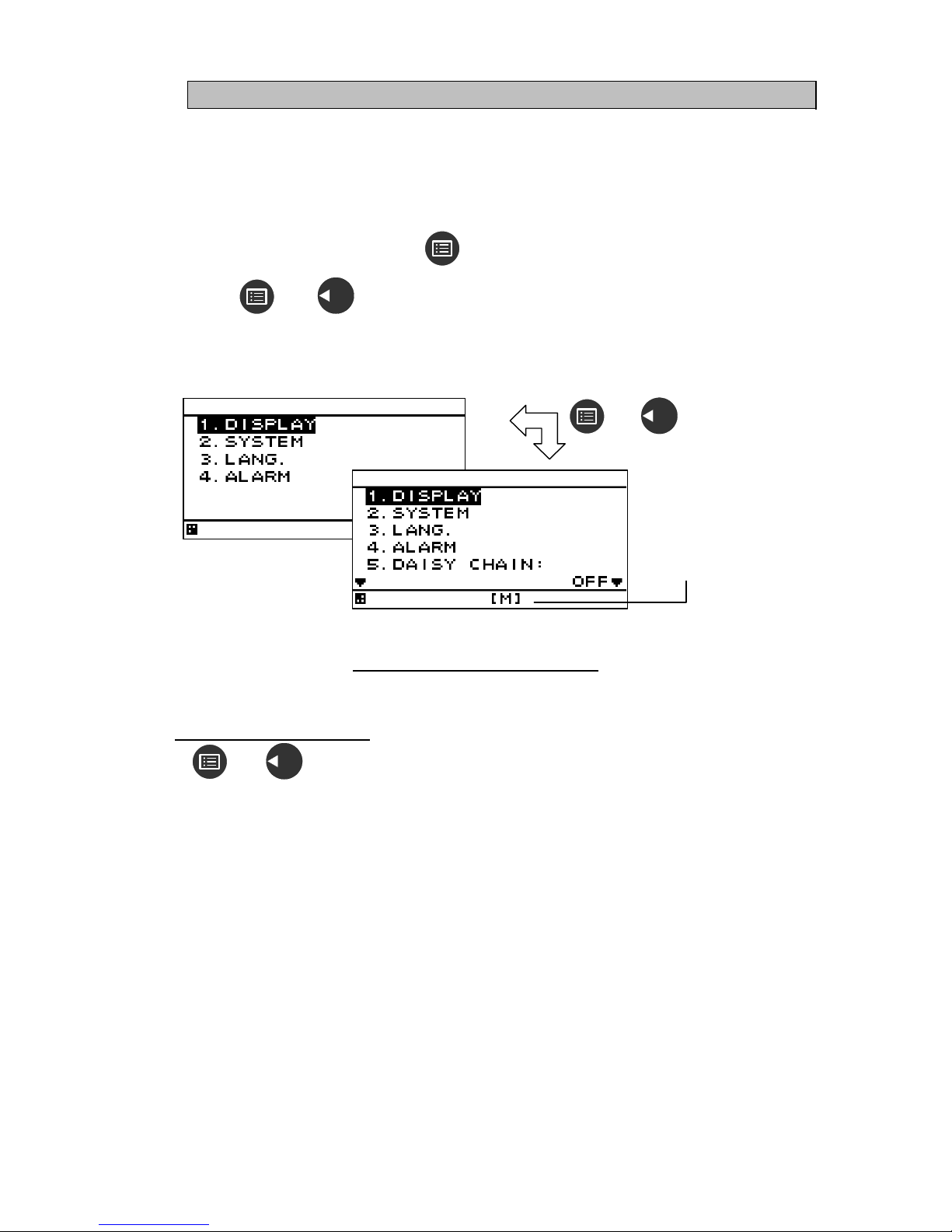

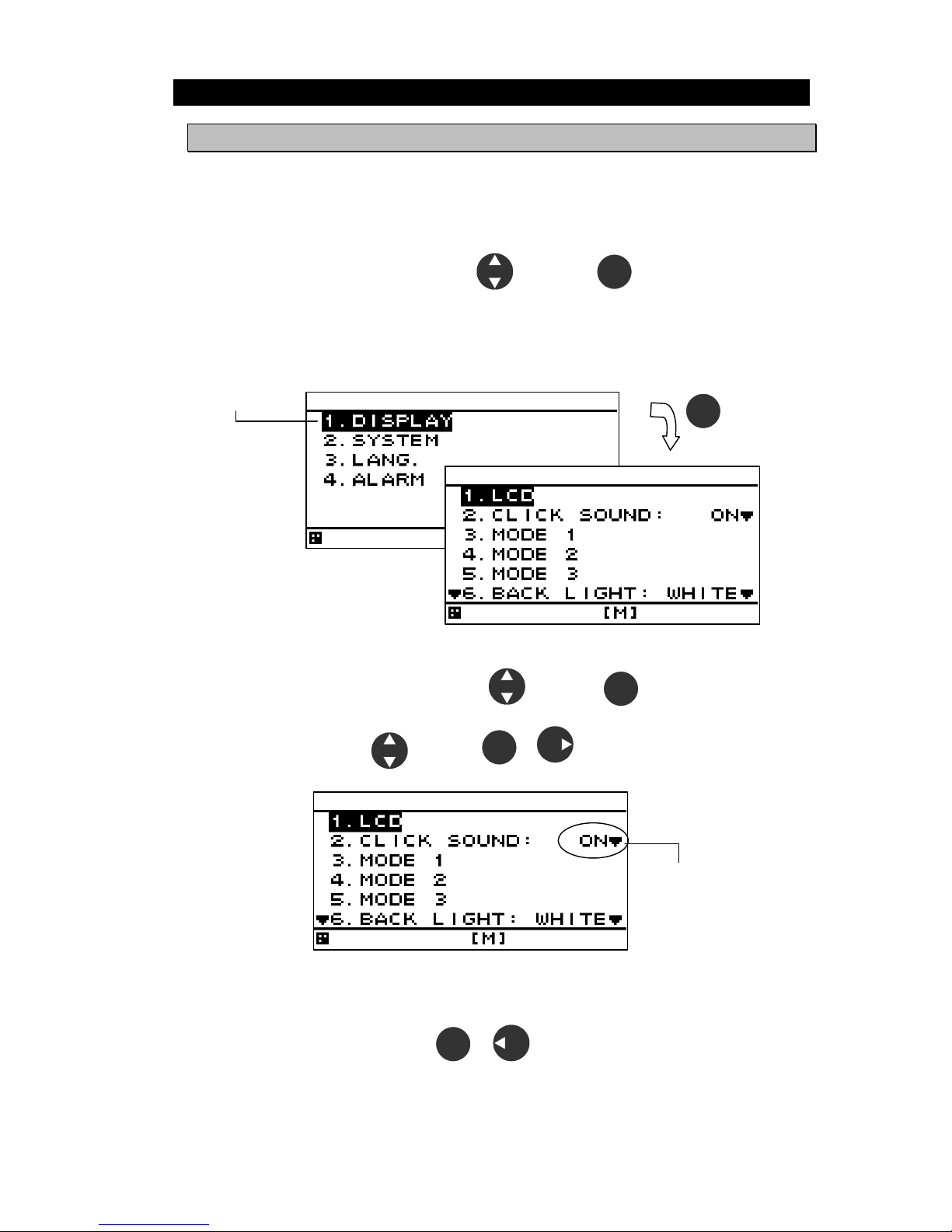

4.2.1 Selecting items from the menus ........................................ 4-10

4.2.2 Entering a numeric value ....................................................... 4-11

4.2.3 Changing to a maintenance mode ......................................... 4-12

4.2.4 Setting a model ...................................................................... 4-13

4.2.5 Menu List ...................................................................... 4-14

4.2.6 Display ca

tegory and contents ........................................................ 4-24

Section 5 Maintenance ...................................................................... 5-1

5.1 Daily Maintenance ...................................................................... 5-2

5.2 Alarm ...................................................................... 5-3

5.3 Troubleshooting for Malfunction or Abnormalities ........................... 5-4

5.3.1 Troubleshooting ...................................................................... 5-4

5.3.2 Repair Unit ...................................................................... 5-5

5.3.3 Regular Replacement Parts ......................................... 5-5

Section 6 Installation ......................................... 6-1

6.1 Affixing Display Unit Nameplate Labels ......................................... 6-2

6.2 Display Unit Installation ......................................... 6-3

6.2.1 Selecting the position for installation ......................................... 6-3

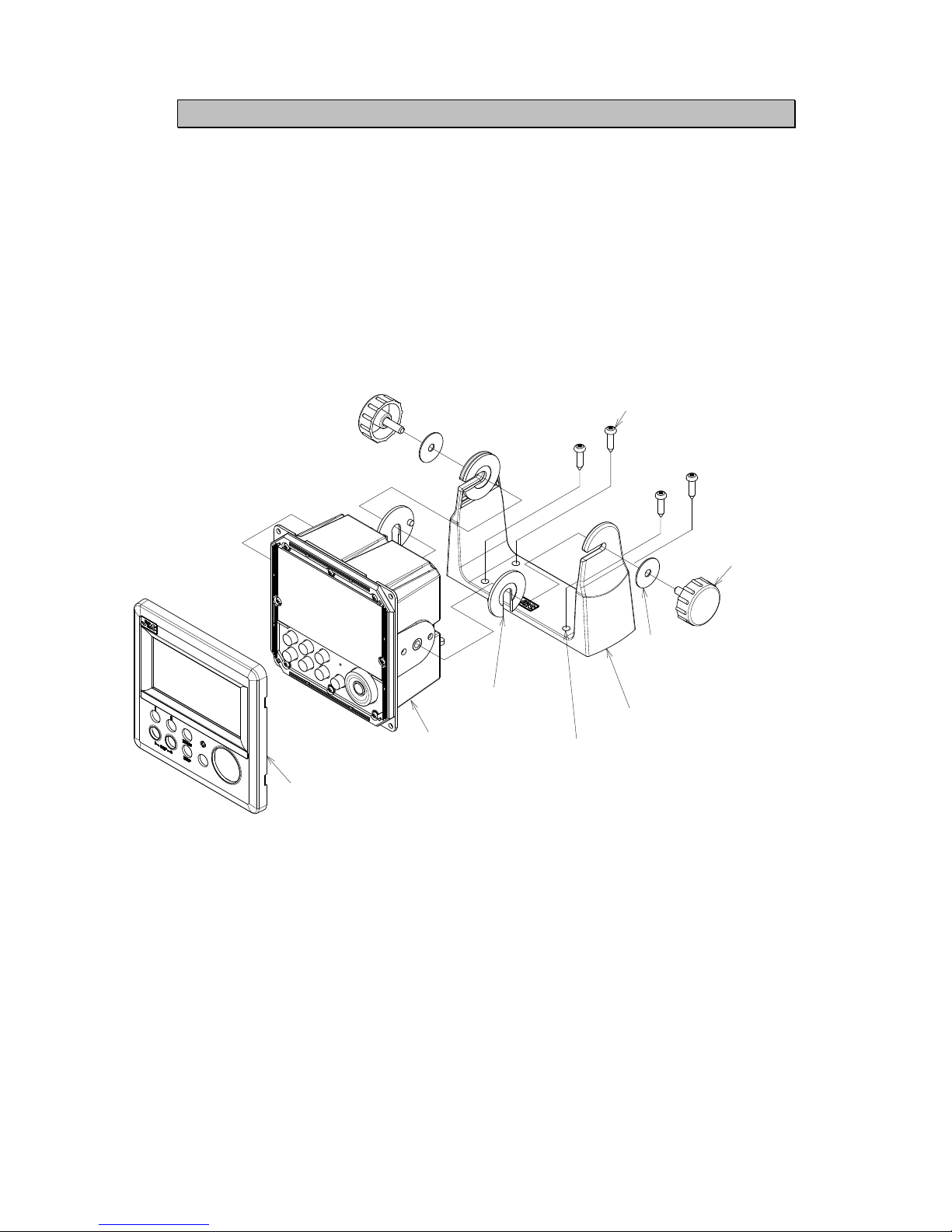

6.2.2 Mounting the display unit using a rack ......................................... 6-4

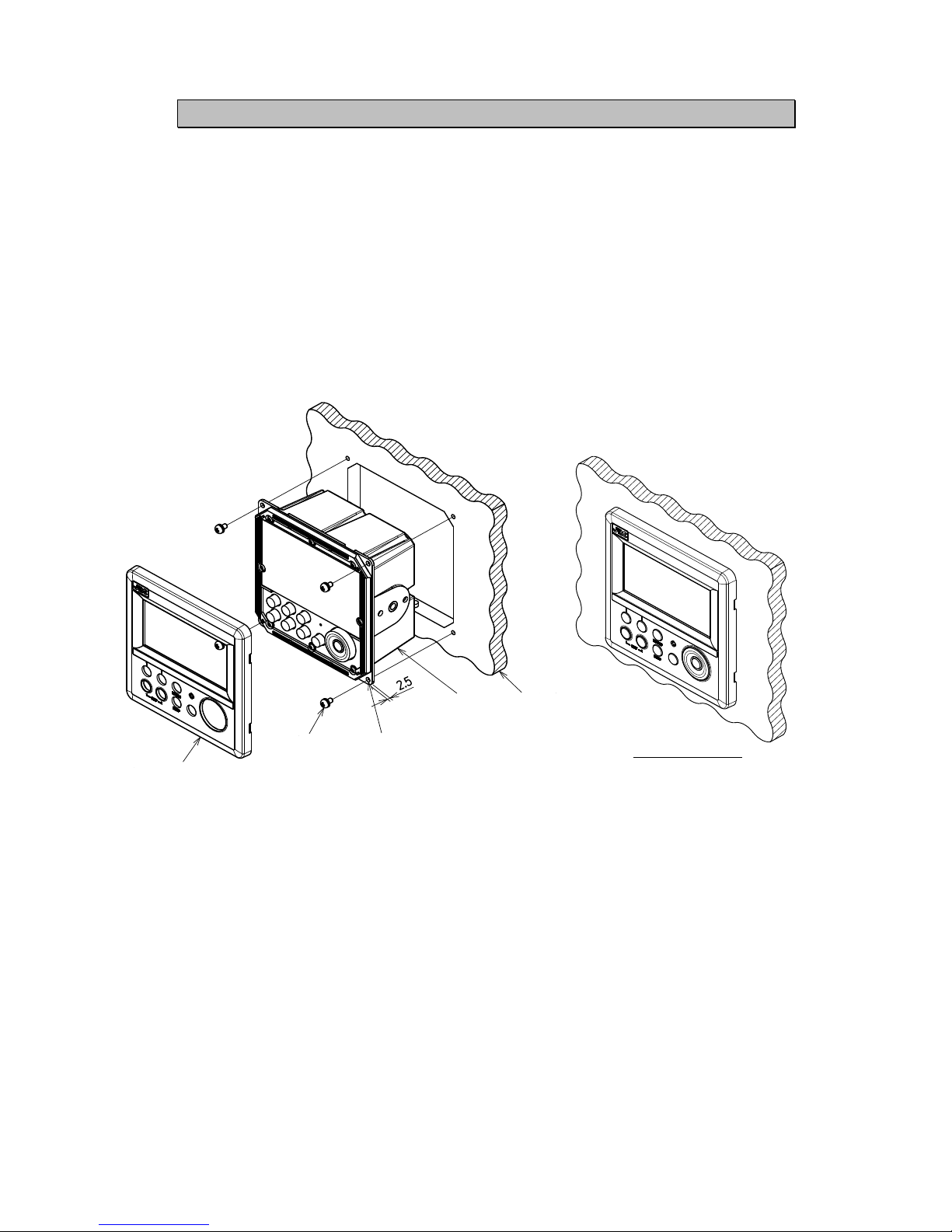

6.2.3 Mounting using a flush mount ......................................... 6-6

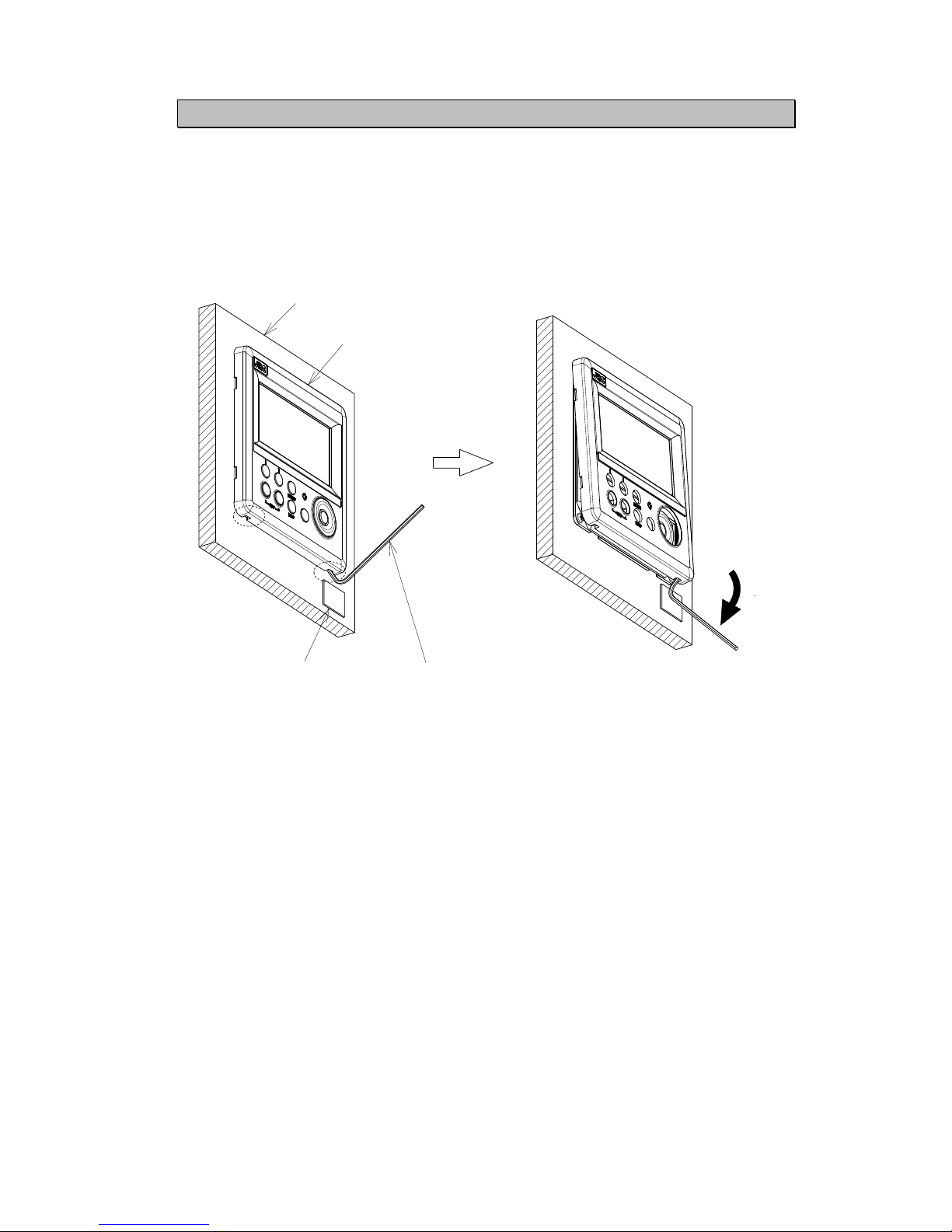

6.2.4 Removing the display unit by flush mounting ........................... 6-8

6.3 Doppler Log Installation ......................................... 6-9

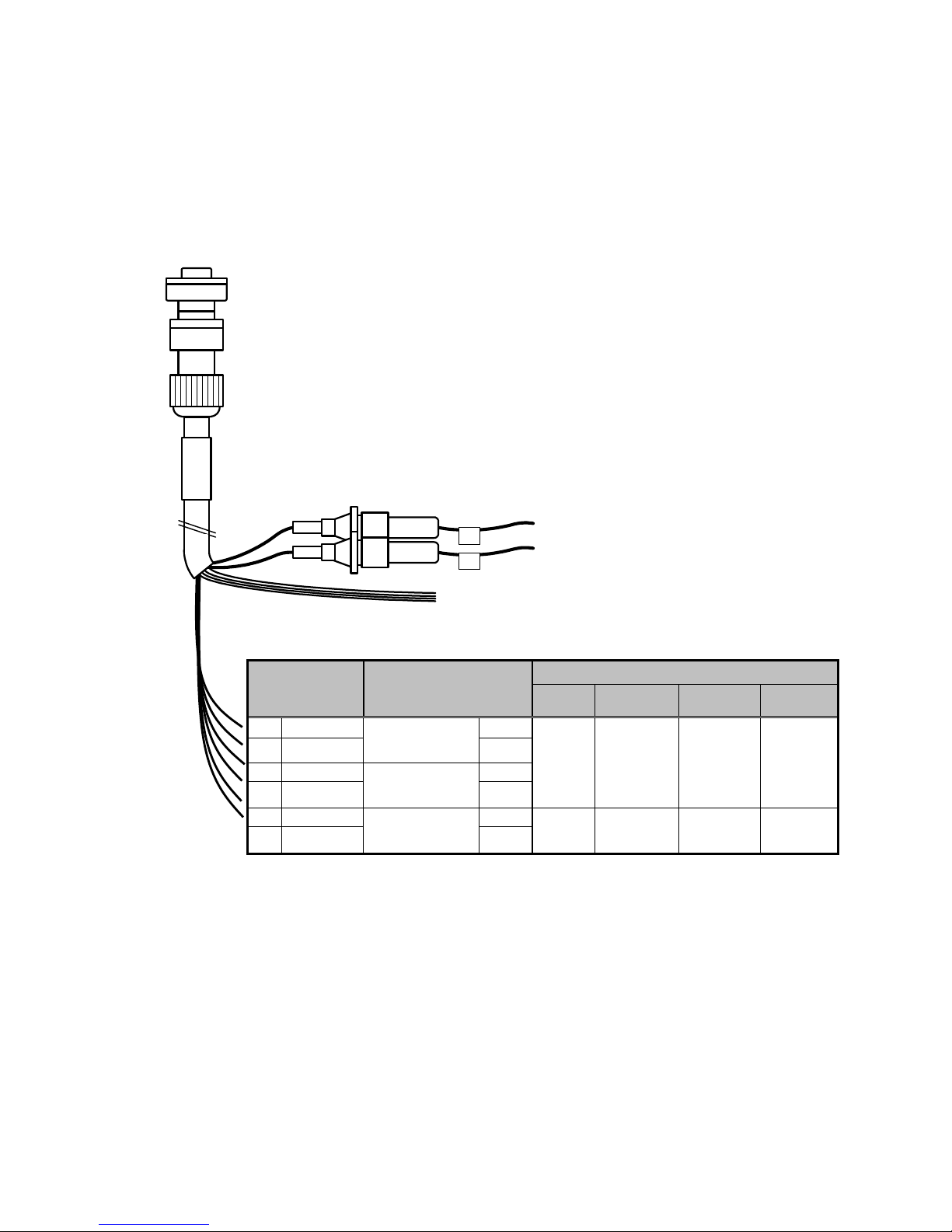

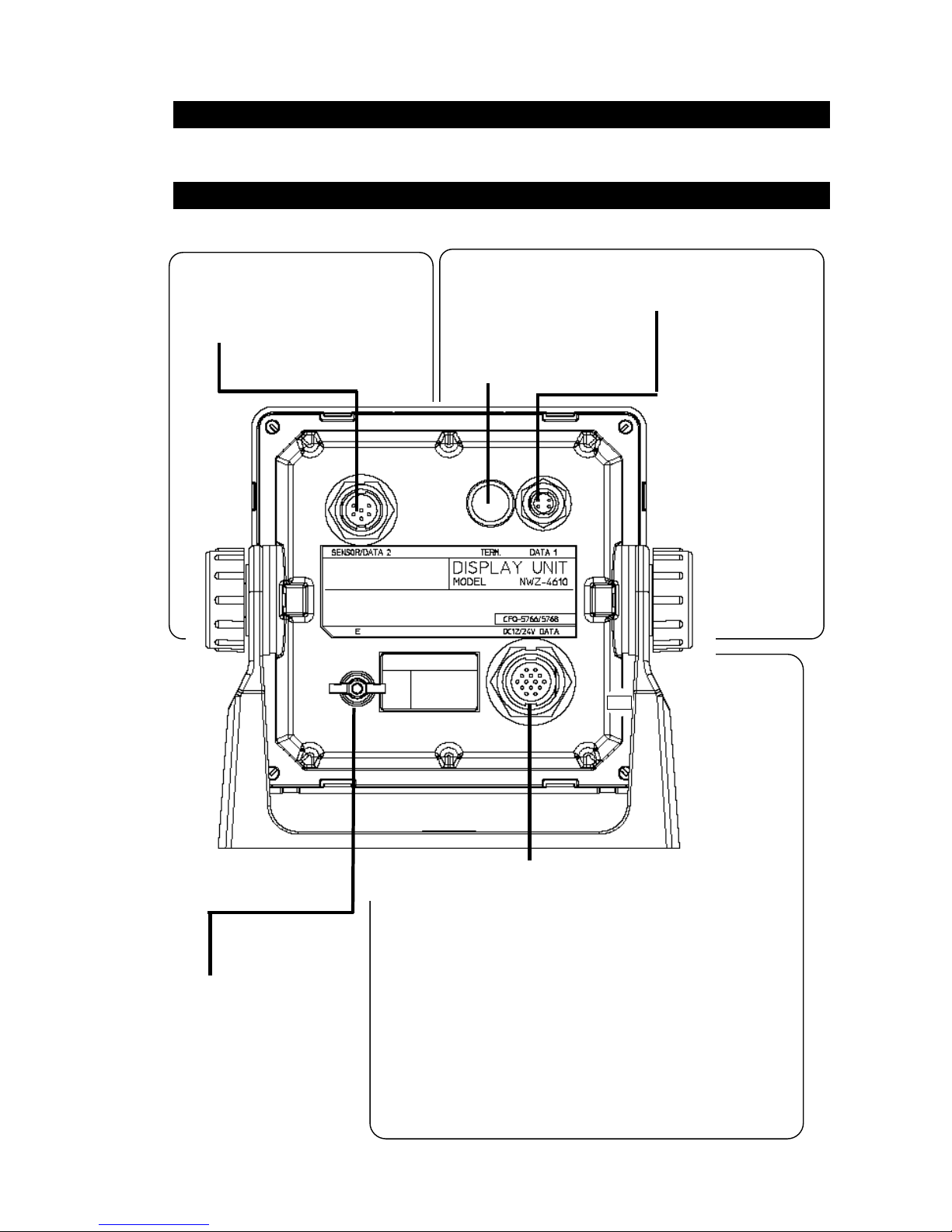

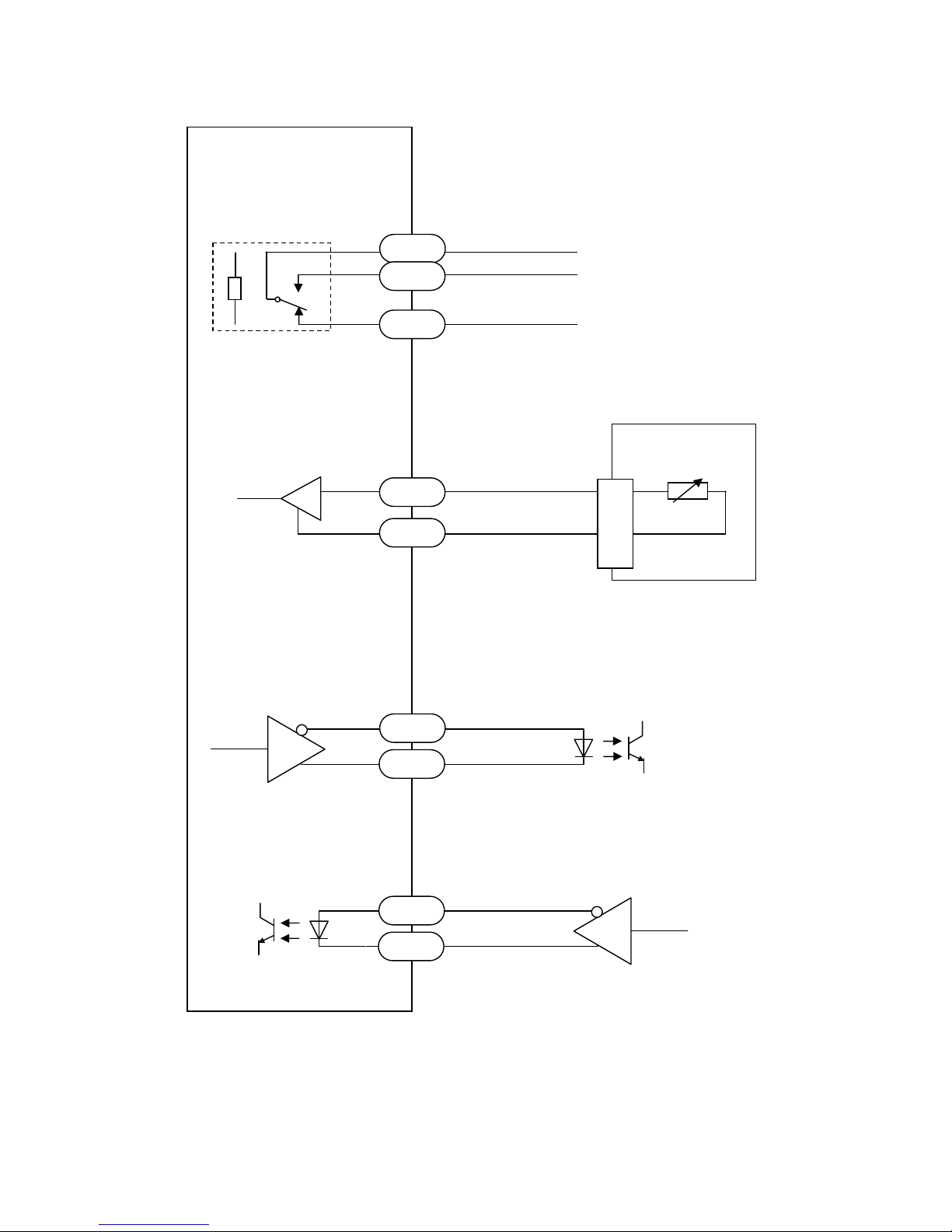

6.4 Cable Connection ......................................... 6-9

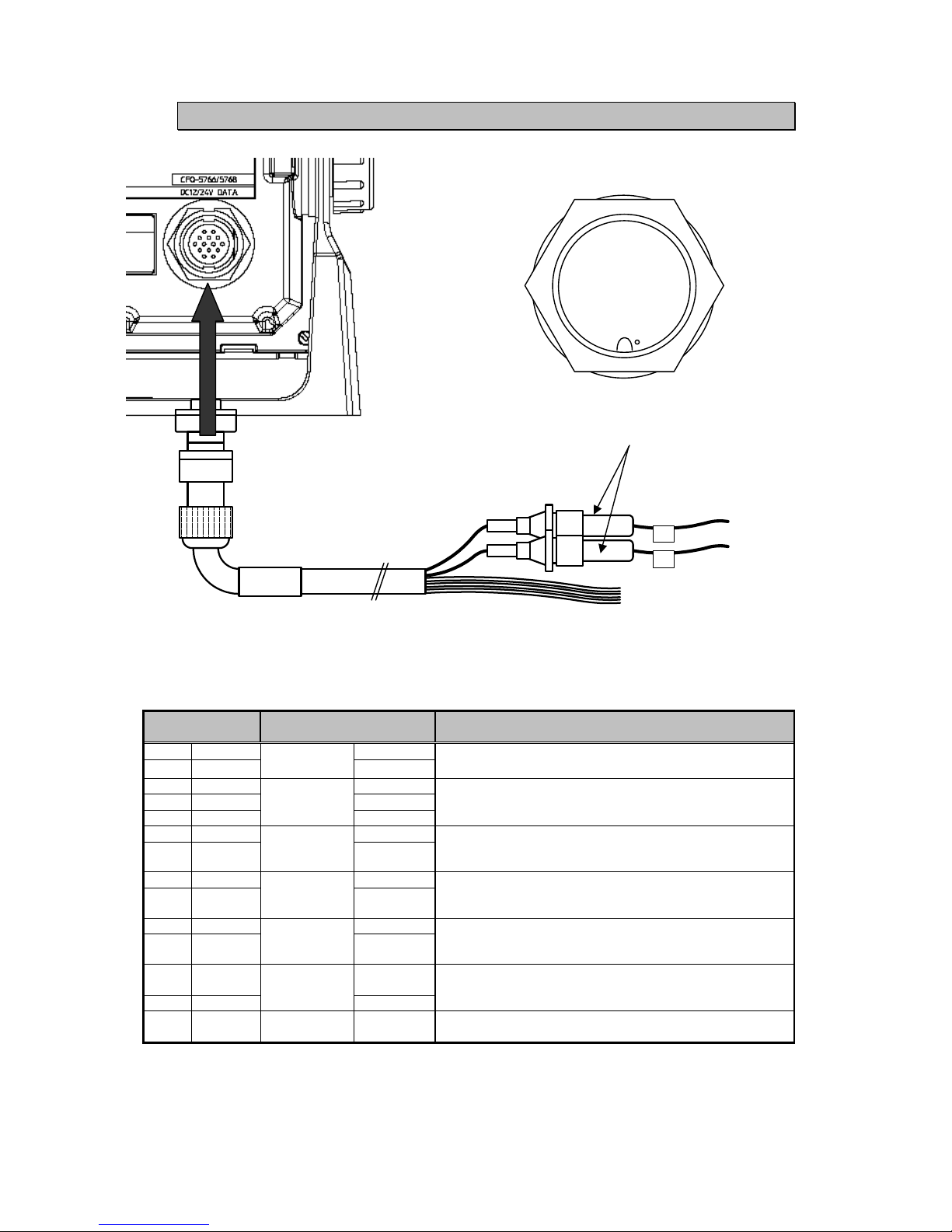

6.4.1 DC12/24V DATA connector (MID/LOG) ......................................... 6-10

6.4.2 DATA1 connector (MID/LOG) ......................................... 6-13

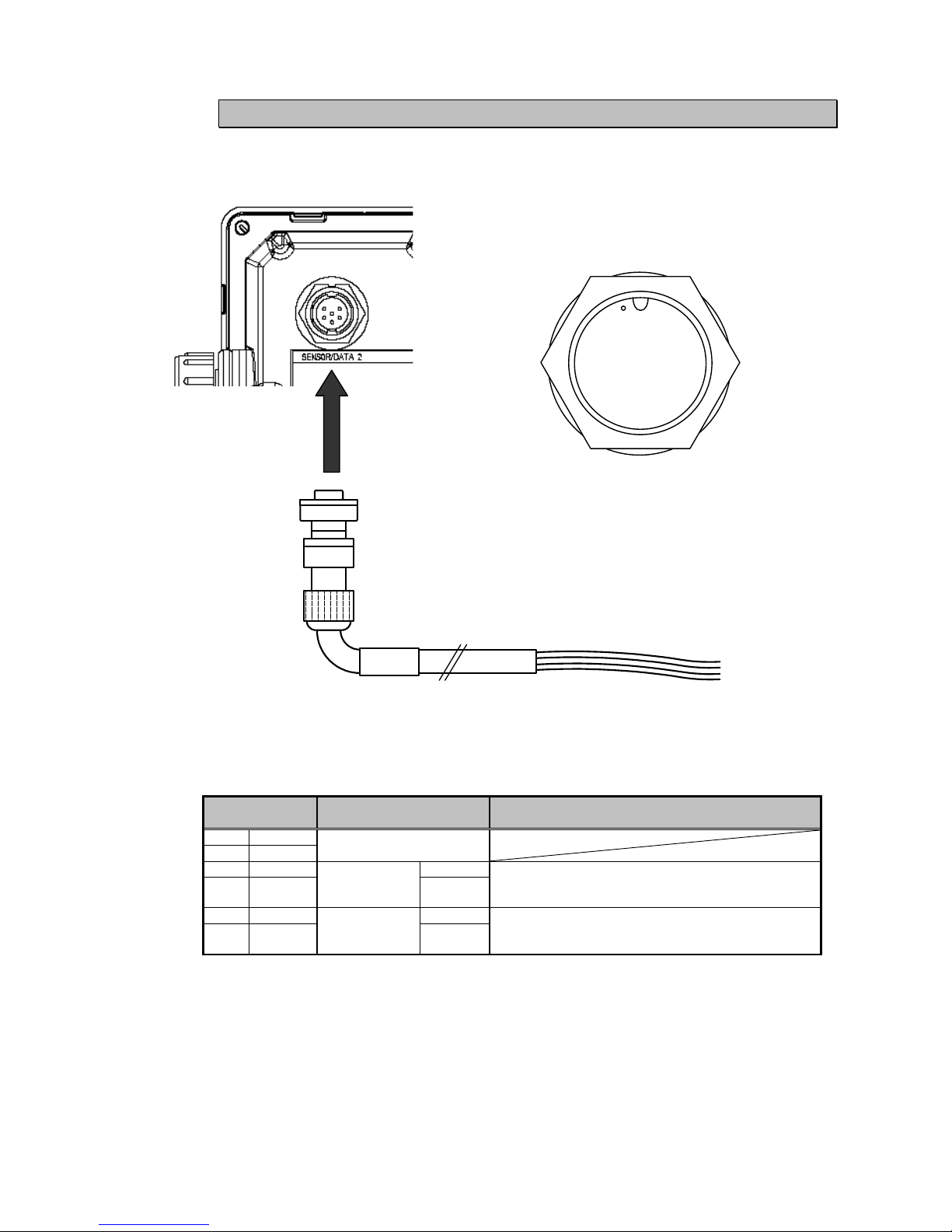

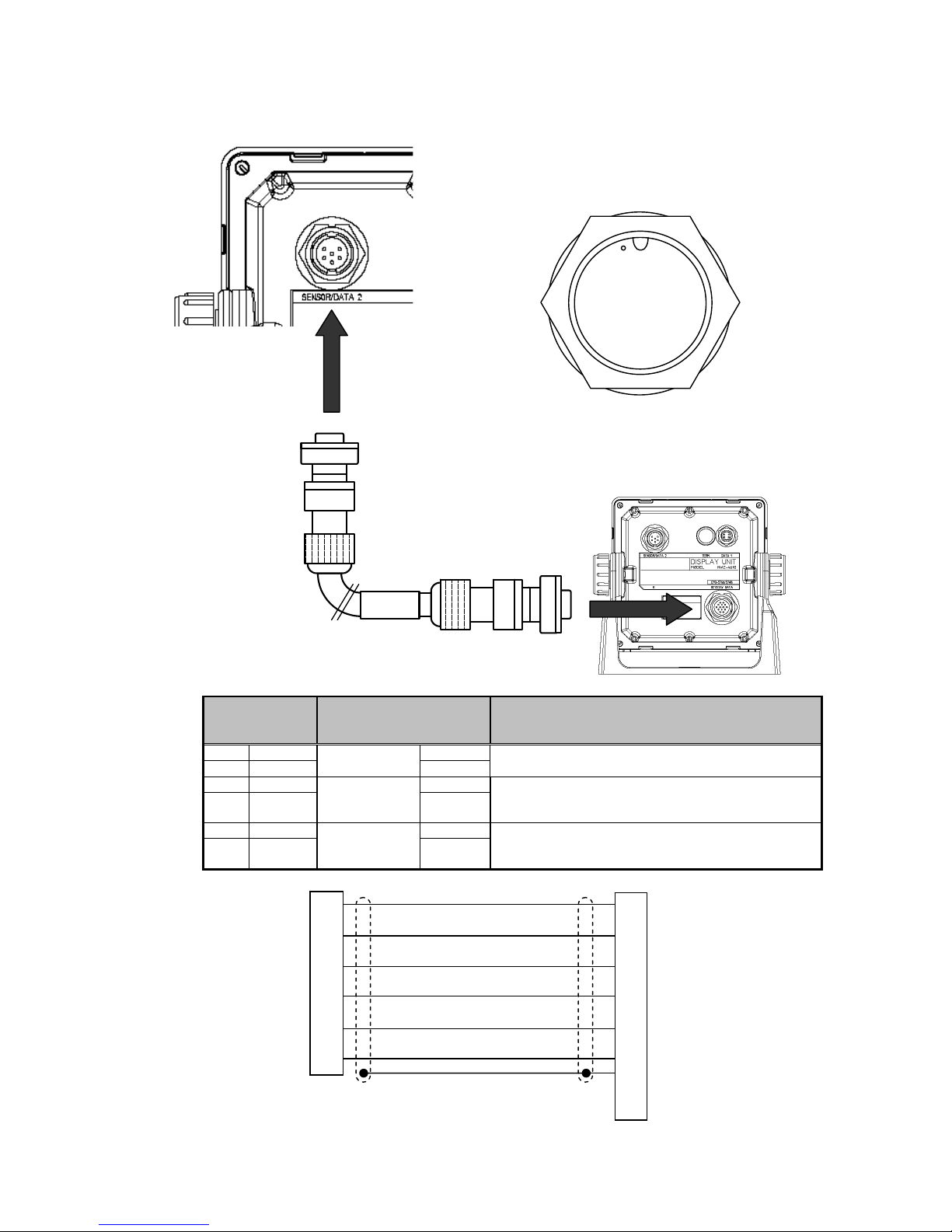

6.4.3 SENSOR/DATA2 connector (MID) ......................................... 6-17

6.5 Optional Peripheral Connection ......................................... 6-21

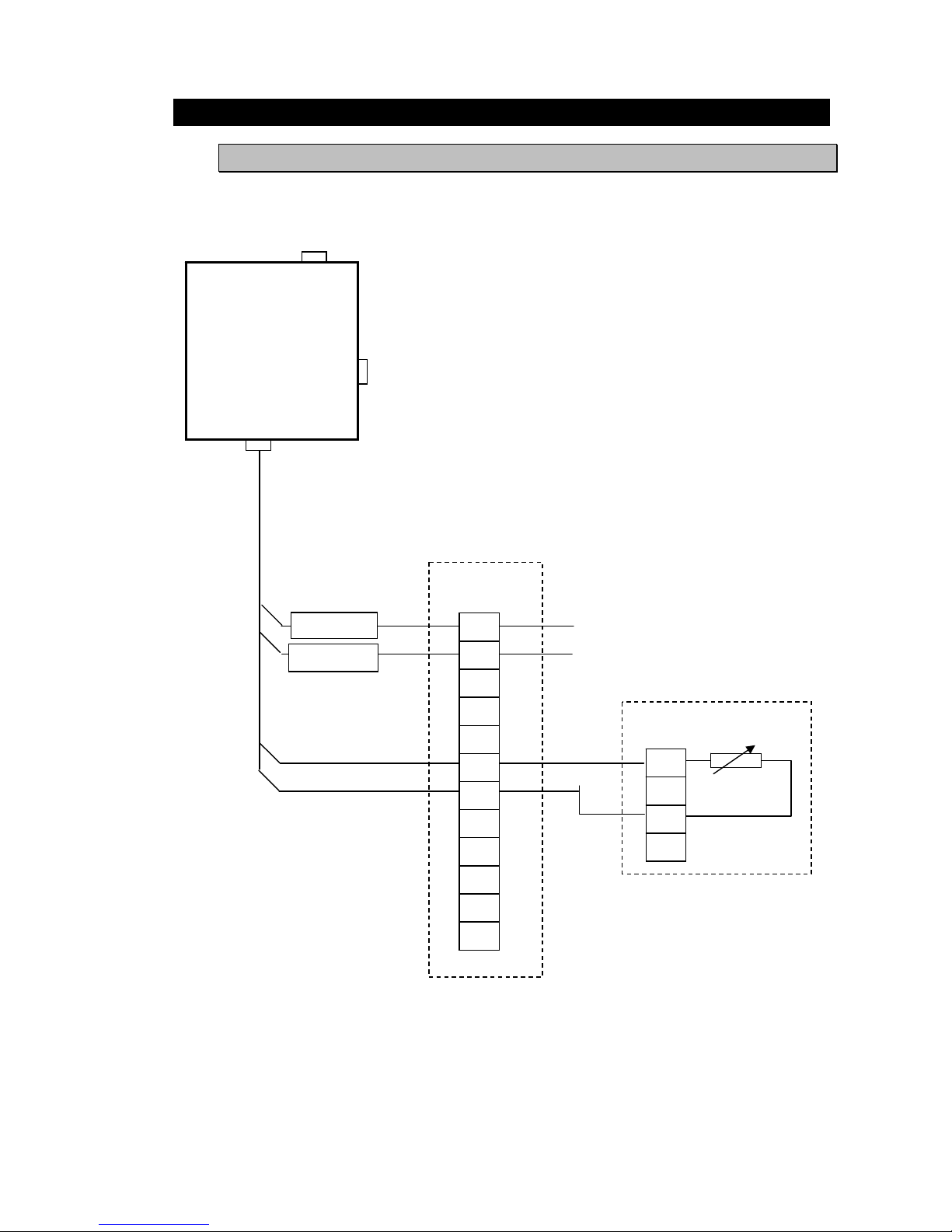

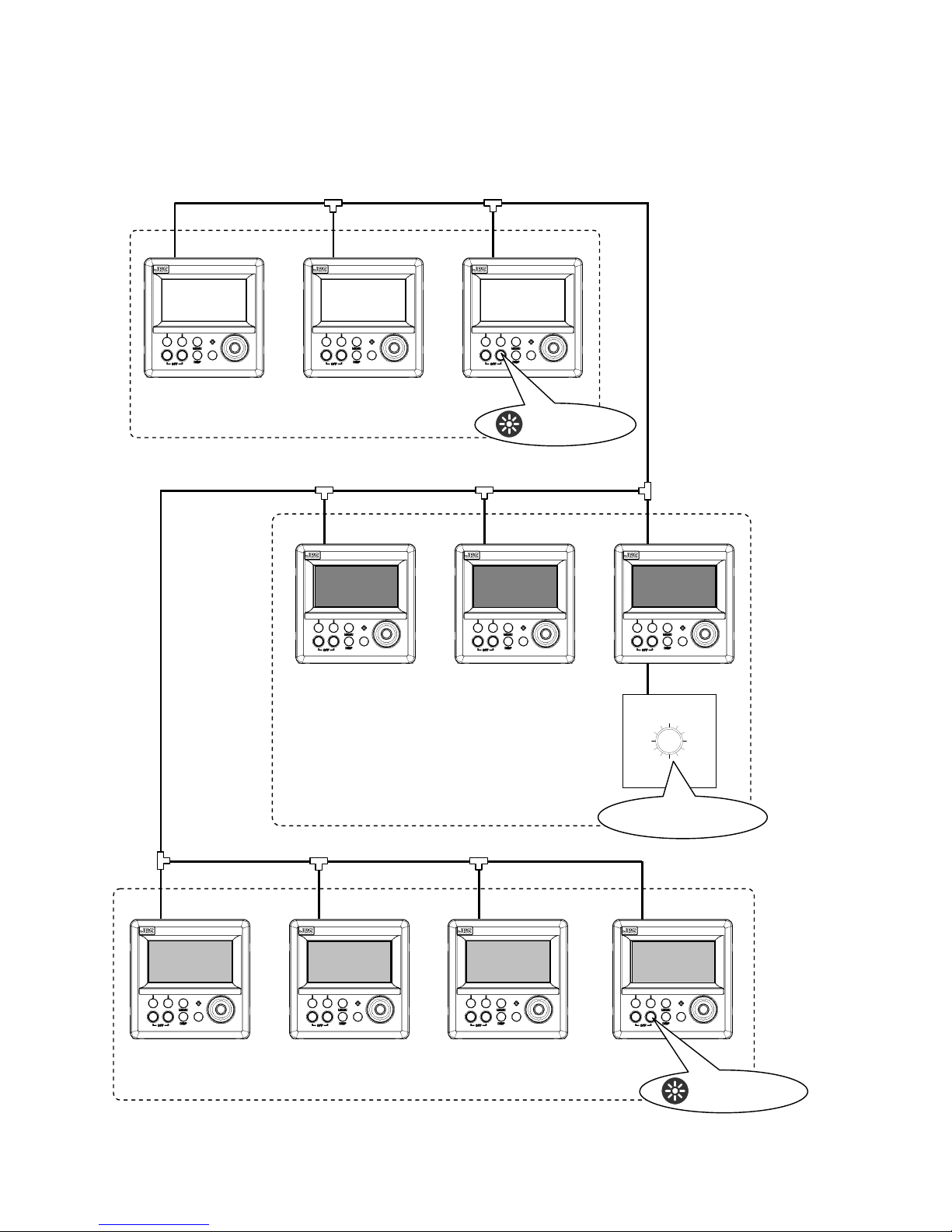

6.5.1 Dimmer unit connection ......................................... 6-21

Section 7 After Service ......................................................... 7-1

7.1 Warranty ......................................................... 7-1

7.2 Repair parts stocking Period ......................................................... 7-1

7.3 When Ordering a Repair ......................................................... 7-1

7.4 Recommendation of Overhaul ......................................................... 7-1

Section 8 Disposal ......................................................... 8-1

8.1 Disposal of the Equipment ......................................................... 8-1

Section 9 Specification ......................................................... 9-1

9.1 Display Unit ......................................................... 9-1

9.2 Doppler Log ......................................................... 9-3

1-1

Section 1 Introduction

1.1 Function

1) MID
The Multi Information Display (MID) is the display unit that receives NMEA data items from
various sensors to display them.
The screen can be split to up to 4 areas for use. Only necessary information can be displayed
by selecting data to be displayed in the areas.
There are three modes in which six screens can be registered, and up to 18 screens can be
registered.

2) Doppler Log (JLN-205MK2)
The JRC Model JLN-205MK2 Doppler Log is an equipment for measuring accurately the true
speed and run of a ship, utilizing the Doppler shift of ultrasonic signals, which are radiated from a
trnsducer into sea water downward obliquely to the bow and stern sides, then scattered and
reflected in the sea water. The transducer is mounted on the hull bottom.
This equipment measures a relative speed to seawater from the hull bottom within 3m.
Therefore, ship’s speed corresponding to the output of a main engine can be obtained without
containing the speed such as the currents. The ship’s speed error margin caused by the change
in the water line doesn't occur because the transmission and the reception of the pulse are done,
and it excludes the signal in the vicinity of the bottom of a ship. Moreover, because the dual beem
method to launch the ultrasonic wave signal in two directions (fore and aft) is adopted, the ship’s
speed error margin because of the change in the trim is greatly reduced.
This equipment offers measured information to other equipment such as radar and ECDIS.

1.2 Feature

The equipments have the following features:

1) MID

・Display of various NMEA data items
・Selection of display contents and screen layout
・Distribution of power supply in daisy chain mode
・Selection of display screen in each mode
・Sharing of data and interlocking of dimmer between display units at RS-485 interface

2) Doppler Log (JLN-205MK2)

・Ship’s speed through the water
・Free of errors due to hull motions
・Reliable compact transducer

1-2

1.3 Components

1.3.1 Standard equipments

1) MID

No. Description Model No. CODE QTY Remarks

1.1

DISPLAY NWZ-4610 NWZ-4610 1 Main Body

1.2

DATA POWER
CABLE

CFQ-5766A CFQ5766A 1

14 cores 2 m/ With Fuse holder
data, power, contact

1.3

FUSE MF60NR 250V 1 5ZFGD00205 2 Display unit 1A fuse

1.4

FRONT PANEL MTV305018A MTV305018A 1

1.5

BASE KITS MPBX47065 MPBX47065 1

Base
Knob Bolt
Gear Washer
Knob Washer

1.6

MODEL
IDENTIFICATION
PLATE

MPNN47524A MPNN47524A 1 For Rear

1.7

PRODUCT
NAMEPLATE

MPNN47529A MPNN47529A 1 For Front

1.8

Flush Mounting
Drawing

- - 1 For Flush Mount

2

QUICK REFERENCE 7ZPNA4352 7ZPNA4352 1 English/Japanese

2) Doppler Log

No. Description Model No. CODE QTY Remarks

1 DISPLAY UNIT NWZ-4610 NWZ-4610 1 Same as standard equipment

of "1) MID (1.1～2)"

2 SIGNAL

DISTRIBUTOR

NQA-4288A NQA-4288A 1

3 SIGNAL

PROCESSOR

NJC-25 NJC-25 1

4 TRANSDUCER NKF-547 NKF-547 1 Flush mount type

With cable 30m
5 SPARE PARTS 7ZXBS0020 7ZXBS0020 1
6 INSTRUCTION

MANUAL

7ZPNA4286A 7ZPNA4286A 1 English

1-3

1.3.2 Options

1) MID/Doppler Log

No. Description Model No. CODE QTY Remarks

1

DATA POWER
CABLE

CFQ-5766D CFQ5766D 1 14 cores 10 m/ With Fuse holder

data, power, contact

CFQ-5766F CFQ5766F 1 14 cores 20 m/ With Fuse holder

data, power, contact

2

DATA CABLE CFQ-5767 CFQ5767 1 4 cores/3 m data

6-pin connector data line only

3

DATA CABLE CFQ-5768 CFQ5768 1 6 cores-14 cores/3 m daisy chain

4

DATA CABLE CFQ-5769 CFQ5769 1 For RS-485 4 cores/3 m

5

T-SHAPED
CONNECTOR

AA-040404-MMM-TL 5JCDX00071 1 For CFQ-5769 RS-485

6

L-TYPE ADAPTER CFQ-9184 CFQ9184 1

2) MID

No. Description Model No. CODE QTY Remarks

1

AC POWER
RECTIFIER

NBD-577C NBD-577C 1 AC100/220V input

24V output

2

DIMMER UNIT NCM-227 NCM-227 1 External dimmer unit

3

INSTRUCTION
MANUAL

7ZPNA4284 7ZPNA4284 1 English for MID

7ZPNA4283 7ZPNA4283 1 Japanese for MID

3) Doppler Log
No Description Model No. CODE QTY Remarks

1

SUB DISPLAY NWZ-4610 NWZ-4610 2Max

2

ANALOG DISPLAY NWW-24 - 2Max. Flush mount type

NWW-25 - Wall mount type

NWW-26 - Panel mount type

3

REMOTE DISPLAY NWW-5 - 1Max. Fore/Aft. Speed &. Direction

NWW-16 - Fore/Aft. Speed &. Direction

Distance

4

DISTANCE
COUNTER

NWW-7 - 1Max. Distance, 9999.99NM Max.

5

DIMMER UNIT NCM-227 - -- for Main/Slave/Remote Display

NCM-329 - -- for Analog Display

6 TRANSDUCER NKF-531E - 1 Gate Valve type

With cable 25m

1-4

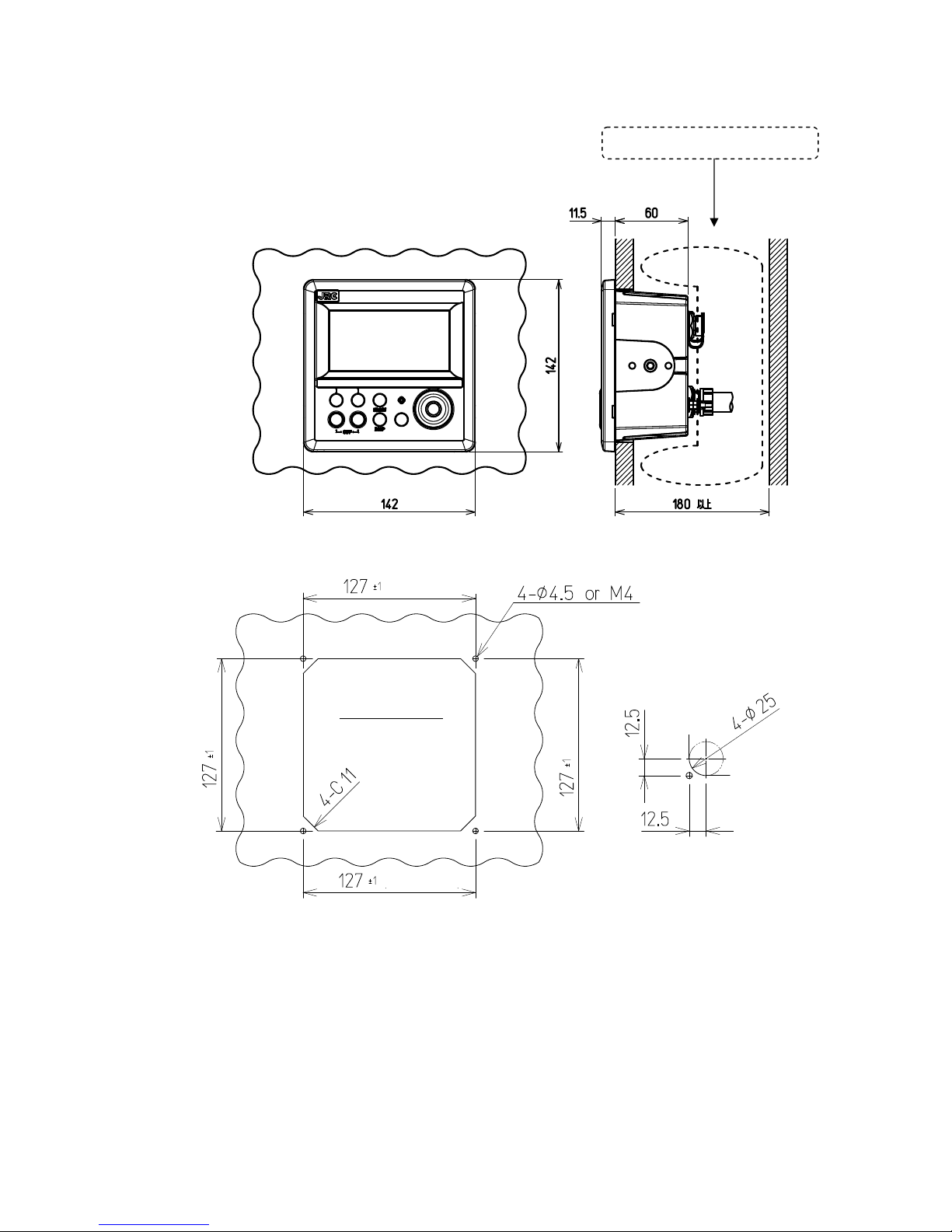

1.4 Construction

Display NWZ-4610 (MID/Common)

Unit： mm
Mass： Approximately 0.8kg

1-5

Signal Distributor NQA-4288A (Doppler Log)

Signal Processor NJC-25 (Doppler Log)

Transducer NKF-547 (Doppler Log)

Unit： mm
Mass： 6kg

Unit： mm
Mass： 6kg

Unit： mm
Mass： 17kg

1-6

1.5 System Configuration

1) MID

Junction
box
CQD-10

AC Power
Rectifier
NBD-577C

SENSOR/DATA2 DATA1

MID

NWZ-4610

DC12/24V DATA

Dimmer unit

NCM-227

External device

Sensors

SENSOR/DATA2 DATA1

MID

NWZ-4610

DC12/24V DATA

DC12/24V

100/220V AC

Log pulse

CFQ-5766A
2 m

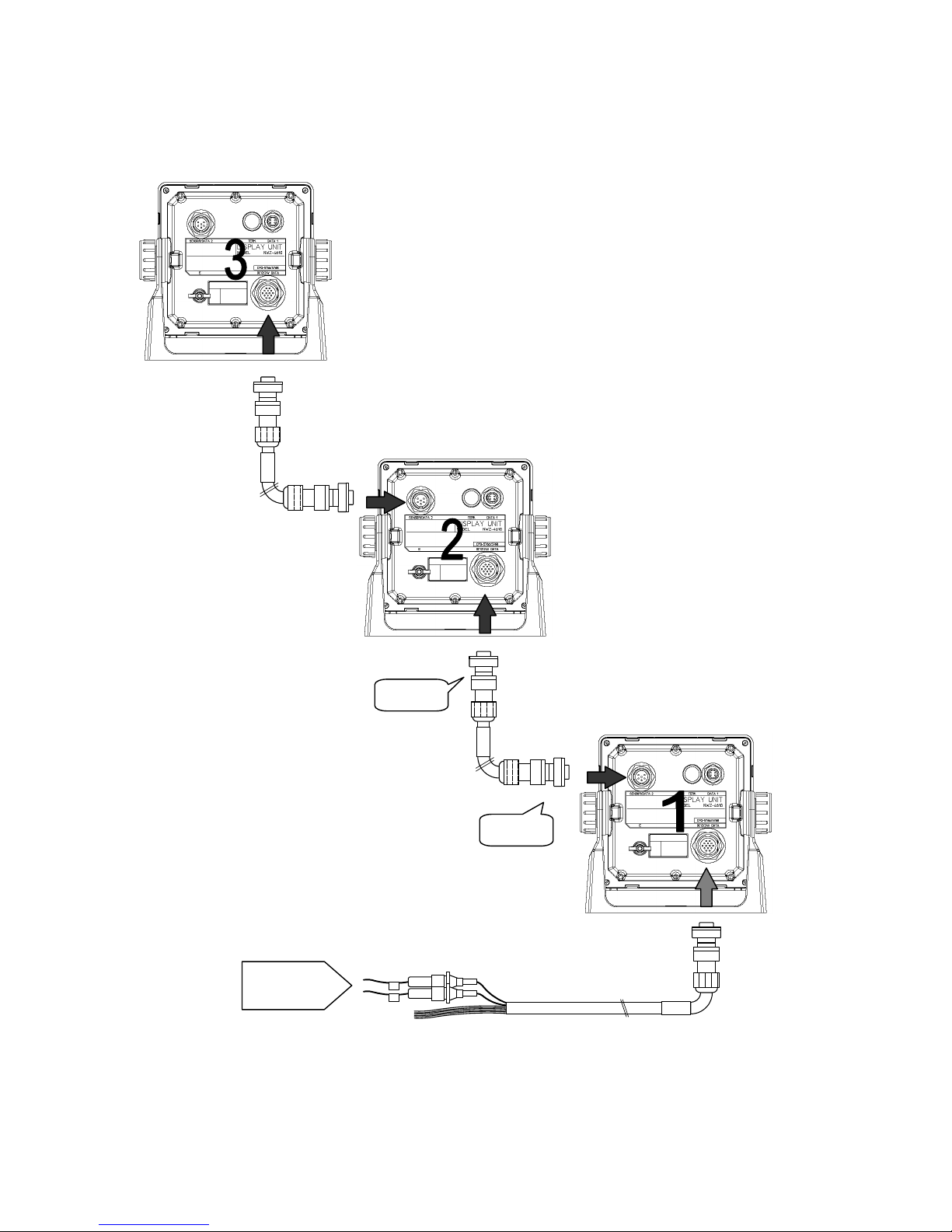

Daisy chain
CFQ-5768 3m

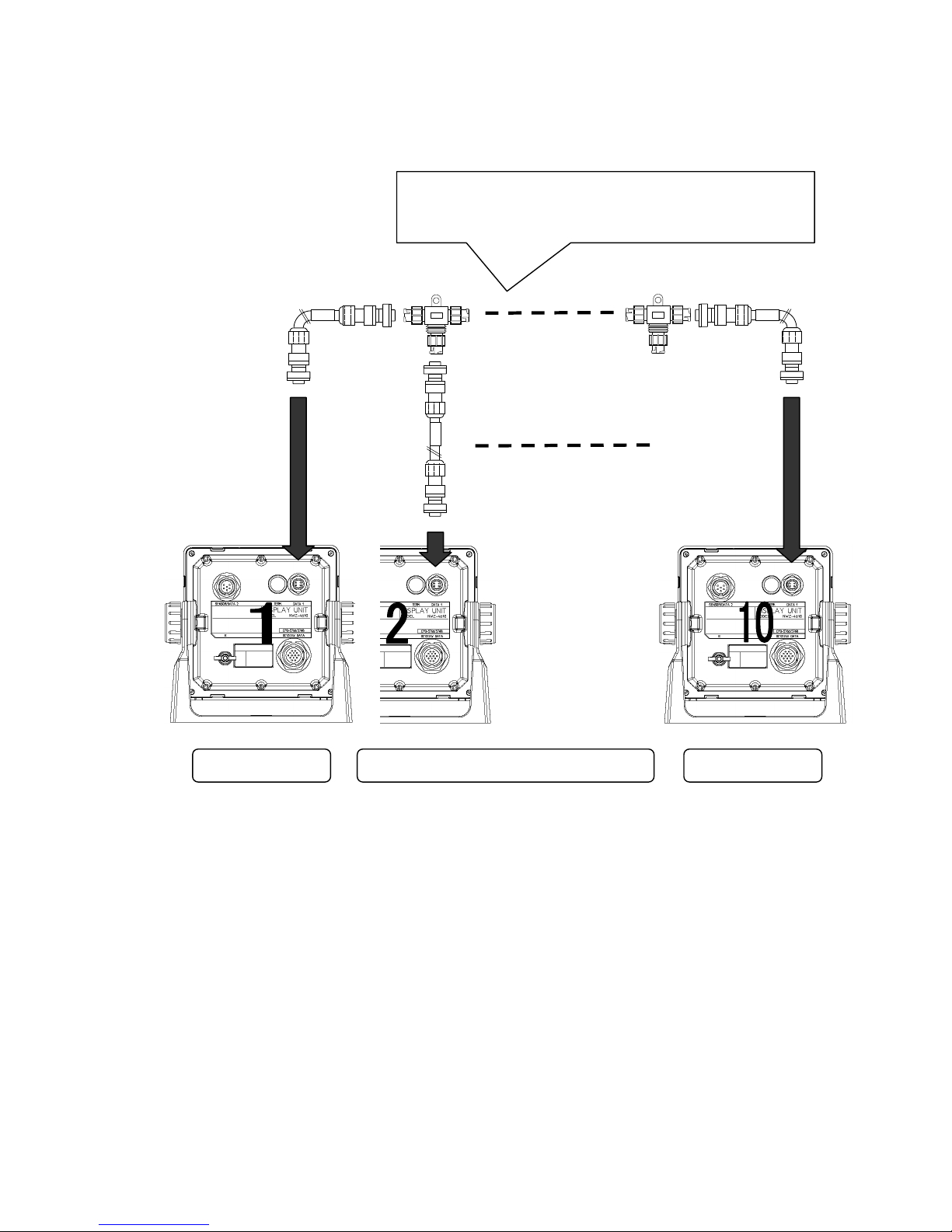

RS-485
CFQ-5769 3m

RS-485
CFQ-5769 3m

RS-485
CFQ-5769
3m

T-shaped connector
AA-040404-MMM-TL

* 250V-TTYCS-1
3 ports

*250V-TTYCS-1
Max 15 m

*250V-TTYCS-1

*0.6/1kV-DPYC-1.5

*: Arranged by dockyard.

External device
Sensors

CFQ-5767
3m

1-7

2) Doppler Log

NWZ-4610

MAIN

DISPLAY

NKF-547

TRANSDUCER

NKF-531E

TRANSDUCER

(Option)

250V-TTYCS-4 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD M

A

X.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-1 (YARD MAX.100m)

0.6/1kV DPYC-1.5 (YARD)

250V-TTYCS-1 (YARD)

SHIP’S MAIN 50/60Hz 100/110/115/220/230VAC 1 Phase

24V DC ( for Power Fail Alarm )

NALOG2

NMEA1

NMEA2

NMEA3

NMEA4

NMEA5

NMEA6

NMEA7

NMEA8

LOG1

LOG2

LOG3

LOG4

CFQ-5766A(JRC 2m)

250V-TTYC-4S (YARD MAX.500m)

Transducer Cable

(JRC MAX.30m)

Transducer Cable (JRC MAX.25m)

NALOG

output

IEC61162-1

output

200pulse/nm

output

NJC-25

SIGNAL

PROCESSOR

250V-TTYCS-1 (YARD MAX.100m)

250V-TTYCS-4

(YARD MAX.100m)

GPS IEC61162-1 Input ( for GPS speed display )

250V-TTYCS-1 (YARD)

PF

LARM

Power Fail Alarm

output

NQA-4288

A

SIGNAL

DISTRIBUTOR

NCM-329

DIMMER UNIT

(Option)

250V-TTYCS-4

(YARD MAX.100m)

NW

W

-5/7/16

REMOTE DISPLA

Y

(Option)

NW

W

-24/25/26

ANALOG DISPLAY

(Option)

CQD-10

JUNCTION BOX

(Option)

NCM-227

DIMMER UNIT

(Option)

250V-TTYCS-4

(YARD MAX.100m)

250V-TTYCS-1

(YARD MAX 15m)

NWZ-4610

SUB DISPLAY

(Option)

CFQ-5766A

(JRC 2m)

2) Doppler Log

1-7

1-8

2-1

Section２ Names and Functions of the

Components

2.1 NWZ-4610 Display Unit

●Main Unit（front）

No. Keys Name Functions

1

Power/
Contrast key

Turns on the power. This key also adjusts the
screen contrast. The power is turned off when the

key and this key are pressed at the same time.

2

Dimmer key

Adjusts the brightness.

3

Menu key

Displays the main menu.

4

Display key
Changes the display screen.

5

Clear key

Cancels operation and stops the alarm.

6

cursor key

Moves the cursor.

7

Enter key

Sets the entries.

8

USER key(MID)
Trip Reset Key
(LOG)

Changes the screen to the user registration screen (MID).
Press this key for 1 second to reset TRIP (LOG).

9

MODE key(MID)
Unit Key(LOG)

Change the user mode (MID).
Change the speed unit (LOG).

Display

Operation
panel

Buzzer

CLR

ENT

2-2

 Reading the Display

<Numeric display screen>

COG screen (MID)

When the COG is invalid, "---.-" is displayed.

COG

Screen title

Screen number

The display mode and the screen number
are displayed.

When is pressed, D1 to D6: Screen
number are displayed for 3 seconds.

When is pressed, M1 to M3: Mode
are displayed for 3 seconds (MID).

[S]: Simulation mode

During simulation mode, [S] blinks.

[M]: Equipment mode

During equipment mode, [M] is turned on.
During simulation mode, [M] is turned off.

Alarm icon

This displayed while an alarm occurs. For the
alarm contents, check the alarm information.

Display area

Freeze indicator

During operation, the black part moves.
If the black part does not move, the
screen freezes.

Ship speed and
direction

U: UTC
L: Local time

Date and time
If date and time data is not received, "-" is displayed.

Status bar

2-3

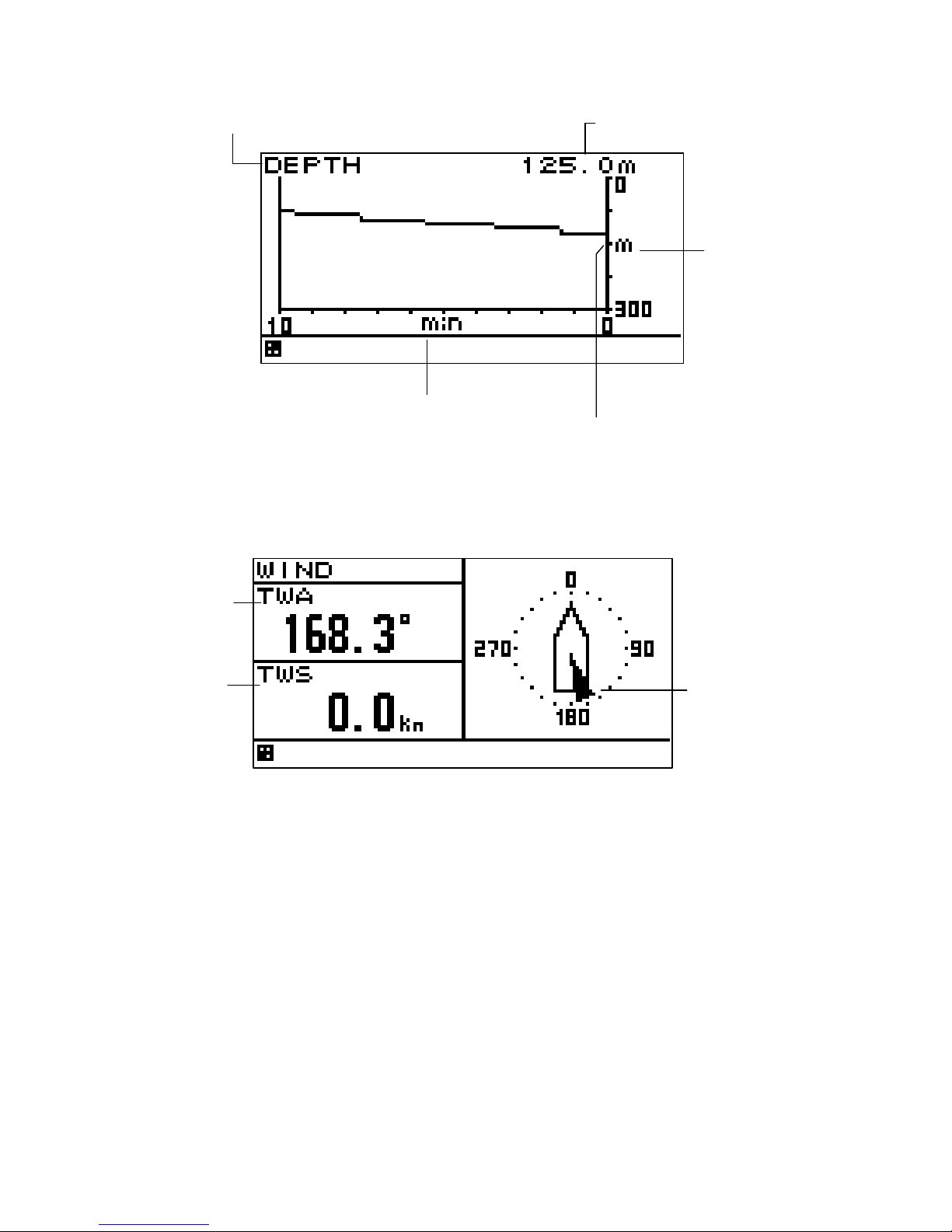

<Graphic screen>
Graph screen (MID)

Wind direction/wind velocity screen (MID)

The left and right keys can be used to switch between true and relative.

Graph title

Current measured value

Horizontal axis: Elapsed time [minute]

More left data is older.

Vertical axis
measured
value

True wind
direction

True wind
velocity

Wind direction

Arrow from
windward

Current
measured
value

2-4

<Special screen>
Depth for JFE-380/680 (MID)

1) Single Transducer

Display mode Position of Transducer

Offset

Depth
Range

2) Dual Transducer

Position of Transducer1 Position of Transducer2

Depth of Depth of
Transducer1 Transducer2

Offset of Offset of
Transducer1 Transducer2

Display mode Range

Speed through the water (Doppler Log)

STW: Speed through the water

TRIP: Trip
Press the for 1 second to reset TRIP.

Direction

ODO: Total distance
ODO is reset by menu operation.

3-1

Section ３ Display Screen

3.１ Display screen

The screen is switched each time the key is pressed. Up to six screens can be displayed.
The screen after the power is turned on becomes the screen when it is turned off.

When the

key is pressed, the mode is switched in MID. The following screens are

factory-set.

1) MID

M1 M2 M3

D1

D2

D3

D4

D5

D6

3-2

2) Doppler Log

D1

D2

D3

Split screen display

The screen can be split into 1 to 4 areas to display multiple information items.

1-split screen 2-split screen

3-split screen 4-split screen

3-3

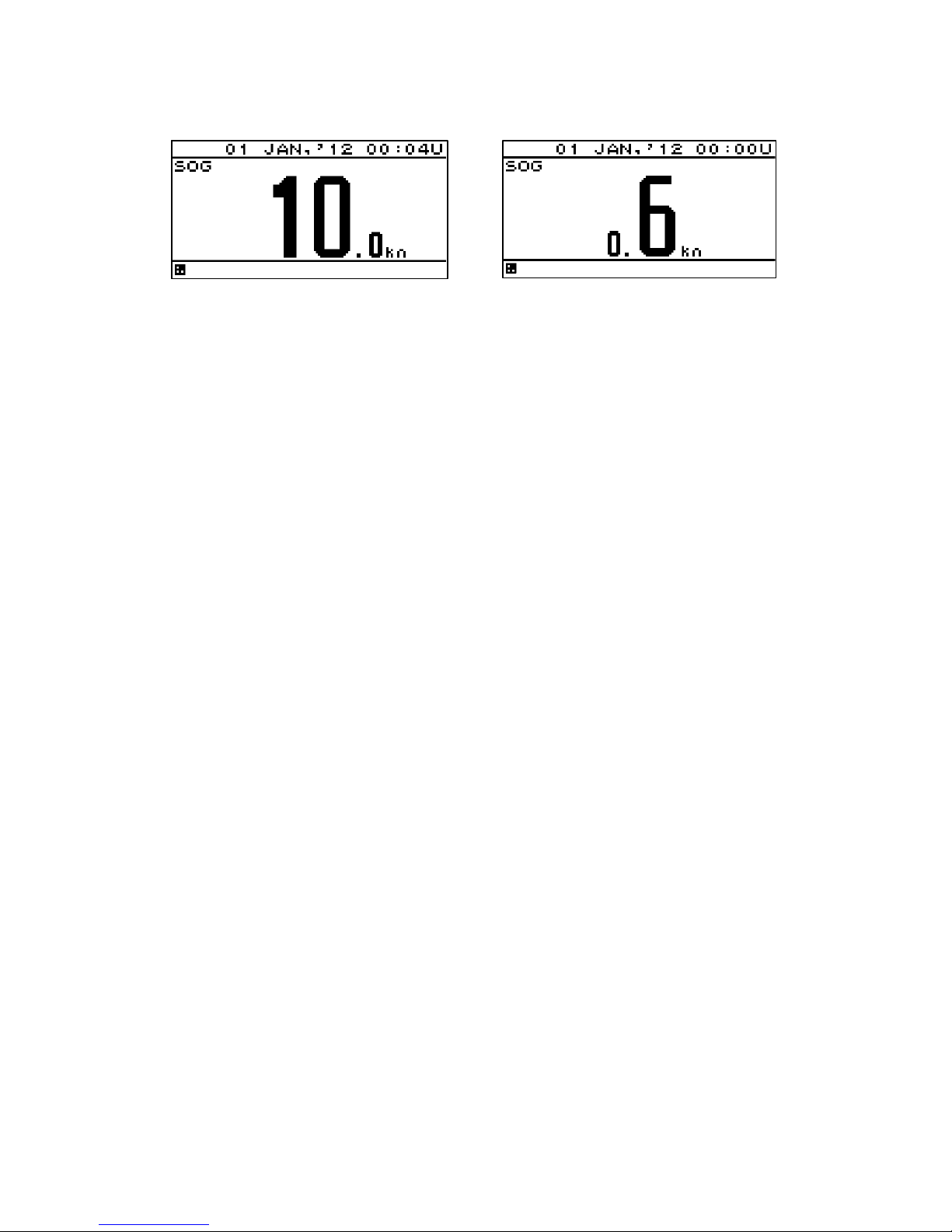

Enlarged part display

Integer part or fraction can be highlighted.

Enlarged part screen Enlarged fraction screen

3-4

4-1

Section４ Operation

Do not place a vessel containing water, etc. or a metallic object on this unit.
When water spills or when water or the object enters the unit, a fire, an
electric shock, or a failure may occur.

Do not use this unit at a voltage other than the supply voltage stated on the
unit. Otherwise, a fire, an electric shock, or a failure may occur.

Do not insert or remove the power cord or operate switches with a wet hand.
Otherwise, you may suffer from an electric shock.

Do not damage or modify the power cord. Placing a heavy object onto,
heating, stretching or bending the cord may cause a fire or an electric
shock.

When this unit is suddenly moved from a cool place to a warm place, drew
condensation water may form on the inside windows, and the liquid crystal
part can become visually difficult. In this case, leave the unit for a while until
becoming dry condition. Then operate the unit.

Do not turn on the power switch of the Doppler log while the ship is on the
shore. Otherwise, the transducer may malfunction.

WARNING

CAUTION

4-2

4.1 Basic Operation

4.1.1 Turning on the power

When the main power is turned on, the power to the display unit is automatically turned on.

In the state in which the power is turned off by the display unit key operation, pressing the
key turns on the power.

When the main power is OFF

Turning on the main power

When the main power is ON
Turning on the power

Pressing the power key

When the power is ON for first time.

The following screen is displayed. Select a Model with and press .

Model

When "LOG" is selected wrong
Refer to Caution in "4.2.4 setting a model".

If the power cannot be turned on, check the main power of the power distribution board
and the cable connection to the display unit.

Caution

JRC

ENT

ON

4-3

4.1.2 Starting (Normal)

If all the self-check results are ‘OK’, the screen is automatically changed to the normal screen.

All OK

・When the power of the Doppler Log is turned on

When the power is turned on by using the main power switch, the transducer protection function is
activated for safety and a message is displayed on the screen as shown below. Turn off the power as
indicated in 4.1.5 “Turning off the power” and turn on the power again by using the power ON key.

4.1.3 Starting (Abnormal)

If the self-diagnosis results are errors “NG,” the results are displayed as follows.

4.1.4 Starting (Abnormal)

When the program is corrupted, the following screen is displayed. Turn off the power and contact
JRC or one of our agents.

When any abnormality (NG) is found, contact JRC or one of our agents.

Caution

R0004
Recovery
mode.

The transducer protection function protects the transducer from the failure that occurs
when it is operated in the open air.
Turn on the power after checking that the transducer is placed under water.

Supplement

Please turn on the power again.

4-4

4.1.5 Turning off the power

If the key and the key are pressed and held down simultaneously, the power will be
turned off and the screen display will turn off.

4.1.6 Adjusting the back light (lighting) by using the key

The brightness of display and operation panel backlight can be set to one of four levels (bright,
medium, dark, off).

Whenever

is pressed, the level changes in the order of bright – medium – dark – off –dark –

medium – bright.

4.1.7 Adjusting contrast

Contrast can be adjusted over 13 levels.

Whenever

is pressed, the contrast is reduced (increased) from the current setting and after

the contrast reaches the lowest (highest) level, the contrast increases (reduced) gradually.

 The brightness levels other than “off” can be set. See “4.5.2 Adjusting back light”.
 An external dimmer unit can also be used for adjusting brightness. See “4.9.3 Selecting a

dimmer unit”.

Supplement

The power may be turned on due to the release timing of your finger.

In this case, first release the and then release the .

Supplement

4-5

4.1.8 Turning off the alarm buzzer

Buzzer sound can be turned off by pressing

.

The buzzer sounds if an alarm occurs.

4.1.9 Alarm display

When an alarm occurs, the event is notified with a popup menu and alarm sound.

When

is pressed, the popup menu is cleared and the buzzer sound stops. However, display

of “

” remains on the status bar unless the alarm is cancelled.

Even after the popup menu is cleared and the buzzer sound is stopped, the invalid numerical
number keeps blinking until the alarm is cancelled.
To check the alarm again after clearing the popup menu, display the alarm history by referencing
“4.9.12 Displaying an alarm”

4.1.10 Switching display

The display screen is switched whenever is pressed.

Display4

(D4)

Display1

(D1)

Display5

(D5)

Display6

( D 6)

Display3

(D 3)

Display2

(D2)

4-6

4.1.11 Switchimg display (automatic)

Display can be switched automaticaly.

１．

Select "AUTO SCREEN" and set to "ON" in each display setting.

２．

Select switching time from 1 to 10 seconds.

３．

Press and hold the key for 3seconds to start the autoscreen function.

The display switches to
the next screen for
setting time.

Display4

(D4)

Display1

(D1)

Display5

(D5)

Display6

( D6 )

Display3

( D3)

Display2

( D2 )

4-7

4.1.12 User mode change (MID)

The user mode can be changed.
Up to three user modes are available, and six screens can be registered in one mode.

Press the key.

Each time the key is pressed, mode 1 changes to mode 2 and to mode 3.

Display2

(M3

D2)

Display6

(M3D6)

Display3

(M3D3)

Display5

(M3D5)

Display4

(M3D4)

Display1

(M3D1)

Display4

(M1D4)

Display1

(M1D1)

Display5

(M1D5)

Display6

(M1D6)

Display3

(M1D3)

Display2

(M1D2)

Display2

(M2

D2)

Display6

(M2D6)

Display3

(M2D3)

Display5

(M2D5)

Display4

(M2D4)

Display1

(M2D1)

MODE1

MODE2

MODE3

4-8

4.1.13 User setting screen display (MID)

From among the screens registered in the display screen, the user-set screen can be displayed.

The user-set screen can also be displayed quickly from other screen by registering the most
often-used screen.
The user-set screen cannot be registered in each use mode.

Press the key.

To return to the original screen, press the key.

Example) The DISPLAY4 is set in the user setting screen.

画面 4

(D4)

画面 1

(D1)

画面 5

(D5)

画面 6

(D6)

画面 3

(D3)

画面 2

(D2)

CLR

Display1

Display2

Display3

Display4

Display5

Display6

4-9

4.1.14 Resetting a TRIP (LOG)

A trip value can be reset. A total travel distance cannot be reset.

Press for 1 second.

The TRIP screen is reset to 0.00NM.

4.1.15 Changing a unit of the vessel speed (LOG)

The unit of the vessel speed can be switched between kn and m/s.

Press

.

Whenever the key is pressed, the setting switches between kn and m/s.

4-10

4.2 Menu Operation

4.2.1 Selecting items from the menus

This section shows the procedure for selecting items from the menus and determining the
selection.

Procedure

１．

Move the cursor to a required item by using and press .

The item is selected and a submenu is opened to enable selection of details.

Menu

Submenu

２．

Move the cursor to a required item by using and press . The cursor moves to the

setting value selection.

３．

Select a setting value with and press or . The setting value is confirmed.

４．

To return to the previous item, press or .

ENT

ENT

ENT

ENT

CLR

The selected
item is displayed
in reverse video.

Setting value
selection

4-11

4.2.2 Entering a numeric value

This section describes the procedure for entering a numeric value.

Procedure

１．

Move the cursor to the field in which a value is to be entered by using .

２．

Set a numeric value to be entered by using and press or .

３．

Move the cursor to the right most field and press or .

The setting value is confirmed.

Select a field by using

Select a numeric value by using

ENT

ENT

If the numeric value that can be entered is restricted by an input range, enter the digits from
the highest order.
To prevent the value from exceeding the input range, the input of the low-order digits is
restricted by the value of the high-order digit.

Example) The input range is from 1 to 10:

If 1 is input in the high-order digit, only 0 can be set as the low order digit.

Power must not be off for 10 seconds after setting. When not doing so, the setting value
may not be saved.

Supplement

4-12

4.2.3 Changing to a maintenance mode

Before starting installation, the mode must be changed to a maintenance mode to prevent an
operation error.
Change the mode to a maintenance mode by the initial operation.

Procedure

１．

Display a main menu by pressing (normal mode).

２．

Press and for 3 seconds.

３．

The menu is changed to a maintenance menu (maintenance mode).

When the mode is changed to a maintenance mode, the [M] icon is displayed at the bottom of the
screen.

Normal mode

Maintenance mode

Figure 4.1 Transition of menu screens

 Returning to a normal mode

When

and

are pressed for 3 seconds or no operation is performed for 3 minutes, the
mode is reset to a normal mode.
When the power is turned on, the system starts in normal mode.

and 3 seconds

The [M] icon is
displayed.

4-13

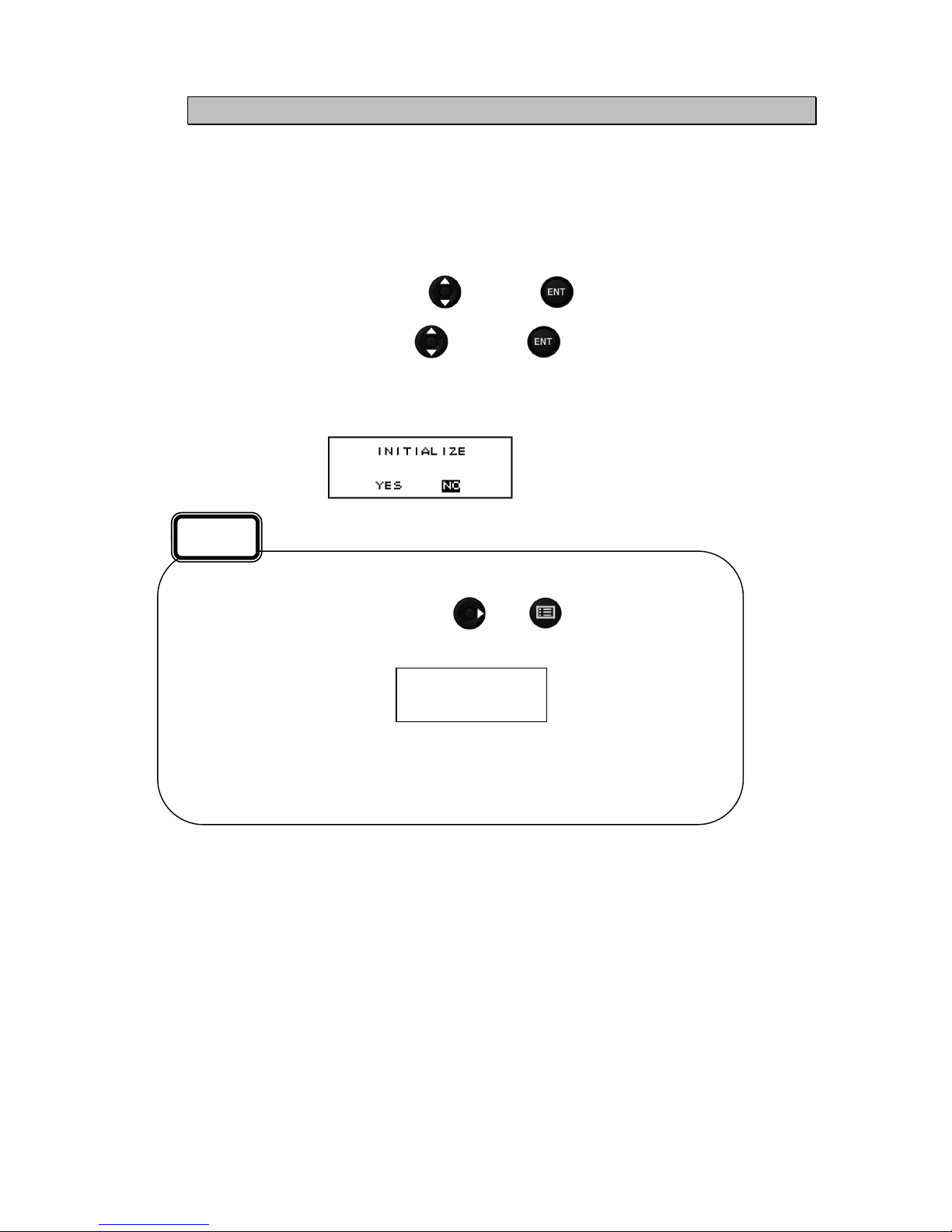

4.2.4 Setting a model

The model is set.
When the model is set, the setting contents are initialized.

Procedure

1.

Refer to “4.2.3 Changing to a maintenance mode” to display the maintenance menu.

2.

Select “DISPLAY TYPE” by using and press .

3.

Select “MID” or "LOG" by using and press .

4.

When the following popup menu is displayed, press “YES”.

When “NO” is selected, the model setting is cancelled.

・When "LOG" is selected wrong, the following messages appears.

After the messages appears, press and for 8 seconds. The
message is canceled.
Then, select "MID" again in the previous procedure.

・Don't turn off the power supply until the "INITIALIZING" disappears.

Caution

Please turn on
the power again.

4-14

4.2.5 Menu List

1) MID 【】Choice

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

1> DISPLAY

LCD

CONTRAST

Adjust the LCD contrast.
【 1(dark)～13(light) 】

7

DIMMER MAXIMUM

Adjust the LCD dimmer.
Brightness can be changed by using [DIM] key.
・Enter the hihest value in "MAXIMUM" and lowest
value in "MINIMUM".
【 2(dark)～13(bright) 】

11

DIMMER TYPCAL 7

DIMMER MINIMUN 3

CLICK SOUND

Turn on/off a key-operation click sound. ON

MODE 1,2,3

The display assigned to the [DISP] key is registered

・

Up to six screens can be registered in each mode.

DISPLAY1,2,3,4,5,6

Select numerical/ analogue (graphic)/ graph screens.
【 Segmentation1,2,3,4/ Special/ Graphic/ OFF】

Refer
to 3.1

DISPLAY

You can select display contents
【 Refer to next section 】

Refer
to 3.1

(DISPLAY
MODE)

Only the integer section or a decimal section of
some item that is selected on a 1-segmentation
customized screen can be expanded.

【 Normal, Special1, Special2, Auro range 】

Normal

AUTO SCREEN Switch a screen automaticaly. OFF

SOUND

Emits a buzzer sound when the screen is switched.

【 Sound1, Sound2, OFF 】

OFF

TIME

Sets a screen switching time in auto screen function.

【 1 ~10 seconds 】

1

BACK LIGHT

Select a LCD backlight color.
【 White, Orange 】

White

GRAPH SCALE

The vertical axis and horizontal axis scale of a graph
can be set.

DEPTH

Set

maximum display time, maximum value and

minimum value of Depth graph.

【 Time：5,10,20,30min depth：0~3048m 】

10min
0m to
300m

WATER TEMP

Set

maximum display time, maximum value and

minimum value of Water temperature graph.

【 Time：5,10,20,30 Water temperature：-37~+37℃ 】

10min
0deg
to
30deg

USER DISPLAY The user display assigned to the [USER] key is

registered.
【 DISPLAY1,2,3,4,5,6,OFF 】

OFF

4-15

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

2> SYSTEM

UNIT Selecting the units.

DIST/SPD

The unit of Distance/Speed

【 NM,kn、km,km/h、mi,mi/h、m,m/s 】

NM
kn

TEMP

The unit of Water temperature 【 ℃,°F 】

℃

DEPTH

The unit of Depth 【 m,ft,fm 】

m

WIND

The unit of Wind 【 kn,km/h,mi/h,m/s 】

kn

TIME DIFF Setting the time diffrence between UTC and local time.

・When a time difference is set, "L" is displayed.
"U":UTC "L":Local time

00:00

DATE DISP Selecting the date display format.

(YY：Year MMM：Month DD：Day）
【 YY-MMM-DD、DD MMM’YY、MMM DD’YY 】

DD­MMM,
'YY

LORAN C

The latitude and longitude can be displayed as
RORAN C time difference.

LORAN C

【 ON (Loran C), OFF(Lat/Lon) 】

OFF

GRI Set the GRI. 4990

ＴＤ１ Set the TD1 【 0～99 】

0

ＴＤ２ Set the TD2 【 0～99 】

0

ＴＤ１ CORR Set the correction of TD1. 【 -9.9～+9.9 】

+0.0

ＴＤ２ CORR Set the correction of TD2. 【 -9.9～+9.9 】

+0.0

DEPTH Setting transducer position and offset of depth.

TRANS

Set thetransducer position.
【 FWD(Forward)、MID(Medium)、AFT(Backward) 】

FWD

OFFSET

Set the offset of water depth.
【 -99.9～+99.9m 】

+0.0

3> LANG.

LANG.

Set the display language.
【 English, Japanese (katakana) 】

A maximum of nine languages: Other than English /
Japanese, it is due to add one by one.

English

4> ALARM

The alarm function when an alarm occurs can be set.
・Alarm sound setting
・LCD color switching (White or Orange).

SYSTEM

An alarm occurs when the system error occurs.

【 ON, OFF 】

OFF

SPEED

An alarm occurs when the ship speed matches the
set parameters.

【 Over, Under, In range, Out range, OFF 】

OFF

TRIP

An alarm occurs when the distance matches the set
parameters.

【 Over, OFF 】

OFF

WATER TEMP

An alarm occurs when the water temperature
matches the set parameters.

【Over, Under, In range, Out range, OFF】

OFF

4-16

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

DEPTH

An alarm occurs when the water depth matches the
set parameters.

【Over, Under, In range, Out range, OFF】

OFF

WIND

An alarm occurs when the wind velocity matches the
set parameters.

【 Over, OFF 】

OFF

AIR TEMP

An alarm occurs when the air temperature matches
the set parameters.

【Over, Under, In range, Out range, OFF】

OFF

PRESSURE

An alarm occurs when the atmosphere matches the
set parameters.

【Over, Under, In range, Out range, OFF】

OFF

HUMIDITY

An alarm occurs when the humidity matches the set
parameters.

【Over, Under, In range, Out range, OFF】

OFF

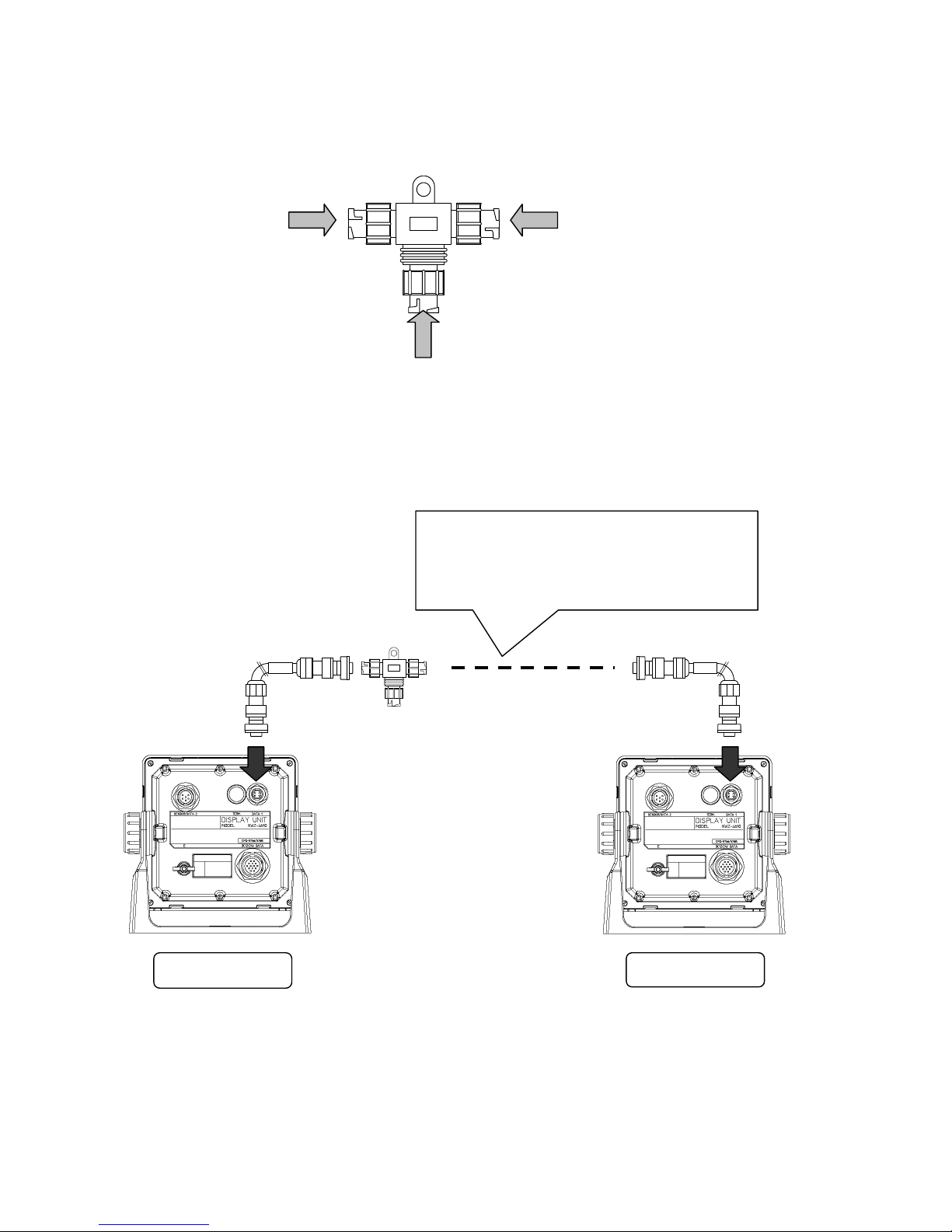

5> DAISY CHAIN

To start the daisy chain function, set "DAISY CHAIN" to
"ON".
・The display can be connected up to 3 units.

OFF

6> INTERFACE

DATA I/O

DATA IN/OUT1,2,3

Select the output format.
【 NMEA, IEC 】

NMEA

DATA IN/OUT

Select the port to "SEND" or "RECEIVE".
・When the port is set for output, output sentence and
output interval can be selected.
・When the NMEA format is set, output NMEA version
can be selected.
【NMEA version：1.5, 2.1, 2.3, 4.0 】

RECE­IVE

BIT RATE

Select the bit rate.
【 4800, 9600, 19200, 38400bps 】

4800

DATA IN/OUT4

Select the output format.
【 NMEA, IEC 】

NMEA

SENTENCE
(VERSION)

Select the output sentence and interval.
・When the NMEA format is set, output NMEA version
can be selected.
【NMEA version：1.5, 2.1, 2.3, 4.0 】

Ver1.5

BIT RATE

Select the bit rate.
【 4800, 9600, 19200, 38400bps 】

4800

RS-485

Select the output format.
【 NMEA, IEC 】

IEC

SENTENCE
(VERSION)

Select the output sentence and interval.
・When the NMEA format is set, output NMEA version
can be selected.
【NMEA version：1.5, 2.1, 2.3, 4.0 】

-

BIT RATE

Select the bit rate.
【 38400, 57600, 76800, 115200bps 】

115200

CONTACT INPUT

Selectting a contact input port.
【 DIMMER、ACK 】

ACK

4-17

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

CONTACT OUTPUT

Selectting a contact input port.
【 200pluse/NM, 400pluse/NM, OFF 】

OFF

DIAGNOSIS

Outputting alarm histry and setting vlaue.
・Data is output from a data IN/OUT1 port.

-

7> MAINTENANCE

INPUT DATA

Data that is received from the serial port can be
displayed on a screen.
・Display format(ASCII/BINARY) can be selected.

-

DIAGNOSIS

DISPLAY DIAG

Self-diagnosis of ROM, RAM, and serial port can be
performed

-

MONITOR TEST

Self-diagnosis of LCD can be performed.

-

BUZZER TEST

Self-diagnosis of buzzer sound can be performed.

-

ERROR LOG

Up to 40 past alarms can be stored and when the
number of alarms exceeds 40, alarms are deleted
from the oldest one.

ALARM

The current alarm is displayed.

-

ERROR LOG The past alarm is displayed. -

SOFT VERSION

DISPLAY VER -

APP VER

The software version of the display unit can be
displayed.

-

SERIAL
NUMBER

The serial number of the display unit can be displayed.

-

BARCODE

The bar code number of the display unit can be
displayed.

-

8> MASTER REST

GRAPH RESET

Reset of water temperature and water depth. -

DISPLAY RESET

Reset of entire display unit.

-

9> DEMO MODE

DEMO TYPE

Select the action of demonstration.
【 Static, Strate, Right, Left 】

-

DATE

Start day of demonstration. -

TIME

Start time of demonstration. -

LATITUDE

Start position (Lat) of demonstration. -

LONGITUDE

Start position (Lon) of demonstration. -

4-18

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

DEMO MODE To start demonstration, set to "START".

To end demonstration, set to "END".

・

During execution of demonstration, [S] is displayed

in blinking mode at the bottom of the screen.

-

10> SOFT UPDATE

DISPLAY

Display program update. -

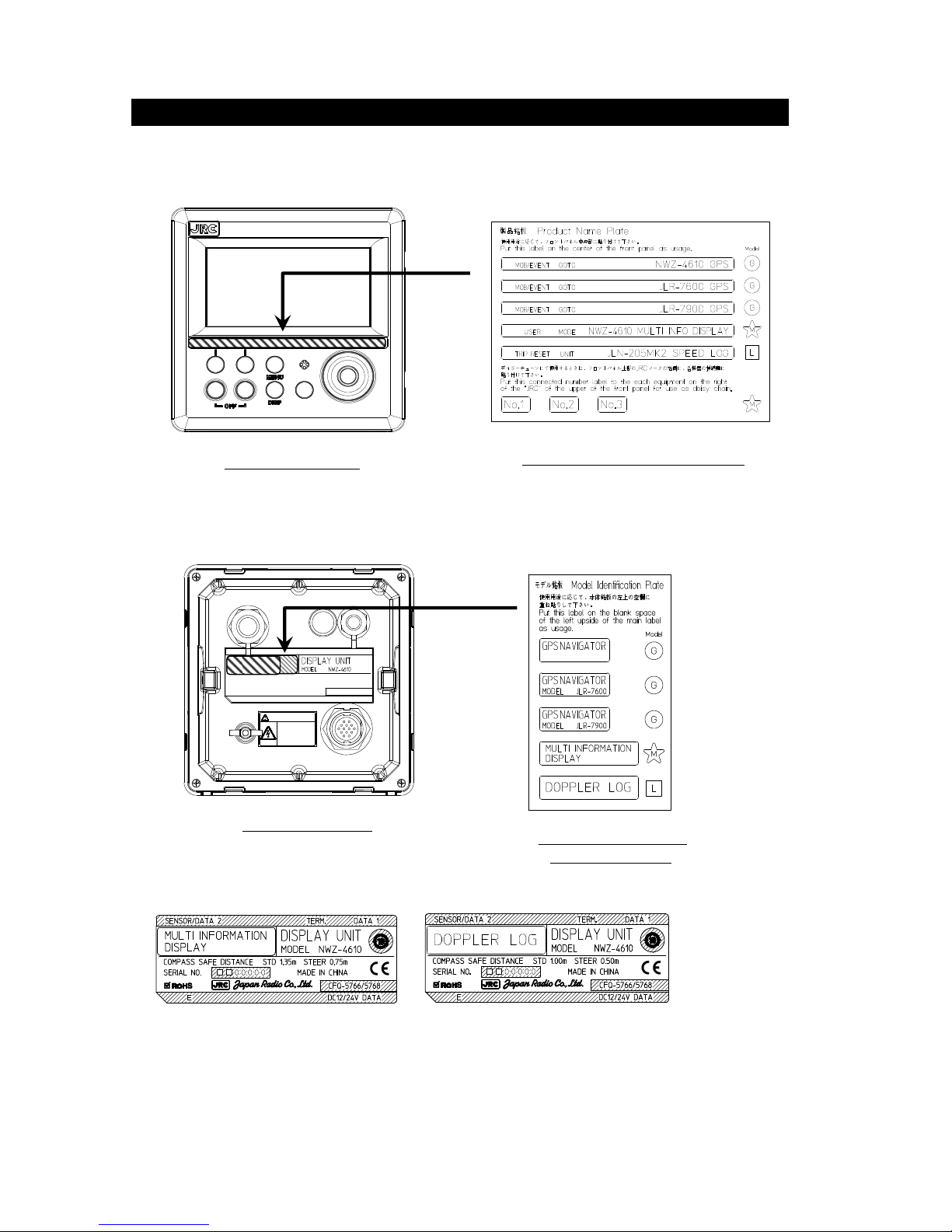

11> DISPLAY TYPE

Setting a model.
・When the model is set, the setting contents are

initialized.

MID

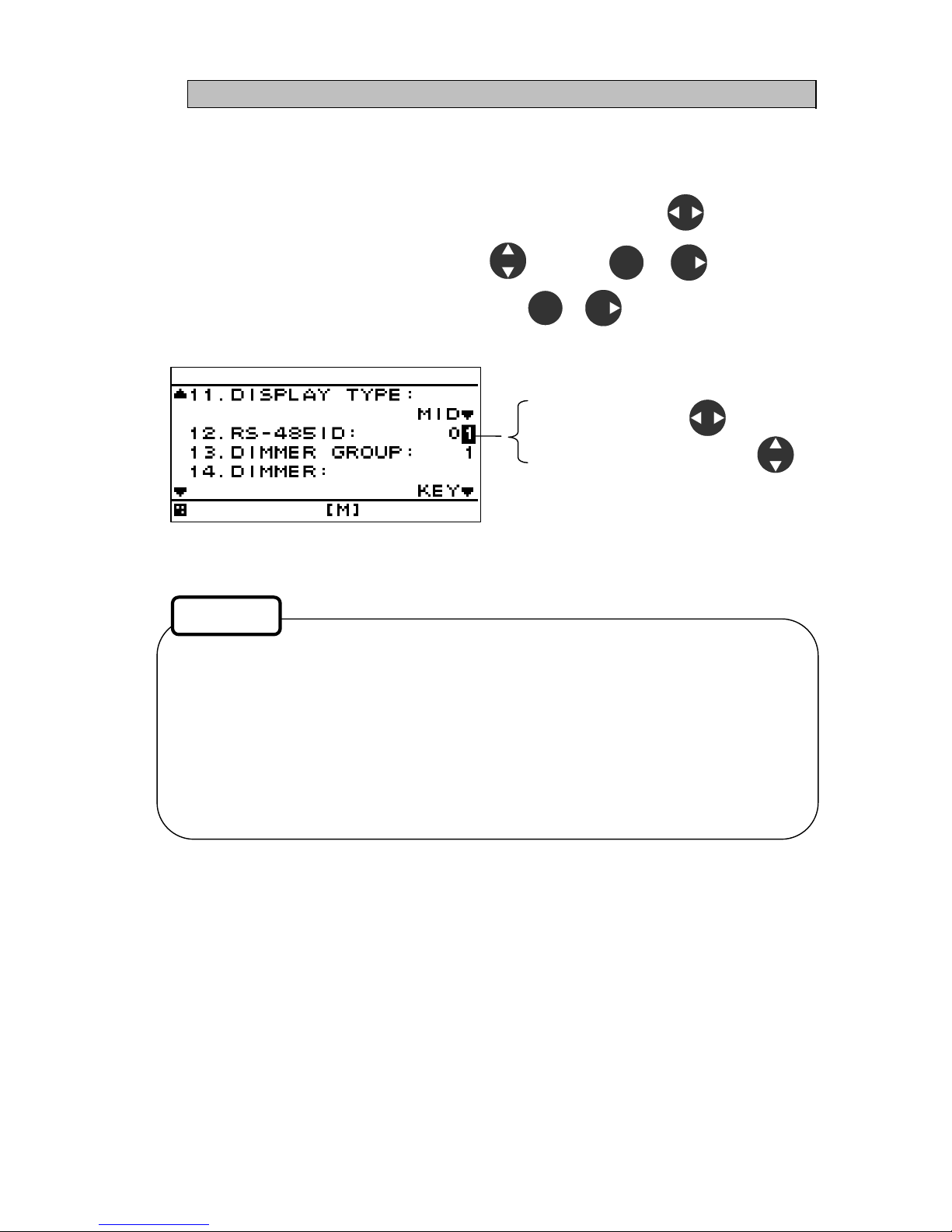

12> RS-485ID

To identify a display unit on the RS-485 network, set
an ID for each display unit.
Avoid duplication of ID among the display units.

【 1～10 】

1

13> DIMMER GROUP

Dimmer control linkage is available for the display
units that are connected by the RS-485 network.
・The display of same dimmer group number can be
linked.

【 1～10 】

1

14> DIMMER

Selecting a dimmer unit.
【Key(DIM key), EXT DIMMER(External dimmer unit)】

Key

15> CURRENT

Setting the current layer and data No. to be displayed.
・The layer that can be displayed is up to three layers
from the top.

【 LAYER, DATA No. 】

LAYER

4-19

2) Doppler Log
【】Choice

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

1> DISPLAY

LCD

CONTRAST

Adjust the LCD contrast.
【 1(dark)～13(light) 】

7

DIMMR MAXIMUM

Adjust the LCD dimmer.
Brightness can be changed by using [DIM] key.
・Enter the hihest value in "MAXIMUM" and lowest
value in "MINIMUM".
【 2(dark)～13(bright) 】

11

DIMMER TYPCAL 7

DIMMER MINIMUM 3

CLICK SOUND

Turn on/off a key-operation click sound.

オン

DISPLAY SELECTION The display assigned to the [DISP] key is registered
・

Up to six screens can be registered.

DISPLAY 1,2,3,4,5,6

Select numerical/ analogue (graphic)/graph screens.
【 Segmentation1,2,3,4/ Special/ Graphic/ OFF】

Refer
to 3.1

DISPLAY

You can select display contents
【 Refer to next section 】

Refer
to 3.1

（DISPLAY MODE）

Only the integer section or a decimal section of
some item that is selected on a 1-segmentation
customized screen can be expanded.

【 Normal, Special1, Special2, Auro range 】

Normal

AUTO SCREEN Switch a screen automaticaly. OFF

SOUND

Emits a buzzer sound when the screen is switched.

【 Sound1, Sound2, OFF 】

OFF

TIME

Sets a screen switching time in auto screen
function.

【 1 ~10 seconds 】

1

BACK LIGHT

Select a LCD backlight color.
【 White, Orange 】

White

2> SYSTEM

UNIT Selecting the units.

SPEED

The unit of Speed
【 kn, m/s 】

kn

SMOOTHUNG
STW Sets a smoothing time of speed. 10

SPEED

Select a vessel speed to be displayed.
【ＳＴＷ、SOG(GPS】
STW:Water speed by Doppler Log
SOG(GPS):Ground speed by GPS

STW

3> LANG.

LANG.

Set the display language.
【 English, Japanese (katakana) 】

A maximum of nine languages: Other than English /
Japanese, it is due to add one by one.

English

4-20

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

4> ALARM

The alarm function when an alarm occurs can be set.
・Alarm sound setting
・LCD color switching (White or Orange).

SYSTEM

An alarm occurs when the system failure occurs.
【ON, OFF】

OFF

SPEED An alarm occurs when the ship speed matches the

set parameters.

【 Over, Under, In range, Out range, OFF 】

OFF

TRIP

An alarm occurs when the trip distance matches the
set parameters.

【 Over, OFF 】

OFF

SPEED LOST

An alarm occurs when computation of the vessel
speed is disabled

【ON, OFF】

OFF

5> SENSOR

Sets a function of signal distributer.

SPEED CORR

Corrects the vessel speed. 【-50.0%～+99.9%】
When + value is set, the displayed value increases.

+0.0%

NMEA1

Sets the output versions of NMEA1 to NMEA4.

【1.5、2.3】

2.3

NMEA2

Sets the output versions of NMEA5 to NMEA8.

【1.5、2.3】

2.3

PULSE1

Sets the distance pulse output rates of LOG1 and
LOG2.

【0～20×100P/NM】

2×100
P/NM

PULSE2

Sets the distance pulse output rates of LOG3 and
LOG4.

【0～20×100P/NM】

2×100
P/NM

PULSE3

Sets the distance pulse output rate of LOG RELAY.

【0～20×100P/NM】

When 0 is set, the output is stopped.

0×100
P/NM

SCALE Adjusts the display scale of the analog vessel

speedometer (optional).

【10～40】

30kn

4-21

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

6> INTERFACE

DATA I/O

DATA IN/OUT １,２,３

Select the output format.
【 NMEA, IEC 】

NMEA

DATA IN/OUT

Select the port to "SEND" or "RECEIVE".
Cannot set DATA IN/OUT1, 2, 3.
・When the port is set for output, output sentence and
output interval can be selected.
・When the NMEA format is set, output NMEA version
can be selected.
【NMEA version：1.5, 2.1, 2.3, 4.0 】

IO1:
SEND

IO2:
SEND

IO3:
RECE­IVE

BIT RATE

Select the bit rate.

Cannot set DATA IN/OUT1,3

【 4800, 9600, 19200, 38400bps 】

IO1:
9600

IO2:
4800

IO3:
9600

RS-485

Select the output format.
【 NMEA, IEC 】

IEC

SENTENCE
(VERSION)

Select the output sentence and interval.
・When the NMEA format is set, output NMEA version
can be selected.
【NMEA version：1.5, 2.1, 2.3, 4.0 】

-

BIT RATE

Select the bit rate.
【 38400, 57600, 76800, 115200bps 】

115200

CONTACT INPUT

Selectting a contact input port.
【 DIMMER、ACK 】

DIMM
ER

DIAGNOSIS

Outputting alarm histry and setting vlaue.
・Data is output from a data IN/OUT1 port.

-

4-22

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

7> MAINTENANCE

INPUT DATA

Data that is received from the serial port can be
displayed on a screen.
・Display format(ASCII/BINARY) can be selected.

-

DIAGNOSIS

DISPLAY DIAG

Self-diagnosis of ROM, RAM, and serial port can be
performed

-

MONITOR TEST

Self-diagnosis of LCD can be performed.

-

BUZZER TEST

Self-diagnosis of buzzer sound can be performed.

-

ERROR LOG

Up to 40 past alarms can be stored and when the
number of alarms exceeds 40, alarms are deleted
from the oldest one.

ALARM

The current alarm is displayed.

-

ERROR LOG The past alarm is displayed. -

SOFT VERSION -

DISPLAY VER -

APP VER

The software version of the display unit can be
displayed.

-

SERIAL
NUMBER

The serial number of the display unit can be displayed. -

BARCODE

The bar code number of the display unit can be
displayed.

-

TX

Transmission from a transducer can be stopped

【ON, OFF】

ON

8> MASTER RESET

ODO RESET

Reset of total distance (ODO).
After power is On,it is effective only for 1 minute.

DISPLAY RESET

Reset of entire display unit.

RECEIVER RESET

Reset of main unit.

9> DEMO MODE

DEMO TYPE Select the action of demonstration.

【OFF, -5kn, 0kn, 18kn, 36kn, 40kn】
・

During execution of demonstration, [S] is displayed

in blinking mode at the bottom of the screen.

OFF

10> SOFT UPDATE

DISPLAY

Display program update. -

4-23

Main menu

Explanation

Default

Sub-menu1
Sub-menu2

Sub-menu3

11> MAI N/S UB

Selects a type
【MAIN, SUB】

MAIN

12> DISPLAY TYPE

Setting a model.

・When the model is set, the setting contents are
initialized.

LOG

13> RS-485ID

To identify a display unit on the RS-485 network, set
an ID for each display unit.
Avoid duplication of ID among the display units.

【 1～10 】

１

14> DIMMER GROUP

Dimmer control linkage is available for the display
units that are connected by the RS-485 network.

・The display of same dimmer group number can be
linked.

【 1～10 】

１

15> DIMMER

Selecting a dimmer unit.
【Key(DIM key), EXT DIMMER(External dimmer unit)】

Key

4-24

4.2.6 Display category and contents

1) MID

Category Display contents

Segmentation1 Segmentation2 Segmentatuon3 Segmentation4

OWN SHIP HDG

ROT
COG
SOG
PITCH
ROLL
HEAVING
LAT/LON *1

WEATHER WATER TEMP

TWA
AWA
TWS
AWS
AIR TEMP
PRESSURE
HUMIDITY

DOPPLER STW

BOW STW
STERN STW
SOG(LOG)
BOW SOG(LOG)
STERN SOG(LOG)
CURRENT L1 SPD
CURRENT L1 DIR
CURRENT L2 SPD
CURRENT L2 DIR
CURRENT L3 SPD
CURRENT L3 DIR
TRIP
ODO
DEPTH

ENGINE RUDDER

ENGINE
SHAFT

SPECIAL SINGLE DEPTH

DUAL DEPTH
WIND

GRAPHIC

WIND
DEPTH
WATER TEMP
SPEED1
SPEED2
RUDDER

*1 Only segmantation1.

4/4

2/41/4

3/4

3/3

1/3

2/3

1/2

2/2

1/4

4-25

2) Doppler Log

Category Display contents

Segmentation1 Segmentation2 Segmentatuon3 Segmentation4

DOPPLER STW

TRIP
ODO

SPECIAL STW1

STW2
STW3

GRAPHIC STW

4/4

2/41/4

3/4

3/3

1/3

2/3

1/2

2/2

1/4

4-26

5-1

Section 5 Maintenance

Do not check or repair in this unit. Please call our field representative or your
nearest JRC office for inspection and repair services. Otherwise it may
cause a fire or an electric shock.

Do not remove the cover of this unit. Otherwise, you may touch a
high-voltage part and suffer from an electric shock.

Turn off the power on/off switch, and turn off the power supply breaker when
you check this unit for maintenance. Otherwise, a fire, an electric shock, or a
failure may occur.

Do not disassemble or modify this unit. Otherwise, a fire, an electric shock,
or a failure may occur.

Do not check the transducer for any maintenance while the ship is on the
water. Otherwise it may cause injury or water leakage of the ship.

In the event that you spill or drop any liquids or metals etc., turn off the unit,
turn off the power supply breaker, and contact your sales agent outlet or one
of JRC branch offices, sales centers or liaison offices. Continuing operation
may cause a fire, an electric shock or a malfunction.

In the event that smoking or burning odors are detected, immediately
terminate operation of the unit and contact your sales agent outlet or one of
JRC branch offices, sales centers or liaison offices. Never attempt to check
or repair the unit. Continuing operation may cause a fire or an electric shock.

Do not use an organic solvent such as thinner or benzine when you clean
the surface of the unit. For cleaning the surface, remove the dust and wipe
with clean dry cloth. Otherwise, the painting on the surface may be
damaged.

WARNING

CAUTION

5-2

5.1 Daily Maintenance

Do not remove the cover of this unit. Otherwise, you may touch
a high-voltage part and suffer from an electric shock.

Turn off the power on/off switch, and turn off the power supply

breaker when you check this unit for maintenance.」「an electric
shock. Otherwise, a fire, an electric shock, or a failure may
occur.

Do not use an organic solvent such as thinner or benzine
when you clean the surface of the unit. For cleaning the
surface, remove the dust and wipe with clean dry cloth.
Otherwise, the painting on the surface may be damaged.

The life of the device depends on how daily maintenance and inspection are performed
carefully. To keep the device in the best condition at all times, it is recommendable to perform
periodical inspections constantly. Any failure in the device can be prevented before it occurs
through such inspections. Please perform the inspections shown in the table below
periodically.
 Remove stains from the panel face, knob, panel keys, top cover by wiping them lightly with

dry cloth.

 Check knob, panel keys, loosening of the connector and starting the omission, and it

tightens correctly.

 Check loosening and rattling of the screw bolt that is the fixation of the case, and it tightens

surely.

 Operate the equipment under standard power voltage levels (DC 10.8 - 31.2 V).

WARNING

CAUTION

5-3

5.2 Alarm

Check the alarm details referring to the list shown below.

Alarm List

1) Common

Message

Number

Message Contents Alarm Causes

45 ROM[1] Flash ROM Deletion, Write Error (ROM[1])
46 ROM[2] Flash ROM Deletion, Write Error (ROM[2])
47 ROM[3] SEEPROM Deletion, Write Error
48 RAM RAM Read, Write Error
49 SIO[0] Serial Port Error (SIO[0])
50 SIO[1] Serial Port Error (SIO[1])
51 SIO[2] Serial Port Error (SIO[2])
52 SIO[3] Serial Port Error (SIO[3])
53 SIO[6] Serial Port Error (SIO[6])

- No Sensor Data Sensor periodic input not possible (No data)

- Sensor Data Invalid

Sensor information unobtainable (Position, Time,
Course, etc.)

2) MID

Message

Number

Message Contents Alarm Causes

2/3/7 SOG/STW/SOG(LOG) Speed alarm occurs

10 TRIP Trip alarm occurs
17 WATER TEMP Water Temperature alarm occurs
18 DEPTH Depth alarm occurs

19/20 TWS/AWS Wind alarm occurs

21 AIR TEMP Air temperature occurs
22 PRESSURE Pressure alarm occurs
23 HUMIDITY humidity alarm occurs

3) Doppler Log

Message

Number

Message Contents Alarm Causes

63 STW Lost

The vessel speed cannot be computed.

3/4/7 STW/SOG(GPS)/

SOG(LOG)

The vessel speed is within the alarm range that is
set.

10 TRIP

The trip value is within the alarm range that is set.

54 NG:URT Data Lost

URT Data is lost.

55 NG:Disp RxT Data

The display data cannot be obtained in the display
unit.

56 NG:Proc RxT Data

A measurement condition is not set in the processor.

57 NG:Tmnl TxD TB

There is no display data to the display unit on the
terminal in the distributor.

58 NG:Tmnl TxD Pin

There is no display data to the display unit in the
distributor.

59 NG:Tmnl RxD Pin

Signals from the display unit are not delivered to the
distributor.

60

NG:Tmnl TxP Pin

There is no signal to the processor in the distributor.

61

NG:Tmnl TxP TB

There is no signal to the processor in the terminal of
the distributor.

62

NG:Tmnl RxP Pin

Signals from the processor are not delivered to the
distributor.

5-4

5.3 Troubleshooting for Malfunctions or Abnormalities

5.3.1 Troubleshooting

In the event that smoking or burning odors are detected,
immediately terminate operation of the unit and contact your
sales agent outlet or one of JRC branch offices, sales centers or
liaison offices. Never attempt to check or repair the unit.
Continuing operation may cause a fire or an electric shock.

The following is reference information concerning identification of problems.

Symptom Possible Causes Troubleshooting Measures

The power does not
turn on when the
power switch is
pressed.

Power is not being supplied by
the ship junction box.

Check whether the cabling from the
junction box is normal.

Power is not being supplied by
the power supply equipment
(option).

Check whether the power supply unit
cabling is normal (only MID).

The fuse connected to the power
cable has blown.

If there are no problems in the cabling,
replace the fuse.

The power supply equipment
(option) fuse has blown.

If there are no problems in the cabling,

replace the fuse (only MID).
The display unit switch is broken. Consult with JRC or our agents.
The contact is disconnected. Check the connection (only LOG).

The LCD display does
not display anything.

The LCD display is broken.

Consult with JRC or our agents.

The display does not
light up.

The alarm sound is
not generated.

The buzzer is broken. Consult with JRC or our agents.
The alarm sound is turned off. Check the alarm sound setting.

The click does not
sound.

The key press sound is turned
off.

Check the click sound setting

There is no reception
(from sensor).

The sensor connection cable is
disconnected.

Check the connection cable.

The sensor is broken. Consult with JRC or our agents.

There is no
transmission
(to external devices).

Output settings have not been
configured.

Check the interface setting.

The configured channel is
incorrect.

Check the interface setting.

The DISP-DPU or POWER
SUPPLY UNIT is broken.

Consult with JRC or our agents.

The Dimmer are not
interlocked.

The baud rate is different. Check the RS-485 bit rate.
The dimmer group is different. Check the dimmer group number
The dimmer is different. Check the dimmer unit.
The cable is disconnected. Check the connection.

Data is not shared.

The baud rate is different. Check the RS-485 bit rate.
Output sentence is not selected. Check the RS-485 output sentence.
The cable is disconnected. Check the connection.

WARNING

5-5

5.3.2 Repair Unit

Repair units and their models are shown below.

No Name Model Notes

1 DSP UNIT CMJ-562

2 POWER UNIT CMP-490

3 LCD UNIT CCN-423

FUSE

No Name Model Notes

1 FUSE MF60NR 250V 1

for Data power cable
1A FUSE

Mechanical Parts

No Name Code Notes

1

FRONT PANEL
KIT

MPBC47673

FRONT PANEL
PRODUCT NAMEPLATE

5.3.3 Regular Replacement Parts

Parts which should be regularly replaced are shown below.
Contact JRC or an affiliate to order.

No Name Model Life Notes

1 LCD UNIT CCN-423 40000 hours

Approximately 5 years of
continuous use

5-6

6-1

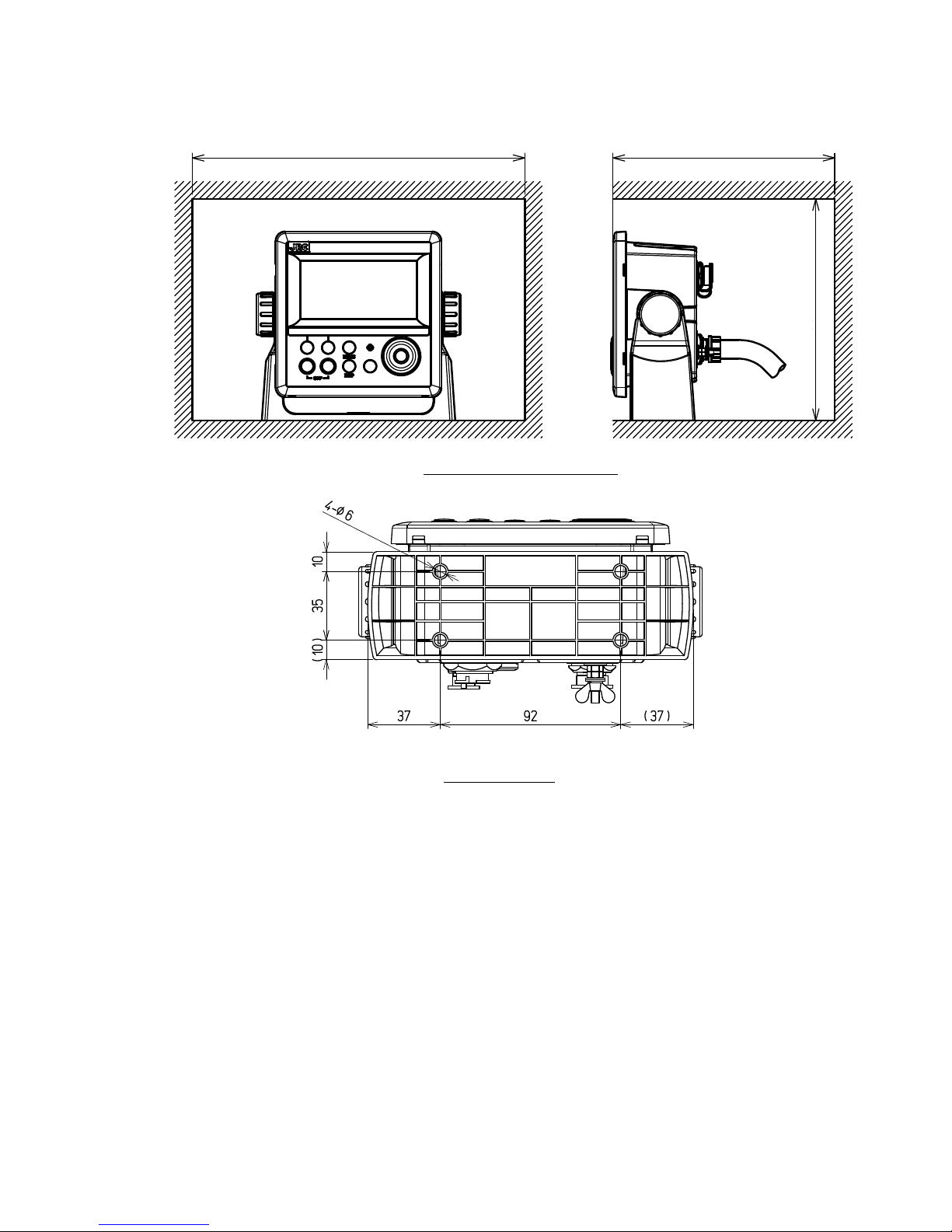

Section 6 Installation

Consult with JRC or our agents to install. Installation by unauthorized personnel
may result in a malfunction.

Do not install this unit at the place exposed to direct sunlight for a long time or hit
by hot wind or where the temperature rises above 55℃. Otherwise it may cause a
fire or a breakdown.

Do not put the equipment on the unstable place such as wobbly base or tilted
area. Otherwise it may cause the equipment to drop or fall, resulting in an injury or
a failure.

Do not put the equipment in the cabinet or cover it with the nonporous thing such
as cardboard. Otherwise it may cause the equipment to be filled with heat,
resulting in a fire or a failure.

When this unit is suddenly moved from a cool place to a warm place, drew
condensation water may form on the inside windows, and the liquid crystal part
can become visually difficult. In this case, leave the unit for a while until becoming
dry condition. Then operate the unit.

CAUTION

6-2

6.1 Affixing Display Unit Nameplate Labels

Peel the label of the equipment to be used from the accessory product nameplate, and affix it to
the center of the front panel.

Peel the label of the equipment to be used from the accessory model identification plate, and affix
it over the upper left blank part of the unit nameplate at the center of the rear case.

After affixing model identification plate

MID Doppler Log

MED mark of Doppler Log is affixed on the signal distributor.

Product Nameplate (Accessory)

Model Identification

Plate (Accessory)

Display Unit Front

Display Unit Rear

6-3

6.2 Display Unit Installation

6.2.1 Selecting the position for installation

Install this unit at least 1 m away from any magnetic compasses. Installation near
a magnetic compass may interfere with the magnetic compass, resulting in an
accident.

Do not use this unit at the voltage other than its rated voltage.
Otherwise it may result in a fire, an electric shock or a failure.

Use the indicated screws when installing the display unit to a stable

woodensurface.
Otherwise it may cause the display to fall down, resulting in an injury or a
property damage.

During installation, be sure to connect the earth plate and earth cable to the earth

terminal. Otherwise it may cause an electric shock in case of failure or electric

leak.

Do not use or leave the equipment at the place exposed to direct sunlight or hit by

hot wind for a long time or where the temperature becomes 55℃ or higher.

Otherwise it may cause a fire or a failure.

Do not put the equipment on the unstable place such as wobbly or tilted area.

Otherwise it may cause the equipment to drop or fall, resulting in a fire or a failure.

Do not put the equipment in the cabinet or cover it with the nonporous thing such

as cardboard. Otherwise it may cause the equipment to be filled with heat,

resulting in a fire or a failure.

Use the proper power cable, signal cable, and earth cable. Otherwise it may

cause this unit to damage t other equipment.

WARNING

CAUTION

6-4

6.2.2 Mounting the display unit using a rack

Use the following procedure.

1) Fix the desktop rack at the required installation position by using the mounting screws (φ4～6
screw or wood screw, L>=15mm, provided by the shipyard).

2) Insert the front panel into the main unit.

3) Attach the rotational washer on the side of the main unit.

4) Attach the rotational washer on the side of the desktop rack.

5) Assemble the main unit on the desktop rack, insert the knob metal washer between the desktop
rack and the knob bolt, and fix the main unit by tightening the knob bolts.

Front panel

Main unit

Rotational
washer

6 mounting hole (4 holes)

Desk rack

Knob metal washer

Mounting screw
(provided by the shipyard)

6-5

Required installation space

(Unit: mm)

Mount (bottom)

285 or more 190 or more

190 or more

6-6

6.2.3 Mounting using a flush mount

Use the following procedure.
See the diagram below for the mounting space and mounting holes.
Do not tighten a screw too much. Doing so may result in damage of installation holes.

1) Insert the main unit in the installation location.

2) Fix the main unit using the mounting screws (φ4 screw or wood screw, L>=10mm, provided by
the shipyard).
The sizes of the heads of the screws that are used are restricted as follows including the
washers.

 Diameter: Up to 8 mm

 Height: Up to 4.5 mm

3) Insert the front panel into the main unit

Front panel

Mounting
screw
(provided by
the shipyard)

After mounting

4.5
mounting
hole (4)

Main unit

Mounting wall

6-7

Provide maintenance space

or more

※About the corner C11,
may want to cut φ25

Mounting hole

(Square hole)

(Screw pitch)

(Square hole)

(Screw pitch)

6-8

6.2.4 Removing the display unit by flush mounting

Use the following procedure to remove the display unit.

1) Insert a hexagonal wrench into the holes (2) at the bottom of the front panel.

2) Remove the front panel by pressing down the hexagonal wrench.

Mounting wall

Front panel

Prepare a board to protect
the wall from being
damaged.

Hexagonal wrench
Recommended size: 3 mm

Press down

6-9

6.3 Doppler Log Installation

To install the Doppler Log, refer to "SERVICE MANUAL" of the Doppler Log JLN-205MK2.

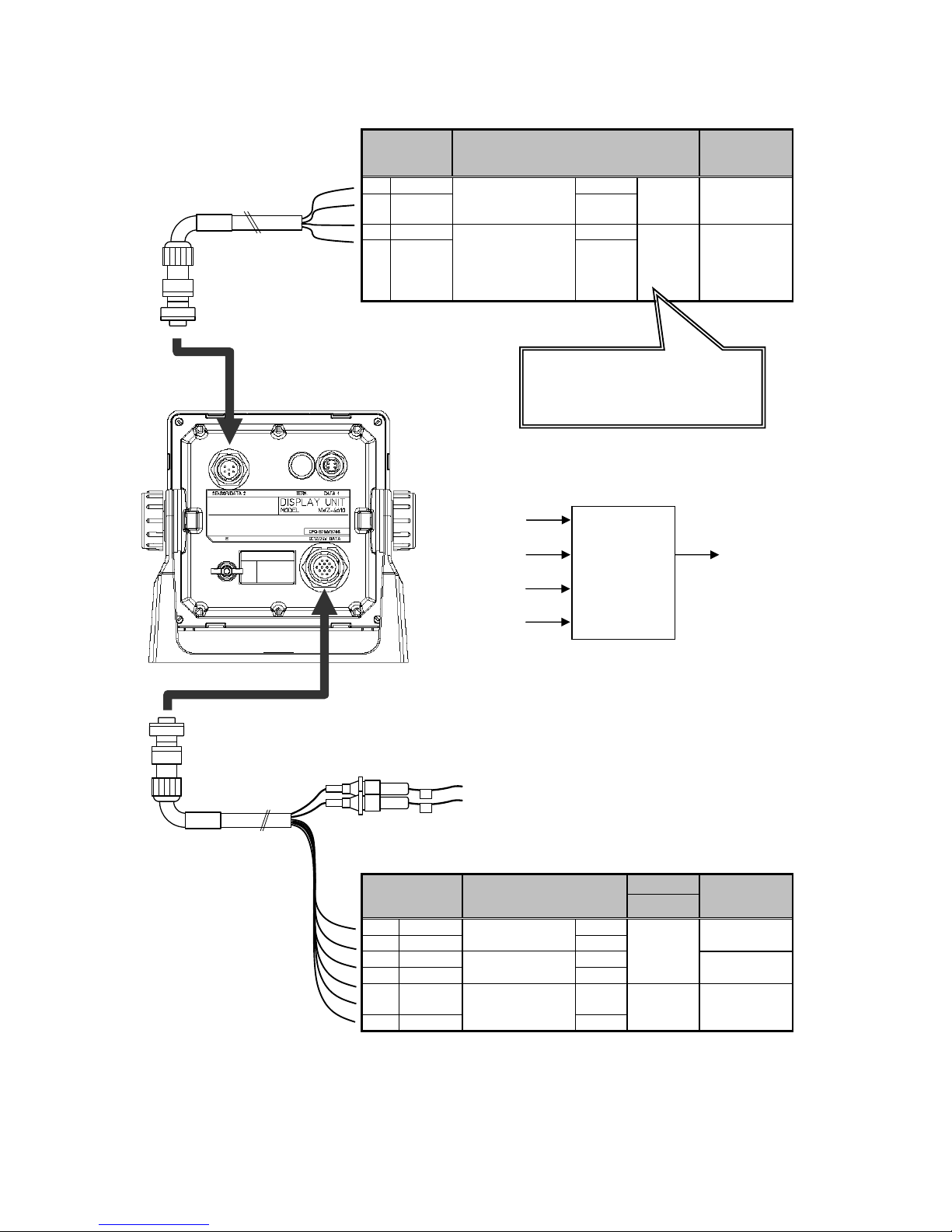

6.4 Cable Connection

 Unit (Rear Connector)

[SENSOR/DATA 2]

Daisy-chain
Or, connect with external device.

[DATA 1]

Share data between display units

[DC12/24V DATA]
Power Input Terminal

Used fro power input to unit.
Be sure to connect specified data power cable.

External Equipment Connection Terminal
(Contact Output Signal)

Connect to the optional equipment by using
LOG PULSE (MID).
Connect to Signal distributor (LOG)

External Equipment Connection Terminal
(Contact Input Signal)

Connect to the contact input and external dimmer.

External Equipment Connection Terminal
(Serial Transmission I/O)

Connect to external sensor unit (MID)
Connect to Signal distributor (LOG).

[E]
Chassis Earth Terminal

Connect to ship earth

[TERM.]

Turn ON and OFF terminal
resistance for DATA1
connection

6-10

6.4.1 DC12/24V DATA connector (MID/LOG)

表示器 背面

Terminal Number

(CFQ-5766)

Name Explanation

1 Red

DC12/24V

DCIN +

Connect the accessory power cable.
The power-supply voltage range is 10.8 to 31.2 VDC.

2 Black DCIN ­3 Orange

Contact
Output

ALM_COM

Output contact signals

4 Yellow ALM_NO
5 Green ALM_NC
6 Blue Contact

Input
Analog Input

ACK_IN+

Input contact signal or external dimmer.

7 Purple ACK_IN-

8 Gray Serial

Transmission
(DATA I/O 1)

SD0-A Input and output to the specifications set by “DATA

IN/OUT1.”

9 White SD0-B

10 Pink Serial

Transmission
(DATA I/O 2)

SD3-A Input and output to the specifications set by “DATA

IN/OUT2.”

11 Sky blue SD3-B

12 Bright

green

Serial
Transmission
(DATA I/O 3)

SD6-A

Input and output to the specifications set by “DATA

IN/OUT3.”
13 Brown SD6-B
14 Black

(Shield)

Chassis
Earth

E

Chassis earth

To connect the Doppler Log, refer to "SERVIC MANUAL" or "INSTALLATION MANUAL" of the
Doppler Log (JLN-205MK2).

CFQ5766

1A

1A

+

-

Red

Black

Fuse Holder
(Containing 1A Fuses)

Data Power Cable

CFQ-5766A: 2 m (Accessory)
CFQ-5766D: 10 m (Option)
CFQ-5766F: 20 m (Option)

14 13
12 11 10
9 8 7 6
5 4 3
2 1

Display Unit Rear:

Connector Pin Number

6-11

[Input/Output Condition for Serial Transmission]

The data power cable (CFQ-5766) has three serial transmission channels.

The input/output settings for DATA I/O "1" and "2" are linked to each other.
As listed below, four connections and settings can be made.

For the input/output settings for channels, see "4.9.5 Setting a serial port".

Terminal Number

(CFQ-5766)

Name

Input/Output Condition

3ch

Input

2ch Input

1ch Output

1ch Input

2ch Output

3ch Output

8 Gray

Serial
Transmission
(DATA I/O 1)

SD0-A

Input Input Output Output

9 White SD0-B

10 Pink Serial

Transmission
(DATA I/O 2)

SD3-A

11 Sky blue SD3-B

12 Bright green Serial

Transmission
(DATA I/O 3)

SD6-A

Input Output Input Output

13 Brown SD6-B

データ電源ケーブル

CFQ-5766A ： 2m （付属品）
CFQ-5766D ： 10ｍ （オプション）
CFQ-5766F ： 20ｍ （オプション）

CFQ5766

1A

1A

+

-

Data Power Cable

CFQ-5766A: 2 m (Accessory)
CFQ-5766D: 10 m (Option)

CFQ-5766F: 20 m (Option)

6-12

[Input/Output Circuit]

NCM-227
Dimmer Unit

NWZ-4610 Display Unit

IEC61162-1 (NMEA)

SD-B

SD-A

SD-B

SD-A

Input Setting

Output Setting

Relay

Contact maximum 30 VDC/1.0 A

COM

NO

NC

IEC61162-1 (NMEA)

Input

Output

[Serial Transmission]

[Contact Output]

[Contact Input/Analog Input]

IN+

IN-

1
2
3
4

or Contact Connection

3: Orange

4: Yellow

5: Green

6: Blue

7: Purple

6-13

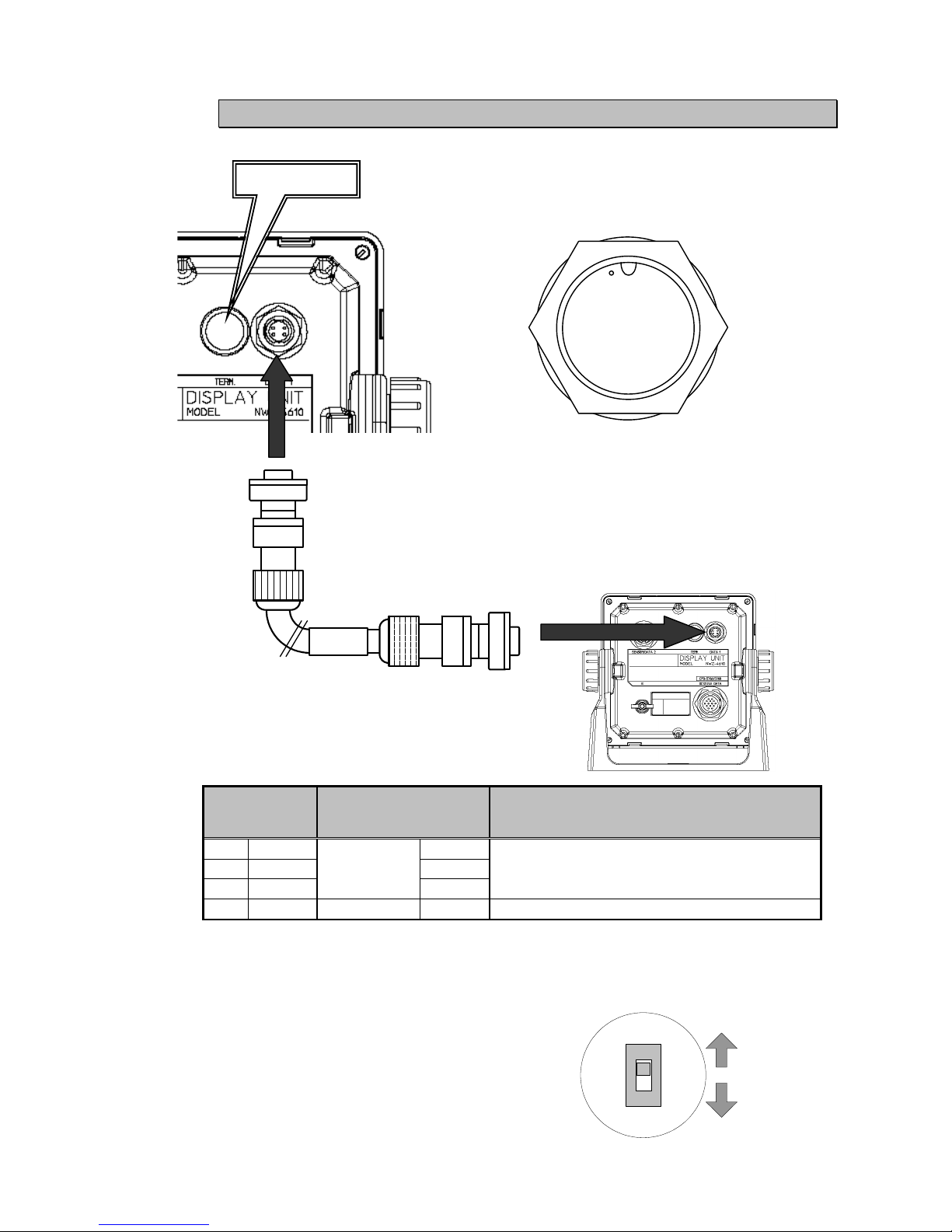

6.4.2 DATA1 connector (MID/LOG)

Display Unit Rear

Terminal

Number

(CFQ-5769)

Name Explanation

1 Brown

Serial
Transmission
(RS-485)

SD1-A

Connect to the display unit for serial transmission

2 Red SD1-B
3 Green SD1-C
4 Shield Chassis Earth E Chassis earth

[TERM. Switch]
When this terminal is connected, move the TERM. switch (terminator) to ON.
To connect multiple units, move the TERM. switches on both ends of the display unit to ON.

1 4

2 3

Display Unit Rear: Connector Pin Number

CFQ5769

Data Cable

CFQ-5769: 3 m (Option)

ON

（上）

ON

OFF
(下）

TERM. Switch

When the rubber cap
is removed, the switch
appears.

(Up)

(Down)

6-14

[T-SHAPED CONNECTOR]

This T-SHAPED CONNECTOR can be used to extend cables and connect multiple units (up to 10
units).

[To Extend the Cable]

T-SHAPED CONNECTOR (option)

Type name: AA-040404-MMM-TL
Code: 5JCDX00071

CFQ-5769

CFQ-5769

CFQ-5769

CFQ5768CFQ5768

CFQ-5769: 3 m

CFQ-5769: 3 m

Term.: ON (up)

Term.: ON (up)

CFQ-5769: 3 m x necessary number of cables
and
T-SHAPED CONNECTOR Same number as
CFQ-5769

6-15

[To Connect Multiple Units]

 Up to 10 units can be connected.

... 3 . 4 . 5 . 6 . 7 . 8 .

CFQ5768

CFQ-5769: 3 m

CFQ5769

CFQ5768

Term.: ON (up) Term.: ON (up)Term.: OFF (down)

CFQ-5769: 3 m

CFQ-5769: 3 m

The number of cables and the number of T-SHAPED
CONNECTOR vary depending on the distance between
display units.

6-16

[To Group Dimmer Control]

The following shows an example of grouping 10 units (maximum number of connections) into 3
units, 3 units, and 4 units.

Dimmer group: 01
Dimmer: Ke

y

Dimmer group: 02
Dimmer: External dimmer

Dimmer group: 03
Dimmer: Key

RS485ID:06 RS485ID:05

RS485ID:02

SOG

12.3 kn

SOG

12.3 kn

SOG

12.3 kn

RS485ID:01 RS485ID:03

RS485ID:04

RS485ID:09 RS485ID:08 RS485ID:07

SOG

12.3 kn

SOG

12.3 kn

SOG

12.3 kn

RS485ID:10

SOG

12.3 kn

SOG

12.3 kn

SOG

12.3 kn

SOG

12.3 kn

NCM-227

Dimmer unit

DIMMER

Key operation

Key operation

Volume control

CFQ-5769: 3 m

6-17

6.4.3 SENSOR/DATA2 connector (MID)

[For serial communication with external device]

Display Unit Rear

Terminal

Number

Name Explanation

1 -

Unused

2 ­3 White Serial

transmission
(DATA IN 4)

RXD2-B

Input to the specification set by “DATA IN/OUT4.”

4 Green RXD2-A

5 Yellow Serial

transmission
(DATA OUT 4)

TXD2-A

Output to the specification set by “DATA IN/OUT4.”

6 Brown

TXD2-B

1 5

6

2 4

3

Display Unit Rear: Connector Pin Number

CFQ5767

Data cable
CFQ-5767: 3 m (option)

6-18

[For outputting together four data from one port]

Display Unit Rear

Terminal

Number

(CFQ-5767)

Name Example

3 White Serial

transmission
(DATA IN 4)

RXD2-A

Input Position

4 Green RXD2-B

5 Yellow

Serial
transmission
(DATA OUT 4)

TXD2-A

Output

Position/
water depth
Water
temperature/
current

6 Brown

TXD2-B

Terminal
Number

(CFQ-5766)

Name

Setting Example
3ch input

8 Gray

Serial transmission

(DATA I/O 1)

SD0-A

Input

Water depth

9 White SD0-B
10 Pink

Serial transmission

(DATA I/O 2)

SD3-A

Water
temperature

11 Sky blue SD3-B
12 Bright

green

Serial transmission

(DATA I/O 3)

SD6-A

Input Current

13 Brown SD6-B

CFQ5767

CFQ5766

1A

1A

+

-

Output together from this port

DATA IN 1

DATA IN 2

DATA IN 3

DATA IN 4

NWZ-4610

display unit

DATA OUT 4

6-19

[To daisy-chain the units]

Display Unit Rear

Terminal

Number

(CFQ-5768)

Name Example

1 Red

Power supply
output

DCOUT+

Supplies the power to the subsequent display unit.

2 Black DCOUT­3 White Serial

transmission
(DATA IN 4)

RXD2-B

Receives data from the subsequent display unit.

4 Green RXD2-A

5 Yellow Serial

transmission
(DATA OUT 4)

TXD2-A

Sends data to the subsequent display unit.

6 Brown

TXD2-B

CFQ5768

① ⑤
⑥

② ④

③

Display Unit Rear: Connector Pin Number

Data cable
CFQ-5768: 3 m (option)

(1)

(2)

(3)

(4)

(5)

(6)

(1)

(2)

(9)

(8)

(12)

(13)
(14)

Red

Black

White

Green

Yell ow

Brown

6 pins

14 pins

6-20

 Up to three units can be daisy-chained.
 To make this connection, set the daisy-chain setting to ON.

CFQ5766

1A

1A

+

-

CFQ5768

CFQ5768

Data power cable
CFQ: 5768: 3 m (option)

Display Unit

14

6pins

Data power cable
CFQ-5768: 3 m (option)

Power
supply

Data power cable
CFQ-5766A: 2 m (accessory)
CFQ-5766D: 10 m (option)
CFQ-5766F: 20 m (option)

6-21

6.5 Optional Peripheral Connection

6.5.1 Dimmer unit connection

The brightness of the backlight can be changed at a location away from the display unit by
connecting the dimmer unit (NCM-227).

NCM-227 Dimmer Unit

NWZ-4610

Display Unit

DC12/24V

CFQ-5766A
Data Power Cable
(2 m)

DC12/24V DATA

DATA1

SENSOR
/DATA2

CQD-10

Junction Box

1

2

3

4

5

6

7

8

9

10

11

12

1

2

3

4

Blue

Pur

p

l

Fuse Holder

Fuse Holder

＋

－

Red

Black

6-22

7-1

Section７ After Service

7.1 Warranty

● Specific periods may vary based on our warranty policies, but the standard warranty
period is one year from the date of purchase.

7.2 Repair parts stocking Period

● We keeps functional repair parts for this equipment (parts necessary for the functioning of
this equipment) in stock for 10 years from the discontinuation of production.

7.3 When Ordering a Repair

When a failure has been detected, stop operation and contact the dealer or agent from which
you purchased the device or one of our branches, marketing offices, and representative
offices.

 Repair during warranty period Should a malfunction occur when the unit has been operated

according to descriptions and instructions in the instruction manual, it will be repaired free of
charge. However, breakdowns resulting from abuse, negligence, natural disaster, fire or other
unforeseeable incident will be charged.

 Repair after warranty period Repairs that restore normal operation made after the warranty

period have to be paid in full by the client.

 Product data that should be provided when you ask for service

 Name of product, model, date of manufacture and serial number
 Description of malfunction (as detailed as possible)
 Company address or name of organization, address and telephone number

7.4 Recommendation of Overhaul

The performances of the set may deteriorate due to the aging of parts, and so on through the
rate varies depending on the conditions of use. So it is recommendable to contact the dealer
from which you purchased the device or one of our marketing offices for overhaul apart from
daily service.
Incidentally, such overhaul will be performed with charge.

Please contact the dealer from which you purchased the device or our marketing office that is
nearest to you for any question as to the after-sales service.

7-2

8-1

Section ８ Disposal

8.1 Disposal of the Equipment

Observe all local laws and regulations when disposing of those units.

The battery is not used for those units.

8-2

9-1

Section９ Specifications

９.１ Display Unit

1) Basic

 Display Unit: 4.5 inch monochrome LCD 128  64 dots
 Backlight: White LED or orange LED (selectable)
 Dimmer Levels: 4 levels (Bright, Medium, Dark, OFF)
 Dimmer control: Key or external dimmer unit
 Contrast: 13 levels
 Key: 12 keys
 Memory backup: Flash memory
 Power Supply Voltage: 12/24VDC (10.8~31.2V)
 Power consumption: Less than 2.5W
 Data share: NMEA data, Dimmer data for RS-485 (Up to 10 units)
 Daisy chain: Power distribution (Up to 3units) (only MID)
 MID Interface: Data 1 connector: Input and output 1 port (RS-485)

Data connector: DC power input
Serial input or output 3 ports (RS-422)
Contact input and output 1 port
Sensor/data 2 connector: Serial input and output
or Daisy chain
 Doppler Log Interface:
Data 1 connector: Input and output 1 port (RS-485)
Data connector: interface for signal distributor
Contact input 1 port
Sensor/data 2 connector: Not use

 Dimension: 142(W)  142(H)  92(D) mm (without Base unit)
175(W)  162(H)  92(D) mm (Include Base unit)

 Mass: Approximately 0.8 kg
 Color: N4
 Installation: Table, Flush mount

2) Environment

 Operating Temperature: -15 C to +55 C
 Storage Temperature: -25 C to +70 C
 Vibration: IEC60945 ed.4 compliant
 EMC: IEC60945 ed.4 compliant
 Waterproofing: IP55

9-2

3) Interface
3-1) MID

(1) Serial Transmission

Channel Specification Notes
DATA IN/OUT1 RS-422 Input or Output NMAE, IEC
DATA IN/OUT2 RS-422 Input or Output NMEA, IEC
DATA IN/OUT3 RS-422 Input or Output NMEA, IEC
DATA IN/OUT4 RS-422 Input or Output NMEA, IEC Daisy chain
RS-485 RS-485 Input / Output NMEA, IEC

(1-1) NMEA

 Specification: NMEA
 Version: Ver1.5, 2.1, 2.3, 4.0
 Bit rate: 4800, 9600,19200,38400bps
 Data bit: 8bit
 Parity: None
 Start bit: 1bit
 Stop bit: 1bit
 Output sentence:

ACK,CUR,DBK,DBS,DBT,DPT,GGA,GLL,GNS,HDG,HDM,HDT,MDA,MHU,MMB,
MTA,MTW,MWV,RMC,ROT,RPM,RSA,THS,VBW,VDR,VHW,VLW,VTG,VWR,VWT
XDR,ZDA
 Output interval: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s,9s, OFF
Note) Some combinations of output sentence, bit rate, and output intervals may not be possible.

(1-2) IEC
 Specification: IEC61162-1 ed.4

(2) Contact signal

3-2) Doppler Log

(1) Serial Transmission (Only output for DATA IN/OUT2 )

Channel Specification Notes
RS-485 RS-485 Output NMEA, IEC

(1-1) NMEA

 Specification: NMEA
 Version: Ver1.5, 2.1, 2.3, 4.0
 Bit rate: 4800, 9600,19200,38400bps
 Data bit: 8bit
 Parity: None
 Start bit: 1bit
 Stop bit: 1bit
 Output sentence: VBW,VLW
 Output interval: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s,9s, OFF

(1-2) IEC
 Specification: IEC61162-1 ed.4

(2) Contact signal

Channel I/O Notes
CONTACT OUTPUT 200p/NM, 400p/NM
CONTACT INPUT ACK, Input of external dimmer

Channel I/O Notes
CONTACT INPUT Input of external dimmer

9-3

９.２ Doppler Log

1) Basic

 Operation system : Dual - beam pulse Doppler system
 Operation frequency : 2MHz
 Speed measurement range : –10.0 to +40.0 kn
 Run distance display range : 0 to 99999.99nm

(However, NWW-7 of the option is 0 to 9999.99nm )

 Water depth : Relative speed to water of depth greater than 3 meters below hull bottom
 Speed accuracy : 1% or 0.1kn whichever value is greater
 Distance accuracy : 1% or 0.1nm in each hour whichever value is greater
 Display : Digital display Speed unit = kn or m/s

: Analog display (option)
 IEC61162-1 input : GPS (for GPS speed display)
(Sentence ; $--RMC, $--RMA, $--VTG)
 IEC61162-1 output : NMEA0183 Ver. 1.5 or 2.3 -------------- 8 circuits
(Sentence ; $VDVBW, $VDVLW)
 Other output : Ship speed ---------------------------------- 2 circuits

DC voltage signal for analog display (-2VDC to +10VDC)
: LOG pulse ---------------------------------- 4 circuits
Opto-coupler signal (200 pulses/nm, 30V, 50mA max)
: LOG signal --------------------------------- 1 circuit
Relay closure signal (200 pulses/nm, 30V, 1A max)

: Slave display signal ----------------------- 2 circuits
: Distance signal ----------------------------- 1 circuit
: Remote display signal -------------------- 1 circuit

: On-line maintenance ---------------------- 1 circuit

: Power fail alarm --------------------------- 1 circuit

Relay closure signal (250V, 5A max)

 Power supply : 100/110/115/220/230VAC 10%, 1



, 50/60Hz, 100VA or less

2) Environment

 Operating temperature : –15C to +55C
 Operating humidity : +40C, 93%
 Vibration : IEC60945 ed.4 compliant
 EMC : IEC60945 ed.4 compliant

9-4

形式名

(Type)

: NWZ-4610

名称

(Name)

: Display unit

铅 汞 镉 六价铬 多溴联苯 多溴二苯醚

(Pb) (Hg) (Cd)

(Cr

6+

)

(PBB) (P BDE)

显示装置(Display Unit)

ЧЧЧЧЧЧ

外部设备(Peripherals)
选择(Options)
电线类(Cables)

手册(Documennts)

×○××××

×：表示该有毒有害物质至少在该部件的某一均质 材料中的含量超出

SJ/T 11363-2006

标准规 定的限量要求。

(Indica tes t hat this toxic or hazardous substa nce c ontained in at le ast one of the homoge neous mat erials use d for this part is above
the limit requirement in SJ/T 11363-2006. )

有毒有害物质或元素的名称及含量

(Na mes & C ontent of toxic and ha zardous substanc es or e lements

）

部件名称

(Part name)

有毒有害物质或元素

(Toxic a nd Hazardous Substances and Elements)

○：表示该有毒有害物质在该部件所有均质材料中的含量均在SJ/T11306-2006 标准规定的限 量要求以下。
(

Indica tes tha t this toxic, or ha zardous substanc e contained in all of the homoge neous materials for this part is below the requirement in

SJ/T 11363-2006.)

簡易取扱説明書簡易取扱説明書

MULTI INFORMATION DISPLAYMULTI INFORMATION DISPLAY

NWZ-4610/JLN-205MK2NWZ-4610/JLN-205MK2

ドップラログドップラログ

i

はじめに

このたびは、当社の NWZ-4610 をお買い上げいただきまして、誠にありがとうございます。本装
置は、マルチインフォメーションディスプレイ(Multi Information Display (MID))、ドップラログ

(JLN-205MK2)、の表示器として利用することができます。

MID

種々のセンサーから NMEA データを受信し、表示する装置です。

ドップラログ
低速から高速まで幅広く船の速度を計測し表示する装置です。

● お使いになる前に、この取扱説明書をよくお読みのうえ、正しくお使いください。

● 取扱説明書は必要なときに参照できるように大切に保管ください。

万一、ご使用中にわからないことや不具合が生じたときにお役立てください。

ii

ご使用のまえに

本書に使用している絵表示

この取扱説明書および製品への表示では、製品を安全に正しくお使いいただき、あなたや
他の人々への危害や財産への損害を未然に防止するために、いろいろな絵表示をしていま
す。その表示と意味は次のようになっています。
内容をよく理解してから本文をお読みください。

注意

警告

この表示を無視して、誤った取り扱いをすると、人が死亡、
または重傷を負う可能性が想定される内容を示しています。

この表示を無視して、誤った取り扱いをすると、人が傷害を
負う可能性が想定される内容、および物的損害のみの発生が
想定される内容を示しています。

この取扱説明書および装置に使用している絵表示の例

△記号は注意（危険・警告を含む）を促す内容があることを告げ

るものです。 図の中に具体的な注意内容(左図の場合は感電注意)
が描かれています。

記号は禁止の行為であることを告げるものです。

図の中や近傍に具体的な禁止内容（左図の場合は分解禁止）が描か

れています

記号は行為を強制したり指示する内容を告げるものです。

図に中に具体的な指示内容（左図の場合は電源プラグをコンセント

から抜け）が描かれています。

警告ラベルについて

本製品の上カバーには警告ラベルが貼ってあります。
警告ラベルを取り外したり、破損したり、改変を絶対にしないで下さい。

iii

ご使用上の注意

本装置のカバーは絶対にはずさないでください。
内部の高電圧に触れて感電するおそれがあります。

本装置の保守点検を行なう場合は、電源スイッチを切り、電源ブレーカをオフに
してください。感電・故障のおそれがあります。

本装置を分解・改造しないでください。火災・感電・故障のおそれがあります。

本装置の上に水などの入った容器または小さな金属物を置かないでください。こ
ぼれたり、中に入ったりした場合、火災・感電・故障のおそれがあります。

本装置の定格電圧以外でこのユニットを使用しないでください。火災・感電・故
障のおそれがあります。

濡れた手で電源コードの抜き差をしたり、スイッチ類を操作したりしないでくだ
さい。感電のおそれがあります。

電源コードの傷つけ、破損と加工をしないでください。重いものを乗せたり、加
熱したり、引っ張ったり、無理に曲げたりすると電源コードは破損して、火災・
感電のおそれがあります。

装置内部を点検や修理しないでください。装置内部の点検や修理サービスは、お
買い上げの販売店・代理店または、当社の各支店・営業所・出張所にご依頼くだ
さい。火災・感電を引き起こすおそれがあります。

万一、内部に水や金属の異物が入った場合は、まず本装置の電源スイッチを切り、
電源ブレーカをオフにしてください。その後、お買い上げの販売店・代理店また
は、当社の各支店・営業所・出張所にご連絡ください。そのまま使用すると火災・
感電･故障のおそれがあります。

万一、煙が出ている、変な臭いがする、異常に熱いなどの異常に気がついたとき
は、直ちに本装置の電源スイッチを切り、電源ブレーカをオフにしてください。
その後、お買い上げの販売店・代理店または、当社の各支店・営業所・出張所に
ご連絡ください。そのまま使用すると火災・感電のおそれがあります。

警告

iv

本装置の電気工事はお買い上げの販売店・代理店または、当社の各支店・営業所・
出張所にご依頼ください。

専門整備員以外の電気工事は動作不良になるおそれがあります。

直射日光が長時間装置に当たる場所、熱風が当たる場所、温度が５５℃以上にな
る所では本装置を使用したり、放置したりしないでください。
火災・故障のおそれがあります。

ぐらついた台の上や傾いた所のような不安定な場所に置かないでください。
落ちたり、倒れたりして、けが・故障のおそれがあります。

本装置を戸棚の中に置いたり、段ボールのような通気性の悪いもので覆ったりし
ないでください。

熱がこもって火災・故障のおそれがあります。

本装置を、寒いところから暖かいところへ急に移したとき、窓の内部につゆ（水
滴、結露）が付いて液晶部が見えにくくなることがあります。そのようなときは、
しばらく乾燥のため放置してからお使いください。

据付時にはアース端子に、アース板およびアース線を確実に接続してください。

故障や漏電のときに、感電のおそれがあります。

船が陸に上がっているとき（上架中）はドップラログの電源を入れないでくださ
い。

送受波器がこわれるおそれがあります。

機器表面を掃除するときは、シンナーやベンジンなどの有機溶媒は絶対に使用し
ないでください。表面の掃除は、チリ、ゴミを取り除き、清潔な布で乾拭きする
ようにしてください。

表面の塗装を傷めるおそれがあります。

注意

v

装置外観

● MID NWZ-4610 表示器

● ドップラログ JLN-205MK2 表示器

目次

はじめに ................................................. ⅰ

ご使用のまえに ................................................. ⅱ

ご使用上の注意 ................................................. ⅲ

装置外観 ................................................. ⅴ

第１章 装置のあらまし ........................................ 1-1

１.１ 機能 ........................................ 1-1

１.２ 特長 ........................................ 1-1

１.３ 構成 ........................................ 1-2

１.３.１ 標準構成 ................................ 1-2

１.３.２ オプション ................................ 1-3

１.４ 構造 ........................................ 1-4

１.５ 総合系統図 ........................................ 1-6

第２章 各部の名称とはたらき ........................ 2-1

２.１ ＮＷＺ－４６１０ 表示器 ........................ 2-1

第３章 表示画面 ........................................ 3-1

３.１ 表示画面 ........................................ 3-1

第４章 操作方法 ........................................ 4-1

４.１ 基本操作 ........................................ 4-2

４.１.１ 電源の投入 ................................ 4-2

４.１.２ 起動（正常） ................................ 4-3

４.１.３ 起動（異常） ................................ 4-3

４.１.４ 起動（異常） ................................ 4-3

４.１.５ 電源の切断 ................................ 4-4

４.１.６ バックライトの調節 ........................ 4-4

４.１.７ コントラストの調節 ........................ 4-4

４.１.８ アラームブザーの停止 ........................ 4-5

４.１.９ アラームの表示 ........................ 4-5

４.１.１０ 画面を切り替える ........................ 4-5

４.１.１１ 画面を切り替える（自動）...................... 4-6

４.１.１２ 利用モードを切り替える（MID) ................ 4-7

４.１.１３ ユーザ画面に切り替える （MID) ................ 4-8

４.１.１４ 区間航程距離(コウテイ)をリセットする（LOG）..... 4-9

４.１.１５ 船速単位を切り替える（LOG） ................ 4-9

４.２ メニュー操作 ........................ 4-10

４.２.１ メニュー内の設定をする ........................ 4-10

４.２.２ 数値を入力する ........................ 4-11

４.２.３ メンテナンスモードへ移行する ................ 4-12

４.２.４ 機種設定を行う ........................ 4-13

４.２.５ メニュー操作一覧 ........................ 4-14

４.２.６ 画面リスト ........................ 4-23

第５章 保守・点検 ......................................... 5-1

５.１ 日常の保守 ......................................... 5-2

５.２ アラーム ......................................... 5-3

５.３ トラブルシューティング ......................... 5-4

５.３.１ トラブルシューティング ......................... 5-4

５.３.２ 補修用ユニット ......................... 5-5

５.３.３ 定期交換部品 ......................... 5-5

第６章 装備 ................................. 6-1

６.１ 銘板シールの貼り付け ................................. 6-2

６.１.１ 製品銘板の貼り付け ......................... 6-2

６.１.２ モデル銘板の貼り付け ......................... 6-2

６.２ 表示器の設置 ................................. 6-3

６.２.１ 設置場所の選択 ................................. 6-3

６.２.２ 架台による取り付け方法 ......................... 6-4

６.２.３ フラッシュマウントによる取り付け方法 ......... 6-6

６.２.４ フラッシュマウントからの取り外し方法 ......... 6-8

６.３ ドップラログの設置 ................................. 6-9

６.４ ケーブルの接続 ................................. 6-9

６.４.１ DC12/24V DATA コネクタ (MID/LOG)................. 6-10

６.４.２ DATA1 コネクタ (MID/LOG) ................. 6-13

６.４.３ SENSOR/DATA2 コネクタ (MID) ................. 6-17

６.５ オプション機器の接続 ......................... 6-21

６.５.１ ディマーユニットの接続 ......................... 6-21

第７章 アフターサービス ................................. 7-1

７.１ 保証について ................................. 7-1

７.２ 補修部品の保有期間 ................................. 7-1

７.３ 修理を依頼されるときは ................................. 7-1

７.４ 定期的な点検整備のおすすめ ......................... 7-1

第８章 廃棄について ................................. 8-1

８.１ 本装置の廃棄について ................................. 8-1

第９章 仕様 ......................................... 9-1

９.１ MID(表示器) ......................................... 9-1

９.２ ドップラログ ......................................... 9-3
