LARGE CASE FOR RD6006

JT-RD6006-Case02

1. GENERAL INFORMATION

Dear customer,

Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.

Should you encounter any unexpected problems, do not hesitate to
contact us.

This case is made for an additional power supply which allows

you to connect this lab power supply directly to alternating

current.

Therefore, this safety instruction is necessary:

For your own safety, this product may only be
installed by a qualified electrician! Working on
electric devices / systems implies the hazard of
electric shocks which may cause serious injuries or
even death!

!

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. ASSEMBLY

This case is made for the JT-RD6006 and the related power supply

JT-RD6006-NT. Both products are not included in the scope of delivery.

1. First of all, unscrew the eight screws from the outside and open up
the case.

2. Screw the feet onto the case with the black screws.

3. Now insert the connections like the switch, the power connector
and the fan into the case and if necessary srew them tight with the
silver screws and nuts.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

4. Now mount the power supply into the case. Therefore, you have to

screw it from the bottom of the case with the big silver screws.

5. Srew now the fan controll in the case next to the power supply with

the remaining black screws and connect the fan with the according
connection.

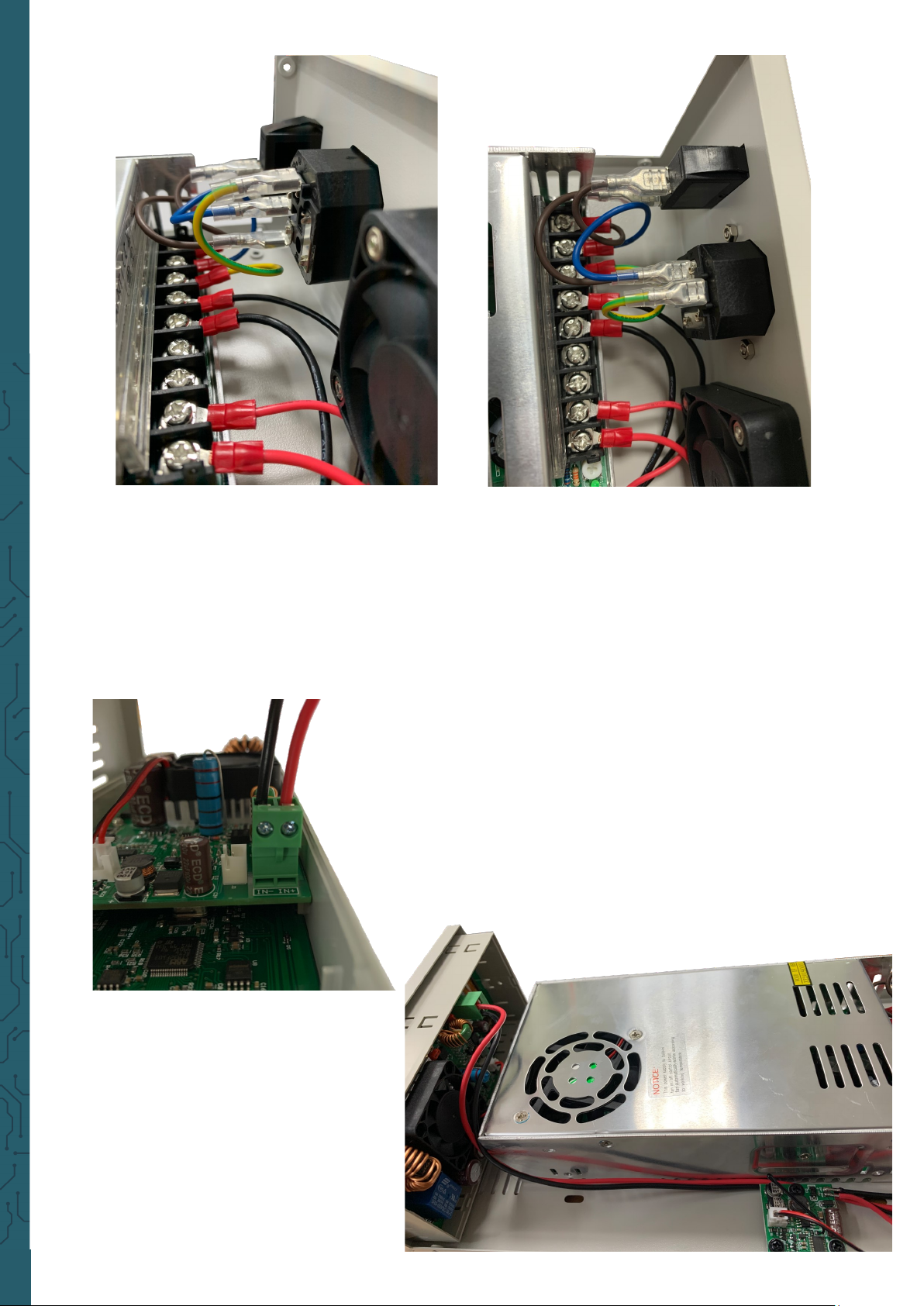

6. The next step is the wiring. You begin to wire the switch. Connect

the brown cable (phase) with the switch and the undermost
connector of the power connection From the switch, you connect
another brown cable to the power connection of the screw terminal
of the power supply (marked as L) so that the switch can control the
power supply. The blue cable should be connected with the power
connection marked as N of the power supply and the middle
connector of the power connection. The yellow green cable is
connected with the upper connector as a fuse with the power
supply (marked as the symbol for grounding).

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

7. Connect the black cable of the fan control to the power supply with

one of the anticipated terminals V- and the red cable with one of
the V+ terminals.

8. Now you have to connect the last loose cable with the RD6006.

Therefore, the black cable will be connected in IN- and red with IN+.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

9. The top must be screwed again and your lab power supply is ready

to use.

You can adjust with the help of the fine-tuning potentiometer the output

voltage of the RD6006-NT. You can see your adjustment at the input

voltage of your RD6006. Ideally, the RD6006 has a input voltage of 65 V to
be able to issue the complete 60 V.
