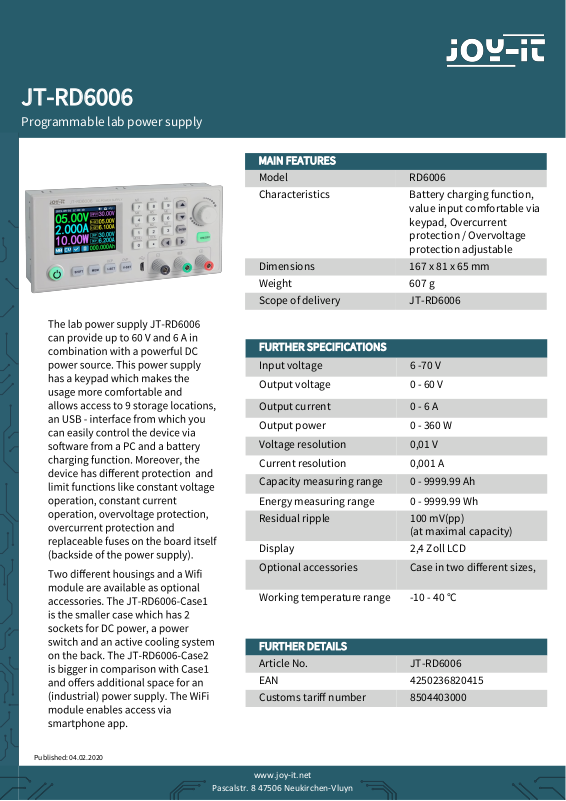

Joy-it JT-RD6006 User Manual

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

Published: 04.02.2020

JT-RD6006

Programmable lab power supply

MAIN FEATURES

Model RD6006
Characteristics Battery charging function,

value input comfortable via
keypad, Overcurrent
protection / Overvoltage

protection adjustable

Dimensions 167 x 81 x 65 mm
Weight 607 g
Scope of delivery JT-RD6006

FURTHER SPECIFICATIONS

Input voltage 6 -70 V
Output voltage 0 - 60 V

Output current 0 - 6 A
Output power 0 - 360 W
Voltage resolution 0,01 V
Current resolution 0,001 A
Capacity measuring range 0 - 9999.99 Ah
Energy measuring range 0 - 9999.99 Wh

Residual ripple 100 mV(pp)

(at maximal capacity)

Display 2,4 Zoll LCD
Optional accessories Case in two dierent sizes,

Working temperature range -10 - 40 °C

FURTHER DETAILS

Article No. JT-RD6006
EAN 4250236820415
Customs tari number 8504403000
