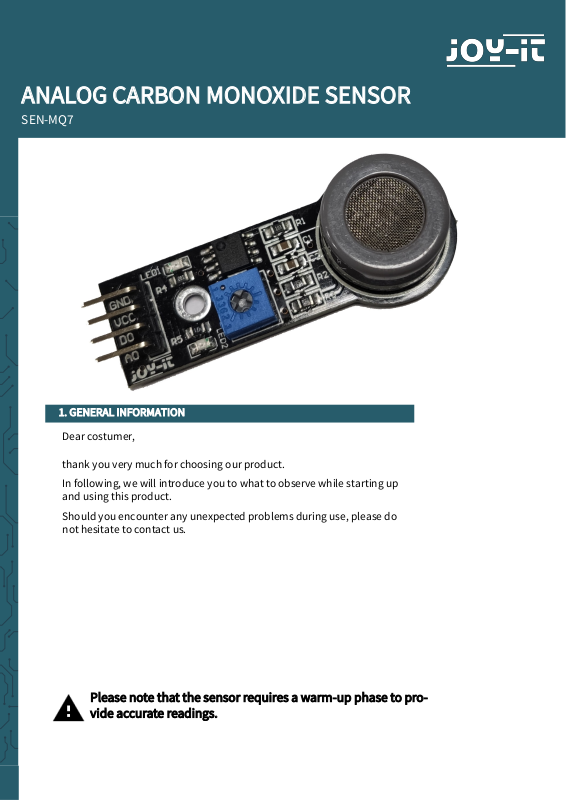

ANALOG CARBON MONOXIDE SENSOR

SEN-MQ7

1. GENERAL INFORMATION

Dear costumer,

thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up

and using this product.
Should you encounter any unexpected problems during use, please do

not hesitate to contact us.

Please note that the sensor requires a warm-up phase to pro­vide accurate readings.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. COMMISSIONING WITH THE RASPBERRY PI

Raspberry Pi ADC MQ7 V. Translator

GND (Pin 6, 14, 9...) GND GND (Pin 1) GND

5V (Pin 2, 4) VDD VCC (Pin2) VCCb

3V (Pin 1, 17) VCCa - -

BCM17 (Pin 11) - - A3

- B3 - D0 (Pin 3)

- A0 Signal (Pin 4)

SCL (Pin 5) - - A2

SDA (Pin 3) - - A1

- B2 SCL -

- B1 SDA -

Wiring:

This carbon monoxide

sensor is an analog sensor.
Since the Raspberry Pi has

no analog inputs, you
have to use an analog-to­digital converter. You will
also need a 3V to 5V volt­age translator.

In this example the ADC
COM-KY053 and the Com-

KY051 voltage translator

from Joy-it is used.

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

2. COMMISSIONING WITH THE RASPBERRY PI

Code example:
The higher the analog input voltage, the higher the measured carbon monoxide value.
The value range is from 0 to 5.
The D0 pin of the sensor is automatically set to LOW when the limit value is reached.
With the blue potentiometer on the board, you can set the limit value.
In the following code example, the analog value of the sensor is read out every 5 seconds

from time import sleep
import board

import busio

import adafruit_ads1x15.ads1115 as ADS
from adafruit_ads1x15.analog_in import AnalogIn
import RPi.GPIO as GPIO

GPIO.setmode(GPIO.BCM)

GPIO.setup(17, GPIO.IN)

# Create the I2C bus

i2c = busio.I2C(board.SCL, board.SDA)

# Create the ADC object using the I2C bus

ads = ADS.ADS1115(i2c)
ads.gain = 2/3

# Create single-ended input on channels

chan0 = AnalogIn(ads, ADS.P0)

chan1 = AnalogIn(ads, ADS.P1)

chan2 = AnalogIn(ads, ADS.P2)
chan3 = AnalogIn(ads, ADS.P3)

try:

while True:
if GPIO.input(17) == GPIO.LOW:
print("Warning: Limit exceeded!!!")

print("{:>5.3f}".format(chan0.voltage))
sleep(2.5)

except KeyboardInterrupt:

GPIO.cleanup()

Installation:
To be able to use the ADC, you must first enable I2C.

Enter the following command:

Navigate to Interfacing Options -> I2C and enable the I2C interface.
You must also install the Python library of the ADC.

Enter the following commands:

sudo raspi-config

sudo apt-get update
sudo apt-get install python3-pip
sudo pip3 install adafruit-circuitpython-ads1x15

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

3. COMMISSIONING WITH THE ARDUINO

Arduino MQ7

GND GND (Pin1)

5V VCC (Pin2)

Digital Pin 8 D0 (Pin3)

Analog Pin A0 A0 (Pin4)

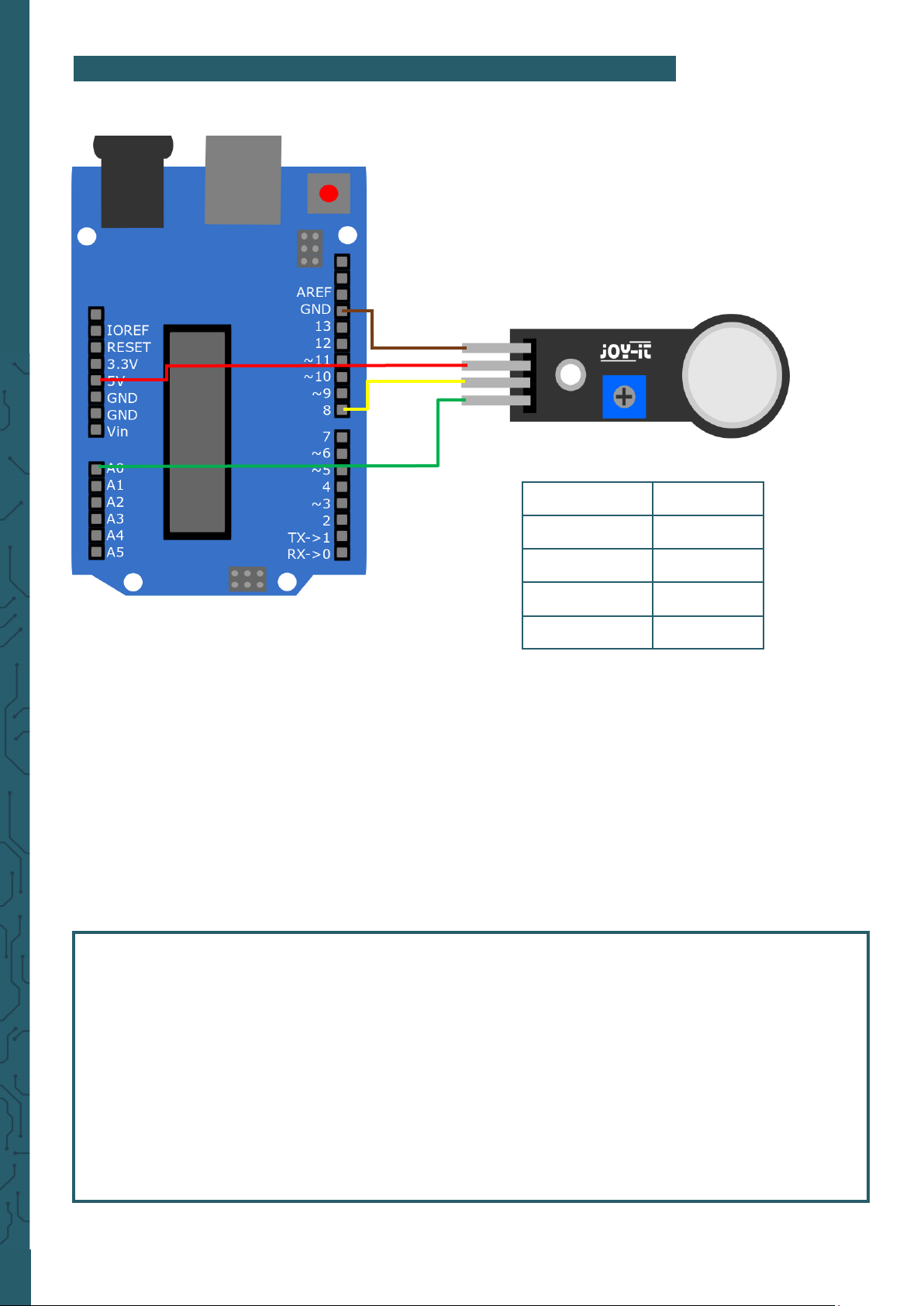

Wiring:

Code example:

The higher the analog input signal, the higher the measured carbon monoxide value.

The value range is from 0 to 1023.
The D0 pin of the sensor is automatically set to LOW when the limit value is reached.
With the blue potentiometer on the board, you can set the limit value.
In the following code example, the analog value of the sensor is read out every 5 seconds

and displayed on the serial monitor.
Before uploading, make sure that you have set the correct board and port in your Arduino

IDE.

void setup() {

Serial.begin(9600);
pinMode(A0, INPUT);

pinMode(8, INPUT);

}

void loop() {

if (digitalRead(8)==LOW){
Serial.println("Warning: Limit exceeded!!!");
}
Serial.println(analogRead(A0));
delay(5000);
}

www.joy-it.net

Pascalstr. 8 47506 Neukirchen-Vluyn

PR

Veröentlicht: 12.02.2020

www.joy-it.net

SIMAC Electronics GmbH

Pascalstr. 8, 47506 Neukirchen-Vluyn

4. ADDITIONAL INFORMATION
