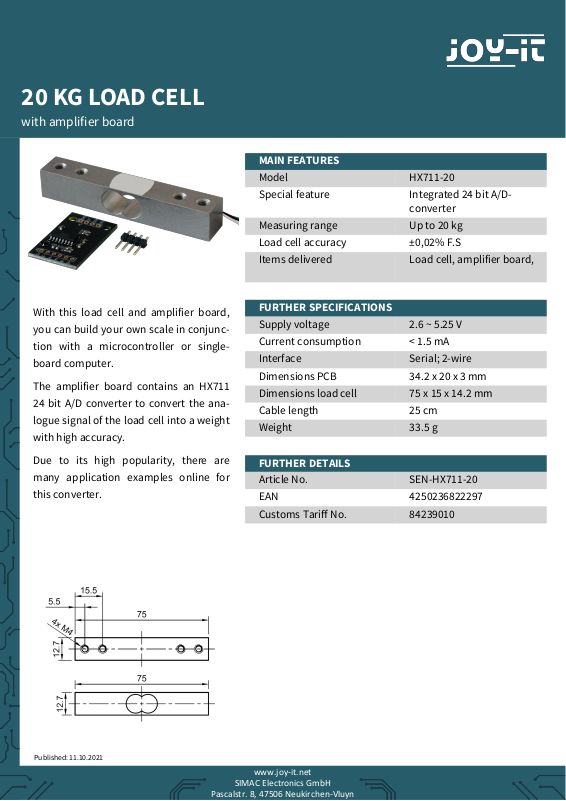

20 KG LOAD CELL
with amplifier board
MAIN FEATURES
Model HX711-20
Special feature Integrated 24 bit A/D-
converter
Measuring range Up to 20 kg
Load cell accuracy ±0,02% F.S
Items delivered Load cell, amplifier board,
FURTHER SPECIFICATIONS
Supply voltage 2.6 ~ 5.25 V
Current consumption < 1.5 mA
Interface Serial; 2-wire
Dimensions PCB 34.2 x 20 x 3 mm
Dimensions load cell 75 x 15 x 14.2 mm
Cable length 25 cm
Weight 33.5 g
FURTHER DETAILS
Article No. SEN-HX711-20
EAN 4250236822297
Customs Tari No. 84239010
With this load cell and amplifier board,
you can build your own scale in conjunction with a microcontroller or singleboard computer.
The amplifier board contains an HX711
24 bit A/D converter to convert the ana-
logue signal of the load cell into a weight
with high accuracy.
Due to its high popularity, there are
many application examples online for
this converter.
