Operation and Maintenance Manual for Joyce/Dayton

Machine Screw ComDRIVE® Actuators

The recommendations in this manual for installation, operation and maintenance must be followed to ensure safe
use. All persons responsible for the installation and use of Joyce ComDRIVE® actuators must be familiar with the
contents of this manual.

The customer is responsible for travel stops, guards and other protective devices and ensuring that ComDRIVE®
usage conforms with local and national operating and safety codes appropriate to the class of equipment into which
the ComDRIVE® is installed. Series DCD ComDRIVES® are not self-locking. A brake motor or other external
locking device must be provided.

Adjustable stop collars are included on standard ComDRIVE® actuators. The customer is responsible for providing
travel limits.

©2011 Joyce/Dayton Corp. All rights reserved FB0176-2/11

Table of Contents

Section I – General Information

1-1 Contact Joyce Dayton Corp...................................................................................................2

1-2 Purpose and Scope.................................................................................................................2

1-3 Receipt of Product...................................................................................................................2

1-4 Warranty....................................................................................................................................2

1-5 Precautions of Use and Installation......................................................................................3

1-6 General Installation Instructions...........................................................................................3

Section II – Maintenance

2-1 Lubrication................................................................................................................................4

2-2 Repair Parts...............................................................................................................................5

2-3 Disassembly of ComDRIVE® jacks.......................................................................................5

2-4 Inspection of Components.....................................................................................................6

2-5 Assembly of ComDRIVE® jacks ...........................................................................................7

Section III – Views &Parts list

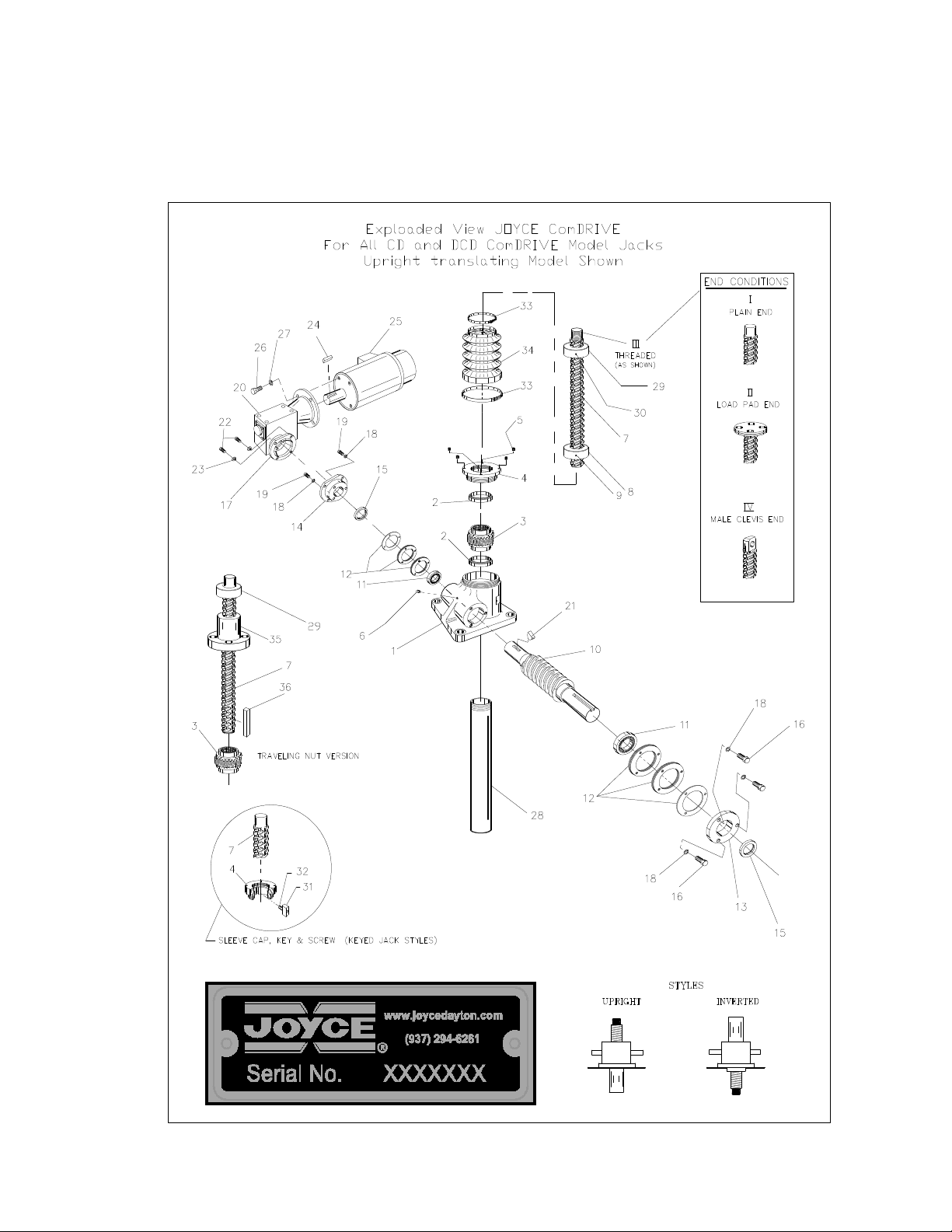

3-1 Exploded View ...........................................................................................................................8

3-2 Parts list – Translating & KFTN ComDRIVEs® ....................................................................9

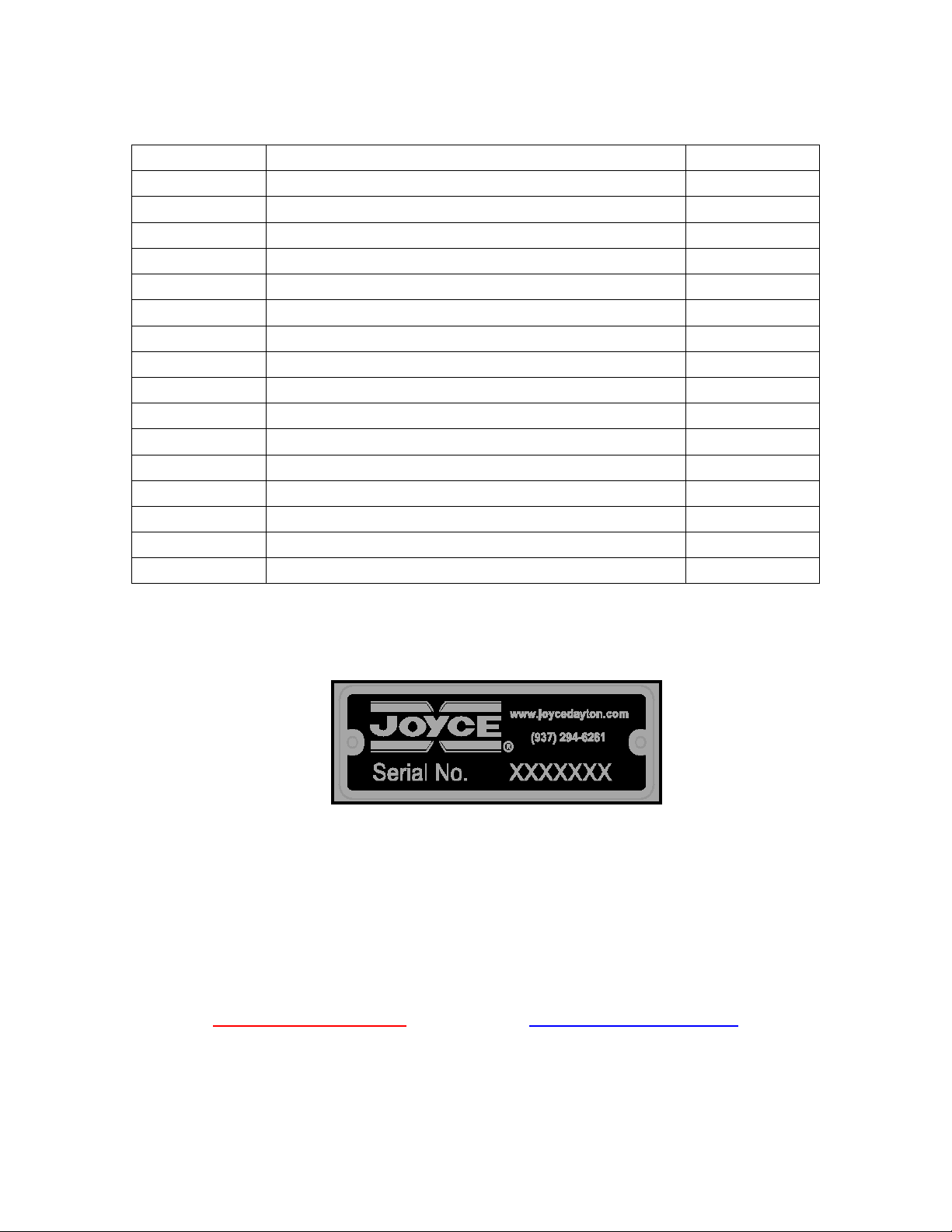

3-3 Maintenance Log and Serial Number.....................................................................................10

Section I

General Information

1-1 Contact Joyce Dayton Corp.

Joyce Dayton Corp.
P.O. Box 1630
Dayton, OH 45401
[phone] (US and Canada)
[phone] [phone] Fax
Email: [e-mail]
Website: www.joycedayton.com

1-2 Purpose and Scope

This manual provides installation, operation and maintenance instruction for standard
Joyce/Dayton ComDRIVE® actuators. Although this manual covers the standard
ComDRIVE® and most variations of the ComDRIVE®, there may be some that vary
significantly from this manual. For special units not covered please contact Joyce/Dayton
Corp. for assistance.

1-3 Receipt of Product

All equipment should be immediately inspected upon receipt for any damage and to verify
correct product and quantities. Any problems should be reported to Joyce/Dayton Corp.
and the freight carrier as soon as possible. Products returned without a Return Goods
Authorization (RGA) form will not be accepted.

1-4 Warranty

Seller warrants its products to be free from defects in material and workmanship under
normal and proper use in accordance with instruction of seller for a period of one year
from the date of shipment to buyer. Seller's liability under such warranty or in connection
with any other claim relating to the products shall be limited to the repair, or at seller’s
option, the replacement or refund of the purchase price, of any products or parts or
components thereof which are returned to seller freight prepaid and which are defective in
material or workmanship. Products or parts or components thereof, which are repaired or

2

replaced by seller, will be returned to buyer freight collect. This warranty is not intended to
cover consumer products, as defined in the Magnuson-Moss Warranty-Federal Trade
Commission Improvement Act, 15 U. S. C. Sections 2301-12, which are purchased by
buyer for purposes other than resale. If buyer is not intending to resell the products, and if
the products are consumer products as defined in the Magnuson-Moss Act, the foregoing
warranty, but not the limitation of seller's liability, shall be null and void. EXCEPT AS
EXPRESSLY STATED ABOVE, SELLER MAKES NO WARRANTY, EXPRESS OR
IMPLIED, WHETHER OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE OR USE OR OTHERWISE, ON THE PRODUCTS, OR ON ANY PARTS OR
LABOR FURNISHED DURING THE SALE, DELIVERY OR SERVICING OF THE
PRODUCTS.

1-5 Precautions of Use and Installation

1. Side loading of the lifting screw is not permitted in the dynamic operation of the jack.
A limited side load is allowable in the static condition. Contact Joyce/Dayton for the
allowable side load for a specific application.

2. Mechanical stops are provided on the actuator lifting screw. It is the customer’s
responsibility to provide travel limit devices on all ComDRIVEs®. A mechanical stop is
only an auxiliary device to limit the travel of the lifting screw. Engaging a mechanical
stop during operation can cause damage to the internal jack mechanism.

3. In most applications, factory or manufacturer-assisted installation is not required.
However, it is necessary that appropriate, qualified personnel perform the installation
of Joyce/Dayton products.

4. Joyce/Dayton ComDRIVE® actuators are not rated for shock-loading, extreme
vibration or critical speed conditions (high speed or long-length screw.) It is the
responsibility of the user to ensure these conditions are not imposed on the actuator
or the power transmission equipment. Contact Joyce/Dayton for technical assistance.

5. In the event that service or maintenance is required, the load must be secured or
removed before any work can begin.

6. The ComDRIVE® actuators can be mounted and operated in any orientation. When
used with the lifting screw in a horizontal position, the worm should be mounted
parallel with the horizon and below the gear to ensure proper lubrication. Standard
ComDRIVE® actuators are shipped with all holes plugged. The user must insert the
vent in the highest location at final installation.

7. Never allow the actuator to retract beyond the minimum closed position, as damage to
the jack can occur.

8. Boots or protective bellows covers should be used to protect and keep the lifting
screw clean in dusty or abrasive environments.

9. For continuous or high-duty cycles inquire with your local sales representative or
consult Joyce/Dayton Corp. regarding Bevel Ball actuators.

1-6 General Installation instructions

1. Ensure that all personnel who will service or operate equipment are familiar with its
use and limitations.

2. Secure or remove the load before any installation procedures begin.

3. Be certain the rating of the ComDRIVE® meets or exceeds the load.

4. The ComDRIVE® must be mounted on a structure sufficient to support the maximum
possible load. The structure must be rigid. An under-designed structure could lead to
bending of the lifting screw causing premature wear or failure.

5. In a system with shafts, miter boxes, etc., confirm that the shafts and actuators
operate without binding or excessive force before powered drive devices are engaged.
Drive shaft alignment is critical. Mis-alignment will cause reversing stresses in rotating
members and will lead to fatigue failure. Correct coupling specification is important.

6. When fastening the load to an actuator, make sure the actuator is in the retracted
position. This positions the load accurately with respect to the lifting screw centerline.

3
