JLBIHD601 - JLBIHD902
built-in cooker hood
Instruction manual
Important Safety Information
It is most important that this instruction manual should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant warnings. These warnings ha
ve been pr ovided in the inter est of saf ety . You MUST read them carefully before use or installation by a qualified person. If you are unsure of the meanings of these warnings contact the John Lewis
branch from which you purchased the appliance.
Installation
• Any installation work must be undertaken by a qualified and
competent person to the relevant National Standards.
• This hood must be installed in accordance with the installation instructions and all measurements must be adhered
to.
• If the cooker hood is installed for use above a gas appliance
then the provision for ventilation must be in accordance
with the Gas Safety Codes of Practice BS.6172, BS.5440
and BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994,
the Gas Safety (Installation & Use) Regulations, the Building
Regulations issued by the Department of the Environment,
the Building standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• The fan motor of this cooker hood incorporates a cut-out
device which will operate if the cooker hood is installed
below the minimum height recommended under section
‘Clearance Height’, or if the motor becomes overheated.
If the cut-out device is activated, switch off the fan motor
and allow the cooker hood to cool. The cut-out device will
reset itself when the fan motor has cooled significantly.
• It is dangerous to alter the specifications or modify this
product in any way.
• When installed between adjoining wall cabinets the wall
cabinets must not overhang the hob.
• If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then its
flue must be of the room sealed or balanced flue type.
• If other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
• The ducting system for this appliance must not be connected to any existing ventilation system which is being
used for any other purpose.
• Do not install above a cooker with a high level grill.
Child Safety
• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls
or play with the appliance.
Use
• This product is for domestic use only.
• Never leave frying pans unattended during use as overheated fats and oils might catch fire.
• Never do flambé cooking under this cooker hood.
• Do not leave naked flames under the hood.
• This cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
Maintenance and Cleaning
• This appliance can be a hazard if the synthetic paper and
charcoal filters are not replaced as recommended.
Service
• Under no circumstances should you attempt to repair the
appliance yourself. Repairs carried out by inexperienced
persons may cause injury or more serious malfunction.
Refer to your local Service Force Centre. Always insist
on genuine spare parts.
Environmental Information
• After installation please dispose of the packaging with due
regard to safety and the environment.
• The symbol
indicates that this product should not be treated
as normal household waste. Instead it shall be handed over
to an approved collection facility for the recycling
of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product, please
contact your local city office, your household waste
disposal service or the shop where you purchased the
product.
on the product or on its packaging
2
Contents
For the User
Important Safety Information 2
Description of the Appliance 4
Using the cooker hood 10
Cooker Hood Controls 10
To Operate 10
Recirculation 10
Extraction 10
Maintenance and Cleaning 11
External Cleaning 11
Metal Grease Filters 11
Charcoal Filters 12
To Remove/Replace Charcoal Filter 12
Changing the Light Bulb 12
For the Installer
Electrical Connections 9
Electrical Requirements 9
Electrical Connection 9
Installing the Cooker Hood 5
Installation Requirements 5
Unpacking 5
Fitting the Wall Brackets 6
Fitting the Canopy Hood 6
Extraction 7
Recirculation 7
Fitting the Chimney Stack 8
Something Not Working 13
Repairs and After Sales Service 13
Guide to use the Instruction Manual
The following symbols will be found in the text to guide
you through the instruction book
Safety instructions
Step by step instructions
Environmental Information
This appliance complies with the followings E.E.C. Directives:
- 89/336 (Electromagnetic Compatibility Directive)
- 73/23 (Low Voltage Directive)
- 93/68 (General Directives)
and subsequent modifications
3
Description of the Appliance
max. 765
560
240
490
min. 560
18
598 - 698 - 898
210
150
100
205
650 min.
4
Installation
Please ensure that when the appliance is installed
it is easily accessible to an engineer in the event
of a breakdown.
All installations must comply with the local
authorities requirements for the discharge of
exhaust air.
Incorrect installation may affect the safety of
this cooker hood.
Installation Requirements
Before installation check the wall to which
the cooker hood is to be fitted for electric
cables, water pipes or gas.
The chimney hood must be installed accord-
ing to the instructions suppliers below and
by qualified and competent personnel to the
relevant National Standards.
This cooker hood is designed to be fixed to any vertical
surface over a cooking area, and can be used in the extraction (ducted to the outside) or recirculation mode.
The installation work must be undertaken by a qualified
and competent person.
The manufacturer disclaims any responsibility for damage due to incorrect installation of the cooker hood or
if the hood is not installed in compliance with relevant
regulations controlling this type of installation.
15
Unpacking
Before unpacking the cooker hood position the carton
with the arrows pointing upwards as illustrated on the
carton.
The cooker hood is made up of the following components:
Ref Qty Product Components
1 1 Hood body, complete with controls, lighting,
fan and filters.
2 1 Telescopic Chimney comprising:
2.1 1 Upper section
2.2 1 Lower section
9 1 ø150-120 Ducting spigot
10 1 ø120-125 Ducting flange
15 1 Air outlet connector
Ref Qty Installation Components
7.1 2 Hood body fixing brackets
7.2.1 2 Upper chimney wall fixing brackets
12c 6 Chimney fixing screws
12d 2 Screws M4x25
Ref Qty Documentation
1 Instruction booklet
7.2.1
12c
2.1
2
2.2
10
9
1
12c
12c
7.1
12d
5
Installing the Cooker Hood

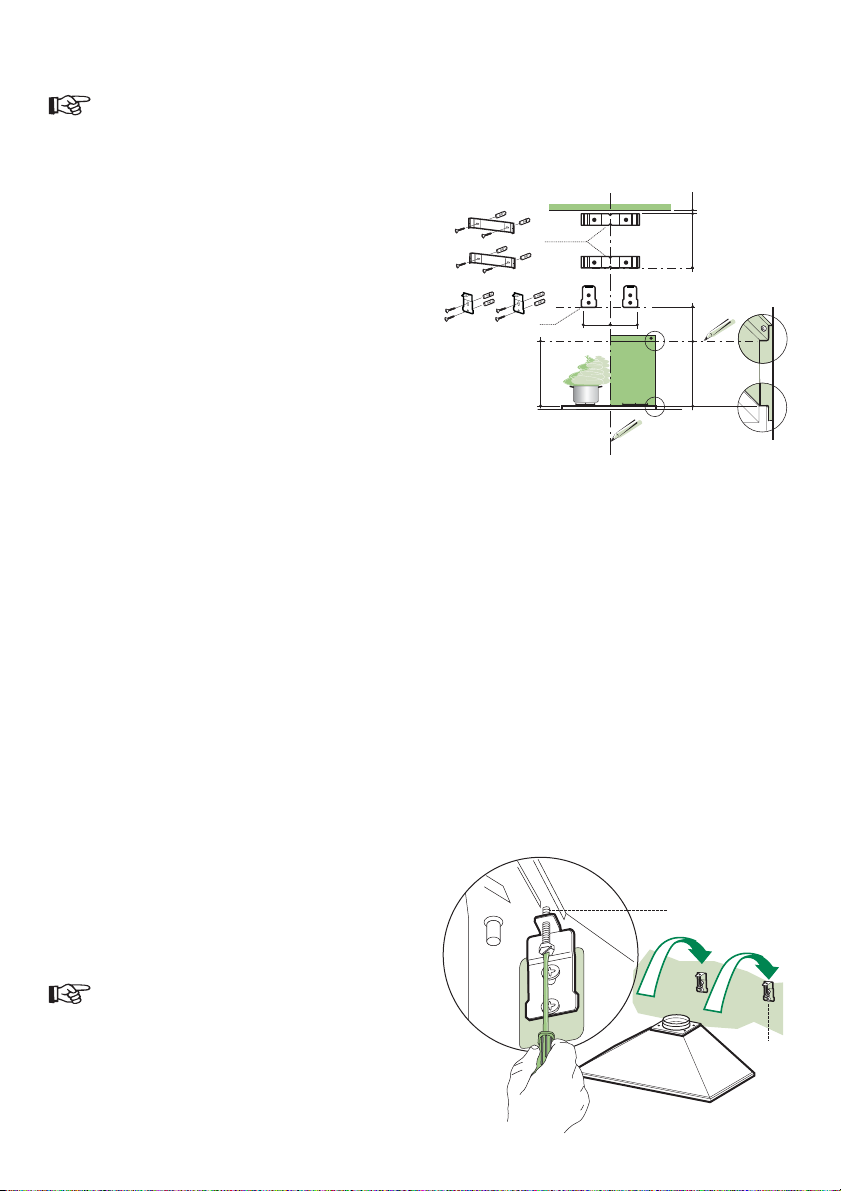

Fitting the Wall Brackets
• Draw a vertical line on the supporting wall up to the ceiling,
or as high as practical, at the centre of the area in which
the hood will be installed.
• Draw a horizontal line at 650 mm above the hob for installation without the back panel, or at height H (H=height of
the visible part of the panel) for installation with the back
panel.
• Place bracket 7.2.1 on the wall as shown about 1-2 mm
from the ceiling or upper limit aligning the centre (notch)
with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below
the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical
line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.1 as shown 95 mm from the vertical reference line and 210 mm above the horizontal reference
line.
• Mark the centres of the holes in the bracket.
• Repeat this operation on the other side.
Splashback (Optional)
The Splashback must be fitted before fixing the
hood body and, if it is to be fixed at both top and
bottom, must be fitted at the correct height prior
to installing the bases. As this operation is rather
complex, it should be carried out either by the
kitchen installer or a qualified person who knows
the final dimensions of the units.
For fixing at the top only, proceed as follows:
• Rest the back panel on the base, inserting the lower plate
between the upper surface and the wall, centring it on the
vertical reference line.
• Mark the centres of the two holes in the upper plate.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs (not supplied) in the holes.
• Fix the brackets using the screws (not supplied).
• Fix the back panel (where present) using the screws (not
supplied).
Note: If the hood is to be installed onto a hollow
construction or plaster or partition board wall
then special fixing screws will be required (not
supplied).
7.2.1
7.1
650 min.
1÷2
X
95
95
210
H
12.d
Fitting the Canopy Hood
• Screw the two screws item 12d supplied onto the brackets
7.1.
• Hook the hood body onto the bracket 7.1, centring it
around the vertical line.
• Use the adjusting screws item 12d underneath the hood
to level the hood body
7.1
6
Extraction (Ducted)
The cooker hood is more effective when installed in the
extraction mode (ducted to the outside).
Venting kits may be purchased through your retailer or
DIY store, and must be evacuated through an outside
vent of ø125 (5ins) or ø150mm (6ins).
The ducting used must be manufactured from fire
retardent material conforming to the relevant British
Standard or DIN 4102-B1.
When the cooker hood is ducted to the outside
the charcoal filter must be removed.
Fitting the Ducting
• Fit the ø150mm (6ins) ducting to the spigot on top of
the hood body as illustrated.
• When using ø125mm (5ins) ducting fit item 9 and 10
on to the spigot on the top of the hood body as illustrated.
• For the best performance use the shortest possible run
of ducting and we recommend the use of rigid pipe in
preference to flexible hose as this will improve the flow
of air while reducing turbulence, which causes noise and
a loss of performance.
• If the room where the cooker hood is to be used contains
a fuel burning appliance such as a central heating boiler,
then its flue must be be of the room sealed or balanced
flue type.
• If other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
• The cooker ducting when fitted in the extraction mode
must never be connected to central heating flues, radiators
or water heaters.
ø 150
ø 125
9
10
Recirculation Mode
The cooker hood is supplied specified for use in the
recirculation mode, with the charcoal filter fitted.
In the recirculation mode contaminated air is passed
through the charcoal filter to be purified and recirculated
into the kitchen through the grille outlets on either side
of the chimney.
• Push fit the air outlet connector item 15 onto the air
outlet.
• Ensure the activated charcoal filter has been fitted.
15
7
Fitting the Upper Chimney
• Slightly widen the two sides of the upper chimney and
hook them behind the brackets item 7.2.1 ensuring they
are correctly seated.
• Secure the sides to the brackets using the 4 screws item
12c (2.9 x 9.5mm) supplied.
Fitting the Lower Chimney
• Slightly widen the two sides of the lower chimney and
hook them between the upper chimney and the wall,
ensuring they are correctly seated.
• Fix the lower chimney to the hood body using 2 screws
item 12c (2.9 x 9.5mm) supplied.
• Make sure that the air outlet connection is aligned with
the chimney outlets.
12c
2.2
2
12c
2.1
12c
8
Electrical Connections
DOUBLE INSULATED DO NOT EARTH
Electrical Requirements
Any permanent electrical installation must comply with
the latest I.E.E. Regulations and local Electricity Board
regulations. For your own safety this should be undertaken by a qualified electrician e.g. your local Electricity
Board, or a contractor who is on the roll of the National
Inspection Council for Electrical Installation Contracting
(NICEIC).
Electrical Connection
Before connecting to the mains supply ensure that the
mains voltage corresponds to the voltage on the rating
plate inside the cooker hood.
Remove the grease filters (see paragraph Maintenance)
being sure that the connector of the feeding cable is
correctly inserted in the socket placed on the side of
the fan.
This appliance is fitted with a 3 core mains cable and
must be permanently connected to the electricity supply
via a double-pole switch having 3mm minimum contact
gap on each pole. A Switched Fuse Connection Unit to
BS1363 Part 4, fitted with a 3 Amp fuse, is a recommended mains supply connection accessory to ensure
compliance with the Safety Requirements applicable to
fixed wiring instructions.
This appliance conforms to BS 800: 1988 and EEC Di-
rective No. 78 308 regarding suppression of radio and
television interference.
9
Using the cooker hood
The cooker hood is designed to extract unpleasant
odours from the kitchen, it will not extract steam.
The appliance can be installed to recirculate or extract
contaminated air.
Cooker Hood Controls
The cooker hood functions are controlled by four push
button switches located centrally in the control fascia.
L Turns the worktop lighting On and Off
S Mains light - illumination indicates fan
motor is running
V1 Motor ON/OFF switch. Depress to turn the
extractor motor on at a LOW speed, to ensure
that light cooking vapours are silently extracted.
V2 Medium speed, suitable for general use. This speed
provides an optimum treated air flow to noise level
ratio.
V3 Maximum speed, used to extract intensive levels
of cooking vapour emissions.
To Operate
Select the required fan speed and light if required.
Recirculation
In the recirculation mode the contaminated air enters
the cooker hood through the grease filters. The air is
cleaned by passing through the charcoal filters before
being passed back into the kitchen through the grilles in
either side of the chimney stack.
S
V1 V2 V3
L
Extraction
In the extraction mode the contaminated air enters the
cooker hood passing through the grease filters and is
passed out through the ducting into the atmosphere.
To obtain the best performance when cooking it is advisable to switch the cooker hood on for a few minutes
before you start cooking and leave it running for about
15 minutes after finishing.
When used in the ducting mode the charcoal
filters are not required.
Never do flambé cooking under this cooker
hood.
Never leave frying pans unattended during
use, as over-heated fats and oils can catch fire.
Do not leave naked flames under the cooker
hood.
Ensure heating areas on your hob are covered
with pots and pans when using the hob and
cooker hood simultaneously.
10
Maintenance and Cleaning
Before carrying out any maintenance or lean-
ing isolate the cooker hood from the mains
supply.
The cooker hood must be kept clean, as a
build up of grease or fat can be a fire hazard.
External cleaning
Wipe the cooker hood frequently with warm soapy water
using a mild detergent.
Never use scouring pads or abrasive cleaners.
Never use excessive amounts of water when
cleaning particularly around the control panel.
Metal Grease Filters
The grease filters absorb grease and dust during cooking
to help keep the cooker hood clean inside, and should be
cleaned approximately once every month or more often
if the hood is used for more than 3 hours a day.
Remove the metal grease filters
one at a time by:
Releasing the catches on the filters, the filters can be
removed.
The metal grease filters should be washed, by hand, in mild
soapy water or in a dishwasher. Allow to dry completely
before replacing.
11
Charcoal Filters
In the recirculation mode the charcoal filters absorb
smells and unwanted odours.
The charcoal filters cannot be cleaned, we recommend
they should be replaced approximately every three
months or more often if the hood is used for more
than three hours per day.

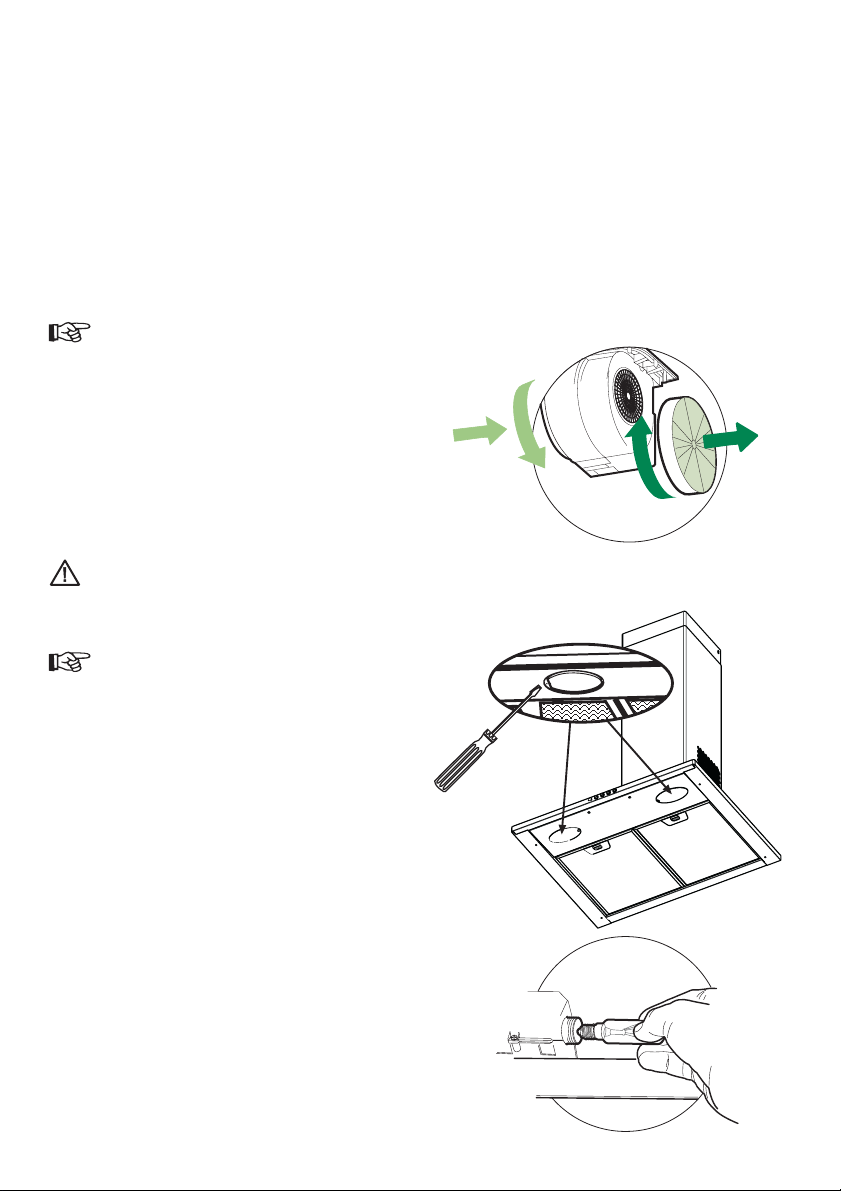

To Remove/Replace the Charcoal Filters
1. First remove the metal grease filters.
2. Rotate the charcoal filter anti-clockwise (A) and remove.
3. To replace the charcoal filters, remove the metal grease
filters.
4. Place the filter over the inlet grille at either end of the
fan housing and rotate clockwise (B) into position.
This appliance can be a possible fire hazard if
the grease and charcoal filters are not cleaned
and replaced as recommended.
Changing the Light Bulb
B
A
1. Remove the screw fastening the lamp cover.
2. Pull the lamp cover downwards.
3. Rotate the light bulb anti-clockwise to unscrew.
4. To replace the light bulb insert a replacement into the
holder then rotate the bulb clockwise into position. Ensure
you take care not to overtighten the bulb.
5. Replace the lamp cover.
If the light bulb fails to function check that the bulb is fully
screwed into the holder. If bulb failure has occurred then
it should be replaced with a 220-240 Volt 40W clear globe
shaped bulb with a small E14 screw thread.
Replacement filters and light bulbs can be obtained from your local Service Force Centre.
12
Something not Working
If the appliance is not working correctly, please carry out the following checks, before contacting your local Service
Force agent.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or instal-
lation, a charge will be made even if the appliance is under guarantee.
Symptom
The cooker hood will not start
The cooker hood is not working effectively
The cooker hood has switched off during
operation
Solution
• Check the hood is connected to the electricity supply.
• Make sure the switch is in the ‘ON’ position.
• Check that the fan speed is set high enough for the task
• Ensure the grease filter is clean.
• Ensure the kitchen is adequately vented to allow the entry
of fresh air.
• If set up for recirculation, check that the charcoal filter is
still effective.
• If set up for extraction, check that the ducting and outlets
are not blocked.
• The safety cut-out device has been tripped.
• Tum off the hob and then wait for the device to reset.
Repairs and After Sales Service
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact our
extended warranty administrators by telephoning:
0870 01 07887
They will give you details for your local Service Force Centre.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance (found
on the rating plate - see picture)
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working”.
Your oven is covered by a 3 year parts and labour
guarantee (see separate details given at point of sale).
Please retain your purchase receipt safely for the service
engineer to verify the purchase details.
5. The purchase date.
Please note that a valid purchase receipt is required for
in-guarantee service calls.
13
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com
436002885_02 - 060227
0306
Loading...
