John Deere D100 User Manual

Download

John Deere Tractors

*DCY*

*OMGX24920*

D100 Series

OPERATOR'S MANUAL

John Deere Tractors

D100 Series

*OMGX24920*

OMGX24920 ISSUE I3 (ENGLISH)

CALIFORNIA

Proposition 65 Warning

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer,

birth defects, and other reproductive harm.

If this product contains a gasoline engine:

WARNING

The engine exhaust from this product contains

chemicals known to the State of California to cause

cancer, birth defects or other reproductive harm.

The State of California requires the above two warnings. Additional Proposition 65 Warnings can be found in this manual.

John Deere Power Products

North American Edition

Printed in U.S.A.

Introduction

Thank You for Purchasing a John Deere Product

We appreciate having you as a customer and wish you many years of safe and satised use of your machine.

Using Your Operator’s Manual

This manual is an important part of your machine and should remain with the machine when you sell it.

Reading your operator’s manual will help you and others avoid personal injury or damage to the machine. Information given in this manual will provide the operator with the safest and most effective use of the machine. Knowing how to operate this machine safely and correctly will allow you to train others who may operate this machine.

If you have an attachment, use the safety and operating information in the attachment operator’s manual along with the machine operator’s manual to operate the attachment safely and correctly.

This manual and safety signs on your machine may also be available in other languages (see your authorized dealer to order).

Sections in your operator’s manual are placed in a specic order to help you understand all the safety messages and learn the controls so you can operate this machine safely. You can also use this manual to answer any specic operating or servicing questions. A convenient index located at the end of this book will help you to nd needed information quickly.

The machine shown in this manual may differ slightly from your machine, but will be similar enough to help you understand our instructions.

RIGHT-HAND and LEFT-HAND sides are determined by facing in the direction the machine will travel when going forward. When you see a broken line (------), the item referred to is hidden from view.

Before delivering this machine, your dealer performed a predelivery inspection to ensure best performance.

Special Messages

Your manual contains special messages to bring attention to potential safety concerns, machine damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage.

CAUTION: Avoid injury! This symbol and text highlight potential hazards or death to the operator or bystanders that may occur if the hazards or procedures are ignored.

IMPORTANT: Avoid damage! This text is used to tell the operator of

actions or conditions that might result in damage to the machine.

NOTE: General information is given throughout the manual that may help

the operator in the operation or service of the machine.

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Identication . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Labels—Text . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Labels—No Text . . . . . . . . . . . . . . . . . . . . . . . 8

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Machine Cleanout . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Operating Controls. . . . . . . . . . . . . . . . . . . . . . . . . . 20

Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Service Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Service Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . 33

Service Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Service Transmission. . . . . . . . . . . . . . . . . . . . . . . . 39

Service Mower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Service Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Service Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . 46

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Getting Quality Service. . . . . . . . . . . . . . . . . . . . . . . 55

Service Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Slope Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Product Identication

Record Identication Numbers

Lawn Tractors

D105, D110, D125, D130, D140, D160, D170

PIN (E500001-) - 49 State, Australia

PIN (E050001-) - California

PIN (E200001-) - Canada, Mexico, ROW

If you need to contact an Authorized Service Center for information on servicing, always provide the product model and identication numbers.

You will need to locate the product identication number (PIN) for the machine and engine serial number. Record the information in the spaces provided below.

DATE OF PURCHASE:

_________________________________________

DEALER NAME:

_________________________________________

DEALER PHONE:

_________________________________________

PRODUCT IDENTIFICATION NUMBER:

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

ENGINE SERIAL NUMBER:

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

Machine Product Identication Number Location

Original Instructions. All information, illustrations and specications in this

manual are based on the latest information available at the time of

The right is reserved to make changes at any time without notice.

A John Deere ILLUSTRUCTION © Manual

publication.

DEERE & COMPANY

Moline, Illinois

Previous Editions

Located on left side of frame

GXAL41941—UN—04MAR13

Engine Serial Number Location

Product Identication

Single cylinder engines

V-Twin engines

GXAL41942—UN—04MAR13

GXAL41943—UN—04MAR13

Register Your Product and Warranty Online

To register your product through the Internet, simply go to www. JohnDeereWarrantyRegistration.com.Completing the information, either online or with the product warranty card, will ensure the customer that their product receives all post sales service and important product information.

Safety Labels—Text

Safety Label Location (Text)

Safety Labels—Text

A — WARNING GX22477 B — DANGER/CAUTION M128699 C — WARNING MX4878 D — DANGER M118610

Use label number listed in table below to locate complete text of safety label message following this illustration.

E — CAUTION M165279 F — WARNING GX23479 G — DANGER GX22477 H — DANGER M89504

GXAL41944—UN—04MAR13

Safety Labels—Text

Understanding The Machine Safety Labels

MXAL42363—UN—22MAY13

The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.

On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identies the most serious hazards.

The operator’s manual also explains any potential safety hazards whenever necessary in special safety messages that are identied with the word, CAUTION, and the safety-alert symbol.

Replace missing or damaged safety signs. Use this operator’s manual for correct safety sign placement.

There can be additional safety information contained on part and components sourced from suppliers that is not reproduced in this operator’s manual.

Spanish Safety Signs and Operator’s Manual

Spanish versions of the operator’s manual and safety signs are available for this machine through authorized John Deere dealers. See your John Deere dealer.

NOTE: Both text and pictorial labels are shown below. Your machine will

only be equipped with one of these types of labels.

Warning MX4878

DANGER - M89504

GXAL41948—UN—04MAR13

ROTATING BLADE

• Do not put hands or feet under or into mower when engine is running.

THROWN OBJECTS

• Before mowing, clear area of objects that may be thrown by blade.

• Do not operate mower without discharge chute or entire grass catcher in place.

DANGER

GXAL41949—UN—04MAR13

ROTATING BLADES CUT OFF ARMS AND LEGS

• Do not mow when children or others are around.

• Do not mow in reverse.

• Look down and behind before and while backing.

• Never carry children even with blades off.

GXAL41946—UN—04MAR13

• Read and follow Operating Instructions before running engine.

• Gasoline is ammable. Allow engine to cool at least 2 minutes before refueling.

• Engines emit carbon monoxide, DO NOT run in enclosed area.

DANGER

GXAL41947—UN—04MAR13

ROTATING BLADE

• Do not put hands or feet under or into mower when engine is running.

DANGER M128699

Located on battery

• Shield eyes, explosive gases can cause blindness or injury.

• No sparks, ames, smoking.

• Sulfuric acid can cause blindness or severe burns.

• Flush eyes immediately with water. Get medical help fast.

• Keep out of reach of children.

• Do not tip.

• Keep vent caps tight and level.

GXAL41950—UN—04MAR13

Safety Labels—Text

WARNING

GXAL41951—UN—04MAR13

AVOID SERIOUS INJURY OR DEATH

• Drive up and down slopes, not across.

• Avoid sudden turns.

• If machine stops going uphill, stop blades and back down slowly.

• Keep safety devices (guards, shields, and switches) in place and working.

• Remove objects that could be thrown by blades.

• Read operator’s manual.

• Remove objects that can be thrown by blades

• When leaving machine:

- Stop engine

- Set park brake

- Remove key

Avoid Injury From Hot Surface

Prevent Equipment Fires

WARNING

• Hot surface

GXAL41952—UN—04MAR13

GXAL41954—UN—04MAR13

• Avoid equipment res.

• Accumulation of grass, leaves and other debris on or near hot or moving parts can cause a re.

• Inspect machine before, during, and after use.

• Shut off engine and allow machine to cool before cleaning.

Inspect and clean the entire machine and pay special attention to these locations:

1. Mufer and exhaust system

2. Engine and engine screens

3. Top of mower deck and under shields

4. On or near transmission

Certication

Your mower has been certied for compliance with American National Standards Institute B-71.1-2003, “Safety Specications” for Power Lawn Mowers, Lawn and Garden Tractors, and Lawn Tractors.

Canadian Electromagnetic Compatibility (EMC) Compliance

This spark ignition system complies with Canadian ICES-002.

Safety Labels—No Text

Safety Label Location (No Text)

Safety Labels—No Text

Non-text labels are required for certain regions of the world. Your machine may not be equipped with these labels. Use label number listed in table below to locate complete text of safety label

A — WARNING GX24842 B — WARNING M128484 C — WARNING M136436 D — WARNING GX24503 E — DANGER M118041

message following this illustration.

F — WARNING GX21121 G — WARNING GX23479 H — DANGER M148522 I — DANGER M118040

PY19054—UN—16AUG13

Safety Labels—No Text

Understanding The No-Text Machine Safety Labels

TCT005498—UN—11SEP12

At several important places on this machine safety signs are afxed intended to signify potential danger. The hazard is identied by a pictorial in a warning triangle. An adjacent pictorial provides information how to avoid personal injury. These safety signs, their placement on the machine and a brief explanatory text are shown in this Safety section.

There can be additional safety information contained on parts and components sourced from suppliers that is not reproduced in this operator’s manual.

Read Operator’s Manual

MXAL42776—UN—09APR13

Avoid Injury From Tipping

MXAL42779—UN—09APR13

• Do not drive where machine could slip, tip, or rollover.

• In some congurations, do not drive or operate on a slope of more than 10 degrees.

• Refer to the Operating on Slopes section for more information.

Avoid Injury From Thrown Objects

• This operator’s manual contains important information necessary for safe machine operation.

• Carefully read operator’s manual before operating machine. Observe all safety rules to avoid accidents.

Keep Children Away from Mower

MXAL42778—UN—09APR13

• Mower can cause dismemberment or death.

• Stay a safe distance from the machine.

• Make sure that children stay clear of mower at all times when the engine is running.

MXAL42780—UN—09APR13

• Keep a safe distance from the machine as long as the engine is running.

Avoid Injury From Getting Caught in Belts

M136436—UN—24MAY13

• Stay clear of moving belts.

• Do not operate machine without shields in place.

Safety

Prevent Equipment Fires

PY19036—UN—07AUG13

Clean and inspect the entire machine.

Carefully read Operator’s Manual Machine Cleanout section for details.

Avoid Injury From Rotating Blades

MXAL42784—UN—09APR13

• Do not put hands or feet under or into mower when engine is running.

• Do not operate mower without discharge chute or entire grass catcher in place.

Avoid Injury From Battery Gases and Acid

MXT007302—UN—23MAY13

• Shield eyes, explosive gases can cause blindness or injury.

• No sparks, ames, smoking.

• Sulfuric acid can cause blindness or severe burns.

• Keep out of the reach of children.

• Do not tip.

• Keep vent caps tight and level.

• Flush eyes immediately with water. Get medical help fast.

Avoid Injury From Hot Surfaces

GXAL41960—UN—04MAR13

• Keep away from hot surfaces.

Safety

Operating Safely

GXAL42347—UN—04MAR13

This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

• Read, understand and follow all instructions on the machine and in manuals provided, and view safety video, before starting. Be thoroughly familiar with the controls and the proper use of the machine before starting.

• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.

• Only allow responsible adults, who are familiar with the instructions, to operate this machine. Local regulations may restrict the age of the operator.

• Clear the area of objects such as rocks, wire and toys which could be thrown by the blades.

• Be sure the area is clear of bystanders before operating. Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.

• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blades when crossing gravel surfaces.

• Do not operate the machine without the entire grasscatcher, discharge guard, or other safety devices in place and working. Never operate with the discharge deector raised, removed, or altered, unless using a grasscatcher.

• Slow down before turning.

• Never leave a running machine unattended. Always turn off blades, lock park brake, stop engine and remove key before dismounting.

• Disengage blades when not mowing. Shut off engine and wait for all parts to come to a complete stop before cleaning the machine, removing the grasscatcher, or unclogging the discharge chute.

• Operate machine only in daylight or good articial light.

• Do not operate the machine while under the inuence of alcohol or drugs.

• Watch for trafc when operating near or crossing roadways. Stop blades before crossing roads or sidewalks.

Safety

• Use extra care when loading or unloading the machine into a trailer or truck.

• Always wear safety goggles or safety glasses with side shields when operating machine.

• Data indicates operators 60 years and above are involved in a large percentage of riding mower-related injuries. These operators should evaluate their ability to operate the riding mower safely enough to protect themselves and others from serious injury.

• Follow the manufacturer’s recommendation for wheel weights or counterweights.

• Inspect machine before you operate. Be sure hardware is tight. Repair or replace damaged, badly worn, or missing parts. Be sure guards and shields are in good condition and fastened in place. Make any necessary adjustments before you operate.

• Before using, always visually inspect to see that the blades, blade bolts and the mower assembly are not worn and damaged. Replace worn and damaged blades and bolts in sets to preserve balance.

• Make sure spark plug, mufer, fuel cap and air cleaner are in place before starting the engine.

• Be sure all drives are in neutral and parking brake is locked before starting engine. Only start engine from the operator’s position.

• Do not change the engine governor settings or overspeed the engine. Operating the engine at excessive speed can increase the hazard of personal injury.

• If you hit an object or if abnormal vibration occurs, stop the machine and inspect it. Make repairs before you operate.

• Use only accessories and attachments approved by the manufacturer of the machine. Keep safety labels visible when installing accessories and attachments.

• Do not wear radio or music headphones. Safe service and operation requires your full attention.

• When machine is left unattended, stored, or parked, lower the mower deck unless a positive mechanical lock is used.

Using a Spark Arrestor

The California Public Resources Code, section 4442.5 provides as follows:

No person shall sell, offer for sale, lease, or rent to any person any internal combustion engine subject to Section 4442 or 4443, and not subject to Section 13005 of the Health and Safety Code, unless the person provides a written notice to the purchaser or bailee, at the time of sale or at the time of entering into the lease or rental contract, stating that it is a violation of Section 4442 or 4443 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the engine is equipped with a spark arrestor, as dened in Section 4442, maintained in effective working order or the engine is constructed, equipped, and maintained for the prevention of re pursuant to Section

4443. Cal. Pub. Res. Code 4442.5.

Other states or jurisdictions may have similar laws. A spark arrestor for your machine may be available from your authorized dealer. An installed spark arrestor must be maintained in good working order by the operator.

Checking Mowing Area

• Low-hangingbranches and similar obstacles can injure the operator or interfere with mowing operation. Before mowing, identify potential obstacles such as low-hanging branches, and trim or remove those obstacles.

• Study mowing area. Set up a safe mowing pattern. Do not mow where traction or stability is doubtful.

• Test drive area with mower lowered but not running. Slow down when you travel over rough ground.

Parking Safely

1. Stop machine on a level surface, not on a slope.

2. Disengage mower blades or any other attachments.

3. Lower attachments to the ground.

4. Lock the park brake.

5. Stop the engine.

6. Remove the key.

7. Wait for engine and all moving parts to stop before you leave the

operator’s seat.

8. Close fuel shut-off valve, if your machine is equipped.

9. Disconnect the negative battery cable or remove the spark plug wire

(s) (for gasoline engines) before servicing the machine.

Rotating Blades are Dangerous

MXAL41928—UN—18FEB13

HELP PREVENT SERIOUS OR FATAL ACCIDENTS:

• Rotating blades can cut off arms and legs, and throw objects. Failure to observe safety instructions could result in serious injury or death.

• Keep hands, feet and clothing away from mower deck when engine is running.

• Be alert at all times, drive forward and in reverse carefully. People, especially children can move quickly into the mowing area before you know it.

• Before backing up, stop mower blades or attachments and look down and behind the machine carefully, especially for children.

• Do not mow in reverse.

• Shut off blades when you are not mowing.

• Park machine safely before leaving the operator’s station for any reason including emptying the grasscatchers or unplugging the chute.

• The mower blades should stop in approximately ve seconds when the mower is disengaged. If you believe that your blades may not be stopping in that period of time, take your machine to your authorized dealer where they can safely check and service your machine.

MXAL41932—UN—22MAY13

• Clear mowing area of objects that might be thrown. Keep people and pets out of mowing area.

Protect Children

MXAL41929—UN—18FEB13

Safety

• Death or serious injury can occur when young children associate having fun with a lawn mowing machine simply because someone has given them a ride on a machine.

• Children are attracted to lawn mowing machines and mowing activities. They don’t understand the dangers of rotating blades or the fact that the operator is unaware of their presence.

• Children who have been given rides in the past may suddenly appear in the mowing area for another ride and be run over or backed over by the machine.

• Tragic accidents with children can occur if the operator is not alert to the presence of children, especially when a child approaches a machine from behind. Before and while backing up, stop mower blades and look down and behind the machine carefully, especially for children.

• Never carry children on a machine or attachment, even with the blades off. Do not tow children in a cart or trailer. They can fall off and be seriously injured or interfere with safe machine operation.

• Never use the machine as a recreational vehicle or to entertain children.

• Never allow children or an untrained person operate the machine. Instruct all operators not to give children a ride on the machine or in an attachment.

• Keep children indoors, out of the mowing area, and in the watchful eye of a responsible adult, other than the operator, when a mower is being operated.

• Stay alert to the presence of children. Never assume that children will remain where you last saw them. Turn the machine off if a child enters the work area.

• Use extreme care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

• On slope angles of 10° or less, the risk of rollover is low, but as the slope angle increases to the recommended maximum, the risk increases to a medium level.

• Always consider potential turf conditions and slope angles when determining the risk of loss-of-control and tip-over accidents.

• Drive slowly when mowing or operating on slopes.

• If you feel uneasy on a hillside, do not mow or operate on it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the ride-on mower. Tall grass can hide obstacles.

• Drive slowly so you will not have to stop while on a slope.

• Do not mow on wet grass. Tires may lose traction. Tires may slip on slopes even though the brakes are functioning properly.

• Avoid starting, stopping or turning on a slope. If the tires lose traction, disengage the PTO and proceed slowly, straight down the slope.

• Keep all movement on slopes slow and gradual. Do not make sudden changes in speed or direction, which could cause the ride-on mower to roll over.

Operating on Slopes

NOTE: Remove Slope Gauge Template page from the back of this

operators manual. Follow the instructions included with the template.

• Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death. Operation on all slopes requires extra caution.

Identify Slopes for Safe Operation

• Follow safe procedures for operation on slopes. Measure slopes of all moving sites to determine which slopes are safe for mowing with a ride-on mower. Always use common sense and good judgement when performing this survey.

Measuring Slopes

• Suggested Method 1: Lay a straight piece of sturdy lumber 1.2 m (4 ft) long on the slope and measure the angle of the slope with an angle indicator or protractor level.

• Suggested Method 2: Refer to the slope gauge provided at the end of this manual.

Operate Safely on Slopes

• Exceeding the recommended maximum slope angle increases the risk of rollover accidents that can result in serious injury or death.

• Never mow or operate ride-on mower on slope angles greater than 13° with the lawn ride-on mower in its basic conguration. The basic conguration is the ride-on mower with mower deck and not other attachments. (A 13° slope is a slope that rises 1.4 m (4.6 ft) over a horizontal distance of 6.1 m (20 ft).)

• When using attachments, never mow or operate the ride-on mower on slope angles greater than 10°. The addition of a weather enclosure, material collection system, or other attachments will increase the risk of a rollover. (A 10° slope is a slope that rises 1 m (3.5 ft) over a horizontal distance of 6.1 m (20 ft).)

Safety

Operating Near Hazards

Example side view of slope and hazards, showing areas (A), (B), and (C).

• Do not mow or operate machine in areas adjacent to hazards that may cause the machine to roll over. The machine could suddenly lose traction, slide, and/or roll over if a wheel goes over the edge or if the edge breaks away.

• Hazards (A) include but are not limited to:

- Drop-offs, ditches, embankments, or bodies of water.

- Areas of unsafe slope, soft ground, edges along bodies of water, or

area with holes, ruts, bumps, or other hidden objects.

• Maintain a buffer area (B) at least as wide as the machine between hazards (A) and the mowing area (C). Do not mow or operate the machine in the hazard area or buffer area.

• Only mow or operate the machine in the mowing area (C). Do not exceed the recommended slope operating angle. Refer to the "Operate Safely on Slopes" section.

• Use a walk-behind mower or string trimmer in and around areas (A) and (B).

GXAL41966—UN—04MAR13

Keep Riders Off

MXAL41930—UN—18FEB13

• Only allow the operator on the machine. Keep riders off.

• Riders on the machine or attachment may be struck by foreign objects or thrown off the machine causing serious injury.

• Riders obstruct the operator’s view resulting in the machine being operated in an unsafe manner.

MXT005363—UN—10JUL13

Towing Loads Safely

• Stopping distance increases with speed and weight of towed load. Travel slowly and allow extra time and distance to stop.

• Total towed weight must not exceed combined weight of pulling machine, ballast and operator. Use counterweights or wheel weights as described in the attachment or pulling machine operator’s manual.

Safety

• Excessive towed load can cause loss of traction and loss of control on slopes. Reduce towed weight when operating on slopes.

• Never allow children or others in or on towed equipment.

• Use only approved hitches. Tow only with a machine that has a hitch designed for towing. Do not attach towed equipment except at the approved hitch point.

• Follow the manufacturer’s recommendations for weight limits for towed equipment and towing on slopes.

• Towed attachments will increase the risk of rollover. Refer to the “Operating on Slopes” section for more information.

• Do not turn sharply. Use additional caution when turning or operating under adverse surface conditions. Use care when reversing.

• Do not shift to neutral and coast downhill.

Wear Appropriate Clothing

MXAL41935—UN—18FEB13

• Always wear eye protection when operating the machine.

• Wear close tting clothing and safety equipment appropriate for the job.

• While operating this machine, always wear substantial footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals.

• Wear a suitable protective device such as earplugs. Loud noise can cause impairment or loss of hearing.

Driving Safely on Public Roads

MXAL42880—UN—26MAR13

Avoid personal injury or death resulting from a collision with another vehicle on public roads:

• Use safety lights and devices. Slow moving machines when driven on public roads are hard to see, especially at night.

• Whenever driving on public roads, use ashing warning lights and turn signals according to local regulations. Extra ashing warning lights may need to be installed.

• Never tamper with safety devices. Check their proper operation regularly.

• Keep machine free of grass, leaves or other debris build-up. Clean up oil or fuel spillage and remove any fuel-soaked debris. Allow the machine to cool before storing.

• If you strike a foreign object, stop and inspect the machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine running. Wait for all movement to stop on machine before adjusting, cleaning or repairing.

• Check grasscatcher components and the discharge guard frequently and replace with manufacturer’s recommended parts, when necessary. Grasscatcher components are subject to wear, damage, and deterioration which could expose moving parts or allow objects to be thrown.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra care when servicing them. Only replace blades. Never straighten or weld them.

• Check brake operation frequently. Adjust and service as required.

• Maintain or replace safety and instruction labels, as necessary.

• On multi-bladed machines, take care as rotating one blade can cause other blades to rotate.

• Keep hands, feet, clothing, jewelry, and long hair away from any moving parts, to prevent them from getting caught.

• Lower any attachments to the ground before cleaning or servicing machine. Disengage all power and stop the engine. Lock park brake and remove the key. Let machine cool.

• Securely support any machine elements that must be raised for service work. Use jack stands or lock service latches to support components when needed.

• Disconnect battery or remove spark plug wire (for gasoline engines) before making any repairs. Disconnect negative terminal rst and positive last. Install positive terminal rst and negative last.

• Before servicing machine or attachment, carefully release pressure from any components with stored energy, such as hydraulic components or springs.

• Keep all parts in good condition and properly installed. Fix damage immediately. Replace worn or broken parts.

• Charge batteries in an open, well-ventilated area, away from sparks. Unplug battery charger before connecting or disconnecting from the battery. Wear protective clothing and use insulated tools.

• Do not strike the ywheel with a hammer or hard object because the ywheel may later shatter during operation.

• If equipped with hydraulic lift - release hydraulic pressure by lowering attachment or cutting units to the ground or to a mechanical stop and move hydraulic control levers back and forth.

Avoid High Pressure Fluids

Practice Safe Maintenance

MXAL41933—UN—18FEB13

• Only qualied, trained adults should service this machine. Understand service procedure before doing work.

• Never operate machine in a closed area where dangerous carbon monoxide fumes can collect.

• Keep all nuts and bolts tight, especially blade attachment bolts, to be sure the equipment is in safe working condition.

MXAL41927—UN—18FEB13

• Hydraulic hoses and lines can fail due to physical damage, kinks, age, and exposure. Check hoses and lines regularly. Replace damaged hoses and lines.

• Hydraulic uid connections can loosen due to physical damage and vibration. Check connections regularly. Tighten loose connections.

• Escaping uid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure.

• Search for leaks with a piece of cardboard. Protect hands and body from high pressure uids.

Safety

• If an accident occurs, see a doctor immediately. Any uid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A. Information may be obtained in the United States and Canada only by calling 1-800-822-8262.

Prevent Fires

MXAL41931—UN—18FEB13

• Besides routine maintenance, one of the best ways to keep your John Deere equipment running efciently and to reduce re risk is to regularly remove debris buildup from the machine.

• Please review these recommendations with all operators. See your John Deere dealer with questions.

• Always follow all safety procedures posted on the machine and in this operator manual. Before carrying out any inspection or cleaning, always shut off engine, set parking brake and remove ignition key.

• After operating, allow machine to cool in an open area before cleaning or storing. Do not park machine near ammable materials such as wood, cloth or chemicals.

• Empty any grasscatcher bags or containers completely before storing.

• Frequency of these inspections and cleaning will vary depending on a number of factors including operating conditions, machine conguration, operating speeds and weather conditions particularly dry, hot and windy conditions. When you are operating in these conditions, inspect and clean these areas frequently throughout the day.

• Wind direction, terrain type and moisture content of surrounding vegetation can effect where and how much debris accumulates.

• Debris can accumulate anywhere on the machine, especially on horizontal surfaces.

• Keeping engine area clean will provide the greatest impact on re prevention. Other areas requiring regular inspection and cleaning include behind wheel rims, wire harness, hose/line routings, mowing attachments, etc. Compressed air, leaf blowers or high pressured water can assist keeping these areas clean.

• Excess lubrication or fuel/oil leaks or spills on the machine can also serve as collection sites for debris. Prompt machine repair and oil/fuel cleanup will minimize the potential for debris collection and reduced cooling throughout machine life.

• Bearing failures or overheating can result in a re. To reduce this risk, always follow the instructions in the machine operator’s manual regarding lubrication intervals and locations. Washing the machine while warm may also reduce bearing life and increase potential for premature bearing failure.

• Always shut off fuel when storing or transporting machine, if the machine has a fuel shutoff.

Handling Fuel Safely

MXAL41938—UN—18FEB13

To avoid personal injury or property damage, use extreme care in handling fuel. Fuel is extremely ammable and fuel vapors are explosive:

• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.

• Use only an approved fuel container. Use only non-metal, portable fuel containers approved by the Underwriter’s Laboratory (U.L.) or the American Society for Testing & Materials (ASTM). If using a funnel, make sure it is plastic and has no screen or lter.

• Never remove the fuel tank cap or add fuel with the engine running. Allow engine to cool before refueling.

• Never add fuel to or drain fuel from the machine indoors. Move machine outdoors and provide adequate ventilation.

• Clean up spilled fuel immediately. If fuel is spilled on clothing, change clothing immediately. If fuel is spilled near machine, do not attempt to start the engine but move the machine away from the area of spillage. Avoid creating any source of ignition until fuel vapors have dissipated.

• Never store the machine or fuel container where there is an open ame, spark, or pilot light such as on a water heater or other appliance.

• Prevent re and explosion caused by static electric discharge. Static electric discharge can ignite fuel vapors in an ungrounded fuel container.

• Never ll containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before fueling.

• Remove fuel-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment with a portable container, rather than from a fuel dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until the fueling is complete. Do not use a nozzle lock-open device.

• Never overll fuel tank. Replace fuel tank cap and tighten securely.

• Replace all fuel container caps securely after use.

• For gasoline engines, do not use gas with methanol. Methanol is harmful to your health and to the environment.

Tire Safety

MXAL41937—UN—18FEB13

Explosive separation of a tire and rim parts can cause serious injury or death:

• Do not attempt to mount a tire without the proper equipment and experience to perform the job.

Machine Cleanout

• Always maintain the correct tire pressure. Do not inate the tires above the recommended pressure. Never weld or heat a wheel and tire assembly. The heat can cause an increase in air pressure resulting in a tire explosion. Welding can structurally weaken or deform the wheel.

• When inating tires, use a clip-on chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly.

• Check tires for low pressure, cuts, bubbles, damaged rims or missing lug bolts and nuts.

Checking Wheel Hardware

• A serious accident could occur causing serious injury if wheel hardware is not tight.

• Check wheel hardware tightness often during the rst 100 hours of operation.

• Wheel hardware must be tightened to specied torque using the proper procedure anytime it is loosened.

Handling Waste Product and Chemicals

Waste products, such as, used oil, fuel, coolant, brake uid, and batteries, can harm the environment and people:

• Do not use beverage containers for waste uids - someone may drink from them.

• See your local Recycling Center or authorized dealer to learn how to recycle or get rid of waste products.

• A Material Safety Data Sheet (MSDS) provides specic details on chemical products: physical and health hazards, safety procedures, and emergency response techniques. The seller of the chemical products used with your machine is responsible for providing the MSDS for that product.

cleanup will minimize the potential for debris collection and reduced cooling throughout machine life.

• Always shut off fuel when storing or transporting machine, if the machine has a fuel shutoff.

Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

Machine Cleanout

Prevent Fires

• Besides routine maintenance, one of the best ways to keep your John Deere equipment running efciently and to reduce re risk is to regularly remove debris buildup from the machine.

• Please review these recommendations with all operators. See your John Deere dealer with questions.

• After operating, allow machine to cool in an open area before cleaning or storing. Do not park machine near ammable materials such as wood, cloth or chemicals.

• Empty any grasscatcher bags or containers completely before storing.

• Wind direction, terrain type and moisture content of surrounding vegetation can effect where and how much debris accumulates.

• Debris can accumulate anywhere on the machine, especially on horizontal surfaces.

• Excess lubrication or fuel/oil leaks or spills on the machine can also serve as collection sites for debris. Prompt machine repair and oil/fuel

Single cylinder shown

Twin cylinder shown

1. Exhaust manifold (A), mufer pipe (B), mufer (C) and mufer shield (D).

GXAL41967—UN—04MAR13

GXAL41968—UN—04MAR13

Single cylinder shown

Machine Cleanout

3. Top of mower deck, under shields (G), including spindle (H) and belt

GXAL41969—UN—04MAR13

areas.

GXAL41971—UN—04MAR13

Twin cylinder shown

2. Engine intake screens (E), cooling ns (F), and oil cooler (if equipped).

GXAL41970—UN—04MAR13

Shown with wheel removed

4. On or near transmission (I) and driveline (J).

GXAL41972—UN—04MAR13

Assembly

4. Connect positive (+) battery cable (A) to battery.

5. Connect negative (–) battery cable (B).

6. Apply general purpose grease or silicone spray to terminal to help prevent corrosion.

7. Slide red cover (C) over positive battery cable.

GXAL41974—UN—04MAR13

GXAL41973—UN—04MAR13

5. Under left side panel near fuse block (K), and all wiring, including the battery (L) and related wiring harnesses (M).

Assembly

Charge and Connect Battery

CAUTION: The battery produces a ammable and explosive gas. The battery may explode:

• DDoo nnoott ssmmookkee oorr hhaavvee ooppeenn aammee nneeaarr bbaatttteerryy..

• WWeeaarr eeyyee pprrootteeccttiioonn aanndd gglloovveess..

• NNeevveerr cchheecckk bbaatttteerryy cchhaarrggee bbyy ppllaacciinngg aa mmeettaall oobbjjeecctt aaccrroossss tthhee ppoossttss.. UUssee aa vvoollttmmeetteerr oorr hhyyddrroommeetteerr..

• DDoo nnoott jjuummpp ssttaarrtt oorr cchhaarrggee aa ffrroozzeenn bbaatttteerryy.. WWaarrmm bbaatttteerryy ttoo 1166°°CC ((6600°°FF))..

1. Remove and discard the tie strap from the positive (+) battery terminal.

2. Remove and discard the black protective cap from the negative (–) battery terminal.

3. Charge the battery.

Specication

Battery Full Charge — Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 volts

Check Tire Pressure

Check tire pressure. (See Checking Tire Pressure in the SERVICE MISCELLANEOUS section.)

Adjust Mower Deck Level

Adjust mower deck level. (See Adjusting Mower Deck Level in the OPERATING section.)

Check Engine Oil Level

Check engine oil level. (See Checking Engine Oil Level in the SERVICE ENGINE section.)

Check Machine Safety System

Perform safety system check to make sure the electronic safety interlock circuit is functioning properly. Perform all tests. (See Testing Safety System in the OPERATING section.)

Break In Electric Engagement Clutch (If Equipped)

1. Start engine and move machine to at level surface.

Assembly

GXAL41975—UN—04MAR13

2. Push throttle lever (A) up to full throttle position.

3. Engage attachment engagement switch (B) and allow mower to run for 10 seconds.

4. Disengage attachment engagement switch and wait 10 seconds.

5. Repeat steps 3 and 4 for 12-15 cycles.

NOTE: Clutch is now properly burnished.

Operating Controls

Operator Station Controls (D105)

Operating Controls

A — Brake pedal B — Park Brake Lock Lever C — Throttle/Choke Lever D — Reverse Implement Option (RIO) Switch E — Service Reminder/Hourmeter F — Key Switch

G — Attachment Engagement Lever H — Motion Pedal I — Deflector Shield J — Transmission Shift Lever K — Fuel Level Window L — Attachment Lift Lever

PY19028—UN—07AUG13

Operating Controls

Operator Station Controls (D110, D125, D130)

A — Brake Pedal B — Park Brake Lock Lever C — Throttle/Choke Lever D — Service Reminder/Hourmeter E — Key Switch F — Attachment Engagement Lever G — Cruise Control Lever (D125 and D130)

H — Reverse Implement Option (RIO) Switch I — Forward Travel Pedal J — Reverse Travel Pedal K — Deflector Shield L — Fuel Level Window M — Attachment Lift Lever

PY19030—UN—07AUG13

Operating

Operator Station Controls (D140, D160, D170)

A — Brake Pedal B — Park Brake Lock Lever C — Throttle/Choke Lever D — Reverse Implement Option (RIO) Switch E — Service Reminder/Hourmeter F — Key Switch G — Cruise Control Lever

Operating

Daily Operating Checklist

❏ Test safety systems. ❏ Check tire pressure.

IMPORTANT: Using stale, contaminated or improper fuel can result

in engine and fuel system damage. Repairs caused by stale, contaminated or improper fuel are not covered by warranty.

❏ Check fuel level. (See SERVICE MISCELLANEOUS section, Using

Proper Fuel and Stabilizer)

❏ Check engine oil level. ❏ Remove grass and debris from engine compartment and mufer area,

and on top of mower deck, before and after operating machine.

❏ Clean air intake screen. ❏ Check area below machine for leaks.

PY19049—UN—07AUG13

H — Attachment Engagement Switch I — Forward Travel Pedal J — Reverse Travel Pedal K — Deflector Shield L — Fuel Level Window M — Attachment Lift Lever

Avoid Damage to Plastic and Painted Surfaces

• Do not wipe plastic parts unless rinsed rst. Using a dry cloth may cause scratches.

• Insect repellent spray may damage plastic and painted surfaces. Do not spray insect repellent near machine.

• Be careful not to spill fuel on machine. Fuel may damage surface. Wipe up spilled fuel immediately.

• Prolonged exposure to sunlight will damage some surfaces.

Adjusting Seat

1. Sit in seat.

Operating

GXAL41979—UN—04MAR13

2. Lift up on (A) on right side of seat.

3. Lean forward and slide seat forward or rearward to desired position. Do not lean back on top of seat to push rearward.

4. Release seat adjustment lever to lock in position.

Checking and Adjusting Mower Deck Level

CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

• DDiissccoonnnneecctt ssppaarrkk pplluugg wwiirree((ss)) oorr bbaatttteerryy nneeggaattiivvee ((--)) ccaabbllee ttoo pprreevveenntt eennggiinnee ffrroomm ssttaarrttiinngg aacccciiddeennttllyy..

• AAllwwaayyss wweeaarr gglloovveess wwhheenn hhaannddlliinngg mmoowweerr bbllaaddeess oorr wwoorrkkiinngg nneeaarr bbllaaddeess..

NOTE: Mower deck wheels should not contact the ground when leveling

the mower deck.

Method One

1. Make sure machine is on a at, level surface.

2. Park machine safely. (See Parking Safely in the SAFETY section.)

3. Check that tires are inated to correct tire pressure. Tire pressure is marked on the side of the tire.

4. Raise deck to highest position.

Lumbar Seat Adjustment (D160, D170)

• Turn lumbar seat adjustment dials (B) on either side of seat to adjust rmness of seat.

Adjusting Cutting Height

Cutting height can be adjusted from approximately 25 - 100 mm (1 - 4 in.) in 6.4 mm (1/4 in.) increments. When mower deck is in transport position, cutting height is approximately 100 mm (4 in.).

Detents allow the adjustment lever to be positioned at each indicated mower setting, as well as the mid-point between each setting.

Mower Setting Approximate Cutting Height

1 25 mm (1 in.)

– 38 mm (1 1/2 in.)

2 50 mm (2 in.)

– 65 mm (2 1/2 in.)

3 75 mm (3 in.)

– 90 mm (3 1/2 in.)

4 (Transport) 100 mm (4 in.)

1. Put attachment lift lever into the slot adjacent to desired cutting

height.

2. Adjust mower deck wheels.

Transporting or Getting On and Off Machine

• Pull attachment lift lever all the way back to transport position or 100 mm (4 in.) cutting height.

107 cm (42 in.) mower deck shown

GXAL41980—UN—04MAR13

5. Place three short 51 mm (2 in.) blocks of wood under the edges (A) of the mower deck.

6. Lower mower deck to the 63 mm (2.5 in.) cutting height position. For D130 models, lower deck to 57 mm (2-1/4 in.) cutting height position.

7. Check that the mower deck is level and lightly touching each of the three wooden blocks.

GXAL41981—UN—04MAR13

• If the rear of the mower deck is not touching the rear blocks, or is

sitting heavily on the blocks, adjust the rear lift links by turning the leveling nut (B) on each lift link. The blocks should be able to

Operating

easily slide in and out beneath the mower deck when the mower deck is correctly adjusted.

107 cm (42 in.) mower deck shown

• If the front of the mower deck is not lightly touching the front block, adjust the front draft arm by turning the nut (C).

8. Raise the cutting height to the next highest position and remove the three wooden blocks.

9. Turn the nut (C) on the front draft arm counterclockwise 1-2 full turns so that the front of the deck is 3-6 mm (1/8-1/4 in.) lower than the rear. This adjustment prevents “double cutting,” which wastes horsepower and causes brown grass tips.

Specication

Mower Deck, Front-to-Back — Height . . . . . . . . . . . . . . . . . . . . . . . .1/8-1/4 in. (3-6 mm)

GXAL41982—UN—04MAR13

GXAL41984—UN—04MAR13

b. Turn left blade (C) as shown. Hold drive belt and turn right blade

(D) as shown. Take measurement for both blades. The difference between blade measurements must not be more than specied distance.

Specication

Mower Deck Blade Outside Tips to Ground (Difference)

— Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8 in. (3 mm)

Method Two

NOTE: An optional mower deck leveling gauge (AM130907) is available

from your John Deere dealer. It allows for precision mower deck leveling by measuring mower deck level at the blade tips.

1. Make sure machine is on a at, level surface.

2. Park machine safely. (See Parking Safely in the SAFETY section.)

3. Inate tires to the correct pressure.

4. Move mower lift handle to preferred cutting height.

5. Measure mower deck level (side-to-side).

A convenient leveling gauge (A) (AM130907) is available from your dealer.

GXAL41983—UN—04MAR13

a. Position mower blades as follows and measure from each outside

blade tip (B) to the level surface.

GXAL41985—UN—04MAR13

c. Adjust mower deck level, if necessary, by turning rear nuts (E)

clockwise to raise the side of the mower deck, or counterclockwise to lower the mower deck.

6. Measure mower level (front-to-rear).

GXAL41986—UN—04MAR13

a. Turn right blade (F) so blade tip points straight forward.

b. Measure from blade tip to the surface. Take measurement for

both blades.

Operating

The front blade tip must be specied distance lower than rear blade tip.

Mower Deck Blade Outside Tips to Ground (Difference)

— Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3–6 mm (1/8 -1/4 in.)

107 cm (42 in.) mower deck shown

c. Adjust mower deck level, if necessary, by turning the nut (G)

counterclockwise to lower the front of deck or clockwise to raise front of deck.

Specication

GXAL41987—UN—04MAR13

GXAL41989—UN—04MAR13

A — 38 mm (1.5-In.) B — 51 mm (2-In.) C — 64 mm (2.5-In.) D — 76 mm (3-In.) and above

5. Install bolts and nuts to lock wheels in position. Tighten nuts to specications.

Mower Deck Wheel Nut — Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 lb-ft (34 N·m)

Specication

Testing Safety Systems

Adjusting Mower Deck Wheels

IMPORTANT: The mower deck can be damaged if mower wheels are

adjusted wrong:

• WWhheeeellss mmuusstt nnoott rriiddee oonn ggrroouunndd ssuuppppoorrttiinngg mmoowweerr wweeiigghhtt..

• CChheecckk wwhheeeell aaddjjuussttmmeenntt eeaacchh ttiimmee ccuuttttiinngg hheeiigghhtt iiss cchhaannggeedd..

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Inate tires to the correct pressure.

3. Lower mower deck to the desired mowing position.

NOTE: Bottom of wheels should be approximately 3-13 mm (1/8-1/2 in.)

from the ground.

GXAL41988—UN—04MAR13

4. Check each mower wheel position. Remove nut (A) and bolt (B), and move mower wheel to proper hole.

MXAL42804—UN—09APR13

CAUTION: Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

The safety systems installed on your machine should be checked before each machine use. Be sure you have read the machine operator manual and are completely familiar with the operation of the machine before performing these safety system checks.

Use the following checkout procedures to check for normal operation of machine.

If there is a malfunction during one of these procedures, do not operate machine. See your authorized dealer for service.

Perform these tests in a clear open area. Keep bystanders away.

Testing Park Brake Switch

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Sit on seat.

3. Unlock the park brake.

Operating

4. Try to start engine.

Result: Engine must not crank. If engine cranks, there is a problem with your safety interlock circuit.

Testing Park Brake

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lock the park brake.

3. Engage bypass valve control.

4. Try to push machine manually.

Result: Park brake must prevent machine from moving. If machine moves, parking brake needs to be adjusted.

Testing Attachment Engagement Switch or Lever

CAUTION: The mower blades should stop in approximately ve seconds when the mower or PTO is disengaged.

If you believe that your blades may not be stopping in that period of time, take your machine to your authorized dealer where they can safely check and service your machine.

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Sit on seat.

3. Lock the park brake.

4. Engage mower:

• On models with electric attachment engagement switch, pull switch up.

• On models with mechanical attachment engagement lever, push lever forward.

5. Try to start engine.

Result: Engine must not start. If engine starts, there is a problem with your safety interlock circuit.

Testing Seat Switch

1. Park machine safely. (See Parking Safely in the SAFETY Section.)

2. First test: a. Lock park brake.

b. Start engine.

c. Move throttle lever up to maximum engine speed.

d. Engage mower.

e. Raise up off seat. Do not get off machine.

Result: Engine and mower blades should stop. If engine and mower blades do not stop, there is a problem with your safety interlock circuit.

3. Second test: a. Disengage mower.

b. Start engine.

c. Unlock park brake.

d. Raise up off seat. Do not get off machine.

Result: Engine should stop. If engine does not stop, there is a problem with your safety interlock circuit.

4. Third test: a. Lock park brake.

b. Disengage mower.

c. Start engine.

d. Raise up off seat. Do not get off machine.

Result: Engine should continue to run. If engine stops, there is a problem with your safety interlock circuit.

Testing Reverse Implement Option (RIO)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Start engine.

3. Engage attachment engagement switch or lever to start attachment.

CAUTION: Rotating blades are dangerous. Children or bystanders may be injured by runover and rotating blades.

Before backing up, carefully check the area around the machine.

4. Look behind the vehicle to be sure there are no bystanders.

5. Begin reverse travel by depressing reverse pedal for hydrostatic transmission or moving the transmission shift lever to the rear slot (reverse) position for automatic transmission and depressing pedal.

Result: Attachment and engine should stop operation. If attachment or engine continues to operate as machine begins travel in reverse, do not continue to operate machine.

Using the Park Brake

CAUTION: Children or bystanders may attempt to move or operate an unattended machine.

Always lock the park brake and remove the key before leaving the machine unattended.

Locking park brake:

1. Push and hold brake pedal down.

2. Pull park brake lever up to lock park brake.

3. Release brake pedal. Pedal should stay down and park brake lever should stay locked.

Unlocking park brake:

1. Push and hold brake pedal down.

2. Push park brake lever down to unlock park brake.

3. Release brake pedal.

Using the Hourmeter and Service Reminder

GXAL41991—UN—04MAR13

• The hourmeter (A) shows the number of hours the engine has run. The

service reminder will indicate that a general lubrication (B) or

Operating

mower/engine (C) service interval has been reached. When service is required, the service “SVC” arrows (D) will periodically ash for two hours. Follow the service timetable on the maintenance schedule located under the seat. For specic service procedures, see the Service section of this manual.

• Hourmeter cannot be reset.

• The hourmeter display will always be on.

• The decimal point will ash while the hourmeter is accumulating time.

Using Key Switch and Headlights

GXAL41992—UN—04MAR13

A — STOP Position B — Headlights On Position C — Run Position D — Start Position

Engine Off

NOTE: Headlights will drain the battery rapidly if key switch is left in

headlights on position (B) with the engine off.

• To turn headlights on, turn key switch to headlights on position (B).

• To turn headlights off, turn key switch to STOP position (A).

Engine On

• To turn headlights on, start engine, then turn key switch from run position (C) to headlights on position (B).

• To turn headlights off, turn key switch from headlights on position (B) to run position (C).

GXAL41993—UN—04MAR13

6. Check starting conditions:

• If engine is cold: Move throttle/choke lever (A) up to the choke position.

• If engine is warm: Move throttle/choke lever (A) to the half-speed position.

IMPORTANT: Starter may be damaged if starter is operated for more

than 20 seconds at a time:

Wait two minutes before trying again if engine does not start.

7. Turn key to start position for no more than ve seconds.

8. Release key to run position when engine starts, and gradually move choke lever down to the off position.

• If engine does not start, wait 10 seconds.

• Turn key to start position again for no longer than 5 seconds.

• Repeat procedure if necessary.

IMPORTANT: Unnecessary engine idling may cause engine damage.

Excessive idling can cause engine overheating, carbon build-up, and poor performance.

9. Let engine run at high idle for a couple of minutes to warm-up before operating machine.

Idling the Engine

Starting the Engine

IMPORTANT: Hydrostatic transmission might be damaged if the

bypass rod is not pushed back to operating position before attempting to start the engine. Do not start or operate the machine with the bypass rod in the pulled-out position.

1. Make sure bypass rod is pushed in.

CAUTION: Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

2. Sit in seat.

3. Make sure mower is disengaged. (See Engaging and Disengaging Mower in the OPERATING section.)

4. Lock the park brake.

5. For automatic models, put transmission shifter into center slot.

IMPORTANT: Unnecessary engine idling may cause engine or

transmission damage. Excessive idling can cause engine overheating, carbon build-up, and poor performance.

Idling or low throttle operation while mowing, climbing hills, or towing could result in transmission overheating. always operate at full throttle once the engine is warm.

Do not operate machine with hood open. Hood must be closed for proper engine cooling and exhaust.

• Engine is air cooled and needs a large volume of air to keep cool. Keep air intake screen on top of engine clean.

• Keep hood closed when engine is idling.

Stopping the Engine

IMPORTANT: Do not stop the engine by moving choke control to the

choke position. Backre, re or engine damage can occur. Follow recommended procedure for stopping engine.

1. Let engine run at high throttle without load for a few seconds.

Operating

2. Turn key to STOP position. Engine will stop and headlights will turn off.

3. Remove key.

4. Lock the park brake.

Using Travel Controls on Automatic Transmission

CAUTION: Children or bystanders may be injured by runover and rotating blades. Before traveling forward or rearward:

• CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..

• DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..

IMPORTANT: Stop machine movement before shifting between

reverse and forward to prevent transmission damage.

Travel Forward

6. Slowly apply foot to travel pedal.

Emergency Stopping

Push brake pedal all the way down to stop machine.

Using Travel Controls on Hydrostatic Transmission

CAUTION: Children or bystanders may be injured by runover and rotating blades. Before traveling forward or rearward:

• CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..

• DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..

Travel Forward

PY19050—UN—07AUG13

1. Completely remove foot from travel pedal (A).

2. Push brake pedal (B) all the way down to stop machine.

3. Move transmission shift lever into forward slot (C).

4. Release brake pedal.

5. Slowly apply foot to travel pedal.

Travel in Reverse

1. Completely remove foot from travel pedal (A).

NOTE: Any operating attachment and the engine will stop as the

transmission shift lever is moved to rear slot (D) (reverse) with attachment engaged.

2. It may be required to push brake pedal to stop machine when on a slope.

3. Move transmission shift lever to rear slot (D).

4. Look behind the machine to be sure there are no bystanders nearby.

5. Release brake pedal.

GXAL41995—UN—04MAR13

• Push down the forward travel pedal (A).

Travel in Reverse

NOTE: Any operating attachment and the engine will stop as the reverse

motion pedal is pressed with attachment engaged.

1. Disengage attachment:

• On models with mechanical attachment engagement lever (B), pull lever back to the off position.

• On models with electric attachment engagement switch, push switch in location (C) (not shown above) down to the off position.

2. Look behind the machine to be sure there are no bystanders nearby.

3. Touch the reverse travel pedal (D) with front of foot and slide foot over pedal from front to rear.

Emergency Stopping

• Push brake pedal all the way down to stop machine.

Using The Reverse Implement Option (RIO)

CAUTION: Children or bystanders may be injured by runover and rotating blades. Before traveling forward or rearward:

• CCaarreeffuullllyy cchheecckk tthhee aarreeaa aarroouunndd tthhee mmaacchhiinnee..

• DDiisseennggaaggee tthhee mmoowweerr bbeeffoorree bbaacckkiinngg uupp..

NOTE: Backing up while the mower is engaged is strongly discouraged.

The Reverse Implement Option should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

Operating

1. Stop forward travel.

2. Look behind the machine to be sure there are no bystanders.

GXAL41996—UN—04MAR13

3. Push and hold in the reverse implement switch (A) while depressing reverse pedal slightly for hydrostatic transmission or moving the transmission shift lever to the rear slot (reverse) for automatic transmission.

NOTE: If the engine and mower stop while repositioning the machine,

return the attachment engagement lever/switch to the off position. Start engine and engage mower. Begin again with Step 2.

NOTE: Throttle lever should be at full throttle position before engaging

mower to avoid stalling engine.

3. Push throttle lever up to the full throttle position.

4. Engage mower.

• On models with electric attachment engagement switch: Pull switch up.

• On models with mechanical attachment engagement lever: Push lever forward.

NOTE: The mower and engine will stop as the reverse foot pedal is

pressed for hydrostatic transmission or when the transmission shift lever is moved to the rear slot (reverse) position for automatic transmission with mower engaged.

5. Disengage mower blades before moving in reverse or stopping engine.

• Machines with mechanical attachment engagement lever: Pull

lever back.

• Machines with electric attachment engagement switch: Push

switch down.

Using Wash Port to Clean Mower Deck

NOTE: Follow this procedure after each use to prevent buildup and

remove corrosive lawn chemicals.

1. Park machine safely. (See Parking Safely in the Safety section).

4. Release the reverse implement switch and reposition the machine as the machine begins to move rearward.

5. Resume forward travel. The mower should continue operating.

6. Repeat procedure to position the machine again.

Using Cruise Control (D125, D130, D140, D160, D170)

CAUTION: Do not use cruise control when going down hills. Machine speed will increase. Operate machine in a large, open area to learn how the cruise control works.

Use cruise control when you want to maintain travel speed without having to hold the forward travel pedal down. Cruise control operates only for forward travel.

Engage Cruise Control

1. Push forward pedal down until you reach desired travel speed.

2. Pull cruise control lever up and release forward pedal to lock the cruise control.

Disengage Cruise Control

• Depress brake pedal, tap on forward pedal or push cruise control lever

down to the off position.

Engaging and Disengaging Mower

NOTE: Put attachment lift lever in transport position to transport machine

or when parking machine.

GXAL41997—UN—04MAR13

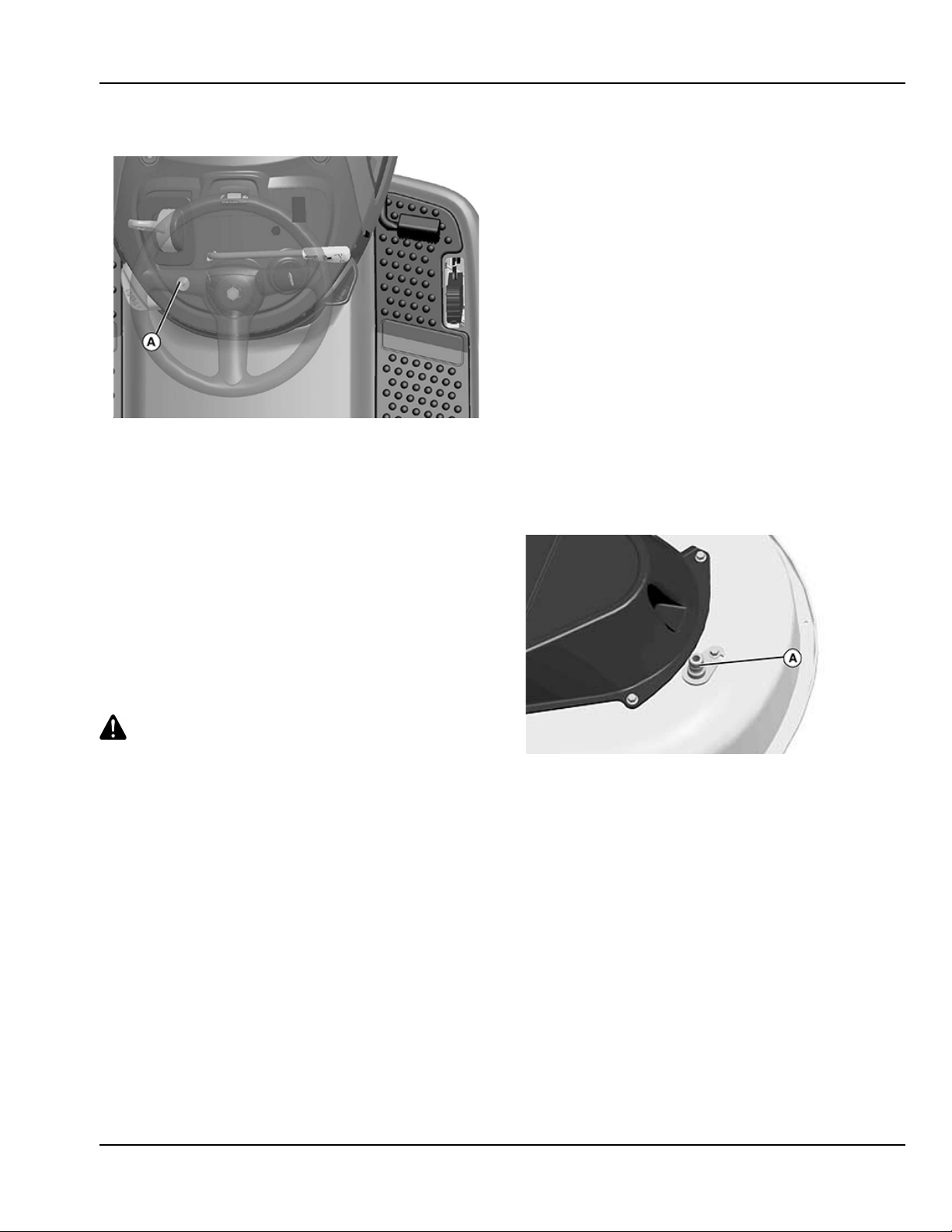

2. Attach quick-coupler to garden hose.

3. Attach garden hose with quick-coupler to wash port (A) on the mower deck.

4. Turn on water.

5. Start engine.

6. Run at full throttle.

7. Engage mower blades.

8. Flush water under deck for approximately one minute.

9. Disengage mower blades.

10. Stop engine.

11. Turn off water and remove garden hose and quick-coupler from wash port.

12. Remove quick-coupler from garden hose and store for future use.

1. Start engine and run at half speed for a couple of minutes to warm up.

2. Lower mower deck to desired cutting height position.

Operating

Unplugging Mower, Bagger, or Material Collection System

CAUTION: Do not attempt to unplug attachment with machine running.

• RRoottaattiinngg bbllaaddeess aarree ddaannggeerroouuss.. SShhuutt ooffff tthhee eennggiinnee aanndd rreemmoovvee tthhee kkeeyy bbeeffoorree ggeettttiinngg ooffff tthhee sseeaatt ttoo iinnssppeecctt tthhee mmaacchhiinnee aanndd aattttaacchhmmeenntt..

• TThhrroowwnn oobbjjeeccttss ccaann ccaauussee sseerriioouuss iinnjjuurryy.. MMaakkee ssuurree aallll mmaacchhiinnee ppaarrttss aarree ssttooppppeedd bbeeffoorree rraaiissiinngg hhooppppeerr ttoopp oorr rreemmoovviinngg cchhuutteess..

Checking For Plugging While Driving

If grass builds up in front of mower discharge chute, check for plugged chute or problems with blower assembly (if equipped).

If there is a trail of clippings behind mower or clippings blow to the side, check for plugged chute, full collector bags, or problems with blower assembly.

Removing Debris From Inspection Points:

CAUTION: Do not use hands or feet to clear plugged mower deck or blower assembly. Stored energy can cause blades to rotate.

1. Park machine safely. Wait for all moving parts to stop before getting off to inspect machine.

2. Open hopper cover. Check chute outlet.

3. Remove chute from mower deck or blower assembly. Check chute inlet.

4. Check under mower deck for debris.

GXAL41998—UN—04MAR13

3. On automatic and hydrostatic Models: Pull out on bypass rod (A).

4. Push machine to desired location.

IMPORTANT: Hydrostatic transmission might be damaged if the

bypass rod is not pushed back to operating position before attempting to start the engine. Do not start or operate the machine with the bypass rod in the pulled-out position.

5. Push bypass rod back in.

6. Lock the park brake.

Transporting Machine on Trailer

NOTE: Trailer capacity must exceed combined machine weight and

attachment weight. (See Specications section in operator’s manual.)

Moving Machine by Hand

CAUTION: When the bypass valve is open, the machine will have unrestricted motion.

• DDoo nnoott ooppeenn tthhee bbyyppaassss vvaallvvee wwhheenn tthhee mmaacchhiinnee iiss ssttooppppeedd oonn aann iinncclliinnee ttoo pprreevveenntt iitt ffrroomm ggooiinngg ddoowwnnhhiillll oouutt ooff ccoonnttrrooll..

IMPORTANT: Transmission damage may occur if the machine is

towed or moved incorrectly:

• MMoovvee mmaacchhiinnee bbyy hhaanndd oonnllyy..

• DDoo nnoott uussee aannootthheerr vveehhiiccllee ttoo mmoovvee mmaacchhiinnee..

• DDoo nnoott ttooww mmaacchhiinnee..

1. Unlock the park brake.

2. Put automatic transmission shifter into center position.

Be sure the trailer has all necessary lights and signs required by law.

CAUTION: Use extra care when loading or unloading the machine onto a trailer or truck.

• PPaarrkk ttrraaiilleerr oonn aa lleevveell ssuurrffaaccee..

• UUssee ooff aa ttrraaiilleerr wwiitthh ssiiddeess iiss rreeccoommmmeennddeedd..

• KKeeeepp wwhheeeellss aawwaayy ffrroomm ddrroopp--ooffffss aanndd eeddggeess..

• BBaacckk sslloowwllyy aanndd iinn aa ssttrraaiigghhtt lliinnee..

• CClloossee ffuueell sshhuutt--ooffff vvaallvvee,, iiff yyoouurr mmaacchhiinnee iiss eeqquuiippppeedd..

• DDoo nnoott sseeccuurree mmaacchhiinnee uussiinngg ooppttiioonnaall bbuummppeerr aass tthhiiss ccaann ddiissllooddggee dduurriinngg ttrraannssppoorrtt..

IMPORTANT: Transporting a machine on a trailer or on a truck bed at

high speeds can result in hood or engine cover raising and possibly coming off machine if not secured.

• PPoossiittiioonn mmaacchhiinnee oonn ttrraaiilleerr ssoo hhoooodd oorr eennggiinnee ccoovveerr ooppeennss ffrroomm rreeaarr ooff ttrraaiilleerr ttoo pprreevveenntt wwiinndd ffrroomm bblloowwiinngg hhoooodd oorr ccoovveerr ooppeenn..

• SSeeccuurree hhoooodd oorr eennggiinnee ccoovveerr wwiitthh eexxiissttiinngg mmaacchhiinnee lloocckkss oorr llaattcchheess..

• SSeeccuurree hhoooodd oorr eennggiinnee ccoovveerr wwiitthh ttiiee ddoowwnn ssttrraappss iiff nnoo lloocckkss oorr llaattcchheess eexxiisstt..

1. Park trailer on a level surface.

2. Raise mower deck, if installed, before driving machine onto trailer.

3. Drive machine onto heavy-duty trailer. Position machine on trailer so hood or engine cover will not raise in wind while being transported.

4. Lower mower deck completely.

5. Lock park brake.

6. Turn off machine and remove key.

Operating

GXAL41999—UN—04MAR13

7. Secure front of machine at both sides of the axle at points (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

IMPORTANT: Do not secure machine using transmission housing.

D105 shown

9. For automatic transmission machines, secure rear of machine at both sides of the axle at points (C) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

10. Secure hood to prevent from lifting while driving.

GXAL42001—UN—04MAR13

GXAL42000—UN—04MAR13

8. For hydrostatic transmissions, secure rear of machine at both sides of the axle at points (B) to trailer with heavy-duty straps, chains, or cables. Straps must be directed down and outward from machine.

Using Weights

CAUTION: The machine may become unstable when operating on slopes and/or with some attachments.

Use weights to improve stability when operating on slopes or using attachments.

Remove weights when not required.

IMPORTANT: Never use liquid in tires or wheel weights as ballast.

Transmission damage can occur.

When rear ballast is needed, use only the approved rear weight bracket and attaching weights.

NOTE: See your authorized dealer for recommended weights.

• Install front weights for added stability and steering control when you use equipment such as the rear-mounted grass bagger.

• Install rear weights when using the snow blade or snowblower.

• Remove weights when not required.

Using Tire Chains

IMPORTANT: Do not use chains with mower deck or tiller.

Tire chains are recommended for use with most front attachments. Remove tire chains before installing mower deck.

See your attachment Operator’s Manual for tire chain recommendation. See your authorized dealer for the chains.

Service Intervals

Using Accessories

PY19031—UN—07AUG13

Using the Power Port (If Equipped)

CAUTION: Safe operation requires your full attention. Do not wear radio or music headphones while operating machine.

An electric power port (A) can be used for accessories. See your authorized dealer.

Using CargO Mount System™

The front and rear CargO Mount System™ brackets (B) can be used for easy attachment of selected optional equipment.

Use John Deere approved optional equipment only. See your Authorized Service Center for approved optional equipment.

• Mow grass often. Short grass clippings will decay quickly.

• Mow with engine at full throttle.

• Adjust travel speed to match mowing conditions:

- Travel at slow speed when you mow thick, tall grass, make sharp turns or trim around objects.

- Travel at moderate speed when you mow thin grass.

• Use a different mowing pattern each time you mow. Overlap mowing paths by specied distance.

Specication

Overlap Mowing Paths — Distance . . . . . . . . . . . . . . . . . . . . . . . . . 50 - 100 mm (2 - 4 in.)

• Drive over ridges and through shallow ditches straight-on, not at an angle.

GXAL42003—UN—04MAR13

• Mow around the outside twice, then mow inside in straight passes. Best cut is achieved when mowing in a straight line.

• When mowing or mulching near pavement, overlap the pavement by 50 mm (2 in.) to allow clippings to dispense over grass.

• A thick layer of mulched leaves can prevent sunlight from getting to grass and smother it. Taller grass heights allow mulched leaves to dispense easier in lawn. Mulch leaves several times if needed.

• Use a thatcher in late spring or summer to pull up dead grass and aerate ground.

• For Mulching Mower: Shorter cut heights will provide better cut quality, but may leave noticeable clippings. Higher cut heights will reduce clippings, but cut quality may decline.

Choosing Mower Blades

Three types of mower blades are available for use with D series mowers.

• 3-N-1 blades. These are general purpose blades that are best suited for side-discharge operation, but can be used with a bagger attachment, or with a mulch cover installed. They are not designed for optimal performance when bagging or mulching.

• Bagger blades. These blades are designed for optimal performance when used with bagger attachments.

• Mulching blades. These blades are designed for optimal performance when used with a mulch cover installed.

Mowing Tips

The following recommendations will produce the best lawn cut quality and appearance:

• Keep mower blades sharp. Dull blades will tear grass; tips of grass will then turn brown.

• Cutting grass too short may kill grass and let weeds grow easily. The suggested nished cut height should be within specied height range.

Specication

Finished Cut Height Range — Height . . . . . . . . . . . . . . . . . . . 1.75 - 2.75 in. (44 - 70 mm)

• Adjust cutting height to remove only 1/3 of the grass at a time.

• Do not mow wet grass.

Service Intervals

Servicing Your Machine

IMPORTANT: Operating in extreme conditions may require more

frequent service intervals:

• EEnnggiinnee ccoommppoonneennttss mmaayy bbeeccoommee ddiirrttyy oorr pplluuggggeedd wwhheenn ooppeerraattiinngg iinn eexxttrreemmee hheeaatt,, dduusstt oorr ootthheerr sseevveerree ccoonnddiittiioonnss..

• EEnnggiinnee ooiill ccaann ddeeggrraaddee iiff mmaacchhiinnee iiss ooppeerraatteedd ccoonnssttaannttllyy aatt ssllooww oorr llooww eennggiinnee ssppeeeeddss oorr ffoorr ffrreeqquueenntt sshhoorrtt ppeerriiooddss ooff ttiimmee..

Please use the following timetables to perform routine maintenance on your machine.

Park the vehicle safely. See Park Safely in the SAFETY Section.

Service Intervals

After First 8 Hours

• Change engine oil.

Service Lubrication

• On 107 cm (42 in.) deck: Check and adjust mower deck belt tension.

• On 107 cm (42 in.) deck: Check and adjust mower deck spindle brakes.

• Lubricate mower spindles.

• Lubricate mower pivot points.

• Lubricate front axle pivot.

• Lubricate front axle wheel spindles and bushings.

Every 25 Hours

• Lubricate mower spindles.

• Lubricate mower pivot points.

• Lubricate front axle pivot.

• Lubricate front axle wheel spindles and bushings.

Every 50 Hours

• Change engine oil and replace lter. (Service more frequently under dusty conditions.)

• Clean/replace air lter precleaner. (Service more frequently under dusty conditions.)

• Replace air lter element. (Service more frequently under dusty conditions.)

• Clean/replace emission lter (if equipped).

• Clean engine cooling ns.

• Replace fuel lter.

• Replace spark plug(s).

• Clean battery terminals.

• Sharpen/replace mower blades.

• Check/replace mower drive belt.

• Clean mower deck.

• Check/level mower deck.

• On 107 cm (42 in.) deck: Check/adjust mower deck belt tension.

• On 107 cm (42 in.) deck: Check/adjust mower deck spindle brakes.

Every 200 Hours

• Check/adjust valve clearance. See your John Deere dealer for this service.

Lubricating Front Axle

GXAL42004—UN—04MAR13

Wheel Spindles and Bushings

NOTE: The D170 model does not require lubrication at the hub grease

tting (B).

• Lubricate front wheel spindle grease tting (A) and wheel hub grease tting (B), one on each side, with one or two shots of general allpurpose grease.

Front Axle Pivot

• Lubricate front axle center pivot grease tting (C) with one or two shots of general all-purpose grease.

Lubricating Pivot Points

107 cm (42 in.) Mower Deck:

Service Lubrication

Grease

IMPORTANT: Use recommended John Deere greases to avoid

component failure and premature wear.

The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).

If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

The following greases are preferred:

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general allpurpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

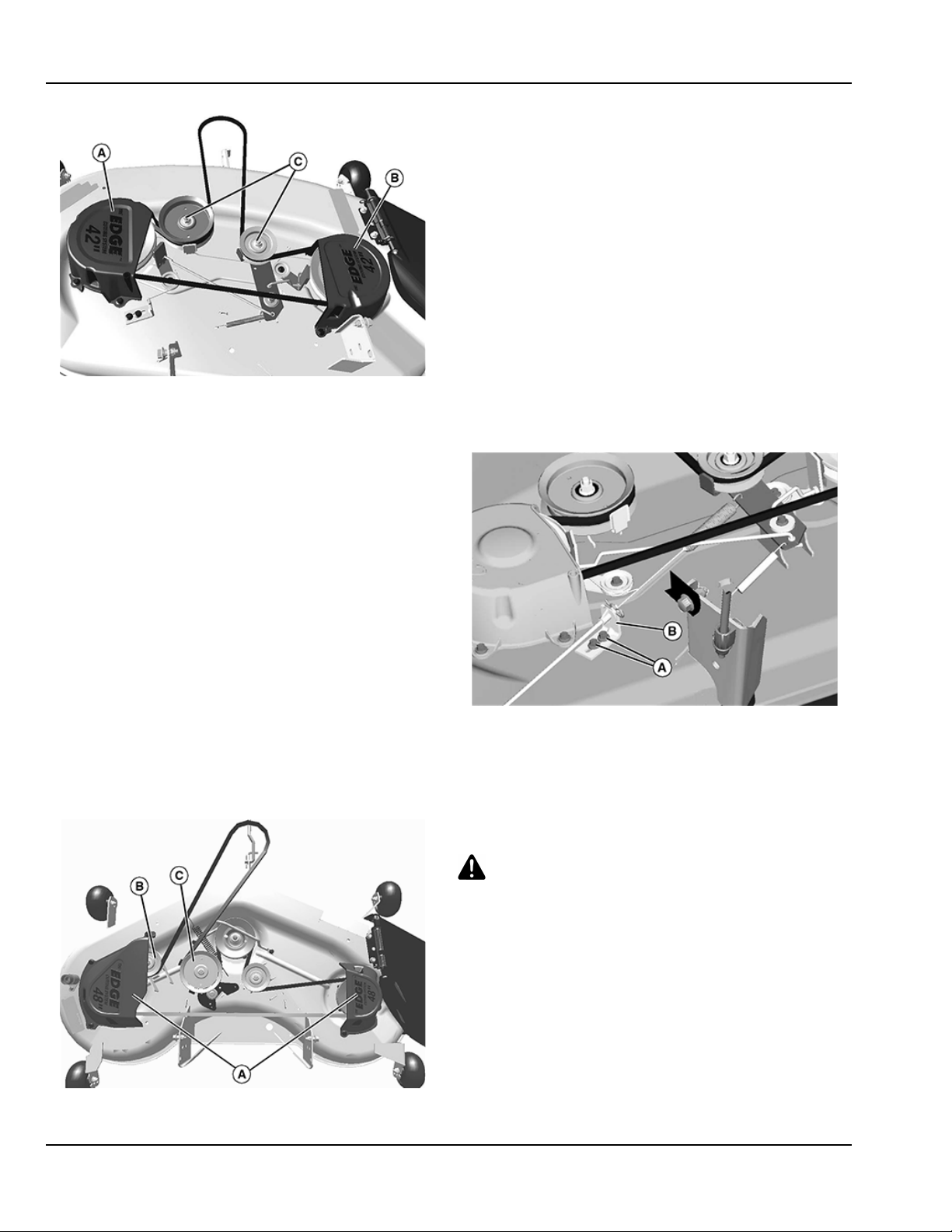

GXAL42005—UN—04MAR13

A — Blade Brake Pivots B — Deck Idler Pivot C — Spindle Grease Fitting (2)

• Lubricate the blade brake pivots (A) and deck idler pivot (B) with a general all-purpose spray lubricant.

• Lubricate the two spindle grease ttings (C) with one or two shots of general all-purpose grease.

Service Engine

122 cm (48 in.) and 137 cm (54 in.) Mower Decks:

122 cm (48 in.) mower deck used for illustration

A — Deck Idler Pivot B — Spindle Grease Fitting (3)

• Lubricate the deck idler pivot (A) with a general all-purpose spray lubricant.

• Lubricate the three spindle grease ttings (B) with one or two shots of general all-purpose grease.

GXAL42006—UN—04MAR13

MXAL42826—UN—09APR13

The following John Deere oils are preferred:

• TURF-GARD™

• PLUS- 4™

• PLUS-50™ II

Other oils may be used if above John Deere oils are not available, provided they meet the following specication:

• API Service Classication SJ or higher

Checking Engine Oil Level

Service Engine

Engine Warranty Maintenance Statement

Maintenance, repair, or replacement of the emission control devices and systems on this engine, which are being done at the customer’s expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized John Deere dealer.

Emission Control System Certication Label

NOTE: Tampering with emission controls and components by

unauthorized personnel may result in severe nes or penalties. Emission controls and components can only be adjusted by EPA and/or CARB authorized service centers. Contact your John Deere Retailer concerning emission controls and component questions.

The presence of an emissions label signies that the engine has been certied with the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB).

The emissions warranty applies only to those engines marketed by John Deere that have been certied by the EPA and/or CARB; and used in the United States and Canada in off-road mobile equipment.

Avoid Fumes

CAUTION: Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

IMPORTANT: Failure to check the oil level regularly could lead to

serious engine problems if oil level is out of the operating range:

• CChheecckk ooiill lleevveell bbeeffoorree ooppeerraattiinngg..

• CChheecckk ooiill lleevveell wwhheenn tthhee eennggiinnee iiss ccoolldd aanndd nnoott rruunnnniinngg..

• KKeeeepp ooiill lleevveell bbeettwweeeenn tthhee ddiippssttiicckk mmaarrkkss..

• SShhuutt ooffff eennggiinnee bbeeffoorree aaddddiinngg ooiill..

NOTE: Check oil twice a day if you run engine over 4 hours in a day.

Make sure engine is cold when checking engine oil level.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

3. Clean area around dipstick to prevent debris from falling into crankcase.

Engine Oil

Use oil viscosity based on the expected air temperature range during the period between oil changes.

Service Engine

Twin cylinder engine shown

4. Remove dipstick (A). Wipe with clean cloth.

5. Install and tighten dipstick.

6. Remove dipstick.

7. Check oil level on dipstick. Oil must be between ADD and FULL marks.

8. If oil level is low, add oil to bring oil level no higher than FULL mark on dipstick. Do not overll.

9. Install and tighten dipstick. Lower hood.

GXAL42008—UN—04MAR13

Changing Engine Oil and Filter

IMPORTANT: Change the oil more often if the vehicle is used in

extreme conditions:

• EExxttrreemmeellyy dduussttyy ccoonnddiittiioonnss..

• FFrreeqquueenntt ssllooww oorr llooww--ssppeeeedd ooppeerraattiioonn..

• FFrreeqquueenntt sshhoorrtt ttrriippss..

1. Run engine to warm oil.

2. Park machine safely. (See Parking Safely in the SAFETY section.)

3. Lift hood.

4. Remove closeout panels.

Twin cylinder engine shown

5. Put drain pan under drain valve (A).

6. Rotate and remove drain cap (B) and drain oil into oil drain pan. Allow oil to drain completely.

7. Remove dipstick (C).

Twin cylinder engine shown

8. Replace oil lter (D), if equipped. a. Wipe dirt from around oil lter.

b. Place a drain pan or funnel under lter tray.

c. Remove old lter and lter gasket and dispose of properly. Wipe

up any spilled oil.

d. Put a light coat of fresh, clean oil on the new lter gasket.

e. Install replacement oil lter by turning oil lter to the right

(clockwise) until the rubber gasket contacts lter base. Tighten lter an additional one-half turn.

9. Install drain cap.

IMPORTANT: Do not overll. Overlling can cause smoking, hard

starting, fouling of spark plug, and oil saturation of air lter.

GXAL42009—UN—04MAR13

GXAL42010—UN—04MAR13

10. Add oil no higher than FULL mark on dipstick. Use approximately the amount of oil listed in the Specications section. Do not overll.

11. Install dipstick.

Service Engine

12. Start and run engine at idle to check for leaks. Stop engine. Fix any leaks before operating.

13. Check oil level. Add oil if necessary.

14. Install closeout panels and lower hood.

Cleaning Air Intake Screen and Engine Fins

CAUTION: Compressed air can cause debris to y a long distance.

• CClleeaarr wwoorrkk aarreeaa ooff bbyyssttaannddeerrss..

• WWeeaarr eeyyee pprrootteeccttiioonn wwhheenn uussiinngg ccoommpprreesssseedd aaiirr ffoorr cclleeaanniinngg ppuurrppoosseess..

• RReedduuccee ccoommpprreesssseedd aaiirr pprreessssuurree ttoo 221100 kkPPaa ((3300 ppssii))..

IMPORTANT: An obstructed air intake screen can cause engine

damage due to overheating. Keep air intake screen and other external surfaces of the engine, including cooling ns, clean at all times to allow adequate air intake.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

GXAL42016—UN—04MAR13

5. Lift latch (A) to unlock cover (B). Lift cover forward and remove.

IMPORTANT: Dirt and debris can enter the engine through a

damaged lter element:

• DDoo nnoott wwaasshh ppaappeerr eelleemmeenntt..

• DDoo nnoott aatttteemmpptt ttoo cclleeaann ppaappeerr eelleemmeenntt bbyy ttaappppiinngg aaggaaiinnsstt aannootthheerr oobbjjeecctt..

• DDoo nnoott uussee pprreessssuurriizzeedd aaiirr ttoo cclleeaann eelleemmeenntt..

• RReeppllaaccee eelleemmeenntt oonnllyy iiff iitt iiss vveerryy ddiirrttyy,, ddaammaaggeedd oorr tthhee sseeaall iiss ccrraacckkeedd..

Twin cylinder engine shown

3. Clean air intake screen (A), cooling ns and external surfaces with rag, brush, vacuum or compressed air.

4. Lower hood.

GXAL42011—UN—04MAR13

Checking and Cleaning Air Cleaner Elements (D105 and D110)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. Lift hood.

4. Clean dirt and debris from the air cleaner cover.

GXAL42013—UN—04MAR13

6. Inspect the paper lter element (C) without removing it. If the paper lter element is damaged or dirty, replace with new lter:

• Clean air cleaner base very carefully, preventing any dirt from

falling into carburetor.

• Carefully pull the paper element from the air cleaner elbow (D).

• Install new paper lter element back onto air cleaner elbow.

7. Install air cleaner cover and push latch down to lock.

8. Lower hood.

Checking and Cleaning Air Cleaner Elements (D125, D130 and D140)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. Lift hood.

4. Clean dirt and debris from the air cleaner cover.

Service Engine

3. Lift hood.

4. Clean dirt and debris from the air cleaner cover.

PY19032—UN—07AUG13

5. Loosen knobs (A) and remove cover (B).

IMPORTANT: To prevent engine damage, do not allow any foreign

objects to fall into the carburetor air intake.

PY19029—UN—07AUG13

6. Inspect the paper lter element (C) without removing it. If the paper lter element is damaged or dirty, replace with new lter:

• Clean air cleaner basevery carefully, preventing any dirt from

falling into carburetor.

• Carefully pull the paper element from the air cleaner seat (D).

• Install new paper lter element back onto air cleaner seat.

7. Install air cleaner cover and tighten knobs. Do not overtighten.

8. Lower hood.

Checking and Cleaning Air Cleaner Elements (D160 and D170)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

GXAL42018—UN—04MAR13

5. Loosen two knobs (A) and remove cover (B).

IMPORTANT: Dirt and debris can enter the engine through a

damaged lter element:

• DDoo nnoott wwaasshh ppaappeerr eelleemmeenntt..

• DDoo nnoott aatttteemmpptt ttoo cclleeaann ppaappeerr eelleemmeenntt bbyy ttaappppiinngg aaggaaiinnsstt aannootthheerr oobbjjeecctt..

• DDoo nnoott uussee pprreessssuurriizzeedd aaiirr ttoo cclleeaann eelleemmeenntt..

• RReeppllaaccee eelleemmeenntt oonnllyy iiff iitt iiss vveerryy ddiirrttyy,, ddaammaaggeedd oorr tthhee sseeaall iiss ccrraacckkeedd..

GXAL42019—UN—04MAR13

6. Pull lter assembly from air cleaner base (C). Inspect the foam precleaner (D) without removing it. If the foam precleaner is dirty: a. Remove it from the paper lter carefully.

b. Wash precleaner in a solution of warm water and liquid detergent.

Do not use oil.

c. Rinse precleaner thoroughly. Squeeze out excess water in a dry

cloth until precleaner is completely dry.

7. Inspect the paper lter element (E). If the paper lter element is damaged or dirty, replace with new lter.

8. Clean air cleaner base very carefully, preventing any dirt from falling into carburetor.

9. Install foam precleaner on paper lter element.

Service Engine

10. Install new lter assembly back onto air cleaner base.

11. Install air cleaner cover and tighten two knobs.

12. Lower hood.

Checking and Cleaning Emission Filter (If Equipped)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

GXAL42020—UN—04MAR13

2. Inspect lter (A) for dirt and damage, wash or replace if required. a. Remove cover (B) and remove emission lter (A) from under rear

of fender deck.

b. Wash foam lter in a solution of warm water and liquid detergent.

Do not use oil.

c. Rinse lter thoroughly. Squeeze out excess water in a dry cloth

until lter is completely dry. If foam lter cannot be cleaned properly or is damaged, replace with a new lter.

d. Install foam air lter and secure with cover.

Checking Spark Plug

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. Lift hood.

5. Remove spark plug(s).

6. Clean spark plug carefully with a wire brush.

7. Inspect spark plug for:

• Cracked porcelain.

• Pitted or damaged electrodes.

• Other wear or damage.

8. Replace spark plug as necessary.

GXAL42022—UN—04MAR13

9. Check plug gap (B) with a wire feeler gauge. To change gap, move the outer electrode. Gap must meet specications.

Specication

Spark Plug — Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.030 in. (0.76 mm)

10. Install and tighten spark plugs to specications.

Specication

Spark Plug — Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 lb-ft (20 N·m)

11. Connect spark plug wire(s) and lower hood.

Adjusting Carburetor

NOTE: Carburetor is calibrated by the engine manufacturer and is not

adjustable.

If engine is operated at altitudes above 1006 m (3,300 ft), some carburetors may require a special high altitude main jet. See your authorized dealer.

If engine is hard to start or runs rough, check the TROUBLESHOOTING section of this manual.

Possible engine surging will occur at high throttle with transmission in “N” neutral and mower engagement lever disengaged. This is a normal condition due to the emission control system.

After performing the checks in the troubleshooting section and your engine is still not performing correctly, contact your authorized dealer.

Twin cylinder engine shown

4. Disconnect spark plug wire(s) (A), one on each side on V-twin engines.

GXAL42021—UN—04MAR13

Replacing Fuel Filter

NOTE: Change lter when fuel is low.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. Lift hood.

4. Handle fuel safely. (See Handling Fuel Safely in the SAFETY section.)

5. Put a drain pan under fuel lter.

Service Transmission

GXAL42023—UN—04MAR13

6. Slide hose clamps (A) away from fuel lter (B) using a pliers.

7. Disconnect hoses from lter, and raise fuel lines vertically to avoid fuel drainage.

IMPORTANT: Incorrect installation of fuel lter may cause engine

damage. Install the lter with the arrow pointing in the direction of fuel ow (towards the engine) for proper operation.

8. Connect hoses to new lter making sure the lter arrow is pointed in the direction of the fuel ow.

9. Install clamps and check for leaks.

10. Lower hood.

CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

GXAL42024—UN—04MAR13

3. Put a 15 mm closed wrench or a socket on the idler sheave nut (A) and rotate clockwise to move idler sheave toward front of tractor and hold to release belt tension.

4. Remove belt (B) from drive sheave (C), and release tension on sheave nut (A).

5. To install the belt on the drive sheave, rotate idler sheave nut clockwise to move idler sheave toward front of tractor, and install belt on drive sheave.

6. Release idler sheave nut to tighten belt.

Service Transmission

Checking Transmission

The transmission is a sealed component. No maintenance is required on this transmission. If you suspect any transmission problems, please contact your authorized dealer.

Service Mower

Removing or Installing Mower Drive Belt at Engine Drive Sheave 122 cm (48 in.) and 137 cm (54 in.) Mower Deck)

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Put lift lever in lowest position.

Removing Mower Deck

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Put wood blocks under each side of mower deck.

3. Put attachment lift lever in lowest position, bringing mower deck down onto blocks.

107 cm (42 in.) mower deck only

4. On machines with 107 cm (42 in.), disconnect mower engagement drive cable (A) on left side of mower deck. a. Remove spring locking pin (B), pull and hold mower engagement

drive cable out, lift up and remove from bracket (C).

b. Remove cable spring (D) from idler sheave bracket (E).

GXAL42025—UN—04MAR13

Service Mower

CAUTION: Mower lift arms can pinch ngers. Lift arms are spring loaded and can snap back when deck is removed.

Lock lift lever before pulling pin to remove mower deck.

GXAL42026—UN—04MAR13

5. Remove spring locking pins and washers (F) and disconnect rear draft arm (G) and adjustable lift links (H) on each side.

9. When operating the machine without the mower deck:

• Remove front draft rod from machine and attach it to the mower deck.

107 cm (42. in.) mower deck shown

• On 107 cm (42 in.) mower deck only: Push mower engagement drive cable into clip (M) and hook end of cable spring with hardware (N) into peg on left side of machine frame.

GXAL42028—UN—05MAR13

Installing Mower Deck

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Put attachment lift lever in the transport position.

3. Slide mower under machine.

4. Put wood blocks under each side of mower deck.

5. Put attachment lift lever in lowest position.

107 cm (42 in.) mower deck shown

6. Remove spring locking pin (I) and washer and front draft rod (J) from mower deck bracket (K).

7. Remove mower drive belt from drive sheave (L).

8. Remove wood blocks from both sides and slide mower deck out from under the machine.

GXAL42027—UN—04MAR13

GXAL42029—UN—04MAR13

6. Fasten rear draft arm (A) and adjustable lift link (B), on each side, with washers and spring locking pins (C).

Service Mower

IMPORTANT: To prevent clutch damage, make sure front draft rod is

installed correctly. Secure rod with washer and spring locking pin on the left side of mower deck bracket.

107 cm (42 in.) mower deck shown

7. Install front draft rod (D) into mower deck bracket (E):

• For D105 models use the hole marked AUTO (shown).

• For all other models use the hole marked HYDRO (F).

8. Secure front draft rod with washer and spring locking pin (G).

CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

GXAL42030—UN—04MAR13

GXAL42032—UN—04MAR13

• On 107 cm (42 in.) mower deck: Make sure belt is routed through both belt guides (J).

10. Remove wood blocks from both sides of mower deck.

11. On machines with 107 cm (42 in.) mower deck: Attach mower engagement drive cable.

122 cm (48 in.) mower deck used for photo purposes.

9. Put mower drive belt on engine drive sheave (H).

• On 122 cm (48 in.) and 137 cm (54 in.) mower decks: Put a 15 mm closed wrench or a socket on the idler sheave nut (I) and rotate clockwise, moving idler sheave and tensioning arm toward front of tractor. Hold while installing belt on drive sheave.

GXAL42031—UN—04MAR13

107 cm (42 in.) mower deck only

a. Route cable under mower belt and brake rod and attach cable

spring (K) to idler sheave bracket (L).

b. Pull out on cable (M), align black end of cable with slot in bracket

(N) and release cable into slot. Secure with spring locking pin (O).

12. Level mower deck.

GXAL42033—UN—04MAR13

Replacing Mower Drive Belt (107 cm (42 in.) Mower Deck)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Remove mower deck.

Service Mower

4. Remove drive belt. a. Loosen left side sheaves (B) and (C).

b. Remove mower belt.

5. Inspect belt for wear or damage; replace as necessary.

6. Clean top surface of mower deck and sheaves.

7. Install belt on mower deck as shown. Make sure belt is in the groove of each sheave.

8. Tighten sheaves to specications.

Mower Deck Drive Sheave Nuts (122 cm (48 in.) and 137 cm (54 in.) Mower Deck)

— Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 N·m (35 lb-ft)

9. Install belt shields.

10. Install mower deck.

Specication

GXAL42034—UN—04MAR13

3. Remove drive belt: a. Remove three capscrews and belt shield (A).

b. Remove two capscrews and belt shield (B).

c. Loosen sheaves (C).

d. Remove mower belt.

4. Inspect belt for wear or damage; replace as necessary.

5. Clean top surface of mower deck and sheaves.

6. Install belt on mower deck as shown. Make sure belt is in the groove of each sheave.

7. Tighten sheaves to specications.

Specication

Mower Deck Drive Sheave Nuts (107 cm (42 in.) Mower Deck)

— Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 lb-ft (47 N·m)

8. Install belt shields.

9. Install mower deck.

10. Adjust mower belt tension and spindle brakes, if necessary.

Replacing Mower Drive Belt (122 cm (48 in. ) and 137 cm (54 in.) Mower Decks)

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Remove mower deck.

Adjusting Mower Belt Tension (107 cm (42 in.) Mower Deck)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Move mower engagement (PTO) lever or switch to OFF position.

GXAL42036—UN—04MAR13

3. Loosen nuts (A) and move cable bracket (B) away from the center of mower deck to tighten belt tension. Move bracket until almost all slack is out of cable but cable is not too tight. Tighten nuts.

Adjusting Spindle Brakes (107 cm (42 in.) Mower Deck)

122 cm (48 in.) mower deck shown

3. Remove ve capscrews and left and right belt shields (A).

GXAL42035—UN—04MAR13

CAUTION: The mower blades should stop in approximately ve seconds when the mower or PTO is disengaged.

If you believe that your blades may not be stopping in that period of time, take your machine to your authorized dealer where they can safely check and service your machine.

IMPORTANT: Avoid belt damage.

Spindle brake engagement should be checked and corrected every time the mower belt tension is adjusted.

Mower belt tension should be adjusted, if required, before brakes are adjusted.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Remove mower deck.

Service Mower

GXAL42037—UN—04MAR13

3. Remove left and right belt shields, and adjust two blade brakes (A).

GXAL42038—UN—04MAR13

4. Measure distance from spindle brake bracket (B) to nut (C) on end of brake rod.

• Bracket to nut distance should meet specications.

Specication

Spindle Bracket-to-Nut — Distance . . . . . . . . . . . . . . . . . . . 2 - 3 mm (0.08 - 0.12 in.)

5. If adjustment is required, turn nut (C) on end of brake rod in correct direction to set brake at proper distance from pulley.

6. Adjust both brakes.

7. Install left and right belt shields.

8. Install mower deck.

Mower deck with side discharge used for illustration

3. Measure distance (A) between blade tip and at ground surface.

4. Rotate blade 180° and measure distance between other blade tip and at ground surface.

5. Install new blade if the difference between the two measurements is more than 3 mm (1/8 in.).

6. Repeat for all blades.

MXAL42867—UN—09APR13

Servicing Mower Blades

CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidentally.

Always wear gloves when handling mower blades or working near blades.

Removing Mower Blades

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Raise mower deck to gain access to mower blades. If necessary, remove mower deck.

3. Block mower blade with a piece of wood to prevent it from spinning.

Checking for Bent Mower Blades

CAUTION: Blades are sharp. Always wear gloves when handling blades or working near blades.

Replace blades if defective. Never straighten or weld them.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Raise mower deck to highest position to access blades.

GXAL42040—UN—04MAR13

4. Loosen and remove nut (A), washer (B), and blade (C).

5. Inspect blades; sharpen, balance or replace blades as necessary.

Service Electrical

Installing Mower Blades

1. Position mower blade (C) with the cutting edge towards the ground.

2. Align the splined center hole in the blade with the splined spindle shaft (D) and put the blade onto the mower spindle shaft.

3. Install washer, with cupped side towards blade, and install nut to secure blade onto splined spindle shaft.

4. Block mower blade with a piece of wood to prevent spinning and tighten nut:

5. Using 15/16 in. socket, tighten 5/8 in. blade nut to specications.

Mower Deck Blade Nut — Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 N·m (65 lb-ft)

Specication

Sharpening Blades

CAUTION: Blades are sharp. Always wear gloves when handling blades or working near blades.

Always wear safety eye protection when grinding.

• Sharpen blades with grinder, hand le, or electric blade sharpener.

GXAL42041—UN—04MAR13

• Keep original bevel (A) when grinding.

• The blade cutting edge (B) should meet specications.

Specication

Mower Blade Cutting Edge — Distance. . . . . . . . . . . . . . . . . . . . . . . . . 0.40 mm (1/64 in.)

• Balance blades before installing.

GXAL42042—UN—04MAR13

2. Put blade on nail in a vise. Turn blade to horizontal position.

3. Check balance. If blade is not balanced, heavy end of blade will drop.

4. Grind bevel of heavy end. Do not change blade bevel.

Service Electrical

Electrical

WARNING: Battery posts, terminals and related accessories contain

lead and lead components, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

Service the Battery Safely

Balancing Blades

CAUTION: Blades are sharp. Always wear gloves when handling blades or working near blades.

1. Clean blade.

MXAL42869—UN—09APR13

CAUTION: The battery produces a ammable and explosive gas.

The battery may explode:

• DDoo nnoott ssmmookkee oorr hhaavvee ooppeenn aammee nneeaarr bbaatttteerryy..

• WWeeaarr eeyyee pprrootteeccttiioonn aanndd gglloovveess..

• DDoo nnoott aallllooww ddiirreecctt mmeettaall ccoonnttaacctt aaccrroossss bbaatttteerryy ppoossttss..

• RReemmoovvee nneeggaattiivvee ccaabbllee rrsstt wwhheenn ddiissccoonnnneeccttiinngg..

• IInnssttaallll nneeggaattiivvee ccaabbllee llaasstt wwhheenn ccoonnnneeccttiinngg..

Removing and Installing the Battery

Removing

1. Park machine safely and lift hood. (See Parking Safely in the SAFETY Section.)

Service Electrical

GXAL42044—UN—04MAR13

2. Disconnect negative (-) battery cable (A).

3. Push red cover (B) away from positive (+) battery terminal and remove cable (C) from battery.

4. Remove battery.

Installing

1. Place battery into battery tray.

2. Connect positive (+) cable to positive (+) battery terminal rst, then negative (-) cable to negative (-) battery terminal.

3. Apply spray lubricant to terminal to help prevent corrosion.

4. Slide red cover over positive battery terminal.

Using Booster Battery

CAUTION: The battery produces a ammable and explosive gas.

The battery may explode:

• DDoo nnoott ssmmookkee oorr hhaavvee ooppeenn aammee nneeaarr bbaatttteerryy..

• WWeeaarr eeyyee pprrootteeccttiioonn aanndd gglloovveess..

• DDoo nnoott jjuummpp ssttaarrtt oorr cchhaarrggee aa ffrroozzeenn bbaatttteerryy.. WWaarrmm bbaatttteerryy ttoo ssppeecciiccaattiioonn..

Battery — Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16°C (60°F)

• DDoo nnoott ccoonnnneecctt tthhee nneeggaattiivvee ((--)) bboooosstteerr ccaabbllee ttoo tthhee nneeggaattiivvee ((--)) tteerrmmiinnaall ooff tthhee ddiisscchhaarrggeedd bbaatttteerryy.. CCoonnnneecctt aatt aa ggoooodd ggrroouunndd llooccaattiioonn aawwaayy ffrroomm tthhee ddiisscchhaarrggeedd bbaatttteerryy..

A — Booster Battery B — Disabled Vehicle Battery

Specication

MXAL42872—UN—09APR13

Cleaning Battery and Terminals

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Disconnect and remove battery.

3. Wash battery with solution of four tablespoons of baking soda to one gallon of water. Be careful not to get the soda solution into the cells.

4. Rinse the battery with plain water and dry.

5. Clean terminals and battery cable ends with wire brush until bright.

6. Install battery.

7. Attach cables to battery terminals, beginning with the positive cable, using washers and nuts.

8. Apply spray lubricant to terminal to prevent corrosion.

1. Connect positive (+) booster cable to booster battery (A) positive (+) post (C).

2. Connect the other end of positive (+) booster cable to the disabled vehicle battery (B) positive (+) post (D).

3. Connect negative (–) booster cable to booster battery negative (–) post (E).

IMPORTANT: Electric charge from booster battery can damage

machine components. Do not install negative booster cable to machine frame. Install only to the engine block.

Install negative booster cable away from moving parts in the engine compartment, such as belts and fan blades.

4. Connect the other end (F) of negative (–) booster cable to a metal part of the disabled machine engine block away from battery.

5. Start the engine of the disabled machine and run machine for several minutes.

6. Carefully disconnect the booster cables in the exact reverse order: negative cable rst and then the positive cable.

Replacing Headlight Bulb

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

Service Miscellaneous

GXAL42046—UN—04MAR13

3. Turn bulb socket (A) 1/4 turn counterclockwise to remove.

4. Replace defective bulb with a new bulb.

5. Insert bulb socket into housing, push in and turn 1/4 turn clockwise to install.

6. Lower hood.

Replacing Fuse

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Lift hood.

Service Miscellaneous

Using Proper Fuel and Stabilizer

IMPORTANT: Using stale, contaminated or improper fuel can result

in engine and fuel system damage. Repairs caused by stale, contaminated or improper fuel are not covered by warranty.

Use regular grade unleaded fuel with an octane rating of 87 octane or higher. Fuel blends containing up to 10% ethanol or up to 15% MTBE reformulated fuel are acceptable. Do not use fuel or additives containing methanol as engine damage can occur.

Always use fresh, clean fuel that is purchased in a quantity that can be used within approximately 30 days. Fuel stabilizer should always be added to the fuel each time fuel is purchased. Add stabilizer before lling the fuel container to insure proper mixing. Such practice helps prevent engine performance problems and allows fuel storage in the machine all year without draining.

Store fuel in plastic containers to reduce condensation. Make sure the cap on the fuel container is tight to reduce fuel contamination and evaporation. For best fuel storage life, use a self-sealing gas can.

Fuel is blended to give best seasonal performance. To avoid engine performance problems such as hard starting or vapor lock, use in-season fuel. Use fuel during warm weather that was purchased during that season, and use fuel during cold weather that was purchased during that season.

Fuel can become stale in machines with engines that are used seasonally or infrequently during a season. Stale fuel can produce varnish and plug carburetor or EFI components which can affect engine performance.

Keep fuel storage container tightly covered and in a cool area out of direct sunlight. Fuel can break down and degrade if not sealed properly or exposed to sun and heat.

Condensation may collect in the fuel tank because of a variety of operating or environmental conditions and, over time, may affect your machine’s operation. Fill machine fuel tank at the end of the day.

GXAL42047—UN—04MAR13

3. Pull defective fuse (A) out of socket.

4. Check metal clip in fuse window and discard fuse if clip is broken.

5. Push new 20 amp fuse into socket.

6. Lower hood.

Filling Fuel Tank

CAUTION: Fuel vapors are explosive and ammable:

• SShhuutt eennggiinnee ooffff bbeeffoorree lllliinngg ffuueell ttaannkk..

• AAllllooww eennggiinnee ttoo ccooooll bbeeffoorree rreeffuueelliinngg..

• DDoo nnoott ssmmookkee wwhhiillee hhaannddlliinngg ffuueell..

• KKeeeepp ffuueell aawwaayy ffrroomm aammeess oorr ssppaarrkkss..

• FFiillll ffuueell ttaannkk oouuttddoooorrss oorr iinn wweellll vveennttiillaatteedd aarreeaa..

• CClleeaann uupp ssppiilllleedd ffuueell iimmmmeeddiiaatteellyy..

• UUssee cclleeaann aapppprroovveedd nnoonn--mmeettaall ccoonnttaaiinneerr ttoo pprreevveenntt ssttaattiicc eelleeccttrriicc ddiisscchhaarrggee..

IMPORTANT: Dirt and water in fuel can cause engine damage:

• CClleeaann ddiirrtt aanndd ddeebbrriiss ffrroomm tthhee ffuueell ttaannkk ooppeenniinngg..

• UUssee cclleeaann,, ffrreesshh,, ssttaabbiilliizzeedd ffuueell..

• FFiillll tthhee ffuueell ttaannkk aatt tthhee eenndd ooff eeaacchh ddaayy’’ss ooppeerraattiioonn ttoo kkeeeepp ccoonnddeennssaattiioonn oouutt ooff tthhee ffuueell ttaannkk..

• UUssee aa nnoonn--mmeettaalllliicc ffuunnnneell wwiitthh aa ppllaassttiicc mmeesshh ssttrraaiinneerr wwhheenn lllliinngg tthhee ffuueell ttaannkk oorr ccoonnttaaiinneerr..

Fill fuel tank at the end of each day’s operation to prevent condensation and freezing during cold weather.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Remove any trash from area around fuel tank cap.

Service Miscellaneous

4. Remove fuel tank cap slowly to allow any pressure built up in tank to escape.

5. Fill fuel tank only to bottom of ller neck. Do not overll.

6. Install fuel tank cap.

• Gas models: Turn cap until clicks.

Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

CAUTION: The machine can fall or slip from an unsafe lifting device or supports.

• UUssee aa ssaaffee lliiffttiinngg ddeevviiccee rraatteedd ffoorr tthhee llooaadd ttoo bbee lliifftteedd..

• LLoowweerr mmaacchhiinnee oonnttoo jjaacckk ssttaannddss oorr ootthheerr ssttaabbllee ssuuppppoorrttss aanndd bblloocckk wwhheeeellss bbeeffoorree sseerrvviicciinngg..

Checking Tire Pressure

CAUTION: Explosive separation of tire and rim parts is possible when they are serviced incorrectly:

• DDoo nnoott aatttteemmpptt ttoo mmoouunntt aa ttiirree wwiitthhoouutt tthhee pprrooppeerr eeqquuiippmmeenntt aanndd eexxppeerriieennccee ttoo ppeerrffoorrmm tthhee jjoobb..

• DDoo nnoott iinnaattee tthhee ttiirreess aabboovvee tthhee rreeccoommmmeennddeedd pprreessssuurree..

• DDoo nnoott wweelldd oorr hheeaatt aa wwhheeeell aanndd ttiirree aasssseemmbbllyy.. HHeeaatt ccaann ccaauussee aann iinnccrreeaassee iinn aaiirr pprreessssuurree rreessuullttiinngg iinn aann eexxpplloossiioonn.. WWeellddiinngg ccaann ssttrruuccttuurraallllyy wweeaakkeenn oorr ddeeffoorrmm tthhee wwhheeeell..

• DDoo nnoott ssttaanndd iinn ffrroonntt oorr oovveerr tthhee ttiirree aasssseemmbbllyy wwhheenn iinnaattiinngg.. UUssee aa cclliipp--oonn cchhuucckk aanndd eexxtteennssiioonn hhoossee lloonngg eennoouugghh ttoo aallllooww yyoouu ttoo ssttaanndd ttoo oonnee ssiiddee..

1. Check tires for damage.

NOTE: Refer to the SPECIFICATIONS section for tire pressures or check

the side of the tire.

2. Check tire pressure with an accurate lower pressure gauge.

3. Add or remove air, if necessary.

Removing and Installing Hood

Removing

CAUTION: Touching hot surfaces can burn skin. The engine, components, and uids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

Hydrostatic transmission model shown

2. Safely lift rear of machine at machine frame point (A). Place jack stands or other stable supports onto transaxle locations (B) where mounting bolts for frame come through.

3. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

4. Safely lift front of machine at machine frame point (C). Place jack stands or other stable supports under frame on each side at location (B).

5. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

6. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.

GXAL42048—UN—04MAR13

GXAL42049—UN—04MAR13

IMPORTANT: Do not operate machine with hood open. Hood must

be closed for proper engine cooling and exhaust.

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

PY19053—UN—07AUG13

3. Open hood.

4. Disconnect wiring harness (A).

5. Apply pressure to “John” on left side of hood and slowly lower hood. Left side pivot should release after rotating closed approximately 45 degrees. Once left side pivot releases, slide out right side pivot. Lower hood slightly and lift hood from brackets (B).

Service Miscellaneous

Installing

1. Slide right side hood pivot into tractor bracket with hood in open position (left side pivot will slide into place as hood closes) and slowly close hood.

2. Connect wiring harness.

3. Close hood.

Cleaning Plastic Surfaces

IMPORTANT: Improper care of machine plastic surfaces can

damage that surface:

• DDoo nnoott wwiippee ppllaassttiicc ssuurrffaacceess wwhheenn tthheeyy aarree ddrryy.. DDrryy wwiippiinngg wwiillll rreessuulltt iinn mmiinnoorr ssuurrffaaccee ssccrraattcchheess..

• UUssee aa ssoofftt,, cclleeaann ccllootthh ((bbaatthh ttoowweell,, ddiiaappeerr,, aauuttoommoottiivvee mmiitttt))..

• DDoo nnoott uussee aabbrraassiivvee mmaatteerriiaallss,, ssuucchh aass ppoolliisshhiinngg ccoommppoouunnddss,, oonn ppllaassttiicc ssuurrffaacceess..

1. Rinse hood and entire machine with clean water to remove dirt and dust that may scratch the surface.

2. Wash surface with clean water and a mild liquid automotive washing soap.

IMPORTANT: Insect repellent spray may damage plastic and painted

surfaces. Do not spray insect repellent near machine.

3. Dry thoroughly to avoid water spots.

4. Wax the surface with a liquid automotive wax. Use products that specically say “contains no abrasives.”

IMPORTANT: Do not use a power buffer to remove wax.

CAUTION: The machine can fall or slip from an unsafe lifting device or supports.

• UUssee aa ssaaffee lliiffttiinngg ddeevviiccee rraatteedd ffoorr tthhee llooaadd ttoo bbee lliifftteedd..

• LLoowweerr mmaacchhiinnee oonnttoo jjaacckk ssttaannddss oorr ootthheerr ssttaabbllee ssuuppppoorrttss aanndd bblloocckk wwhheeeellss bbeeffoorree sseerrvviicciinngg..

IMPORTANT: Place jack stands under frame, not under

transmission or engine, when raising or supporting machine.

GXAL42051—UN—04MAR13

2. Safely lift and support machine. Place safe lifting device under end of front hanger bracket at location (A), and place jack stands or other stable supports under frame on each side at location (B). Block wheels remaining on the ground to prevent machine movement.

5. Buff applied wax by hand using a clean, soft cloth.

Cleaning and Repairing Metal Surfaces

Cleaning:

Follow automotive practices to care for your vehicle painted metal surfaces. Use a high-quality automotive wax regularly to maintain the factory look of your vehicle’s painted surfaces.

Repairing Minor Scratches (surface scratch):

1. Clean area to be repaired thoroughly.

IMPORTANT: Do not use rubbing compound on painted surfaces.

2. Use automotive polishing compound to remove surface scratches.

3. Apply wax to entire surface.

Repairing Deep Scratches (bare metal or primer showing):

1. Clean area to be repaired with rubbing alcohol or mineral spirits.

2. Use paint stick with factory-matched colors available from your authorized dealer to ll scratches. Follow directions included on paint stick for use and for drying.

3. Smooth out surface using an automotive polishing compound. Do not use power buffer.

4. Apply wax to surface.

Removing and Installing Front Wheel Assembly

Removing:

1. Park machine safely. (See Parking Safely in the SAFETY section.)

GXAL42052—UN—04MAR13

3. Remove plastic cap (C) from end of wheel hub.

Service Miscellaneous

CAUTION: Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.

GXAL42053—UN—04MAR13

4. Remove snap ring (D) from end of axle.

5. Remove washer (E) and wheel from axle.

CAUTION: Explosive separation of tire and rim parts is possible when they are serviced incorrectly:

• DDoo nnoott aatttteemmpptt ttoo mmoouunntt aa ttiirree wwiitthhoouutt tthhee pprrooppeerr eeqquuiippmmeenntt aanndd eexxppeerriieennccee ttoo ppeerrffoorrmm tthhee jjoobb..

6. Take wheel assembly to an authorized service dealer for repairs.

Installing

1. Grease spindles and wheel hub grease ttings with specied grease.

2. Install wheel and washer (E) on axle.

3. Install snap ring (D).

4. Install plastic cap (C).

5. Safely remove jack stands and lower machine.

CAUTION: The machine can fall or slip from an unsafe lifting device or supports.

• UUssee aa ssaaffee lliiffttiinngg ddeevviiccee rraatteedd ffoorr tthhee llooaadd ttoo bbee lliifftteedd..

• LLoowweerr mmaacchhiinnee oonnttoo jjaacckk ssttaannddss oorr ootthheerr ssttaabbllee ssuuppppoorrttss aanndd bblloocckk wwhheeeellss bbeeffoorree sseerrvviicciinngg..

IMPORTANT: Place jack stands under frame, not under

transmission or engine, when raising or supporting machine.

GXAL42054—UN—04MAR13

2. Safely lift and support machine. Place safe lifting device under transmission centered under machine frame point (A). Place jack stands or other stable supports on each side (B) where mounting bolts for frame come through. Block wheels remaining on the ground to prevent machine movement.

Removing and Installing Rear Wheel Assembly

Removing

1. Park machine safely. (See Parking Safely in the SAFETY section.)

GXAL42055—UN—04MAR13

3. Remove plastic cap (C), snap ring (D), and washer (E).

4. Remove wheel.

IMPORTANT: Do not lose the shaft key. Key must be installed for

wheels to rotate and tractor to move.

5. Remove shaft key (F) (shown on end of transmission shaft), two washers (G), except for model D105, and spacer (H).

CAUTION: Explosive separation of tire and rim parts is possible when they are serviced incorrectly:

• DDoo nnoott aatttteemmpptt ttoo mmoouunntt aa ttiirree wwiitthhoouutt tthhee pprrooppeerr eeqquuiippmmeenntt aanndd eexxppeerriieennccee ttoo ppeerrffoorrmm tthhee jjoobb..

6. Take wheel assembly to an authorized service dealer for repairs.

Troubleshooting

Installing

IMPORTANT: Do not lose the shaft key. Key must be installed for

wheels to rotate and tractor to move.

NOTE: Rear wheels are installed with valves to the outside.

1. Install two washers (G), except on model D105, spacer (H), and shaft key (F).

2. Install rear wheel, washer (E), snap ring (D) and plastic cap (C).

3. Safely remove jack stands and lower machine.

Troubleshooting

Using Troubleshooting Chart

If you are experiencing a problem that is not listed in this chart, see your authorized dealer for service.

When you have checked all the possible causes listed and you are still experiencing the problem, see your authorized dealer.

Engine

IF CHECK

Poor Engine Performance Dirt in fuel system or fuel is old. Replace fuel

with fresh stabilized fuel. Obtain fuel from

another supplier before suspecting machine

problems. Suppliers blend fuels differently and

changing suppliers will generally solve any

performance problems.

Fuel blended with alcohol or ether may

contribute to performance problems by

causing gum and varnish deposits, especially

if fuel is stored for several weeks or more.

Obtain fresh fuel.

Engine Will Not Start Brake pedal not depressed.

Mower is engaged.

Spark plug wire is loose or disconnected.

Improper fuel.

Transmission is in reverse.

Plugged fuel lter.

Defective safety switch.

Electrical problem - See Electrical

Troubleshooting Section

Engine Is Hard To Start Carburetor is not adjusted properly or dirty.

Choke cable not adjusted properly.

Plugged fuel lter.

Faulty spark plug.

Stale or improper fuel.

Loose or corroded electrical connections.

Improper engine oil viscosity.

Engine Runs Unevenly Cooling ns plugged.

Loose electrical connections.

Choke or throttle cable sticking.

Fuel line or fuel lter plugged.

Stale or dirty fuel.

Improper fuel.

Air cleaner element plugged.

Engine Misses Under Load Faulty spark plug.

Stale or dirty fuel.

Plugged fuel lter.

Engine Vapor Locks Fuel tank vent plugged.

Dirt in fuel lter.

Cooling ns plugged.

IF CHECK

Loose hose connection at fuel lter or fuel

pump.

Engine Overheats Engine air intake screen plugged.

Engine Will Not Idle Spark plug not gapped correctly.

Engine Knocks Stale or low octane fuel.

Engine Stops Or Misses When Operating On

Hillsides

Engine Backres Faulty spark plug.

Engine Loses Power Engine overheating.

Excessive Fuel Consumption Choke is not fully open.

Black Exhaust Smoke Air lter is dirty or oil soaked.

Engine Stops When REVERSE Foot Pedal Is

Depressed And Attachment Is Engaged

(Hydrostatic)

Engine Stops When Automatic Shift Lever Is

Moved To The R (REVERSE) Position and

Attachment Is Engaged (Automatic)

Cooling ns plugged.

Engine oil low or too high.

Engine operated too long at a slow idle speed.

Faulty spark plug.

Operator raising off the seat.

Engine overloaded.

Low engine speed.

Oil level low.

Fuel tank less than half full of fuel.

Operator raising off of the seat.

Too much oil in engine.

Dirty air cleaner.

Faulty spark plug.

Travel speed is too fast for conditions.

Improper fuel.

Choke partially engaged.

Normal condition. (See Using Reverse

Implement Option in the OPERATING

section.)

Normal condition. (See Using Reverse

Implement Option in the OPERATING

section.)

Electrical

IF CHECK

Starter Does Not Work Or Will Not Turn

Engine

Battery Will Not Charge Dead cell in the battery.

Lights Do Not Work Light plug disconnected.

Brake pedal is not depressed.

Mower is engaged.

Battery terminals are corroded.

Battery not charged.

Transmission is in reverse.

Blown fuse.

Fusible Link in starting circuit is blown - See

your authorized dealer

Battery cables and terminals are dirty.

Low engine speed or excessive idling.

Loose or burned out bulb.

Tractor

IF CHECK

Tractor Vibrates Too Much Or Rattles

Excessively

Tractor Will Not Move With Engine Running Parking brake locked.

Attachment drive belts worn or damaged.

Traction drive belt damaged or worn.

Dirt on drive sheaves.

Blades bent or out of balance.

Bypass rod is pulled out.

Storage

Mower

IF CHECK

Discharge Chute Plugged Travel speed too fast.

Patches Of Grass Uncut Travel speed too fast.

Belt Slipping Debris in sheaves.

Too Much Vibration Debris on mower deck or in sheaves.

Blades Scalping Grass Cutting too low.

Mower Loads Down Tractor Engine rpm too low.

Uneven Cut Mower deck not leveled properly.

Mower (Or Other Attachment) Stops When

Vehicle Is Operated in REVERSE

Grass too long.

Grass too wet.

Engine rpm not at wide open throttle.

Restricted air ow.

Belt installed incorrectly.

Engine rpm not at wide open throttle.

Mower deck needs cleaning.

Worn belt.

Belt tension is incorrect.

Damaged drive belt.

Damaged sheaves or sheaves out of

alignment.

Blades out of balance.

Mower wheels not adjusted correctly.

Turning speed too fast.

Ridges in terrain.

Rough or uneven terrain.

Low tire pressure.

Travel speed too fast.

Debris wrapped around mower spindles.

Travel speed too fast.

Blades dull.

Mower wheels not adjusted correctly.

Tire pressure unequal.

Normal condition. (See Using Reverse

Implement Option in the OPERATING

section.)

Storage

Storing Safety

CAUTION: Fuel vapors are explosive and ammable.

Engine exhaust fumes contain carbon monoxide and can cause serious illness or death:

• RRuunn tthhee eennggiinnee oonnllyy lloonngg eennoouugghh ttoo mmoovvee tthhee mmaacchhiinnee ttoo oorr ffrroomm ssttoorraaggee..

• MMaacchhiinnee rreess aanndd ssttrruuccttuurree rreess ccaann ooccccuurr iiff aa mmaacchhiinnee iiss ssttoorreedd bbeeffoorree aalllloowwiinngg iitt ttoo ccooooll,, oorr iiff ddeebbrriiss iiss nnoott rreemmoovveedd ffrroomm aarroouunndd tthhee eennggiinnee aanndd mmuuffeerr,, oorr iiff ssttoorreedd nneeaarr ccoommbbuussttiibbllee mmaatteerriiaallss..

• DDoo nnoott ssttoorree vveehhiiccllee wwiitthh ffuueell iinn tthhee ttaannkk iinnssiiddee aa bbuuiillddiinngg wwhheerree ffuummeess mmaayy rreeaacchh aann ooppeenn aammee oorr ssppaarrkk..

• AAllllooww tthhee eennggiinnee ttoo ccooooll bbeeffoorree ssttoorriinngg tthhee mmaacchhiinnee iinn aannyy eenncclloossuurree..

Preparing Machine for Storage

1. Repair any worn or damaged parts. Replace parts if necessary. Tighten loose hardware.

2. Repair scratched or chipped metal surfaces to prevent rust.

3. Remove grass and debris from machine.

4. Clean under the deck and remove grass and debris from inside chute and bagger.

5. Wash the machine and apply wax to metal and plastic surfaces.

6. Run machine for ve minutes to dry belts and pulleys.

7. Apply light coat of engine oil to pivot and wear points to prevent rust.

8. Lubricate grease points and check tire pressure.

Preparing Fuel and Engine For Storage

Fuel:

If you have been using “Stabilized Fuel,” add stabilized fuel to tank until the tank is full.

NOTE: Filling the fuel tank reduces the amount of air in the fuel tank and

helps reduce deterioration of fuel.

If you are not using “Stabilized Fuel:”

1. Park machine safely in a well-ventilated area. (See Parking Safely in the SAFETY section.)

NOTE: Try to anticipate the last time the machine will be used for the

season so very little fuel is left in the fuel tank.

2. Turn on engine and allow to run until it runs out of fuel.

3. For machines equipped with key switch, turn key to off position.

IMPORTANT: Stale fuel can produce varnish and plug carburetor or

injector components and affect engine performance.

• AAdddd ffuueell ccoonnddiittiioonneerr oorr ssttaabbiilliizzeerr ttoo ffrreesshh ffuueell bbeeffoorree lllliinngg ttaannkk..

4. Mix fresh fuel and fuel stabilizer in separate container. Follow stabilizer instructions for mixing.

5. Fill fuel tank with stabilized fuel.

6. Run engine for a few minutes to allow fuel mixture to circulate through carburetor on gas engine or fuel injectors on diesel engine.

Engine:

Engine storage procedure should be used when vehicle is not to be used for longer than 60 days.

1. Change engine oil and lter while engine is warm.

2. Service air lter if necessary.

3. Clean debris from engine air intake screen.

4. On gas engines: a. Remove spark plugs. Put specied amount of clean engine oil in

cylinder(s).

Specication

Engine Oil in Cylinder - Storage — Quantity . . . . . . . . . . . . . . . . . . . . . 30 mL (1 oz)

b. Install spark plugs, but do not connect spark plug wires.

c. Crank the engine ve or six times to allow oil to be distributed.

5. Clean the engine and engine compartment.

6. Remove battery.

7. Clean the battery and battery posts. Check the electrolyte level, if your battery is not maintenance free.

8. Close fuel shut-off valve, if your machine is equipped.

9. Store the battery in a cool, dry place where it will not freeze.

NOTE: The stored battery should be recharged every 90 days.

10. Charge the battery.

IMPORTANT: Prolonged exposure to sunlight could damage the

hood surface. Store machine inside or use a cover if stored outside.

Specications

11. Store the vehicle in a dry, protected place. If vehicle is stored outside, put a waterproof cover over it.

Removing Machine From Storage

1. Check tire pressure.

2. Check engine oil level.

3. Check battery electrolyte level, if your battery is not maintenance free. Charge battery if necessary.

4. Install battery.

5. On gas engines: Check spark plug gap. Install and tighten plugs to specied torque.

6. Lubricate all grease points.

7. Open fuel shut-off valve, if your machine is equipped.

8. Run the engine 5 minutes without the mower or any attachments running to allow oil to be distributed throughout engine.

9. Be sure all shields and guards or deectors are in place.

Specications

Automatic Model D105

Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Briggs & Stratton

Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Power Rating Information . . . . . . . . . . . . . . . . . . . . . . . . . http://www.briggsandstratton.com/

Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 cc (30.5 cu. in.)

Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.76 mm (0.030 in.)

Spark Plug Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 N·m (15 lb-ft)

Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single

Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cartridge

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic

Transaxle Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Transmission TM RT400

Travel Speed - Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 8.9 km/h (0 - 5.5 mph)

Travel Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 4.8 km/h (0 - 3.0 mph)

Hydrostatic Model D110

Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Briggs & Stratton

Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Power Rating Information . . . . . . . . . . . . . . . . . . . . . . . . . http://www.briggsandstratton.com/

Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 540 cc (33 cu. in.)

Spark Plug Gap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.76 mm (0.030 in.)

Spark Plug Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 N•m (15 lb-ft)

Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Single

Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cartridge

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydrostatic

Transaxle Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tuff Torq™ T40

Travel Speed - Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 8.9 km/h (0 - 5.5 mph)

Travel Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 5.2 km/h (0 - 3.2 mph)

Hydrostatic Model D125

Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Briggs & Stratton

Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Power Rating Information . . . . . . . . . . . . . . . . . . . . . . . . . http://www.briggsandstratton.com/

Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 656cc (40 cu. in.)

Spark Plug Gap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.76 mm (0.030 in.)

Spark Plug Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 N•m (15 lb-ft)

Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Twin

Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Yes

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cartridge

Transmission. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydrostatic

Transaxle Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tuff Torq™ T40

Travel Speed - Forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 8.9 km/h (0 - 5.5 mph)

Travel Speed - Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 - 5.2 km/h (0 - 3.2 mph)

Hydrostatic Models D130 and D140

Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Briggs & Stratton

Model Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Power Rating Information . . . . . . . . . . . . . . . . . . . . . . . . . http://www.briggsandstratton.com/

Displacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 724 cc (44.2 cu. in.)
