John Deere 750J Specifications

145–200 NET HORSEPOWER

DOZERS

750J | 850J

750J

145 hp Standard, LT

155 hp LGP

32,585 lb. Standard

34,395 lb. LT

36,725 lb. LGP

22-, 24-, 28-, and 34-in. grousers

128-, 130-, and 156-in. blades

Simply advanced.

Built with the same kind of forward thinking as

our first hydrostatic dozer more than 30 years

ago, 750J and 850J Dozers continue to define

the way earthwork gets done. Their unique state-

of-the-art Total Machine Control (TMC) enables

an operator to customize machine operation and

response to personal preferences. Coupled with

an uncommonly smooth full-featured hydrostatic

drivetrain, the John Deere J-Series Dozers deliver

unsurpassed power, control, and results. Again.

PAGES

2–3

850J

185 hp Standard, LT, WT, WLT

200 hp LGP

40,165 lb. Standard

43,015 lb. LT

41,285 lb. WT

44,225 lb. WLT

45,375 lb. LGP

22-, 24-, 30-, and 36-in. grousers

128-, 140-, 146-, 152-,

158-, and 168-in. blades

Eleven track frames, four

mainframes, and a variety

of blades let you choose the

right crawler conﬁ guration

for your kind of work.

Tier 3-certiﬁ ed John Deere

diesels deliver power

without compromise in

all conditions.

Deere’s unique Total Machine

Control lets an operator

customize the crawler’s

operational characteristics

and response, and even

records machine usage.

Power turns, power management, inﬁ nite speed control –– we introduced

them all more than 30 years ago. And today’s 750J and 850J are loaded

with even more productivity- and uptime-boosting enhancements.

Standard equipped with

JDLink™ Ultimate, you have

24/7 anywhere access to your

dozer’s location, utilization,

dashboard alerts, fuel con-

sumption, diagnostic codes,

and hours. Plus geofencing,

curfew, and numerous other

capabilities.

Best-in-class service access,

same-side daily servicing,

and extended engine,

hydraulic, and transmission

oil and ﬁ lter service intervals

help keep downtime to a

minimum.

Equipped with optional Integrated Grade Con-

trol (IGC), adding your preferred grade-control

system is “plug-and-play” easy.

Maximize productivity

with minimal effort.

Independent track control speeds up or slows

down each side – for smooth, full-power turns.

An automatic 10-percent power boost helps

carry more material in a turn.

No need to cross-steer or ride a brake. These

dozers steer the same and maintain their

preset speed whether working on level ground

or a 2-to-1 slope.

All dozers move the earth. But if you want one that does

more with a lot less effort, you’ll choose a John Deere

J-Series. State-of-the-art electronic controls put you in

complete command of a whole arsenal of hydrostatic

advantages, including power turns, counterrotation, and

inﬁ nitely variable travel speeds. What’s more, Total

Machine Control lets an operator customize decelerator

mode and response, forward/reverse ground-speed

ranges, steering modulation, and forward/reverse

speed ratios. Nothing else even comes close.

PAGES

4–5

Low-effort controls command

the blade and a full-featured

hydrostatic drivetrain, ensuring

predictable response at all

times in all conditions.

Counterrotation is a productivity-boosting feature

that enables an operator to overcome heavy

corner loads and quickly reposition the blade on

the go. Provides space-saving spot turns, too.

Simply set the maximum desired

ground speed and the power-

management system automati-

c ally maintains peak engine rpm

and power efﬁ ciency without

stalling or shifting.

Inﬁ nitely variable range to 6.8

mph gives total ﬂ exibility to

match ground speed to the load.

Travel can also be varied to ﬁ t

speciﬁ c applications, terrain, or

operating preferences — and

even limited to maximize under-

carriage life.

Purpose-built mainframes for

power-angle-tilt and outside-

mount blades allow optimized

component placement for

uncompromised grading ability.

Fully modulated drivetrain

ensures smooth starts and

direction changes, while

virtually eliminating jerky or

abrupt movements.

Get more done within

our comfort zone.

Generous hydraulic ﬂ ow and

precise metering ensure

powerful and quick blade

response, while providing a

natural “feel” that will enhance

any operator’s grading skills.

A thumb-actuated switch pro-

vides low-effort angle control.

Retractable seat belt,

slip-resistant ﬂ oor mat,

convenient grab bars,

neutral-start lever, and

automatic park brake

help keep the operator

out of harm’s way.

Deluxe suspension armchair

won’t cramp your operator’s

style. Seven-way adjustable

seat provides plenty of legroom

and daylong comfort. Arm- and

footrests also adjust.

Ergonomically correct joystick

provides intuitive, low-effort

control of steering, forward/

reverse travel, and ground speed.

It’s detented so it doesn’t require

an operator’s constant touch or

attention, and employs a thumb-

actuated travel-speed switch.

Convenient 12-volt port pro-

vides power for accessories

such as cell phones.

Want your operators to be more productive? Put them

in the seat of this spacious air-conditioned modular cab.

From their ergonomically designed fully customizable

controls to best-in-class visibility, J-Series Dozers

are loaded with everything you need to keep your

operators cool, calm, productive – and on your payroll.

Exclusive TMC lets you

customize decelerator mode

and response, forward/

reverse ground-speed

ranges, steering modulation,

FNR shift rate, and forward/

reverse speed ratios, for

unsurpassed one-of-a-kind

control.

Choose the decelerator

function that’s right for the

job. Slow both ground speed

and engine rpm, or ground

speed only to help maintain

traction without affecting

engine power and hydraulic

response. Fully depressing

the pedal applies the brakes.

Cab-forward design positions the operator for a more stable ride and a commanding

view behind, below, and beyond the blade. Side and rear visibility is equally unobstructed.

Monitor keeps a vigilant watch on vital machine functions with warnings you can see and hear.

Automotive-style

directional vents deliver

effective airﬂ ow to keep

the glass clear and the

cab comfortable. Air

conditioning is standard

on all cabs. For ROPS-only

crawlers, an optional under-

seat heater helps warm the

operator.

High-intensity halogen

driving lights are standard.

Or opt for the factory-

installed 360-degree light

package and extend your

workday beyond normal

daylight hours.

PAGES

6–7

One-piece welded main-

frame resists torsional

stress, absorbs shock loads,

and delivers maximum

strength while allowing easy

service access to major

components.

Individually replaceable wet-

sleeve cylinder liners provide

uniform engine cooling and

long-term durability.

Sealed transmission connec-

tors prevent moisture and

contaminants from entering

terminals: gold pins resist

corrosion for increased

reliability.

Nothing lasts like a

Deere, either.

Designed and built with state-of-the-art tools and

techniques by a quality-conscious workforce at our

world-class facility in Dubuque, Iowa, the J-Series are

loaded with uptime-boosting features. Enhancements

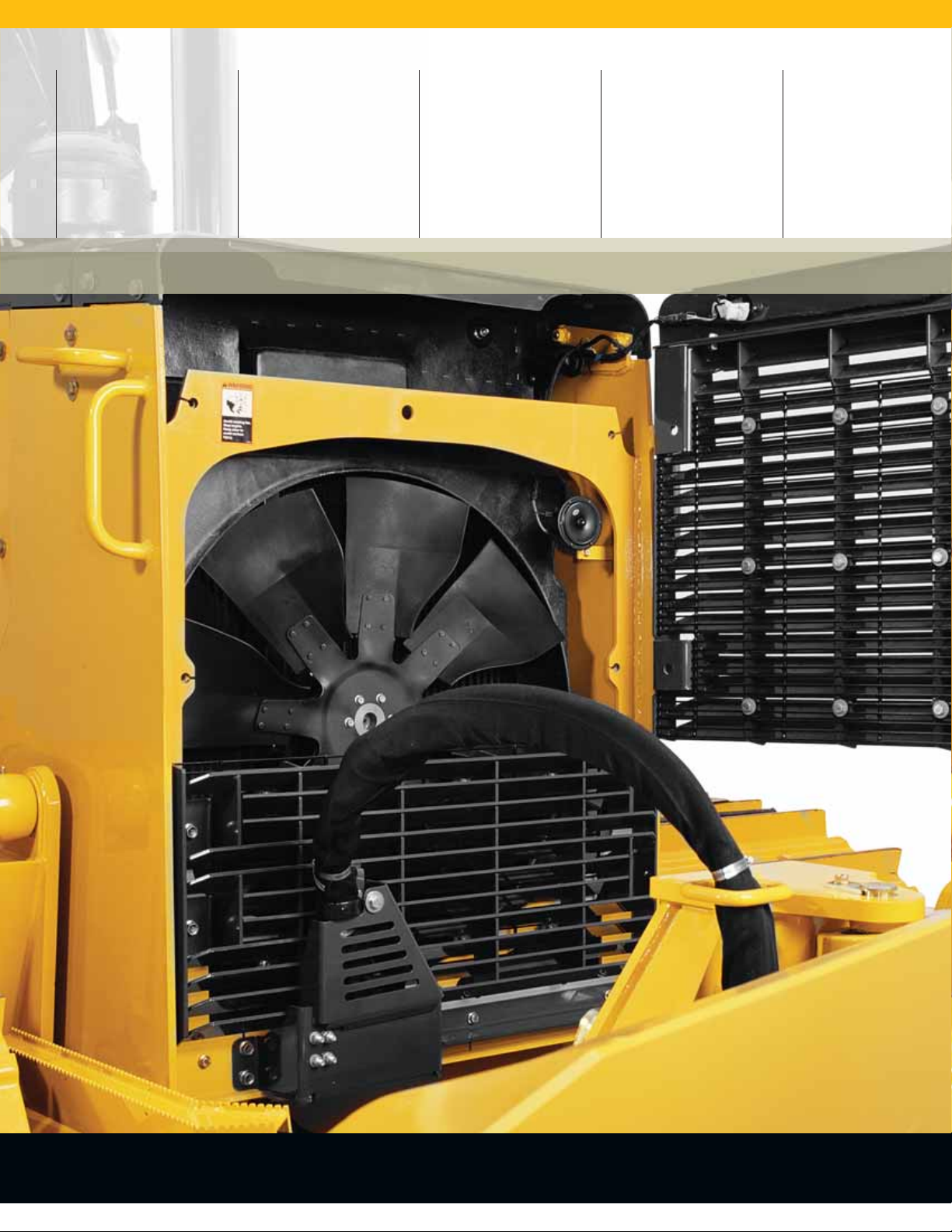

include a variable-speed hydraulic-driven cooling

system fan, gold-plated electrical connectors, and

extended service intervals. These, plus traditional

Deere durability features such as one-piece unitized

mainframes, Dura-Trax

engine liners, O-ring face-seal hose couplers, and

isolated planetary ﬁ nal drives keep them keeping on.

When you know how they’re built, you’ll run a Deere.

PAGES

8–9

™

undercarriage, wet-sleeve
