User’s Manual
G03-JC610EN-F
Manual rersion: 2.0
Release Date：March, 2011
i
User’s Notice
Copyright of this manual belongs to the manufacturer. No part of this manual, including the products
and software described in it may be reproduced, transmitted or translated into any language in any
form or by any means without written permission of the manufacturer.
This manual contains all information required for the utilization of this product to meet the user’s
requirements. But it will change, correct at any time without notice. Manufacturer provides this manual
“as is” without warranty of any kind, and will not be liable for any indirect, special, incidental or
consequential damages (including damages for loss of profit, loss of business, loss of use of data,
interruption of business and the like).
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and they are used only for identification or explanation and to
the owner’s benefit, without intent to infringe.
Package Contents
ii
Safety Instruction
Operate the product according to the correct installation steps and with great care to make sure
safety and comfort using experience. Please refer to the following safety instruction guide to avoid
danger of electric shock or fire. Abide by the previous safety instruction guide to use and maintain
the product and the hard disk to make sure of safe operating environment.
Please follow the instruction manual for operation guide.
The appropriate operating temperature ranges from 0 °C–35 °C (32 °F–95 °F)
The operation humidity for this product is 5% to 80% RH.
To avoid high temperature, please DO NOT overload the maximum power of the external power
supply while the system is consuming high voltage. Be aware of the maximum temperature
allowance of the power supply.
See to it that the product is not working near the water.
Always unplug power cable and other hardware cables from the system before cleaning.
Apply only dry cloth for cleansing the product.
Make sure that there is no heat source nearby when the product is working.
Make sure that the thermal louver of the product is not blocked.
Make sure to remove the power plug from the product when there is a thunder st orm.
Please remove the power plug from the product when you are not going to use the product for a
long time.
Make sure to set up or use the product on a stable surface.
Make sure not to drop the product or strike it by any means.
Make sure not to move the product when the power is on.
Make sure not to step on the power cables and other cables or rest anything in them..
Please contact qualified technician for maintenance or repair.
Use only accessories and parts that are made by the qualified manufacturer.
iii
TABLE OF CONTENT
USER’S NOTICE .......................................................................................................................ii
PACKAGE CONTENTS ............................................................................................................ii
SAFETY INSTRUCTION ...........................................................................................................iii
CHAPTER 1 BRIEF INTRODUCTION
1-1 PRODUCT FEATURES...............................................................................................1
1-2 SPECIFICATION.........................................................................................................4
1-3 FRONT PANEL DIAGRAM.........................................................................................5
1-4 REAR PANEL DIAGRAM...........................................................................................5
CHAPTER 2 HARDWARE INSTALLATION
2-1 TO OPEN THE CHASSIS ...........................................................................................6
2-2 TO INSTALL MEMORY MODULE(S).........................................................................7
2-3 TO INSTALL HARD DISK DRIVE ..............................................................................8
2-4 TO INSTALL WIFI ANTENNA ....................................................................................10
2-5 TO RESTORE REMOVABLE CHASSIS COVER ......................................................10
2-6 TO ASSEMBLE THE STAND.....................................................................................12
2-7 TO VESA MOUNT THE SYSTEM...............................................................................13
CHAPTER 3 I/O CONNECTION AND REMOTE CONTROL
3-1 REAR PANEL CONNECTION....................................................................................15
3-2 FRONT PANEL CONNECTION..................................................................................18
NOTICES ..............................................................................................................................19
iv
Chapter 1 Brief Introduction
1.1 Product Features
Thank you for purchasing the system, a new product developed, designed and manufactured under
leading technical power and consistent dedication to fine workmanship. The system provides you
HTPC enjoyment and stunning game-playing experience. It can also serves as home server for
data gather with its expandable Wi-Fi function.
This product has functions of general barebone systems, also a powerful system with competitively
advantage in:
HTPC Experience:
The system has both VGA and HDMI connector, supports optical SPDIF W/192KHz Audio output
and true 1080P high resolution video playback with integrated ION Graphic processor the powerful
chipset which ensures you brilliant video playback without lag at the same time CPU usage rate is
pretty low.
Game-Playing:
The system supports most online games and PC games with smooth playback better than that of
most average configured personal computer available on current market while CPU usage rate is
much lower.
Home Server:
The system can work as WiFi home server in the family with WiFi antenna attached. With this WiFi
network, computer in different rooms of the house can easily realize data sharing. You can easily
access to the downloaded HD movies stored in the HDD of The system, or watching other shared
videos stored in your PC via this function on high definition screen.
1
The system has the following features besides other basic functions:
HDMI: The system comes with an HDMI output connector to realize full HD1080P high-definition
multimedia home theatre enjoyment. User can enjoy seamless playback of HD DVD and Blu-ray
disk in the living room by connecting system to LCD TV set with an HDMI cable for
non-compressed, full digital audio and video movie transmission.
SPDIF W/192KHz Audio output: The system supports optical SPDIF OUT 192KHz/24bit, auto
detecting peripheral devices and multi-streaming technology that transferring audio signals in
different directions. With this function you can enjoy playing games with multi-channel audio effect
on and talking to your friend with a microphone at the same time. It makes you feel that you were
right on the scene when you are watching HD movies with its multi-channel Hi-visual dramatic
audio output. All these thrilling functions can be realized with the system.
2
WiFi: the Mini PCI-E onboard socket in the board is integrated a with a WiFi card(802.11 b/g/n)
that can act as a mini wireless modem when external antennas are connected. Different
computers in the house can build wireless connections through the system and take necessary
data from it, thus reducing the complexity in network establishment.
Giga LAN: The system is integrated with Gigabit LAN network controller with ACPI management
realizing efficient power management for the operating system.
USB2.0: The system supports USB 2.0 function compatible for both USB 2.0 devices and USB 1.1
interface devices. Users can enjoy high speed data transmission rate up to 480Mb/s. Users can
also connect USB 2.0 storage device to the system via USB cable to create a data bank for
storage of download movies.
MMC/SD/MS 3 in 1 card reader: Users can easily insert the MMC/SD/MS card to the front panel 3
in 1 card reader to view the photos taken or video recorded. User can watch them through LCD TV
screen and make certain edition when it is shown. With a LCD TV you can realize better picture
quality for the video and photos.
CPU Usage: The CPU Usage diagram shows a beautiful data curve that indicate a pretty low CPU
usage percentage for 1080p HD video playback when running the system with a 24’’ LCD monitor
to play files of different formats, GPU performances are excellent as well.
dB Value: The design of the system takes into consideration the needed quiet operating
environment in the living room and the average dB value is below 26 under normal operation to
ensure the tranquility when you are absorbed in film watching.
Remote Control: The remote control makes it possible for users to power on/off and switch from
different functions with ease.
3
1.2 Specification
CPU
Chipset
Memory Slots
Ethernet LAN
Bios
Product Size
Front I/O port
Rear I/O port
VIA Nano CPU Series
VIA VX900H W/HDCP
2 * SO-DIMM DDRIII Memory slots support 2 * SO-DIMM DDRIII 800
memory modules up to 4GB
Realtek Gigabit LAN chip
AMI 8MB flash ROM
205(W)*185(D)*30(H)mm
2 * USB 2.0 ports
1 * Power button
1 * card reader(SDC/MMC/MS)
1 * MIC and 1*headphone
1 * power LED
2 * USB 2.0 ports
1 * HDMI + VGA port
1 * LAN port
1 * E-SATA/USB shared port
1 * Antenna Hole
1 * power connector
Power Supply
Standard Accessories
Optional Accessories
Certificate
1 * 12V DC-in
1 * 60W AC-DC Adapter
1 * power cord
1 * remote control
1* stand
WIFI antenna
Wireless keyboard/Wireless microphone/Wireless microphone receiver
VSEA mount bracket
CE,FCC for barebone
CE,FCC,TUV,UL,CCC,CB for power adapter
Comply with Eup standards
Notice: The following diagrams are for illustration use only. Please refer to the product you
purchase for actual specification.
4
r
r
r
1.3 Front Panel Diagram
Remote Senso
Powe
Switch W
/Power LED
MIC
Line-out /Optical SPDIF out
shared connector
1.4 Rear Panel Diagram
Antenna Hole
HDMI
Connector
USB Connectors
Card Reader Slot
VGA
Connector
E-SATA/USB
RJ-45 LAN
Connecto
DC12V Jack
USB Connectors
5
6
Chapter 2 Hardware Installation
WARNING! Please turn off the system and make sure that power cord is unplugged before
hardware installation to ensure safety.
2.1 To Open the Chassis
1. Place the system on a flat surface and put the
side with removable cover upwards. Put
down the front panel I/O shield.
2. Push the removable panel in the direction
towards the back panel. You can easily open
the chassis in this way.
7
2.2 To Install Memory Module(s)

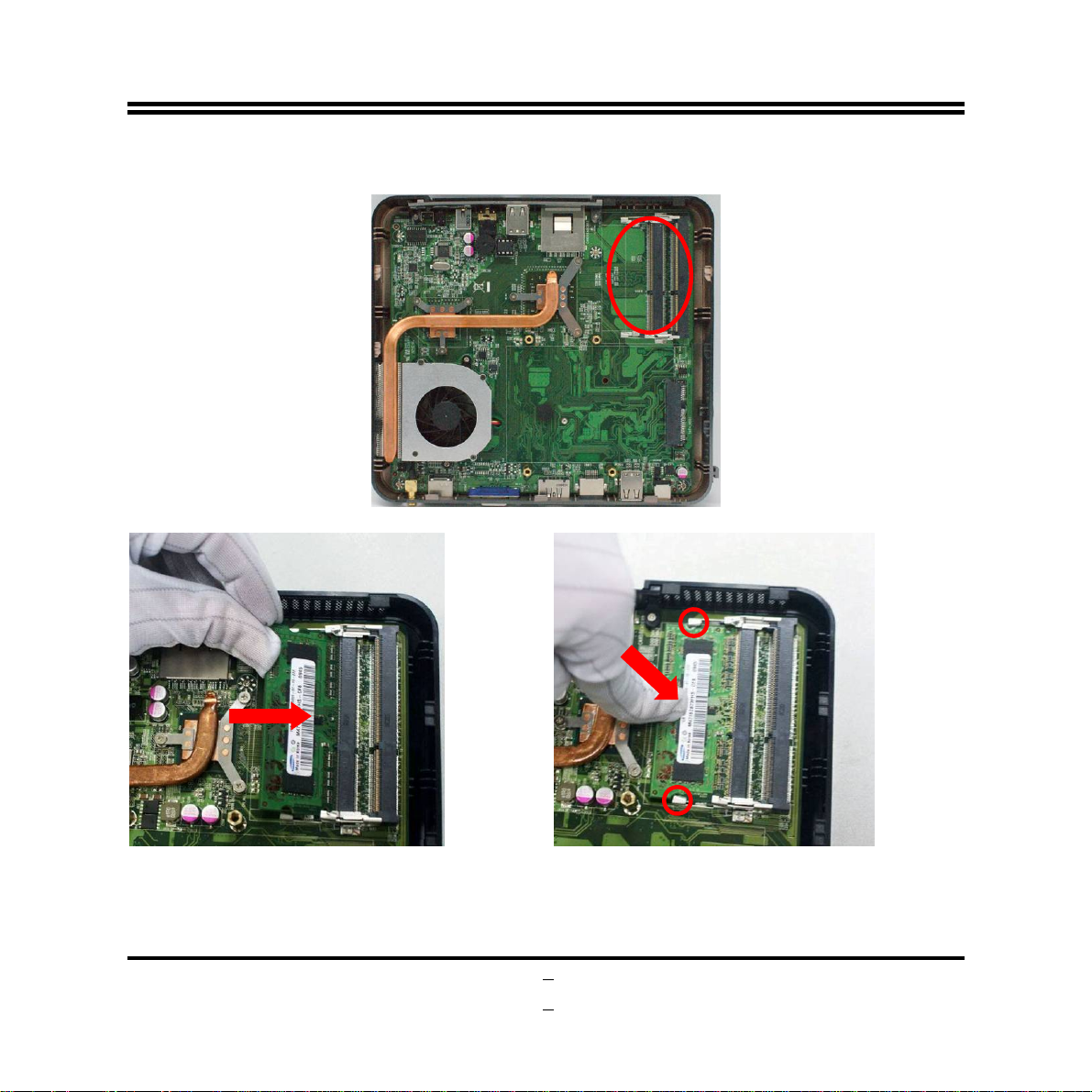

1. Locate the SO-DIMM memory slot(s) on the board.
3. Insert the gold-figure side of the compatible
DDRIII SO-DIMM into the slot at a 30
degree.
4. Press down as the photo shows. The eject
tabs will lock it if installed correctly.
Notice:
When installing, align the notch on the module matches the break on the slot. Memory module
z
can only be installed in such a direction. If not, it will cause serious damage to module and the
board.
When you install memory module fully into the DIMM socket the eject tab should be locked into
z
the module very firmly and fit into its indention on both sides.
2.3 To Install Hard Disk Drive
1. Locate HDD connector on the motherboard
as the photo shows.
2. The SATA hard disk and the hard disk racks
(see to it that the marked screw holes on
rack and the corresponding holes on both
edges of HDD).
8
3. Lock the SATA hard disk to one of the racks
by tightening the screws in the marked
position.
5. Fit the hard disk into HDD connector on the
motherboard in this direction.
4. Lock the SATA hard disk to the other rack by
tightening the screws in the marked position.
6. Lock the racks to the board by tightening up
the screws in the marked position with a
screwdriver.
9
2.4 To Install WIFI Antenna
1. Locate the marked antenna hole on back
panel.
2. Then connect the external WiFi receiver
antenna to it.
2.5 To Restore Removable Chassis Cover
1. Gently put the removable cover back to
the chassis
2. This edge with 3 plastic equidistant notches
should be parallel to edge of the chassis’ back
panel.
10
Front Panel
Back Panel

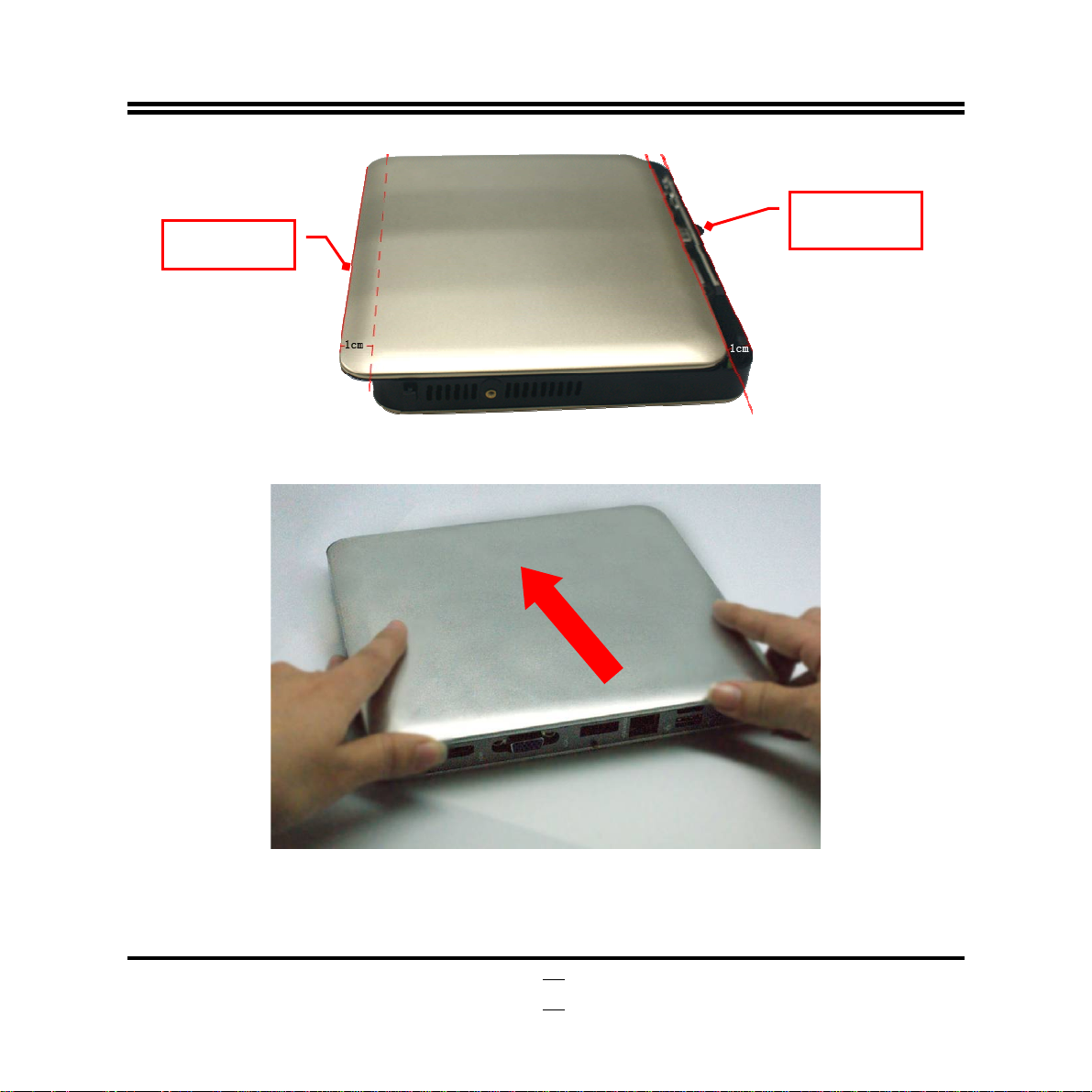

3. Place the removable cover upon the chassis. See to it that the left and right edges of the cover
should be parallel to those of the chassis and there should be a distance of about 1 cm left
between the front edge and the front panel of the chassis as the photo shows.
4. Put the side of I/O back panel towards you and push the removable cover of the chassis in the
direction forwards.
11
2.6 To Assemble the Stand

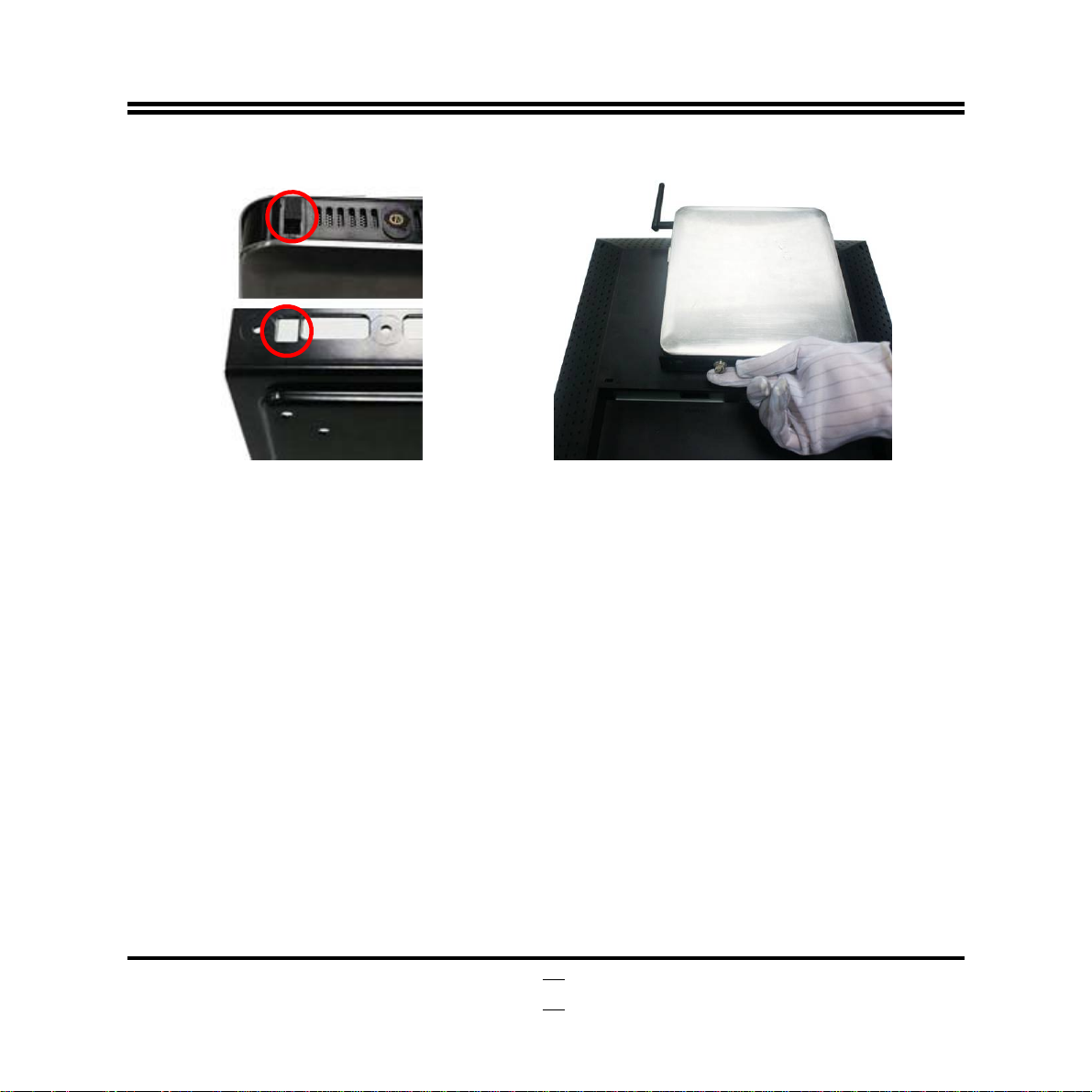

1. See to it that the marked square space
fitted into the square notch on the chassis.

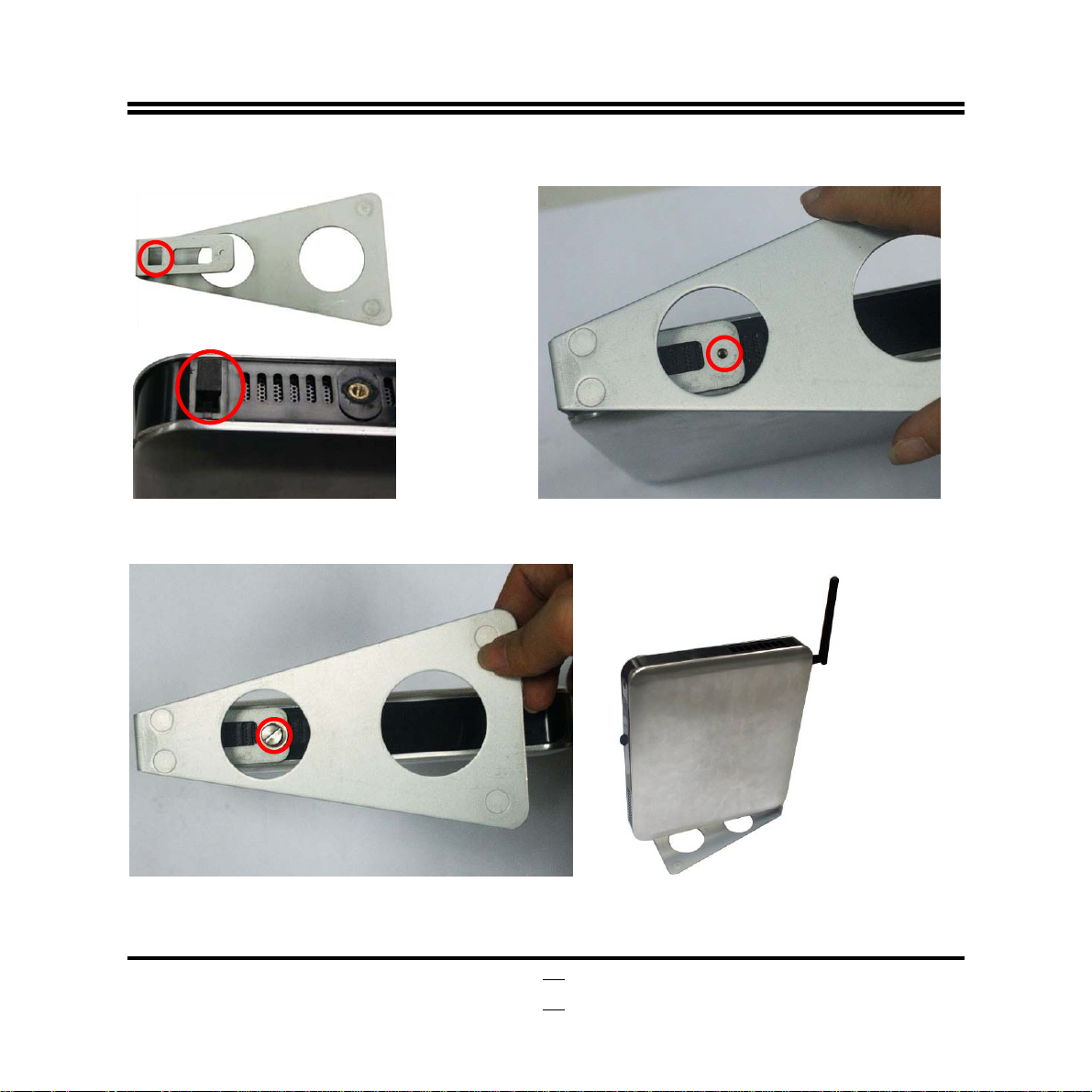

3. Lock the stand to the chassis by tightening up a
screw to the marked place.
2. See to it that the marked tiny round space and
12
the screw hole in on the chassis are in the
same place.
4. The photo of the system supports with
stand installed.
2.7 To VESA Mount the System

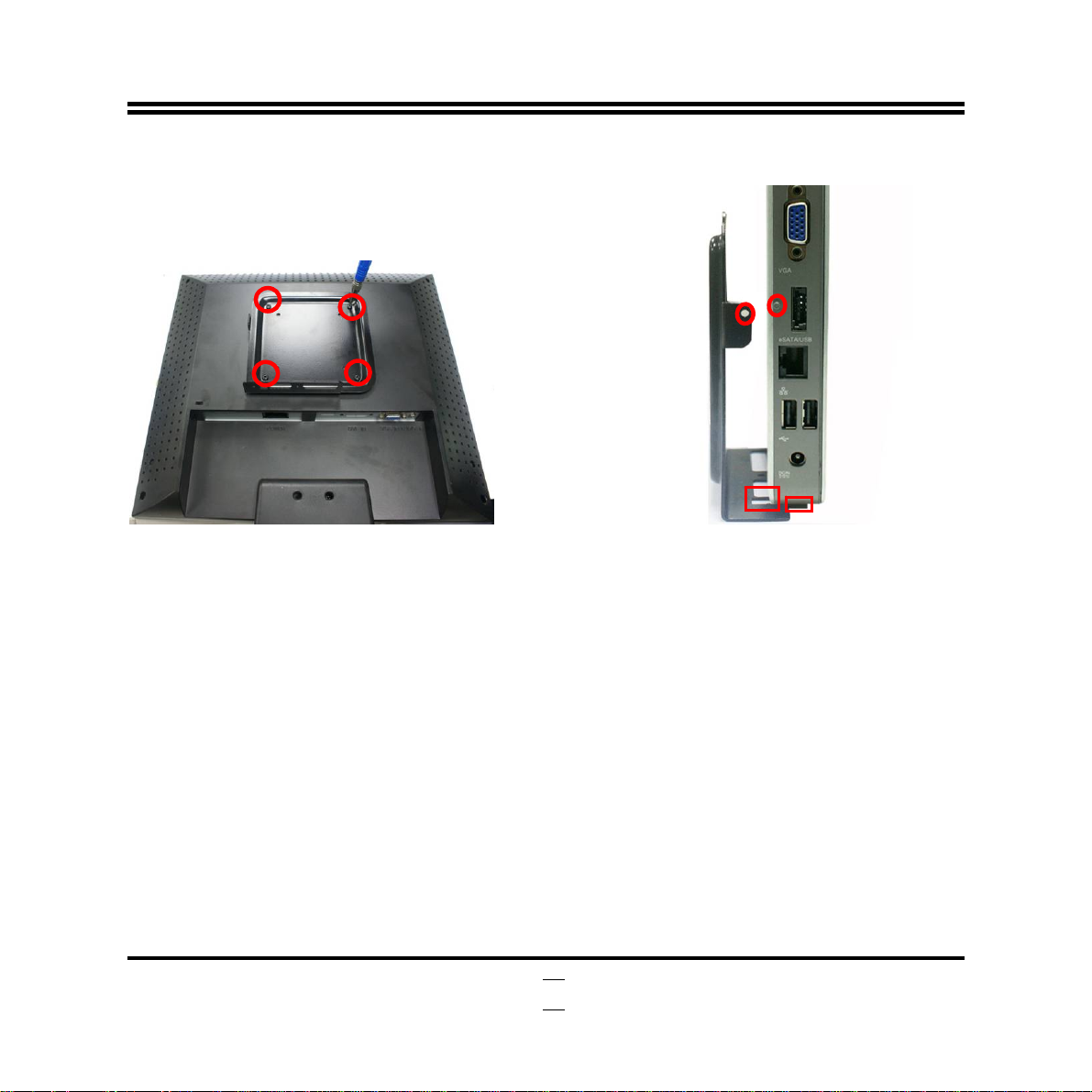

1. Attach the chassis rack to the back of monitor by
tightening up the screws in the marked position.
13
2. See to it that the square notch on the
chassis is fitted into the marked square
space on the stand and marked notch
on the back panel of the chassis fitted
in the round space of the VESA mount
rack.
3. The square notch on the chassis and the
square space on the stand.
4. Lock the chassis to the rack by tightening up
the screw in the marked position.
14
Chapter 3 I/O Connection and Remote Control
After needed hardware installed inside the chassis, you can proceed on to connect cables to the
rear panel and power on the system.
3.1 Rear Panel Connection
USB Connector: There are 3*USB connectors on rear IO panel (one is USB/E-SATA shared connector
that functions according to device connected) and 2*USB connectors on the fro nt panel to connect USB
mouse, keyboard and other USB storage devices to the system.
RJ-45 Connector: The connector is standard RJ-45 connector for network. Please connect to the
network cable to this connector.
15

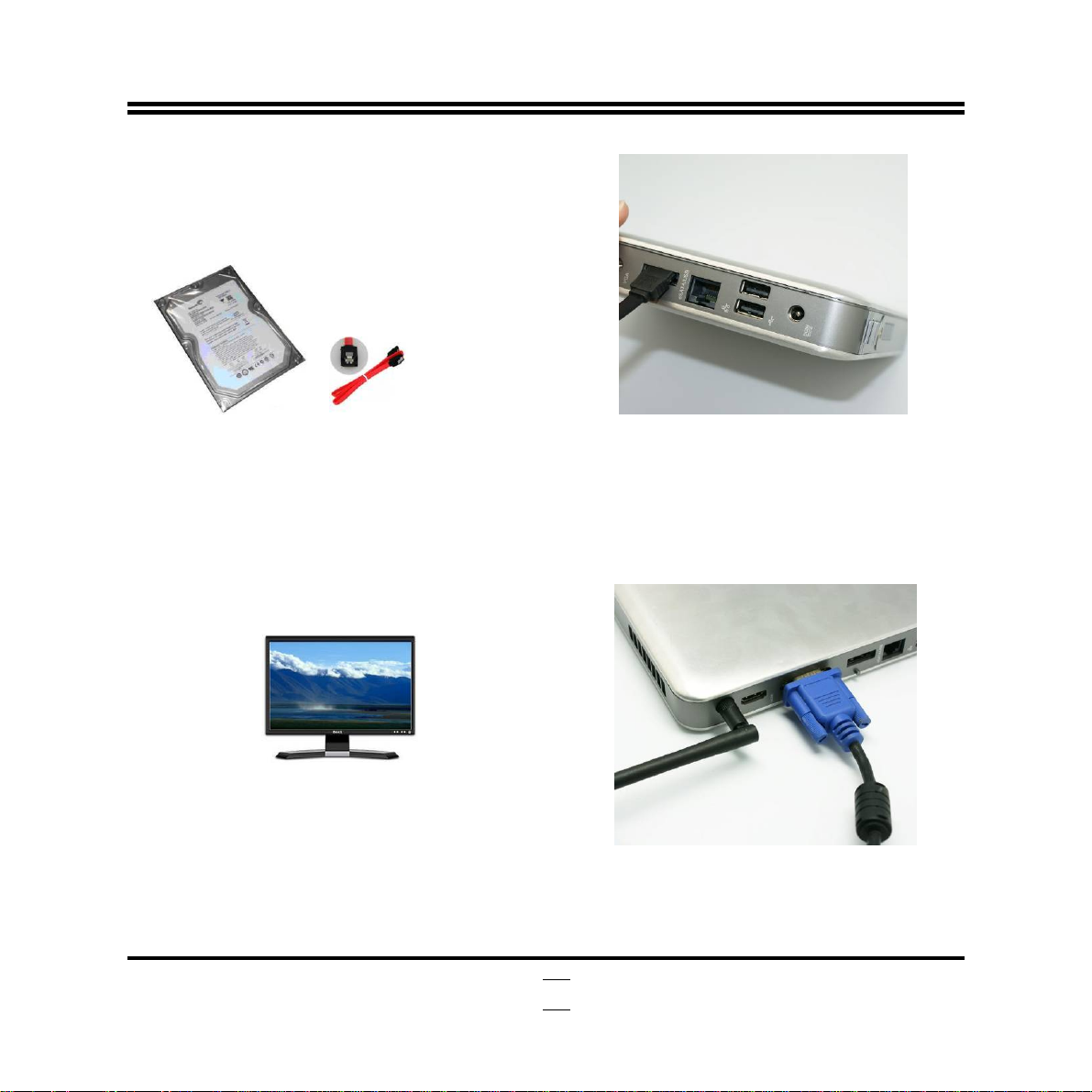

USB/E-SATA Shared Connector: The function of this connector depends on different device connected
to this connector through different cable.
It could function as:
E-SATA connector when a compatible ESATA hard disk is connected to it through SATA cable .
USB connector when a compatible USB device is connected to it through USB cable.
VGA Connector: VGA connector is the 15-pin D-sub female connector; it is for the display devices,
such as the CRT monitor, LCD monitor and so on.
16
7

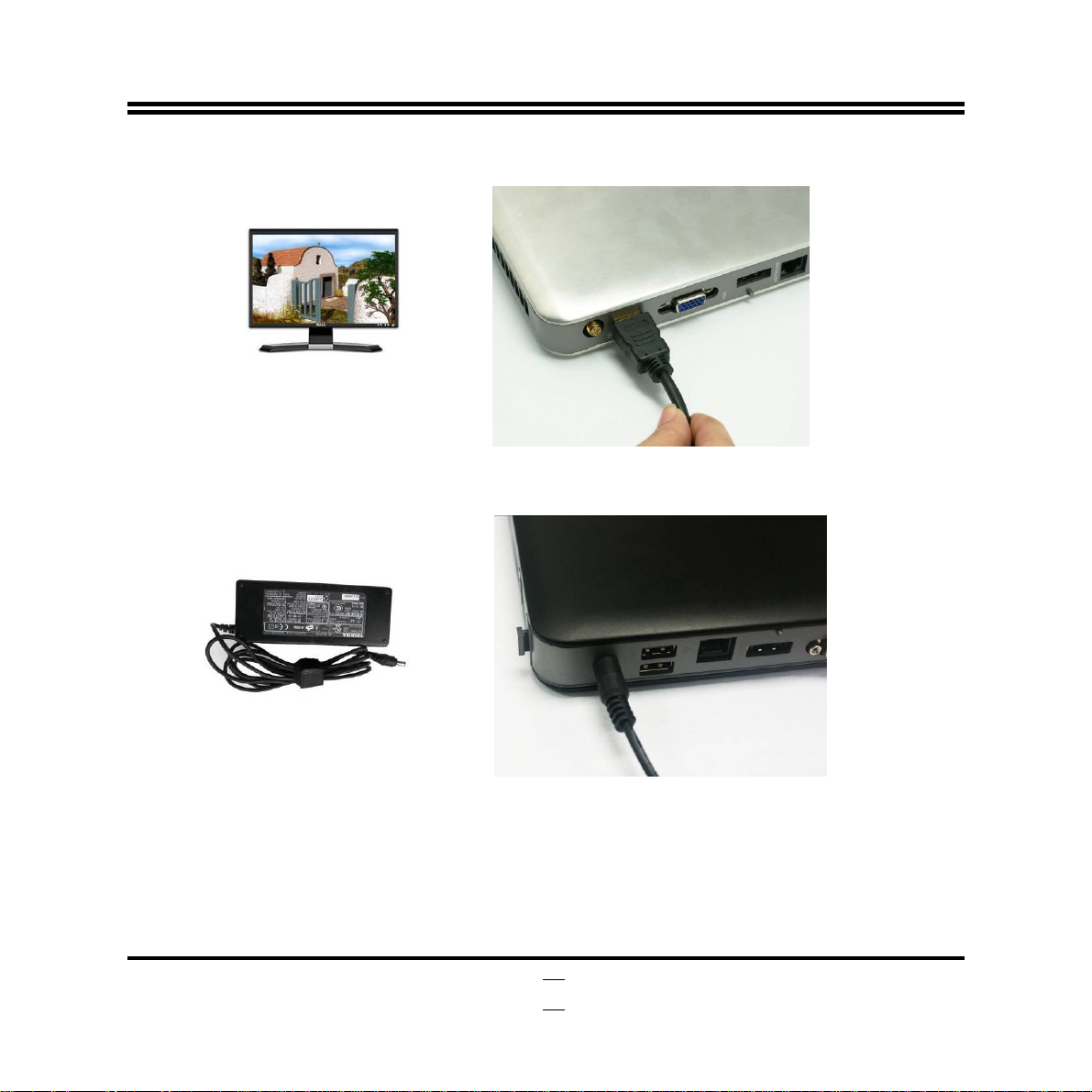

HDMI (High-Definition Multimedia Interface): This point-to-point interface is for audio and video signals
designed as a single-cable solution for home theater and consumer electro nics equipment.
DC12V Jack: Connect the power adapter to DC12V jack after connecting connector power cord to
adapter. Then Turn on the system either by power switch on front panel or remote control when all
necessary configuration are made.
1
3.2 Front Panel Connection
Remote Sensor
Power on Switch W/
Power LED
MIC Connector
Line-out/SPDIF_Out
shared Connector
USB Connectors
Card Reader Slot
Card Reader Slot: to insert the MMC/SD/MS card to the front 3 in 1 card reader.
USB Connectors: to connect USB mouse, keyboard and other USB storage devices to the system.
Line-Out /Optical SPDIF out shared Connector: this connector can function as ordinary audio
line-out connector or optical SPDIF out connector depending on different device connected to it:
Audio Line-out connector: by connecting stereo speakers or headphones.
Optical SPDIF out connector: by connecting Realtek 6-Channel HD Audio CODEC w/ SPDIF out
audio output device for superior audio enjoyment.
MIC Connector: User can connect microphone device to this port.
Power on Switch: after needed hardware installed and correct configuration made, you can power on
the system to enjoy multi-functions the system brings to you.
Remote Sensor： to receive instruction signal from remote control.
18
Notices
General Notices
European Union CE Marking and Compliance Notices
Products intended for sale within the European Union are marked with the Conformity European (CE)
Making, which indicates compliance with the applicable Directive and European standards and
amendments identified.
Shielded Cables Notice
All connections to other computing devices must be made using shielded cables to maintain
compliance with FCC regulations.
Peripheral Devices Notice
Only peripherals (input/out devices, terminals, printers, etc) certified to comply with Class B limits may
be attached to this equipment. Operation with non-certified peripherals is likely to result in interference
to radio and TV reception.
Wireless Related Information
Wireless Interoperability
Wireless LAN PCI Express Mini Card is designed to be interoperable with any wireless LAN product
that is based on Direct Sequence Spread Spectrum (DSSS), Complementary Code Keying (CKK),
and/or Orthogonal Frequency Division Multiplexing (OFDM) radio technology, and is compliant to:
The IEEE802.11a/b/g/n Standard on Wireless LANs was defined and approved by the Institute of
Electrical and Electronics Engineers.
The Wireless Fidelity (WiFi) certification as defined by the Wi-Fi Alliance.
Usage Environment and Your Health
Wireless LAN PCI Express Mini Card emits radio frequency electromagnetic energy like other radio
devices. However, the level of energy emitted is far much less than the electromagnetic energy emitted
by wireless devices like for example mobile phones.
Due to the fact that Wireless LAN PCI Express Mini Card operates within the guidelines found in radio
frequency safety standards and recommendations, we believe the integrated wireless cards are safe
19
for use by consumers. These standards and recommendations reflect the consensus of the scientific
community and result from deliberations of panels and committees of scientists who continually review
and interpret the extensive research literature.
In some situation or environment, the use of Wireless LAN PCI Express
Mini Card may be restricted by the proprietor of the building or responsible representatives of the
organization. These situations may for example include:
Using the integrated wireless cards on board of airplanes, or in h ospitals
In any other environment that the risk of interference to other devices and service are perceived or
identified to be harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific organization
(e.g., airport or hospital), you are encouraged to ask for authorization to use Wireless LAN PCI Express
Mini Card prior to turning on the computer.
Electronic Emissions Notices
European Union Compliance Statement Class B Compliance
European Union – Compliance to the Electromagnetic Compatibility Directive
This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on
the approximation of the laws of the Member States relating to electromagnetic compatibility. We
cannot accept responsibility for any failure to satisfy the protection requirements resulting from a
non-recommended modification of the product, including the installation of option cards from other
manufacturers.
This product has been tested and found to comply with the limits Class B Information Technology
Equipment according to European Standard EN55022. The limits for Class B equipment were derived
for typical residential environments to provide reasonable protection against interference with licensed
communication devices.
Properly shielded and grounded cables and connectors must be used in order to reduce the potential
for causing interference to radio and TV communications and to other electrical or electronic
20
equipment.
FCC Rules and Regulations-Part 15
This devices uses, generates and radiates radio frequency energy. The radio frequency energy
produced by this device is well below the maximum exposure allowed by the Federal Communications
Commission (FCC)
z This device complies with the limits for the Class B digital device pursuant to Part 15 subject to the
following two conditions:
z This device may not cause harmful interference.
z This device must accept any interference received, including interference that may cause
undesired operation.
The FCC limits are designed to provide reasonable protection against harmful interference when the
equipment is installed and used in accordance with the instruction manual and operated in a
commercial environment. However, there is no guarantee that interference will not occur in a particular
commercial installation, or if operated in a residential area.
If harmful interference with radio or television reception occurs when the device is turned on, the user
must correct the situation at the user’s own expense. The user is encouraged to try one or more of the
following corrective measures:
z Re-orient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that on which the receiver is
connected.
z Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency. Any changes or modification to said product not expressly approved by
Intel could void the user’s authority to operate this device.
21
Loading...
