TECHNICAL MANUAL
Of
Intel 945GSE Express Chipset
&
Intel FW82801GBM ICH Chipset
Based
Mini-ITX M/B For ATOM Processor
NO.G03-NF33-F
Revision: 2.0
Release date: July, 2010
Trademark:
* Specifications and Information contained in this docume ntation ar e furnishe d for inf ormation use only , and ar e
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.
ii
TABLE OF CONTENT
ENVIRONMENTAL SAFETY INSTRUCTION...........................................................................iv
USER’S NOTICE .......................................................................................................................v
MANUAL REVISION INFORMATION.......................................................................................v
ITEM CHECKLIST.....................................................................................................................v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD................................................................................1
1-2 SPECIFICATION.........................................................................................................2
1-3 LAYOUT DIAGRAM....................................................................................................3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING.....................................................................................................7
2-2 CONNECTORS AND HEADERS................................................................................9
2-2-1 CONNECTORS .............................................................................................9
2-2-2 HEADERS .....................................................................................................10
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERNING SETUP...................................................................................................16
3-2 GETTING HELP ..........................................................................................................16

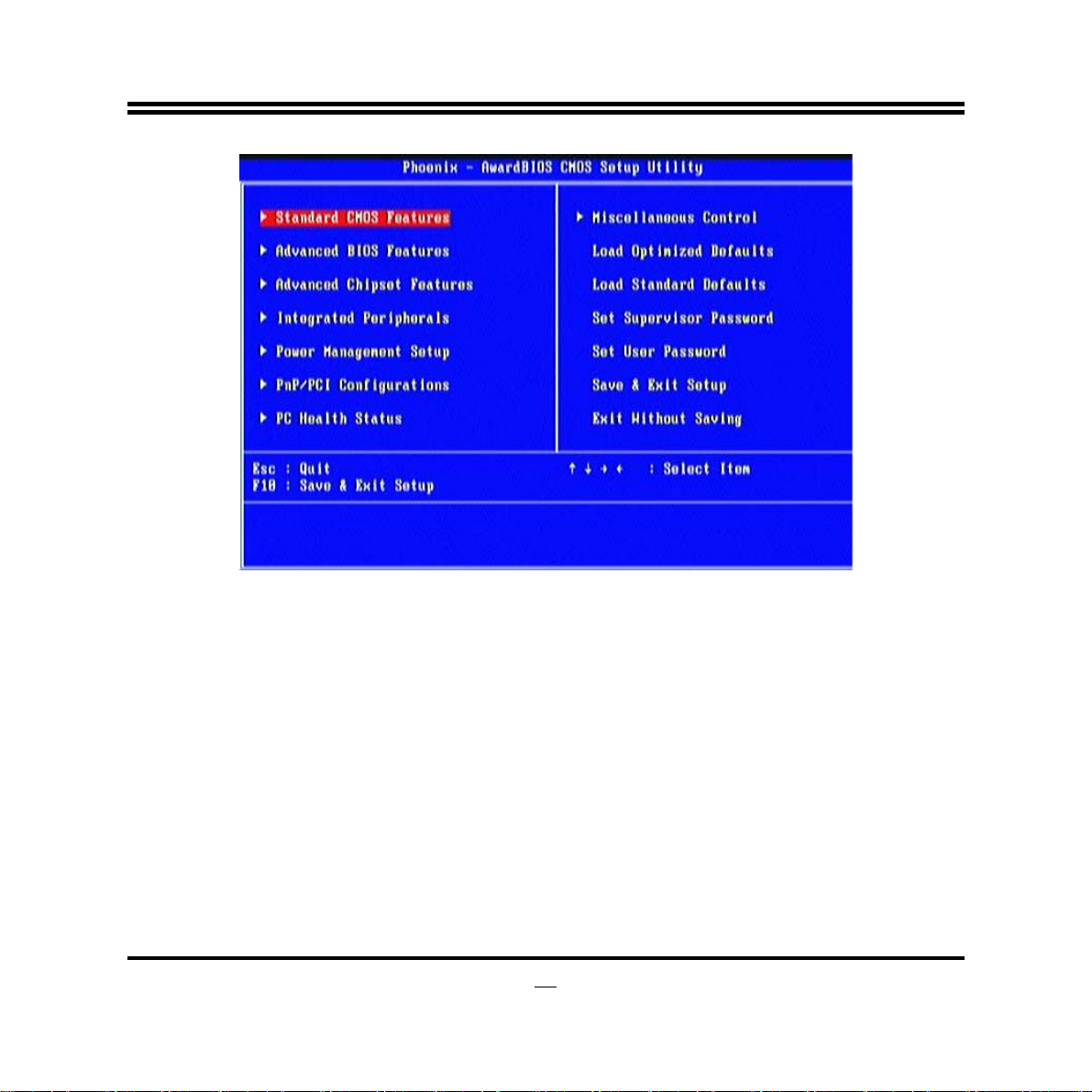

3-3 THE MAIN MENU........................................................................................................16

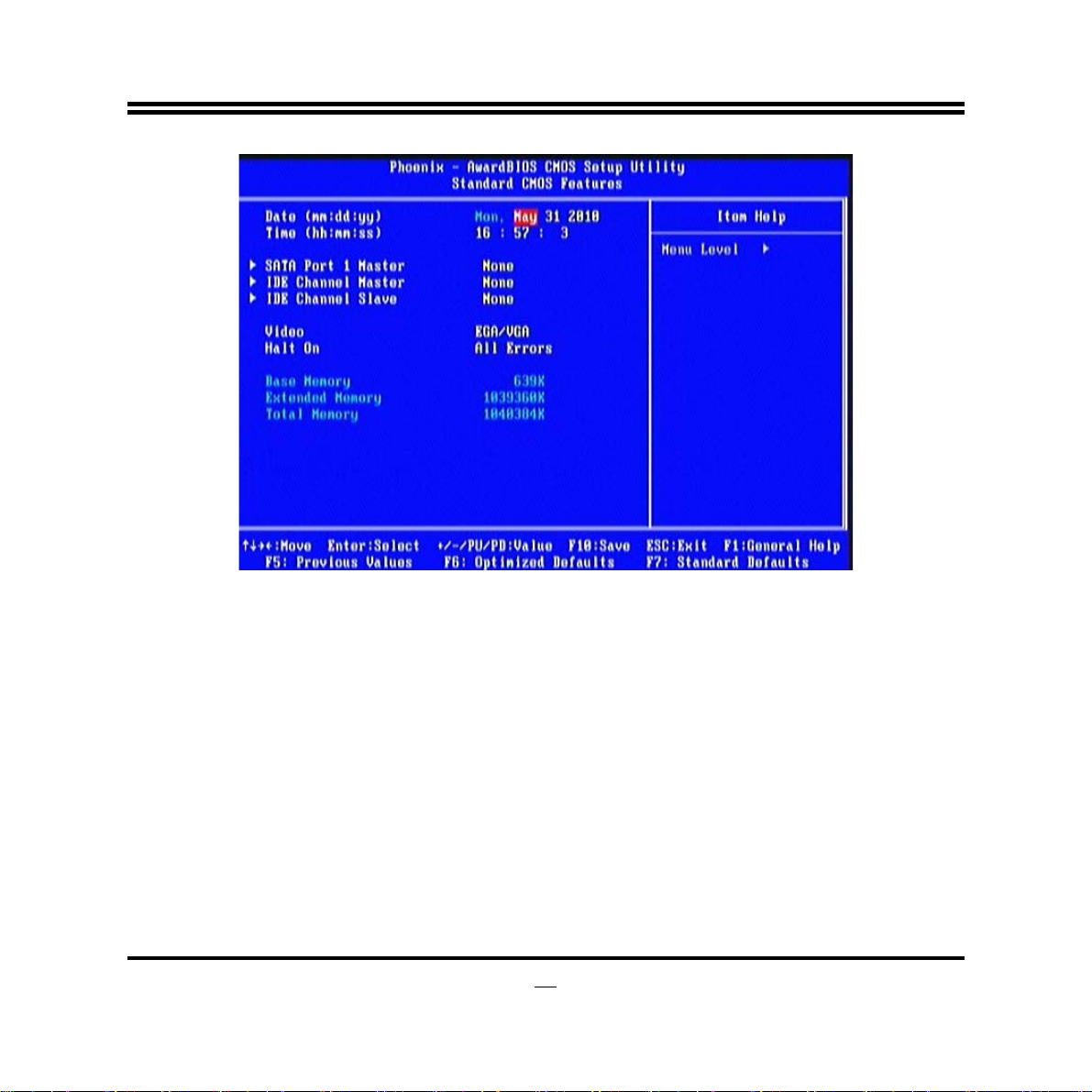

3-4 STANDARD CMOS FEATURES ................................................................................18
3-5 ADVANCED BIOS FEATURES..................................................................................20
3-5-1 CPU FEATURES.............................................................................................23
3-6 ADVANCED CHIPSET FEATURES...........................................................................23
3-7 INTEGRATED PHERIPHRALS ..................................................................................25
3-7-1 ONBOARD IDE FUNCTION............................................................................26

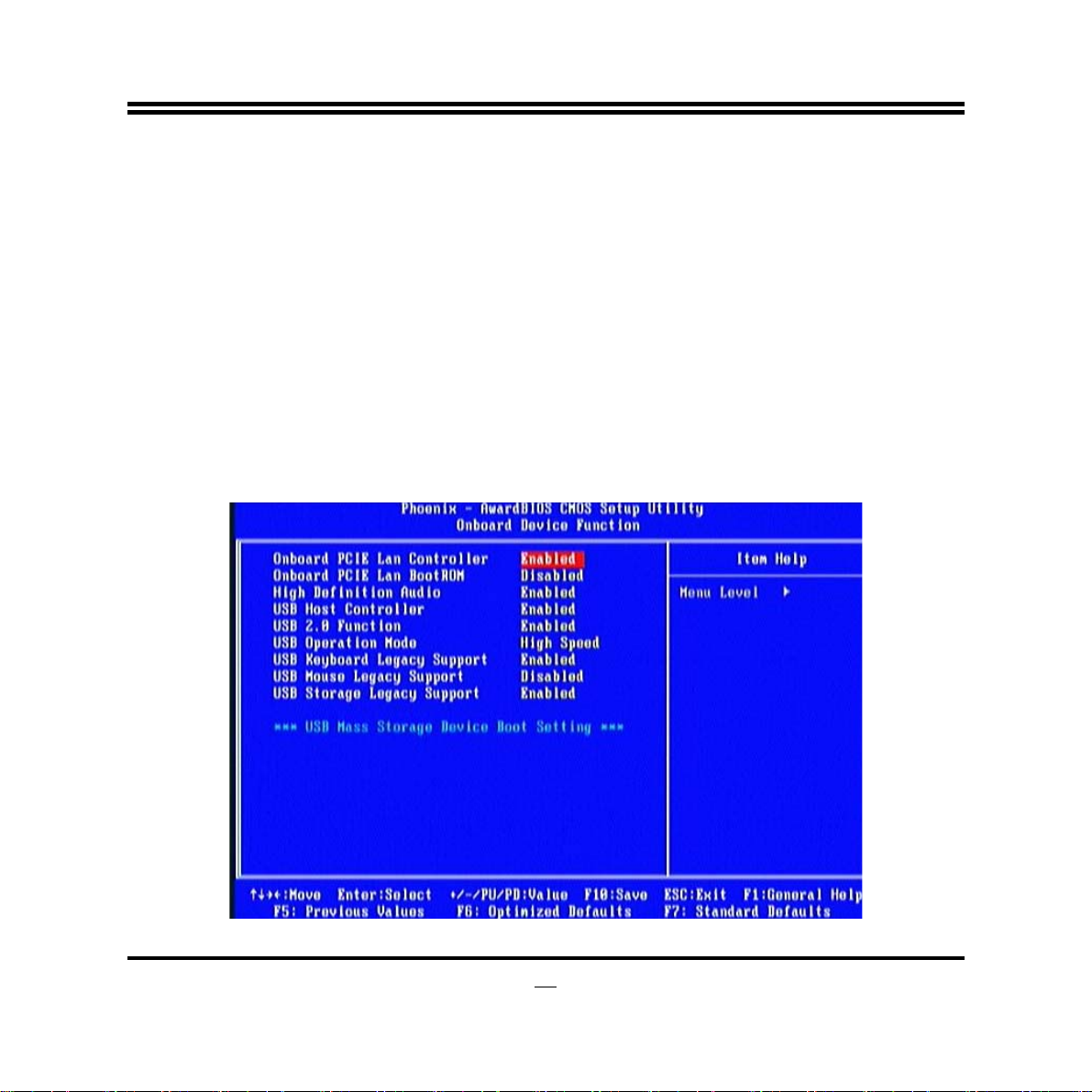

3-7-2 ONBOARD DEVICE FUNCTION.....................................................................27

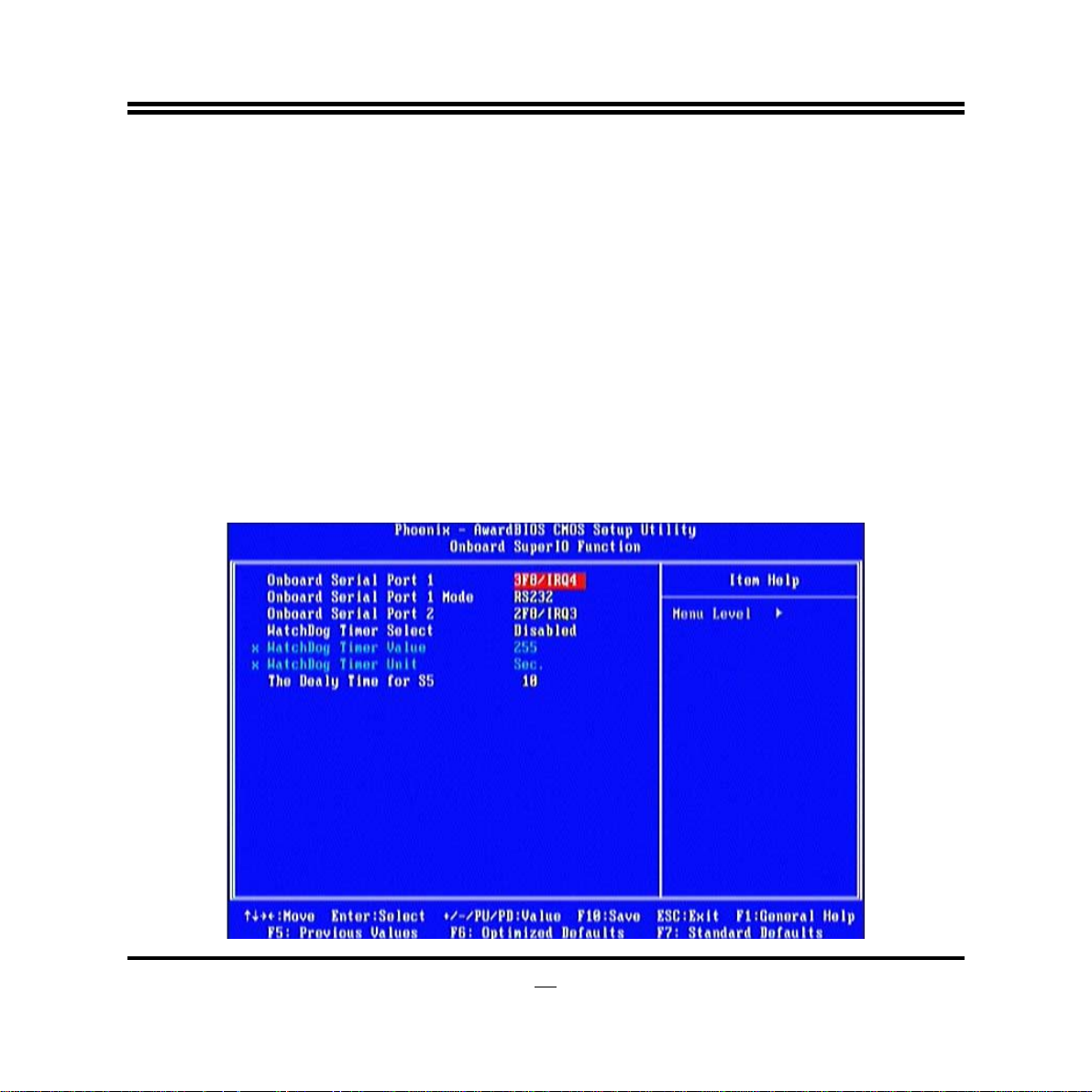

3-7-3 ONBOARD SUPERIO FUNCTION..................................................................28

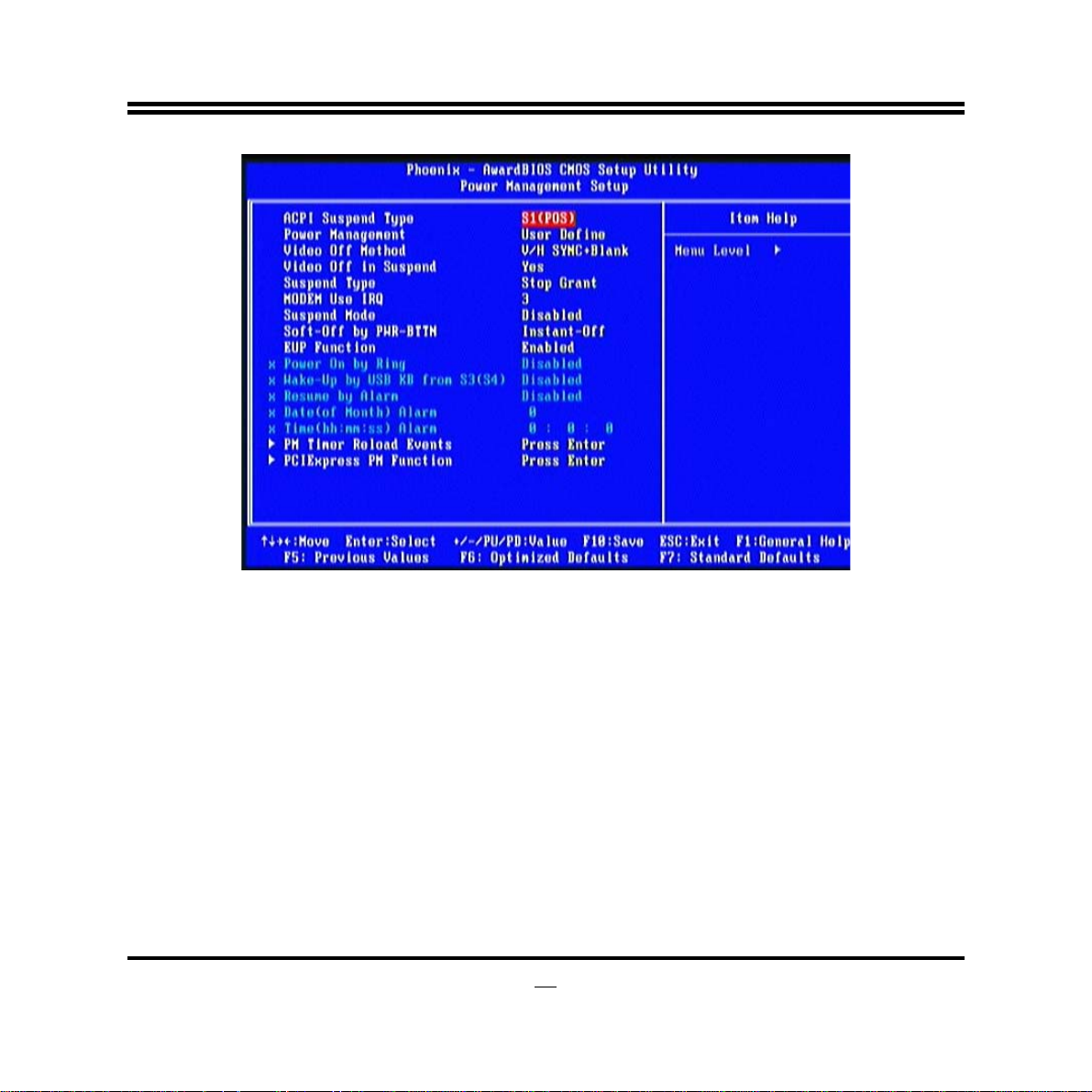

3-8 POWER MANAGEMENT SETUP...............................................................................29

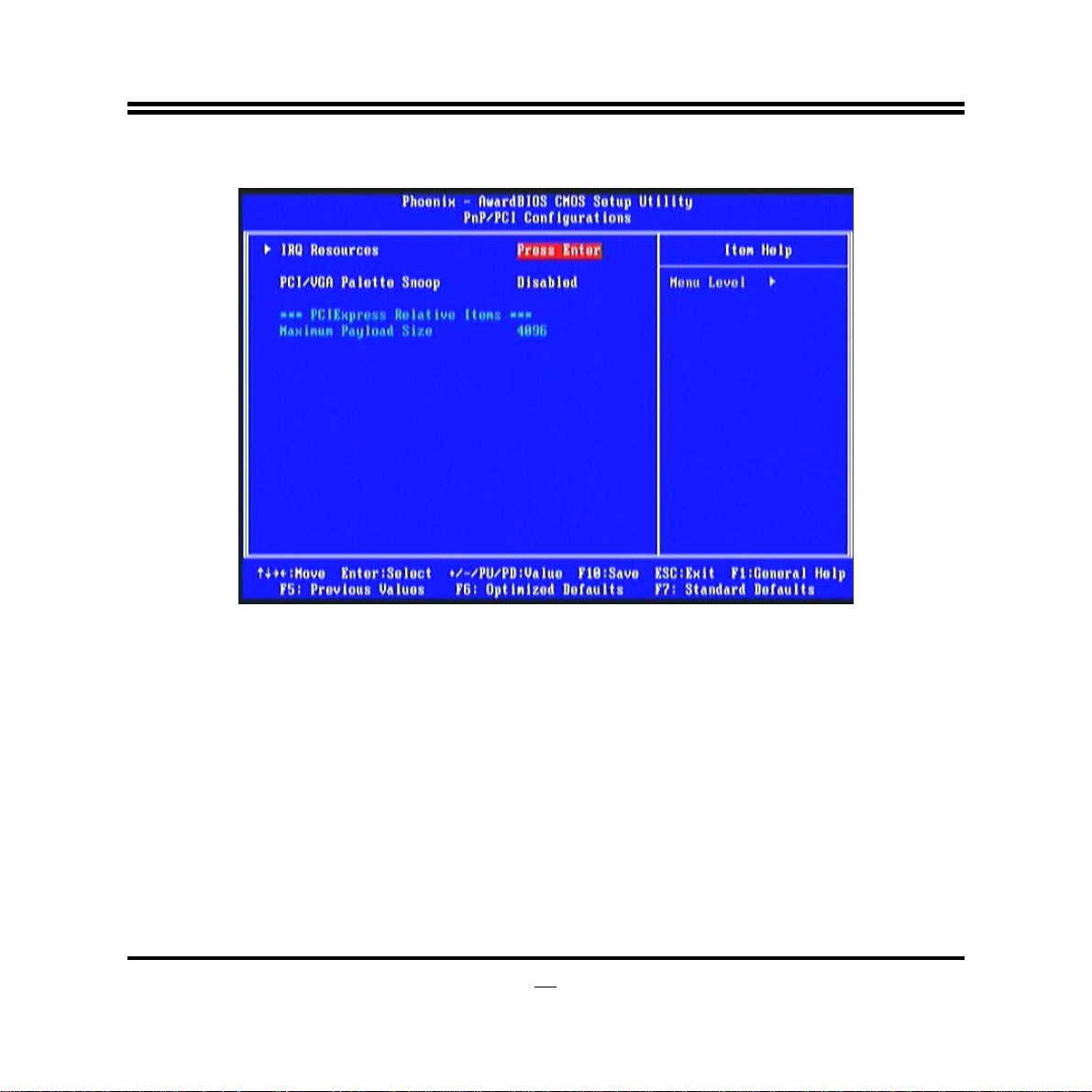

3-9 PNP/PCI CONFIGURATION.......................................................................................32

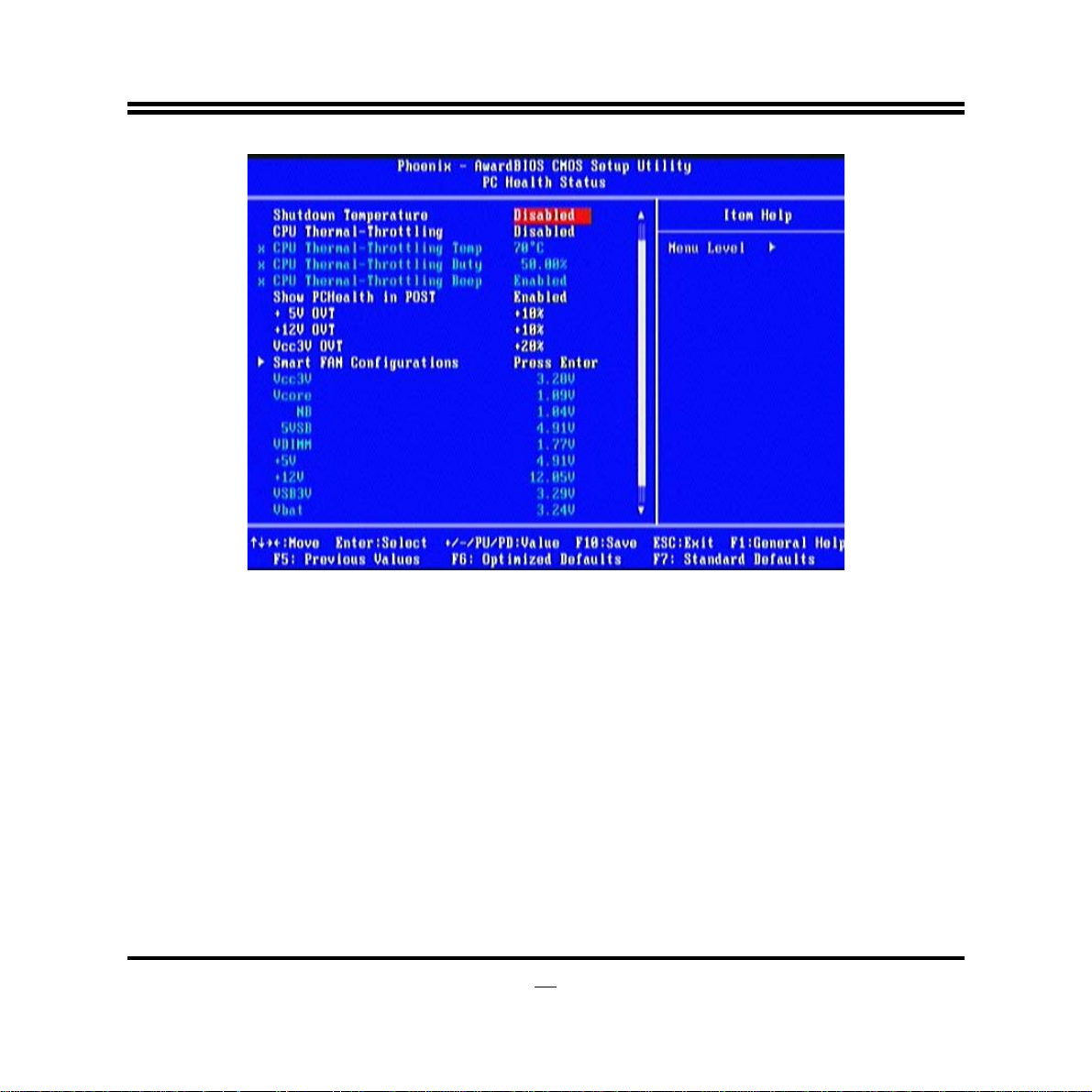

3-10 PC HEALTH STATUS.................................................................................................32

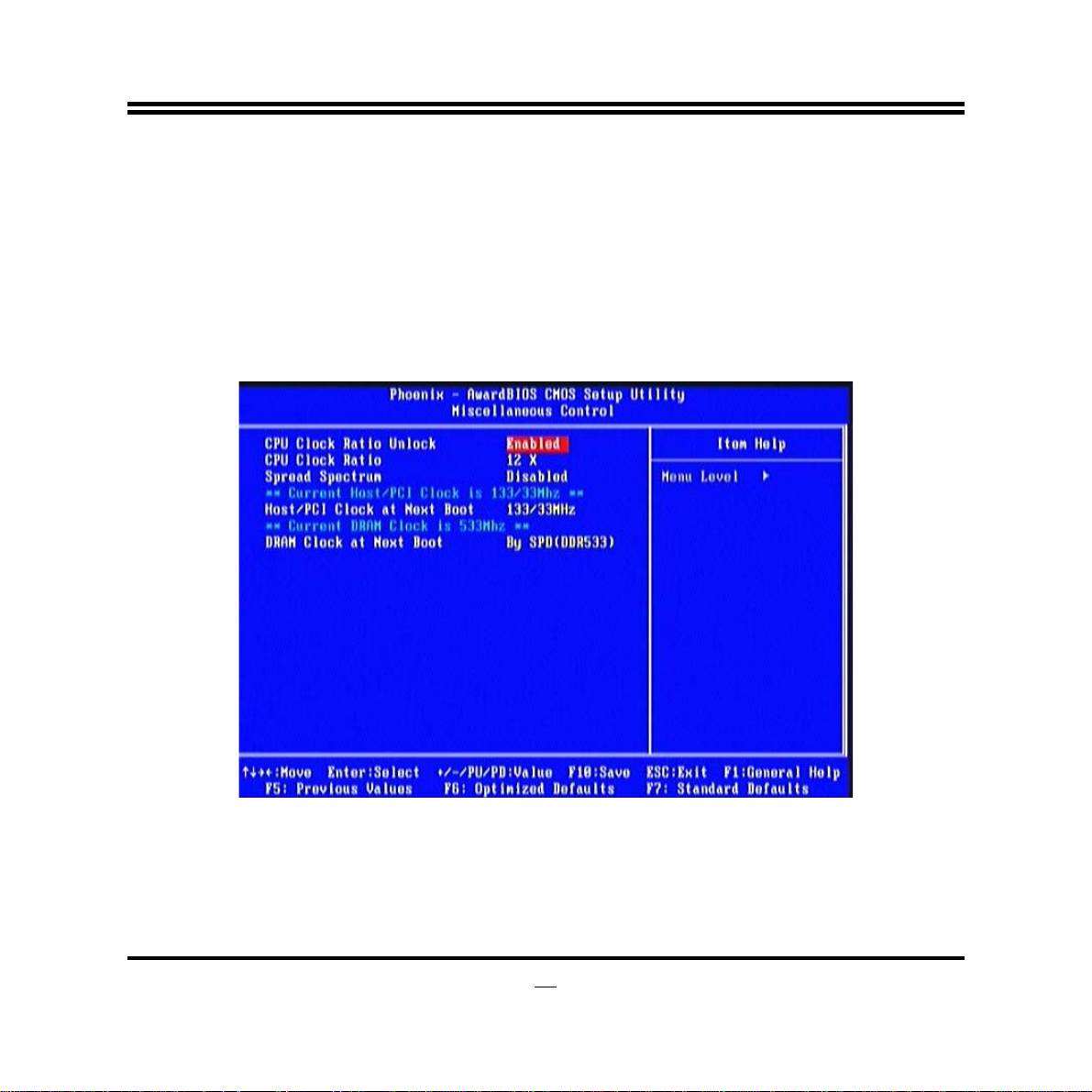

3-11 MISCELLANEOUS CONTROL...................................................................................34
3-12 PASSWORD SETTING...............................................................................................35
iii

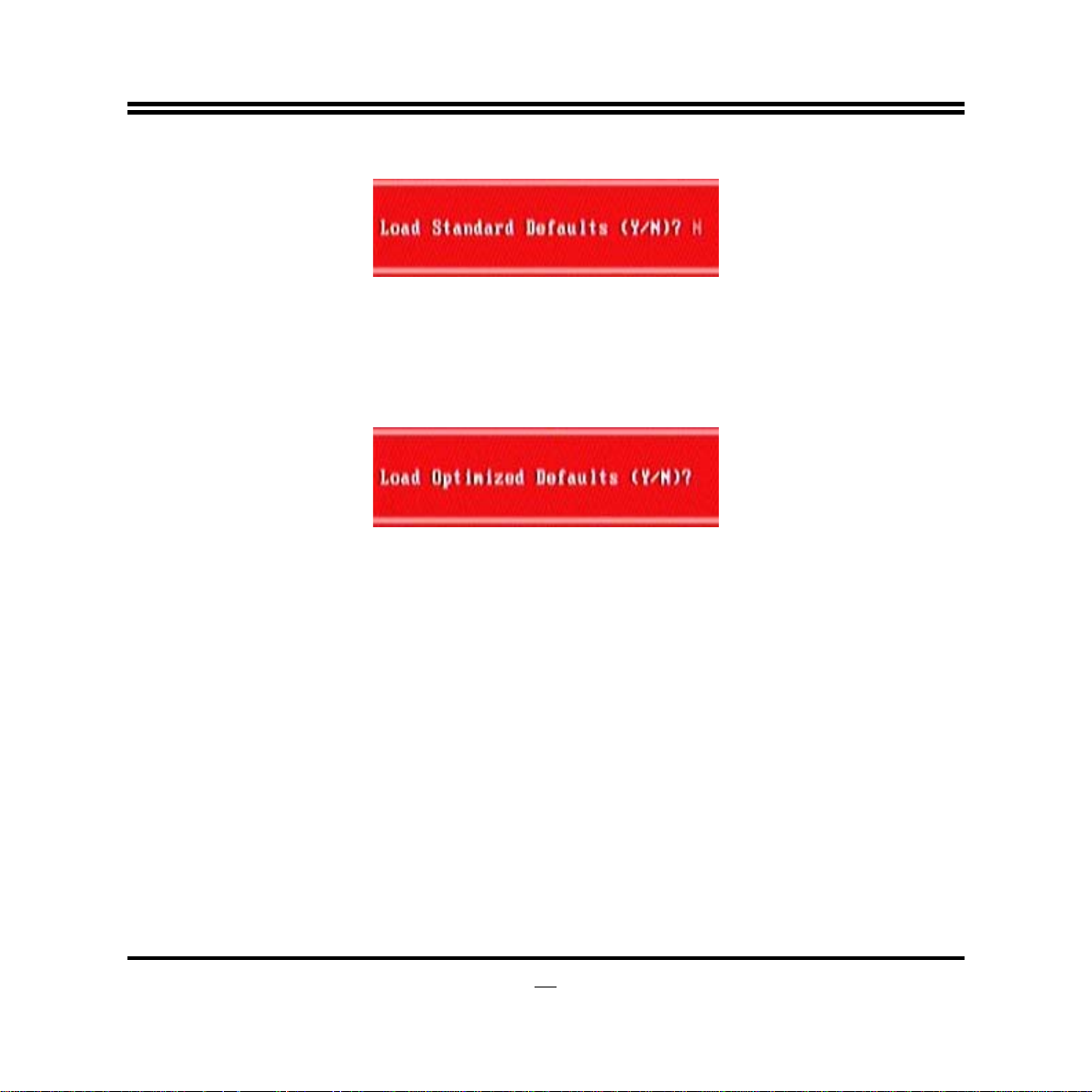

3-13 LOAD STANDARD/OPTIMIZED DEFAULTS ............................................................35
Environmental Safety Instruction
z Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
z 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
z Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
z The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
z Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.
iv
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE INTEL 945GSE CHIPSET
MOT HE R-B OAR D SERIES AND WE DO ASSURE THIS MANUAL MEETS U SER ’S RE QUI RE MEN T BUT W IL L
CHANGE, CORRECT ANY TIME WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “ AS IS”
WITHOUT WARRANTY OF ANY KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTI AL DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF
BUSINESS, LOSS OF USE OF DATA, INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
2.0 Second Edition July,2010
Item Checklist
5
Motherboard
5
Motherboard User’s Manual
5
CD for motherboard utilities
5
Cable(s)
v
Chapter 1
Introduction of the Motherboard
1-1 Feature of motherboard
Intel 945GSE+ICH7M chipset.
Onboard ATOM CPU, with low power consumption never denies high
performance.
Support FSB 533MHz.
Support SODIMM DDRII 400/533 up to 2GB.
Support CF card
Support Mini-PCIE card
Onboard REALTEK RTL 8111DL Gigabit Ethernet LAN chip.
Integrated ALC662 2-channel HD audio CODEC
Support USB2.0 data transport demands.
Support RS232/422/485 and watchdog.
1
1-2 Specification
Spec Description
Design z
Chipset
Embedded CPU
Memory Socket
Expansion Slots
Integrate IDE
LAN
HD Audio
BIOS z
Multi I/O z
3.5”SBC 6 layers; PCB size: 14.8x 10.2 cm
Intel 945GSE+ICH7M Chipset
z
ATOM CPU
z
200-pin DDRII SO-DIMM slot x1
z
Support DDRII 400/533MHz system Modules DDRII
z
memory
Expandable to 2GB.
z
CF card slot x1
z
Mini-PCI E slot x1
z
One PCI IDE controller that supports PCI Bus Mastering,
z
ATA PIO/DMA and the ULTRA DMA /100/66 functions that
deliver the data transfer rate up to 100MB/s.
Integrated Realtek RTL8111DL PCI-E Gigabit LAN.
z
Support Fast Ethernet LAN function of providing
z
10Mb/100Mb/1000Mb Ethernet data transfer rate
ALC662 2-channel HD Audio Codec integrated
z
Audio driver and utility included
z
Award 8MB DIP Flash ROM
DVI connector x1
USB 2.0 port x 4 and USB header x1
z
RJ-45 gigabit LAN connector x1
z
Audio connector x2 (Line out/MIC connector)
z
SATAII x1
z
VGA header x1
z
Front panel header x1
z
RS422/485 header x2
z
2
LVDS connector x1
z
GPIO connector x1
z
SYSTEM FAN header x1
z
1-3 Layout Diagram
Connector
DC12V
Power
RJ-45 LAN Connector
USB
Connectors
DVI+CRT
Connector
Line-Out
MIC
USB
Connectors
3
m
r
r
MIC-in
Line-out
USB
Connector
RJ-45
Connector
DVI Connector
USB
Connector
DC 12V Power
Connector
USB Header
JCOM1
TX-RX COM1
Serial port
Header
JCOMP1
Serial port
Heade
SATA
Connecto
SATA DISK
Power
Connector
Audio Header
JP1
LVDS Inverter
Mini PCIE slot
CF Card Slot
IDE Header
JP3
GPIO Header
JP2
VGA Header
LVDS Header
SO-DIMM Slot
Front Panel
Header
Syste
Fan header
Power on
Reset
4
Intel
FW82801GBM
Chipset
ATOM N270
Intel 945GSE
Chipset
5
6
Jumper
Jumper Name Description
JCOM1 COM1 RS232/422/485 Function Select 6-pin Block
JCOMP1 RS232 Power on Function Select 6-pin Block
JP1 Inverter VCC 12V/5V Select
3-pin Block
JP2 LVDS5V/3.3V Select 3-pin Block
JP3
CF Card Master/Slave Mode Select
3-pin Block
Connectors
Connector Name Description
DC12V2 DC Power Connector DC Jack
USB3/ USB2 USB Port Connectors 4-pin Connectors
DVI1 DVI Port Connector 24-pin Connector
LAN1 RJ-45 LAN Connector 8-pin Connector
HOUT1 Line Out Connector 1-phone Jack
HMIC1 MIC Connector 1-phone Jack
SATA1 Serial ATAII Connector 7-pin Connector
PWOUT1 Power Out Connector 4-pin Connector
Headers
Header Name Description
AUDIO1 Front Panel Audio Header 9-pin block
USB1 USB header 9-pin block
COM1,COM2 Serial port headers 9-pin block
TX-RXCOM1 RS422/485 header 4-pin block
JW_FP1
(PWR LED/ HD LED/
/Power Button /Reset)
SFAN1 FAN Speed Headers 3-pin Block
IDE1 IDE Hard Disk Drive header 44-pin block
GPIO GPIO header 10-pin block
LVDS1 LVDS Connector 30-pin Block
Front Panel Header
(PWR LED/ HD LED/ /Power Button
/Reset)
8-pin Block
INVERTER1 LVDS Inverter Connector 7-pin Block
VGA1 VGA Port Header 15-pin Connectors
Chapter 2
Hardware Installation
2-1 Jumper Setting
(1) JCOM1: COM1 Port RS232/422/485 function select
JCOM1
1
1-2 closed: RS232
(2) JCOMP1: COM1 Pin 9 function select
JCOMP1
1
1-2 closed: RS232 5-6 closed : +5V
7
1
3- 4 closed : RS485
3-4 closed : +12V
1
5-6 closed : RS422
11
(3) JP1: Inverter VCC 5V/12Vselect (3-pin)
JP1
JP1
1
1-2 closed
Inverter 12V selected
3
1
2-3 closed
Inverter 5V select
3
(4) JP2: LVDS 5V/3.3V Function setting (3-pin)
JP2
1-2 closed: LVDS VCC 5V
13
(5) JP3: CF card Master /Slave Mode setting (3-pin)
JP2
3
2-3 closed : LVDS VCC 3.3V
1
JP3
JP3
1-2 clo se d: CF Ca rd Sl ave
1
3
2-3 closed :CF Card Master
1
3
8
2-2 Connectors and Headers
2-2-1 Connectors
(1) Audio Connector: (Line-Out/ MIC-In)
DC12V
Power
Connector
USB
Connectors
DVI
Connector
(2) Serial-ATA Port connector: SATA1
RJ-45 LAN Connector
USB
Connectors
Serial-ATA Connectors
Line-Out
MIC
SATA1
9
2-2-2 Headers
(1) Front panel audio (9-pin): AUDIO1
AUDIO
2
Pin 1
Line-Out, MIC Headers
(2) COM Connectors (9-pin): COM1/COM2
-DSR
-RTS
Pin1
-DCD
Serial Port 9-p i n Bloc k
GND
MIC1-R
-SIN
NC
MIC2-L
-CTS
SOUT
NC
LINEOUT-R
-DTR
RI
KEY
SENSE
NC
GND
NC
LINTOUT-L
10
9
10

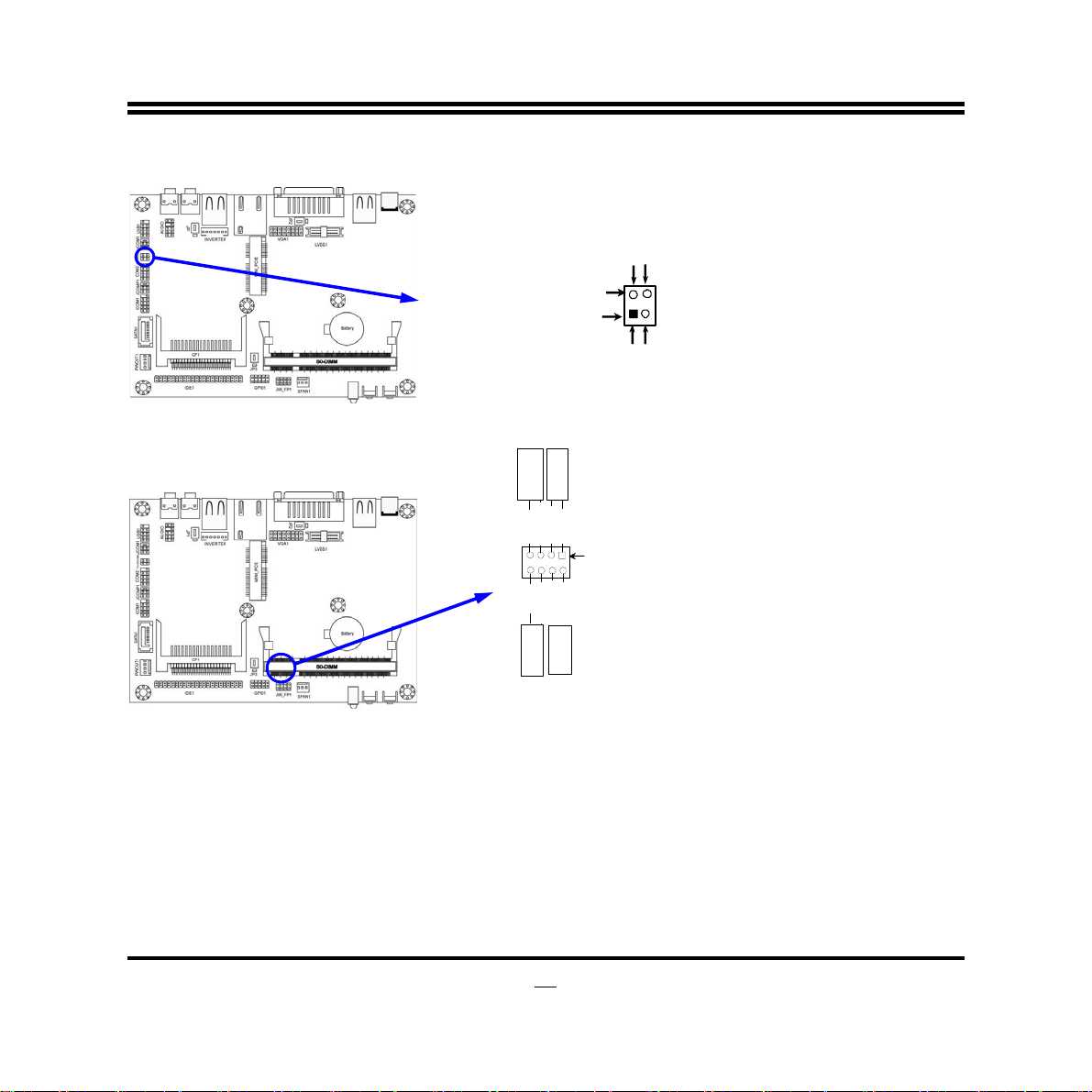

(3)TX-RXCOM Header: TX-RXCOM1
TXDN
RXDN
Pin 2
Pin 1
TXDP
RXDP
TX- RXC OM1 Hea d er
(4) JW-FP1（8-pin）
RESE T
HDLED
GND
VCC5
RSTSW
Pin 1
GND
PWRBT N
PWRLED- HDDL ED
PWR LE D+
LED
PWRBTN
PWR
System Case Connections
11
4

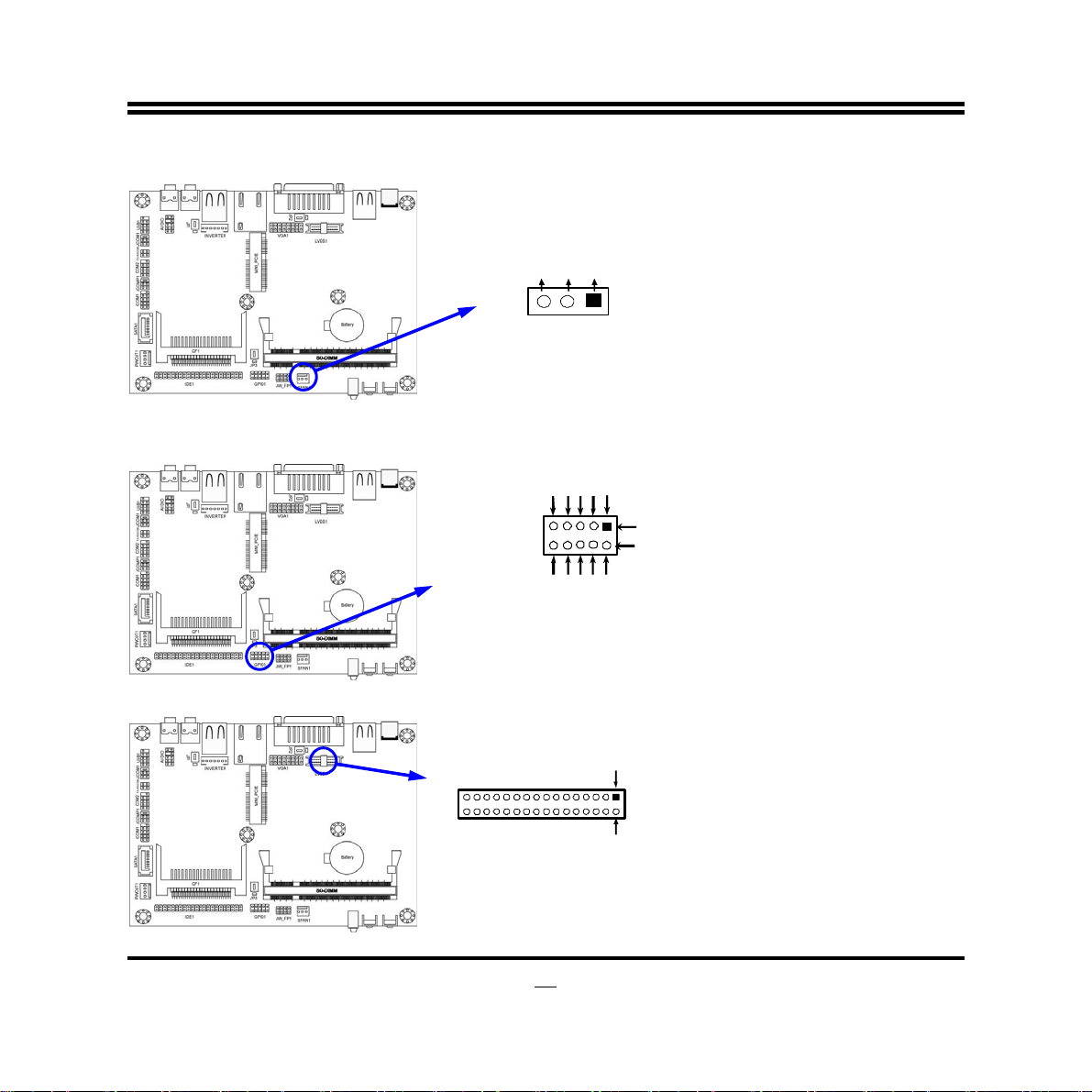

(5) SFAN1 Headers (3-pin): SYSFAN1
VCC12VGNDDET
13
Fan Header
(6) GPIO1 Connectors (10-pin): GPIO
GP10
GP11 GP12 GP13 GND
Pin 1
2
VCC
GP65
GP17
GP63
GP6
GPIO Connector

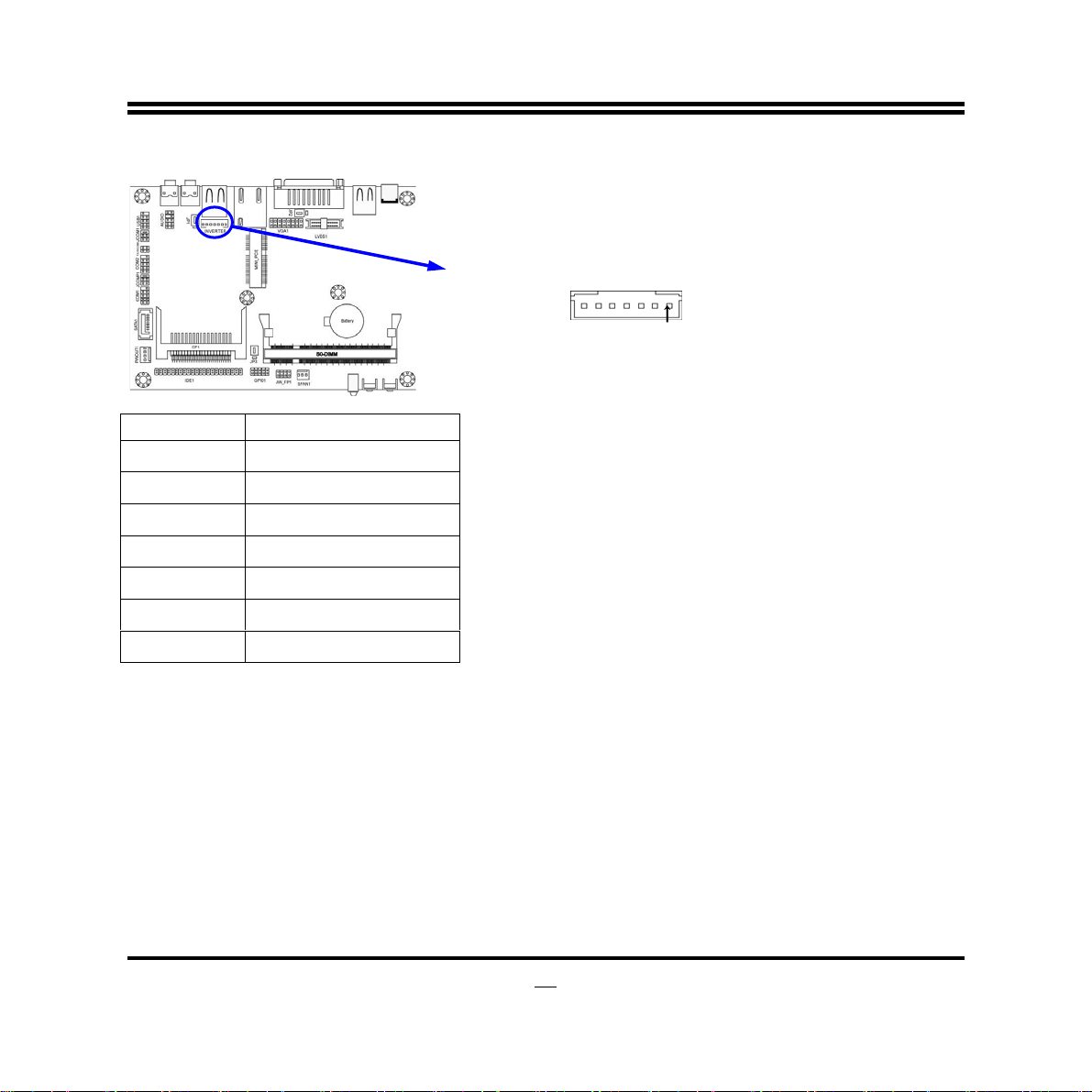

(7)LVDS Headers: LVDS1
LVDS Header
12
Pin 1
Pin 2
Pin NO. Pin Define Pin NO. Pin Define
Pin 1
Pin 3
Pin 5
Pin 7
Pin 9
Pin 11
Pin 13
in 15
Pin 17
Pin 19
Pin 21
Pin 23
Pin 25
Pin 27
Pin 29
NC
LVDS_CLKBN
LVDSB_DATAN2
LVDSB_DATAN1
LVDSB_DATAN0
LVDS_DDC_DATA
GND
GND
NC
LVDS_CLKAP
LVDSA_DATAP2
LVDSA_DATAP1
LVDSA_DATAP0
PVDD
PVDD
Pin 2
Pin 4
Pin 6
Pin 8
Pin 10
Pin 12
Pin 14
Pin 16
Pin 18
Pin 20
Pin 22
Pin 24
Pin 26
Pin 28
Pin 30
NC
LVDS_CLKBP
LVDSB_DATAP2
LVDSB_DATAP1
LVDSB_DATAP0
LVDS_DDC_CLK
GND
GND
NC
LVDS_CLKAN
LVDSA_DATAN2
LVDSA_DATAN1
LVDSA_DATAN0
PVDD
PVDD
13
(8) Pin-headers of LVDS Inverter: INVERTER1
Pin 1
INVERTER
Pin NO. Pin Define
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
VCC
VCC
GND
GND
Backlight
GND
Bright
14
Chapter 3
Introducing BIOS
Notice! The BIOS options in this manual are for reference only. Different
configurations may lead to difference in BIOS screen and BIOS
screens in manuals are usually the first BIOS version when the board is
released and may be different from your purchased motherboard.
Users are welcome to download the latest BIOS version form our
official website.
The BIOS is a program located on a Flash Memory on the motherboard. This program
is a bridge between motherboard and operating system. When you start the computer,
the BIOS program will gain control. The BIOS first operates an auto-diagnostic test
called POST (power on self test) for all the necessary hardware, it detects the entire
hardware device and configures the parameters of the hardware synchronization.
Only when these tasks are completed done it gives up control of the computer to
operating system (OS). Since the BIOS is the only channel for hardware and
software to communicate, it is the key factor for system stability, and in ensuring that
your system performance as its best.
In the BIOS Setup main menu of Figure 3-1, you can see several options. We will
explain these options step by step in the following pages of this chapter, but let us first
see a short description of the function keys you may use here:
•
Press <Esc> to quit the BIOS Setup.
•
Press ↑↓←→ (up, down, left, right) to choose, in the main menu, the option you
want to confirm or to modify.
•
Press <F10> when you have completed the setup of BIOS parameters to save
these parameters and to exit the BIOS Setup menu.
15
6
•
Press Page Up/Page Down or +/– keys when you want to modify the BIOS
parameters for the active option.
3-1 Entering Setup
Power on the computer and by pressing <Del> immediately allows you to enter Setup.
If the message disappears before your respond and you still wish to enter Setup,
restart the system to try again by turning it OFF then ON or pressing the “RESET”
button on the system case. You may also restart by simultaneously pressing <Ctrl>,
<Alt> and <Delete> keys. If you do not press the keys at the correct time and the
system does not boot, an error message will be displayed and you will again be asked
to
Press <Del> to enter Setup
3-2 Getting Help
Main Menu
The on-line description of the highlighted setup function is displayed at the bottom of
the screen.
Status Page Setup Menu/Option Page Setup M enu
Press F1 to pop up a small help window that describes the appropriate keys to use
and the possible selections for the highlighted item. To exit the Help Window, press
<Esc>.
3-3 The Main Menu
Once you enter Award® BIOS CMOS Setup Utility, the Main Menu (Figure 3-1) will
appear on the screen. The Main Menu allows you to select from fourteen setup
functions and two exit choices. Use arrow keys to select among the items and press
<Enter> to accept or enter the sub-menu.
1
7
Figure 3-1
Standard CMOS Features
Use this Menu for basic system configurations.
Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your
system’s performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
Power Management Setup
Use this menu to specify your settings for power management.
PnP/PCI Configuration
Use this menu to specify your settings for PnP and PCI configurations.
PC Health Status
1
This entry shows your PC health status.
Miscellaneous Control
Use this menu to specify your settings for Miscellaneous Control.
Load Optimized Defaults
Use this menu to load the BIOS default values these are setting for optimal
performances system operations for performance use.
Load Standard Defaults
Use this menu to load the BIOS default values for the minimal/stable performance
system operation
Set Supervisor Password
Use this menu to set supervisor password.
Set User Password
Use this menu to set user password.
Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
3-4 Standard CMOS Features
The items in Standard CMOS Setup Menu are divided into several categories. Each
category includes no, one or more than one setup items. Use the arrow keys to
highlight the item and then use the <PgUp> or <PgDn> keys to select the value you
want in each item.
18
Date
The date format is <day><month><date><year>.
Day of the week is from Sun to Sat, determined by BIOS. Read-only.
Day
Month
Date
Year
The month is from Jan. through Dec.
The date from 1 to 31 can be keyed by numeric function keys.
The year depends on the year of the BIOS.
Time
The time format is <hour><minute><second>.
SATA Port1 Master/IDE Channel Master/Slave
Press Enter to enter the subitem and then press PgUp/<+> or PgDn/<–> to select
None, Auto type. Note that the specifications of your drive must match with the drive
table. If the controller of HDD interface is SCSI, the selection shall be “None”.
If the controller of HDD interface is CD-ROM, the selection shall be “None”
Access Mode
The settings are CHS, LBA, Large and Auto.
19
Capacity
Cylinder
number of cylinders
Head
Precomp
Landing Zone
Sector
number of sectors
The capacity of the hard disk driver.
number of heads
write precomp
landing zone
Video
The optional settings are: EGA/VGA; CGA40; CGA80; Mono.
Halt On
Three optional settings are: All Errors; No Errors; All, But Keyboard.
3-5 Advanced BIOS Features
20
Virus Warning
The selection Allow you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enabled and someone attempt to write data into
this area, BIOS will show a warning message on screen and alarm beep.
Disabled
(default) No warning message to appear when anything attempts to
access the boot sector or hard disk partition table.
Enabled
Activates automatically when the system boots up causing a
warning message to appear when anything attempts to access
the boot sector of hard disk partition table.
Hard Disk Boot Priority
The selection is for you to choose the hard disk drives priorities to boot from.
Quick Power On Self-Test
This category speeds up Power On Self Test (POST) after you power on the computer.
If this is set to Enabled, BIOS will shorten or skip some check items during POST.
Enabled
Disabled
(default) Enable quick POST
Normal POST
First/Second/Third Boot Device
The BIOS attempts to load the operating system from the devices in the sequence
selected in these items. The optional settings are：Removable; Hard Disk; CDROM;
Network;Disabled..
Boot Up NumLock Status
The default value is On.
(default)
On
Off
Keypad is numeric keys.
Keypad is arrow keys.
Typematic Rate Setting
Keystrokes repeat at a rate determined by the keyboard controller. When enabled, the
typematic rate and typematic delay can be selected. The settings are:
Enabled/Disabled.
Typematic Rate (Chars/Sec)
Sets the number of times a second to repeat a keystroke when you hold the key down.
The settings are: 6, 8, 10, 12, 15, 20, 24, and 30.
21
Typematic Delay (Msec)
Sets the delay time after the key is held down before beginning to repeat the
keystroke. The settings are 250, 500, 750, and 1000.
Security Option
This category allows you to limit access to the system and Setup, or just to Setup.
System
The system will not boot and access to Setup will be denied if the
correct password is not entered at the prompt.
Setup
(default) The system will boot, but access to Setup will be denied if the
correct password is not entered prompt.
MPS Version Control for OS 1.4
This option is only valid for multiprocessor motherboards as it specifies the version of
the Multiprocessor Specification (MPS) that the motherboard will use.
OS Select for DRAM > 64MB
Allows OS2® to be used with >64MB or DRAM. Settings are Non-OS/2 (default) and
OS2. Set to OS/2 if using more than 64MB and running OS/2®.
HDD S.M.A.R.T Capability
This option allow you to enable the HDD S.M.A.R.T Capability (Self-Monitoring,
Analysis and Reporting Technology) . You can choose from Enabled and Disabled.
22
3-5-1 CPU Features
Limit CPUID Maxval
This option supports the max ID of comparatively old processor.
CPU C State Compatibility
The optional settings are: Disabled; C2; C4.
Enhanced Intel Speedstep Tech
This option can provide average power savings depending on system usage and
design.
3-6 Advanced Chipset Features
The Advanced Chipset Features Setup option is used to change the values of the
chipset registers. These registers control most of the system options in the
computer.
23
DRAM Timing Selectable
The optional settings are: By SPD; Manual. If you chose Manual, you could activate
the four items following it and make modification manually.
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh,
resulting in better system performance. However, if any program writes to this
memory area, a system error may result. The settings are: Enabled and Disabled.
OnChip Frame Buffer Size
The optional settings are: 1MB; 8MB.
DVMT Memory Memory Size
The optional settings are: 64 MB; 128MB; 224MB.
Boot Display
The optional settings are: Auto; CRT; DVI; LVDS; CRT+LVDS; CRT+DVI.
24
3-7 Integrated Peripherals
25
6
3-7-1 Onboard IDE Function
IDE Channel Master/Slave PIO
The two IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the two IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device. The settings are: Auto,
Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.
IDE Channel Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive supports it and
the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party
IDE bus master driver). If your hard drive and your system software both support
Ultra DMA133, select Auto to enable BIOS support. The settings are: Auto,
Disabled.
IDE DMA Transfer Access
2
7
The integrated peripheral controller contains an IDE interface with support for one IDE
channels. Select Enabled to activate each channel separately. The settings are:
Enabled and Disabled.
IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard dr ive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of block read/writes per sector
the drive can support. The settings are: Enabled, Disabled.
Delay for HDD (Sec.)
The optional settings range from 0 to 15 seconds.
SATA Port Speed Settings
The optional settings are: Disabled; Force GENI; Force GEN II.
3-7-2 Onboard Device Function
2
High Definition Audio
This item allows you to decide to enable/disable the chipset family to support HD
Audio. The settings are: Enabled, Disabled.
USB 2.0 Function
Use this item to enable or disable USB 2.0 function.
USB Operation Mode
The optional settings are:Full/Low Speed; High Speed.
USB Keyboard/Mouse /Storage Legacy Support
Select
Enabled
if your system contains a Universal Serial Bus (USB) controller and
you have a USB mouse /keyboard/USB storage device. The settings are: Enabled,
Disabled.
3-7-3 Onboard SuperIO Function
28
Onboard Serial Port 1/2
The optional settings are：Disabled, 3F8/IRQ4，2F8/IRQ3, 3E8/IRQ4，2E8/IRQ3.
Onboard Serial Port1 Mode
The optional settings are: RS232; RS422/RS485.
Watchdog Timer Select
This item is used to activate the watchdog function. The optional settings are: Enabled;
Disabled. When set it as Enabled user can choose configuration figures in subitems.
Watchdog Timer Value
This item is only activated when Watchdog Timer Select is set as Enabled and users can
set a value from the range of 1~255.
Watchdog Timer Unit
This item is only activated when Watchdog Timer Select is set as Enabled and the
optional units are: Sec. and Min.
*Note: User needs an additional Watchdog Programming Reference Code to make use
of this BIOS function. Detailed procedures please download from our website if
necessary.
The Delay Time for S5
users can set a value from the range of 1~255.
3-8 Power Management Setup
The Power Management Setup allows you to configure your system to most
effectively save energy saving while operating in a manner consistent with your own
style of computer use.
29
ACPI Suspend Type
Use this item to select ACPI suspend type. The optional settings are: S1(POS); S3
(STR).
Power Management
The optional settings are: User Define; Min Saving; Max Saving.
Video Off Method
This determines the manner in which the monitor is blanked.
Blank Screen
V/H SYNC+Blank
This option only writes blanks to the video buffer.
This selection will cause the system to turn off the vertical and
horizontal synchronization ports and write blanks to the video buffer.
DPMS
Initial display power management signaling.
Video Off in Suspend
The optional settings are: Yes; No.
Suspend Type
The optional settings are: Stop Grant; PwrOn Suspend.
30
MODEM Use IRQ
If you want an incoming call on a modem to automatically resume the system from a
power-saving mode, use this item to specify the interrupt request line (IRQ) that is
used by the modem. You might have to connect the fax/modem to the motherboard
Wake On Modem connector for this feature to work.
Soft-Off by PWRBTN
Under ACPI (Advanced Configuration and Power management Interface) you can
create a software power down. In a software power down, the system can be resumed
by Wake up Alarms. This item lets you install a software power down that is controlled
by the power Button on your system. If the item is set to Instant-Off, then the power
button causes a software power down. If the item is set to Delay 4 Sec, then you have
to hold the power button down for four seconds to cause a software power down.
ERP (EUP) Function
The optional settings are: Enabled; Disabled. User can set it as Enabled to select
the relative items for the follwoing wake up events: Power on by Ring, Wake-Up by
USB KB from S3(S4), and Resume by Alarm.
Resume by Alarm
When set to Enabled, additional fields become available and you can set the date
(day of the month), hour, minute and second to turn on your system. When set to 0
(zero) for the day of the month, the alarm will power on your system every day at the
specified time .
Date (of month)
You can choose which month the system will boot up. Set to 0, to boot every
day.The optional settings range from 0 to 31
Time (hh:mm:ss)
You can choose what hour, minute and second the system will boot up.
Note: If you have change the setting, you must let the system boot up until it goes
to the operating system, before this function will work.
31
3-9 PnP/PCI Configuration
PCI/VGA Palette Snoop
This item is designed to overcome problems that can be caused by some
non-standard VGA cards. This board includes a built-in VGA system that does not
require palette snooping so you must leave this item disabled.
IRQ Resources
Names the interrupt request (IRQ) line assigned to the USB on your system. Activity
of the selected IRQ always awakens the system.
3-10 PC Health Status
This section shows the Status of you CPU, Fan, and Warning for overall system status.
This is only available if there is Hardware Monitor onboard.
32
Shutdown Temperature
This item can let users setting the Shutdown temperature, when CPU temperature
over this setting the system will auto shutdown to protect CPU.
CPU Thermal Throttling
The optional settings are: Disabled; Enabled. When it is set as Enabled user could set
value for CPU Thermal-Throttling Temp.; CPU Thermal-Throttling Duty and CPU
Thermal-Throttling Beep.
Show PC Health in Post
During Enabled, it displays information list below. The choice is either Enabled or
Disabled
+5V OUT/+12V OUT/Vcc3V OUT
User can set is Disabled or select to add a value in the range of +5% to +35%.
33
Smart Fan Configuration
The optional settings are: Disabled; Enabled. When it is set as Enabled user could set
value for SYS FAN1 Full-Speed Temp., SYS FAN1 Idle Temp. and SYS FAN1
IDLE-Speed Duty.
VCC3V/Vcore/ /NB/5 VSB /VDIMM/+5V/+12V/ VSB3V/Vbat/ CPU Temperature/
System Temperature/ SYSFAN1 Speed/
This will show the CPU/FAN/System voltage chart and FAN Speed.
3-11 Miscellaneous Control
CPU Clock Ratio Unclock
This item is used to lock or unlock CPU ratio.
CPU Clock Ratio
The optional settings range from 6X to 12X.
DRAM Clock at Next Boot
This item allows you to set DRAM clock. The optional settings are:By SPD(DDR 533);
34
400MHz; 533MHz..
3-12 Password Setting
You can set either supervisor or user password, or both of them. The differences are:
Supervisor password: Can enter and change the options of the setup menus.
User password: Can only enter but do not have the right to change the options of
the setup menus. When you select this function, the following
message will appear at the center of the screen to assist you in
creating a password.
ENTER PASSWORD:
Type the password, up to eight characters in length, and press <Enter>. The password
typed now will clear any previously entered password from CMOS memory. You will be
asked to confirm the password. Type the password again and press <Enter>. You may
also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter the password.
A message will confirm that the password will be disabled. Once the password is
disabled, the system will boot and you can enter Setup freely.
PASSWORD DISABLED.
When a password has been enabled, you will be prompted to enter it every time you try to
enter Setup. This prevents an unauthorized person from changing any part of your system
configuration.
Additionally, when a password is enabled, you can also require the BIOS to request a
password every time your system is rebooted. This would prevent unauthorized use of
your computer.
You determine when the password is required within the BIOS Features Setup Menu and
its Security option. If the Security option is set to “System”, the password will be required
both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying t o
enter Setup.
3-13 Load Standard/Optimized Defaults
Load Standard Defaults
When you press <Enter> on this item, you get confirmation dialog box with a message
35
6
similar to:
Pressing <Y> loads the BIOS default values for the most stable, minimal-performance
system operations.
Load Optimized Defaults
When you press <Enter> on this item, you get a confirmation dialog box with a
message similar to:
Pressing <Y> loads the default values that are factory settings for optimal
performance system operations.
3
Loading...
