JET GHB-1340A, GHB-1440A User Manual

This .pdf document is bookmarked
Operation and Maintenance Instructions
Geared Head Bench Lathe
Models GHB-1340A, GHB-1440A
For Parts List and Electrical Diagrams, see document M-321357A
JET
(GHB-1340A shown with opt ional stand 321443AK)
1.0 Warranty and service
JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period The general warranty lasts for the time period specified in the literature included with your product or on the official JET branded website.
• JET products carry a limited warranty which varies in duration based upon the product. (See chart below)
• Accessories carry a limited warranty of one year from the date of receipt.
• Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Co vered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood. Use of th ese ma chines in the processing of metal , pl asti cs, or oth er m aterial s may void the warranty. The exceptio ns are acrylics and other natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide pr oof of initia l p u rch a s e whe n calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor or visit the JET website.
How State Law Appli es
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT. EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever. JET
Product Listing with Warranty Period
90 Days – Parts; Consumable items; Light-Duty Air Tools 1 Year – Motors; Machine Accessories; Heavy-Duty Air Tools; Pro-Duty Air Tools 2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used for industrial or commercial purposes 5 Year – Woodworking Machinery Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist Accessories; Shop Tools; Warehouse & Dock products; Hand Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand.
®
branded products are not sold in Canada by JPW Industries, Inc.
2
2.0 Table of contents
Section Page
1.0 Warranty and service ..................................................................................................................................... 2
2.0 Table of contents ............................................................................................................................................ 3
3.0 Safety warnings .............................................................................................................................................. 4
4.0 About this manual .......................................................................................................................................... 5
5.0 Dimensions for optional stand (p/n 321443AK) .............................................................................................. 5
6.0 Specifications ................................................................................................................................................. 6
7.0 Setup and assembly ....................................................................................................................................... 7
7.1 Shipping contents ....................................................................................................................................... 7
7.2 Uncrating and Cleanup ............................................................................................................................... 8
7.3 Chuck Preparation (Three Jaw) ................................................................................................................. 8
7.4 Chuck Guard Installati on ............................................................................................................................ 9
8.0 Lubrication ...................................................................................................................................................... 9
9.0 Electrical Connections .................................................................................................................................. 10
10.0 General Description ................................................................................................................................... 10
10.1 Lathe Bed ............................................................................................................................................... 10
10.2 Carriage .................................................................................................................................................. 10
10.3 Headstock .............................................................................................................................................. 10
10.4 Four Way Tool Post ................................................................................................................................ 10
10.5 Apron ...................................................................................................................................................... 11
10.6 Tailstock ................................................................................................................................................. 11
10.7 Leadscrew and Feed Rod .................................................................................................. .................... 11
10.8 Gear Box ................................................................................................................................................ 11
10.9 Steady Rest ............................................................................................................................................ 11
10.10 Follow Rest ........................................................................................................................................... 11
11.0 Controls ...................................................................................................................................................... 11
12.0 Operation ................................................................................................................................................... 13
12.1 Break-In Procedure ................................................................................................................................ 13
12.2 Feed and Thread Selection .................................................................................................................... 13
12.3 Change Gear Replacement .................................................................................................................... 13
12.4 Automatic Feed Operation and Feed Changes ...................................................................................... 13
12.5 Powered Carriage Travel ....................................................................................................................... 14
12.6 Thread Cutting ........................................................................................................................................ 14
13.0 Adjustments ............................................................................................................................................... 14
13.1 Saddle adjustment .................................................................................................................................. 14
13.2 Cross Slide adjustment ......................................................................................................................... 14
13.3 Compound Slide adjustment .................................................................................................................. 14
13.4 Tailstock adjustment ................................................................................................................................ 14
13.5 Half Nut Gib adjustment ......................................................................................................................... 15
13.6 Headstock Alignment ............................................................................................................................. 15
13.7 Removing Gap Bridge ............................................................................................................................ 15
13.8 Installing Gap Bridge .............................................................................................................................. 15
14.0 Thread and Feed Chart .............................................................................................................................. 16
3
3.0 Safety warnings
Read and understand the entire owner's manual before attempting set-up or operation of this lathe.
1. This machine is designed and intended for use by properly trained and experienced personnel only. If yo u ar e not f a miliar wit h the pr op er a nd safe use of lathes, do not use this machine until proper training and knowledge have been obtained.
2. Keep guards in place. Safety guards must be kept in place and in working order.
3. Remove adjusting keys and wrenches. Before turning on machine, check to see that any adjusting wrenches are removed from the tool.
4. Reduce the risk of unintentional starting. Make sure switch is in the OFF position before plugging in the tool.
5. Do not force tools. Always use a tool at the rate for which it was designed.
6. Use the right tool. Do not force a tool or attachment to do a job for which it was not designed.
7. Maintain tools with care. Keep tools sharp and clean for best and safest perform ance. Follow instructions for lubrication and changing accessories.
8. Always disconnect the tool from the power source before adjusting or servicing.
9. Check for damaged parts. Check for alignment of moving parts, breakage of parts, mounting, and any other condition that may affect the tool’s operation. A guard or any part that is damaged should be repaired or replaced.
10. Turn power off. Never leave a too l unattended. Do not leave a tool until it comes to a complete stop.
11. Keep work area clean. Cluttered areas and benches invite accidents.
12. Do not use in a dangerous environment. Do not use power tools in damp or wet locations, or expose them to rain. Keep work area well lighted.
13. Keep children and visitors away. All visitors should be kept a safe distance from the work area.
14. Make the workshop child proof. Use padlocks, master switches, and remove starter keys.
15. Wear proper apparel. Loose clothing, gloves, neckt ie s, r i ngs, bra ce let s, or o t her j e we lry m ay get caug ht i n m ovi ng p art s. N on- sli p f oot we ar is recommended. Wear protective hair covering to c ontain long hair. D o not wear any typ e of glove.
16. Alw ays use sa fe ty gla sse s. Eve ry day glas ses only ha ve im p ac t re sist a nt lense s; t hey a re no t safety glasses.
17. Do not overreach. Keep proper footing and balance at all times.
18. Do not place hands near the chuck while the machine is operating.
19. Do not perform any set-up work while machine is operating.
20. Read and understand all warnings posted on the machine.
21. This m anual i s inte nde d to f amilia rize you w ith the technical aspects of this lathe. It is not, nor was it intended to be, a training manual.
22. Failure to comply wi th all of th ese warnin gs may result in serious injury.
23. Some dust created by power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• Lead from lead based paint
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are s pecifically designed to filter out microscopic particles
4
Familiarize yourself with the following safety notices used in this manual:
This means that if preca utions are not heeded, it m ay result in minor injury a nd/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious, or possibly even fatal,
injury.
4.0 About this manual
This manual is provided by JET, covering the safe operation and maintenance procedures for a JET Model GHB­1340A and GHB-1440A Lathe. This manual contains instructions on installation, safety precautions, general operating procedures, and maintenance instructions. Your machine has been designed and constructed to provide consistent, long-term operation if used in accordance with the instructions as set forth in this document.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools .com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Read and understand the entire contents of this manual before attempting assembly or
operation! Failure to comply may cause serious injury!
5.0 Dimensions for optional stand (p/n 321443AK)
To purchase this optional stand for the GHB-1340A Lathe, contact your dealer or call JET customer service.
Figure 1
5
6.0 Specifications
Stock Number ............................................................................... 321357A ............................................ 321359A
Model Number .......................................................................... GHB-1340A ....................................... GHB-1440A
Capacities:
Swing Over Bed ..................................................................................... 13" ............................................... 14-1/5”
Swing Over Cross Slide ................................................................. 7-25/32" ........................................................ 9”
Swing Through Gap ......................................................................... 18-3/4" ...................................................... 20”
Length of Gap .......................................................................................... 8” ........................................................ 8”
Distance Between Centers ..................................................................... 40" ...................................................... 40”
Headstock:
Hole Through Spindle ........................................................................ 1-3/8" ................................................. 1-3/8”
Spindle Nose ........................................................................................ D1-4 ................................................... D1-4
Taper in Spindle Nose ......................................................................... MT-5 .................................................. MT-5
Spindle Taper Adapter ........................................................................ MT-3 .................................................. MT-3
Spindle Bearing Type ................................................. Taper Roller Bearing .......................... Taper Roller Bearing
Number of Spindle Speeds ....................................................................... 8 ......................................................... 8
Range of Spindle Speeds ..................................................... 70-2000 RPM ..................................... 70-2000 RPM
Gearbox:
Number of Longitudinal and Cross Feed Rates ................................. 22/22 .................................................. 22/22
Range of Longitudinal Feeds (inch/rev) .......................... 0.0018" – 0.0374" .............................. 0.0018" – 0.0374"
Range of Cross Feeds (inch/rev) .................................... 0.0006" – 0.0130" .............................. 0.0006" – 0.0130"
Number of Inch Threads ......................................................................... 38 ....................................................... 38
Range of Inch Threads .......................................................... 3-1/2 – 80 TPI .................................... 3-1/2 – 80 TPI
Number of Metric Threads ...................................................................... 23 ....................................................... 23
Range of Metric Threads ......................................................... 0.45 - 10mm ....................................... 0.45 - 10mm
Leadscrew ................................................................................ 7/8" × 8 TPI ........................................ 7/8" × 8 TPI
Feed Rod Diameter ............................................................................... 3/4” ..................................................... 3/4”
Compound and Carriage:
Toolpost Type ................................................................................... 4- Way ................................................ 4-Way
Maximum Tool Size ..................................................................... 5/8" x 5/8" .......................................... 5/8" x 5/8"
Maximum Compound Slide Travel ................................................. 2-11/16" ............................................. 2-11/16"
Maximum Cross Slide Travel ........................................................... 6-5/16" ............................................... 6-5/16"
Maximum Carriage Travel ...................................................................... 35" ......................................................35"
Tailstock:
Tailstock Spindle Travel ..................................................................... 3-3/4" ................................................. 3-3/4"
Diameter of Tailstock Spindle ............................................................ 1-1/4" ................................................. 1-1/4"
Taper in Tailstock Spindle ................................................................... MT-3 .................................................. MT-3
Miscellaneous:
Steady Rest Capacity ............................................................... 1/4" – 2-5/8" ....................................... 1/4" – 2-5/8"
Follow Rest Capacity ............................................................... 1/4" – 2-3/4" ....................................... 1/4" – 2-3/4"
Length of Bed ......................................................................................... 54" ......................................................54"
Width of Bed ....................................................................................... 7-3/8" ................................................. 7-3/8"
Height of Bed ......................................................................................... 12" ......................................................12"
Overall Dimensions ................................................ 79"L x 28-1/2"W x 30"H ..................... 79"L x 28-1/2"W x 30"H
Main Motor ................................................................ 2HP, 1PH, 230V only ......................... 2HP, 1PH, 230V only
Net Weight (approx.) ..................................................................... 1155 lbs. ............................................ 1210 lbs.
Shipping Weight (approx.) ............................................................. 1365 lbs. ............................................ 1430 lbs.
The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specif ications at any time and without prior notice, without incurring obligations.
6
7.0 Setup and assembly
7.1 Shipping contents
See Figure 2.
1 Lathe 1 Steady Rest (mount ed on lathe) 1 Follow Rest (mounted on lathe) 1 6" Three Jaw Chuck (mount ed on lathe) 1 8" Four Jaw Chuck 1 12" Face Plate (strapped t o c ontainer) 3 Cam Locks 3 Socket Head Cap Scr ews 1 Tool Box (strapped t o c ontainer) 1 Chip Tray 1 Splash Guard 1 Lifting Hook 2 Lifting Blocks
Tool Box:
3 Open End Wrenches (9/ 11, 10/ 12,12/14mm) 1 Touch-Up Paint 1 Oil Can 1 Hex Key Set (2.5, 3, 4, 5, 6, 8mm) 2 Shear Pins 1 33T Gear 1 44T Gear 1 46T Gear 1 48T Gear 1 52T Gear 2 T-Handle Chuck Wrenches 1 Tool Post Wrench 2 MT-3 Centers 1 MT-3 to MT-5 Center Sl eev e 1 Cross Point Screwdriver 1 Flat Head Screwdriver 1 Key for Cam Locks 1 Operating Instructions 1 Part’s List 1 Warranty Card
Figure 2
7
7.2 Uncrating and Cleanup
Machine is heavy. Use an
appropriate lifting device and use extreme caution when moving the machine to its final location. Failure to comply may cause serious injury.
1. Finish removing the wooden crate from around the lathe.
2. Unbolt the lathe from the shipping crate bottom.
3. Choose a location for the lathe that is dry, has good lighting, and has enough room to be able to service the lathe on all four sides.
4. Move the carriage and tailstock to the tailstock end of the bed.
5. Assemble parts fastened to the crate bottom used to lift the lathe. See Fig. 3. (Note: Lifting parts are not tightened in Fig. 3 to show detail.) Using a piece of leather or a block of wood under the metal block to protect the ways during lifting is highly recommended.
necessary. The lathe must be level to be accurate.
7.3 Chuck Preparation (Three Jaw)
Read and understand all directions for chuck preparation. Failure to compl y may ca us e seriou s inju ry an d/or d amage to the lathe.
Note: Before removing the chuck from the spindle,
place a way board across the bedways under the chuck.
1. Support the chuck whil e turnin g three camlocks
1/4 turn counter-clockwise with the chuck key enclosed in the toolbox. Figure 4 shows the cam in the secure position. Line up the two marks (A, Fig. 4) for removal.
Figure 3
6. With adequate lifting equipment, slowly raise the lathe off the shipping crate bottom. Make sure lathe is balanced before m oving to sturdy bench or optional stand.
7. To avoid twisting the bed, t he lat he's location must be absolutely flat and level. Bolt the lathe to the stand (if used). If using a bench, through­bolt for best performance.
8. Clean all rust protected surfaces using a mild commercial s olven t, keros en e or di esel fuel . Do not use paint thinner, gasoline, or lacquer thinner. These will damage painted surfaces. Cover all cleaned surfac es with a light film of Mobil DTE® Oil Heavy Medium.
9. Remove the end gear cover. Clean all components of the end gear assembly and coat all gears with a heavy, non-slinging grease.
10. Using a machinist’s precision level on the bedways, check to make sure lathe is level side to side and front to back. Loosen mounting bolts, shim, and tighten mounting bolts, if
Figure 4
2. Carefully remove the chuck from the spindle and place on an adequate work surface.
3. Inspect the camlock studs. Make sure they have not become cracked or broken during transit. Clean all parts thoroughly with solvent. Also clean the spindle and camlocks.
4. Cover all chu ck jaws and scroll inside th e chu ck with Mobilith® AW2. Cover the spindle, cam locks, and chuck body with a light film of Mobil DTE® Oil Heavy Medium.
5. Lift the chuck up to the spindle nose and press onto the spindle. Tighten in place by turning the cam locks 1/4 turn clockwise. The index mark (A, Fig. 4) on the camlock should be between the two indicator arrows (B, Fig. 4). If the index mark is not between the two arrows, remove the chuck and adjust the camlock studs by either tu rnin g ou t on e fu ll tu rn (if c ams wi ll no t en g age ) or turning in one full t urn (if cams turn beyond indicator marks).
6. In stall chuck and tighten in place.
ATTENTION: Only when the incised line on the chuck lines up with that on the spindle, can the chuck be mounted.
8
7.4 Chuck Guard Installation
Install the chuck guard to the headstock, if it is not already mounted. (See parts breakdown if clarification is needed for assembly.)
8.0 Lubrication
Lathe must be serviced at all lubrication points and all reservoirs filled to operating level before the lathe is placed into service. Failure to comply may cause serious damage to the lathe.
1. Headstock - Oil must be up to indicator mark in
oil sight glass (A, Fig. 5). Top off with Mobil DTE® Oil Heavy Medium. Fill by pulling plug located on top of the headstock cover, underneath the rubber mat. Drain oil by removing drain plug (B, Fig. 6) a nd refill after the first month of operation. Clean ou t any metal shavings. Then, change oil in the headstock annually.
2. External Gears - Coat all gears with a heavy,
non-slinging grease, see Figure 6.
Figure 5
3. Gear Shaft - R emove the se t sc r e w ( C , F ig . 6)
and oil with a couple drops of Mobil DTE® Oil Heavy Medium once weekly.
4. Gearbox - Oil m ust be up to indicator mark i n
oil sight glass (D, Fig. 7). Top off with Mobil DTE® Oi l Heavy Me di um. Fill by r e mo vi ng plug (E, Fig. 6). Drain oil by removing drain plug (F, Fig. 6) and refill after the first month of operation. Then, change oil in the gearbox annually.
5. Apron - Oil must be up to indicator mark in oil
sight glass (A, Fig. 7). Top off with Mobil DTE® Oil Heavy Medium. Fill by removing oil plug (B, Fig. 7). After the first three months of operation, drain oil completely (drain is on the bottom of the apron) and refill with Mobil DTE® Oil Heavy Medium, or equivalent to the indicator line. Then, change oil annually.
6. Feed Selector - Lubricate ball oiler (C, Fig. 7)
once daily with Mobil DTE® Oil Heavy Medium.
7. Carriage - Lubricate two ball oilers (D, Fig. 7)
once daily with Mobil DTE® Oil Heavy Medium.
8. Threading Dial Indicator - Lubricate ball oiler
(E, Fig. 7) once daily with Mobil DTE® Oil Heavy Medium.
Figure 6
Figure 7
9
9. Compound Rest - Lubricate three ball oilers (F,
Fig. 8) once daily with Mobil DTE® Oil Heav y Medium.
10. Cross Slide - lubricate four ball oilers (G, Fig.
8) once daily with Mobil DTE® Oil Heavy Medium.
11. Longitudinal Feed Handwheel - Lubricate ball
oiler (H, Fig. 8) once daily with Mobil DTE® Oil Heavy Medium.
The GHB-1340A and GHB-1440A bench lathes are rated at 2HP, 1PH, 230V only. Confirm power av ail a ble a t th e l a th e's lo cati on is th e s ame ra tin g as the lathe.
Make sure the lathe is properly grounded.
10.0 General Description
10.1 Lathe Bed
The lathe bed (A, Fig. 10) is made of high grade cast iron. By combining hig h cheeks with strong cross ribs, a bed with low vibration and high rigidity is realized. Two precision ground V-slideways, reinforced by heat hardening and grinding, are an accurate guide for the carriage and headstock. The main drive motor is mounted to the rear of the bed.
Figure 8
12. Tailstock - Lubricate three ball oilers (I, Fig. 9)
once daily with Mobil DTE® Oil Heavy Medium.
13. Leadscrew/Feed Rod - Lubricate three ball
oilers once daily (J, Fig. 9) with Mobil DTE® Oil Heavy Medium.
Figure 9
9.0 Electrical Connections
Figure 10
10.2 Carriage
The carriage (B, Fig. 10) is made f rom high quality cast iron. The sliding parts are smooth ground. The cross-slide is mounted on the carriage and moves on a dove-tailed slide which can be adjusted for play by means of the gibs.
The compound slide (C, Fig. 10), which is mounted on the cross slide (D, Fig. 10), can be rotated through 360°. The compound slide and the cross slide travel in a dovetail slide and have adjustable gibs. A four-way tool post (E, Fig. 10) is fitted on the compo und slide .
10.3 Headstock
The headstock (F, Fig. 10) i s c ast f rom high grade, low vibration cast iron. It is mounted to the bed by four bolts with two adjusting bolts for alignment. In the head, the spindle is mounted on two precision taper roller bearings. The hollow spindle has Morse Taper #5 with a 1-1/2" bore.
10.4 Four Way Tool Post
All electrical connections must
be completed by a qualified electrician. Failure to comply may cause serious injury and/or damage to the machinery and property.
The four-way tool post (E, Fig. 10) is mounted on the compound slide and allows a maximum of four tools to be mounted simultaneously. Remember to use a minimum of two clamping screws when installing a cutting t ool.
10
Figure 11
10.5 Apron
The apron (A, Fig. 11) is mounted to the carriage. In the apron a half nut is fitted. The half nut gibs can be adjusted from the outside. The half nut is engaged by use of a lever. Quick travel of the apron is accomplished by means of a bed-mounted rack and pinion, operated by a hand wheel on the front of the apron.
10.6 Tailstock
The tailstock (B, Fig. 11) slides on a v-way and can be locked at any location b y a clamping lever. The tailstock has a heavy-duty spindle with a Morse Taper #3.
10.7 Leadscrew and Feed Rod
The leadscrew (C Fig. 11) and feed rod (D, Fig. 11) are mounted on the front of the machine bed. They are connected to the gearbox at the left for automatic feed and lead. They are supported by bushings on both ends. Both are equipped with brass shear pins.
10.8 Gear Box
The gear box (E, Fig. 11) is made from high quality cast iron and is mounted to the left side of the machine bed.
10.9 Steady Rest
The steady rest (F, Fig. 11) serves as a support for shafts on the free tailstock end. The steady rest i s mounted on the bedway and secured from below with a bolt, nut and locking plate. The sliding fingers require continuous lubrication at the contact points with the workpiece to prevent premature wear.
10.10 Follow Rest
The traveling follow rest (G, Fig. 11 ) is mounted on the saddle and follows the movement of the turning tool. Only two fingers are required as the turning tool takes the place of the third. The follow rest is used for tuning operations on long, slender workpieces. It prevents flexing of the workpiece from the pressure of the cutting tool.
The sliding fingers are set similar to the steady rest, free of play, but not binding. The sliding fingers require continuous lubrication at the contact points with the workpiece to prevent premature wear.
11.0 Controls
Figure 12
1. Emergency Stop Switch (A, Fig. 12) - depress to stop al l mach in e fun ctions . Caution: lathe will still have power. Turn clockwise to re-set.
2. Jog Switch (B, Fig. 12) - Depress and release to advance spindle momentarily.
3. Power Indicator Light (C, Fig. 12) - Lit whenever lathe has power.
4. Feed Rod/Leadscrew Selector (D, Fig. 12) Use knob and lever to activate leadscrew and feed rod.
5. High/Low Speed Selector Lever (E, Fig. 12) ­Move to the left for low speed range. Move to the right for high speed range.
6. Four Step Speed Selector Lever (F, Fig. 12) - Use to select one of four spindle speeds in either high or low range.
7. Feed Direction Selector (G, Fig. 12) - Selects carriage travel direction when the chuck is rotating in the forward direction or counter­clockwise as viewed from the front of the chuck.
8. Feed Rate Selector (H, Fig. 12) - Use knobs and handles to set desired feed, or lead rates.
9. Forward/Reverse Lever (I, Fig. 13) - Pull lever up for clockwise spindle rotation (reverse). Push lever down for counter-clockwise spindle rotation (forward). Neutral pos ition is a center detent and the spindle remains idle.
10. Compound Rest Lock (J, F ig. 13) - Turn hex nut clockwise to lock and counter-clockwise to unlock.
11
11. Compound Slide Lock (K , Fig. 13) - Turn set screw clockwise to tighten and counter­clockwise to loosen.
12. Cross Slide Lock (L, Fig. 13) - Turn set screw clockwise, and tighten to lock. Turn counter­clockwise and loosen to unlock. Caution:
Cross slide lock screw must be unlocked before engaging automatic feeds or damage to the lathe may occur.
13. Carri age Lock (M, Fig. 13) - Turn hex socket cap screw clockwise and tighten to lock. Turn counterclockwise and loosen to unlock.
Caution: Carriage lock screw must be unlocked before engaging automatic feeds or damage to lathe may occur.
14. Longitudinal Traverse Hand Wheel (A, Fig.
14) – Rotate hand wheel clockwise to move the apron assembly toward the tailstock (right). Rotate the wheel counter clockwise to move the apron assembly toward the headstock (left).
15. Feed Selector (B , Fig. 14) – Push lever to the left and down to activate the crossfeed function. Pull lever to the right and up to activate the longitudinal function.
16. Half Nut Engagement Lever (thread cutting) (C, Fig. 14) – Move the lever down to e ngage. Move the lever up to disengage.
Figure 13
17. Cross Traverse Handwheel (D, Fig. 14) – Clockwise rotation moves the cross slide toward the rear of the machine.
18. Compound Rest Traverse Handwheel (E, Fig. 14) – Rotate clockwise or coun terclockwise to move or position.
19. Tool Post Clamping Lever (F, Fig. 14) – Rotate counter-clockwise to loosen and clockwise to tighten. Rotate the tool post when the lever is unlocked.
20. Threading Dial (G, Fig. 14) – Engage by pushing into the leadscrew. Pull out to disengage. The dial indicator and chart will specify at which point a thread can be entered.
21. Tailstock Quill Clamping Lever (H, Fig. 15) – Lift up to lock the spindle. Push down to unlock.
22. Tailstock Clamping Lever (I, Fig. 15) – Lift up lever to lock. Push down lever to unlock.
23. Tailstock Quill Traverse Handwheel (J, Fig.
15) – Rotate clockwise to advance the quill. Rotate counter-clockwise to re tract the quill.
24. Tailstock Off-Set Adjustment (K, Fig. 15) – Three set screws located on the tailstock base are used to off-set the tailstock for cutting tapers. Loosen lock screw on tailstock end. Loosen one side set screw (K, Fig. 15) while tightening the other until the amount of off-set is indicated on scale. Tighten lock screw.
Figure 14
Figure 15
12
12.0 Operation
12.1 Break-In Procedure
During manufacturing and testing, this lathe has been operated in the low R.P.M. range for three hours.
To allow time for the gears and bearings to break-in and run smoothly, do not run the lathe above 755 R.P.M. for the first six hours of operation and use.
12.2 Feed and Thread Selection
1. Reference the feed and thread table (A, Fig.
16).
2. Move knobs and handle (B, Fig. 16) to the appropriate position.
gears too tight will cause e xcessive noise and wear.
7. Close the cover and connect the machine to the power source.
Figure 16
12.3 Change Gear Replacement
Note: the 32T x 127T x 48T gears are installed in
the end gear compartment when delivered from the factory. This combin ation will cov er most inch feeds and threads under normal circumstances. The additional gears found in the toolbox are used for some metric threads and feeds.
1. Disconnect the machine from the power sou rce.
2. Open the end cover on the left end of the headstock.
3. Loosen the socket head cap screw (D, Fig. 17) and hex nuts (E & F, Fig. 17). Move the quadrant out of the way.
4. Change gears (G, Fig. 17) to match the feed and thread chart.
5. Thoroughly clean and install new gears.
6. Move the quadrant so the large gear m eshes with the smaller gears and tighten to secure i n place. Note: Make sure there is backlash of
0.002” – 0.003” between gears. Setting the
Figure 17
12.4 Automatic Feed Operation and
Feed Changes
1. Move the f orward/reverse selector (A , Fig. 18) up or down depending on desired direction.
Figure 18
2. Set the selector handle (B, Fig. 19) to t he “P” position and turn knob (C, Fig. 19) counter­clockwis e so the arr ow is pointing up to start the feed rod rotating.
13
Figure 19
12.5 Powered Carriage Travel
Push lever (D, Fig. 18) to the left and down to engage crossfeed. Pull lever to the right and up to engage longitudinal feed.
12.6 Thread Cutting
1. Set f eed rate selectors (B, E, F, G, Fig. 19) in proper position for the correct feed rate of the thread pitch to be cut.
2. Move knob (C, Fig. 19) to the “0” position to disengage the feed rod.
3. Engage the half nut lever (H, Fig. 18).
4. The half nut lever and the threading dial are used to thread in the conventional manner. The thread dial chart specifies at which point a thread can be entered using the threading dial.
5. To cut metric threads, the half nuts must be left continually engaged once the start point has been selected and the half nut is initially engaged (thread dial cannot be used).
5. Move the carriage again and adjust if necessary. Note: over adjustment will cause excessive premature wear of the gibs.
Figure 20
13.2 Cross Slide adjustment
If the cross slide is too loose, follow procedure below to tighten:
1. Loosen the rear gib screw (C, Fig. 20) approximately one turn.
2. Tighten front gib screw a quarter turn. Turn the cross slide handwheel to see if the cross slide is sti ll loo se. If it is st ill loo se, tig hten t he front screw a bit more and try again.
3. When cross slide is properly adjusted, snug rear gib screw. Do not overtighten; this will cause premature wear on the gib and mating parts.
13.3 Compound Slide adjustment
Follow the same procedure, as the cross slide adjustment, to adjust the compound rest.
13.4 Tailstock adjustment
13.0 Adjustments
13.1 Saddle adjustment
1. Loosen four hex nuts (A, Fig. 20) found on the bottom rear of the cross slide.
2. Turn each of the four set screws (B, Fig.20) equally with a hex wrench until a slight resistance is felt. Do n o t over tighten.
3. Move the carriage with the hand wheel and determine if drag is to your preference. Readjust the setscrews as necessary to achieve the desired drag.
4. Hold socket set screw firmly with a hex wrench and tighten hex nut to lock in place.
If the handle will not lock the tailstock securely, use the following procedure:
1. Lower handle to the unlocked position.
2. Slide tailstock to an area that will allow you to reach under the tailstock.
3. Tighten tailstock clamping nut 1/4 turn, and re­test for proper locking. Repeat as necessary.
14
13.5 Half Nut Gib adjustment
1. Remove the thread dial assembly by unscrewing the screw (D, Fig. 21).
2. Loosen three hex nuts (E, Fig. 21) found on the side of apron, and turn three set screws (F, Fig.21) equally with a hex wrench.
3. Adj ust properly for wear and play. Hold socket set sc re w f ir m ly w it h a he x w re nc h a nd t ig hte n hex nut to lock in place. Note: over adjustment will cause excessive premature wear on gib and mating parts.
Figure 21
7. Loosen two hex nuts found on the two adjusting bolts located on the backside of headstock just above the motor mount bracket. Adjust the bolts for alignment and tighten hex nuts. Tighten the headstock bolts and make another cut. Keep adjusting screws after each cut until the bar stock measurements are the same. Tighten all headstock bolts and jam nuts on adjusting screws.
13.7 Removing Gap Bridge
1. Using an open end wrench, tighten the two hex nuts (A, Fig. 22). This will cause the taper pins (B, Fig. 22) to release. Remove the taper pins.
2. Remove the four hex socket cap screws (C, Fig.
22) with a hex key wrench.
3. Gap bridge can now be removed.
13.8 Installing Gap Bridge
1. Clean the bottom and the ends of the gap bridge thoroughly.
2. Set gap bridge in place and align.
3. Remove nu ts (A, Fig. 22) from the taper pins (B, Fig. 22).
4. Slide taper pins in their respective holes and seat using a mallet. Install nu ts on the taper pins finger tight.
5. Install four socket head cap screws (C, Fig. 22) and tighten securely.
13.6 Headstock Alignment
The headstock has been alig ned at the f act ory and should not require adjustment. However, if adjustment is deemed necessary, follow the procedure below to align the headstock.
1. Using an engineer's precision level on the bedways, make sure the lathe is level side to side and front to back. If the lathe is not level, correct to a level condition before proceeding. Re-test alignment if any leveling adjustments were made.
2. From steel bar stock of approximately two inches in diameter, cut a piece approximately eight inches long.
3. Place two inches of bar stock into chuck and tighten chuck. Do n ot use the tailstock or cen ter to support the other end.
4. Set up and cut along five inches of the bar stock.
5. Using a micrometer, measure the bar stock next to the chuck and at the end. The measurement should be the same.
6. If the measurements are not the same and adjustment is required, loosen the four bolts that hold the headstock to the bed. Do not loosen completely; some drag should remain.
Figure 22
15
14.0 Thread and Feed Chart
Table 1
16
This .pdf document is bookmarked
Parts List and Electrical Diagrams
For Lathe models BDB-1340A, GHB-1340A, GHB-1440A
For GHB-1340A/1440A Operat ing Instructions, see document M-321357A-1 For BDB-1340A Operatin g Inst ructions, see document M - 321360A
JET
(GHB-1340A shown with opt ional stand 321443AK)
I 11/2014
Table of contents
Section Page
Table of contents ................................................................................................................................................... 2
Replacement parts ................................................................................................................................................ 3
1.0 BDB-1340A Headstock Assembly I – Exploded View ................................................................................ 4
1.1 BDB-1340A Headstock Assembly I – Parts List ......................................................................................... 5
2.1 BDB-1340A Headstock Assembly II – Exploded View ............................................................................... 6
2.2 BDB-1340A Headstock Assembly II – Parts List ........................................................................................ 7
3.1 BDB-1340A Headstock Assembly III – Exploded View .............................................................................. 8
3.2 BDB-1340A Headstock Assembly III – Parts List ....................................................................................... 9
4.1 GHB-1340A/1440A Headstock Assembly I – Exploded View .................................................................. 10
4.2 GHB-1340A/1440A Headstock Assembly I – Parts List ........................................................................... 11
5.1 GHB-1340A/1440A Headstock Assembly II – Exploded View ................................................................. 13
5.2 GHB-1340A/1440A Headstock Assembly II – Parts List .......................................................................... 14
6.1 GHB-1340A/1440A Headstock Assembly III – Exploded View ................................................................ 15
6.2 GHB-1340A/1440A Headstock Assembly III – Parts List ......................................................................... 16
7.1 Bed Assembly I – Exploded View ............................................................................................................. 17
7.2 Bed Assembly I – Parts List ..................................................................................................................... 18
8.1 Bed Assembly II – Exploded View ............................................................................................................ 20
8.2 Bed Assembly II – Parts List .................................................................................................................... 21
9.1 Gear Assembly I – Exploded View ........................................................................................................... 22
9.2 Gear Assembly I – Parts List .................................................................................................................... 23
10.1 Gear Assembly II – Exploded View ........................................................................................................ 24
10.2 Gear Assembly II – Parts List ................................................................................................................. 25
11.1 Gear Assembly III – Exploded View ....................................................................................................... 26
11.2 Gear Assembly III – Parts List ................................................................................................................ 27
12.1 Apron Assembly I – Exploded View ....................................................................................................... 28
12.2 Apron Assembly I – Parts List ................................................................................................................ 29
13.1 Apron Assembly II – Exploded View ...................................................................................................... 30
13.2 Apron Assembly II – Parts List ............................................................................................................... 31
14.1 Apron Assembly III – Exploded View ..................................................................................................... 32
14.2 Apron Assembly III – Parts List .............................................................................................................. 32
15.1 Micro Carriage Stop Assembly – Exploded View ................................................................................... 33
15.2 Micro Carriage Stop Assembly – Parts List ............................................................................................ 33
16.1 Top Slide, Tool Post, Saddle, and Cross Slide I – Exploded View ......................................................... 34
16.2 Top Slide, Tool Post, Saddle, and Cross Slide I – Parts List ................................................................. 35
17.1 Top Slide, Tool Post, Saddle, and Cross Slide II – Exploded View ........................................................ 36
17.2 Top Slide, Tool Post, Saddle, and Cross Slide II – Parts List ................................................................ 37
18.1 Tailstock Assembly I – Exploded View ................................................................................................... 38
18.2 Tailstock Assembly I – Parts List ............................................................................................................ 39
19.1 Tailstock Assembly II – Exploded View .................................................................................................. 40
19.2 Tailstock Assembly II – Parts List ........................................................................................................... 40
20.1 Follow Rest – Exploded View ................................................................................................................. 41
20.2 Follow Rest – Parts List .......................................................................................................................... 41
21.1 Steady Rest – Exploded View ................................................................................................................ 42
21.2 Steady Rest – Parts List ......................................................................................................................... 43
22.1 GHB-1340A/1440A Chuck Guard Assembly – Exploded View .............................................................. 44
22.2 GHB-1340A/1440A Chuck Guard Assembly – Parts List ....................................................................... 44
23.0 Additional Parts (Not Shown) ................................................................................................................. 45
24.0 Additional Electrical Components (Not Shown) ...................................................................................... 45
25.1 Electrical Schematic – GHB-1340A/1440A ............................................................................................ 46
25.2 Electrical Schematic Parts List – GHB-1340A/1440A ............................................................................ 46
26.1 Electrical Schematic – BDB-1340A ........................................................................................................ 47
26.2 Electrical Schematic Parts List – BDB-1340A ........................................................................................ 47
27.0 GHB-1340A/1440A Wiring Photo ........................................................................................................... 48
28.0 BDB-1340A Wiring Photo ....................................................................................................................... 48
2
Replacement parts
To order parts or reach o ur service department, call 1-80 0-274-6848 Monday through Fr iday (see our w ebsite for busin ess hours, www. jettools.com). Having the Model Number and Serial Number of your mach ine available when you call will allow us to serve you quickly and accurately.
3

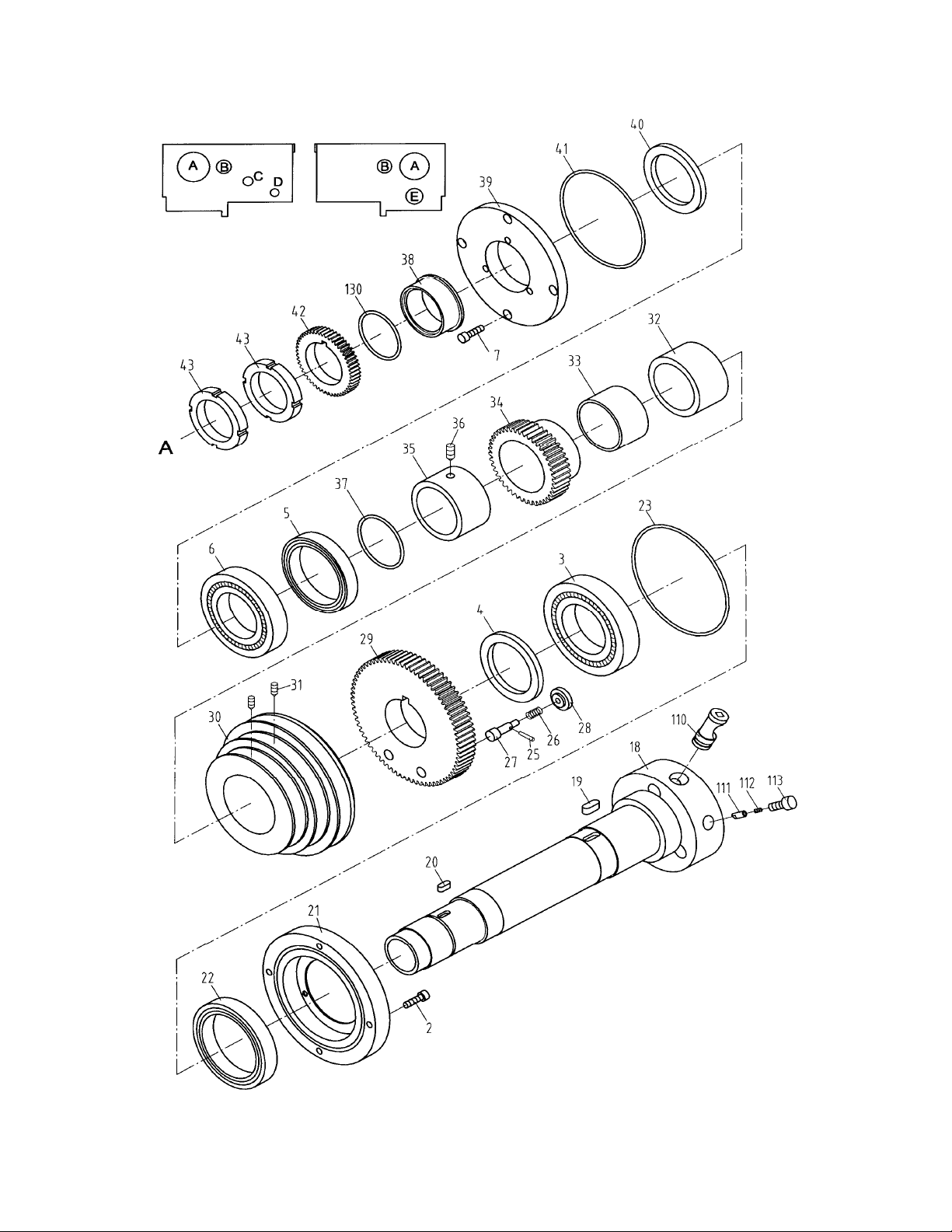

1.0 BDB-1340A Headstock Assembly I – Exploded View
4
Loading...
+ 44 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
