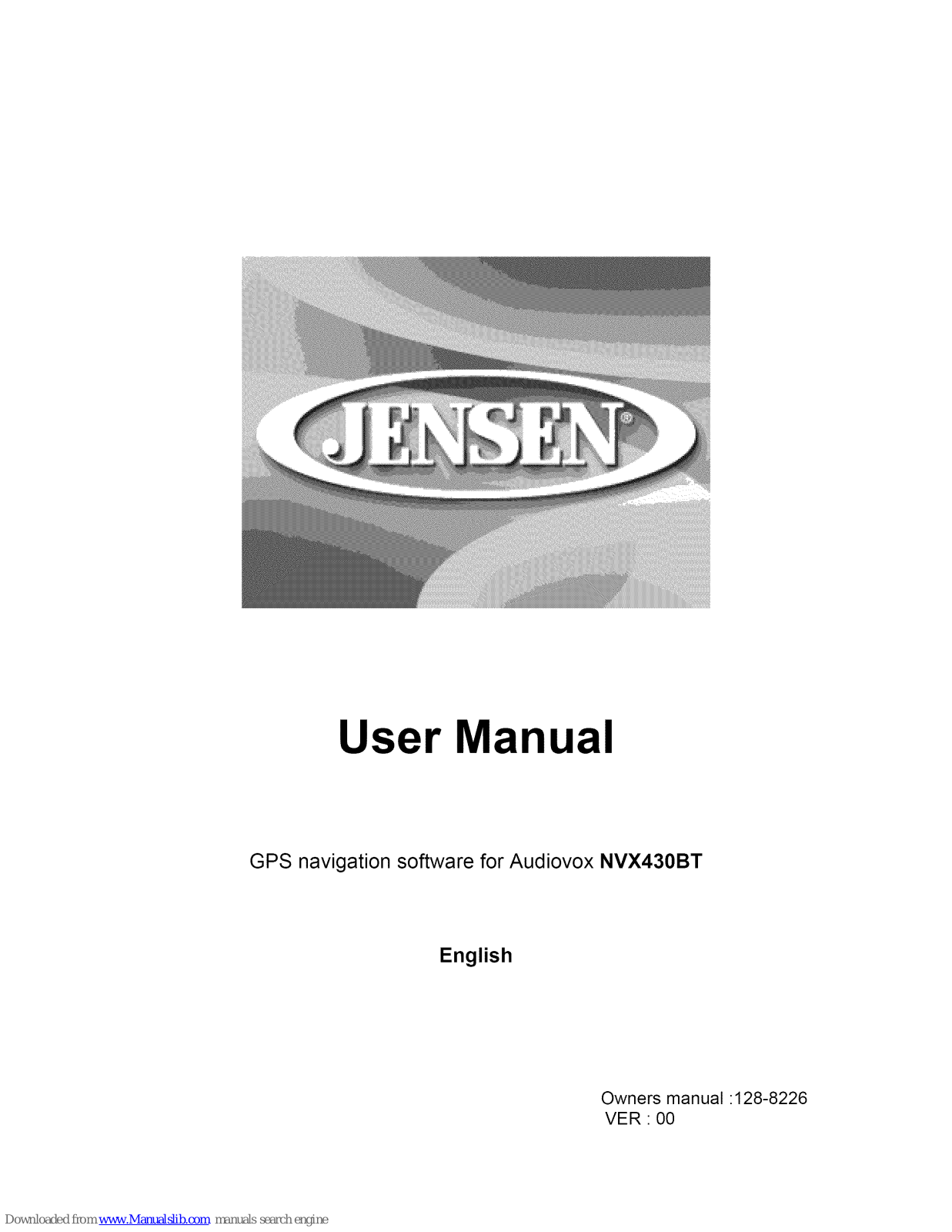

Jensen NVX430BT User Manual

User Manual

GPS navigation software for Audiovox NVX430BT

English

Owners manual :128-8226

VER • 00

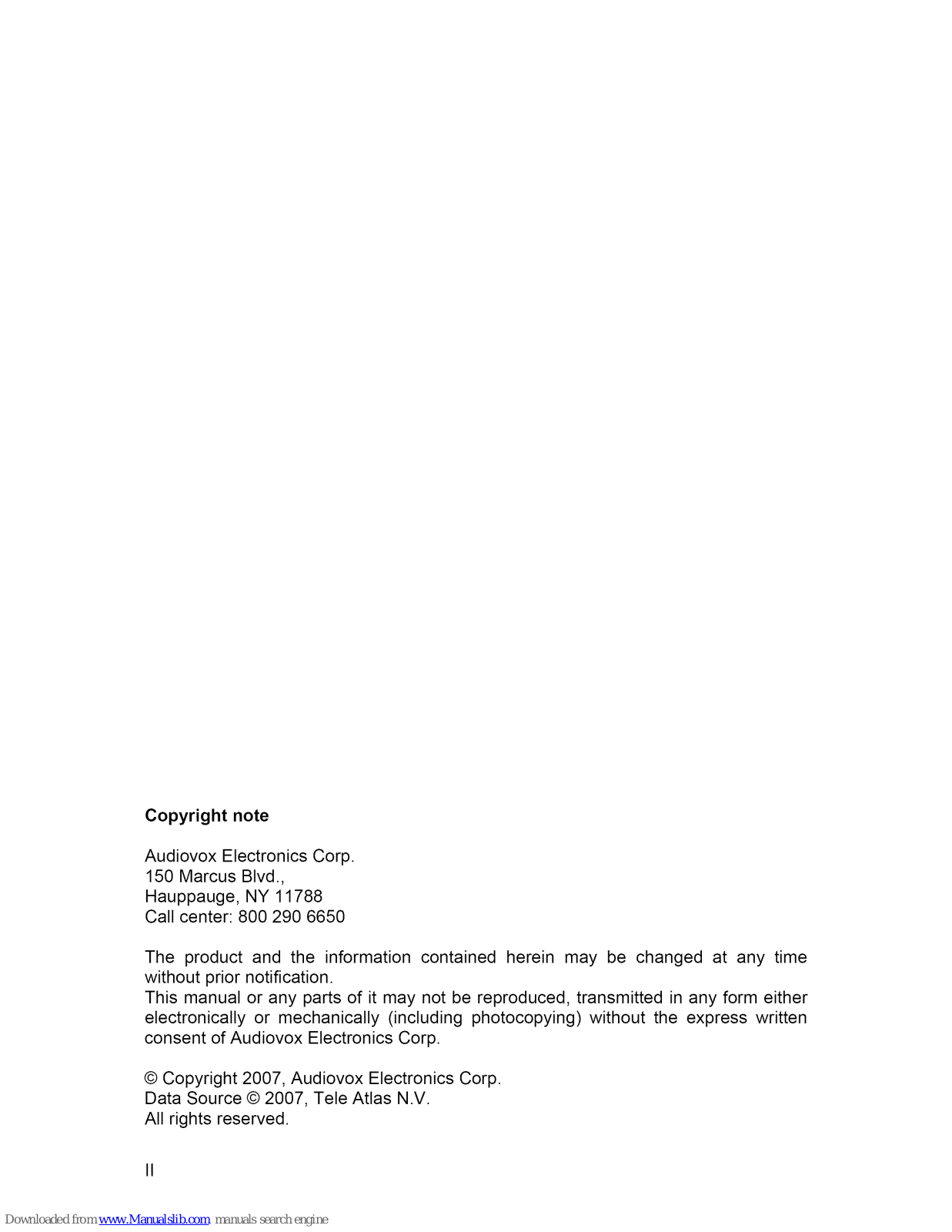

Audiovox Electronics Corp.

150 Marcus Blvd., Hauppauge, NY 11788

Call center: 800 290 6650

The product and the information contained herein may be changed at any time without prior notification. This manual or any parts of it may not be reproduced, transmitted in any form either electronically or mechanically (including photocopying) without the express written consent of Audiovox Electronics Corp.

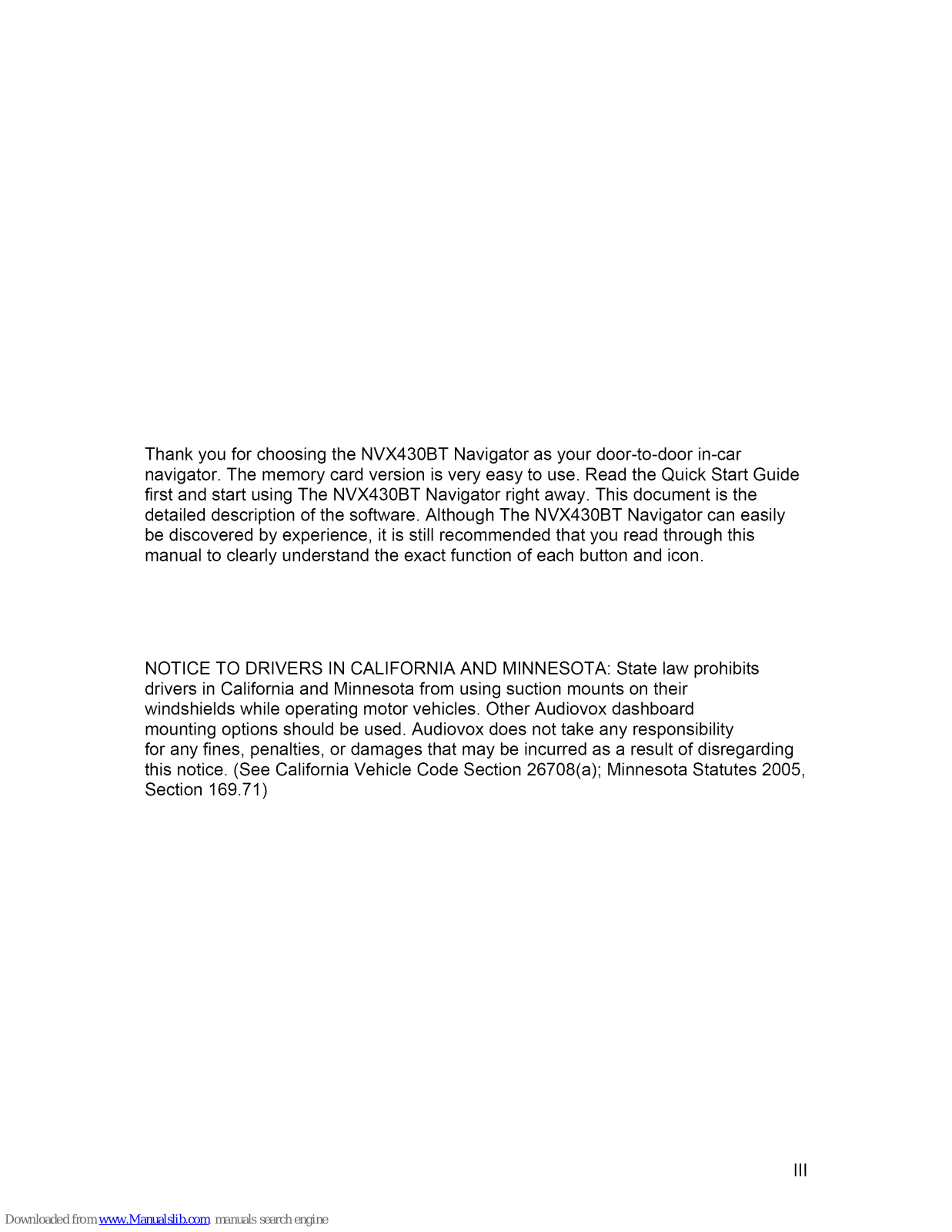

Thank you for choosing the NVX430BT Navigator as your door-to-door in-car navigator. The memory card version isvery easy to use. Read the Quick Start Guide first and start usingThe NVX430BT Navigator rightaway. This document is the detailed description of the software. Although The NVX430BT Navigatorcan easily be discovered by experience, it is still recommendedthat you read throughthis manual to clearly understand the exact function ofeach buttonand icon.

NOTICETO DRIVERS IN CALIFORNIAAND MINNESOTA: State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles. Other Audiovox dashboard mounting options should be used. Audiovox does not take any responsibility for any fines, penalties, or damages that may be incurred as a result of disregarding this notice. (See California Vehicle Code Section 26708(a); MinnesotaStatutes 2005, Section 169.71)

III

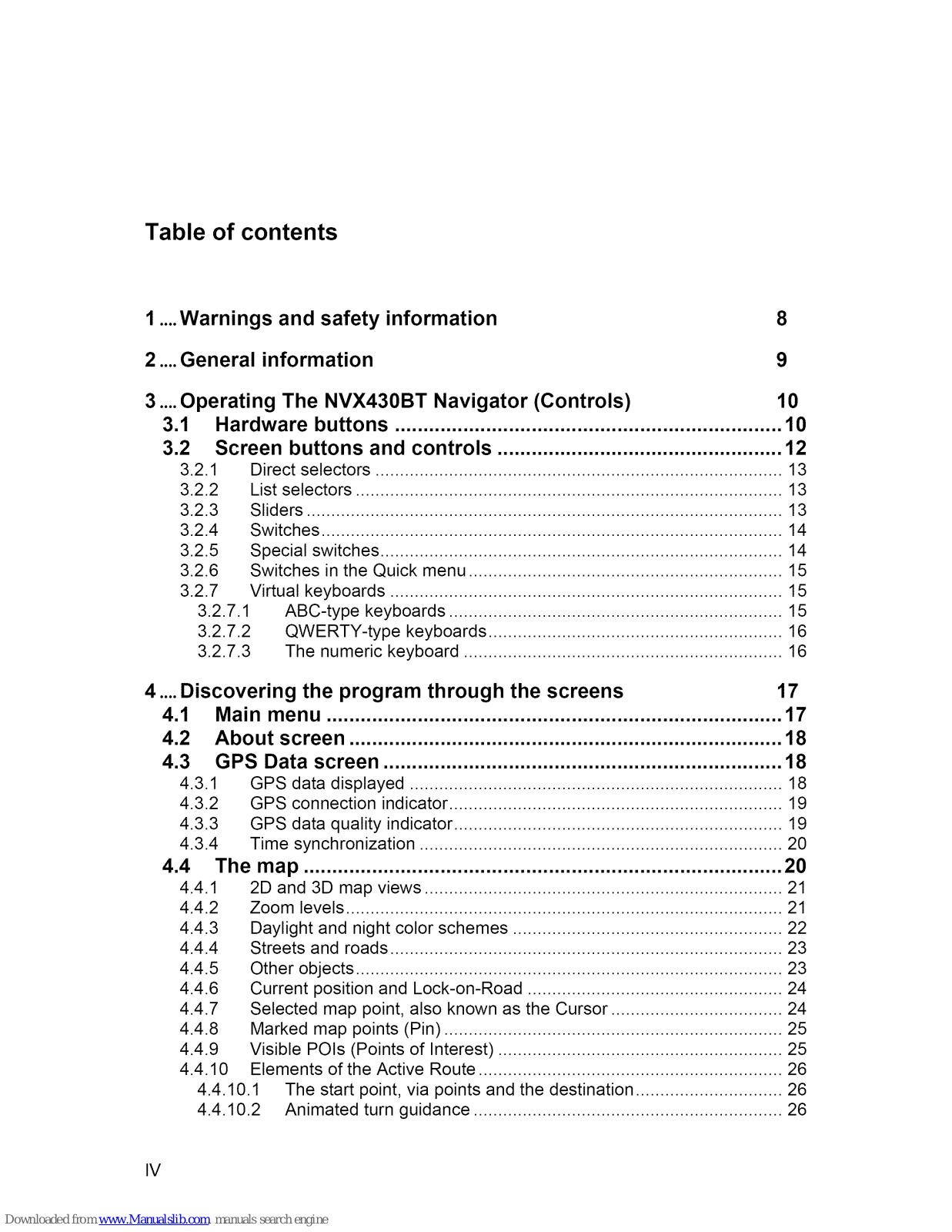

Table of contents

1....Warnings and safety information

2 ....General information

3 ....Operating The NVX430BT Navigator (Controls) 10

3.1 Hardware buttons .................................................................... 10

3.2 Screen buttons and controls .................................................. 12

3.2.1

3.2.2

3.2.3

3.2.4

3.2.5

3.2.6

3.2.7

3.2.7.1

3.2.7.2

3.2.7.3

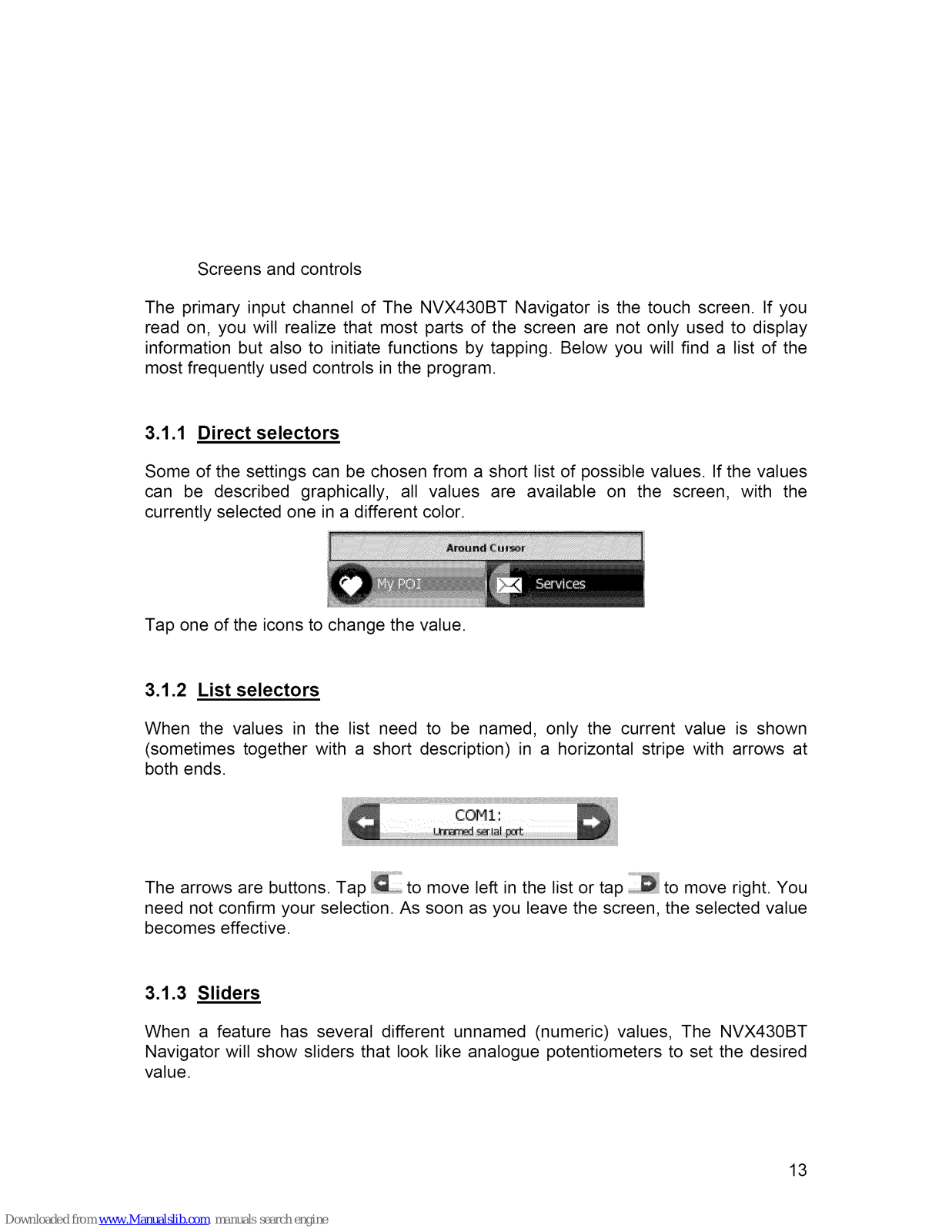

Direct selectors ..................................................................................

List selectors ......................................................................................

Sliders ................................................................................................

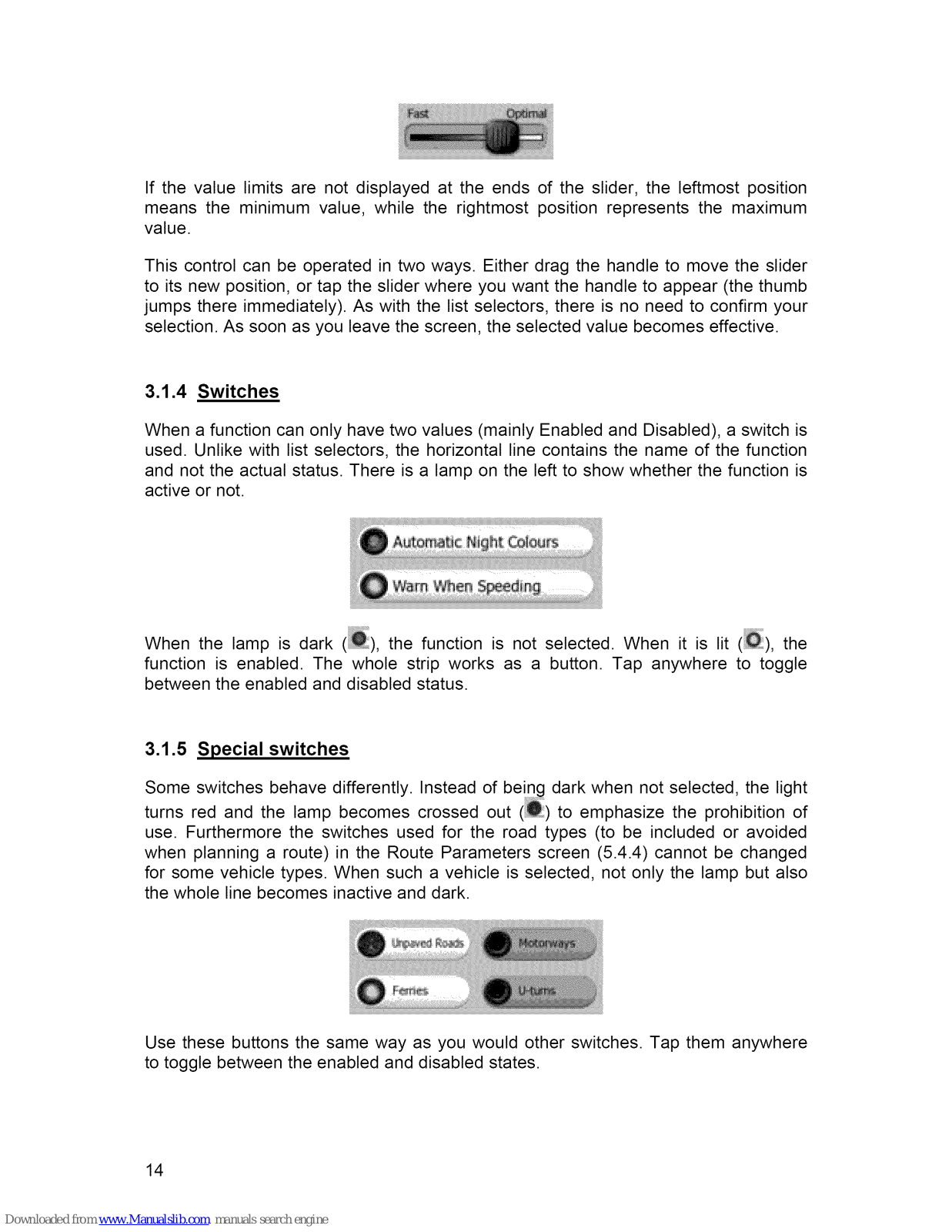

Switches .............................................................................................

Special switches .................................................................................

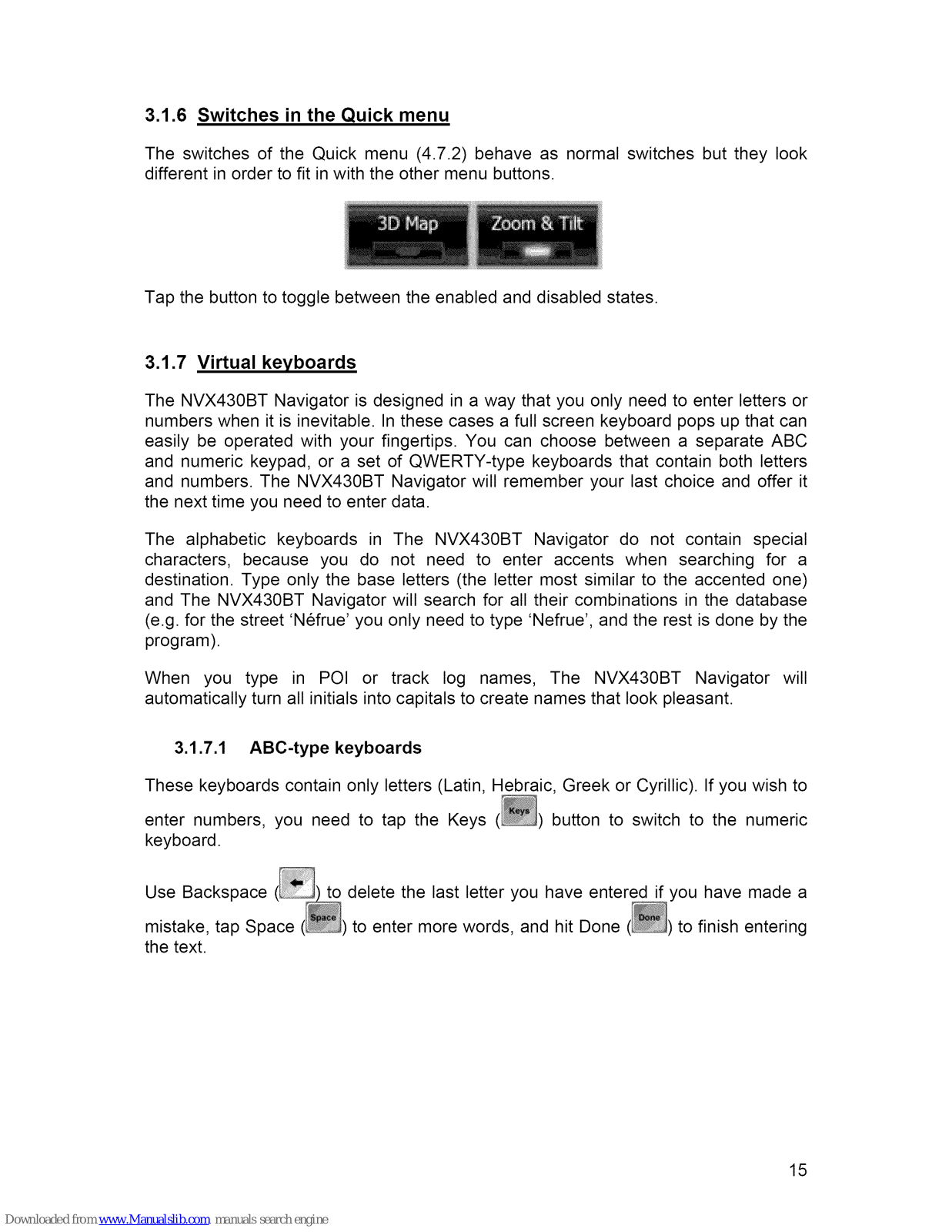

Switches in the Quick menu ...............................................................

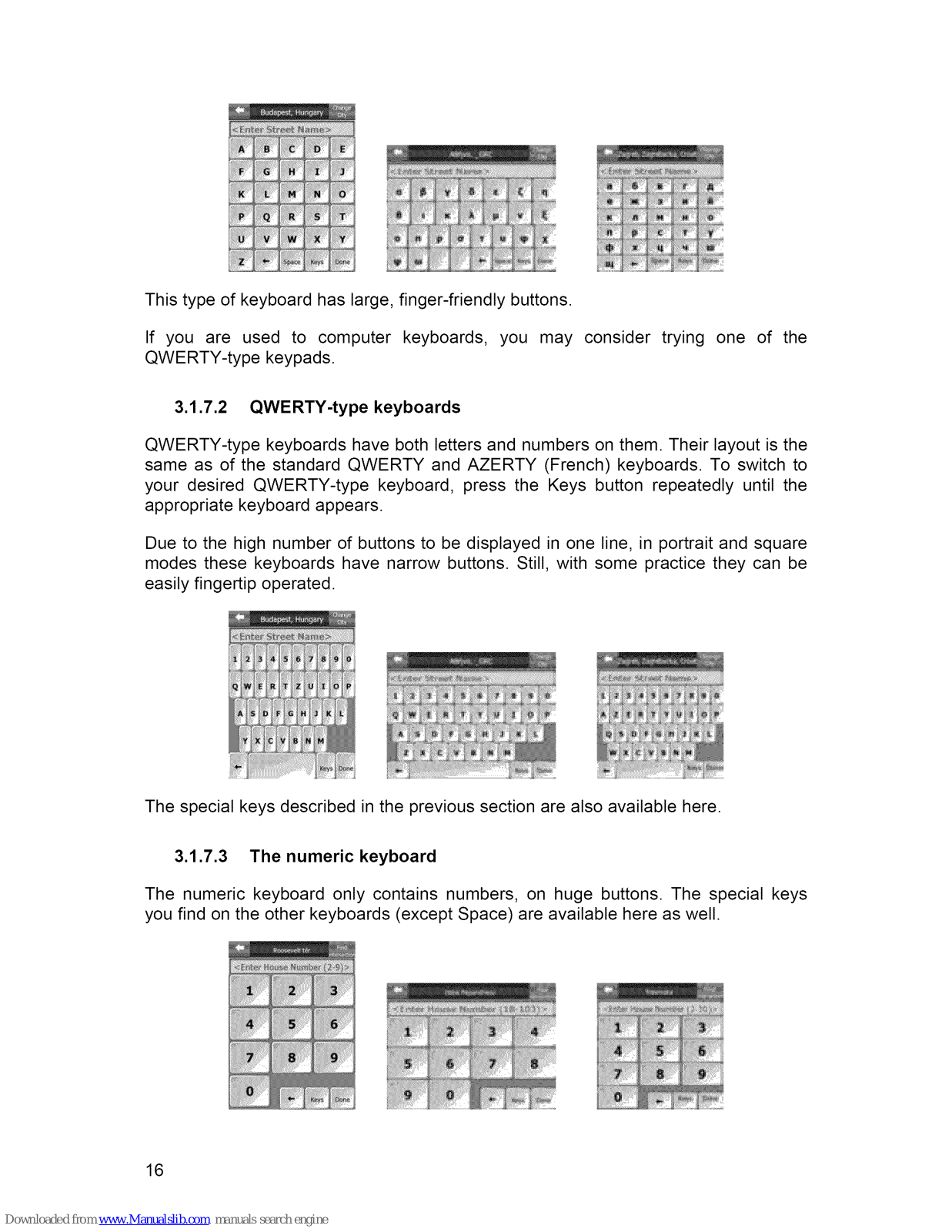

Virtual keyboards ...............................................................................

ABC-type keyboards ...................................................................

QWERTY-type keyboards ...........................................................

The numeric keyboard ................................................................

13 13 13 14 14 15 15 15 16 16

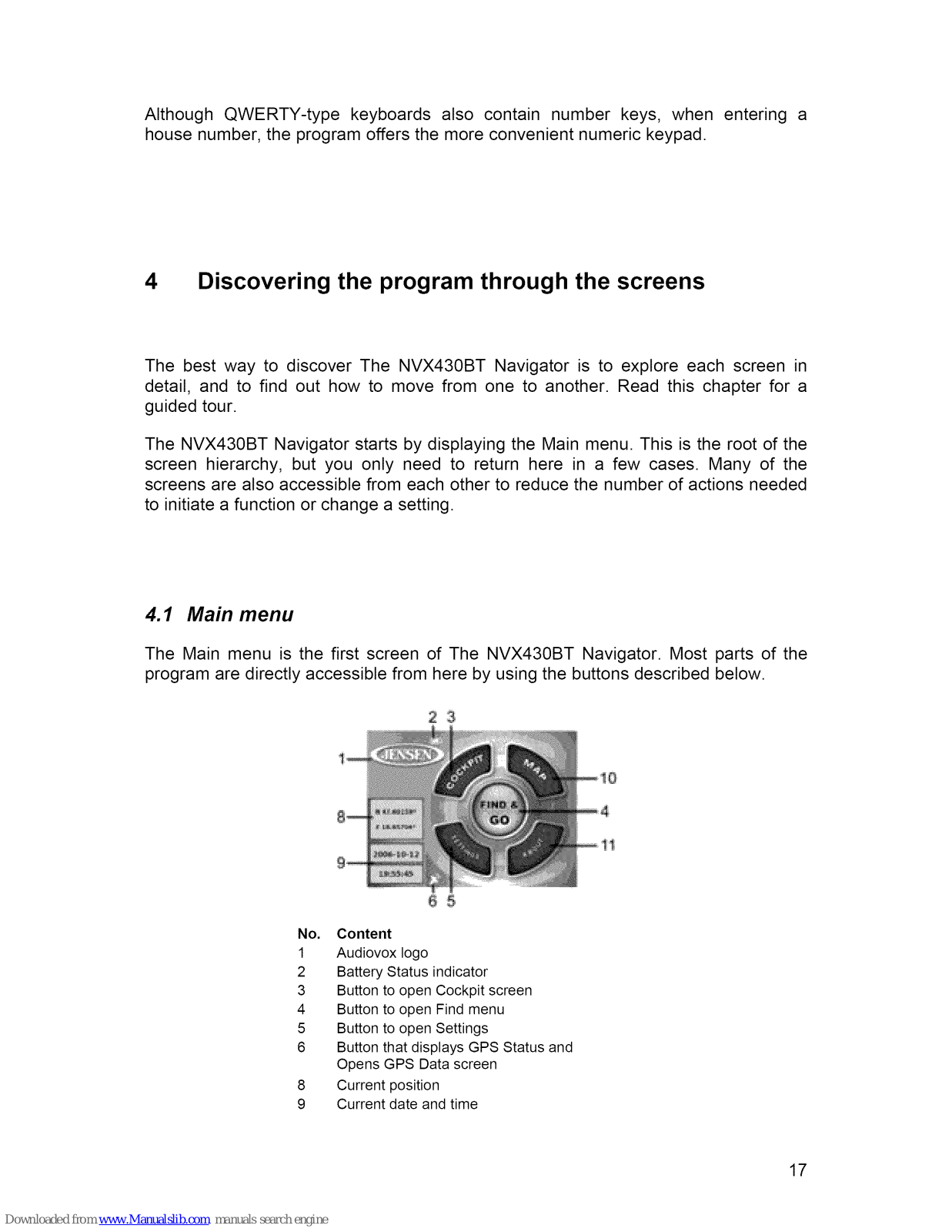

4 ....Discovering the program through the screens 17

4.1 Main menu ................................................................................ 17

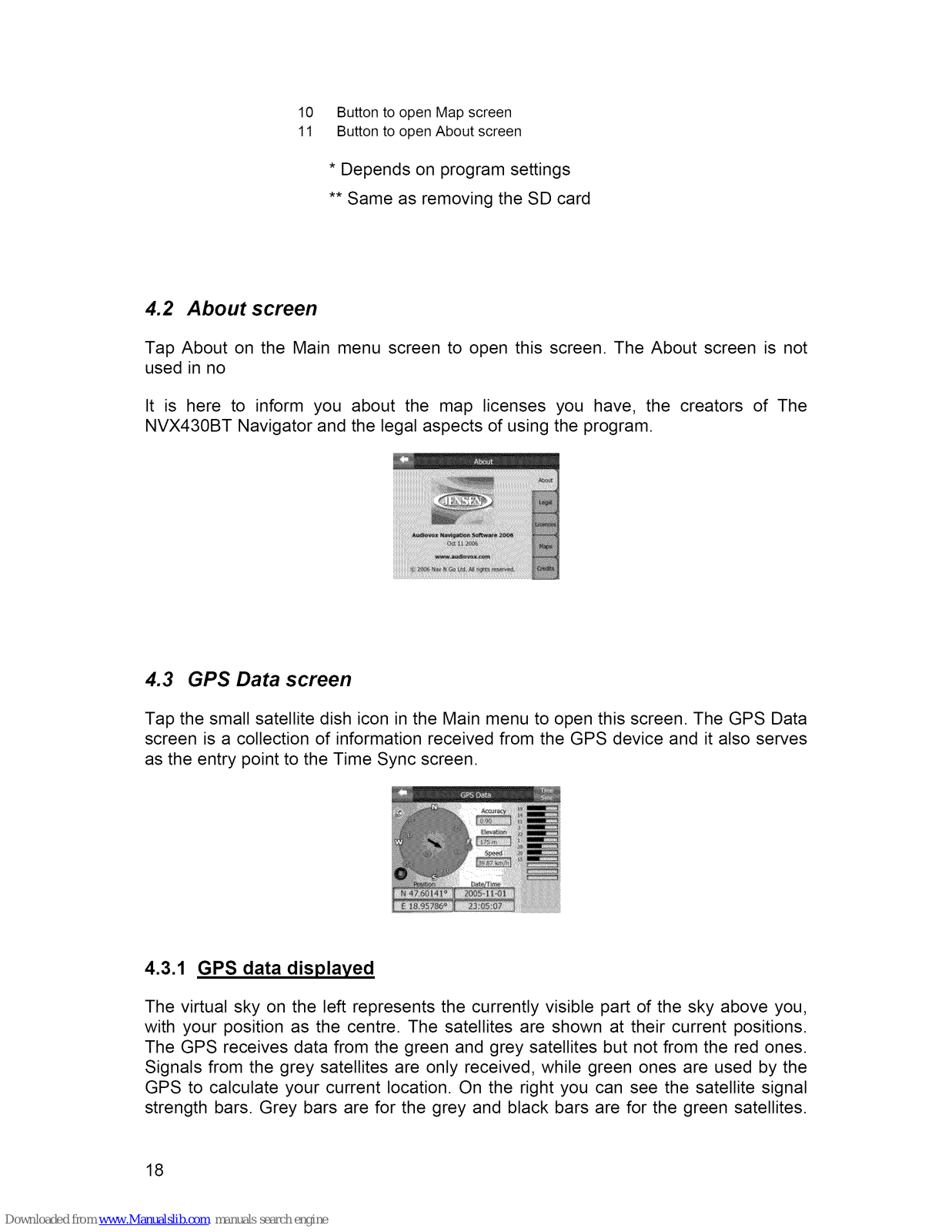

4.2 About screen ............................................................................ 18

4.3 GPS Data screen ...................................................................... 18

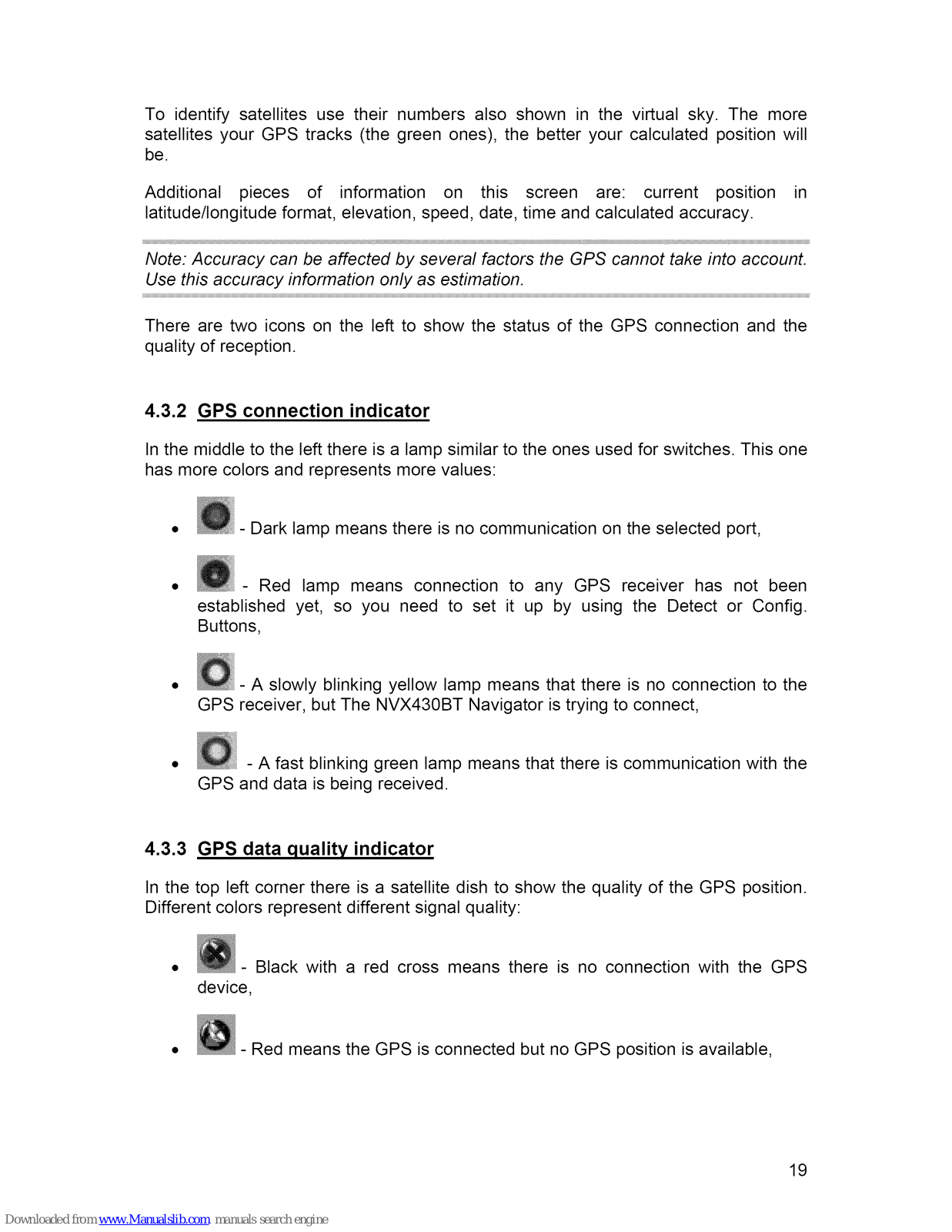

4.3.1 GPS data displayed ............................................................................ 18

4.3.2 GPS connection indicator .................................................................... 19

4.3.3 GPS data quality indicator ................................................................... 19

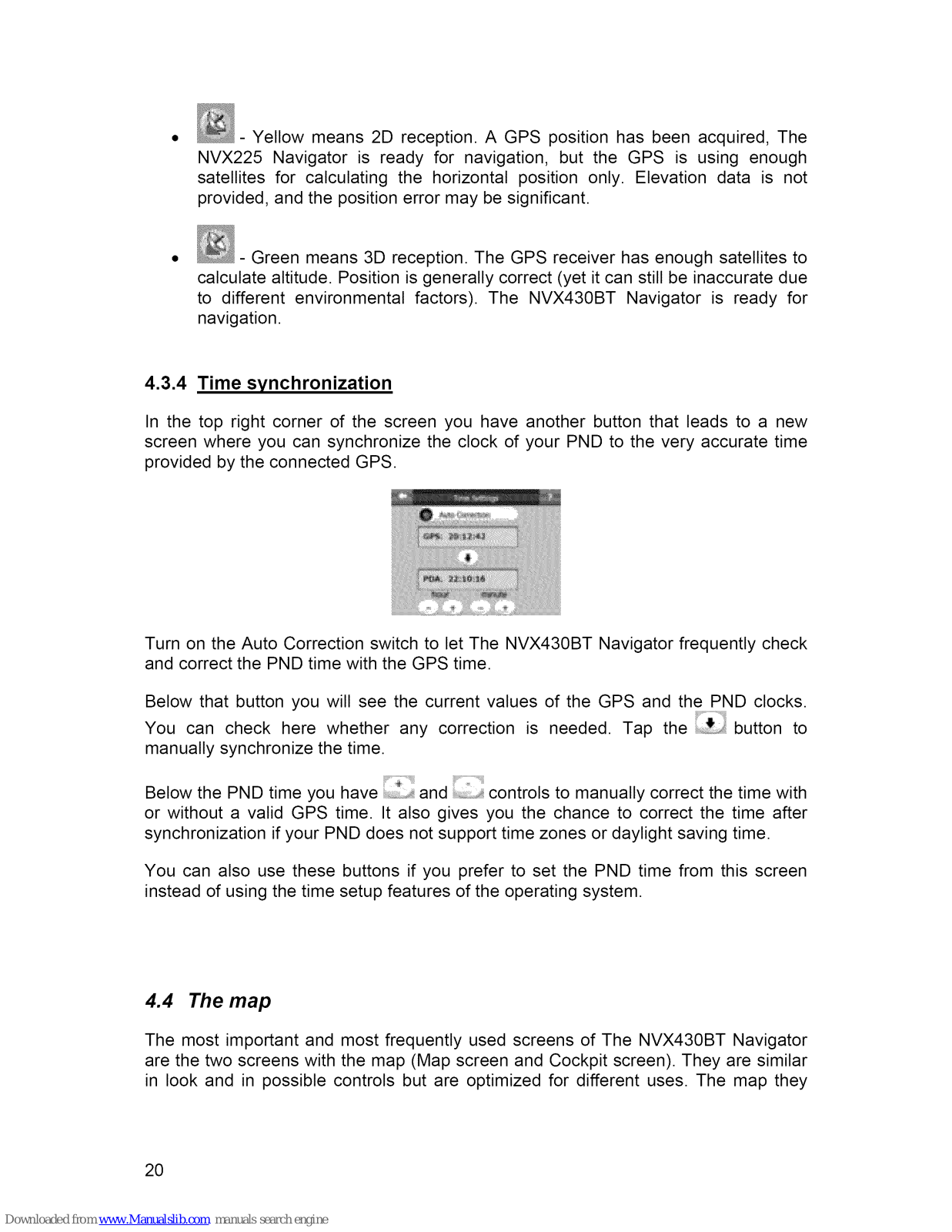

4.3.4 Time synchronization .......................................................................... 20

4.4 The map .................................................................................... 20

4.4.1

4.4.2

4.4.3

4.4.4

4.4.5

4.4.6

4.4.7

4.4.8

4.4.9

4.4.10

4.4.10.1

4.4.10.2

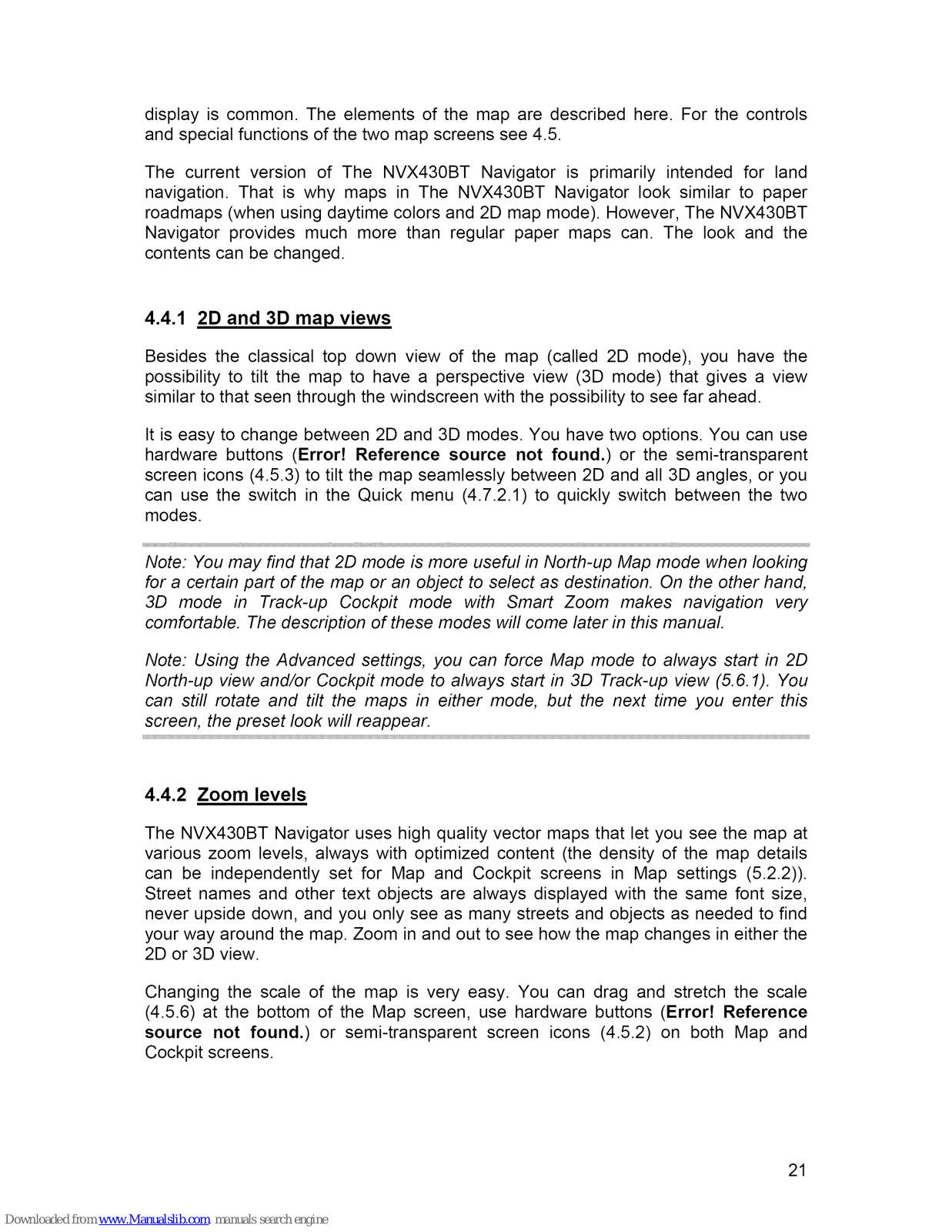

2D and 3D map views ........................................................................

Zoom levels ........................................................................................

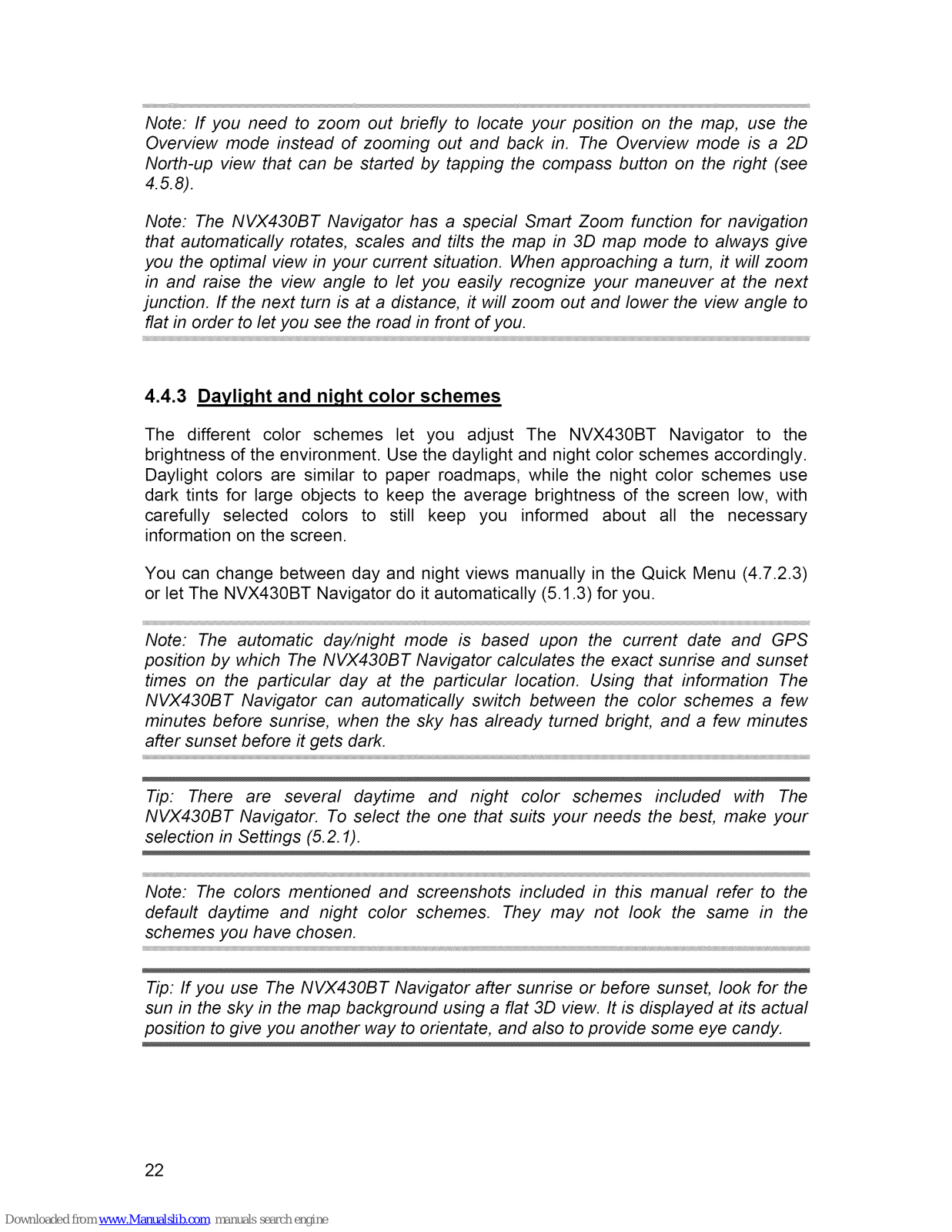

Daylight and night color schemes ......................................................

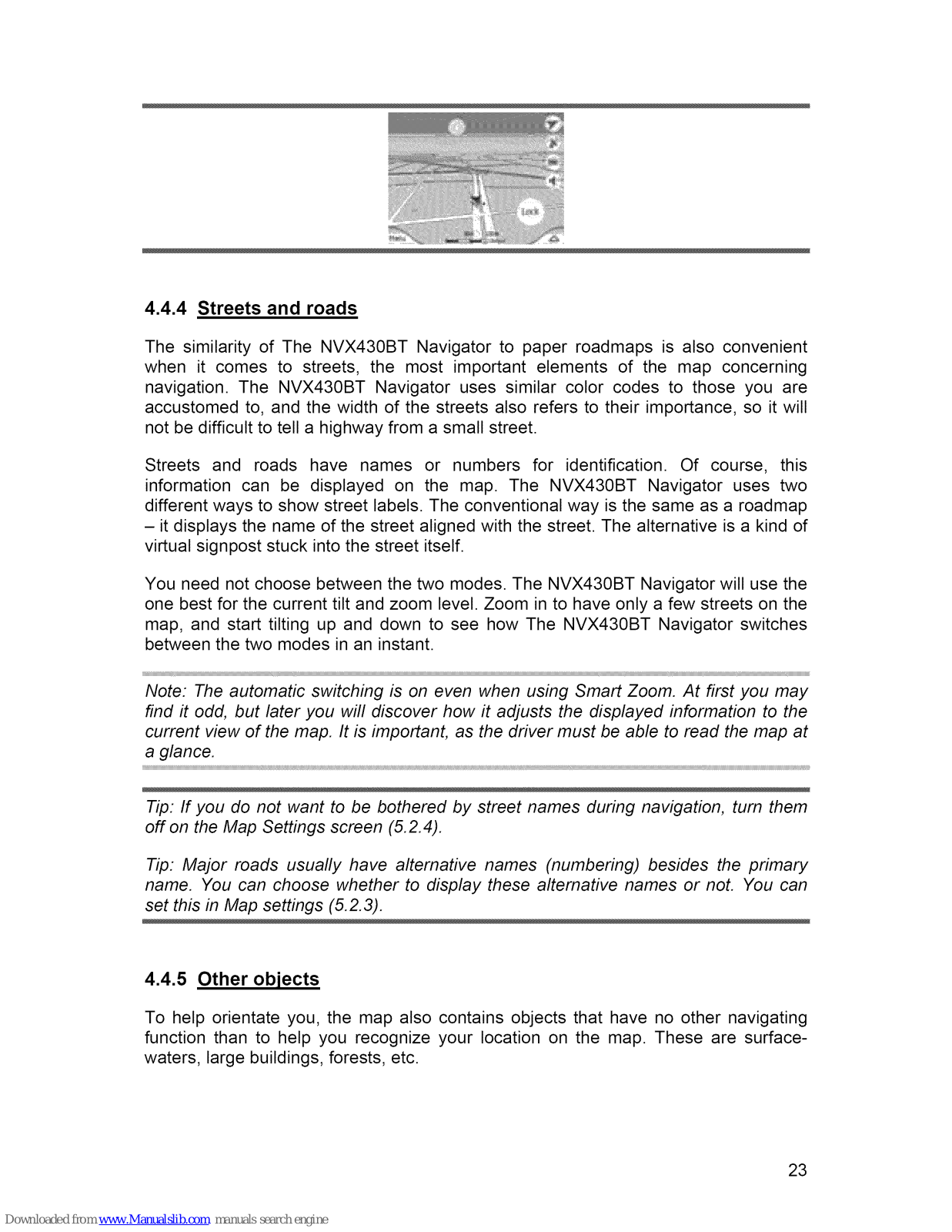

Streets and roads ...............................................................................

Other objects ......................................................................................

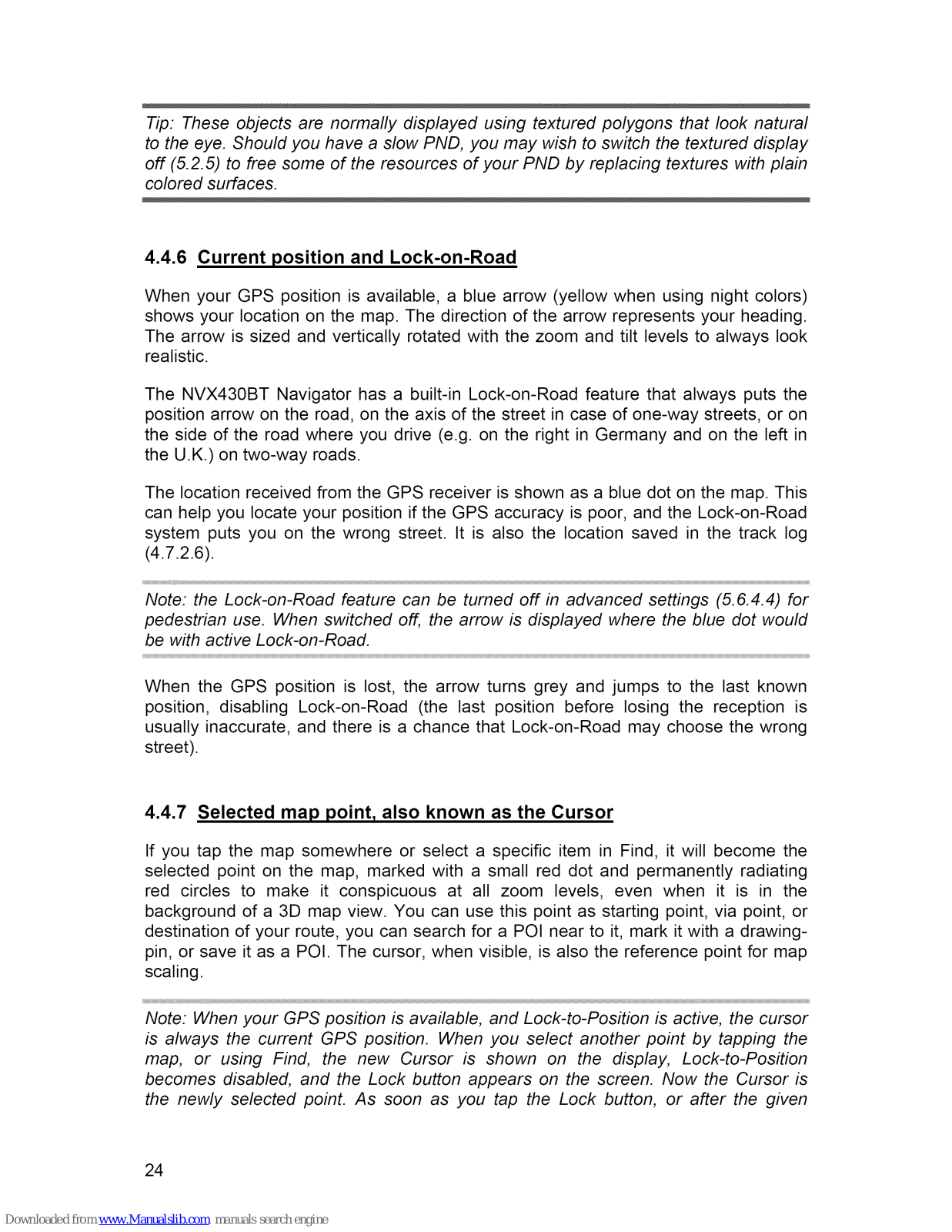

Current position and Lock-on-Road ...................................................

Selected map point, also known as the Cursor ..................................

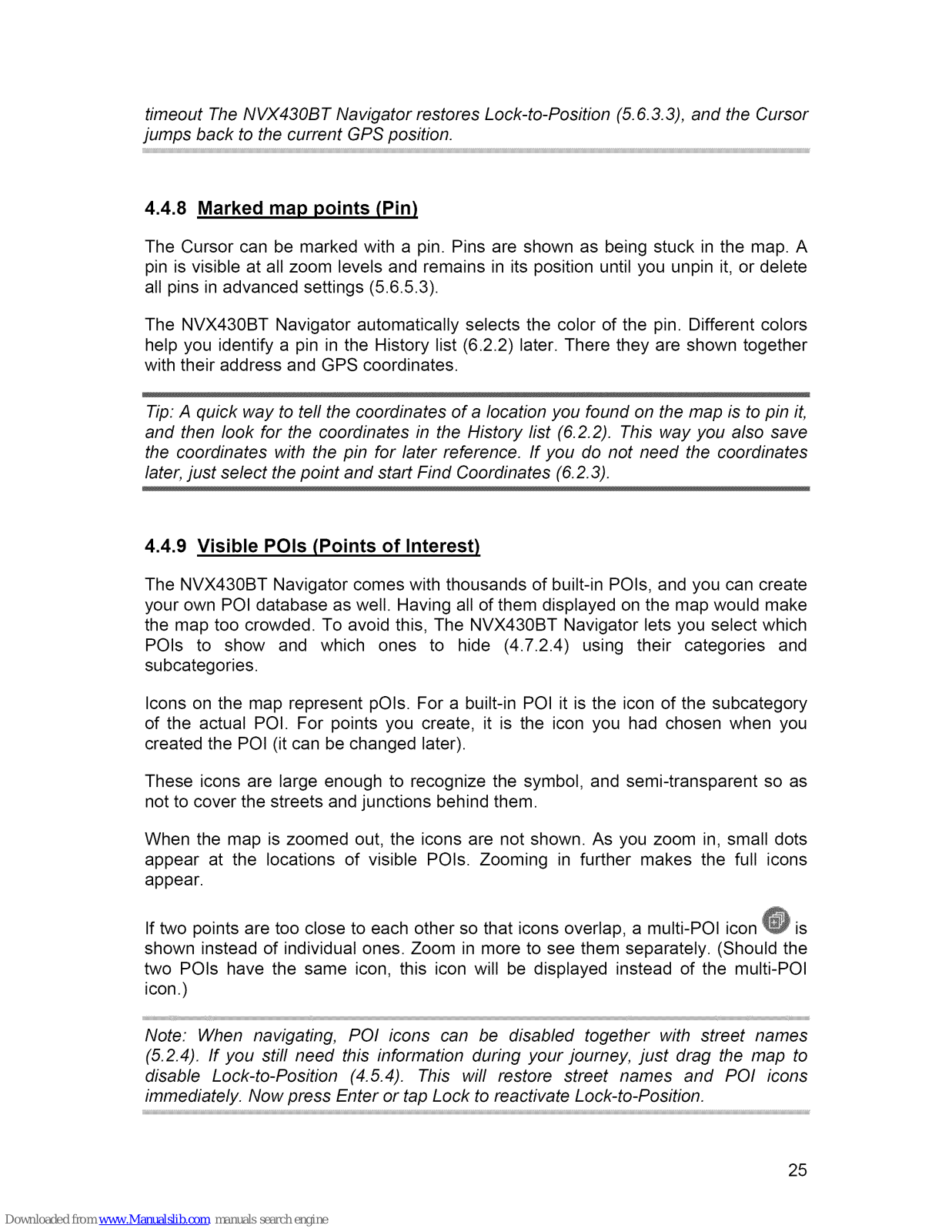

Marked map points (Pin) ....................................................................

Visible POIs (Points of Interest) .........................................................

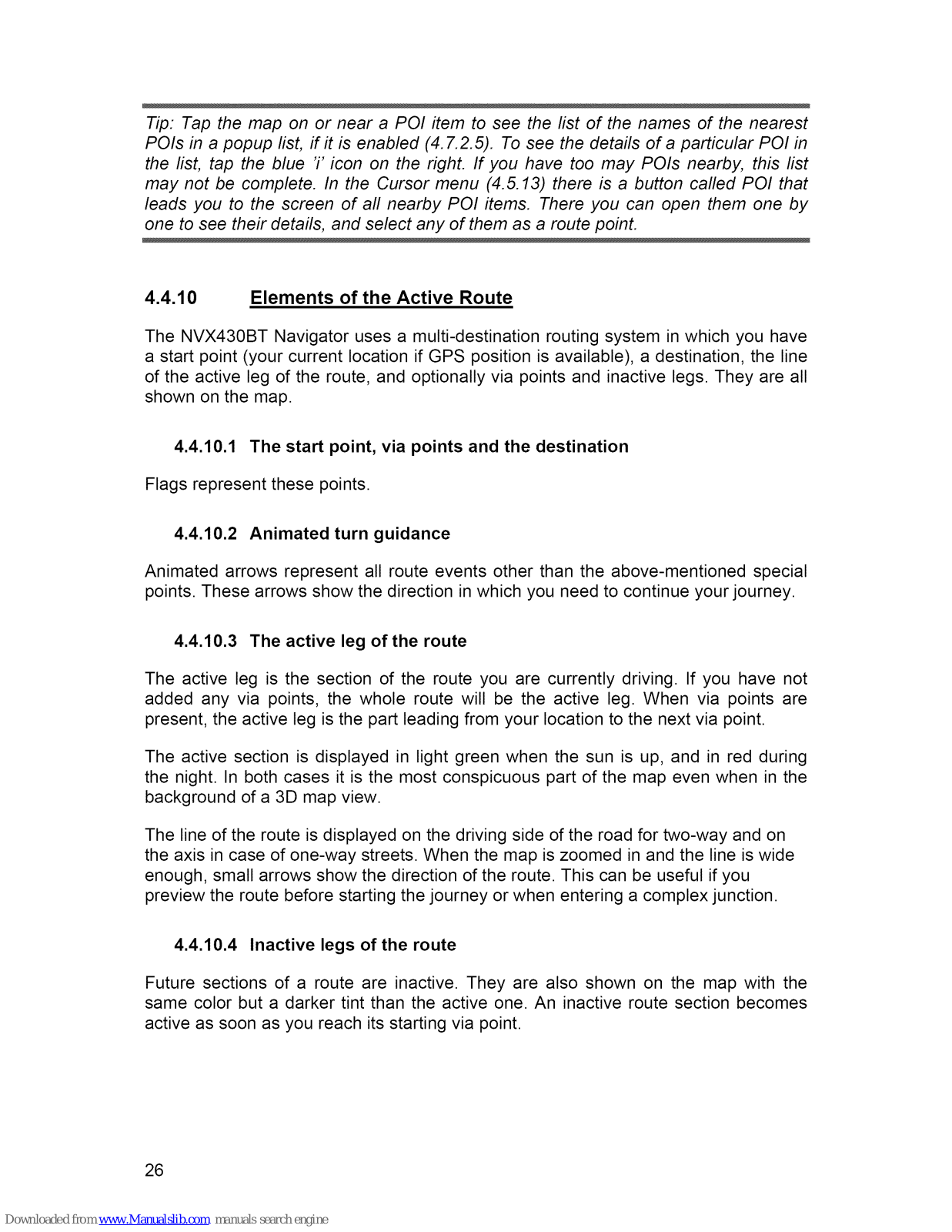

Elements of the Active Route .............................................................

The start point, via points and the destination .............................

Animated turn guidance ..............................................................

21 21 22 23 23 24 24 25 25 26 26 26

4.5

4.5.1

4.5.2

4.5.3

4.5.4

4.5.5

4.5.6

4.5.7

4.5.8

4.5.9

4.5.10

4.5.11

4.5.12

4.5.13

4.5.14

4.5.15

4.5.16

4.5.17

4.5.18

4.4.10.3 The active leg of the route ............................................................ 26

4.4.10.4 Inactive legs of the route .............................................................. 26

4.4.10.5 Roads in the route excluded by your preferences ........................ 27

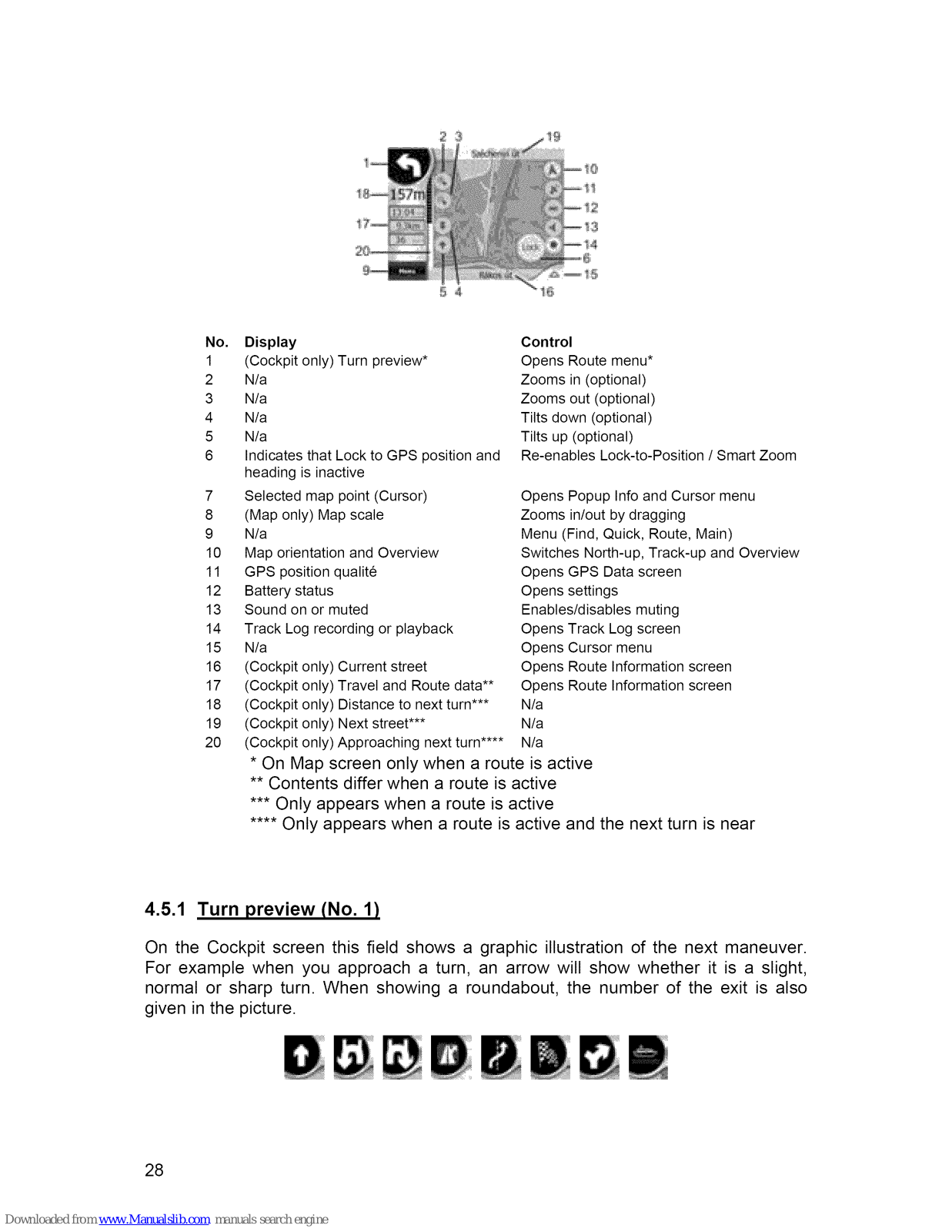

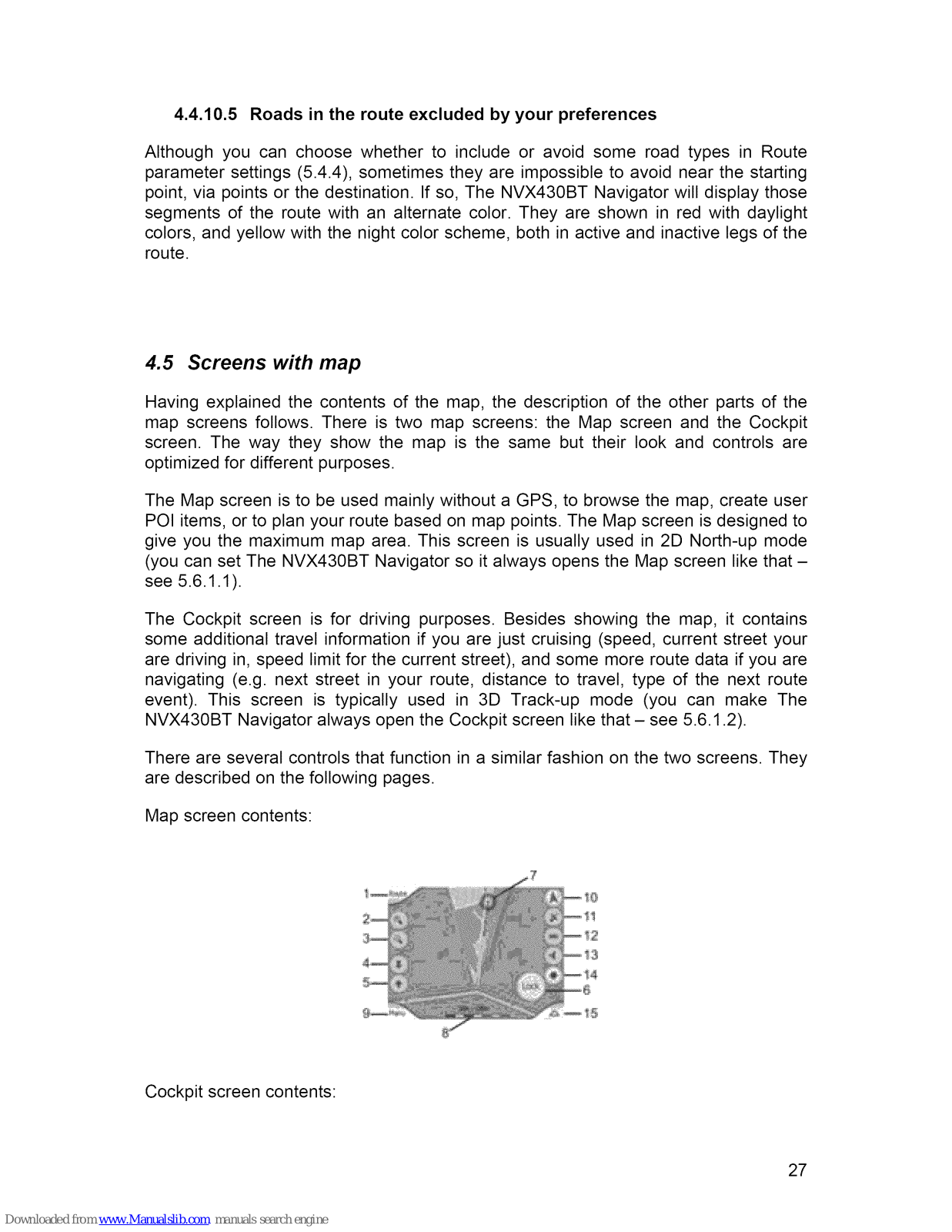

Screens with map .................................................................... 27

Turn preview (No. 1) ..........................................................................

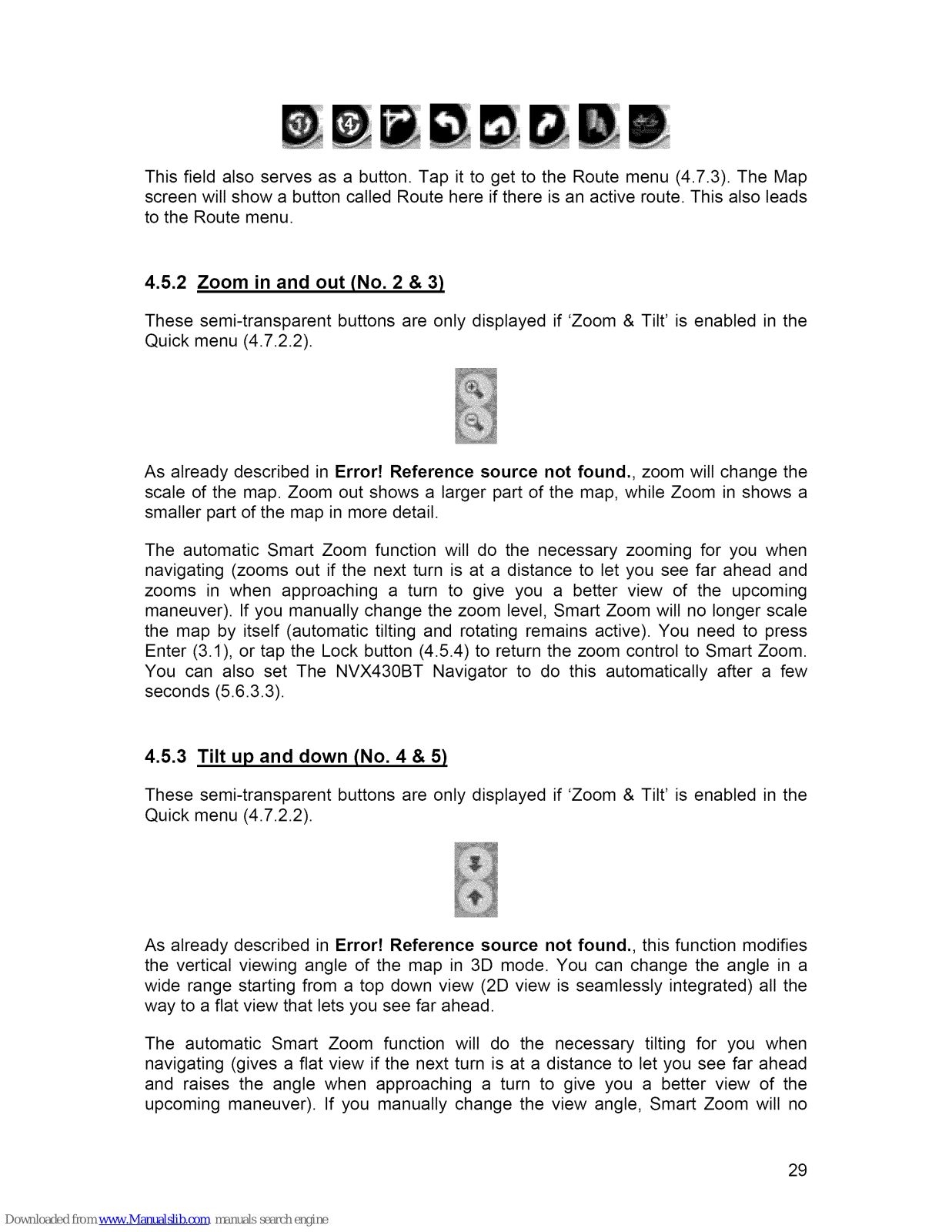

Zoom in and out (No. 2 & 3) ...............................................................

Tilt up and down (No. 4 & 5)...............................................................

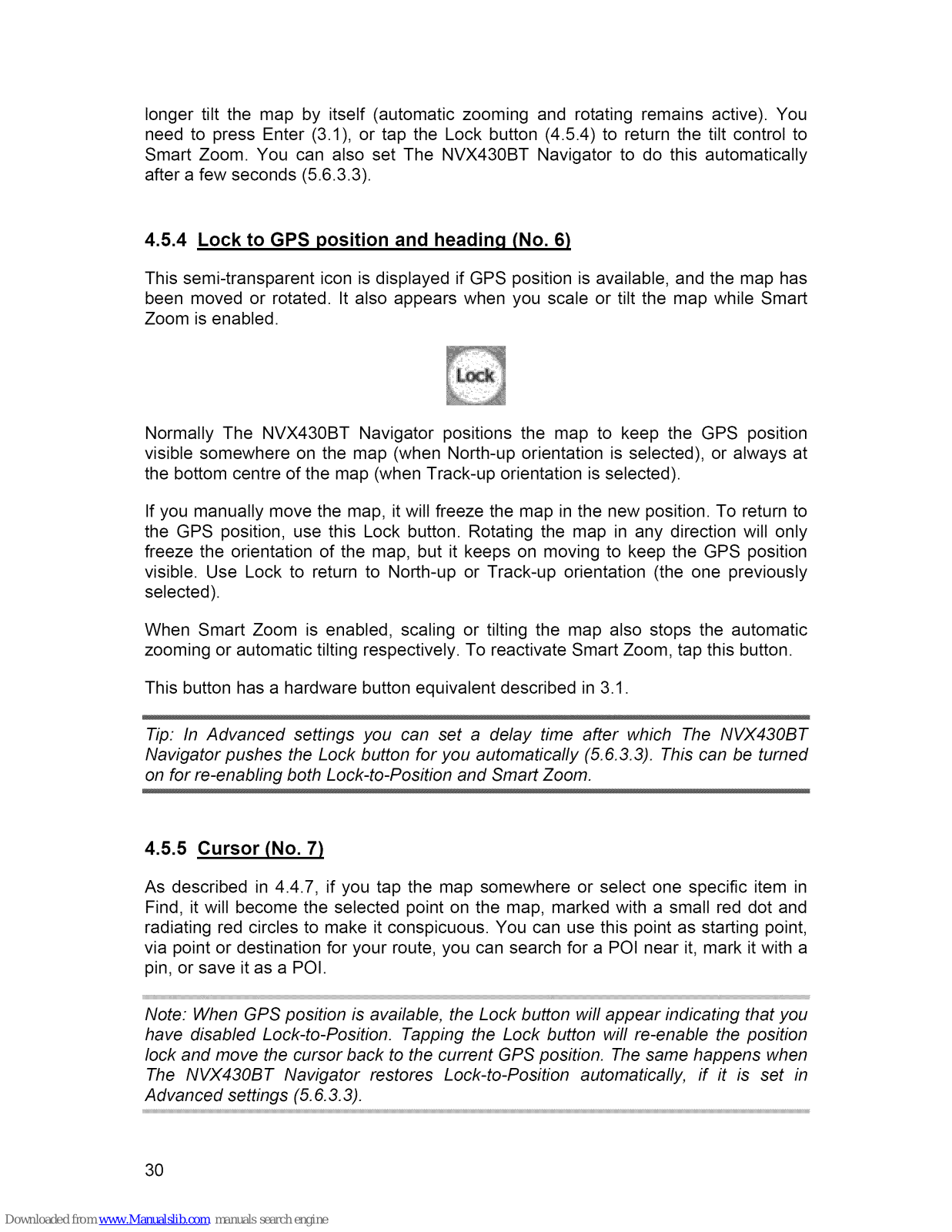

Lock to GPS position and heading (No. 6) .........................................

Cursor (No. 7) ....................................................................................

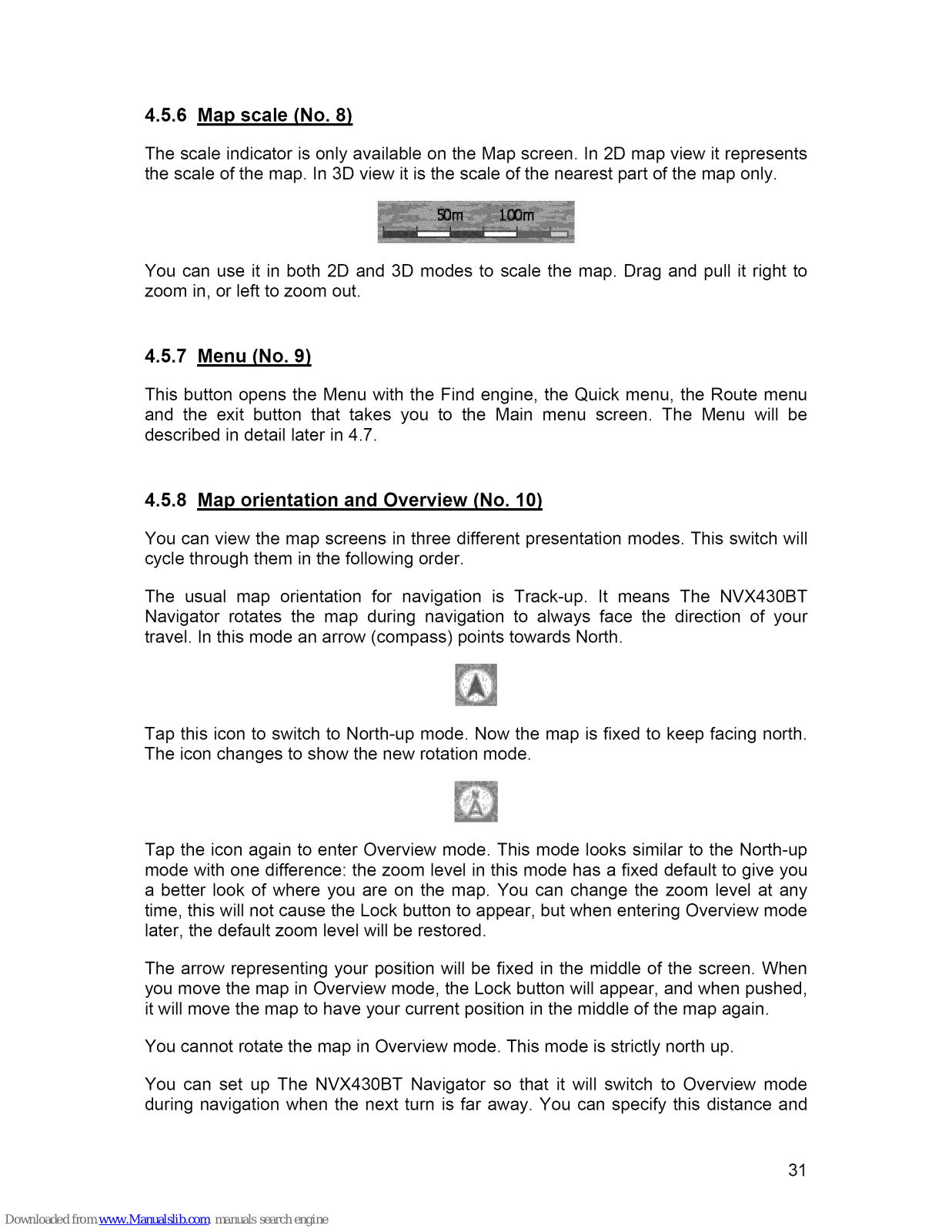

Map scale (No. 8) ...............................................................................

Menu (No. 9) ......................................................................................

Map orientation and Overview (No. 10) ..............................................

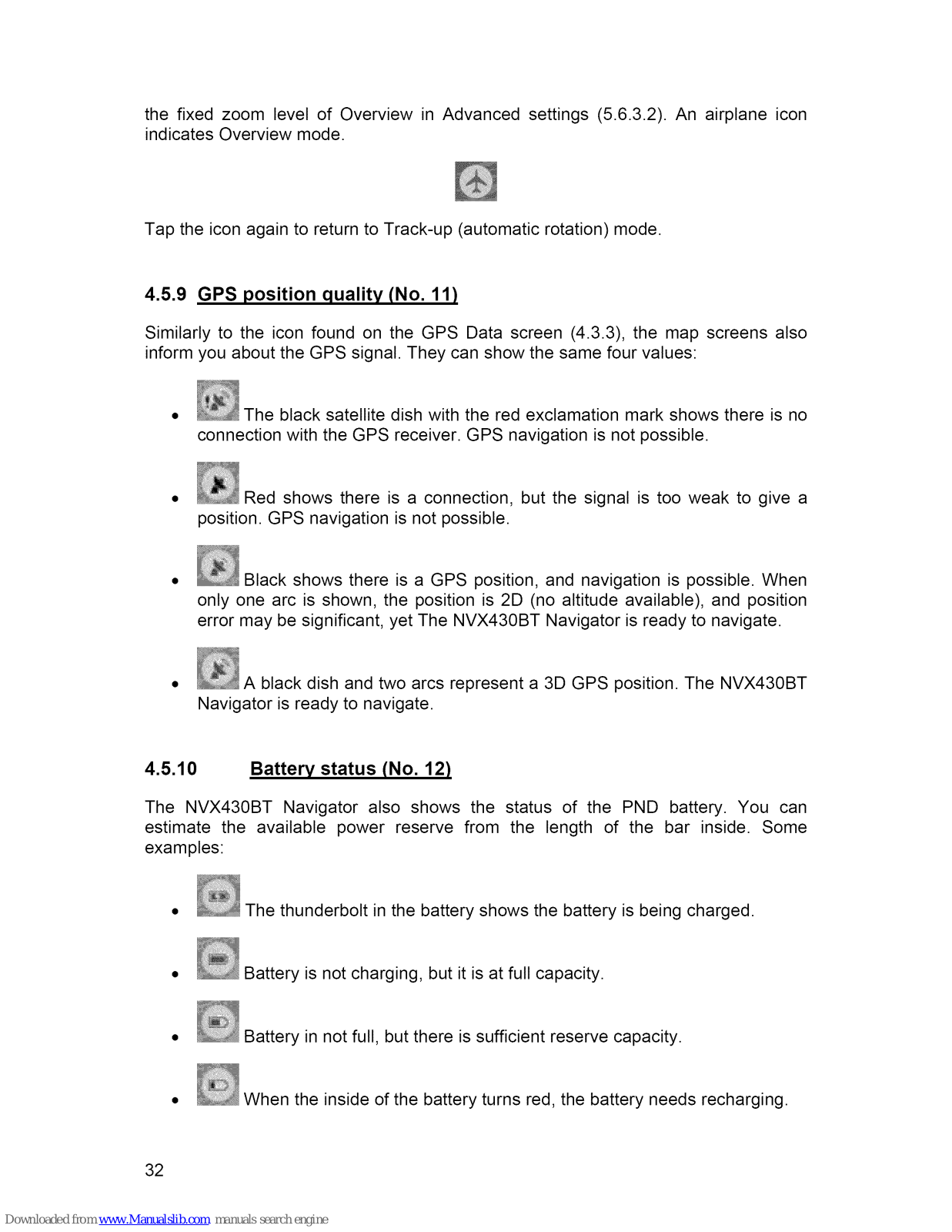

GPS position quality (No. 11) .............................................................

Battery status (No. 12) .......................................................................

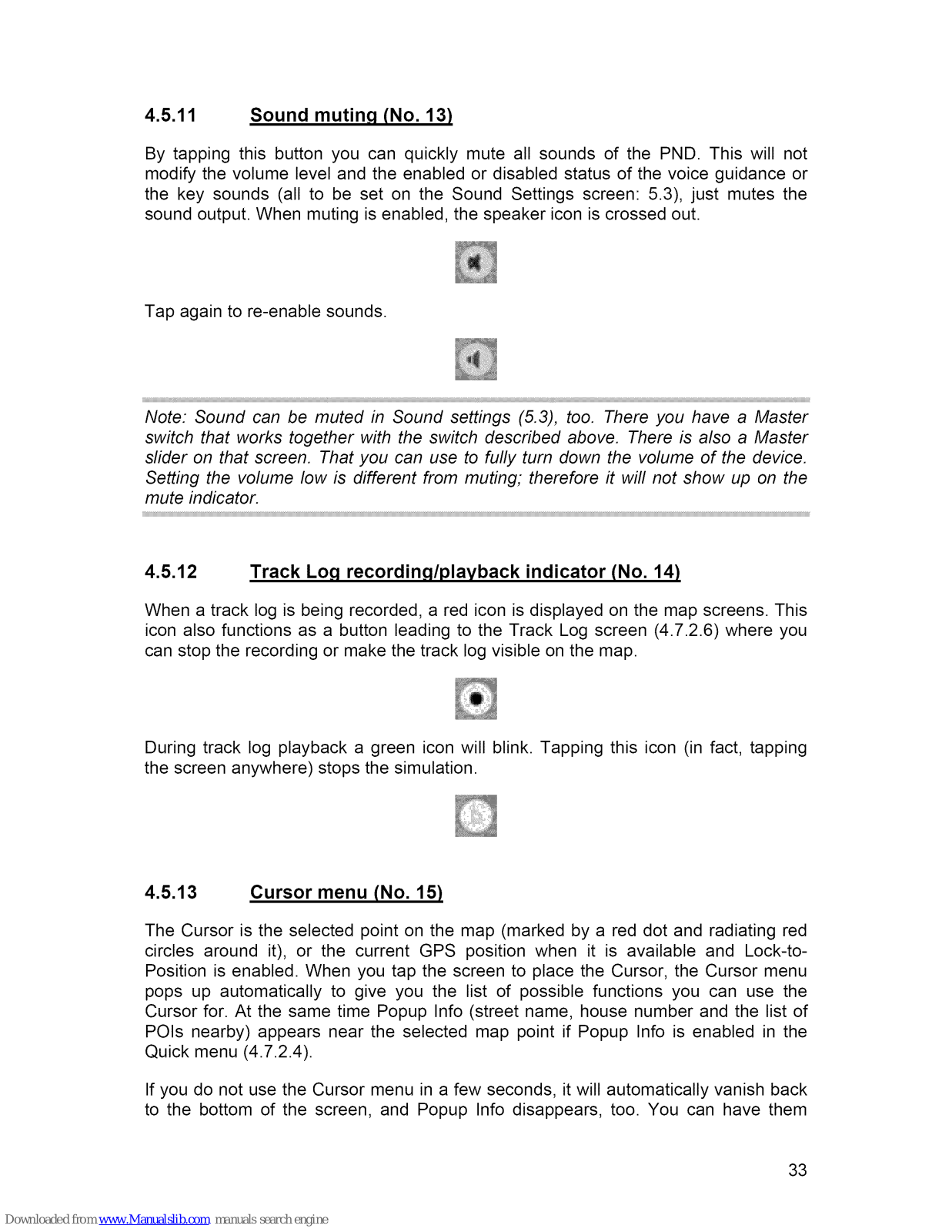

Sound muting (No. 13) .......................................................................

Track Log recording/playback indicator (No. 14) ................................

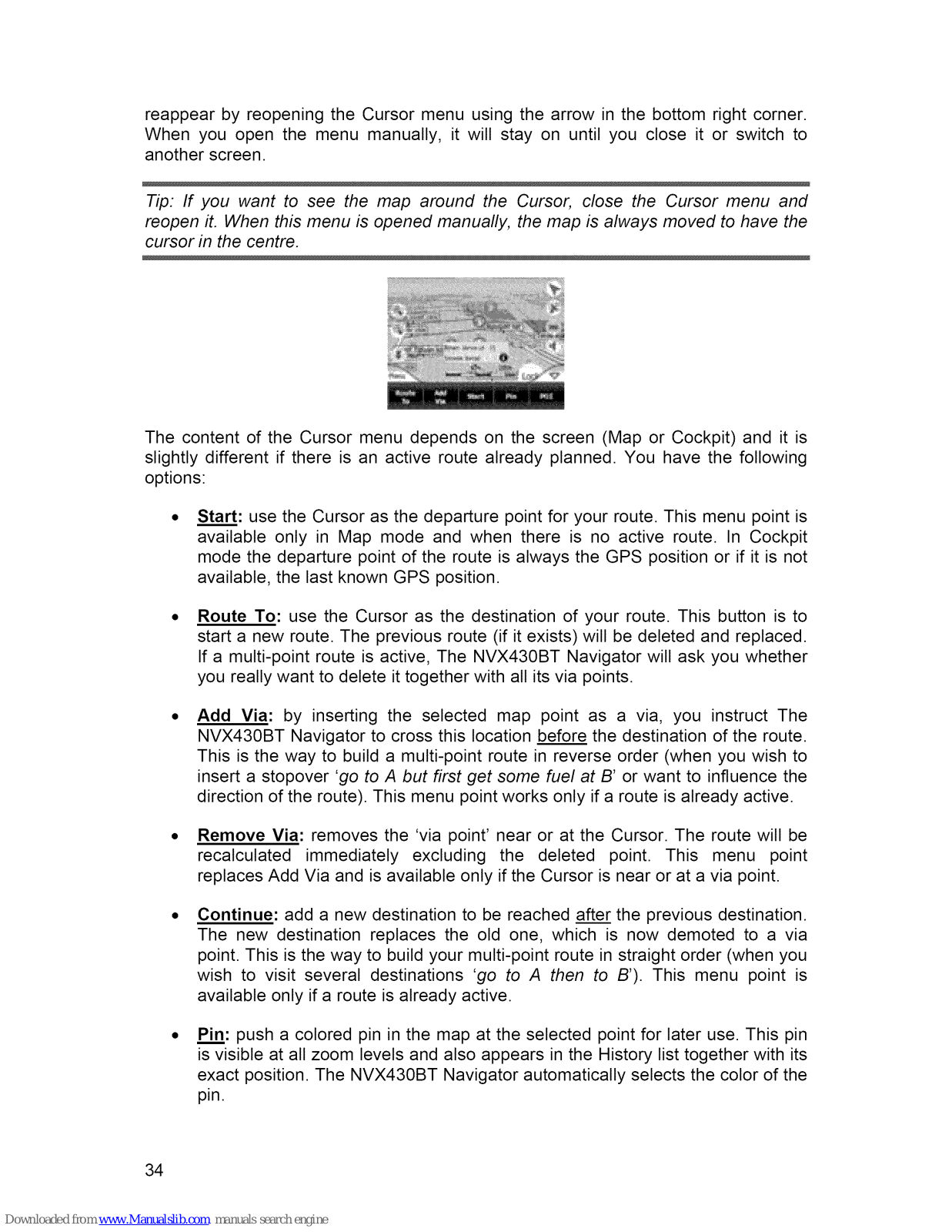

Cursor menu (No. 15) ........................................................................

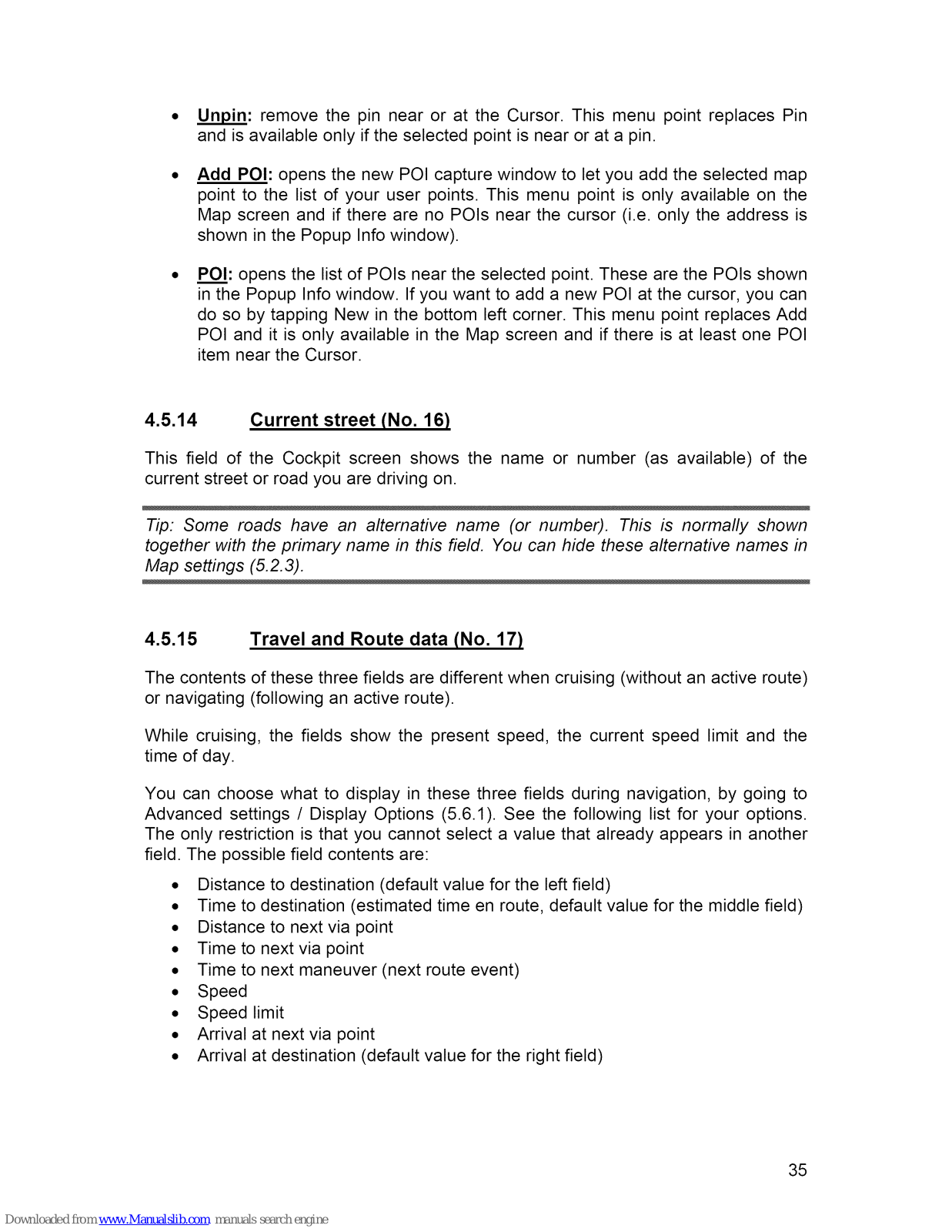

Current street (No. 16) .......................................................................

Travel and Route data (No. 17) ..........................................................

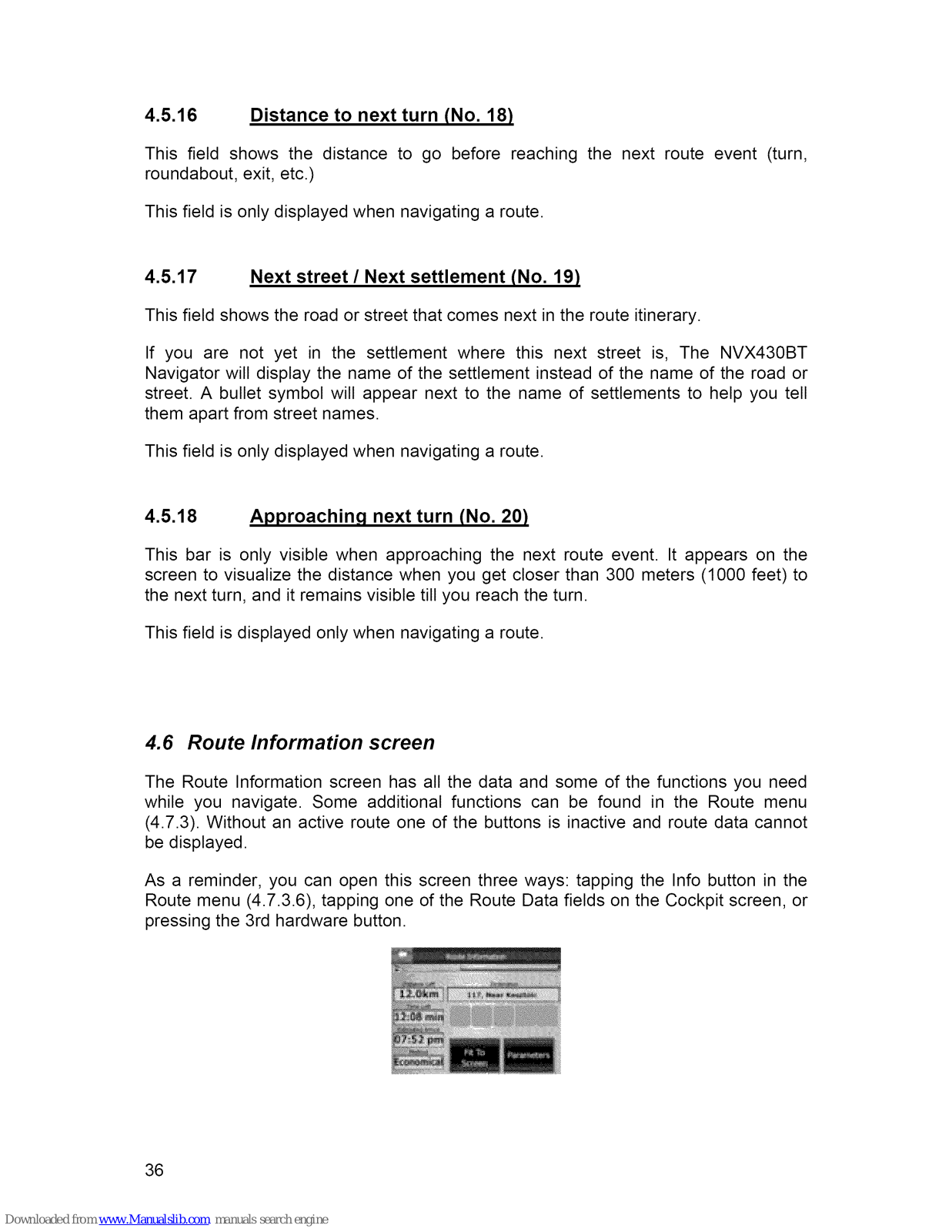

Distance to next turn (No. 18) ............................................................

Next street / Next settlement (No. 19) ................................................

Approaching next turn (No. 20) ..........................................................

28 29 29 3O 3O 31 31 31 32 32 33 33 33 35 35 36 36 36

4.6

4.6.1

4.6.1.1

4.6.1.2

4.6.1.3

4.6.1.4

4.6.1.5

4.6.1.6

4.6.2

4.6.3

4.6.4

Route Information screen ........................................................ 36

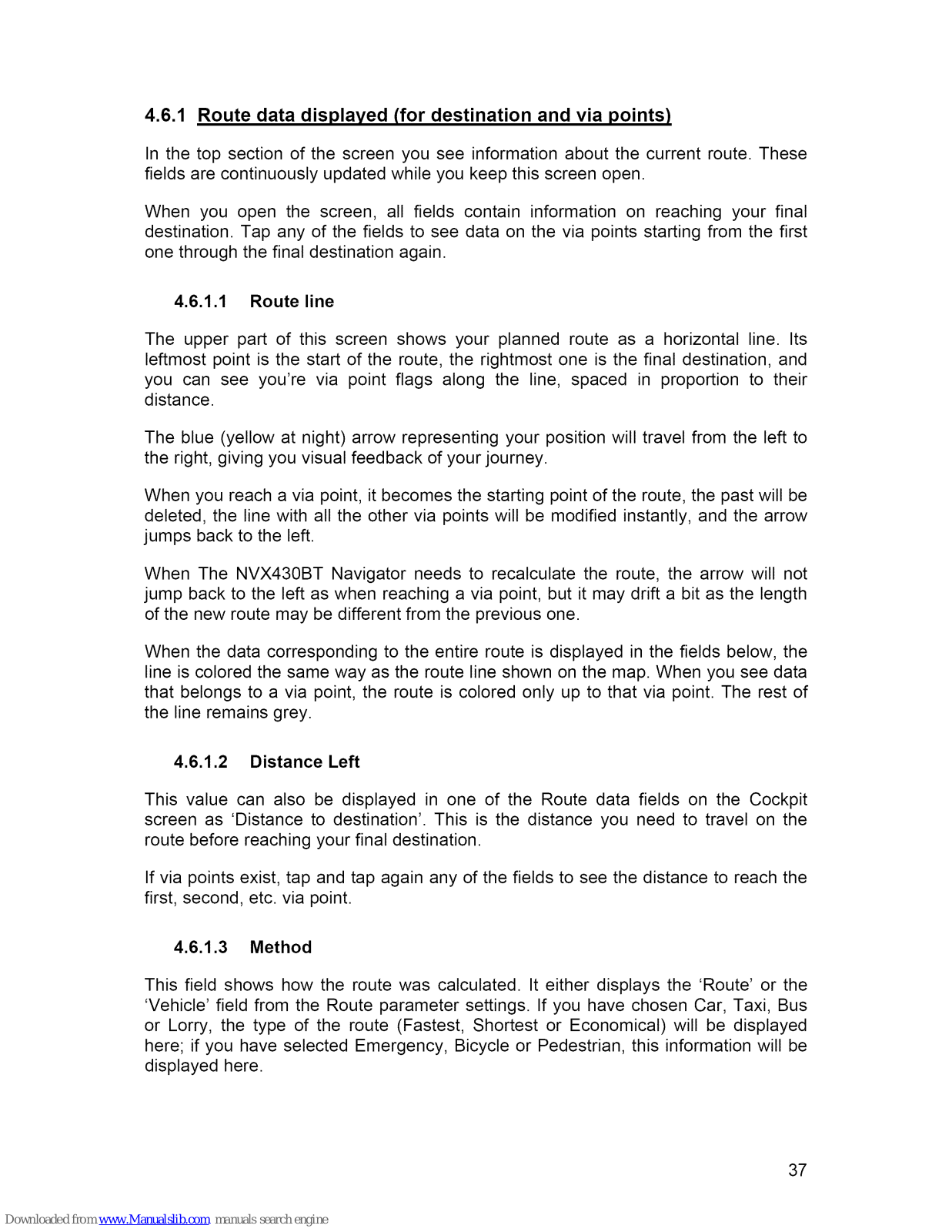

Route data displayed (for destination and via points) .........................

Route line ....................................................................................

Distance Left ...............................................................................

Method ........................................................................................

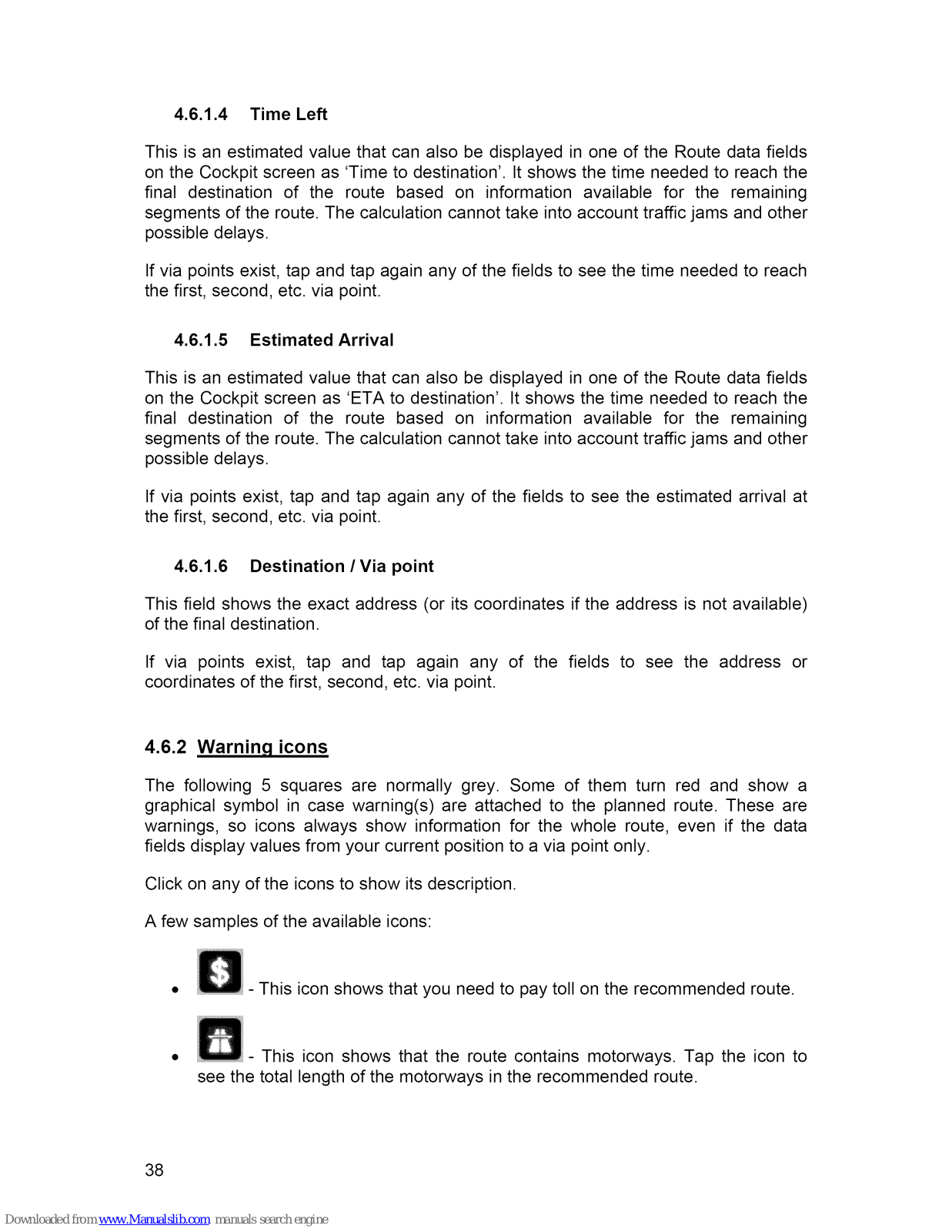

Time Left .....................................................................................

Estimated Arrival .........................................................................

Destination /Via point .................................................................

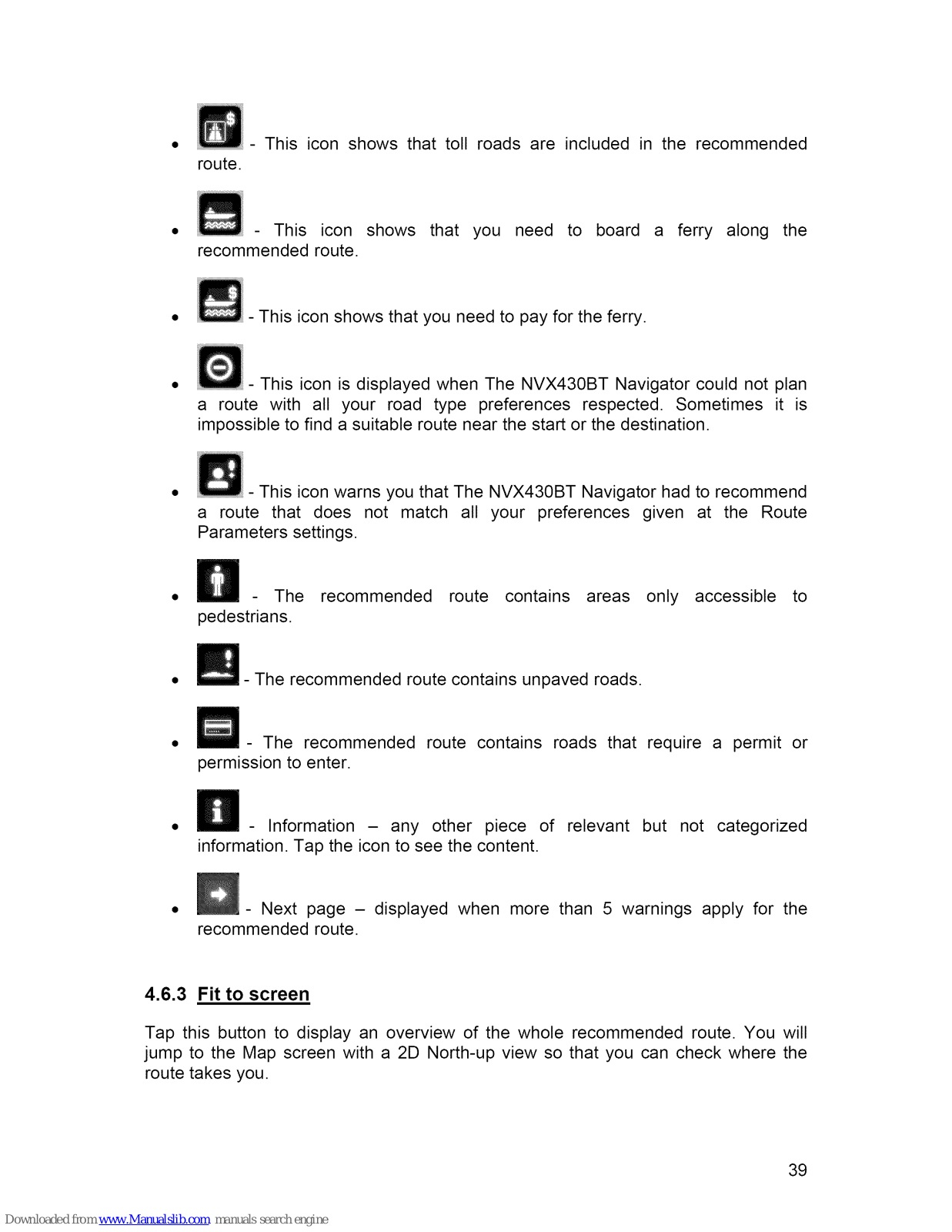

Warning icons ....................................................................................

Fit to screen .......................................................................................

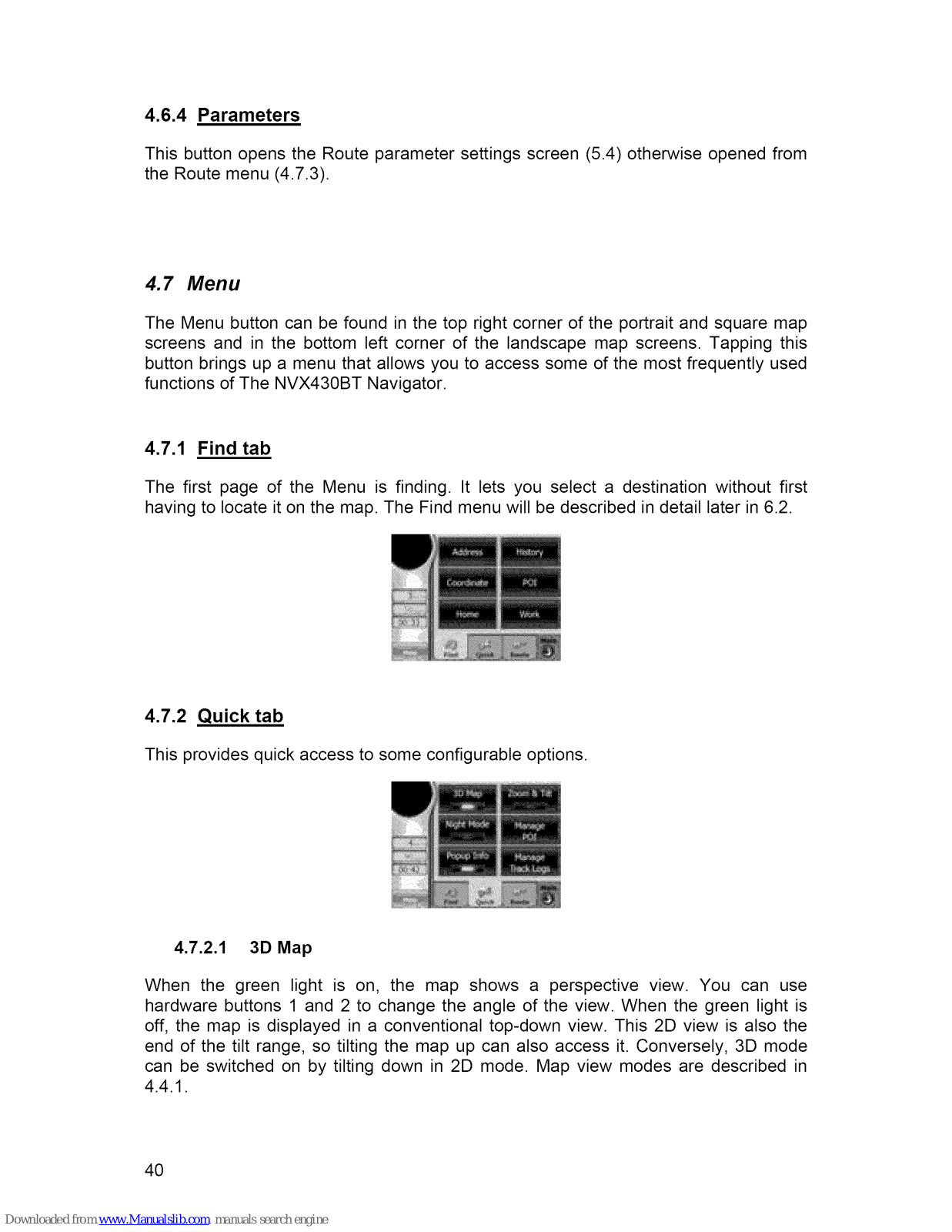

Parameters .........................................................................................

37 37 37 37 38 38 38 38 39

4.7

4.7.1

4.7.2

4.7.2.1

4.7.2.2

4.7.2.3

4.7.2.4

4.7.2.5

4.7.2.6

Menu .......................................................................................... 40

Find tab ..............................................................................................

Quick tab ............................................................................................

3D Map .......................................................................................

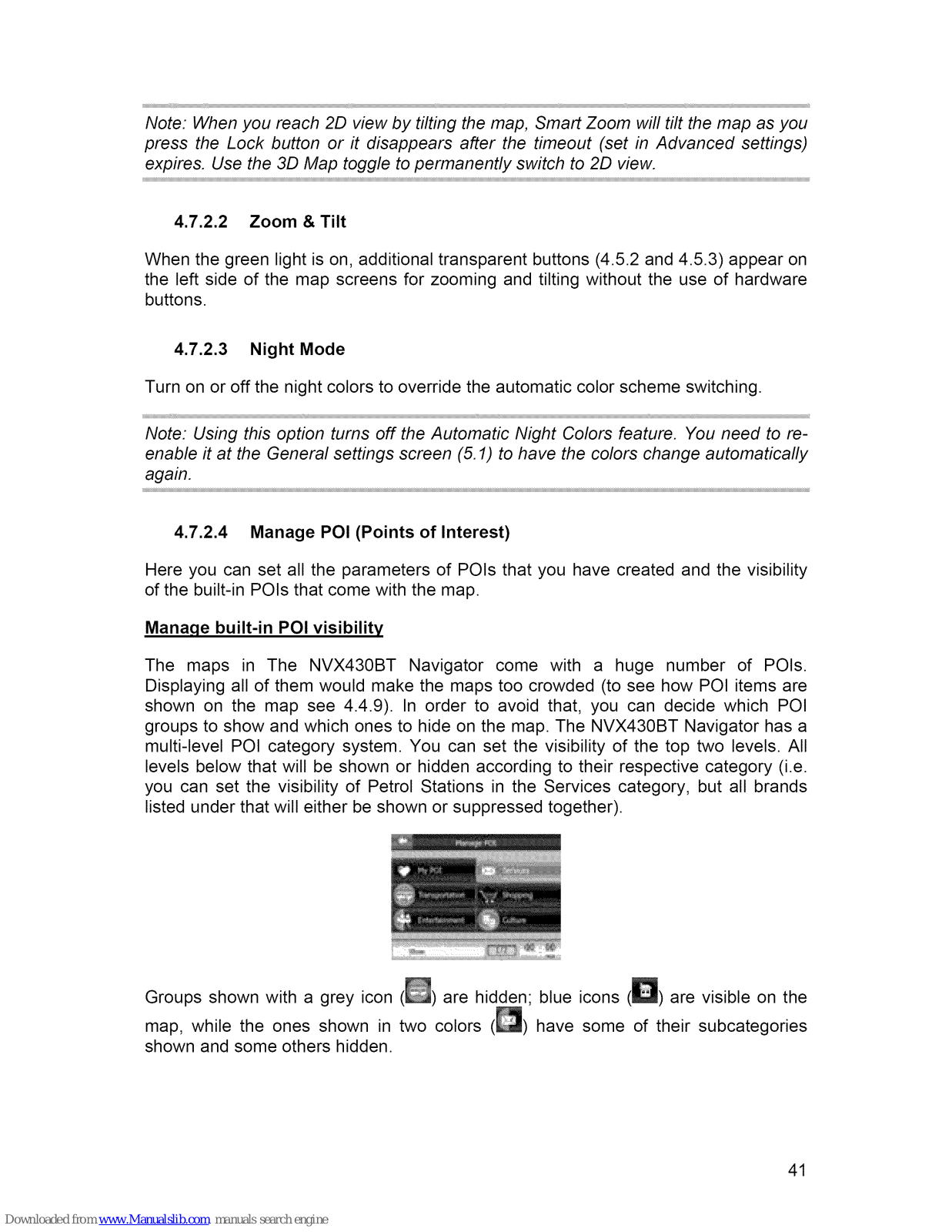

Zoom & Tilt ..................................................................................

Night Mode ..................................................................................

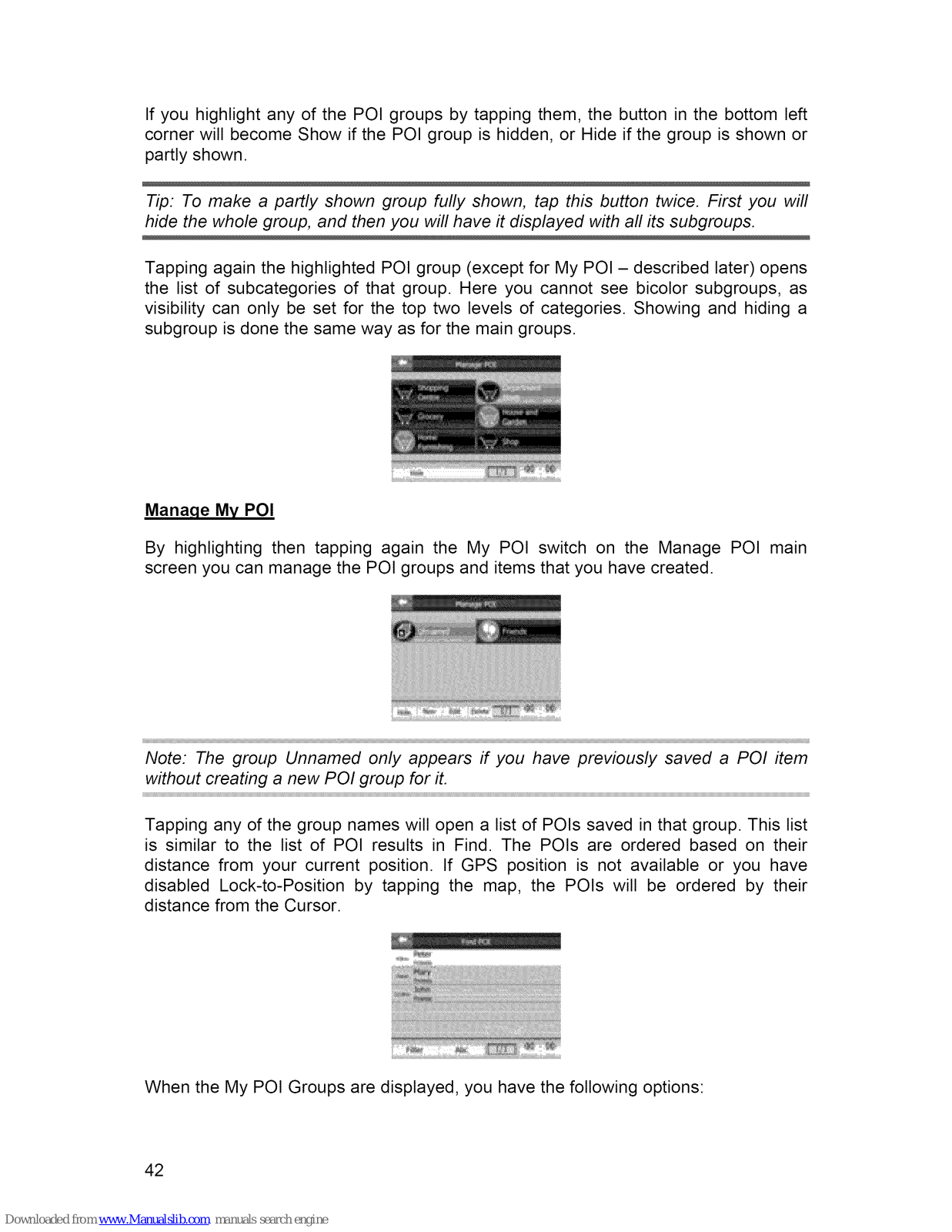

Manage POI (Points of Interest) ..................................................

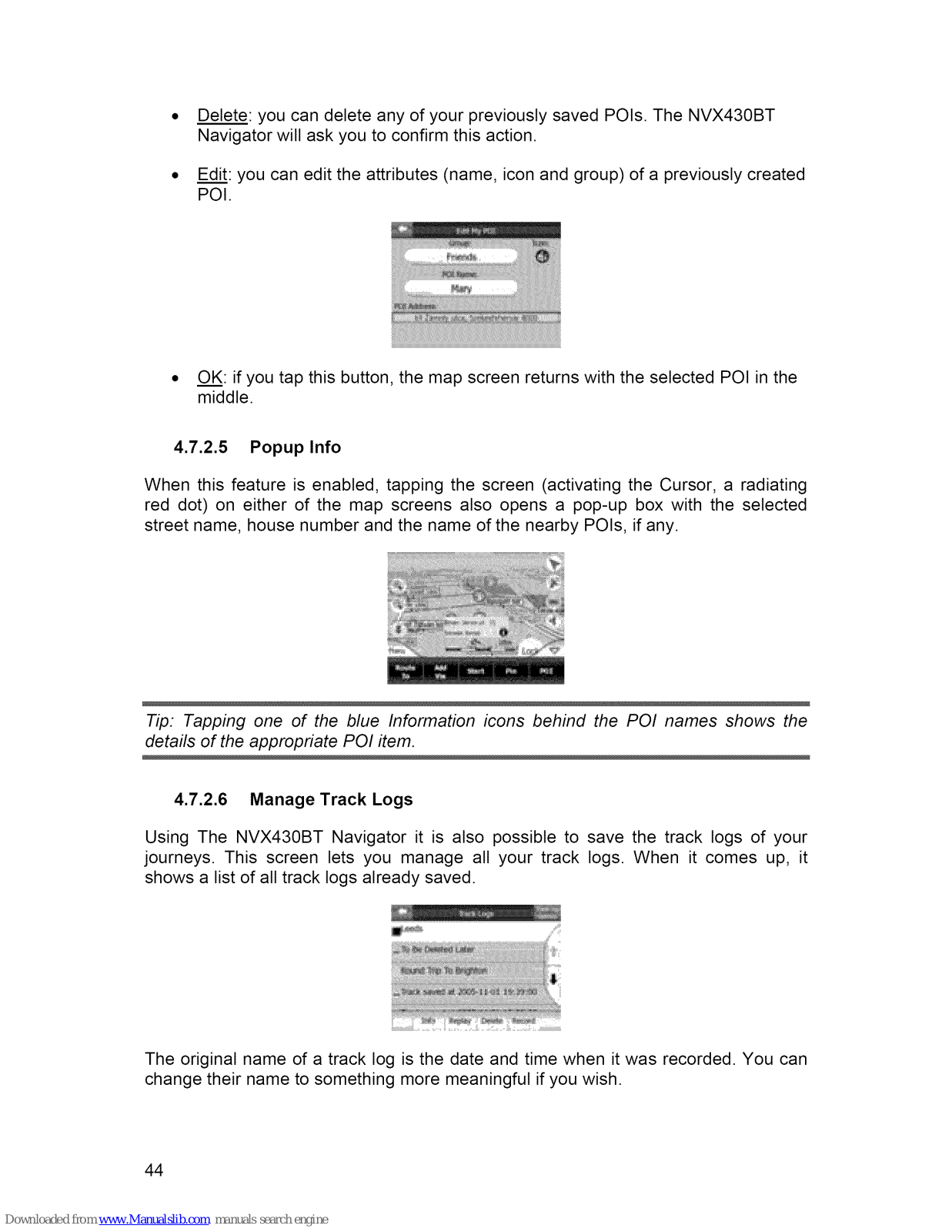

Popup Info ...................................................................................

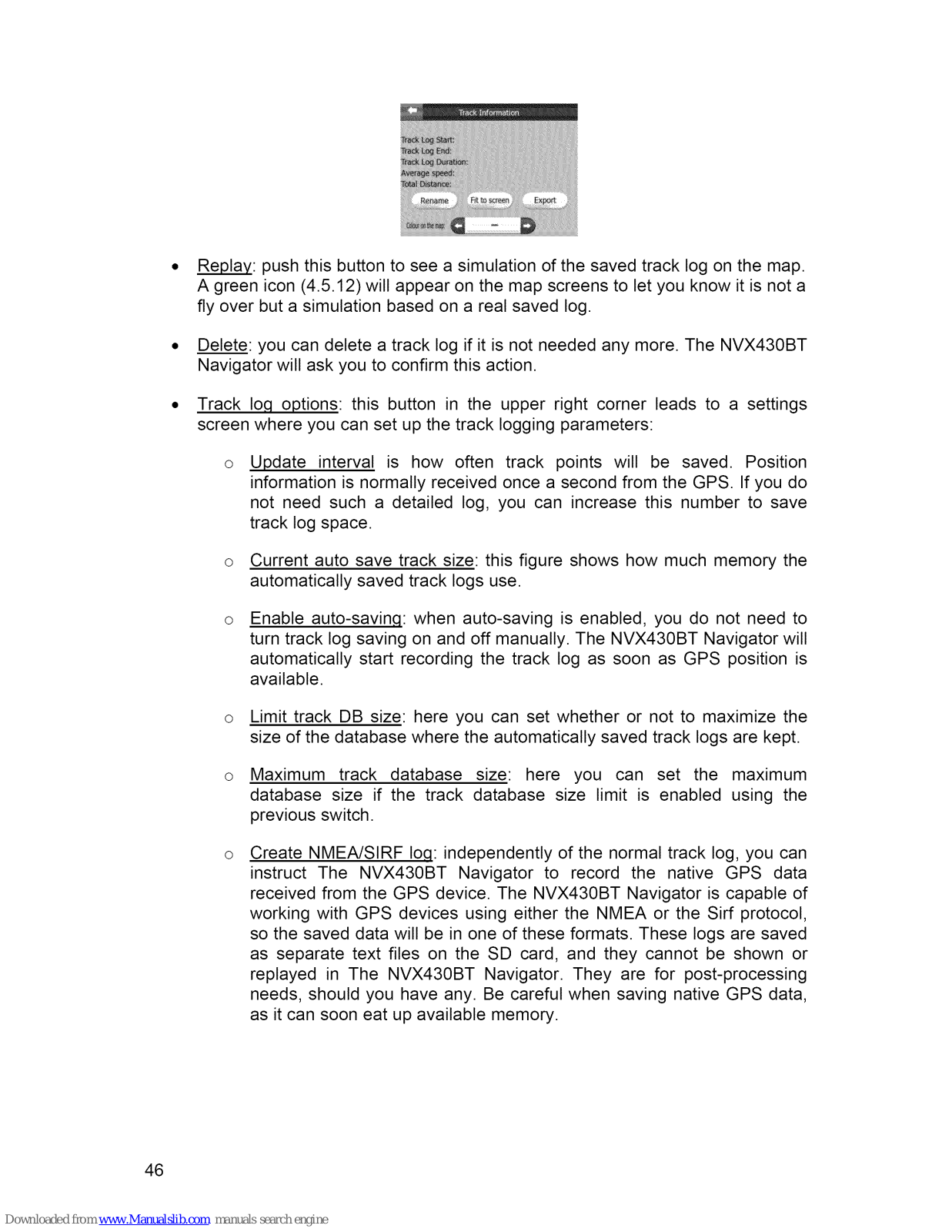

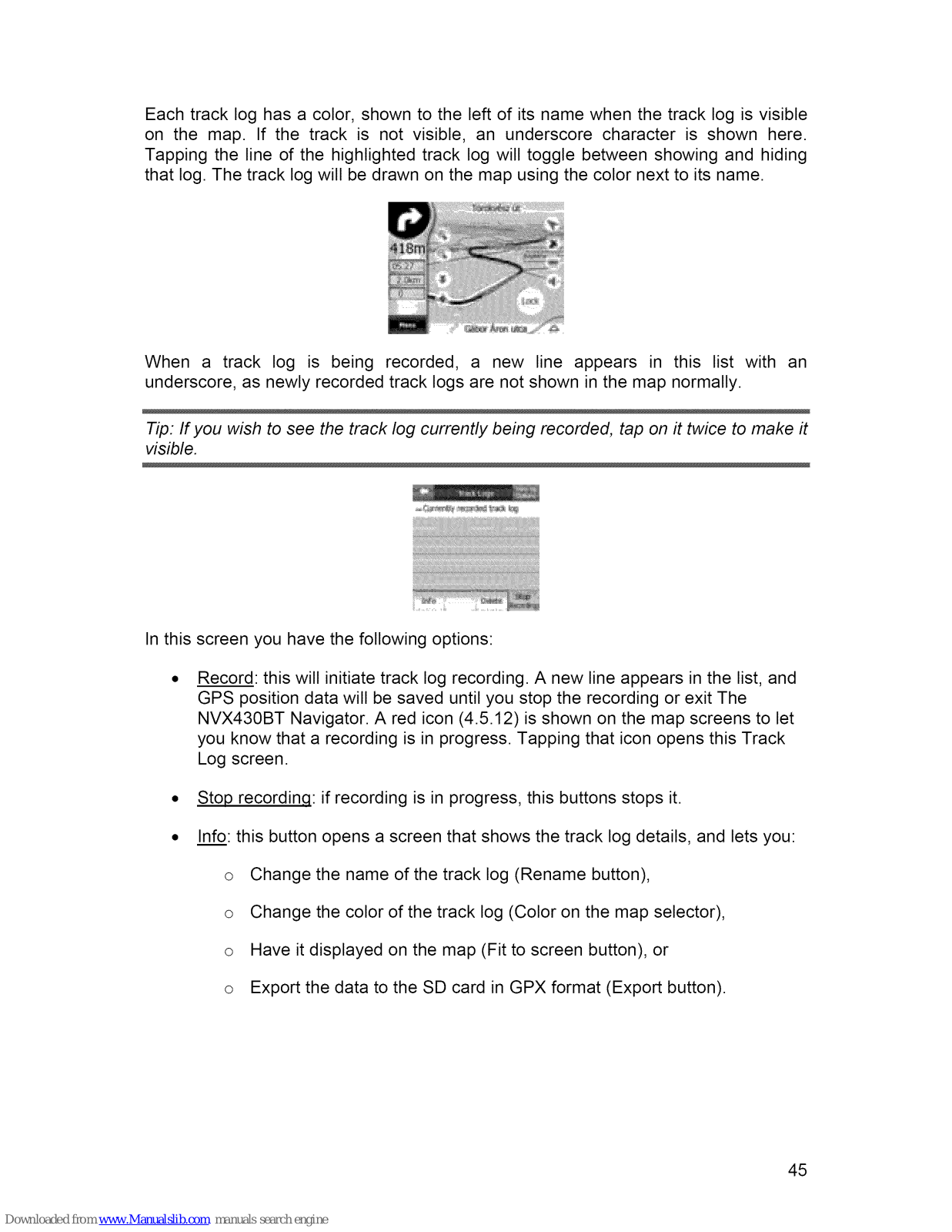

Manage Track Logs ....................................................................

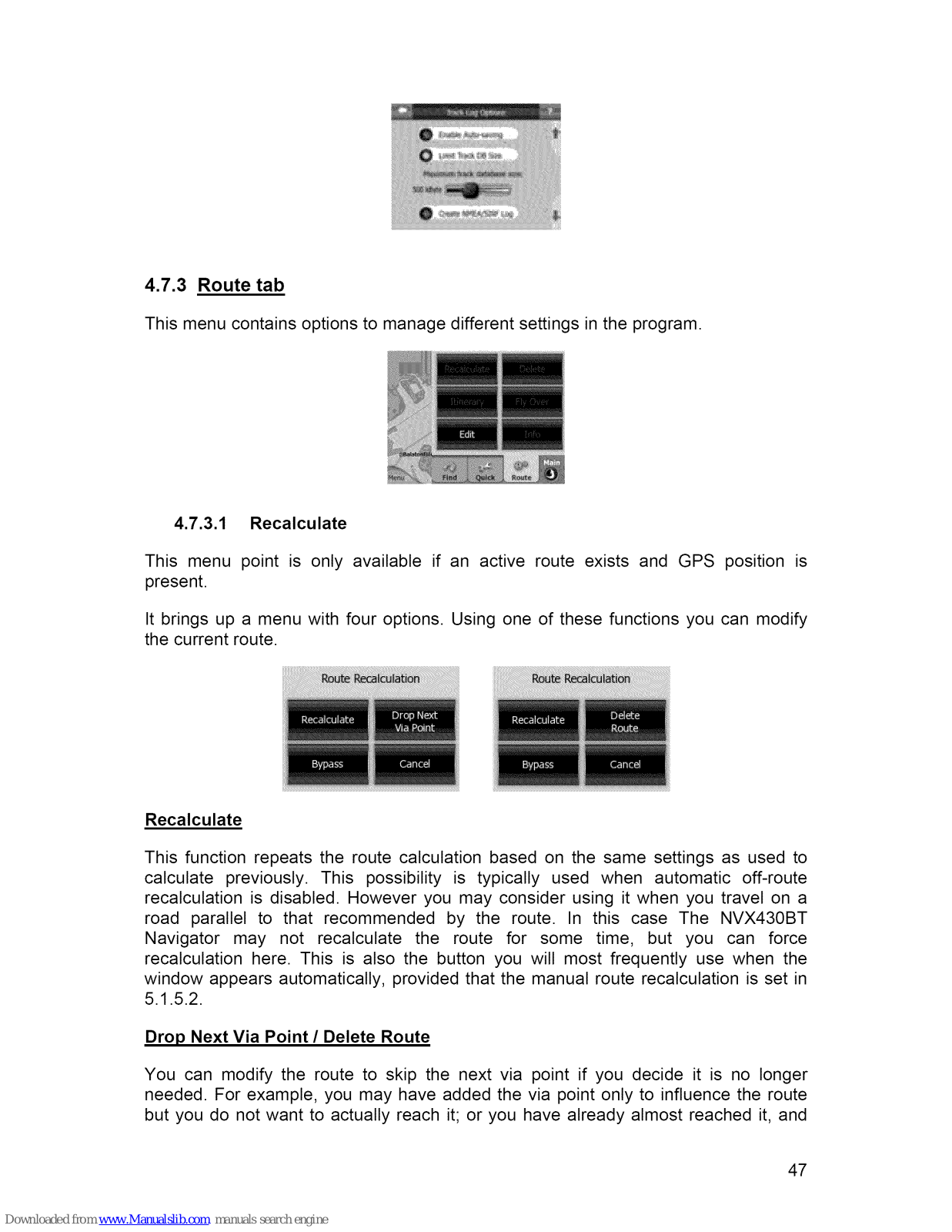

Route tab ...........................................................................................

Recalculate .................................................................................

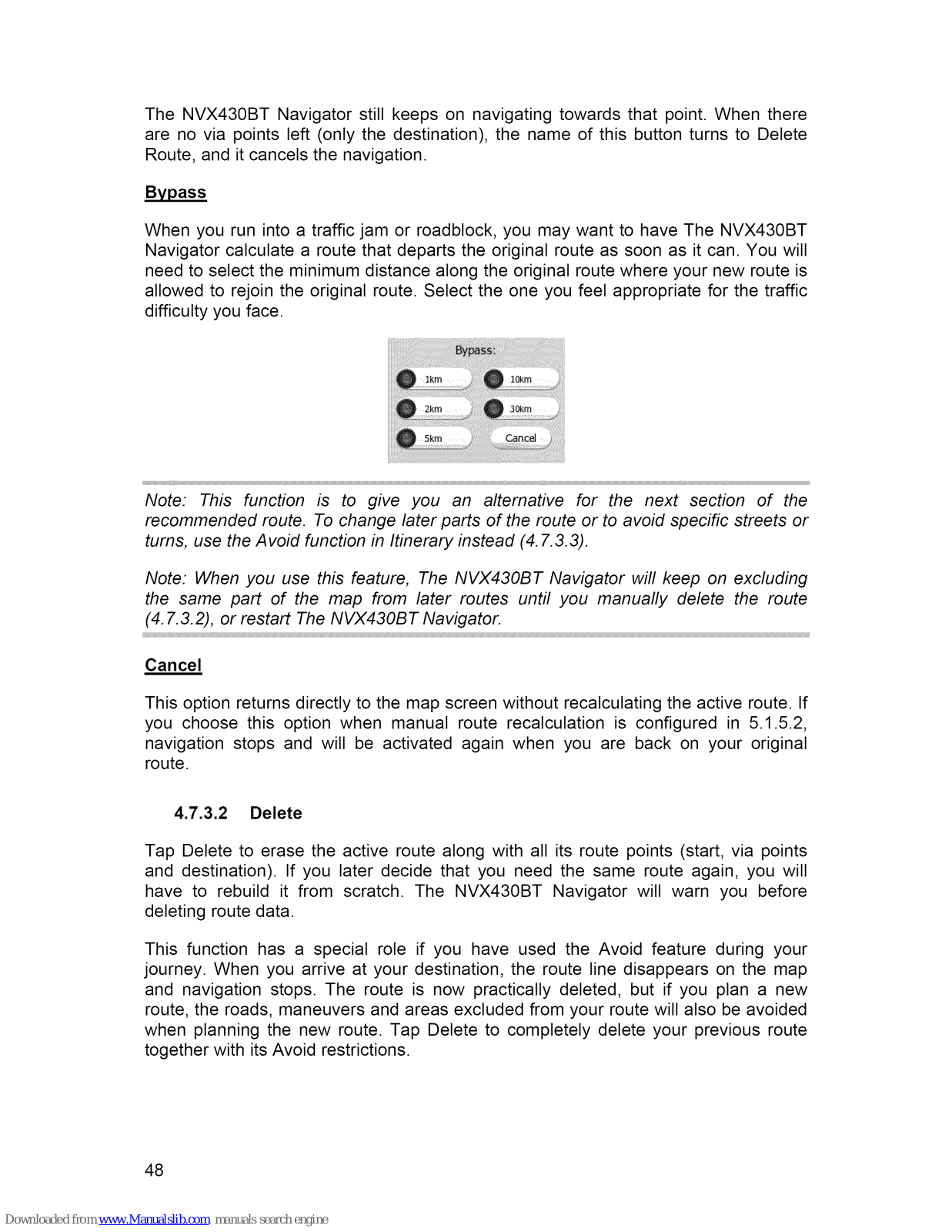

Delete ..........................................................................................

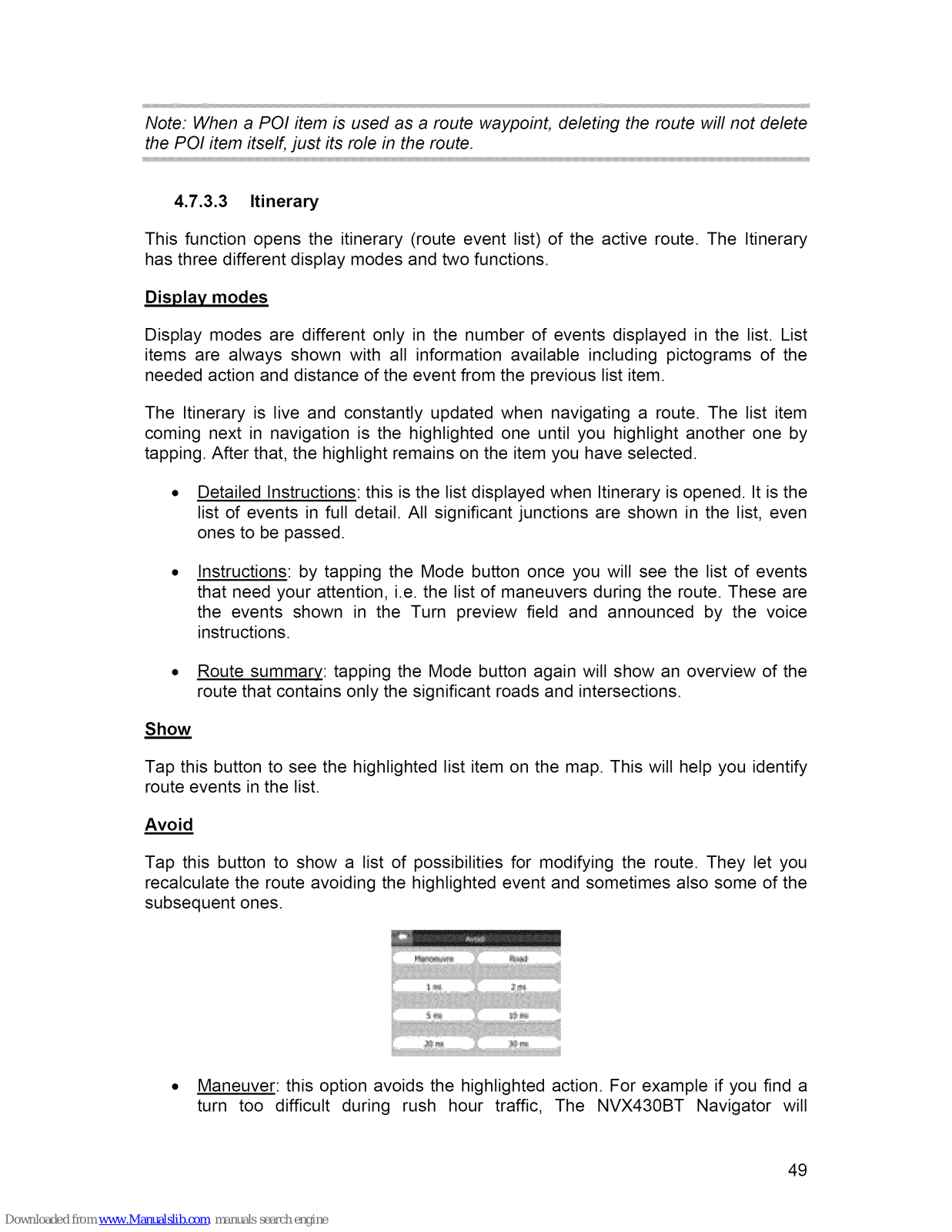

Itinerary .......................................................................................

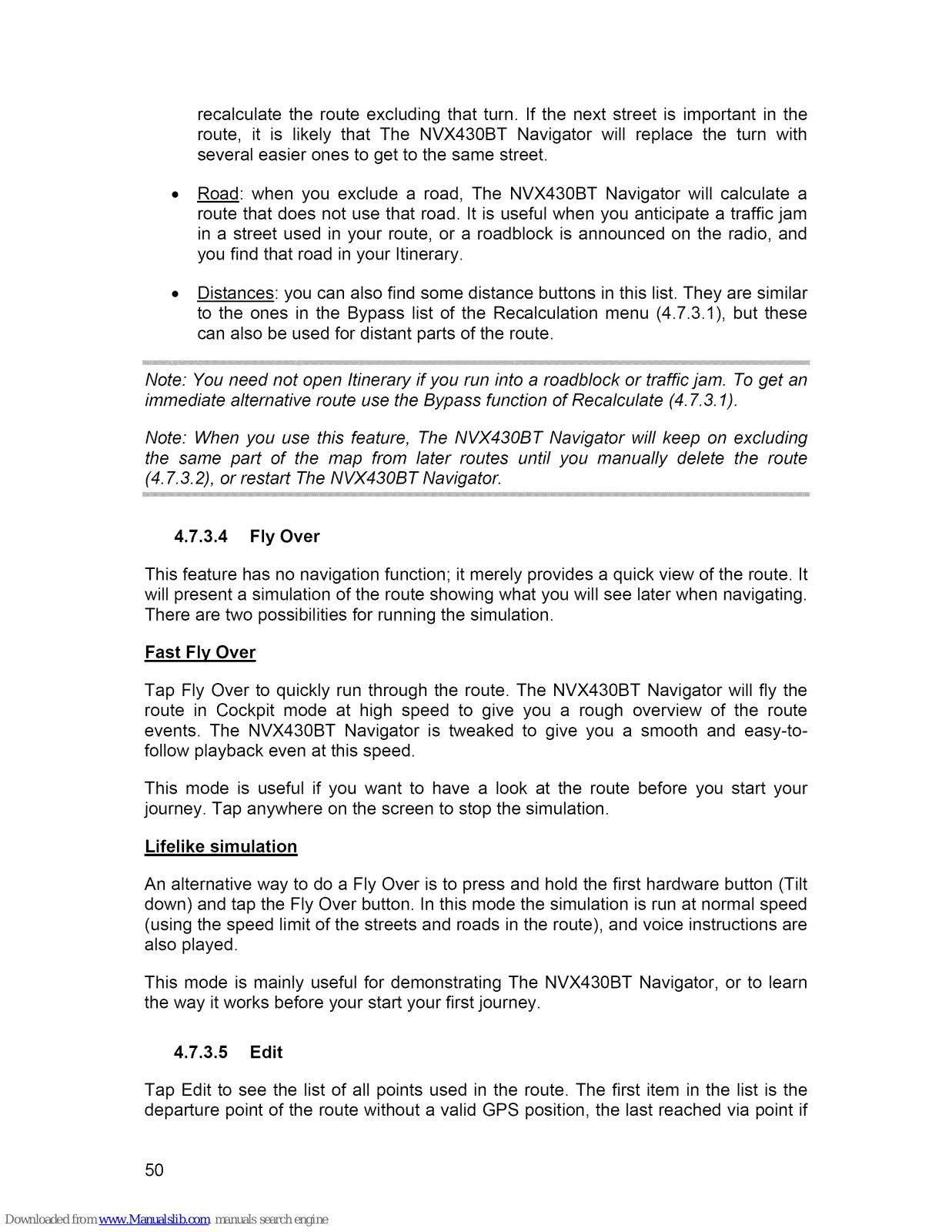

Fly Over ......................................................................................

Edit ..............................................................................................

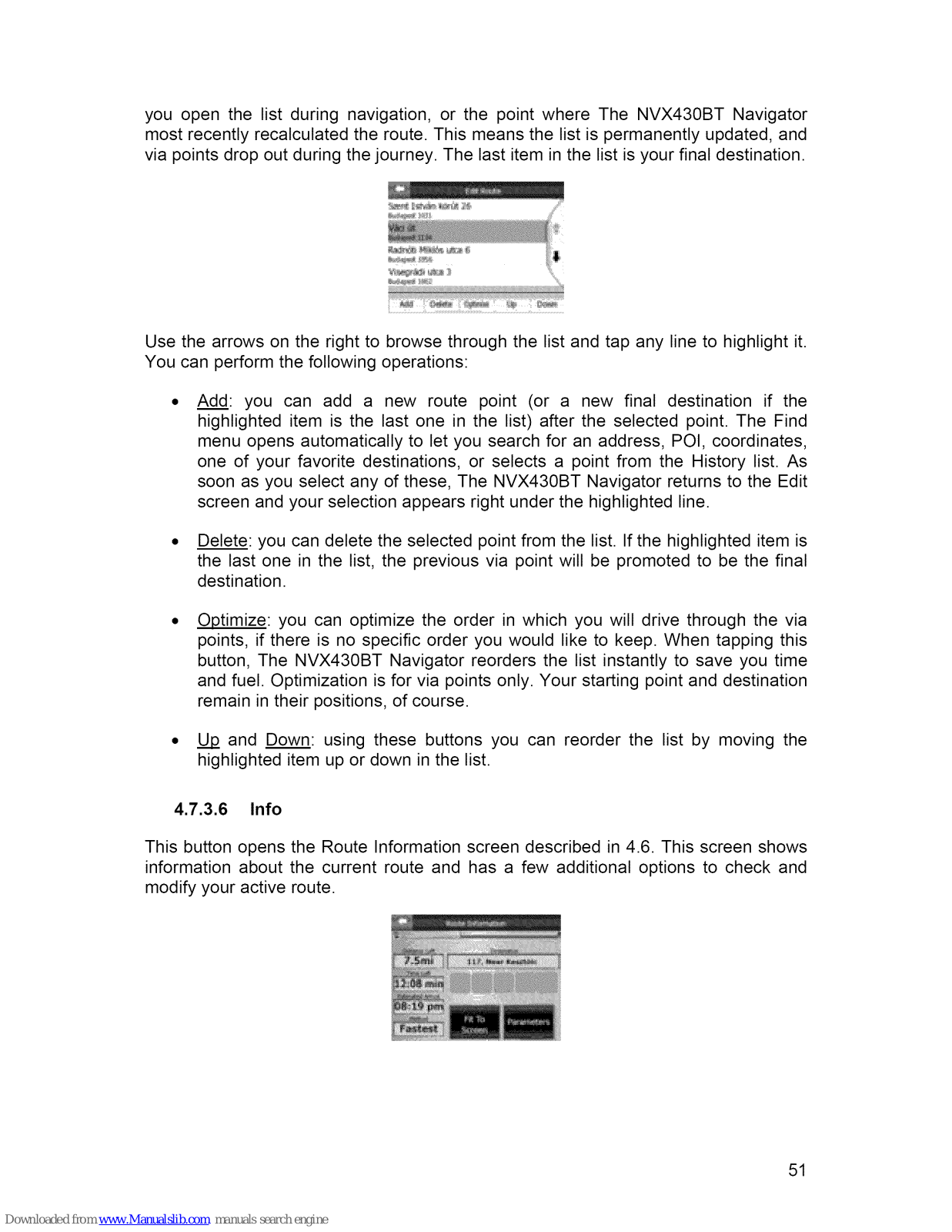

Info ..............................................................................................

Main button ........................................................................................

4.7.3

4.7.3.1

4.7.3.2

4.7.3.3

4.7.3.4

4.7.3.5

4.7.3.6

4.7.4

4O 4O 4O 41 41 41 44 44 47 47 48 49

5O 5O 51 52

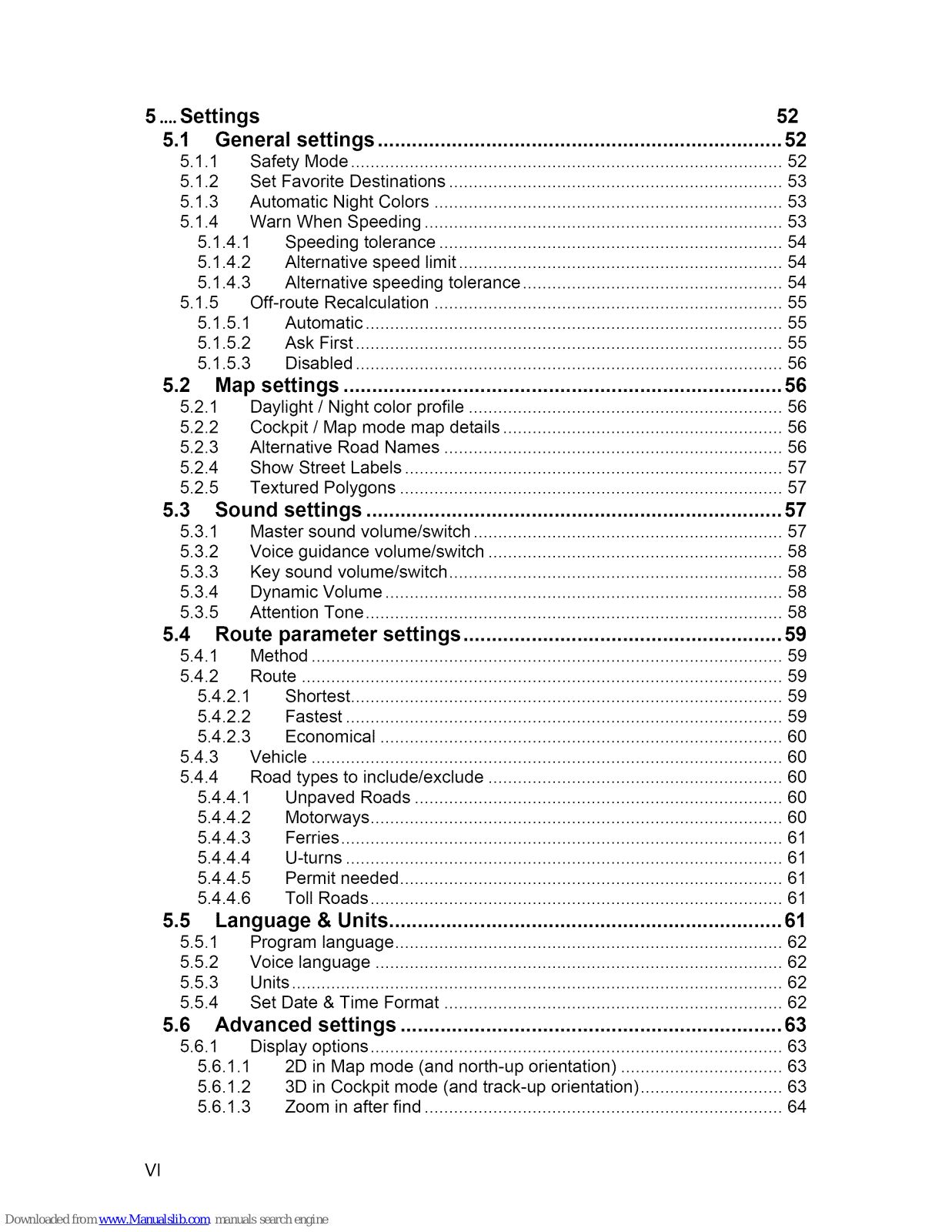

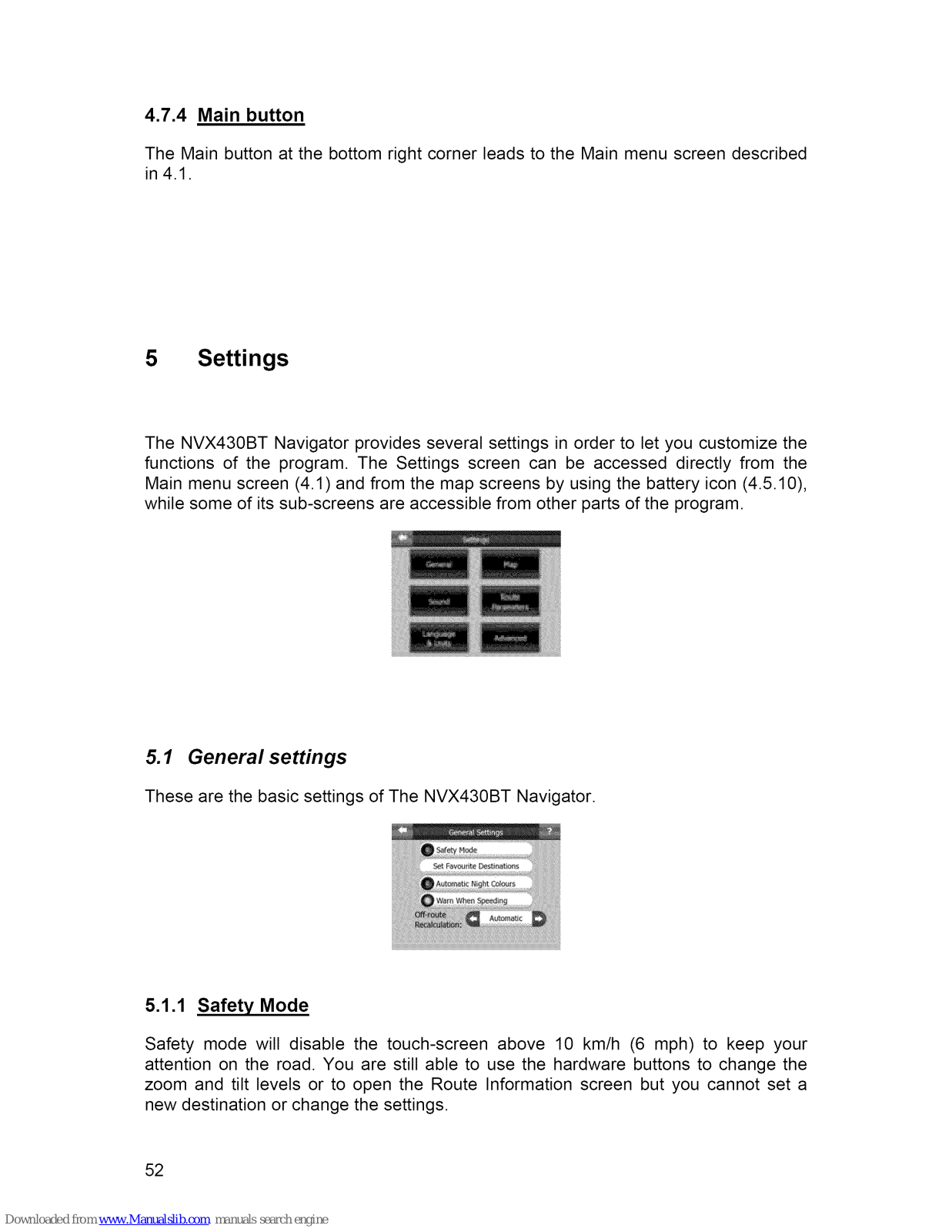

5 ....Settings 52

5.1 General settings ....................................................................... 52

5.1.1 Safety Mode ....................................................................................... 52

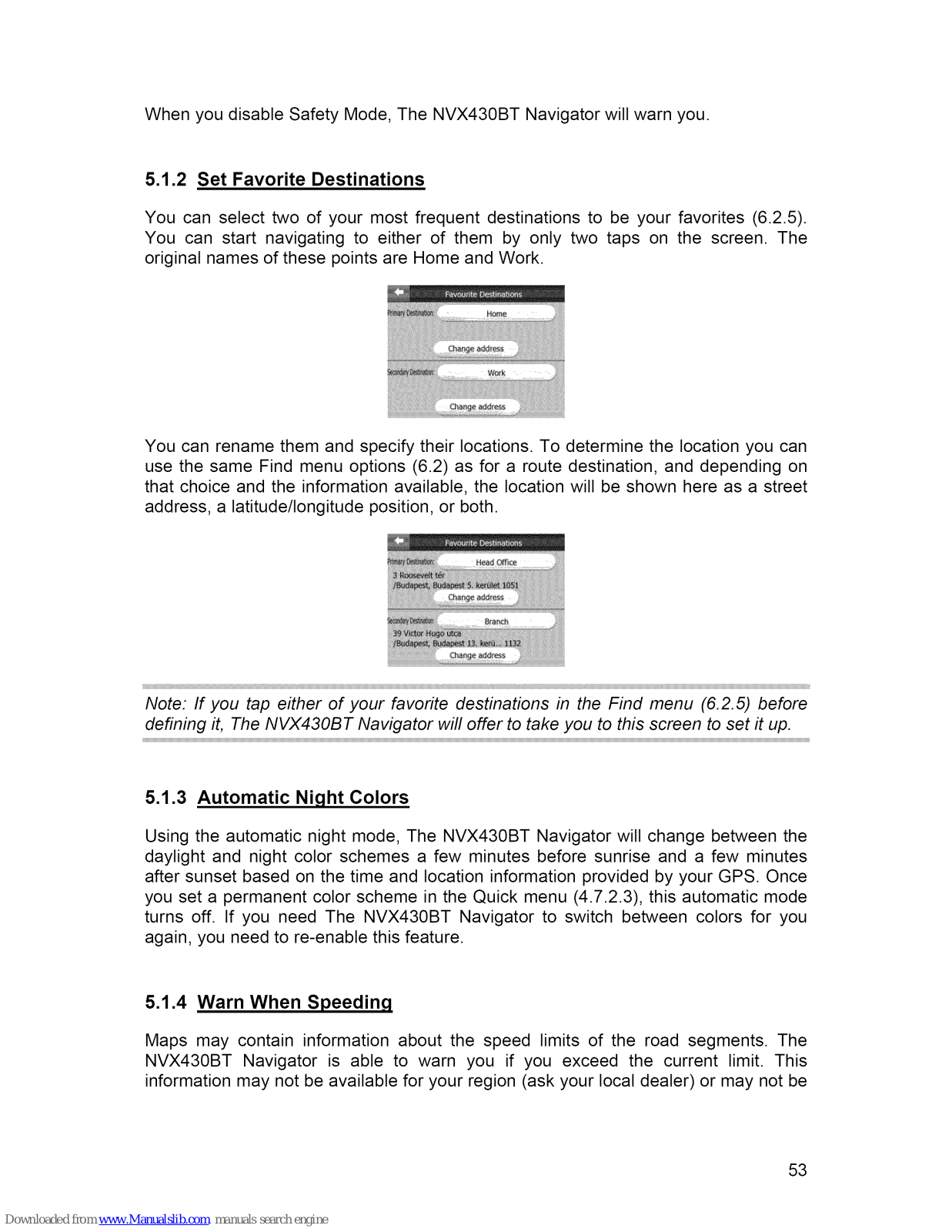

5.1.2 Set Favorite Destinations ................................................................... 53

5.1.3 Automatic Night Colors ...................................................................... 53

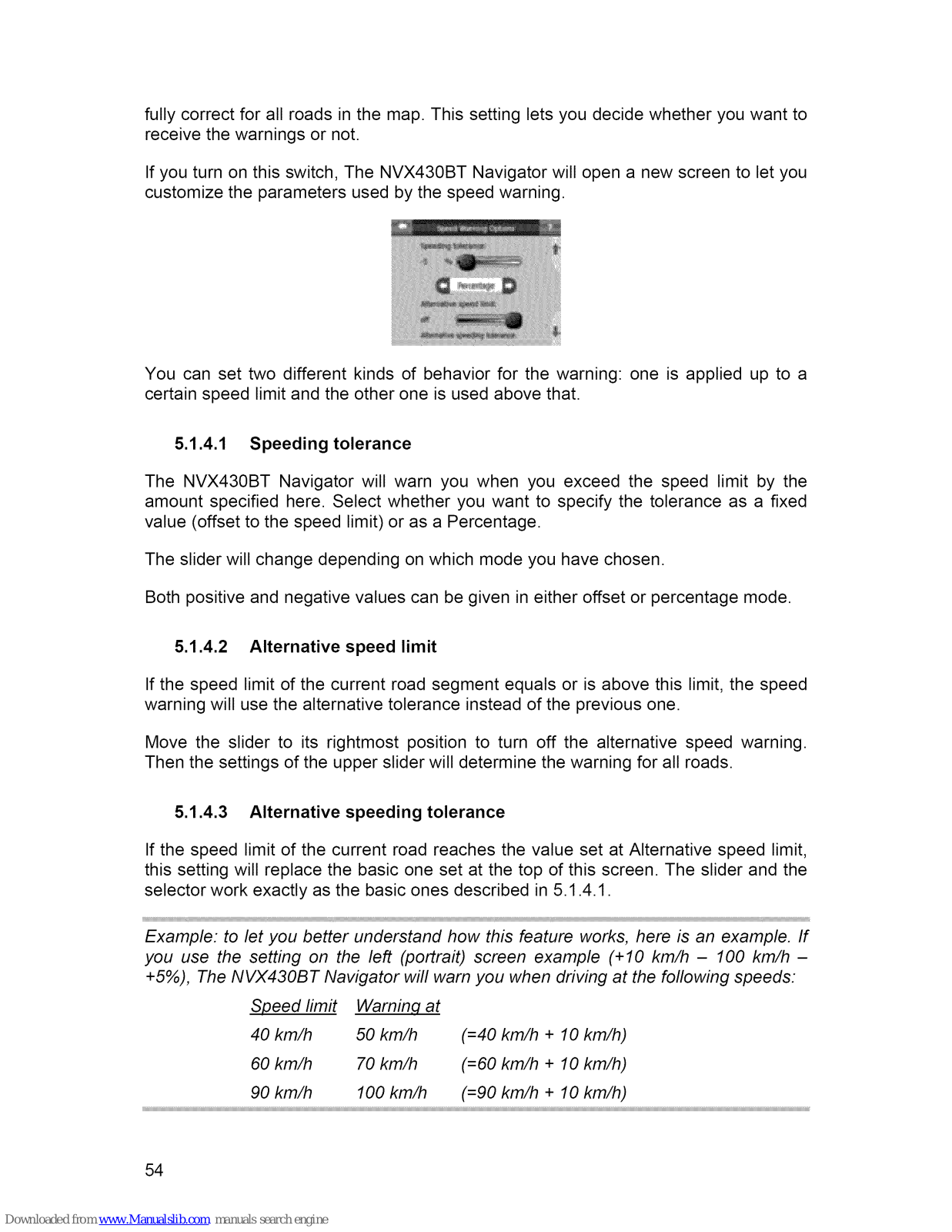

5.1.4 Warn When Speeding ........................................................................ 53

5.1.4.1 Speeding tolerance ..................................................................... 54

5.1.4.2 Alternative speed limit ................................................................. 54

5.1.4.3 Alternative speeding tolerance .................................................... 54

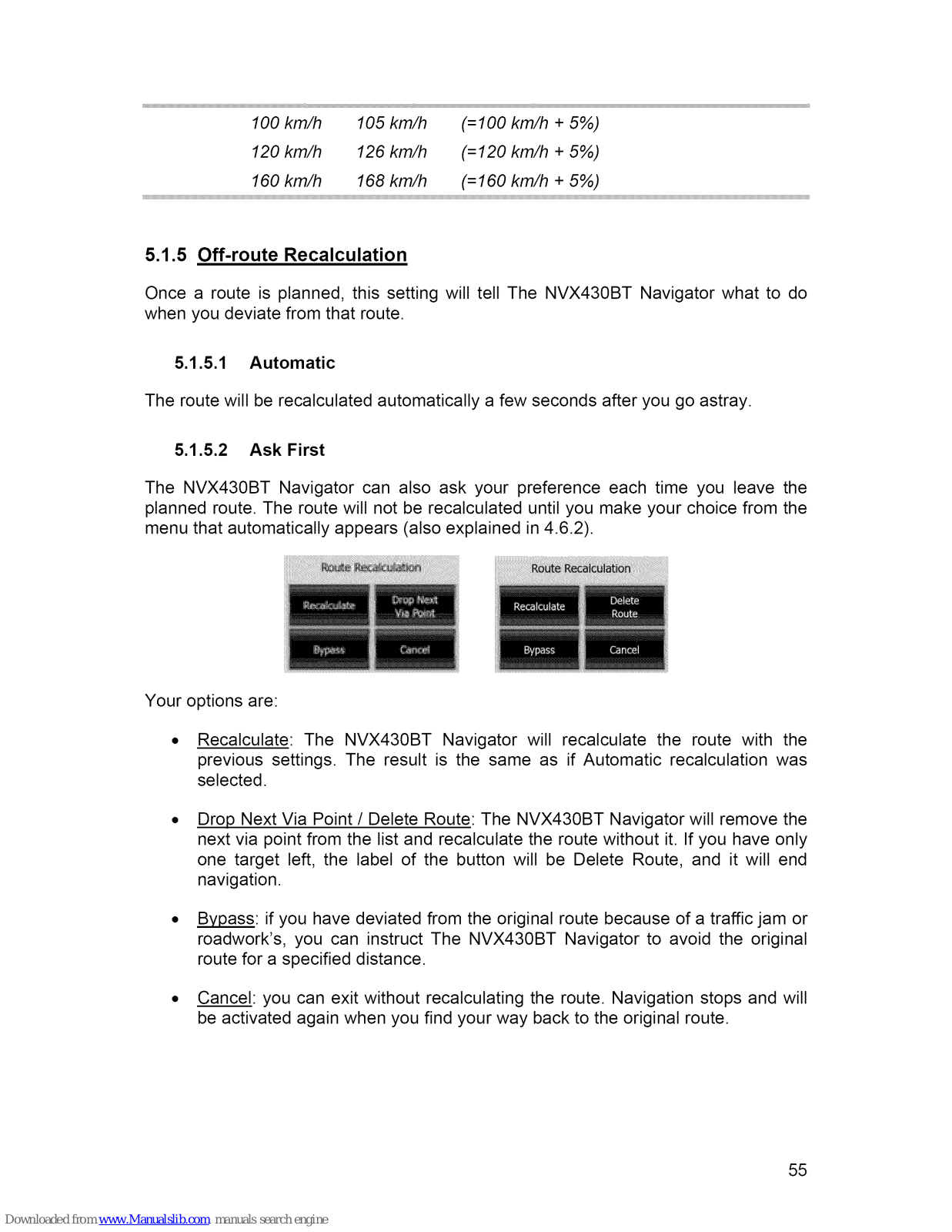

5.1.5 Off-route Recalculation ...................................................................... 55

5.1.5.1 Automatic .................................................................................... 55

5.1.5.2 Ask First ...................................................................................... 55

5.1.5.3 Disabled ...................................................................................... 56

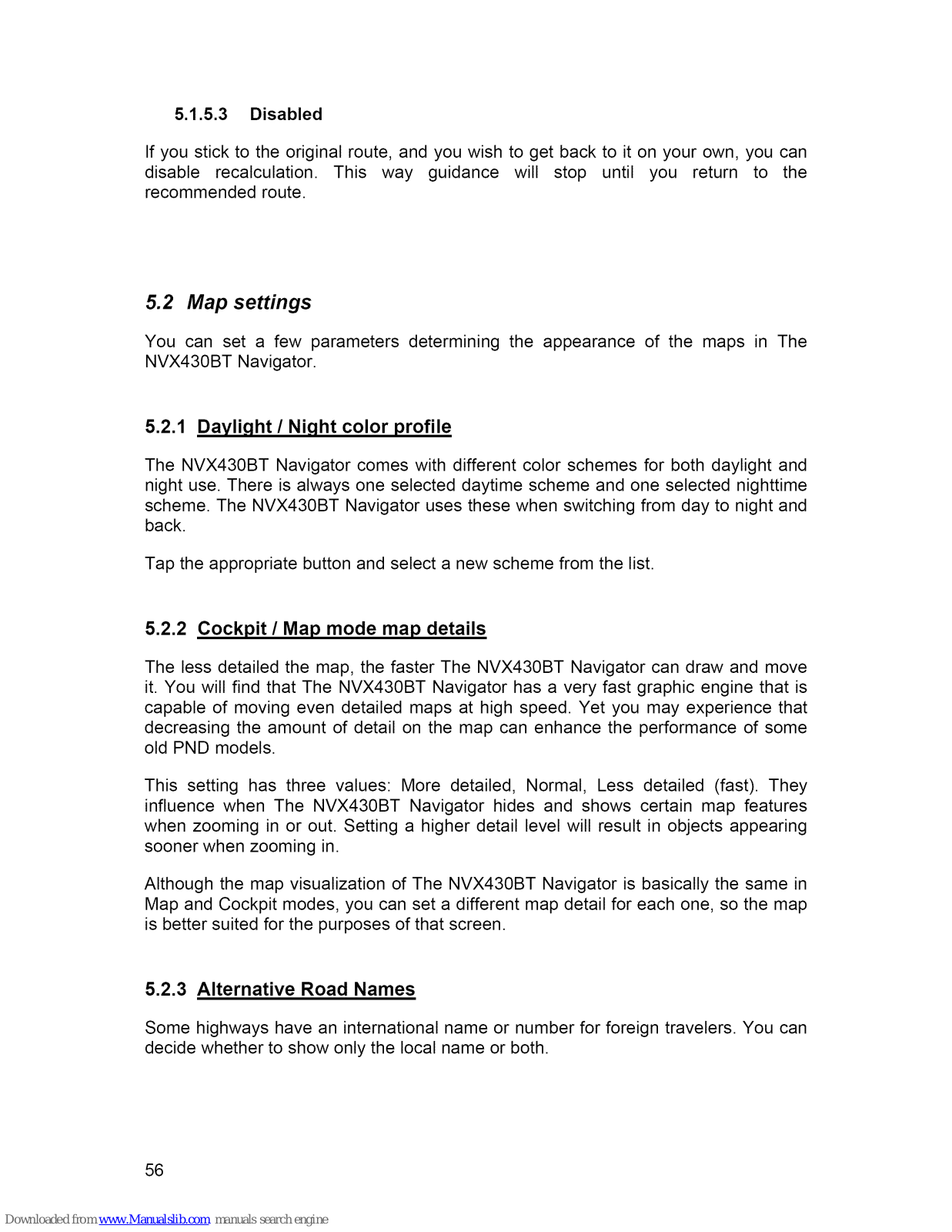

5.2 Map settings ............................................................................. 56

5.2.1 Daylight / Night color profile ................................................................ 56

5.2.2 Cockpit / Map mode map details ......................................................... 56

5.2.3 Alternative Road Names ..................................................................... 56

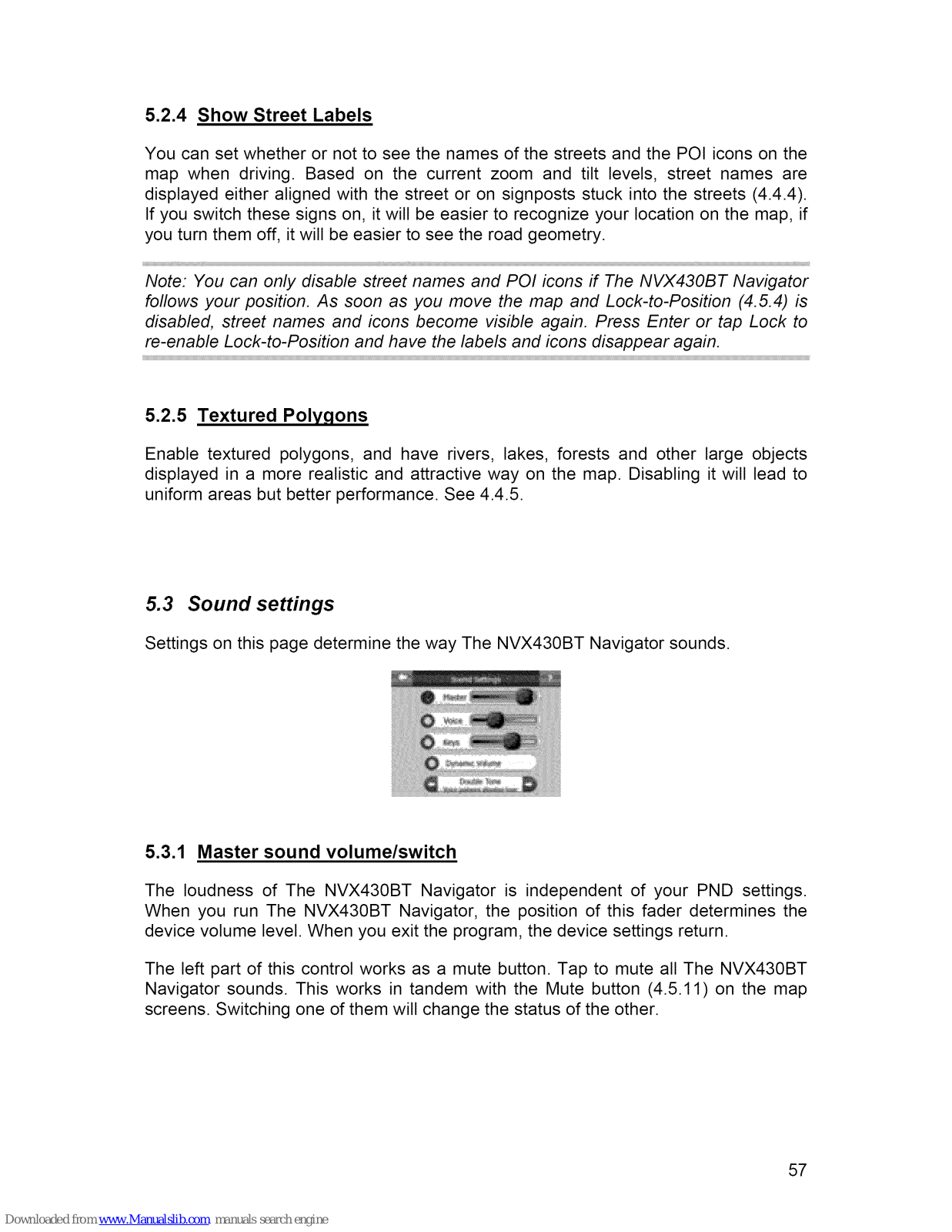

5.2.4 Show Street Labels ............................................................................. 57

5.2.5 Textured Polygons .............................................................................. 57

5.3 Sound settings ......................................................................... 57

5.3.1 Master sound volume/switch ............................................................... 57

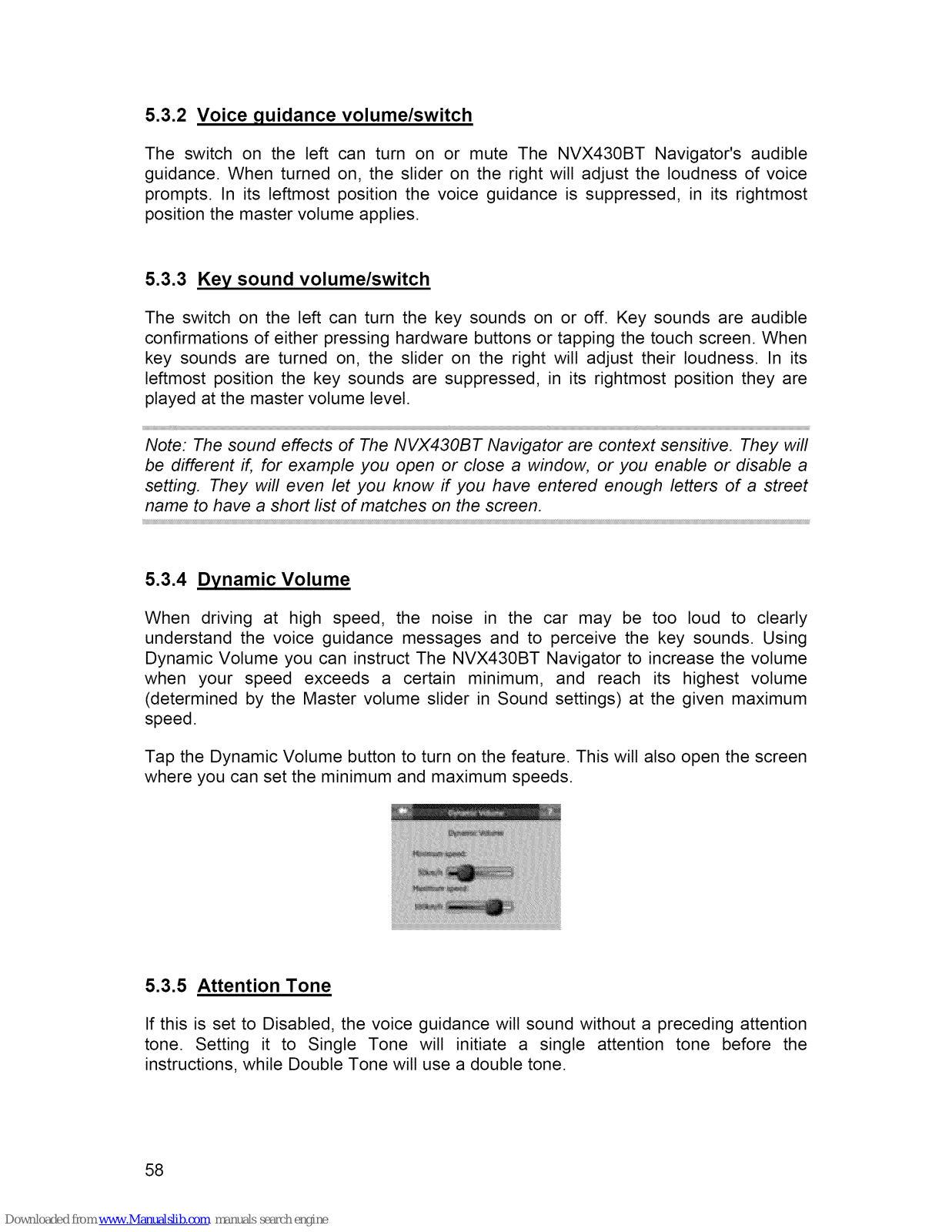

5.3.2 Voice guidance volume/switch ............................................................ 58

5.3.3 Key sound volume/switch .................................................................... 58

5.3.4 Dynamic Volume ................................................................................. 58

5.3.5 Attention Tone ..................................................................................... 58

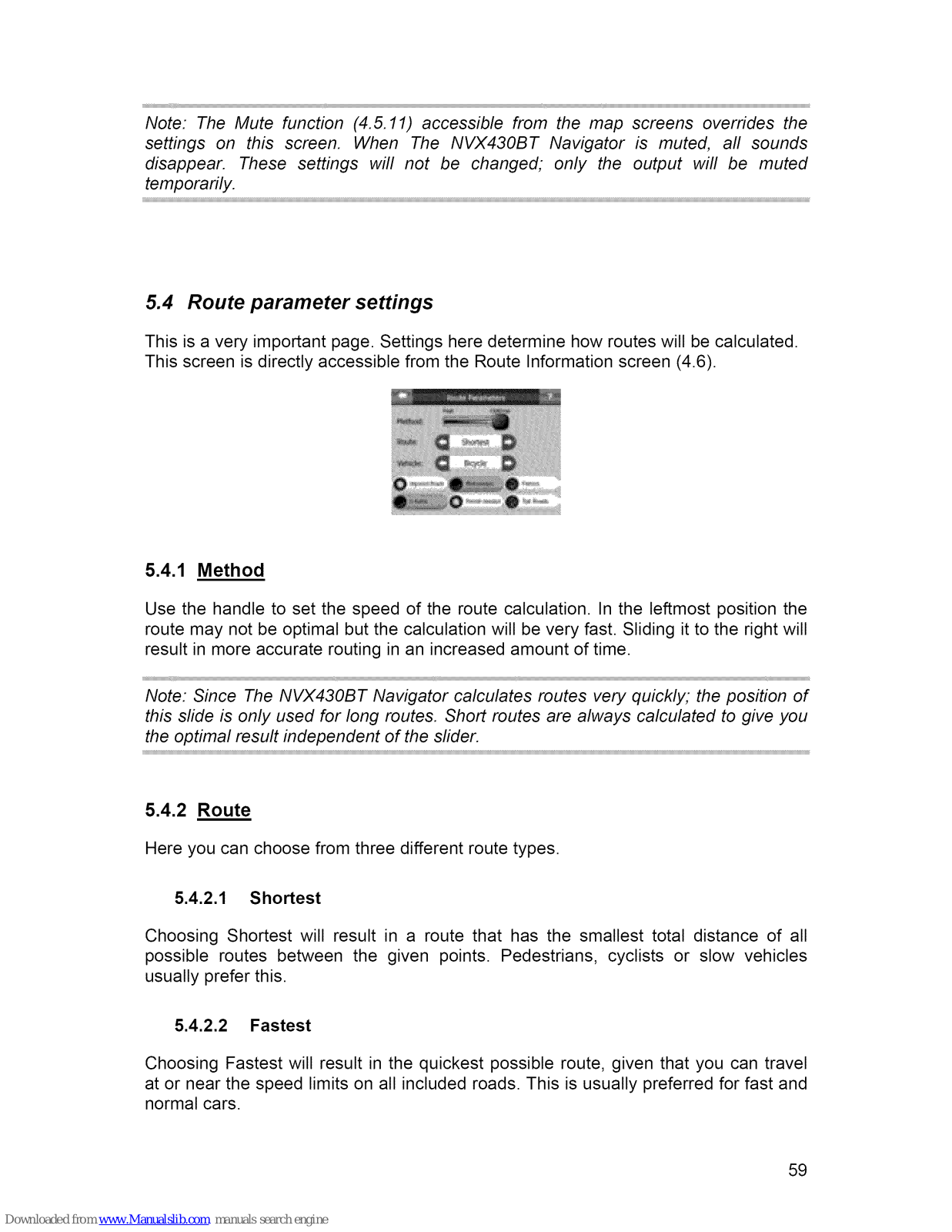

5.4 Route parameter settings ........................................................ 59

5.4.1 Method ............................................................................................... 59

5.4.2 Route ................................................................................................. 59

5.4.2.1 Shortest ....................................................................................... 59

5.4.2.2 Fastest ........................................................................................ 59

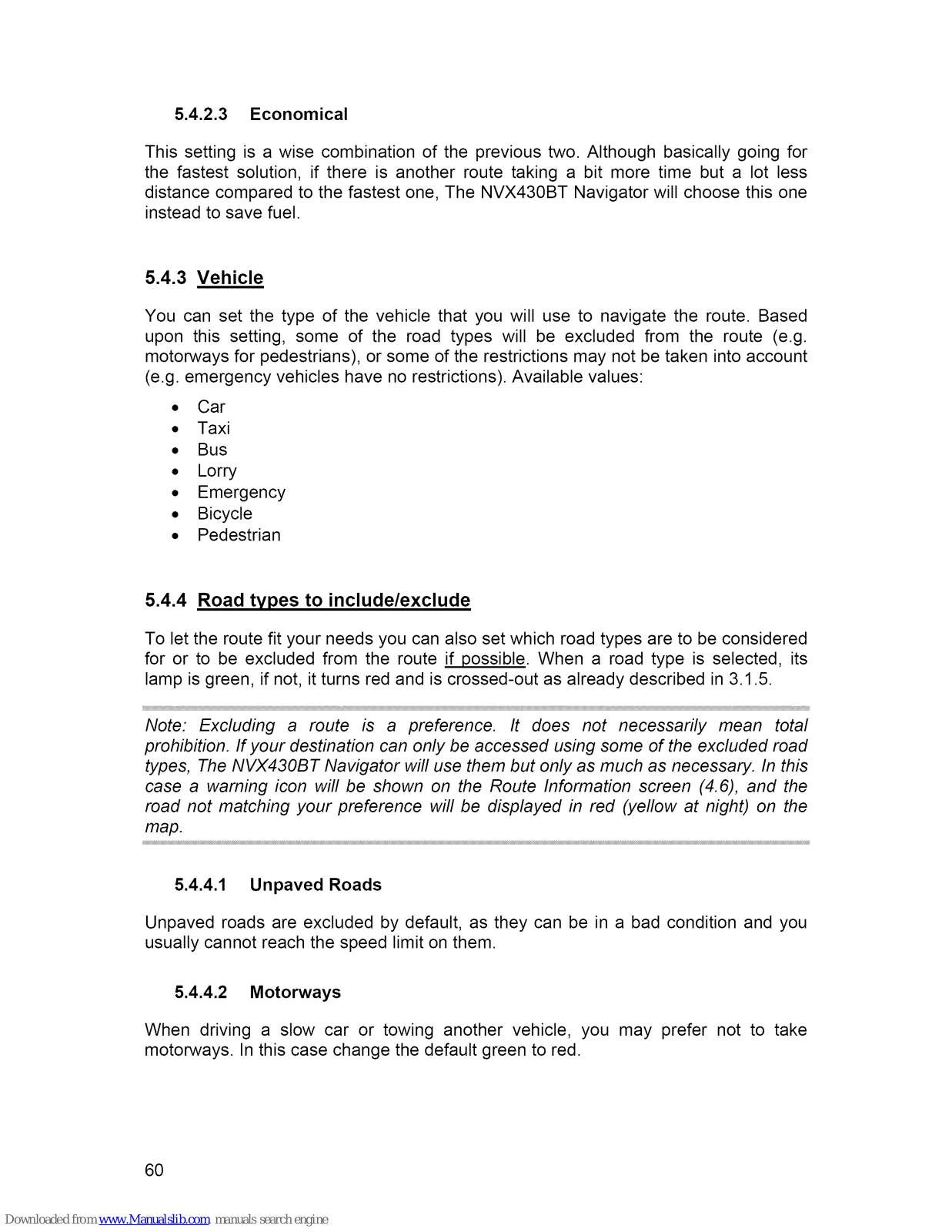

5.4.2.3 Economical ................................................................................. 60

5.4.3 Vehicle ............................................................................................... 60

5.4.4 Road types to include/exclude ........................................................... 60

5.4.4.1 Unpaved Roads .......................................................................... 60

5.4.4.2 Motorways ................................................................................... 60

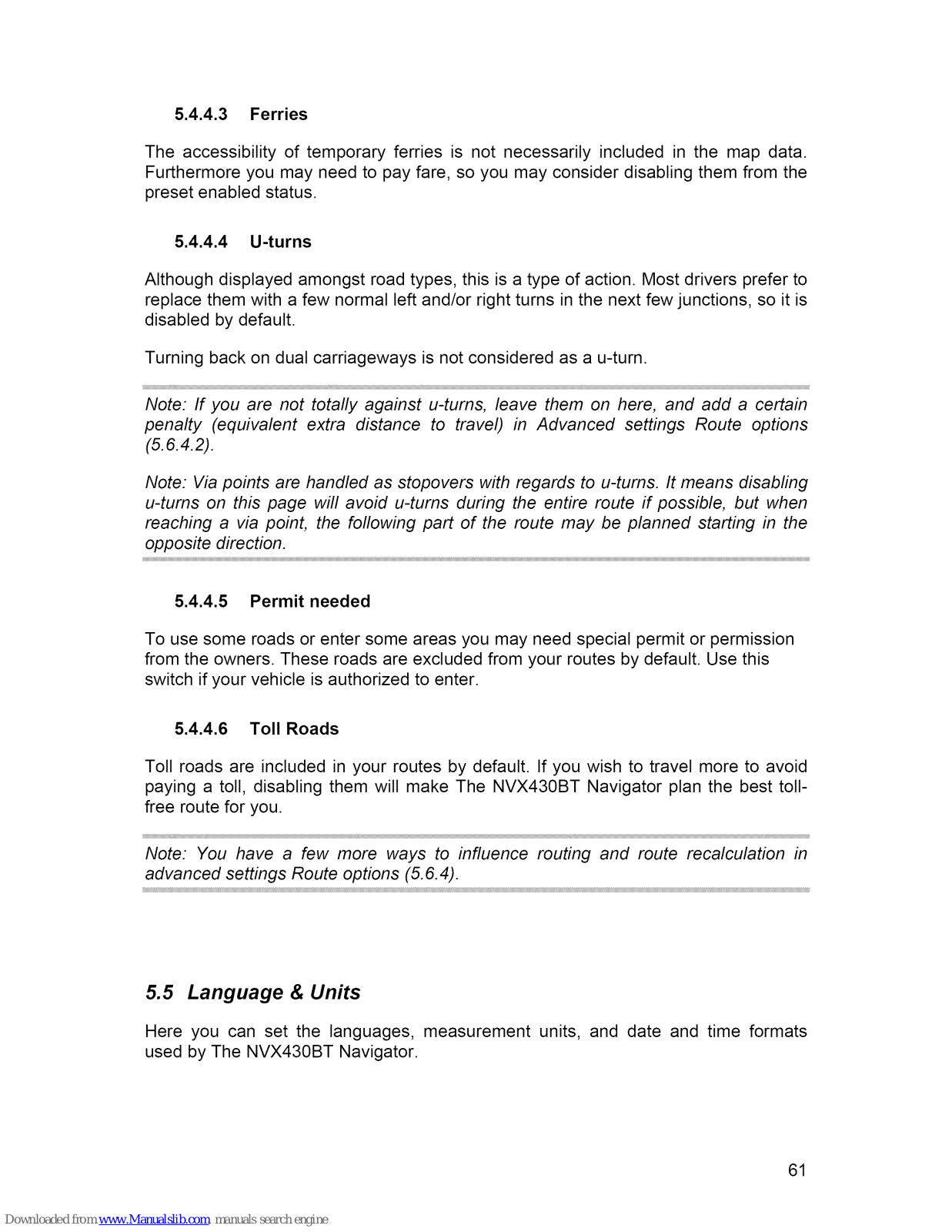

5.4.4.3 Ferries ......................................................................................... 61

5.4.4.4 U-turns ........................................................................................ 61

5.4.4.5 Permit needed ............................................................................. 61

5.4.4.6 Toll Roads ................................................................................... 61

5.5 Language & Units ..................................................................... 61

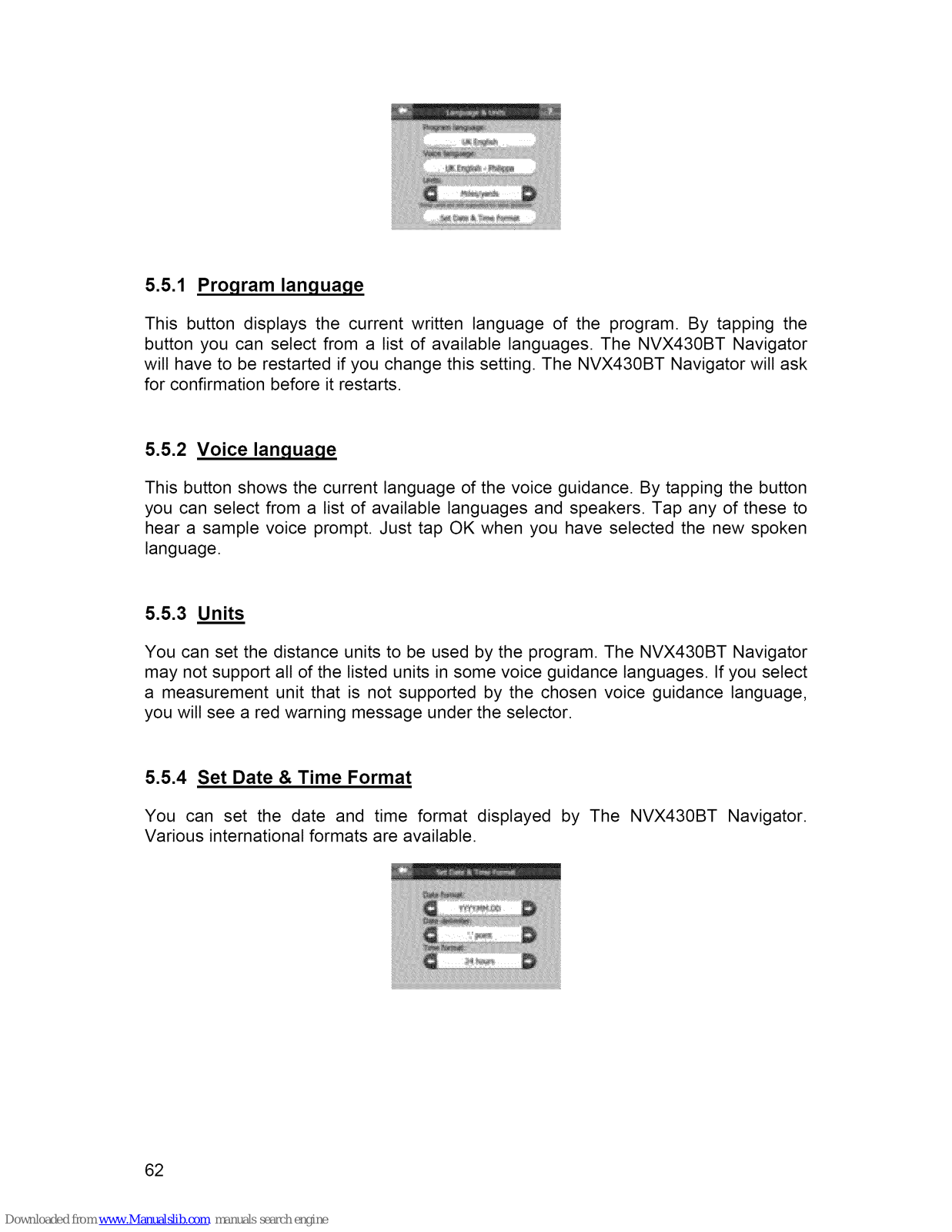

5.5.1 Program language ............................................................................... 62

5.5.2 Voice language ................................................................................... 62

5.5.3 Units .................................................................................................... 62

5.5.4 Set Date & Time Format ..................................................................... 62

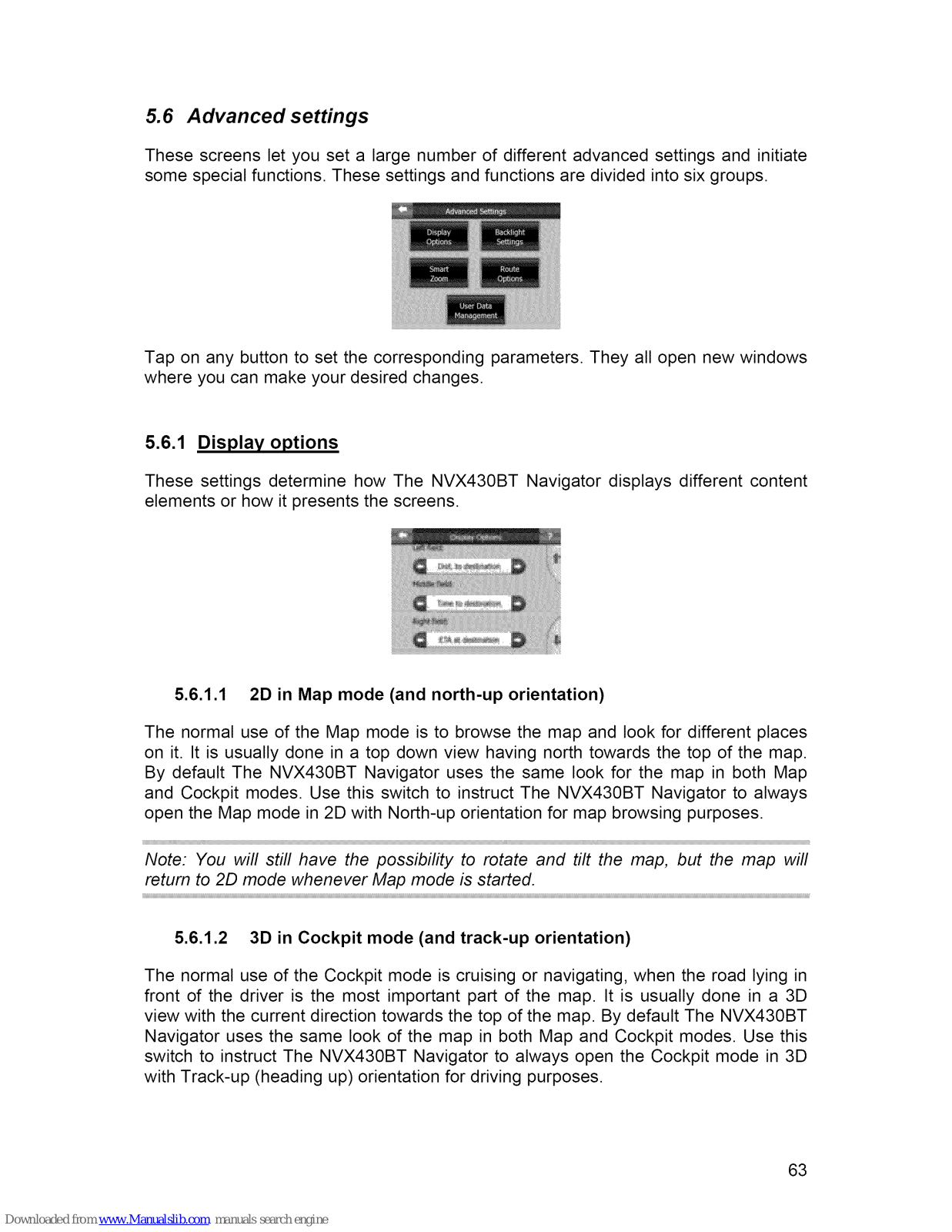

5.6 Advanced settings ................................................................... 63

5.6.1 Display options .................................................................................... 63

5.6.1.1 2D in Map mode (and north-up orientation) ................................. 63

5.6.1.2 3D in Cockpit mode (and track-up orientation) ............................. 63

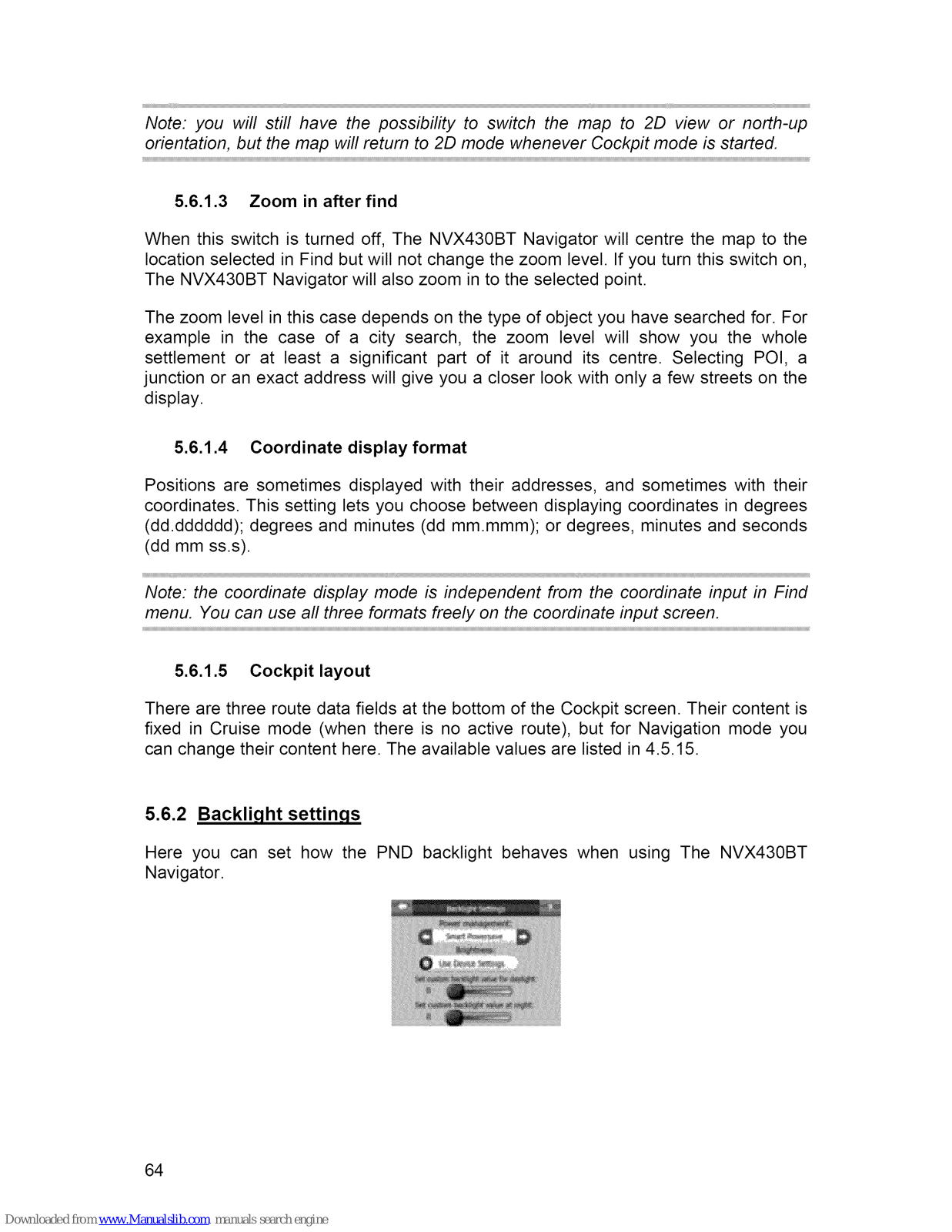

5.6.1.3 Zoom in after find ......................................................................... 64

5.6

5.6.2

5.6

5.6.3

5.6

5.6.4

5.6

5.6.5

5.6

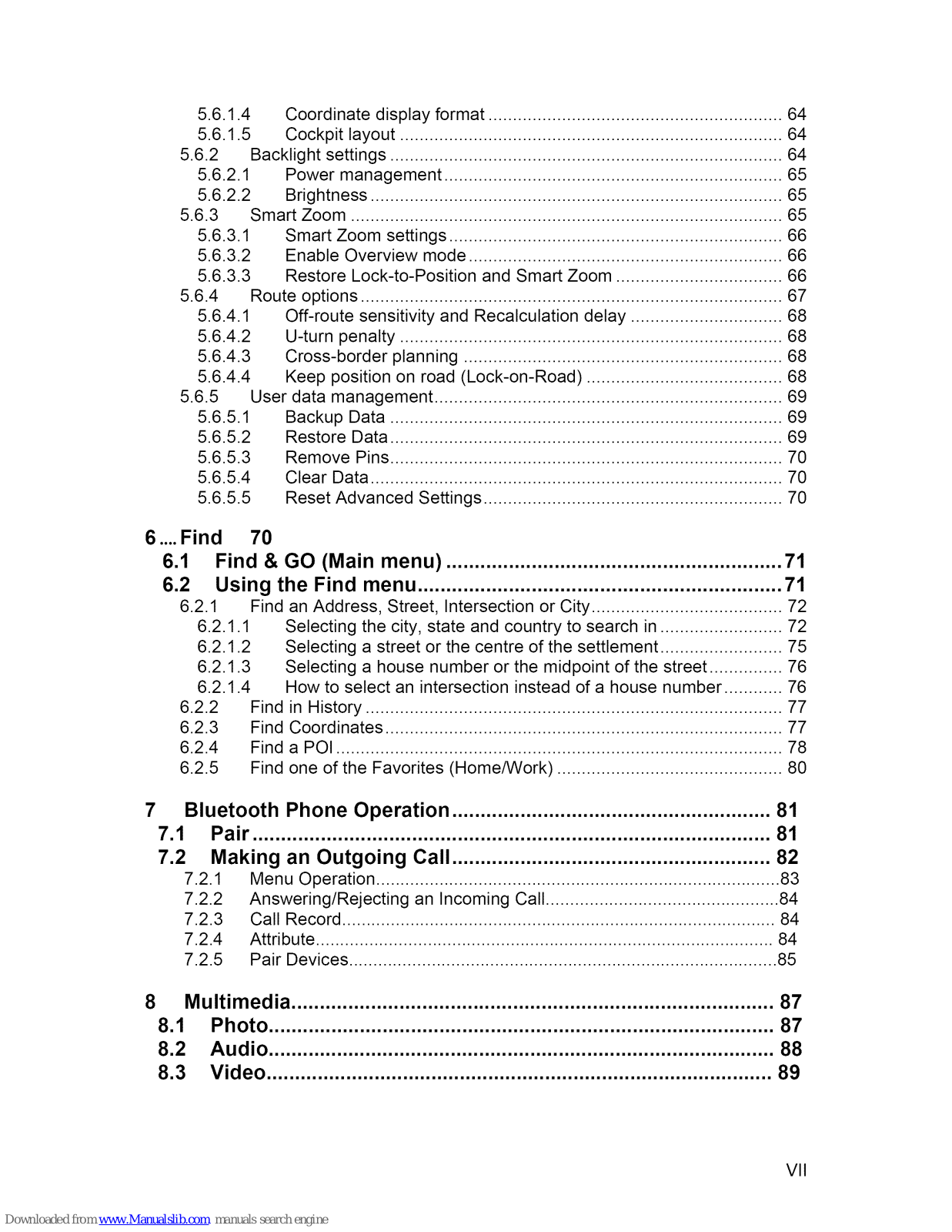

.1.4 Coordinate display format ...........................................................

.1.5 Cockpit layout .............................................................................

Backlight settings ...............................................................................

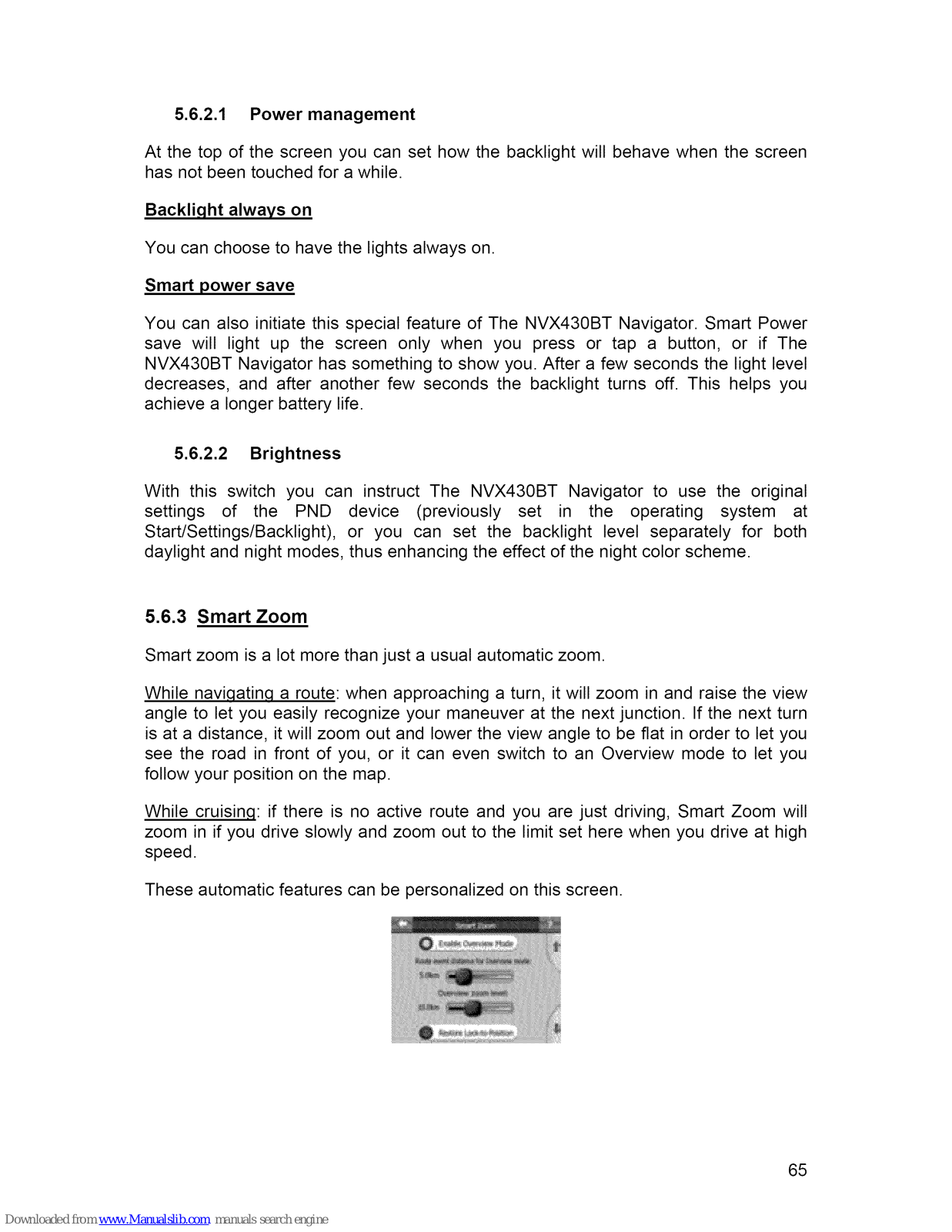

.2.1 Power management ....................................................................

.2.2 Brightness ...................................................................................

Smart Zoom .......................................................................................

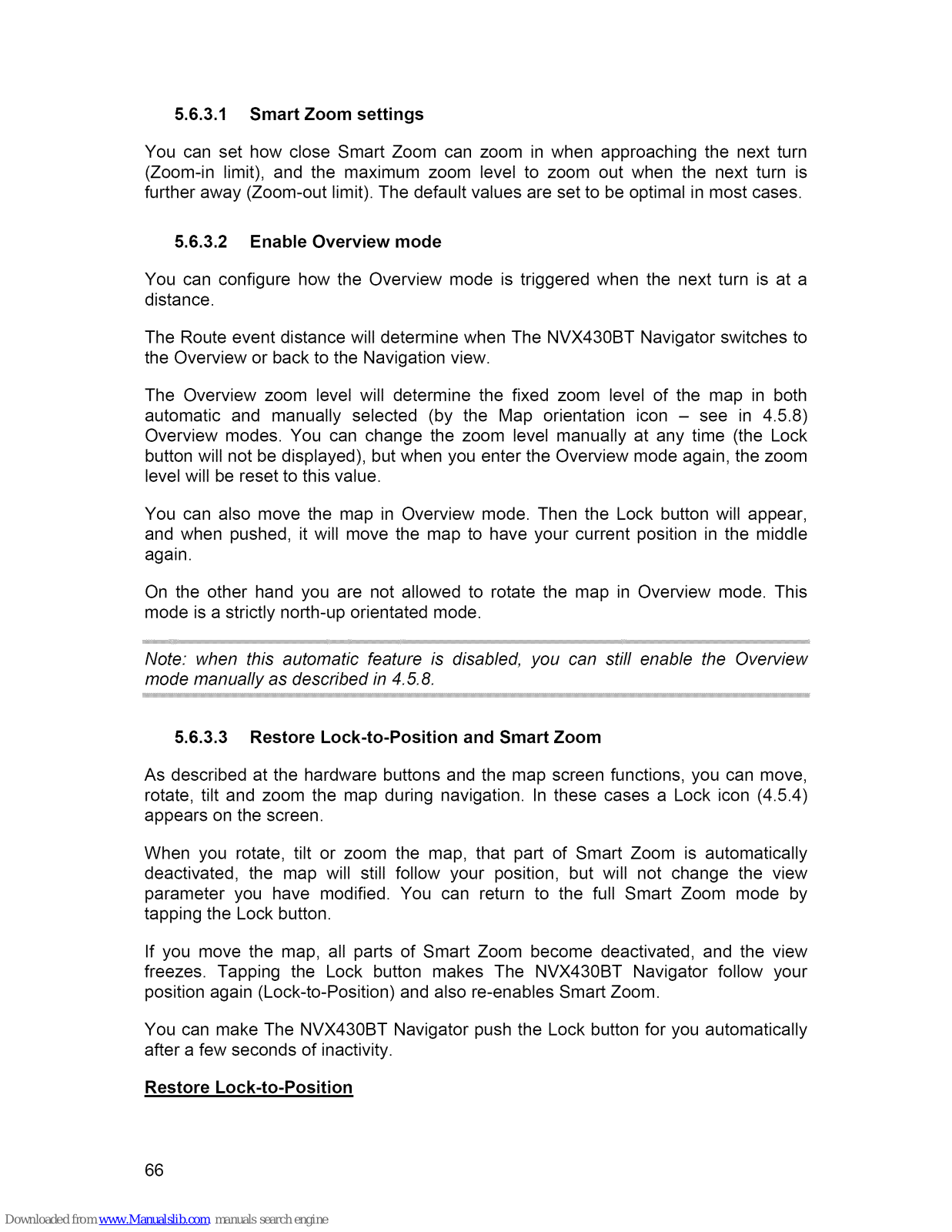

.3.1 Smart Zoom settings ...................................................................

.3.2 Enable Overview mode ...............................................................

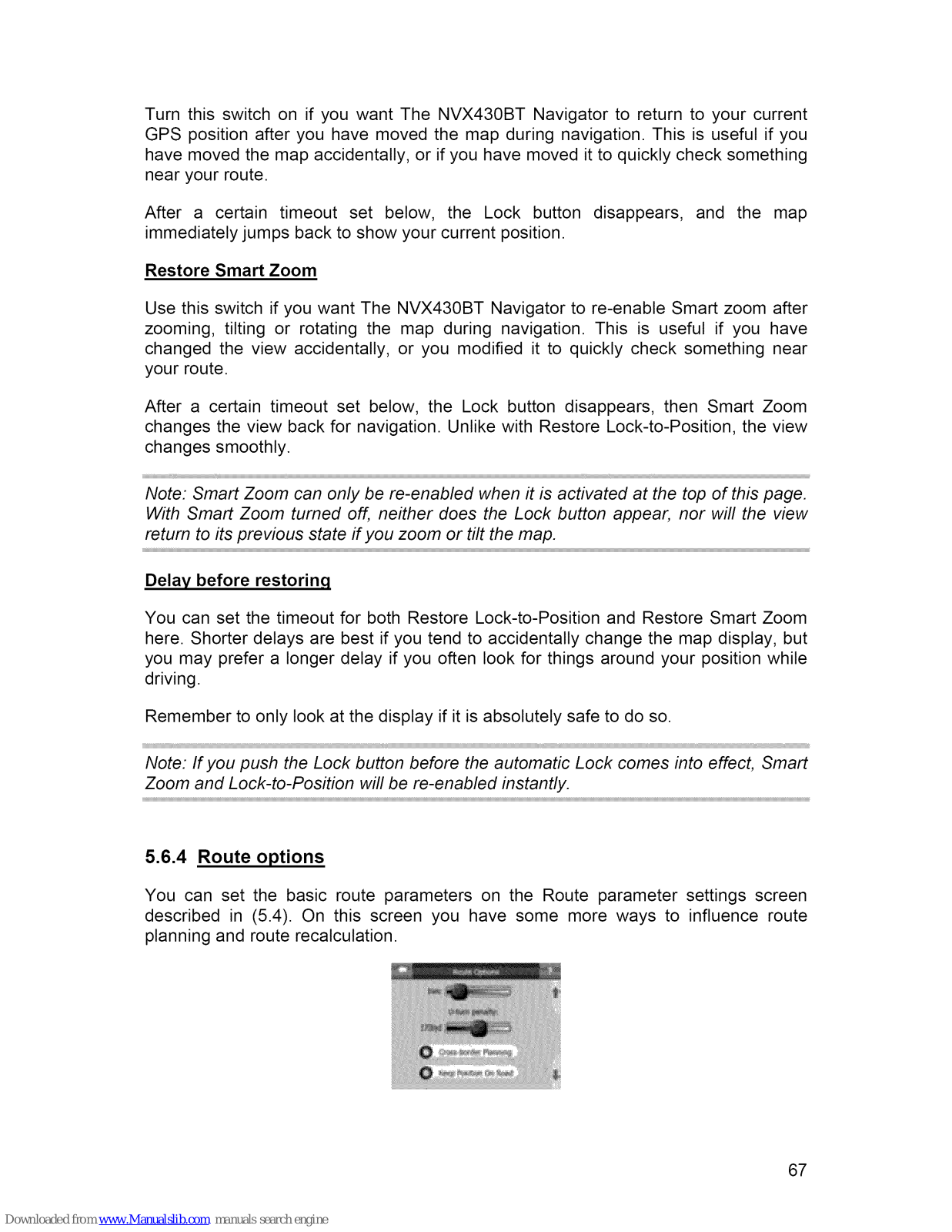

.3.3 Restore Lock-to-Position and Smart Zoom .................................

Route options .....................................................................................

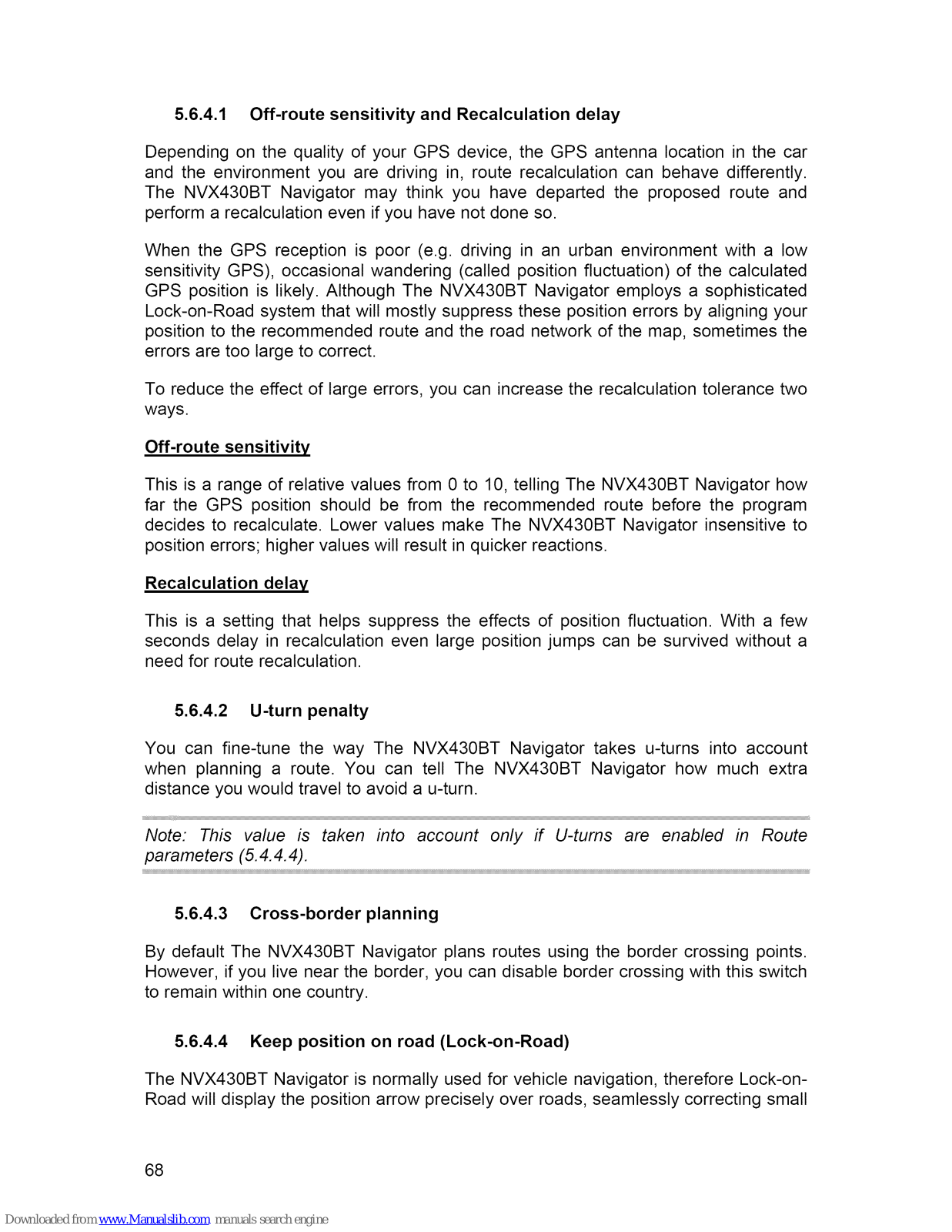

.4.1 Off-route sensitivity and Recalculation delay ..............................

.4.2 U-turn penalty .............................................................................

.4.3 Cross-border planning ................................................................

.4.4 Keep position on road (Lock-on-Road) .......................................

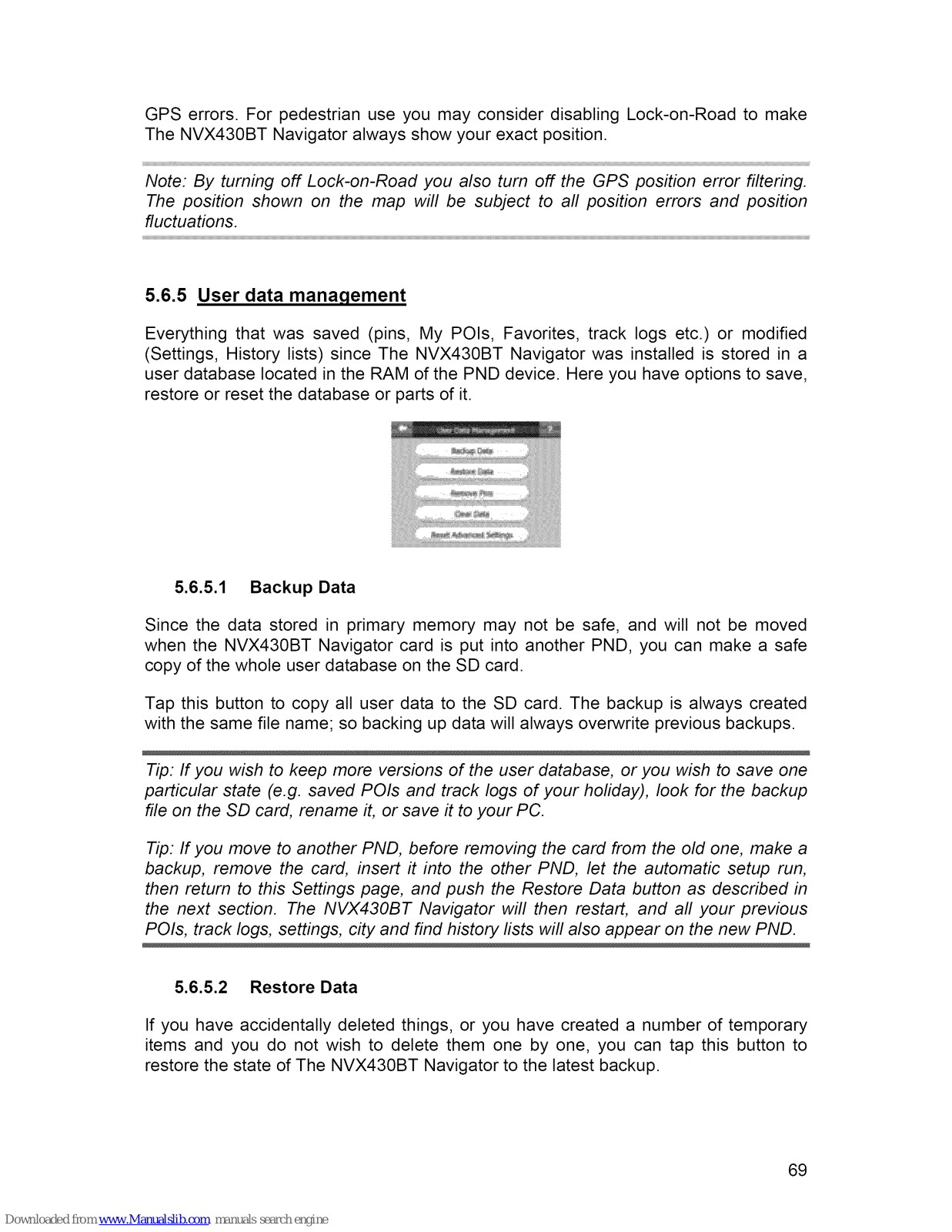

User data management ......................................................................

.5.1 .5.2 .5.3 .5.4 .5.5

Backup Data ...............................................................................

Restore Data ...............................................................................

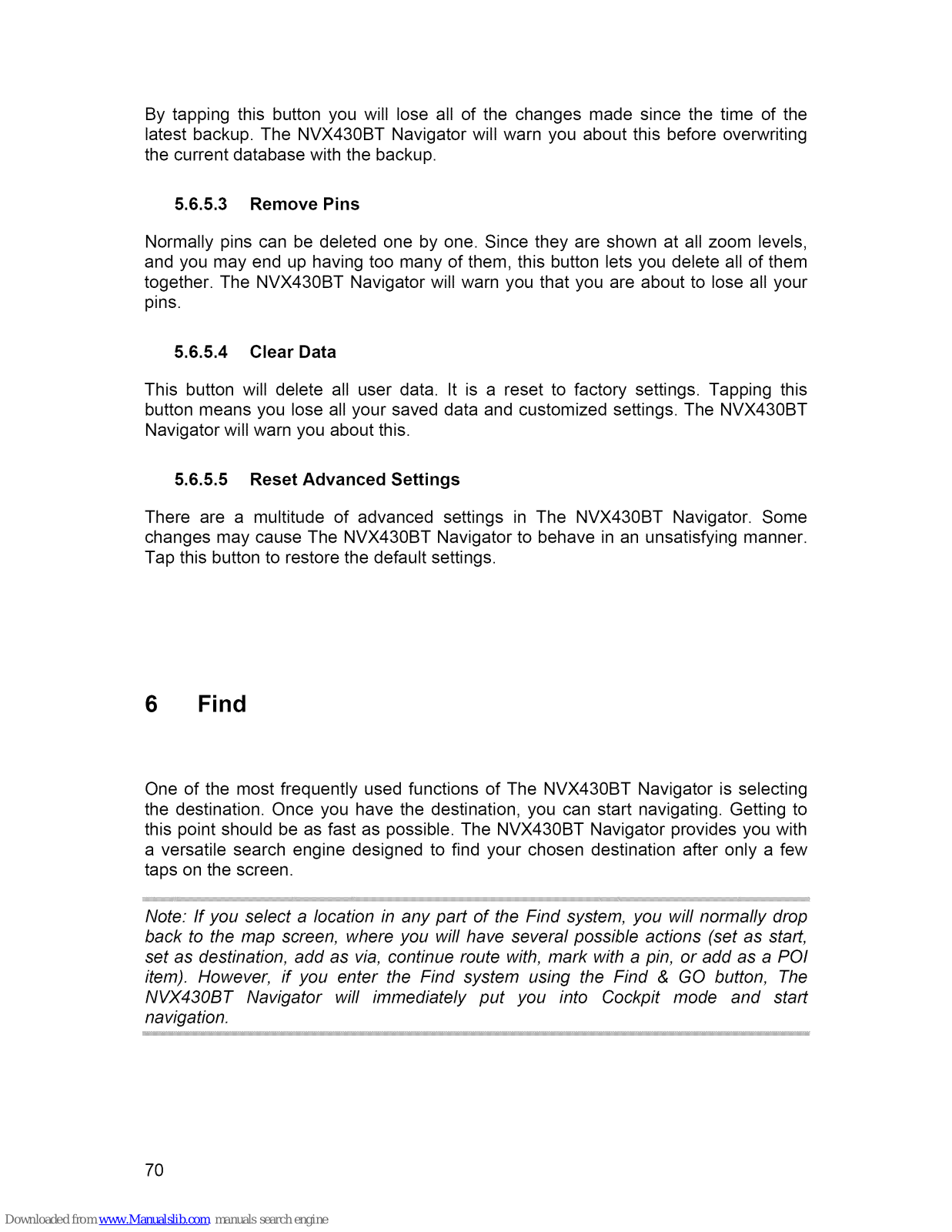

Remove Pins ...............................................................................

Clear Data ...................................................................................

Reset Advanced Settings ............................................................

64 64 64 65 65 65 66 66 66 67 68 68 68 68 69 69 69 7O 7O 7O

6 ....Find 70

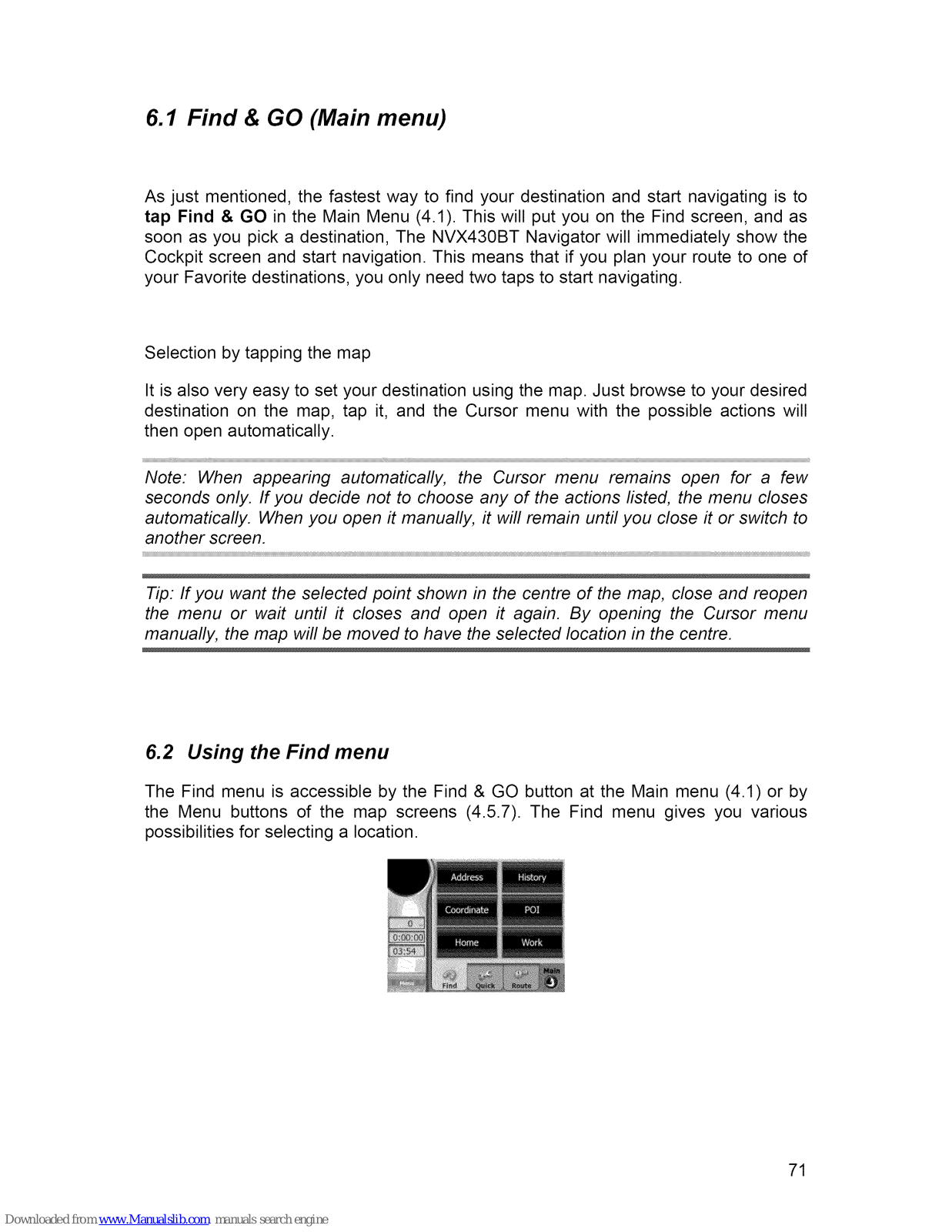

6.1 Find & GO (Main menu) ........................................................... 71

6.2 Using the Find menu ................................................................ 71

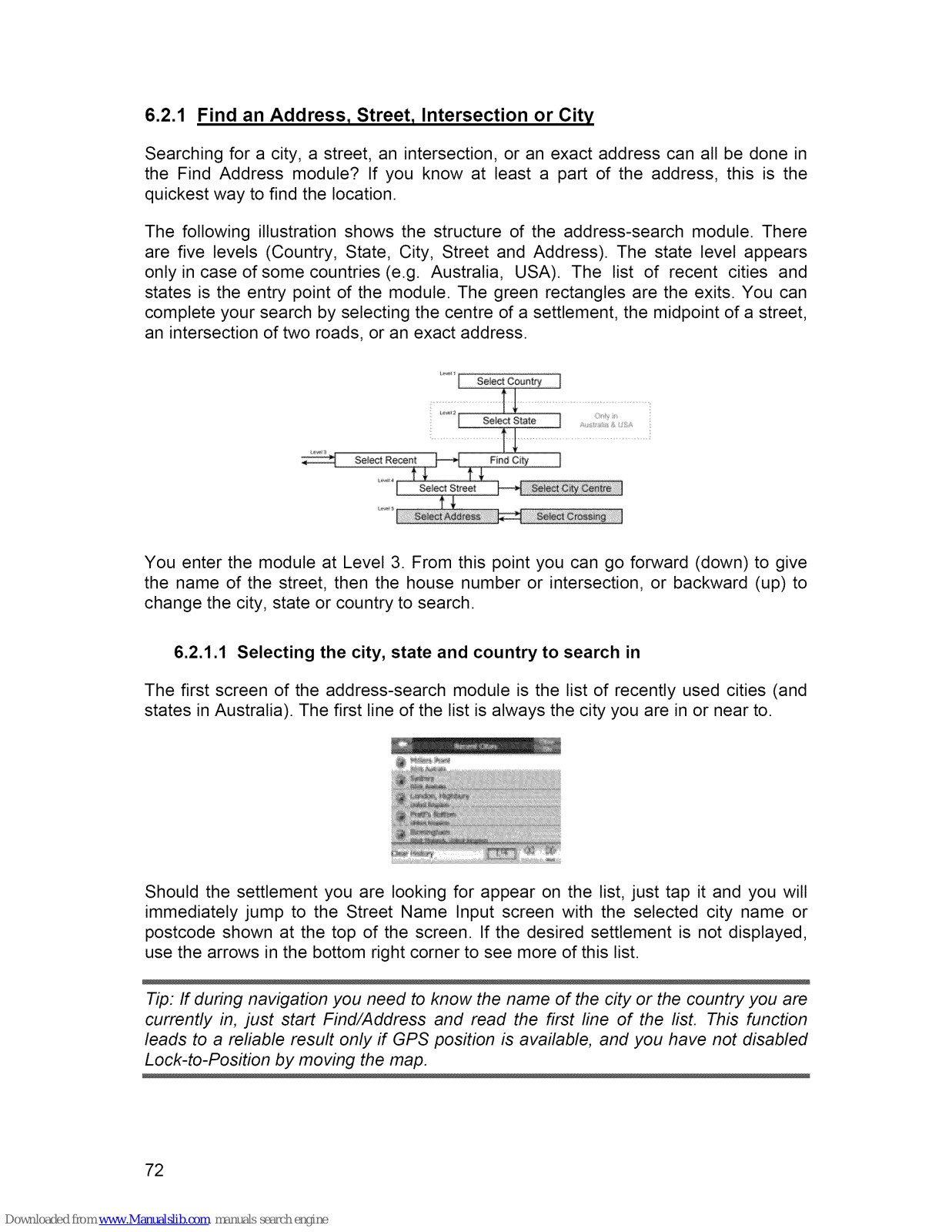

6.2.1 Find an Address, Street, Intersection or City ...................................... 72

6.2

6.2.2

6.2.3

6.2.4

6.2.5

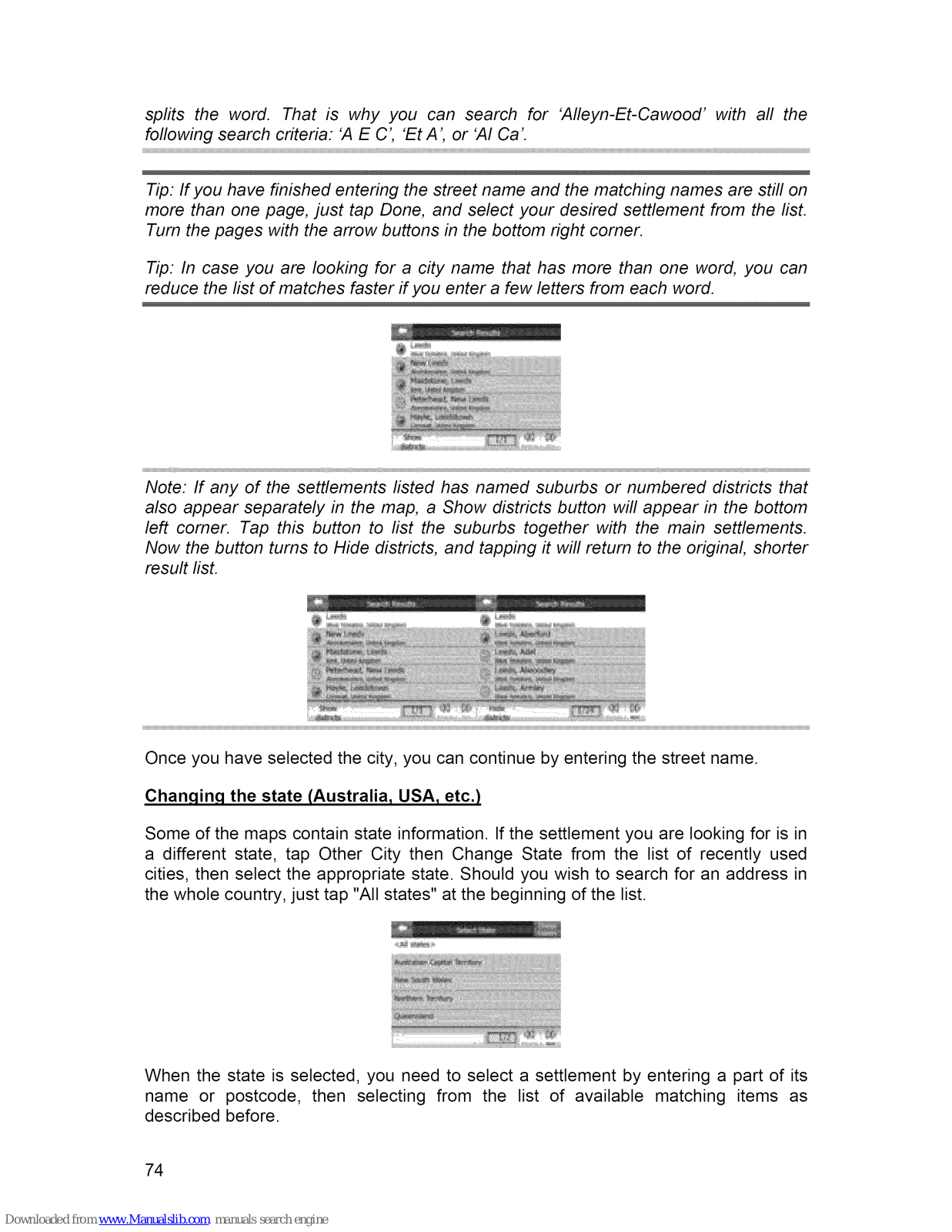

.1.1 Selecting the city, state and country to search in ........................

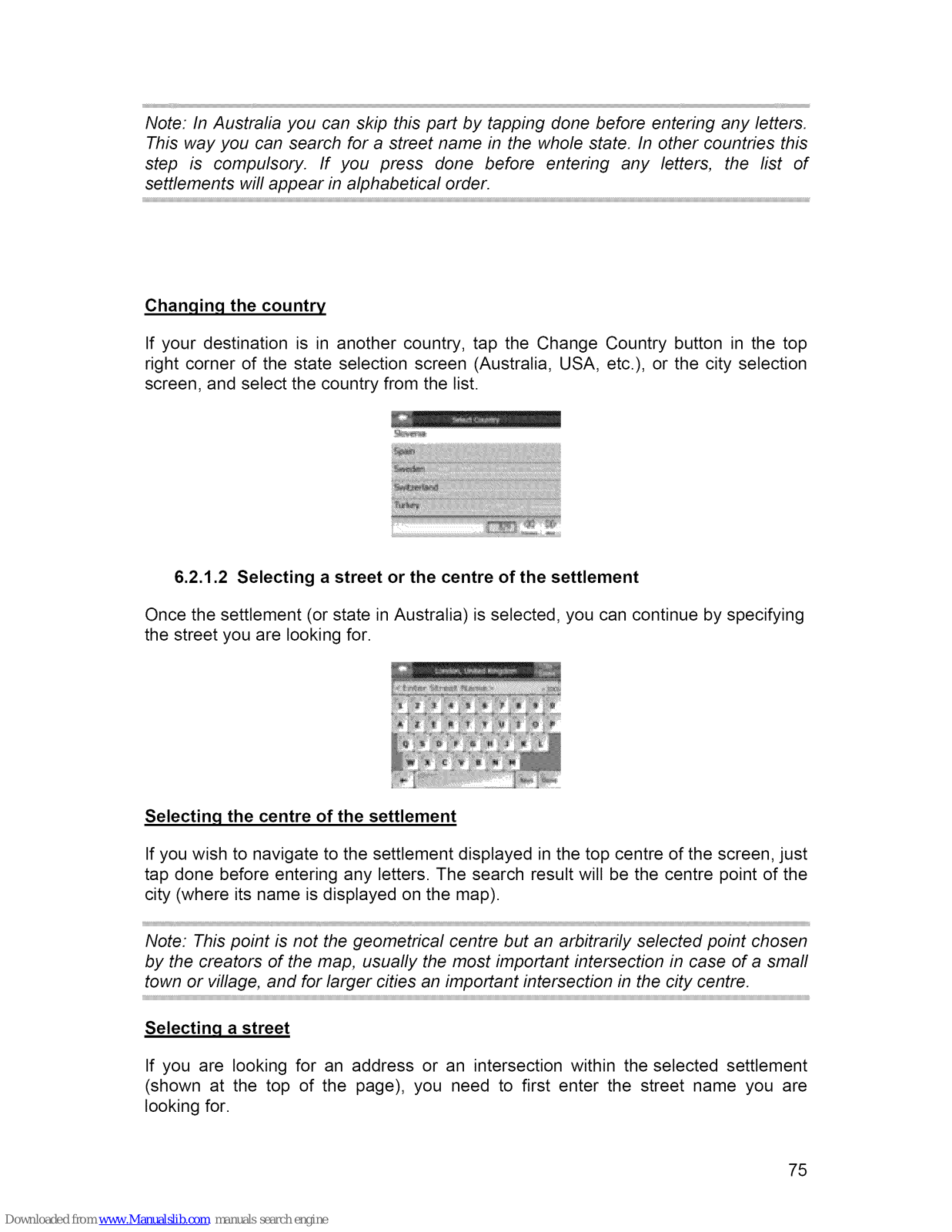

.1.2 Selecting a street or the centre of the settlement ........................

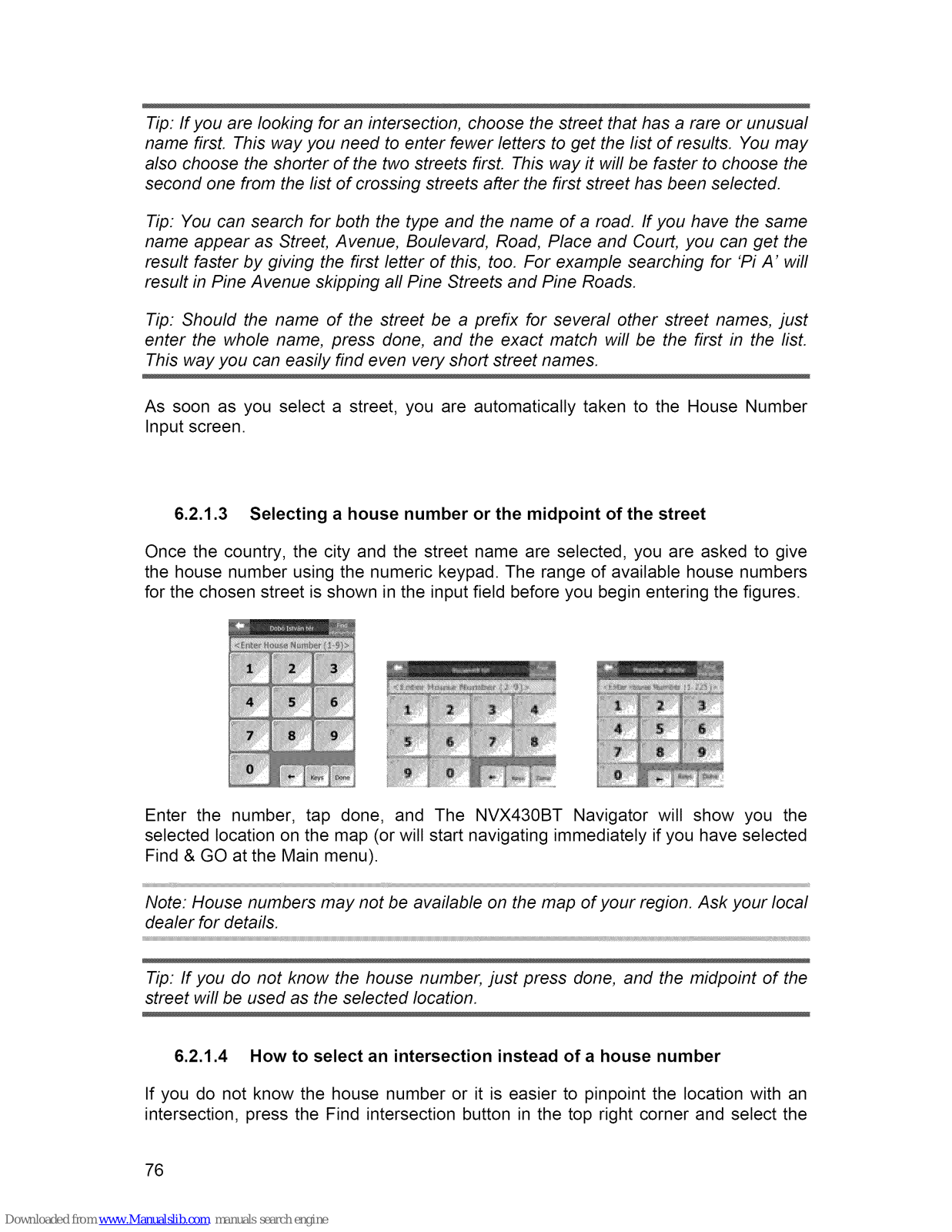

.1.3 Selecting a house number or the midpoint of the street ..............

.1.4 How to select an intersection instead of a house number ...........

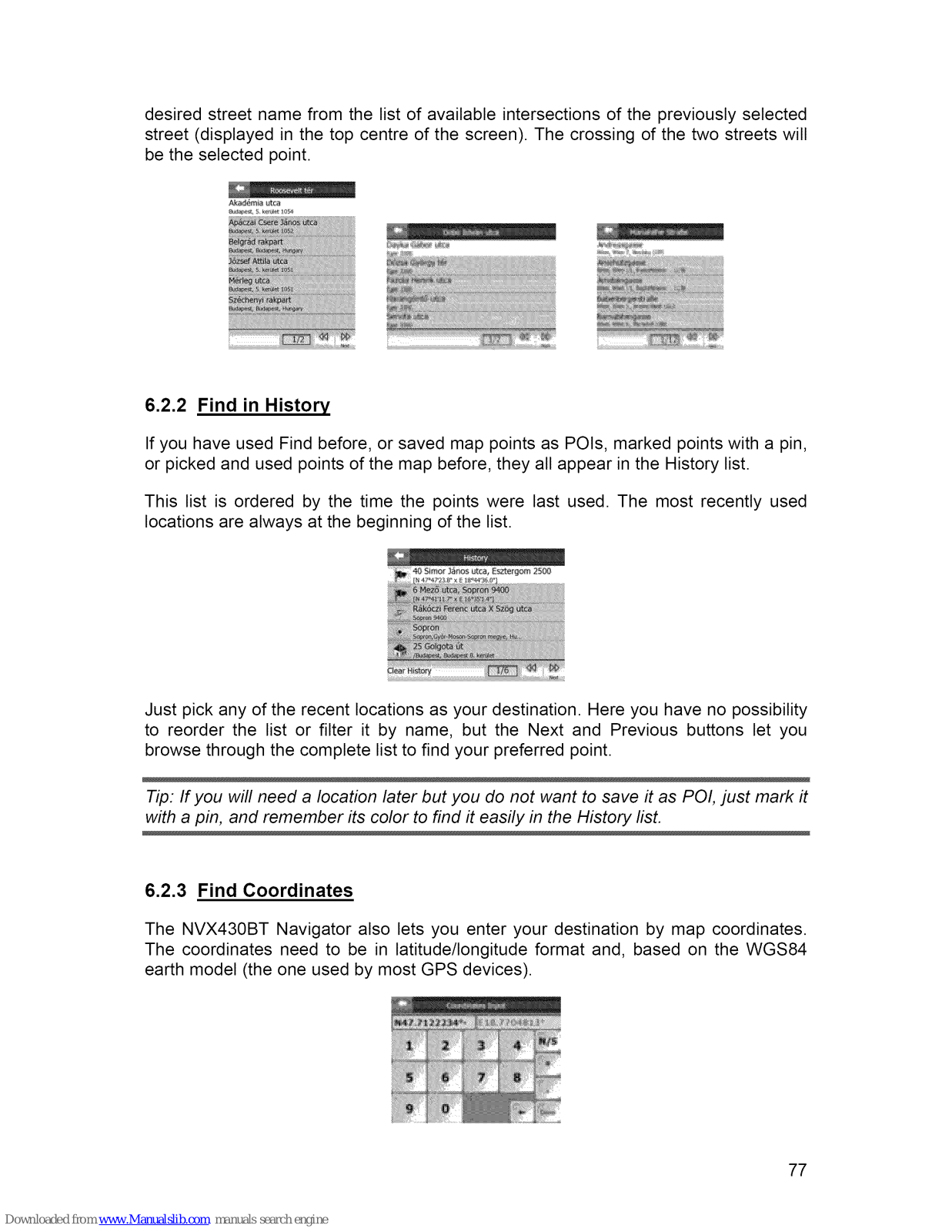

Find in History ....................................................................................

Find Coordinates ................................................................................

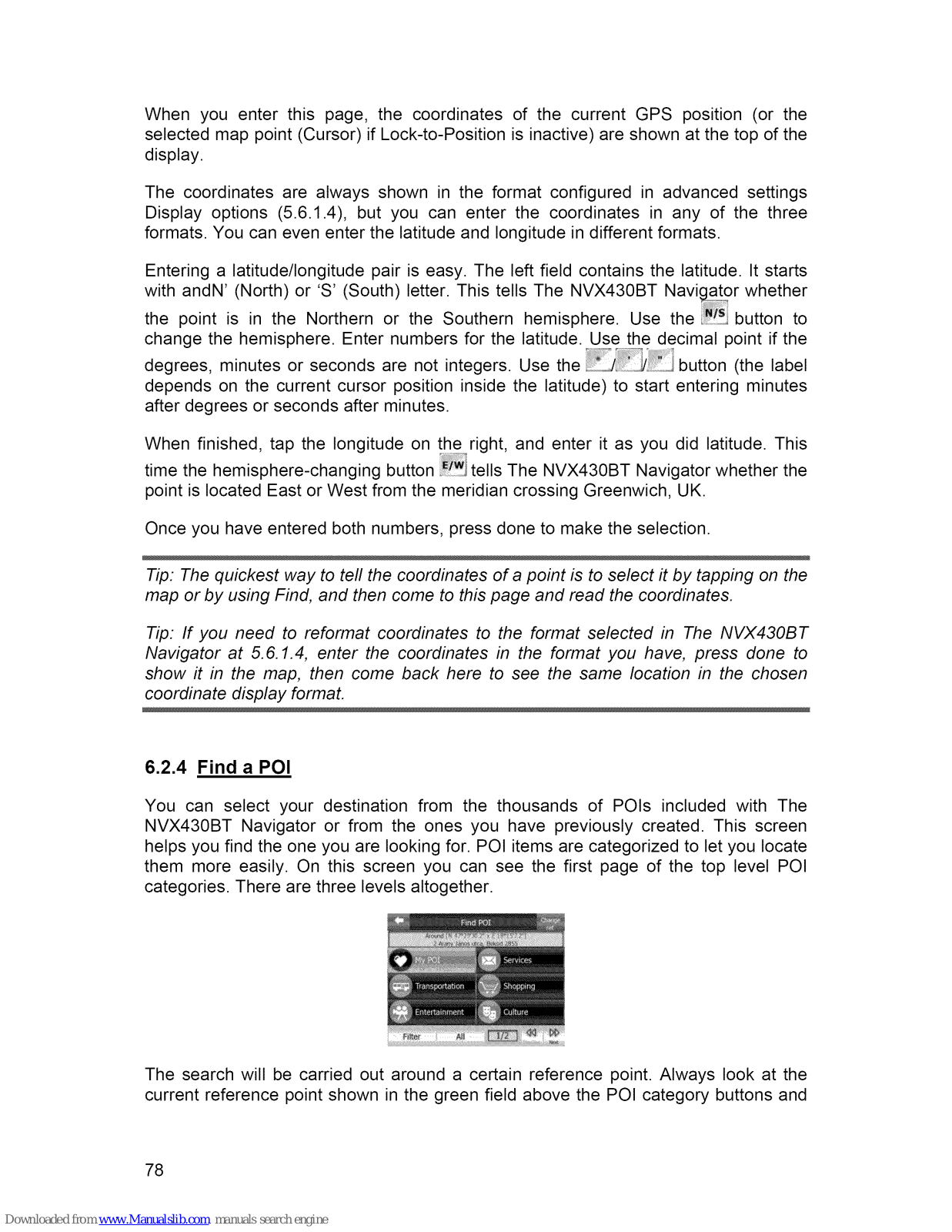

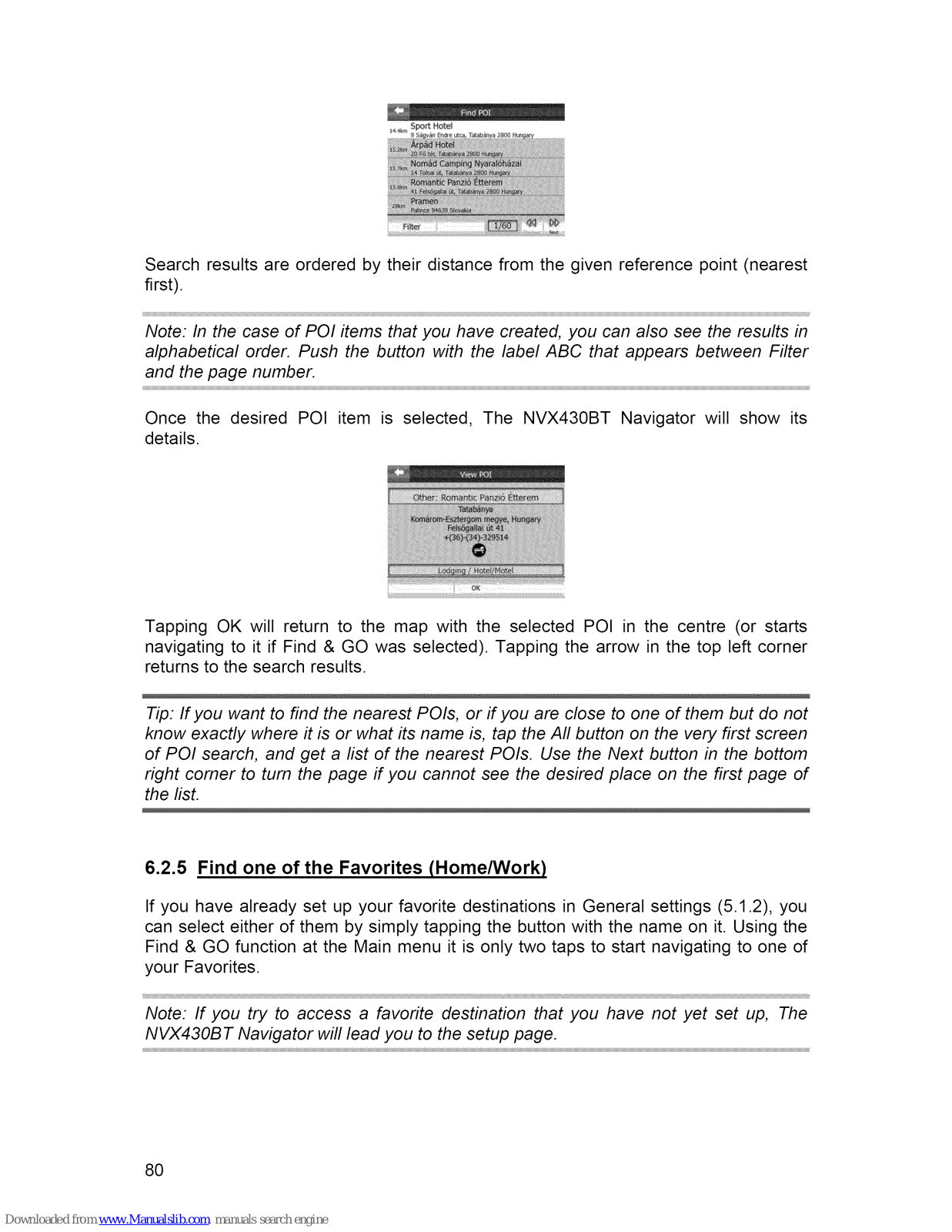

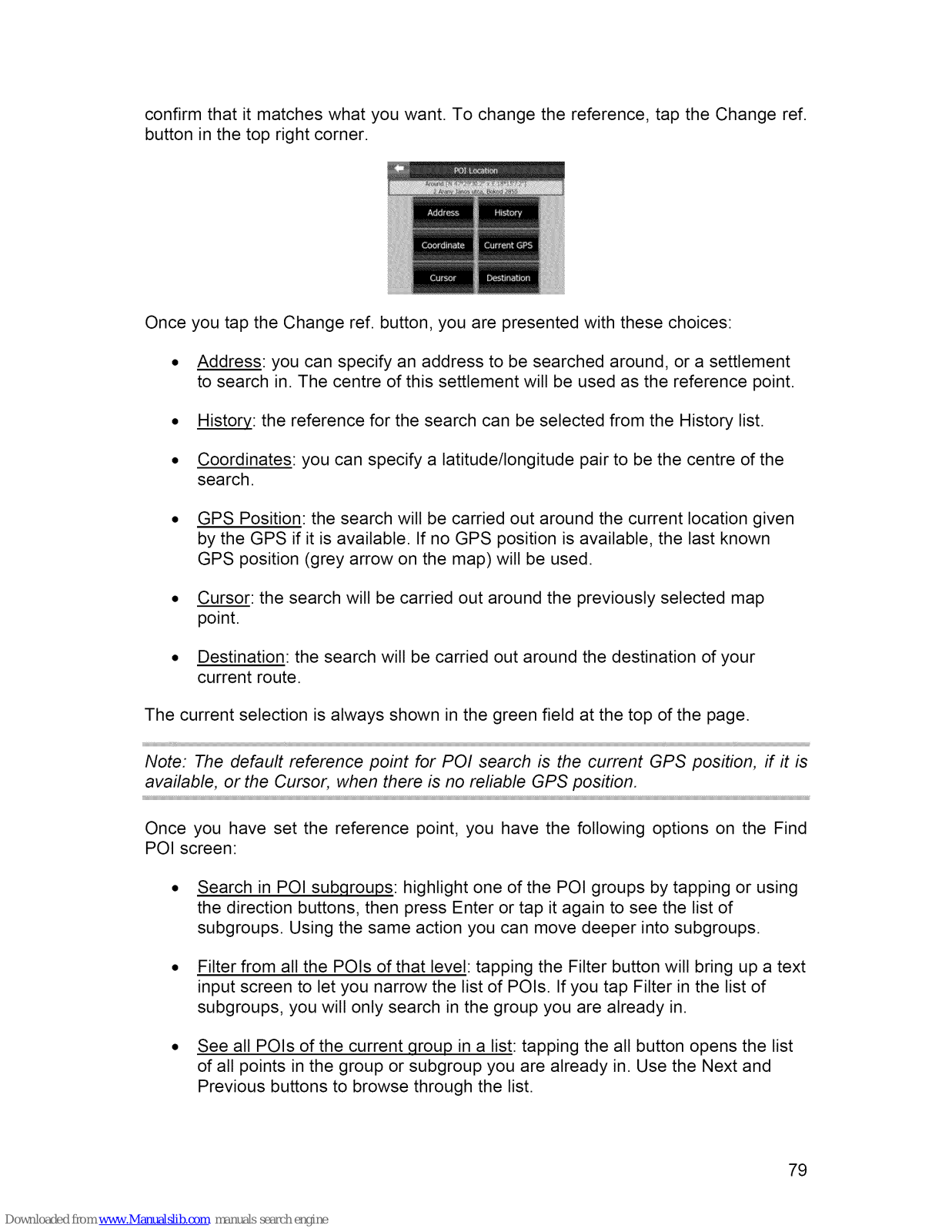

Find a POI ..........................................................................................

Find one of the Favorites (Home/Work) .............................................

72 75 76 76 77 77 78 8O

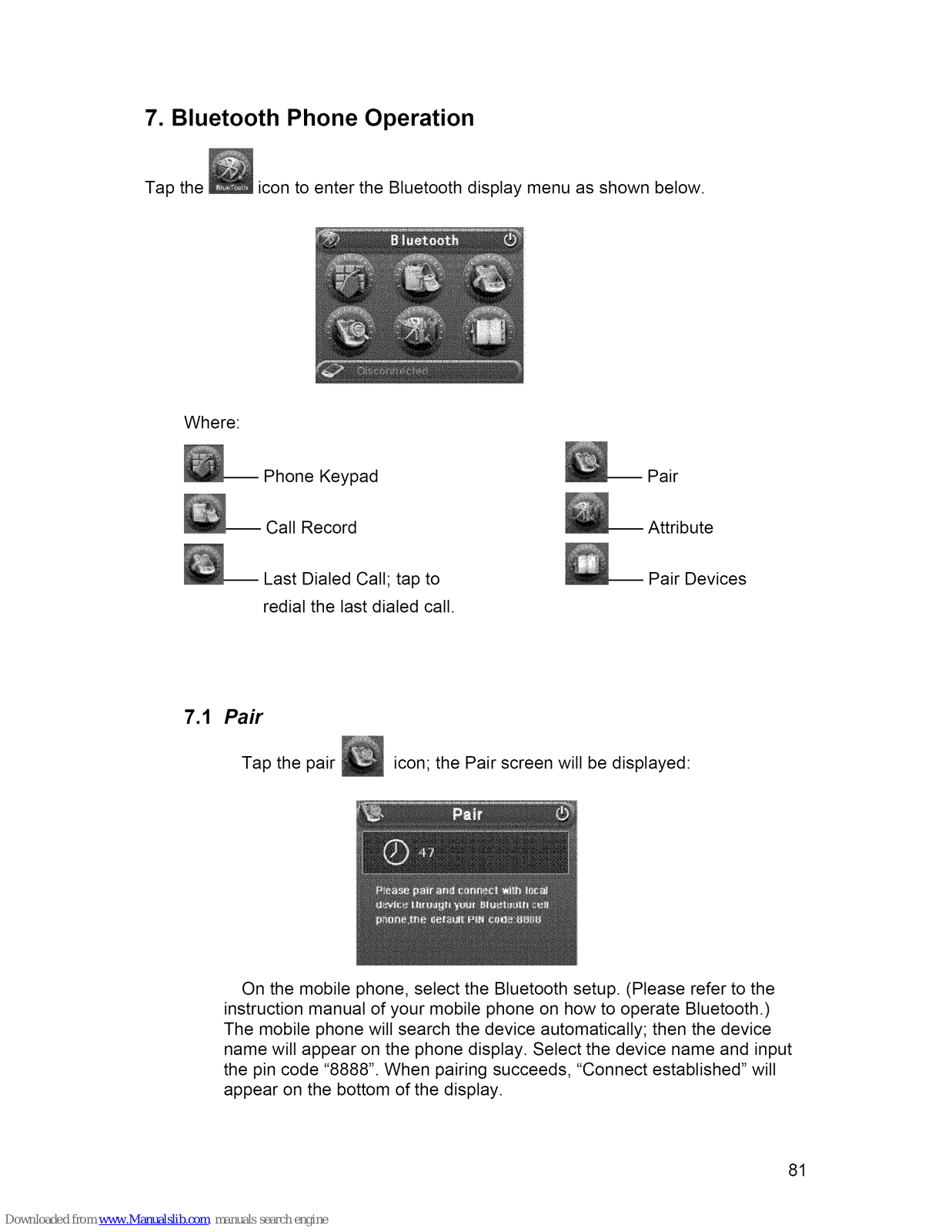

Bluetooth Phone Operation ........................................................ 81

7.1 Pair ........................................................................................... 81

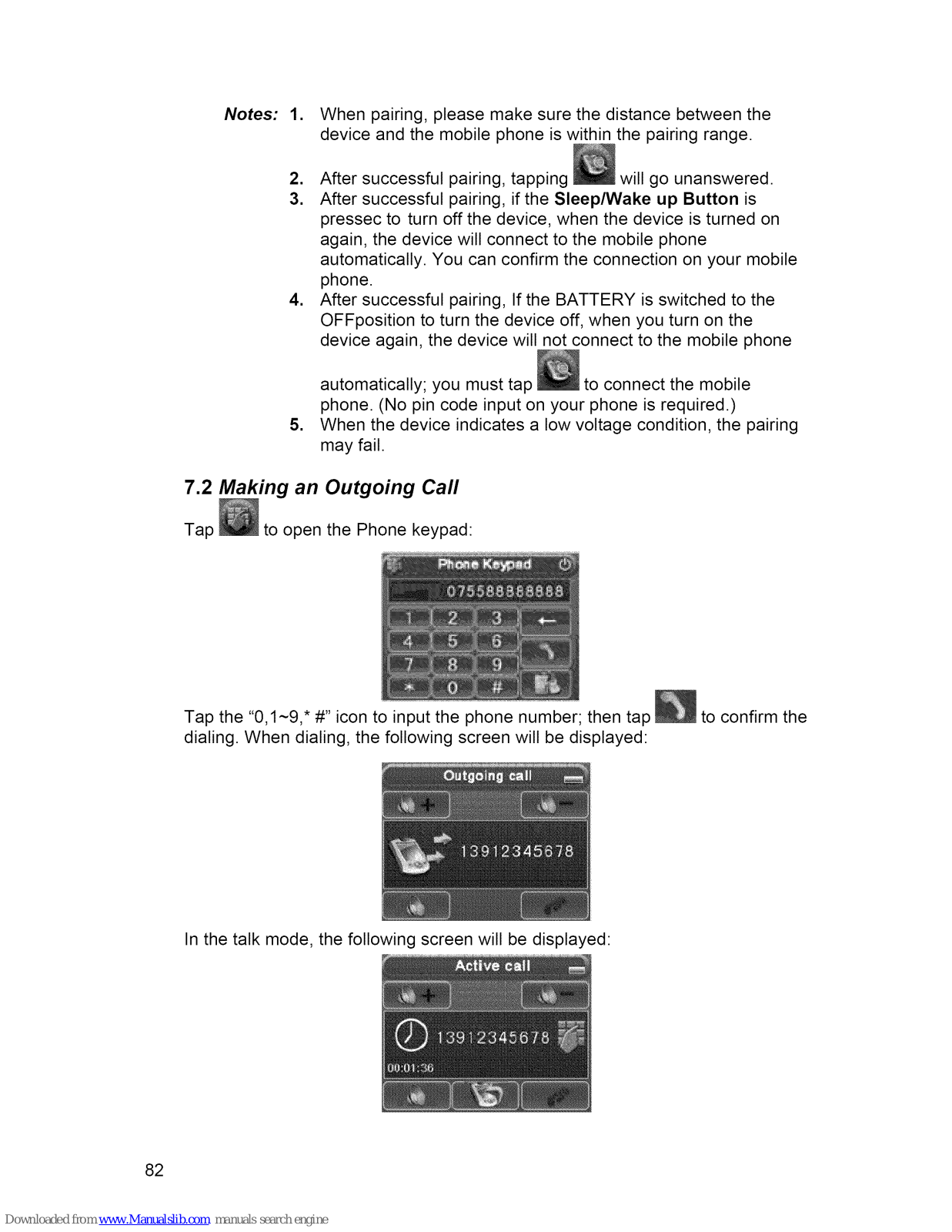

7.2 Making an Outgoing Call ........................................................ 82

7.2.1

7.2.2

7.2.3

7.2.4

7.2.5

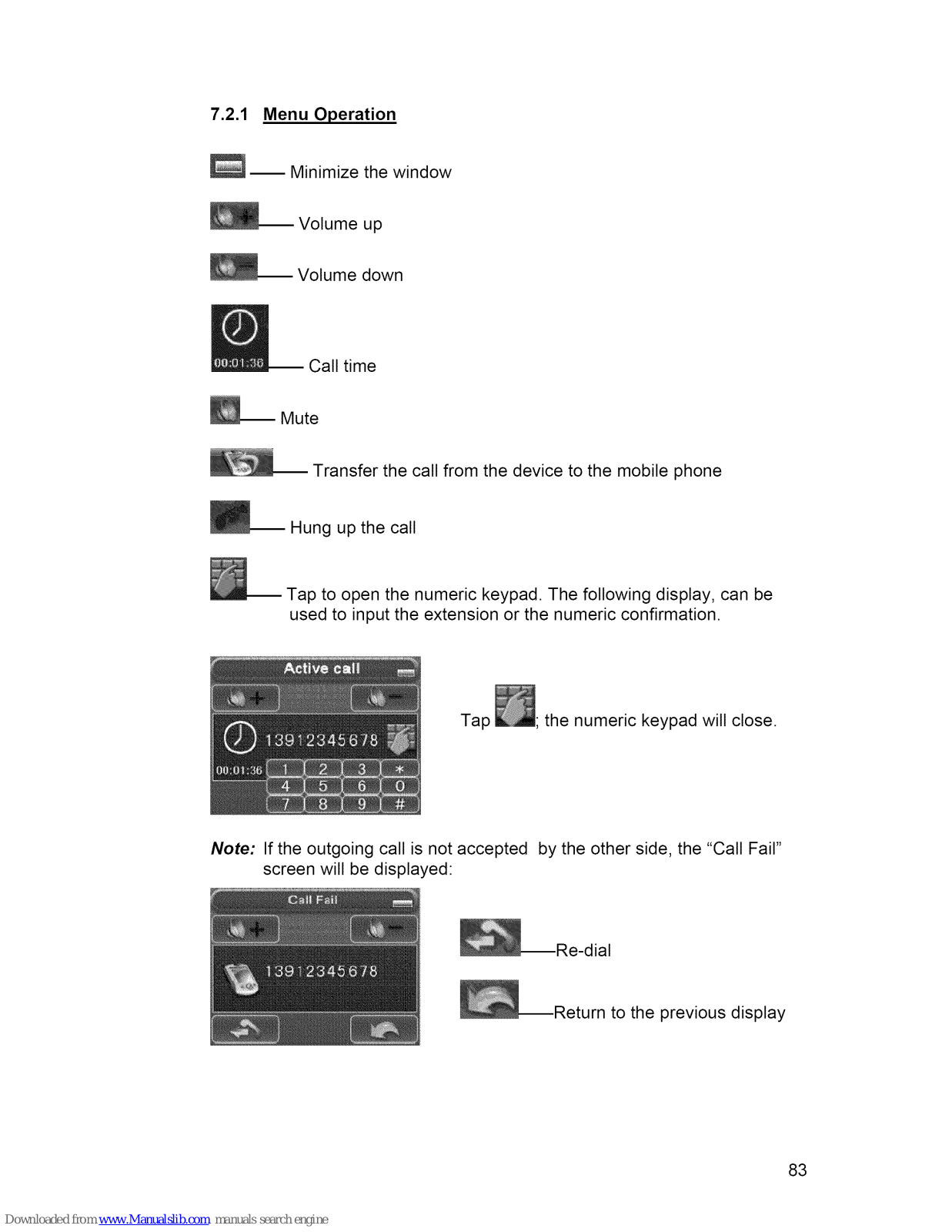

Menu Operation ................................................................................... 83

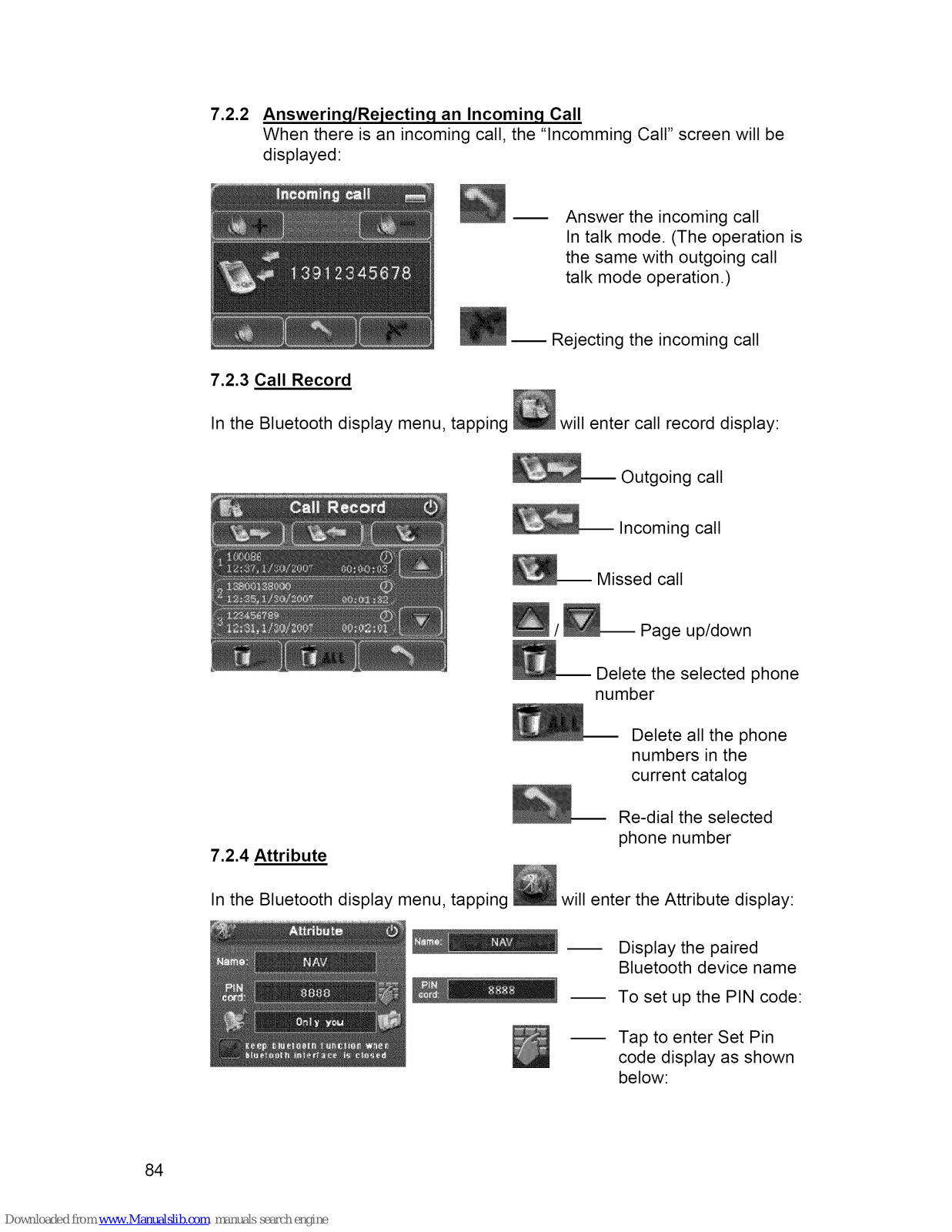

Answering/Rejecting an Incoming Call ................................................ 84

Call Record ......................................................................................... 84

Attribute .............................................................................................. 84

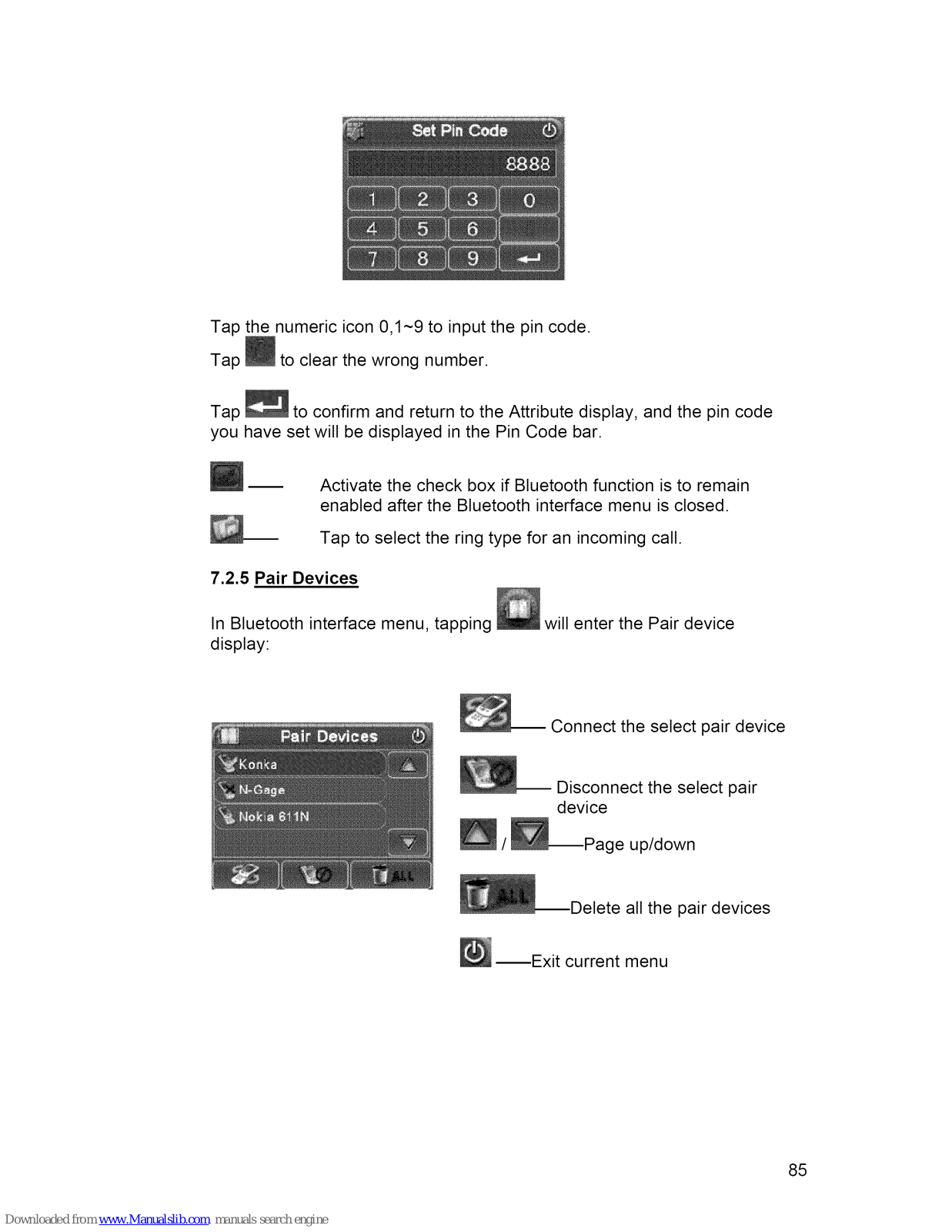

Pair Devices ........................................................................................ 85

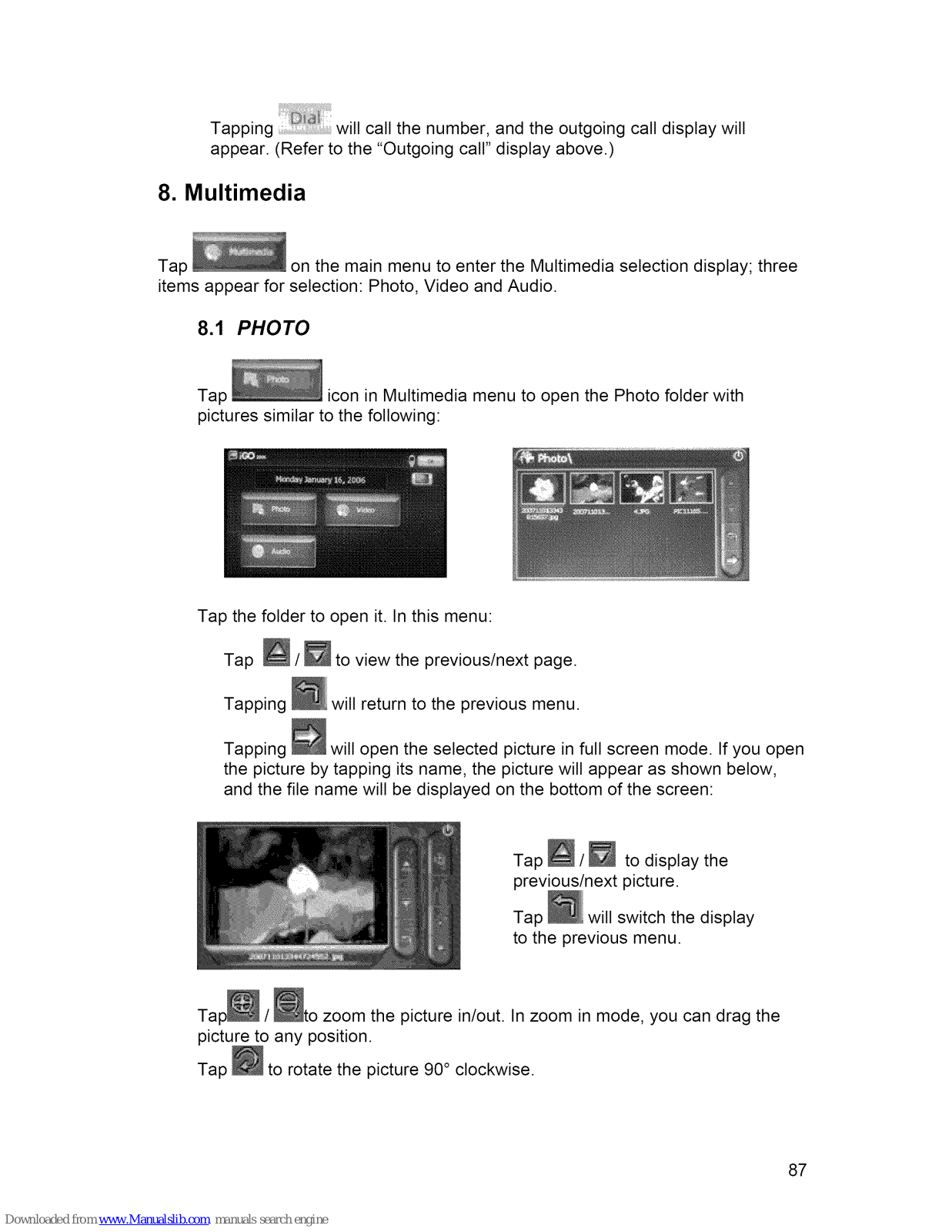

8 Multimedia ..................................................................................... 87

8.1 Photo ......................................................................................... 87

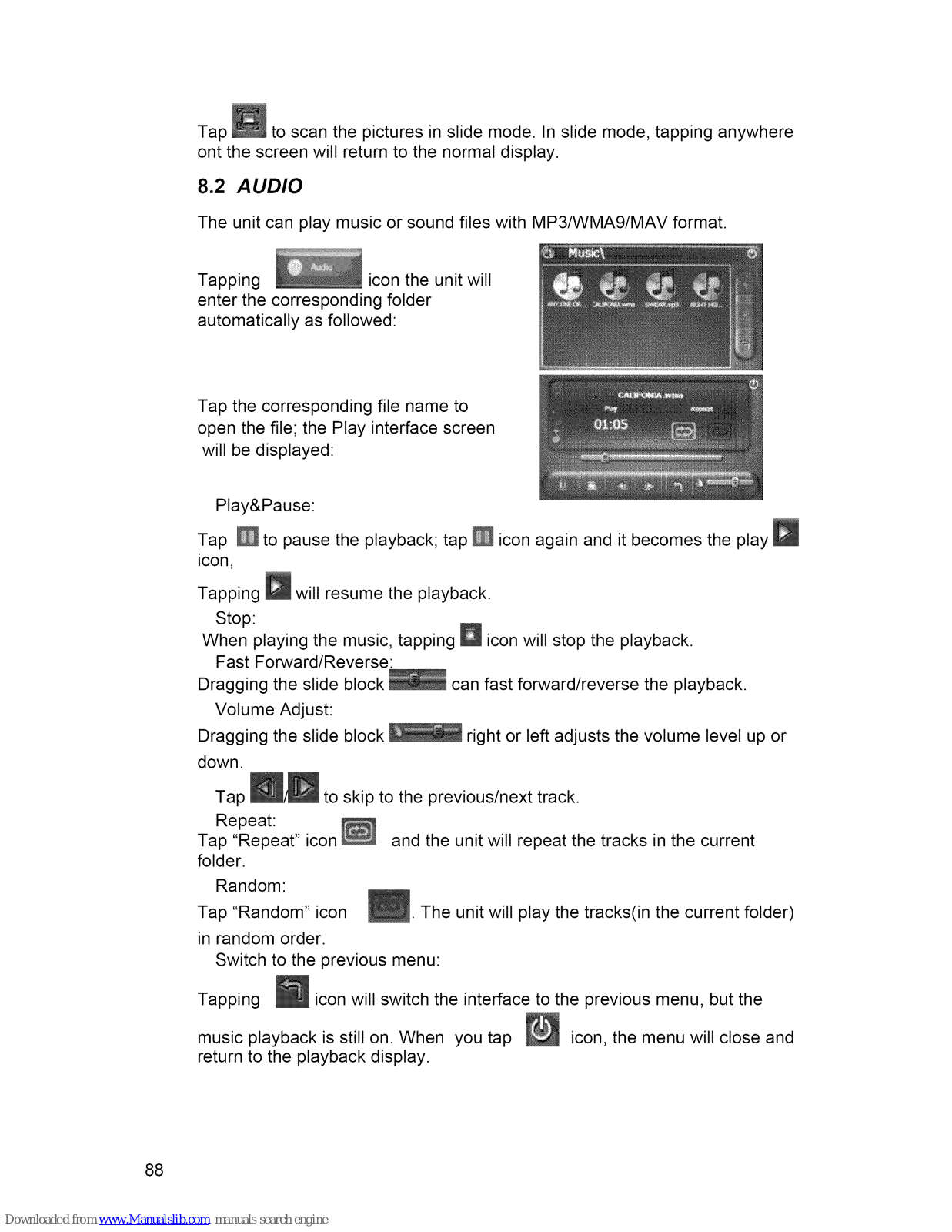

8.2 Audio ......................................................................................... 88

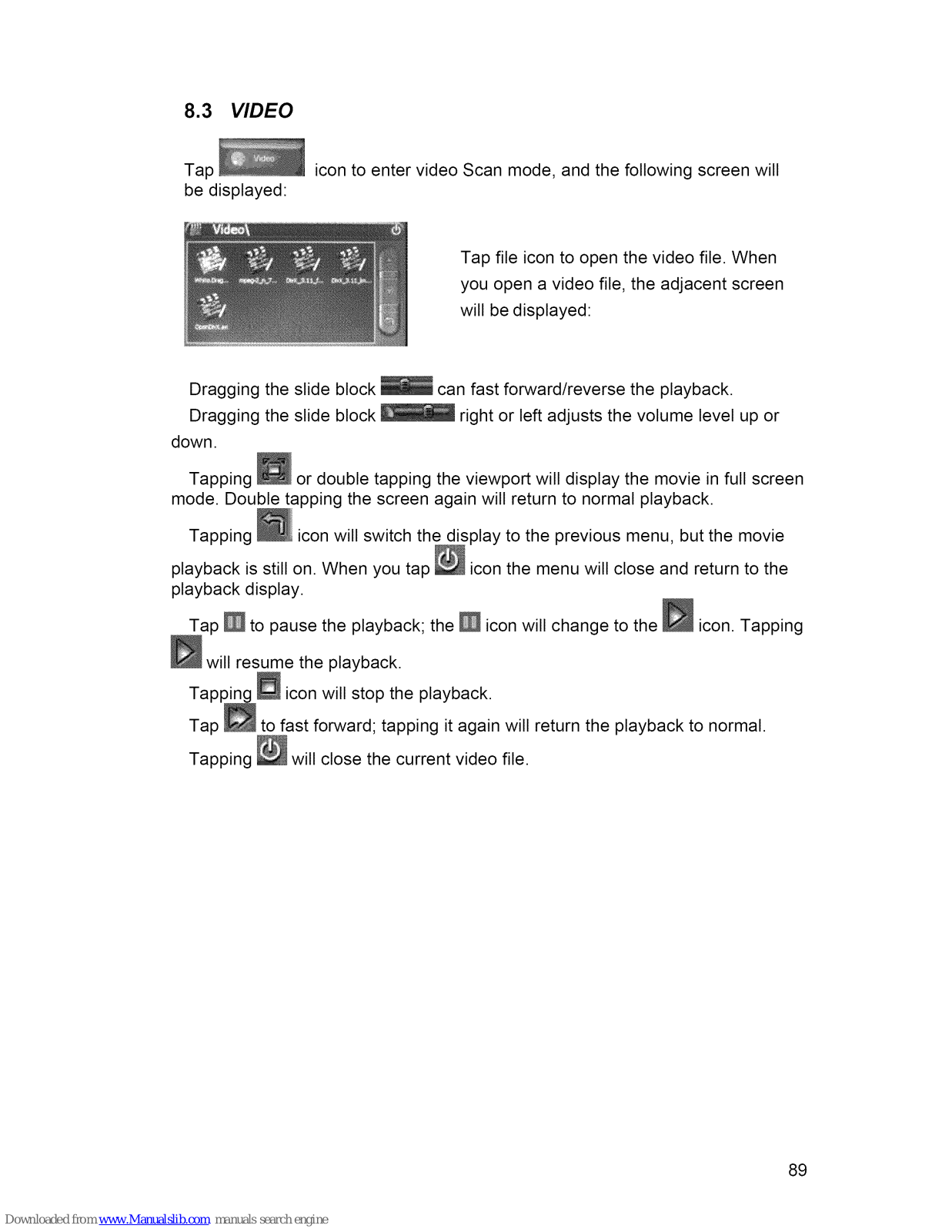

8.3 Video ......................................................................................... 89

VII

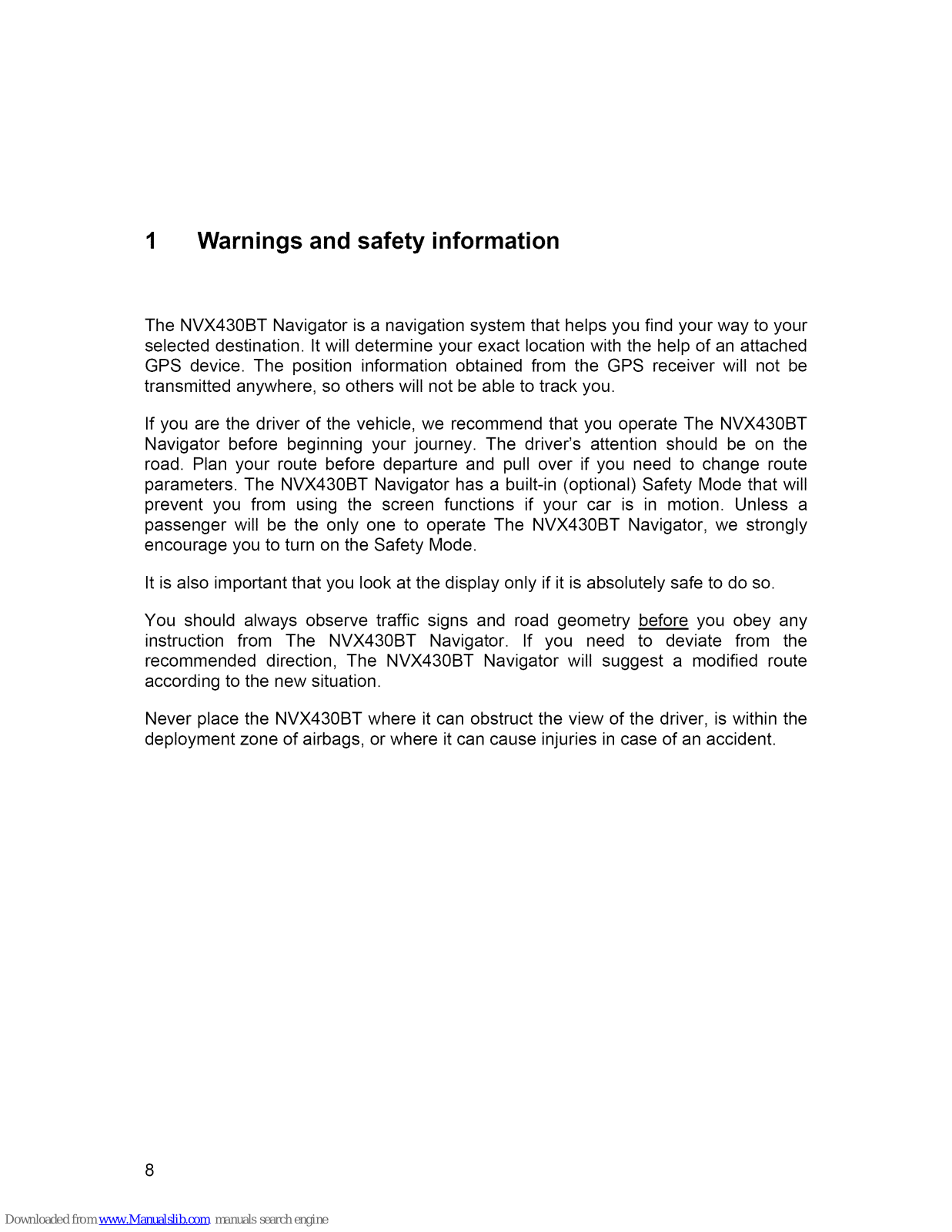

1 Warnings and safety information

The NVX430BT Navigator is a navigation system that helps you find your way to your selected destination. It will determine your exact location with the help of an attached GPS device. The position information obtained from the GPS receiver will not be transmitted anywhere, so others will not be able to track you.

If you are the driver of the vehicle, we recommend that you operate The NVX430BT Navigator before beginning your journey. The driver's attention should be on the road. Plan your route before departure and pull over if you need to change route parameters. The NVX430BT Navigator has a built-in (optional) Safety Mode that will prevent you from using the screen functions if your car is in motion. Unless a passenger will be the only one to operate The NVX430BT Navigator, we strongly encourage you to turn on the Safety Mode.

It is also important that you look at the display only if it is absolutely safe to do so.

You should always observe traffic signs and road geometry before you obey any instruction from The NVX430BT Navigator. If you need to deviate from the recommended direction, The NVX430BT Navigator will suggest a modified route according to the new situation.

Never place the NVX430BT where it can obstruct the view of the driver, is within the deployment zone of airbags, or where it can cause injuries in case of an accident.

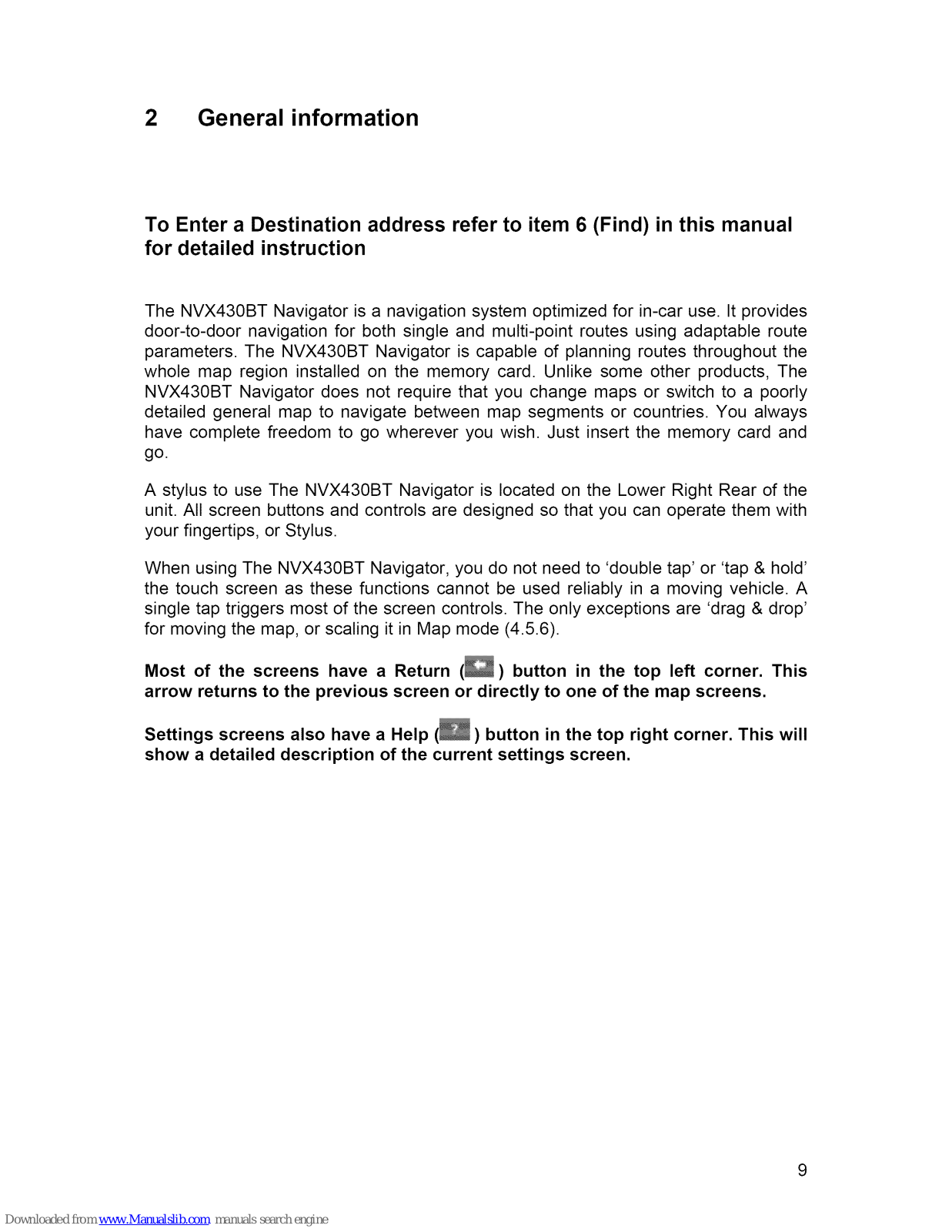

2 General information

To Enter a Destination address refer to item 6 (Find) in this manual

for detailed instruction

The NVX430BT Navigator is a navigation system optimized for in-car use. It provides door-to-door navigation for both single and multi-point routes using adaptable route parameters. The NVX430BT Navigator is capable of planning routes throughout the

whole map region installed on the memory card. Unlike some other products, The

NVX430BT Navigator does not require that you change maps or switch to a poorly detailed general map to navigate between map segments or countries. You always have complete freedom to go wherever you wish. Just insert the memory card and go.

A stylus to use The NVX430BT Navigator is located on the Lower Right Rear of the

unit. All screen buttons and controls are designed so that you can operate them with your fingertips, or Stylus.

When using The NVX430BT Navigator, you do not need to 'double tap' or 'tap & hold' the touch screen as these functions cannot be used reliably in a moving vehicle. A single tap triggers most of the screen controls. The only exceptions are 'drag & drop' for moving the map, or scaling it in Map mode (4.5.6).

Most of the screens have a Return (_) button in the top left corner. This arrow returns to the previous screen or directly to one of the map screens.

Settings screens also have a Help (_) button in the top right corner. This will show a detailed description of the current settings screen.

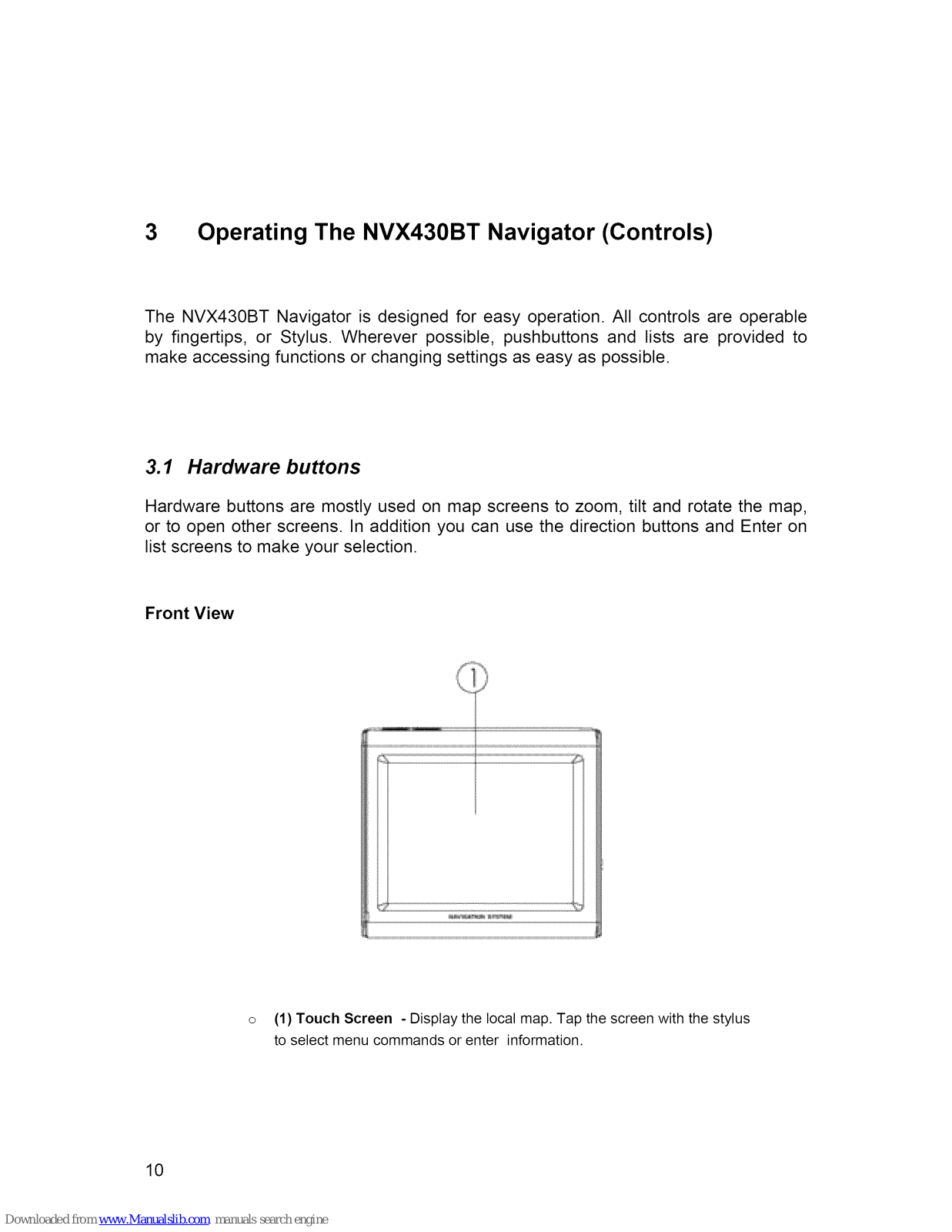

3 Operating The NVX430BT Navigator (Controls)

The NVX430BT Navigator is designed for easy operation. All controls are operable by fingertips, or Stylus. Wherever possible, pushbuttons and lists are provided to make accessing functions or changing settings as easy as possible.

3.1 Hardware buttons

Hardware buttons are mostly used on map screens to zoom, tilt and rotate the map, or to open other screens. In addition you can use the direction buttons and Enter on list screens to make your selection.

Front View

o (1) Touch Screen - Display the local map. Tap the screen with the stylus

to select menu commands or enter information.

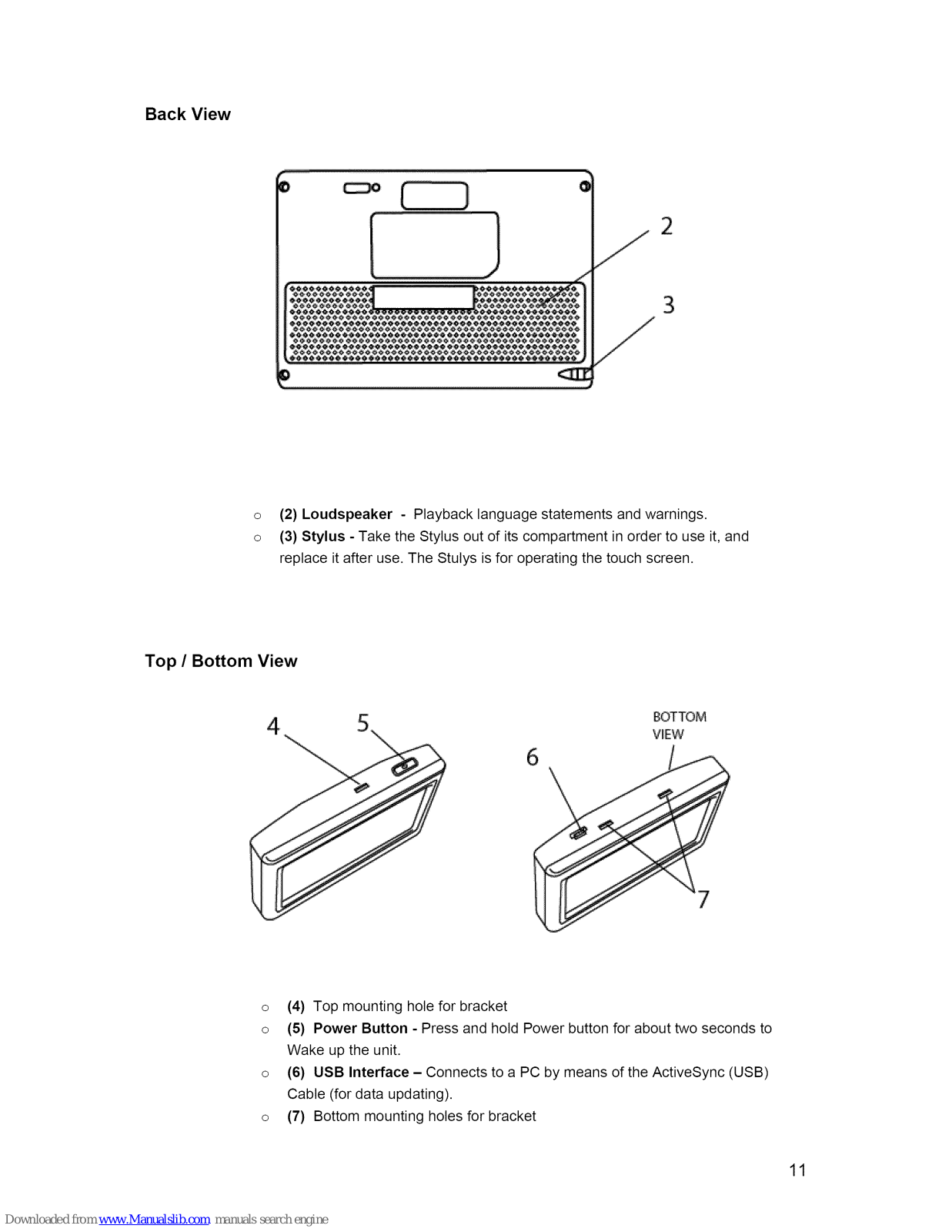

Back View

(2) Loudspeaker - Playback language statements and warnings. (3) Stylus - Take the Stylus out of its compartment in order to use it, and replace it after use. The Stulys is for operating the touch screen.

Top / Bottom View

BOTTOM

VIEW

Wake up the unit.

Cable (for data updating).

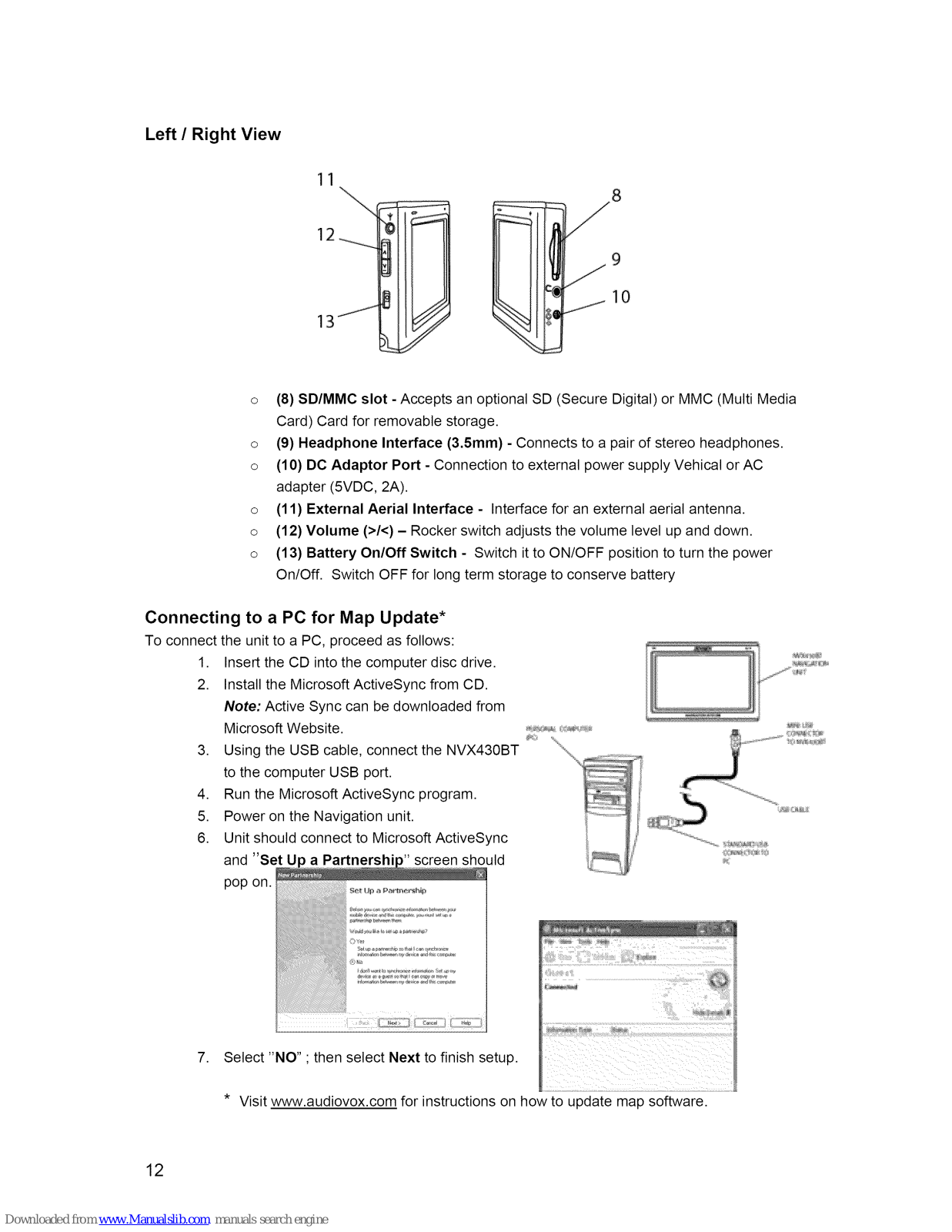

Left / Right View

2 _

o (8) SD/MMC slot - Accepts an optional SD (Secure Digital) or MMC (Multi Media

Card) Card for removable storage. o (9) Headphone Interface (3.5ram) - Connects to a pair of stereo headphones. o (10) DC Adaptor Port - Connection to external power supply Vehical or AC

adapter (5VDC, 2A). o (11) External Aerial Interface - Interface for an external aerial antenna. o (12) Volume (>/<) - Rocker switch adjusts the volume level up and down. o (13) Battery On/Off Switch - Switch it to ON/OFF position to turn the power

On/Off. Switch OFF for long term storage to conserve battery

Connecting to a PC for Map Update*

To connect the unit to a PC, proceed as follows:

1. Insert the CD into the computer disc drive.

2. Install the Microsoft ActiveSync from CD. Note: Active Sync can be downloaded from Microsoft Website.

3. Using the USB cable, connect the NVX430BT to the computer USB port.

4. Run the Microsoft ActiveSync program.

5. Power on the Navigation unit.

6. Unit should connect to Microsoft ActiveSync and S uld

pop on .............................................................................................

Se_ tJ# #_Paa_tir_e4"_h_p

,, _] [ [

tl_r_

.................. /iii?;,_il!

7. Select "NO" • then select Next to finish setup.

i i_iil

* Visit www.audiovox.com for instructions on how to update map software.

Screens and controls

The primary input channel of The NVX430BT Navigator is the touch screen. If you read on, you will realize that most parts of the screen are not only used to display information but also to initiate functions by tapping. Below you will find a list of the most frequently used controls in the program.

3.1.1 Direct selectors

Some of the settings can be chosen from a short list of possible values. If the values can be described graphically, all values are available on the screen, with the currently selected one in a different color.

Tap one of the icons to change the value.

3.1.2 List selectors

When the values in the list need to be named, only the current value is shown (sometimes together with a short description) in a horizontal stripe with arrows at

both ends.

The arrows are buttons. Tap ::_i_ to move left in the list or tap i,,_ to move right. You need not confirm your selection. As soon as you leave the screen, the selected value

becomes effective.

3.1.3 Sliders

When a feature has several different unnamed (numeric) values, The NVX430BT

Navigator will show sliders that look like analogue potentiometers to set the desired

value.

If the value limits are not displayed at the ends of the slider, the leftmost position means the minimum value, while the rightmost position represents the maximum value.

This control can be operated in two ways. Either drag the handle to move the slider to its new position, or tap the slider where you want the handle to appear (the thumb

jumps there immediately). As with the list selectors, there is no need to confirm your

selection.As soon asyou leave the screen, the selected value becomes effective.

3.1.4 Switches

When a function can only have two values (mainly Enabled and Disabled), a switch is used. Unlike with list selectors, the horizontal line contains the name of the function

and not the actual status. There is a lamp on the left to show whether the function is active or not.

When the lamp is dark (_), the function is not selected. When it is lit (_), the function is enabled. The whole strip works as a button. Tap anywhere to toggle

between the enabled and disabled status.

3.1.5 Special switches

Some switches behave differently. Instead of being dark when not selected, the light turns red and the lamp becomes crossed out (_) to emphasize the prohibition of use. Furthermore the switches used for the road types (to be included or avoided when planning a route)in the Route Parameters screen (5.4.4) cannot be changed for some vehicle types. When such a vehicle is selected, not only the lamp but also

the whole line becomes inactive and dark.

Use these buttons the same way as you would other switches. Tap them anywhere to toggle between the enabled and disabled states.

3.1.6 Switches in the Quick menu

The switches of the Quick menu (4.7.2) behave as normal switches but they look different in order to fit in with the other menu buttons.

Tap the button to toggle between the enabled and disabled states.

3.1.7 Virtual keyboards

The NVX430BT Navigator is designed in a way that you only need to enter letters or numbers when it is inevitable. In these cases a full screen keyboard pops up that can easily be operated with your fingertips. You can choose between a separate ABC and numeric keypad, or a set of QWERTY-type keyboards that contain both letters and numbers. The NVX430BT Navigator will remember your last choice and offer it the next time you need to enter data.

The alphabetic keyboards in The NVX430BT Navigator do not contain special characters, because you do not need to enter accents when searching for a destination. Type only the base letters (the letter most similar to the accented one) and The NVX430BT Navigator will search for all their combinations in the database (e.g. for the street 'Nefrue' you only need to type 'Nefrue', and the rest is done by the program).

When you type in POI or track log names, The NVX430BT Navigator will automatically turn all initials into capitals to create names that look pleasant.

3.1.7.1 ABC-type keyboards

These keyboards contain only letters (Latin, Hebraic, Greek or Cyrillic). If you wish to enter numbers, you need to tap the Keys button to switch to the numeric

keyboard.

Use Backspace mistake, tap Space

the text.

to delete the last letter you have entered if you have made a

to enter more words, and hit Done to finish entering

):N

::[:[C.........&i::_:

...... t_ ......

If you are used to computer keyboards, you may consider trying one of the QWERTY-type keypads.

3.1.7.2 QWERTY-type keyboards

QWERTY-type keyboards have both letters and numbers on them. Their layout is the same as of the standard QWERTY and AZERTY (French) keyboards. To switch to your desired QWERTY-type keyboard, press the Keys button repeatedly until the appropriate keyboard appears.

Due to the high number of buttons to be displayed in one line, in portrait and square modes these keyboards have narrow buttons. Still, with some practice they can be easily fingertip operated.

The special keys described in the previous section are also available here.

3.1.7.3 The numeric keyboard

The numeric keyboard only contains numbers, on huge buttons. The special keys you find on the other keyboards (except Space) are available here as well.

Although QWERTY-type keyboards also contain number keys, when entering a house number,the programoffers the more convenient numeric keypad.

4 Discovering the program through the screens

The best way to discover The NVX430BT Navigator is to explore each screen in detail, and to find out how to move from one to another. Read this chapter for a guided tour.

The NVX430BT Navigator starts by displaying the Main menu. This is the root of the screen hierarchy, but you only need to return here in a few cases. Many of the screens are also accessible from each other to reduce the number of actions needed

to initiate a function or change a setting.

4.1 Main menu

The Main menu is the first screen of The NVX430BT Navigator. Most parts of the program are directly accessible from here by using the buttons described below.

No. Content

1 Audiovox logo 2 Battery Status indicator 3 Button to open Cockpit screen 4 Button to open Find menu 5 Button to open Settings 6 Button that displays GPS Status and

Opens GPS Data screen

8 Current position 9 Current date and time

10 Button to open Map screen

11 Button to open About screen

* Depends on program settings ** Same as removing the SD card

4.2 About screen

Tap About on the Main menu screen to open this screen. The About screen is not used in no

It is here to inform you about the map licenses you have, the creators of The NVX430BT Navigator and the legal aspects of using the program.

4.3 GPS Data screen

Tap the small satellite dish icon in the Main menu to open this screen. The GPS Data screen is a collection of information received from the GPS device and it also serves

as the entry point to the Time Sync screen.

4.3.1 GPS data displayed

The virtual sky on the left represents the currently visible part of the sky above you, with your position as the centre. The satellites are shown at their current positions. The GPS receives data from the green and grey satellites but not from the red ones. Signals from the grey satellites are only received, while green ones are used by the GPS to calculate your current location. On the right you can see the satellite signal strength bars. Grey bars are for the grey and black bars are for the green satellites.

To identify satellites use their numbers also shown in the virtual sky. The more satellites your GPS tracks (the green ones), the better your calculated position will

be. Additional pieces of information on this screen are: current position in

latitude/longitude format, elevation, speed, date, time and calculated accuracy.

Note: Accuracy can be affected by several factors the GPS cannot take into account.

Use this accuracy information only as estimation.

There are two icons on the left to show the status of the GPS connection and the quality of reception.

4.3.2 GPS connection indicator

In the middle to the left there is a lamp similar to the ones used for switches. This one

has more colors and represents more values:

- Dark lamp means there is no communication on the selected port,

Red lamp means connection to any GPS receiver has not been

established yet, so you need to set it up by using the Detect or Config.

Buttons,

• - A slowly blinking yellow lamp means that there is no connection to the GPS receiver, but The NVX430BT Navigator is trying to connect,

• - A fast blinking green lamp means that there is communication with the GPS and data is being received.

4.3.3 GPS data quality indicator

In the top left corner there is a satellite dish to show the quality of the GPS position. Different colors represent different signal quality:

• - Black with a red cross means there is no connection with the GPS device,

- Red means the GPS is connected but no GPS position is available,

- Yellow means 2D reception. A GPS position has been acquired, The

NVX225 Navigator is ready for navigation, but the GPS is using enough satellites for calculating the horizontal position only. Elevation data is not provided, and the position errormay besignificant.

- Green means 3D reception. The GPS receiver has enough satellites to calculate altitude. Positionis generally correct (yet it canstill be inaccurate due to different environmental factors). The NVX430BT Navigator is ready for navigation.

4.3.4 Time synchronization

In the top right corner of the screen you have another button that leads to a new screen where you can synchronize the clock of your PND to the very accurate time provided by the connected GPS.

Turn on the Auto Correction switch to let The NVX430BT Navigator frequently check and correct the PND time with the GPS time.

Below that button you will see the current values of the GPS and the PND clocks. You can check here whether any correction is needed. Tap the button to manually synchronize the time.

Below the PND time you have :_,_,_,,,,,,,_and controls to manually correct the time with or without a valid GPS time. It also gives you the chance to correct the time after synchronization if your PND does not support time zones or daylight saving time.

You can also use these buttons if you prefer to set the PND time from this screen instead of using the time setup features of the operating system.

4.4 The map

The most important and most frequently used screens of The NVX430BT Navigator are the two screens with the map (Map screen and Cockpit screen). They are similar in look and in possible controls but are optimized for different uses. The map they

display is common. The elements of the map are described here. For the controls and special functions of the two map screens see 4.5.

The current version of The NVX430BT Navigator is primarily intended for land navigation. That is why maps in The NVX430BT Navigator look similar to paper roadmaps (when using daytime colors and2D map mode). However,The NVX430BT

Navigator provides much more than regular paper maps can. The look and the contents can bechanged.

4.4.1 2D and 3D map views

Besides the classical top down view of the map (called 2D mode), you have the possibility to tilt the map to have a perspective view (3D mode) that gives a view similar to that seen through the windscreen with the possibility to see far ahead.

It is easy to change between 2D and 3D modes. You have two options. You can use hardware buttons (Error! Reference source not found.) or the semi-transparent screen icons (4.5.3) to tilt the map seamlessly between 2D and all 3D angles, or you can use the switch in the Quick menu (4.7.2.1) to quickly switch between the two

modes.

_II_II_;_I_j_I_ ¸_1II_I_;__:"

Note: You may find that 2D mode is more useful in North-up Map mode when looking for a certain part of the map or an object to select as destination. On the other hand, 3D mode in Track-up Cockpit mode with Smart Zoom makes navigation very comfortable. The description of these modes will come later in this manual.

Note: Using the Advanced settings, you can force Map mode to always start in 2D North-up view and/or Cockpit mode to always start in 3D Track-up view (5.6.1). You can still rotate and tilt the maps in either mode, but the next time you enter this screen, the preset look will reappear.

4.4.2 Zoom levels

The NVX430BT Navigator uses high quality vector maps that let you see the map at various zoom levels, always with optimized content (the density of the map details can be independently set for Map and Cockpit screens in Map settings (5.2.2)). Street names and other text objects are always displayed with the same font size, never upside down, and you only see as many streets and objects as needed to find your way around the map. Zoom in and out to see how the map changes in either the

2D or 3D view.

Changing the scale of the map is very easy. You can drag and stretch the scale (4.5.6) at the bottom of the Map screen, use hardware buttons (Error! Reference source not found.) or semi-transparent screen icons (4.5.2) on both Map and Cockpit screens.

Note: If you need to zoom out briefly to locate your position on the map, use the

Overview mode instead of zooming out and back in. The Overview mode is a 2D North-up view that can be started by tapping the compass button on the right (see

4.5.8).

Note: The NVX430BT Navigator has a special Smart Zoom function for navigation that automatically rotates, scales and tilts the map in 3D map mode to always give you the optimal view in your current situation. When approaching a turn, it will zoom in and raise the view angle to let you easily recognize your maneuver at the next

junction. If the next turn is at a distance, it will zoom out and lower the view angle to

flat in order to let you see the road in front of you.

4.4.3 Daylight and night color schemes

The different color schemes let you adjust The NVX430BT Navigator to the brightness of the environment. Use the daylight and night color schemes accordingly.

Daylight colors are similar to paper roadmaps, while the night color schemes use dark tints for large objects to keep the average brightness of the screen low, with carefully selected colors to still keep you informed about all the necessary

information on the screen.

You can change between day and night views manually in the Quick Menu (4.7.2.3) or let The NVX430BT Navigator do it automatically (5.1.3) for you.

_ii_H_;_; ¸_ _i_H_ ¸,,, _;_,,,,i_ _H__:::::::::::::::::::::::::::::

Note: The automatic day/night mode is based upon the current date and GPS position by which The NVX430BT Navigator calculates the exact sunrise and sunset times on the particular day at the particular location. Using that information The NVX430BT Navigator can automatically switch between the color schemes a few minutes before sunrise, when the sky has already turned bright, and a few minutes after sunset before it gets dark.

Tip: There are several daytime and night color schemes included with The NVX430BT Navigator. To select the one that suits your needs the best, make your selection in Settings (5.2.1).

Note: The colors mentioned and screenshots included in this manual refer to the default daytime and night color schemes. They may not look the same in the

schemes you have chosen.

Tip: If you use The NVX430BT Navigator after sunrise or before sunset, look for the sun in the sky in the map background using a flat 3D view. It is displayed at its actual position to give you another way to orientate, and also to provide some eye candy.

4.4.4 Streets and roads

The similarity of The NVX430BT Navigator to paper roadmaps is also convenient when it comes to streets, the most important elements of the map concerning navigation. The NVX430BT Navigator uses similar color codes to those you are accustomed to, and the width of the streets also refers to their importance, so it will not be difficult to tell a highway from a small street.

Streets and roads have names or numbers for identification. Of course, this information can be displayed on the map. The NVX430BT Navigator uses two different ways to show street labels. The conventional way is the same as a roadmap

- it displays the name of the street aligned with the street. The alternative is a kind of virtual signpost stuck into the street itself.

You need not choose between the two modes. The NVX430BT Navigator will use the one best for the current tilt and zoom level. Zoom in to have only a few streets on the map, and start tilting up and down to see how The NVX430BT Navigator switches

between the two modes in an instant.

Tip: If you do not want to be bothered by street names during navigation, turn them off on the Map Settings screen (5.2.4).

Tip: Major roads usually have alternative names (numbering) besides the primary name. You can choose whether to display these alternative names or not. You can set this in Map settings (5.2. 3).

4.4.5 Other obiects

To help orientate you, the map also contains objects that have no other navigating function than to help you recognize your location on the map. These are surface-

waters, large buildings, forests, etc.

Tip: These objects are normally displayed using textured polygons that look natural to the eye. Should you have a slow PND, you may wish to switch the textured display off (5.2.5) to free some of the resources of your PND by replacing textures with plain

colored surfaces.

4.4.6 Current position and Lock-on-Road

When your GPS position is available, a blue arrow (yellow when using night colors) shows your location on the map. The direction of the arrow represents your heading. The arrow is sized and vertically rotated with the zoom and tilt levels to always look

realistic.

The NVX430BT Navigator has a built-in Lock-on-Road feature that always puts the position arrow on the road, on the axis of the street in case of one-way streets, or on the side of the road where you drive (e.g. on the right in Germany and on the left in the U.K.) on two-way roads.

The location received from the GPS receiver is shown as a blue dot on the map. This can help you locate your position if the GPS accuracy is poor, and the Lock-on-Road system puts you on the wrong street. It is also the location saved in the track log (4.7.2.6).

Note: the Lock-on-Road feature can be turned off in advanced settings (5.6.4.4) for pedestrian use. When switched off, the arrow is displayed where the blue dot would

be with active Lock-on-Road.

When the GPS position is lost, the arrow turns grey and jumps to the last known position, disabling Lock-on-Road (the last position before losing the reception is usually inaccurate, and there is a chance that Lock-on-Road may choose the wrong street).

4.4.7 Selected map point, also known as the Cursor

If you tap the map somewhere or select a specific item in Find, it will become the selected point on the map, marked with a small red dot and permanently radiating red circles to make it conspicuous at all zoom levels, even when it is in the background of a 3D map view. You can use this point as starting point, via point, or destination of your route, you can search for a POI near to it, mark it with a drawing- pin, or save it as a POI. The cursor, when visible, is also the reference point for map scaling.

Note: When your GPS position is available, and Lock-to-Position is active, the cursor is always the current GPS position. When you select another point by tapping the map, or using Find, the new Cursor is shown on the display, Lock-to-Position becomes disabled, and the Lock button appears on the screen. Now the Cursor is the newly selected point. As soon as you tap the Lock button, or after the given

timeout The NVX430BT Navigator restores Lock-to-Position (5.6.3.3), and the Cursor

jumps back to the current GPS position.

4.4.8 Marked map points (Pin)

The Cursor can be marked with a pin. Pins are shown as being stuck in the map. A pin is visible at all zoom levels and remains in its position until you unpin it, or delete all pins in advanced settings (5.6.5.3).

The NVX430BT Navigator automatically selects the color of the pin. Different colors help you identify a pin in the History list (6.2.2) later. There they are shown together

with their address and GPS coordinates.

Tip: A quick way to tell the coordinates of a location you found on the map is to pin it, and then look for the coordinates in the History list (6.2.2). This way you also save the coordinates with the pin for later reference. If you do not need the coordinates later, just select the point and start Find Coordinates (6.2.3).

4.4.9 Visible POIs (Points of Interest)

The NVX430BT Navigator comes with thousands of built-in POIs, and you can create your own POI database as well. Having all of them displayed on the map would make the map too crowded. To avoid this, The NVX430BT Navigator lets you select which

POIs to show and which ones to hide (4.7.2.4) using their categories and subcategories.

Icons on the map represent pOIs. For a built-in POI it is the icon of the subcategory of the actual POI. For points you create, it is the icon you had chosen when you created the POI (it can be changed later).

These icons are large enough to recognize the symbol, and semi-transparent so as not to cover the streets and junctions behind them.

When the map is zoomed out, the icons are not shown. As you zoom in, small dots appear at the locations of visible POIs. Zooming in further makes the full icons appear.

If two points are too close to each other so that icons overlap, a multi-POI icon is shown instead of individual ones. Zoom in more to see them separately. (Should the two POIs have the same icon, this icon will be displayed instead of the multi-POI icon.)

Tip: Tap the map on or near a POI item to see the list of the names of the nearest POIs in a popup list, if it is enabled (4.7.2.5). To see the details of a particular POI in the list, tap the blue T icon on the right. If you have too may POIs nearby, this list may not be complete. In the Cursor menu (4.5.13) there is a button called POI that leads you to the screen of all nearby POI items. There you can open them one by one to see their details, and select any of them as a route point.

4.4.10 Elements of the Active Route

The NVX430BT Navigator uses a multi-destination routing system in which you have a start point (your current location if GPS position is available), a destination, the line of the active leg of the route, and optionally via points and inactive legs. They are all shown on the map.

4.4.10.1 The start point, via points and the destination

Flags represent these points.

4.4.10.2 Animated turn guidance

Animated arrows represent all route events other than the above-mentioned special points. These arrows show the direction in which you need to continue your journey.

4.4.10.3 The active leg of the route

The active leg is the section of the route you are currently driving. If you have not added any via points, the whole route will be the active leg. When via points are present, the active leg is the part leading from your location to the next via point.

The active section is displayed in light green when the sun is up, and in red during the night. In both cases it is the most conspicuous part of the map even when in the background of a 3D map view.

The line of the route is displayed on the driving side of the road for two-way and on the axis in case of one-way streets. When the map is zoomed in and the line is wide enough, small arrows show the direction of the route. This can be useful if you preview the route before starting the journey or when entering a complex junction.

4.4.10.4 Inactive legs of the route

Future sections of a route are inactive. They are also shown on the map with the same color but a darker tint than the active one. An inactive route section becomes

active as soon as you reach its starting via point.

4.4.10.5 Roads in the route excluded by your preferences

Although you can choose whether to include or avoid some road types in Route parameter settings (5.4.4), sometimes they are impossible to avoid near the starting point, via points or the destination. If so, The NVX430BT Navigator will display those segments of the route with an alternate color. They are shown in red with daylight colors, and yellow with the night color scheme, both in active and inactive legs of the route.

4.5 Screens with map

Having explained the contents of the map, the description of the other parts of the map screens follows. There is two map screens: the Map screen and the Cockpit screen. The way they show the map is the same but their look and controls are optimized for different purposes.

The Map screen is to be used mainly without a GPS, to browse the map, create user

POI items, or to plan your route based on map points. The Map screen is designed to give you the maximum map area. This screen is usually used in 2D North-up mode (you can set The NVX430BT Navigator so it always opens the Map screen like that - see 5.6.1.1).

The Cockpit screen is for driving purposes. Besides showing the map, it contains some additional travel information if you are just cruising (speed, current street your are driving in, speed limit for the current street), and some more route data if you are navigating (e.g. next street in your route, distance to travel, type of the next route event). This screen is typically used in 3D Track-up mode (you can make The

NVX430BT Navigator always open the Cockpit screen like that - see 5.6.1.2).

There are several controls that function in a similar fashion on the two screens. They are described on the following pages.

Map screen contents:

Cockpit screen contents:
