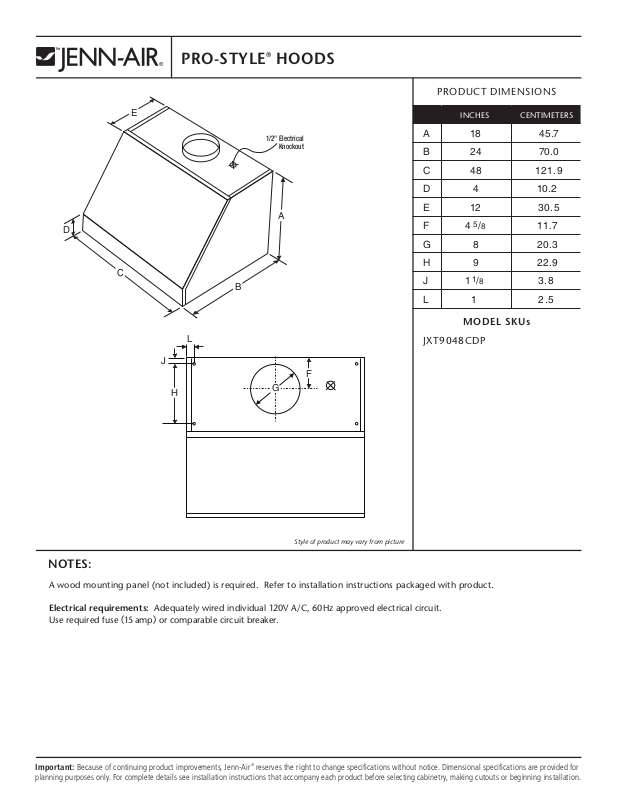

Jenn-Air JXT9048CDP Dimension Guide

PRO-STYLE® HOODS

PRODUCT DIMENSIONS

E

1/2" Electrical

Knockout

A 18 45 .7

B 24 70.0

INCHES CENTIMETERS

C 48 12 1.9

D 4 10.2

A

D

E 12 30. 5

F 45/8 11 .7

G 8 20. 3

H 9 22. 9

C

B

J 11/8 3. 8

L 1 2. 5

MODEL SKUs

L

J

F

H

G

JXT9048CDP

Style of product may vary from picture

NOTES:

A wood mounting panel (not included) is required. Refer to installation instructions packaged with product.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz approved electrical circuit.
Use required fuse (15 amp) or comparable circuit breaker.

Important: Because of continuing product improvements, Jenn-Air® reserves the right to change specifications without notice. Dimensional specifications are provided for
planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.
