D IMENS I O N S
JENNAIR® GAS RANGES
P ROD U C T
Overall W idth (A)
Rear Vent Height (B)
Bull nose Height (C)
Control Panel Height ( D )
Door Height (E)
Door Bo ttom to Ha ndle Top: RISE™ (F)
Door Bo ttom to Ha ndle Top: NOIR™ (F)
30" GAS RANGE
29-7/8" (75.9 cm) 35-7/8" (91.1 cm)
3" (7.6 cm) 3" (7.6 cm)
2-1/8" (5.4 cm) 2-1/8" (5.4 cm)
7-1/2" (19.1 cm) 7-1/2" (19.1 cm)
20-11/16" (52.6 cm) 20-11/16" (52.6 cm)
20" (50.8 cm) 20" (50.8 cm)
20-5/8" (52.4 cm) 20-5/8" (52.4 cm)
36" GAS RANGE
Toe-Kick Height (G)
6-11/16" (17 cm) 6-11/16" (17 cm)
A
B
C
D
E
F
G
FRONT VIEW
IM PORTANT: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this information.
Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.
All JennAir
1
®
appliances are appropriately UL, CUL or CSA approved.
W11358023B
D I M ENSI O N S
JENNAIR® GAS RANGES
P RODU C T
Depth with Control Panel Overhang (H)
Depth with Handle: RISE™ (I)
Depth with Handle: NOIR™ (I)
Depth with Door Fully Open (J)
30" GAS RANGE
27-11/16" (70.3 cm) 27-11/16" (70.3 cm)
29-13/16" (75.7 cm) 29-13/16" (75.7 cm)
29-5/16" (74.5 cm) 29-5/16" (74.5 cm)
46-1/2" (118.1 cm) 46-1/2" (118.1 cm)
36" GAS RANGE
H
I
TOP VIEW
J
2

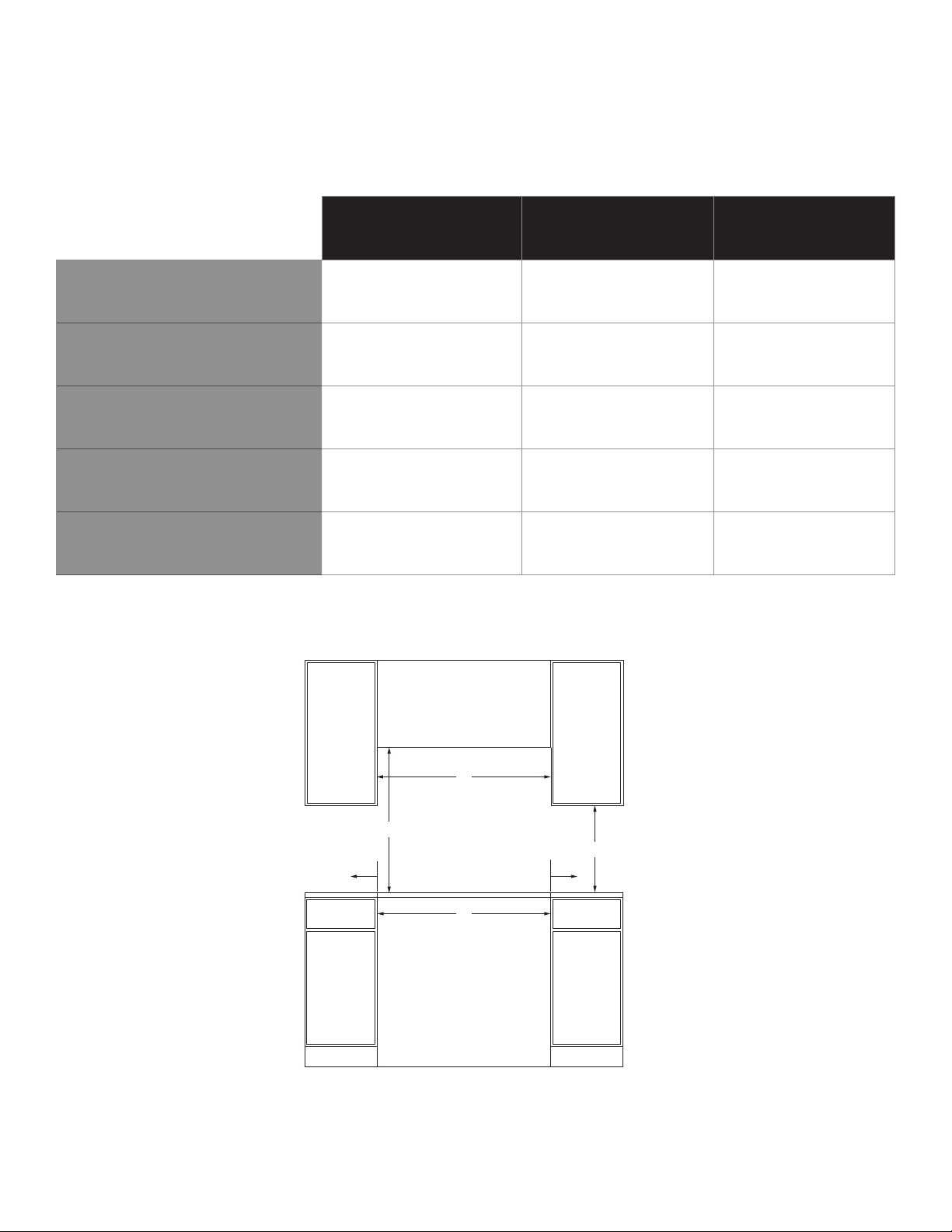

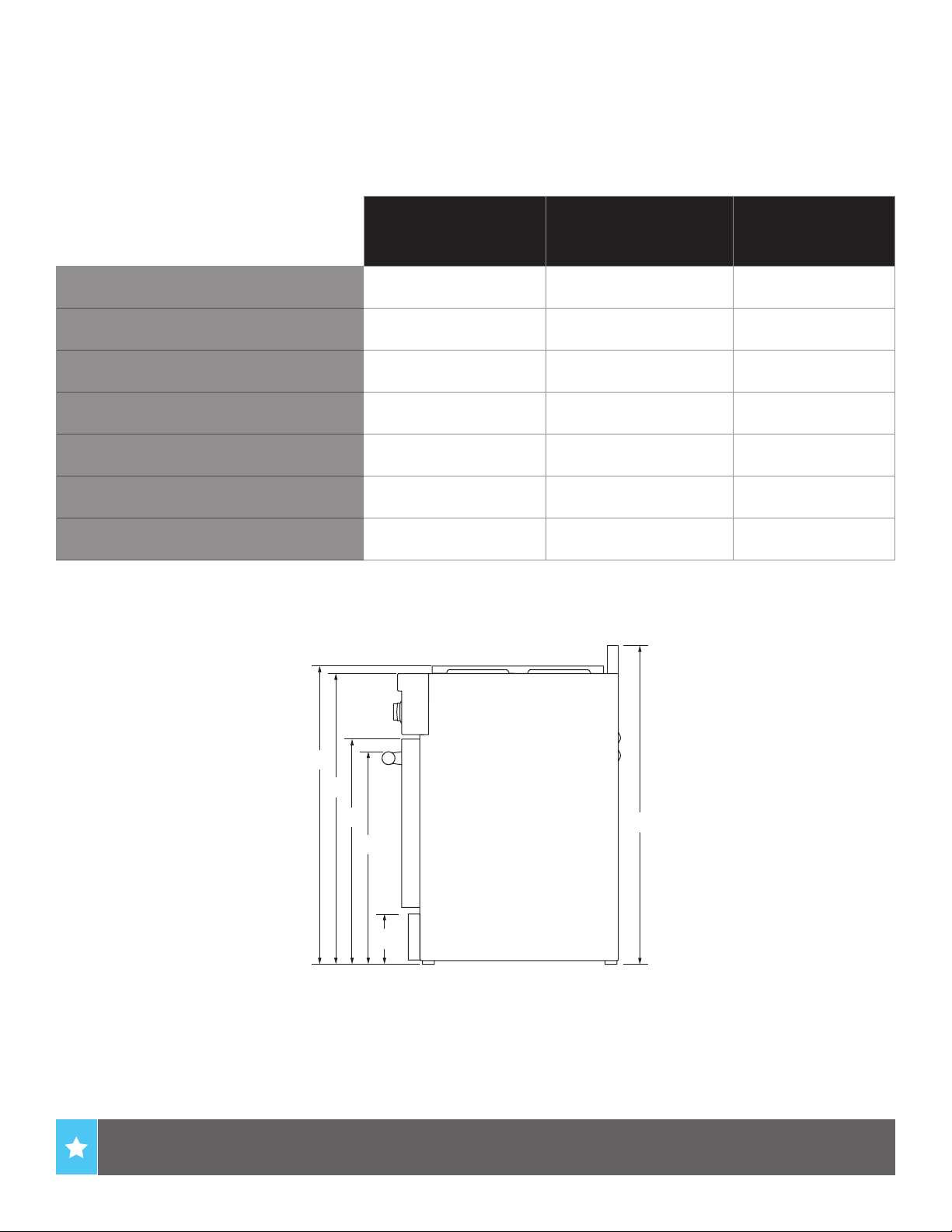

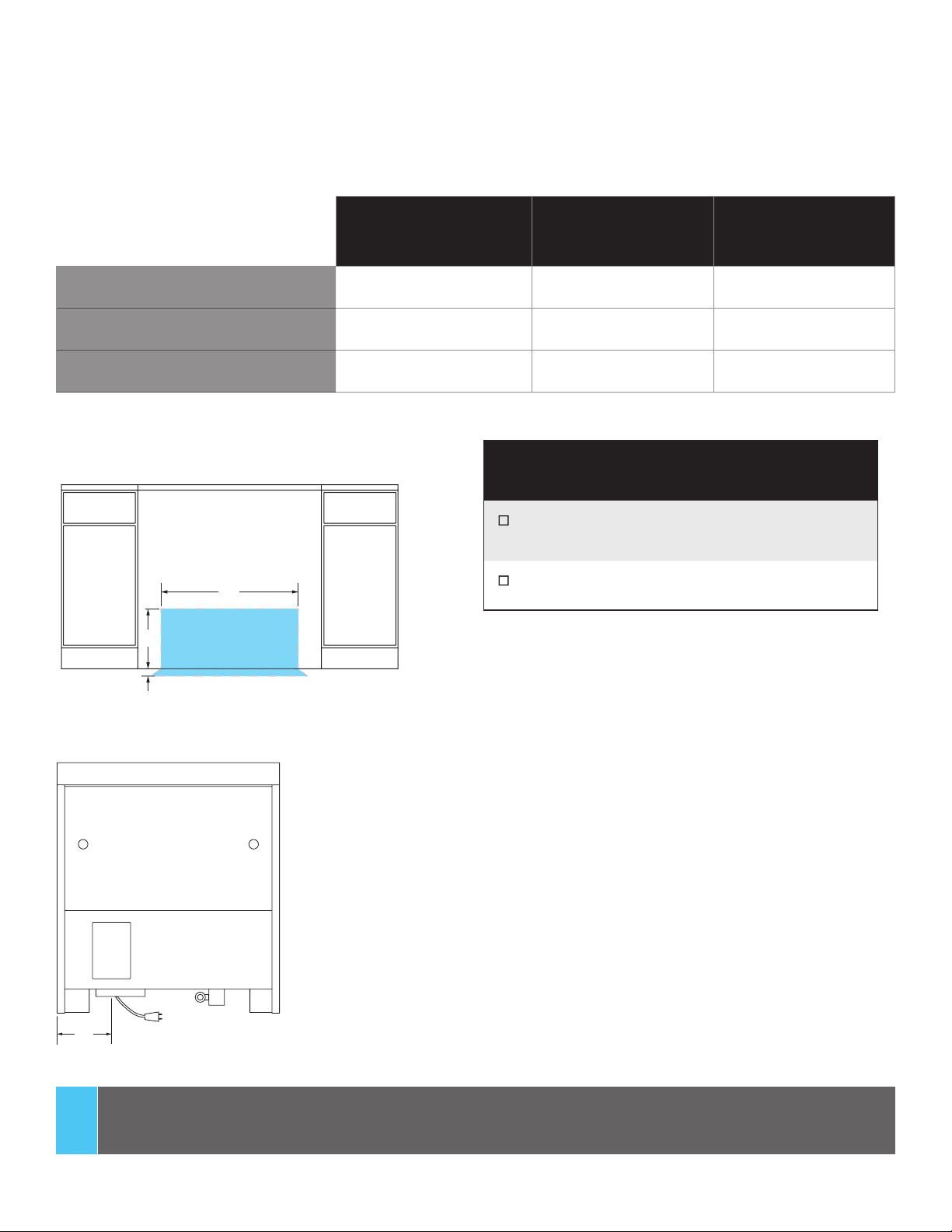

D IMENSI O N S
JENNAIR® GAS RANGES
P RODU C T
48" GAS RANGE
Overall Width (A)
Rear Vent Height (B)
Bullnose Height (C)
Control Panel Height (D)
Door Heights (E)
Door Bottom to Handle Tops: RISE™ (F)
Door Bottom to Handle Tops: NOIR™ (F)
Secondary Oven Door Width (G)
Main Oven Door Width (H)
Toe-Kick Height (I)
47-7/8" (121.6 cm)
3" (7.6 cm)
2-1/8" (5.4 cm)
7-1/2" (19.1 cm)
20-11/16" (52.5 cm)
20" (50.8 cm)
20-5/8" (52.4 cm)
17-3/4" (45.1 cm)
29-5/8" (75.2 cm)
6-11/16" (17 cm)
A
3
B
C
D
E
F
G H
I
FRONT VIEW
IM PORTAN T: Dimensional specifications are provided for planning purposes only. Do not make any cutouts based on this
information. Refer to the Installation Guide before selecting cabinetry, verifying electrical/gas connections, making cutouts
or beginning installation. All JennAir
®
appliances are appropriately UL, CUL or CSA approved.
D IMENSI O N S
JENNAIR® GAS RANGES
P RODU C T
48" GAS RANGE
Depth with Control Panel Overhang (J)
Depth with Handles: RISE™ (K)
Depth with Handles: NOIR™ (K)
Depth with Doors Fully Open (L)
27-11/16" (70.3 cm)
29-13/16" (75.7 cm)
29-5/16" (74.5 cm)
46-1/2" (118.1 cm)
J
K
L
4
TOP VIEW
D IMENSI O N S
JENNAIR® GAS RANGES
P RODU C T
Grates Top Height (A)
Cooking Surface Top Height (B)
Door Top Height (C)
Handle Top Height: RISE™ (D)
Handle Top Height: NOIR™ (D)
Toe-Kick Top Height (E)
Rear Vent Height (F)
30" GAS RANGE
37-5/16" (94.8 cm) 37-5/16" (94.8 cm) 37-5/16" (94.8 cm)
36" (91.4 cm) 36" (91.4 cm) 36" (91.4 cm)
27-13/16" (70.6 cm) 27-13/16" (70.6 cm) 27-13/16" (70.6 cm)
27" (68.6 cm) 27" (68.6 cm) 27" (68.6 cm)
27-5/8" (70.2 cm) 27-5/8" (70.2 cm) 27-5/8" (70.2 cm)
6-11/16" (17 cm) 6-11/16" (17 cm) 6-11/16" (17 cm)
38-3/4" (98.4 cm) 38-3/4" (98.4 cm) 38-3/4" (98.4 cm)
36" GAS RANGE
48" GAS RANGE
5
A
B
C
F
D
E
SIDE VIEW
IM PORTAN T: Minimum height dimensions are at the lowest point of the height adjustment range.
When the leveling legs are fully extended, all heights have 1-3/4" (4.4 cm) of added height.
D IMENSI O N S
JENNAIR® GAS RANGES
P RODU C T
Depth with Door Fully Open (G)
Depth with Handle: RISE™ (H)
Depth with Handle: NOIR™ (H)
Depth with Control Panel Overhang (I)
Rear Vent Depth (J)
Depth to Toe-Kick with Door (K)
Depth with RISE™ Door (L)
30" GAS RANGE
46-1/2" (118.1 cm) 46-1/2" (118.1 cm) 46-1/2" (118.1 cm)
29-13/16" (75.7 cm) 29-13/16" (75.7 cm) 29-13/16" (75.7 cm)
29-5/16" (74.5 cm) 29-5/16" (74.5 cm) 29-5/16" (74.5 cm)
27-11/16" (70.3 cm) 27-11/16" (70.3 cm) 27-11/16" (70.3 cm)
2-1/4" (5.7 cm) 2-1/4" (5.7 cm) 2-1/4" (5.7 cm)
26-3/8" (67 cm) 26-3/8" (67 cm) 26-3/8" (67 cm)
27-1/4" (69.2 cm) 27-1/4" (69.2 cm) 27-1/4" (69.2 cm)
36" GAS RANGE
48" GAS RANGE
Depth with NOIR™ Door (L)
27-1/4" (69.2 cm) 27-1/4" (69.2 cm) 27-1/4" (69.2 cm)
G
H
I
J
6
K
L
SIDE VIEW
D IMENSI O N S
JENNAIR® GAS RANGES
O P E N ING AND CLEARANC E
30" GAS RANGE
Combustible Area Above
Cooking Surface Width (A)
Bottom of Cabinet Height
Above Cooking Surface (B)*
Bottom of Cabinet Height
Above Countertop (C)
Distance to Fixed Wall or
Combustible Material (D)
Opening Width (E)
30" (76.2 cm) min. 36" (91.4 cm) min. 48" (121.9 cm) min.
42" (106.7 cm) min. 58" (147.3 cm) min. 58" (147.3 cm) min.
18" (45.7 cm) min. 18" (45.7 cm) min.
12" (30.5 cm) min. 12" (30.5 cm) min. 12" (30.5 cm) min.
30" (76.2 cm) min. 36" (91.4 cm) min.
36" GAS RANGE
48" GAS RANGE
18" (45.7 cm) min.
48" (121.9 cm) min.
*If installing a hood or hood liner above the range, follow the hood or hood liner instructions for dimensional clearances above the cooking surface.
A
B*
C
D
D
E
7
FRONT VIEW
D IMENSI O N S
JENNAIR® GAS RANGES
O P E N ING AND CLEARANC E
30" GAS RANGE
Upper Cabinet Depth (F)
Distance to Fixed Wall or
Combustible Material (G)*
*If the back wall is constructed of a combustible material and a backsplash is not installed, a 1-1/2" (3.8 cm) minimum clearance is required.
13" (33 cm) max. 13" (33 cm) max. 13" (33 cm) max.
1-1/2" (3.8 cm)
36" GAS RANGE
1-1/2" (3.8 cm)
48" GAS RANGE
1-1/2" (3.8 cm)
Side
Cabinet
F
SIDE VIEW
G*
8
D IMENSI O N S
JENNAIR® GAS RANGES
E L E C TRI C AL R E QUIREMEN T S
Electrical Zone Width (A)
Electrical Zone Height (B)
Electrical Zone Depth (C)
R E C O MME ND ED EL E C T RI C A L Z O NE
30" GAS RANGE
22" (55.9 cm) 28" (71.1 cm) 40" (101.6 cm)
15" (38.1 cm) 15" (38.1 cm) 15" (38.1 cm)
5" (12.7 cm) 5" (12.7 cm) 5" (12.7 cm)
36" GAS RANGE
48" GAS RANGE
E L EC TRIC R E QUIREMEN T S
C H ECKLI S T
A 120 volt, 60 Hz, AC-only 15-amp, fused
grounded circuit is required.
A
B
C
W I D TH T O ELE C T RI C A L C O ND U I T
FRONT VIEW
A dedicated circuit is recommended.
9''
(22.9 cm)
?
9
BACK VIEW
IF Y O U H A V E Q U E ST I ON S A B O UT Y OUR E L E CTRI C A L S U PP LY ,
CAL L A L I C E N SE D , Q U A LIF I ED E L E C TRICIAN .
D IMEN S I O N S
JENNAIR® GAS RANGES
G A S R E QUIREM E N T S
30
Gas Openi ng W id th (A)
Gas Openi ng Height (B)
Gas Openi ng Depth (C)
Distance f rom Side Cabinet
to Gas Openi ng (D)
W idth to Gas Inlet (E)
12-3/4" (32.4 cm) 12-3/4" (32.4 cm) 12-3/4" (32.4 cm)
" GAS RANGE
6" (15.2 cm) 14" (35.5 cm) 24" (61 cm)
3" (7.6 cm) 3" (7.6 cm) 3" (7.6 cm)
5" (12.7 cm) 5" (12.7 cm) 5" (12.7 cm)
6" (15.2 cm) 6" (15.2 cm) 6" (15.2 cm)
" GAS RANGE
36
48" GAS RANGE
R E CO M M E ND E D G A S ZO N E
A
B
C
D
W I D T H TO GAS I N L E T
FRONT VIEW
E
BACK VIEW
10
IF Y O U H A V E Q U E ST I ON S A B O UT Y O UR G A S SU P P LY,
?
CAL L A L IC E NS E D, Q U A L I F IED S ER V I CE T E C H NI C IA N .
®/TM
©2019 JennAir. All rights reserved.
W11358023B
