company
a

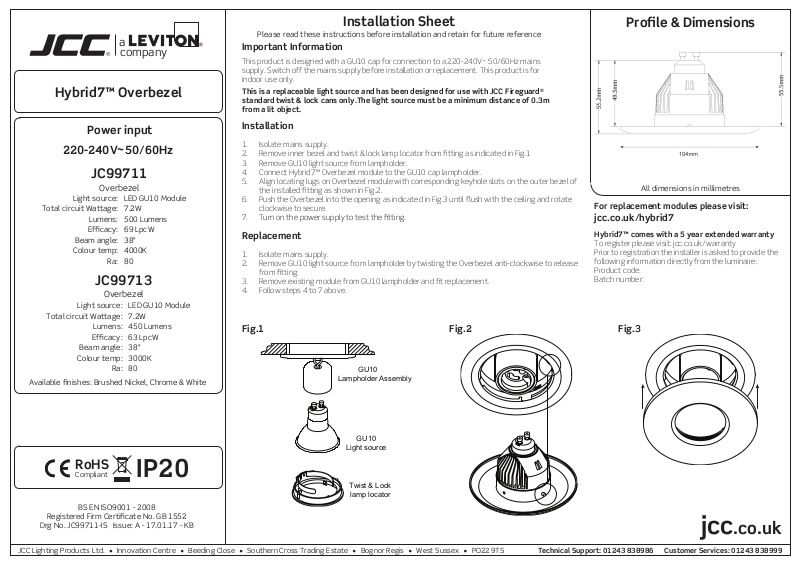

Hybrid7™ Overbezel
Installation Sheet
Please read these instructions before installation and retain for future reference
Important Information
This product is designed with a GU10 cap for connection to a 220-240V~ 50/60Hz mains
supply. Switch off the mains supply before installation or replacement. This product is for
indoor use only.
This is a replaceable light source and has been designed for use with JCC Fireguard
standard twist & lock cans only.The light source must be a minimum distance of 0.3m
from a lit object.
®
Prole & Dimensions
Power input
220-240V~50/60Hz
JC99711
Overbezel
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Beam angle:
Colour temp:
LED GU10 Module
7.2W
500 Lumens
69 LpcW
38°
4000K
Ra:
80
JC99713
Overbezel
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Beam angle:
Colour temp:
Available nishes: Brushed Nickel, Chrome & White
LED GU10 Module
7.2W
450 Lumens
63 LpcW
38°
3000K
Ra:
80
Installation
1. Isolate mains supply.
2. Remove inner bezel and twist & lock lamp locator from tting as indicated in Fig.1
3. Remove GU10 light source from lampholder.
4. Connect Hybrid7™ Overbezel module to the GU10 cap lampholder.
5. Align locating lugs on Overbezel module with corresponding keyhole slots on the outer bezel of
the installed tting as shown in Fig.2.
6. Push the Overbezel into the opening as indicated in Fig.3 until ush with the ceiling and rotate
clockwise to secure.
7. Turn on the power supply to test the tting.
Replacement
1. Isolate mains supply.
2. Remove GU10 light source from lampholder by twisting the Overbezel anti-clockwise to release
from tting.
3. Remove existing module from GU10 lampholder and t replacement.
4. Follow steps 4 to 7 above.
For replacement modules please visit:
jcc.co.uk/hybrid7
Hybrid7™ comes with a 5 year extended warranty
To register please visit: jcc.co.uk/warranty
Prior to registration the installer is asked to provide the
following information directly from the luminaire:
Product code:
Batch number:

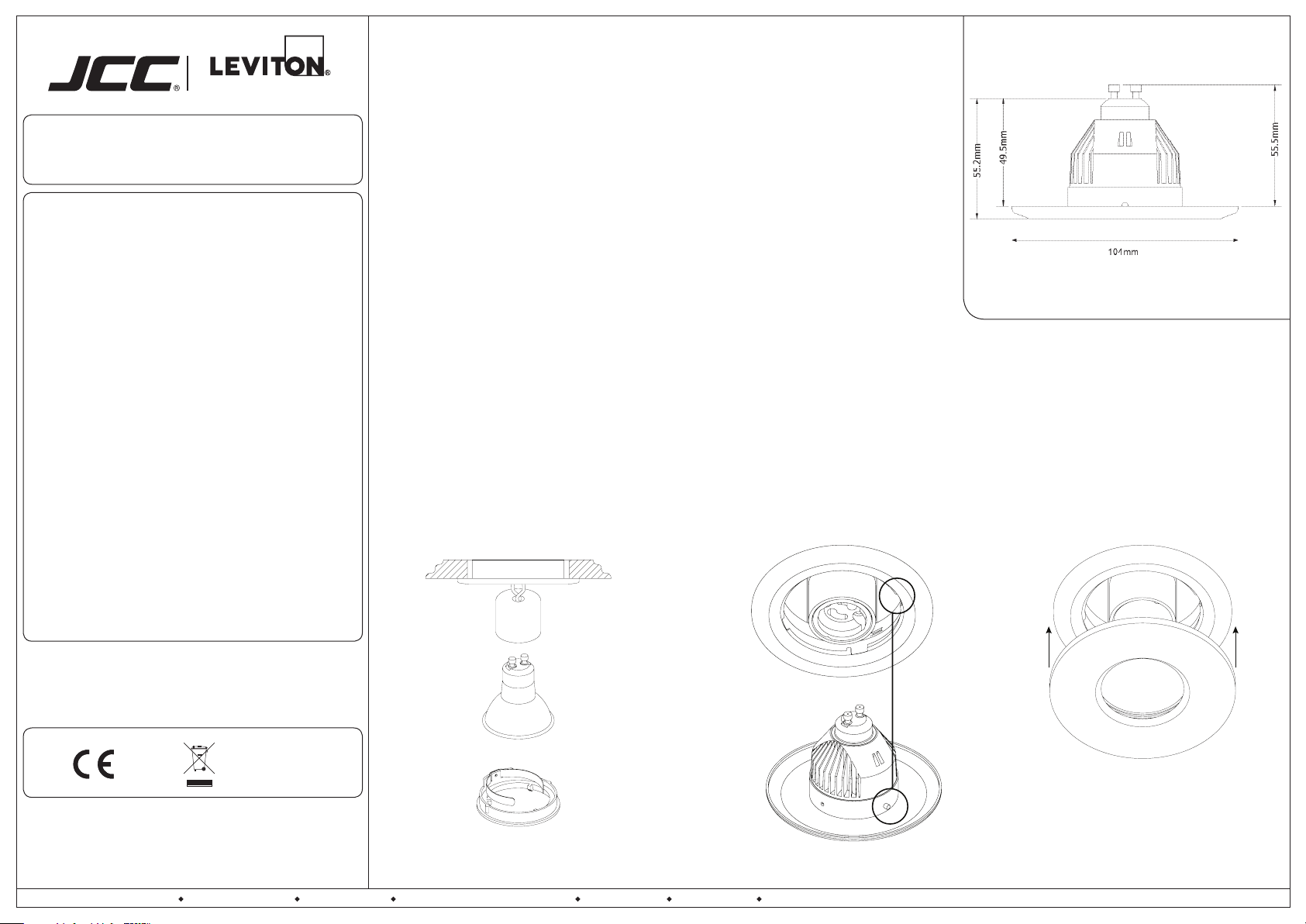

Fig.1 Fig.2 Fig.3
GU10
Lampholder Assembly
All dimensions in millimetres
GU10
Light source
RoHS
Compliant IP20
Twist & Lock
lamp locator
Registered Firm Certicate No. GB 1552
Drg No. JC99711-IS Issue: A - 17.01.17 - KB
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
BS EN ISO9001 - 2008
jcc.co.uk
