Live (+)
brown
Earth
yellow/green
Neutral (-)
blue
177
185
60
51
31
180
36
5.53
Live (+)
brown
Neutral (-)
blue
company

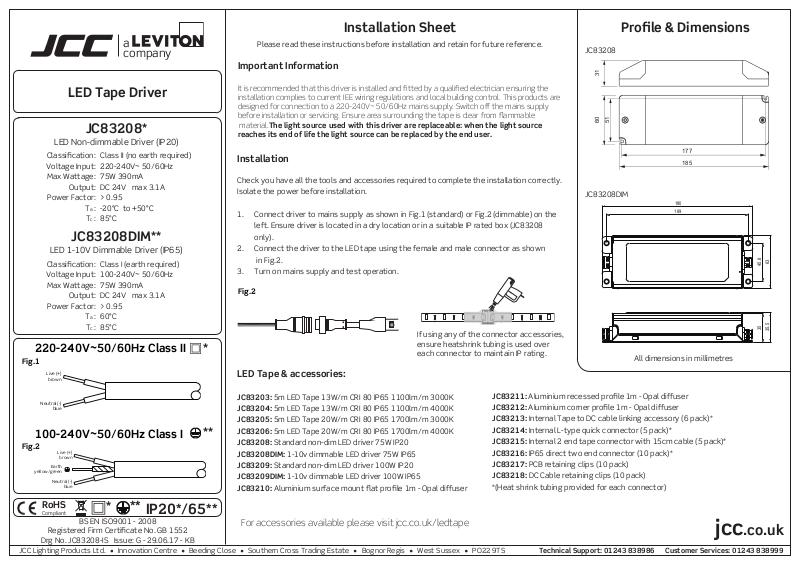

Installation Sheet
a
Please read these instructions before installation and retain for future reference.
JC83208
Prole & Dimensions
Important Information
LED Tape Driver
JC83208*
It is recommended that this driver is installed and tted by a qualied electrician ensuring the
installation complies to current IEE wiring regulations and local building control. This products are
designed for connection to a 220-240V~ 50/60Hz mains supply. Switch off the mains supply
before installation or servicing. Ensure area surrounding the tape is clear from ammable
material.The light source used with this driver are replaceable: when the light source
reaches its end of life the light source can be replaced by the end user.
LED Non-dimmable Driver (IP20)
Classication:
Voltage Input:
Max Wattage:
Output:
Power Factor:
JC83208DIM**
LED 1-10V Dimmable Driver (IP65)
Classication:
Voltage Input:
Max Wattage:
Output:
Power Factor:
220-240V~50/60Hz Class II
Fig.1
Class II (no earth required)
220-240V~ 50/60Hz
75W 390mA
DC 24V max 3.1A
> 0.95
Ta :
-20°C℃ to +50°C
Tc :
85°C
Class I (earth required)
100-240V~ 50/60Hz
75W 390mA
DC 24V max 3.1A
> 0.95
Ta :
60°C
Tc :
85°C
Installation
Check you have all the tools and accessories required to complete the installation correctly.
Isolate the power before installation.
1. Connect driver to mains supply as shown in Fig.1 (standard) or Fig.2 (dimmable) on the
left. Ensure driver is located in a dry location or in a suitable IP rated box (JC83208
only).
2. Connect the driver to the LED tape using the female and male connector as shown
in Fig.2.
3. Turn on mains supply and test operation.
Fig.2
If using any of the connector accessories,
*
ensure heatshrink tubing is used over
each connector to maintain IP rating.
JC83208DIM
169
8.54
53
All dimensions in millimetres
LED Tape & accessories:
JC83203: 5m LED Tape 13W/m CRI 80 IP65 1100lm/m 3000K
JC83204: 5m LED Tape 13W/m CRI 80 IP65 1100lm/m 4000K
100-240V~50/60Hz Class I
Fig.2
**
JC83205: 5m LED Tape 20W/m CRI 80 IP65 1700lm/m 3000K
JC83206: 5m LED Tape 20W/m CRI 80 IP65 1700lm/m 4000K
JC83208: Standard non-dim LED driver 75W IP20
JC83208DIM: 1-10v dimmable LED driver 75W IP65
JC83209: Standard non-dim LED driver 100W IP20
JC83209DIM: 1-10v dimmable LED driver 100W IP65
JC83210: Aluminium surface mount at prole 1m - Opal diffuser
JC83211: Aluminium recessed prole 1m - Opal diffuser
JC83212: Aluminium corner prole 1m - Opal diffuser
JC83213: Internal Tape to DC cable linking accessory (6 pack)*
JC83214: Internal L-type quick connector (5 pack)*
JC83215: Internal 2 end tape connector with 15cm cable (5 pack)*
JC83216: IP65 direct two end connector (10 pack)*
JC83217: PCB retaining clips (10 pack)
JC83218: DC Cable retaining clips (10 pack)
*(Heat shrink tubing provided for each connector)
RoHS
Compliant
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
Registered Firm Certicate No. GB 1552
Drg No. JC83208-IS Issue: G - 29.06.17 - KB
*
**
IP20*/65**
BS EN ISO9001 - 2008
For accessories available please visit jcc.co.uk/ledtape
jcc.co.uk
company
a
JC83208/JC83208DIM
10mm
JC83217
150mm 1350mm
R
Installing the tape around corners may
require the use of additional accessories
as the maximum bend is 20mm to avoid
20mm
damaging the tape.
JC83215 (15cm)
JC83216
JC83214
JC83213
JC83218
Dimming Guidelines
Only use 1-10V analogue rotary dimming switch. Not suitable for use with triac dimming.
jcc.co.uk Issue: F - 23.06.17 - KB
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
