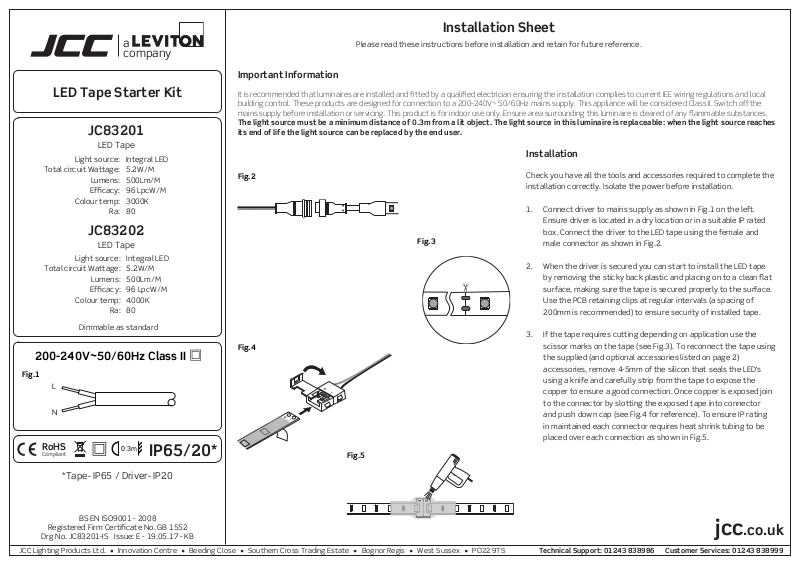

Installation Sheet
a
Important Information
Please read these instructions before installation and retain for future reference.
LED Tape Starter Kit
JC83201
LED Tape
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Colour temp:
Integral LED
5.2W/M
500Lm/M
96 LpcW/M
3000K
Ra:
80
JC83202
LED Tape
Light source:
Total circuit Wattage:
Lumens:
Efcacy:
Colour temp:
Dimmable as standard
200-240V~50/60Hz Class II
Fig.1
L
N
RoHS
Compliant
Integral LED
5.2W/M
500Lm/M
96 LpcW/M
4000K
Ra:
80
0.3m
IP65/20*
It is recommended that luminaires are installed and tted by a qualied electrician ensuring the installation complies to current IEE wiring regulations and local
building control. These products are designed for connection to a 200-240V~ 50/60Hz mains supply. This appliance will be considered Class II. Switch off the
mains supply before installation or servicing. This product is for indoor use only. Ensure area surrounding this luminaire is cleared of any ammable substances.
The light source must be a minimum distance of 0.3m from a lit object. The light source in this luminaire is replaceable: when the light source reaches
its end of life the light source can be replaced by the end user.
Installation
Fig.2
Fig.3
Fig.4
Fig.5
Check you have all the tools and accessories required to complete the
installation correctly. Isolate the power before installation.
1. Connect driver to mains supply as shown in Fig.1 on the left.
Ensure driver is located in a dry location or in a suitable IP rated
box. Connect the driver to the LED tape using the female and
male connector as shown in Fig.2.
2. When the driver is secured you can start to install the LED tape
by removing the sticky back plastic and placing on to a clean at
surface, making sure the tape is secured properly to the surface.
Use the PCB retaining clips at regular intervals (a spacing of
200mm is recommended) to ensure security of installed tape.
3. If the tape requires cutting depending on application use the
scissor marks on the tape (see Fig.3). To reconnect the tape using
the supplied (and optional accessories listed on page 2)
accessories, remove 4-5mm of the silicon that seals the LED’s
using a knife and carefully strip from the tape to expose the
copper to ensure a good connection. Once copper is exposed join
to the connector by slotting the exposed tape into connector
and push down cap (see Fig.4 for reference). To ensure IP rating
in maintained each connector requires heat shrink tubing to be
placed over each connection as shown in Fig.5.
*Tape- IP65 / Driver- IP20
Registered Firm Certicate No. GB 1552
Drg No. JC83201-IS Issue: E - 19.05.17 - KB
JCC Lighting Products Ltd. Innovation Centre Beeding Close Southern Cross Trading Estate Bognor Regis West Sussex PO22 9TS Technical Support: 01243 838986 Customer Services: 01243 838999
BS EN ISO9001 - 2008
jcc.co.uk
company
a
10mm
JC83207
(Included)
JC83217
(Included)
JC83214
(Optional)
150mm 1350mm
R
Installing the tape around corners may
require the use of additional accessories
as the maximum bend is 20mm to avoid
20mm
damaging the tape.
JC83213
(Included)
JC83215 (15cm)
(Included)
JC83216
(Optional)
JC83218
(Included)
Dimming Guidelines
Dimmers must not be underloaded or overloaded:
underloading may cause the LEDs to ash. If ickering is
Starter kit contains:
1 x 5m Dimmable LED tape strip
1 x JC83207: Triac Dimmable LED Driver IP20
1 x JC83213: Internal Tape to DC cable linking accessory (6 pack)*
1 x JC83215: Internal 2 end tape connector with 15cm cable (5 pack)*
1 x JC83217: PCB retaining clips (10 pack)
1 x JC83218: DC Cable retaining clips (10 pack)
*(Heat shrink tubing provided for each connector)
LED Tape accessories:
JC83210: Aluminium surface mount at prole 1m - Opal diffuser
JC83211: Aluminium recessed prole 1m - Opal diffuser
JC83212: Aluminium corner prole 1m - Opal diffuser
JC83214: Internal L-type quick connector (5 pack)*
JC83216: IP65 direct two end connector (10 pack)*
experienced a different kind of dimmer may be required.
Please note: DO NOT perform insulation resistance tests
on a lighting circuit with LED lighting or a dimmer switch
connected as this could damage the components in the
products beyond repair. A slight buzzing noise may be
heard from the dimmer switch while in operation, however
this is perfectly normal. These notes are intended for
guidance only. JCC Lighting accepts no responsibility for
unsatisfactory installations or consequent loss or damage
howsoever caused.
