If you need to reproduce lifelike audio for
multichannel sound presentations from
soundtracks on Beta-cam tapes; hi-def
video servers; off-air broadcasts; CDs or
DVDs with discrete digital audio sound­tracks; or signals distributed from differ­ent office locations, even in other coun­tries – the JBL Synthesis Boardroom is the
system for you.

JBL’s finest, most dynamic cinematic
sound system is specifically designed to
overcome the difficult acoustic challenges
presented by the boardroom environment.
All JBL Synthesis systems feature the
latest in digital surround sound
processing, including Dolby

®

Digital,

DTS-ES

®

, THX®Surround EX™and our own

patented Logic 7

®

, for true wraparound

sound that will take your presentation
from the boardroom to wherever you want
it to go. Not surprising when you consider
that JBL is found in THX movie theaters,
in broadcast-television facilities, and on
film-dubbing stages the world over.

JBL’s high-power amplifiers and long­excursion 15" subwoofers deliver
thunderous bass, and our constant­directivity bi-radial horns reproduce
dialogue with astonishing clarity. And, to
ensure that the JBL Synthesis system
achieves its full potential, it will be
equalized and calibrated specifically for

your

boardroom by our factory-trained
authorized dealers, and then certified by
JBL. So, make your boardroom system a
Synthesis. You can’t make a better choice.

Visit www.jblsynthesis.com.

SYNTHESIS BOARDROOM

DIGITAL CINEMA
SURROUND SOUND
SYSTEM

Sure, your new boardroom
needs the latest in
audio-playback technology.
Better, though, to have
the same system that DVD
studios, entertainment
professionals and home
theater aficionados have
called “...the greatest
thing that’s ever happened
to home theater!”

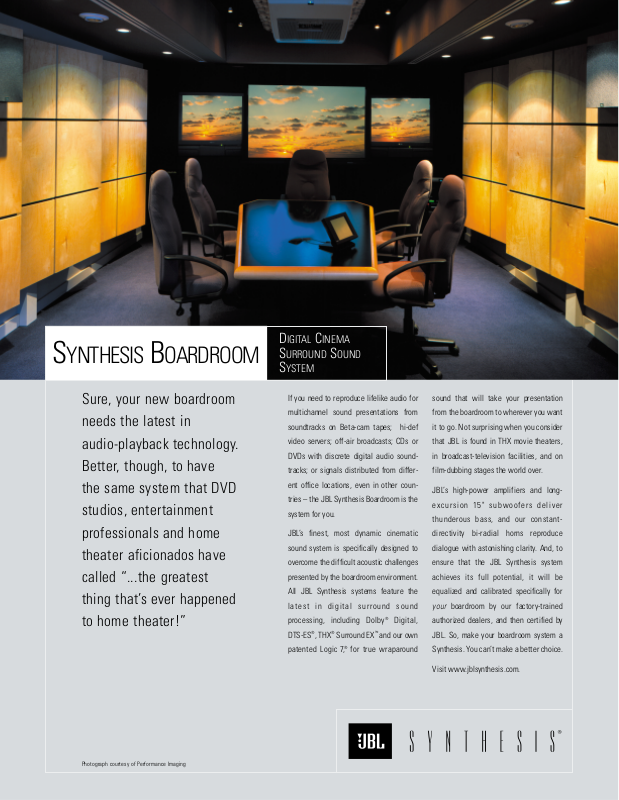

Photograph courtesy of Performance Imaging

7.1-CHANNEL
DIGITAL CINEMA
SYSTEM

JBL SIS Products Group • 8500 Balboa Boulevard, Northridge, CA 91329 • 250 Crossways Park Drive, Woodbury, NY 11797 • [phone] • www.jblsynthesis.com
©

2001 JBL, Incorporated. JBL is a registered trademark of JBL, Incorporated Printed in USA 8/01 Part No. SYNBRDRMPI

SYNTHESIS BOARDROOM

S3VC S3HC S2S S2A

General Description Vertical/Horizontal L, C, R Subwoofers (2 each) Dipole Ambient

Surround Speakers (4 each)

Dimensions S3VC: 27-3/8" x 10-3/16" x 12-5/8"/695mm x 259mm x 321mm 27-1/2" x 21" x 15-13/16" 16" x 11-9/16" x 6-9/16"
(H x W x D) S3HC: 9-5/8" x 28-5/8" x 9-1/16"/245mm x 727mm x 230mm 699mm x 533mm x 402mm 406mm x 294mm x 167mm

Weight 28 lb/12.7kg 110 lb/50kg 28 lb/12.7kg

SDP-3

General Description Digital Surround Processor/System Controller

Dimensions 3-1/2" x 17-1/2" x 11-1/2" (19" wide with rack ears)
(H x W x D) 89mm x 445mm x 292mm

Weight 10.5 lb/4.8kg

Control RS-232 (bi-directional), front- and rear-panel IR,

backlit, handheld remote

Audio Inputs 3 digital optical, 5 digital coaxial, 8 stereo pairs

Audio Outputs 7.1 and 2 record outputs with separate

volume control, coaxial digital pass-through

Video Inputs 8 S-Video, 8 composite

Video Outputs 3 S-Video, 3 composite (main, rec1, rec2)

Modes Dolby®Digital, DTS-ES®, Logic 7®, THX®Surround EX™,

Dolby Pro Logic

®

, 2-Channel, Rock/Pop, TV, and more

OSD 3-position with disable and time out, FPD – 3 intensities with disable

S7150 S800

General Description 7-Channel Amplifier 2-Channel Amplifier

Power 160 watts at 8 ohms, 210 watts at 4 ohms 200 watts at 8 ohms, 300 watts at 4 ohms

Dimensions 7" x 19" x 21" 7" x 19" x 17-1/2"
(H x W x D) 178mm x 483mm x 533mm 178mm x 483mm x 445mm

Weight 97 lb/44.1kg 70 lb/31.8kg

SDEC2500A

General Description Digital Equalizer

(6-Channel Input, 7-Channel Output,
83-Band Parametric EQ, Auto-Power,
Overload Protection)

Auto-Arrival-Time-Correction

Screen and Grille-Cloth Compensation

Dimensions 3-1/2" x 19" x 18-1/2"
(H x W x D) 89mm x 483mm x 470mm

Weight 22 lb/10kg
