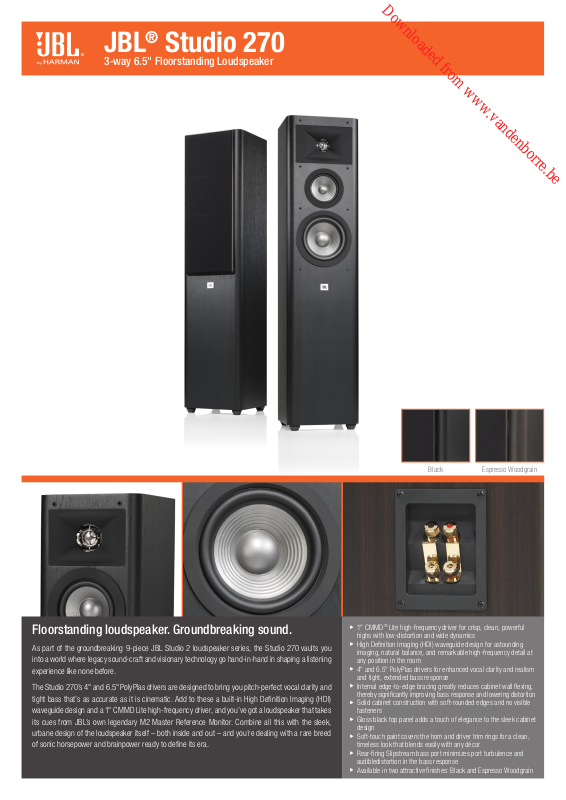

JBL® Studio 270

3-way 6.5" Floorstanding Loudspeaker

Floorstanding loudspeaker. Groundbreaking sound.

As part of the groundbreaking 9-piece JBL Studio 2 loudspeaker series, the Studio 270 vaults you
into a world where legacy sound-craft and visionary technology go hand-in-hand in shaping a listening
experience like none before.

The Studio 270’s 4" and 6.5" PolyPlas drivers are designed to bring you pitch-perfect vocal clarity and
tight bass that’s as accurate as it is cinematic. Add to these a built-in High Definition Imaging (HDI)
waveguide design and a 1" CMMD Lite high-frequency driver, and you’ve got a loudspeaker that takes
its cues from JBL’s own legendary M2 Master Reference Monitor. Combine all this with the sleek,
urbane design of the loudspeaker itself – both inside and out – and you’re dealing with a rare breed
of sonic horsepower and brainpower ready to define its era.

Black Espresso Woodgrain

1" CMMD® Lite high-frequency driver for crisp, clean, powerful
highs with low-distortion and wide dynamics
High Definition Imaging (HDI) waveguide design for astounding
imaging, natural balance, and remarkable high-frequency detail at
any position in the room
4" and 6.5" PolyPlas drivers for enhanced vocal clarity and realism
and tight, extended bass response
Internal edge-to-edge bracing greatly reduces cabinet wall flexing,
thereby significantly improving bass response and lowering distortion
Solid cabinet construction with soft-rounded edges and no visible
fasteners
Gloss black top panel adds a touch of elegance to the sleek cabinet
design
Soft-touch paint covers the horn and driver trim rings for a clean,
timeless look that blends easily with any décor
Rear-firing Slipstream bass port minimizes port turbulence and
audibledistortion in the bass response
Available in two attractive finishes: Black and Espresso Woodgrain

JBL® Studio 270

3-way 6.5" Floorstanding Loudspeaker

Features

4" and 6.5" PolyPlas drivers deliver unrivaled purity, power, and realism

Decades of JBL acoustic research and developmenthave made their imprint. With its 4" and 6.5"
PolyPlas front-firing drivers delivering unrivaled midrange accuracy and power, we’ll let a masterpiece
speak for itself.

1" CMMD® Lite high-frequency driver and High Definition Imaging (HDI) waveguide
bring cinema-grade imaging and natural balance to your listening experience

The apex of 67 years of pioneering sound research at our JBL labs, the Studio 270 includes ground­breaking innovations like a High Definition Imaging (HDI) waveguide design and a 1" CMMD
high-frequency driver in its framework. Together, these advances let you experience your sound purely
and cinematically, with all its precision imaging, high-frequency detail, natural balance, and full spec­trum mastery.

Visually striking 21st century design features that can’t fail to seduce

The JBL way is to make it look as good as it sounds. And with the Studio 270, we’ve made no
exception. With 21
and soft-touch paint, we’ve built something that seduces the eye as much as it commands the ear.

st

century elegance that incorporates soft-rounded edges, black gloss paneling,

®

Lite

What’s in the box:

JBL® Studio 270 3-way 6.5" Floorstanding Loudspeaker
Owner’s Manual
Carpet Spikes x 4

Product specifications:

Type: 3-way 6.5" Floorstanding Loudspeaker

165mm (6.5") PolyPlas low-frequency transducer
Single 100mm (4") PolyPlas midrange transducer
High Definition Imaging (HDI) horn design

- 25mm (1") CMMD
Recommended amplifier power: 20 – 200W
Frequency response: 45Hz – 22kHz
Sensitivity: 88dB
Impedance: 8 Ohms
Braced enclosure with Slipstream rear-firing bass port
Dual gold-plated binding-post speaker terminals with bi-

wire capability

Dimensions (H x W x D): 1010mm x 237mm x 244mm

(39-3/4” x 9-5/16” x 9-5/8”)

Weight: 16.1 kg (35.6 lb)

®

Lite high frequency dome

HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
www.jbl.com

© 2013 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademar k of HARM AN Inter national Industrie s, Incorporated, registered in the Unite d States a nd/or
other countrie s. The “Hear the truth” logo is a trad emark of HARMAN Internation al Indu strie s, Incorporated.
Features, specifications and appearance are subject to change without notice.
