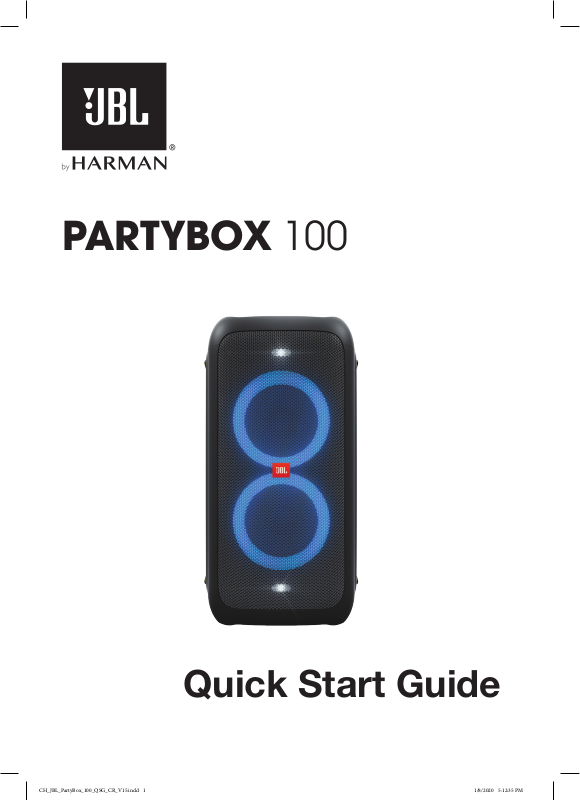

JBL PartyBox 100 Quick Start Manual
PARTYBOX 100
Quick Start Guide
CH_JBL_PartyBox_100_QSG_CR_V15.indd 1 1/8/2020 5:12:35 PM
EN
1
What’s in the box
Note:
– For more information, please download the owner's
manual from www.jbl.com
2
Overview
2.1 Top panel
7
6
5
1)
• Battery level indicator.
2)
• Press to power on or off.
3)
• Press to enter Bluetooth pairing mode.
• Press and hold for 20 seconds to forget all
4)
• Press to toggle between different light patterns.
• Press and hold for 2 seconds to turn the strobe
5)
• Press repeatedly to switch between bass boost
6) /
• Press to increase or decrease the volume level.
• Press both simultaneously to mute the audio
7)
• Press to play or pause the music.
2.2 Back Panel
1
2
3
1) USB
• Charge an external USB device.
• Connect to a USB storage device
2) AUX
• Connect to an external audio device through an
3) VOLUME (MIC)
1
2
3
4
• Rotate the knob to adjust the microphone
4) MIC
• Connect to a microphone (not provided).
5) VOLUME (GUITAR)
• Rotate the knob to adjust the guitar volume.
6) GUITAR
• Connect to a guitar (not provided).
7) GAIN
• Guitar and microphone gain control buttons to
paired devices.
light on or off.
level 1 and level 2 or turn off.
output.
7
6
5
4
audio cable.
volume.
match different sensitivity of the mic and guitar.
1
CH_JBL_PartyBox_100_QSG_CR_V15.indd 1 1/8/2020 5:12:36 PM
3
Carrying
5
Charging USB Devices
6
Connections
6.1 Bluetooth
4
Power on
Place your product vertically on a stable, flat surface near
a live AC (mains) outlet.
6.2 USB
1
10m (33ft)
2
Bluetooth
Bluetooth
DEVICES
JBL PartyBox 100
2
CH_JBL_PartyBox_100_QSG_CR_V15.indd 2 1/8/2020 5:12:37 PM
