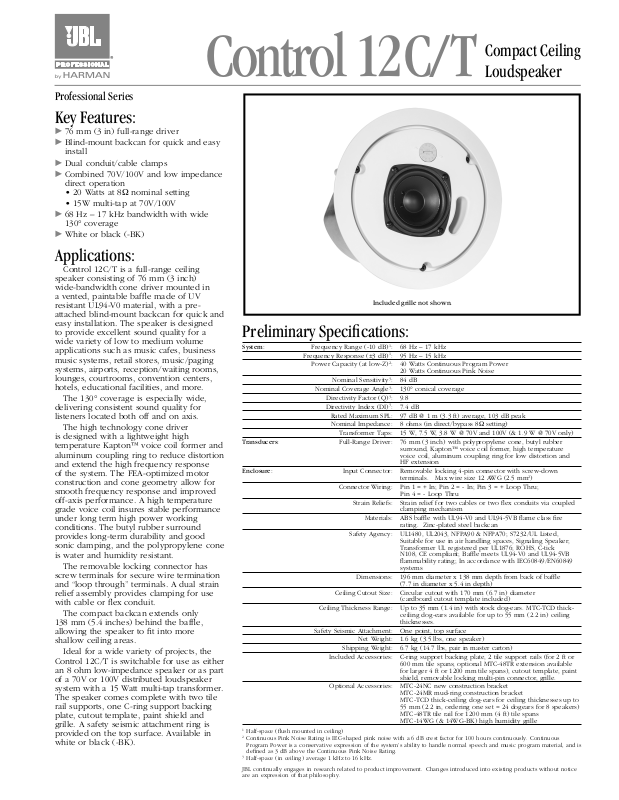

JBL Control 12C/T Datasheet
Compact Ceiling
Control 12C/T
Professional Series
Key Features:
c 76 mm (3 in) full-range driver
c Blind-mount backcan for quick and easy
install
c Dual conduit/cable clamps
c Combined 70V/100V and low impedance
direct operation
• 20 Watts at 8Ω nominal setting
c • 15W multi-tap at 70V/100V
c 68 Hz – 17 kHz bandwidth with wide
130° coverage
c White or black (-BK)
Applications:
Control 12C/T is a full-range ceiling
speaker consisting of 76 mm (3 inch)
wide-bandwidth cone driver mounted in
a vented, paintable baffle made of UV
resistant UL94-V0 material, with a preattached blind-mount backcan for quick and
easy installation. The speaker is designed
to provide excellent sound quality for a
wide variety of low to medium volume
applications such as music cafes, business
music systems, retail stores, music/paging
systems, airports, reception/waiting rooms,
lounges, courtrooms, convention centers,
hotels, educational facilities, and more.
The 130° coverage is especially wide,
delivering consistent sound quality for
listeners located both off and on axis.
The high technology cone driver
is designed with a lightweight high
temperature Kapton™ voice coil former and
aluminum coupling ring to reduce distortion
and extend the high frequency response
of the system. The FEA-optimized motor
construction and cone geometry allow for
smooth frequency response and improved
off-axis performance. A high temperature
grade voice coil insures stable performance
under long term high power working
conditions. The butyl rubber surround
provides long-term durability and good
sonic damping, and the polypropylene cone
is water and humidity resistant.
The removable locking connector has
screw terminals for secure wire termination
and “loop through” terminals. A dual strain
relief assembly provides clamping for use
with cable or flex conduit.
The compact backcan extends only
138 mm (5.4 inches) behind the baffle,
allowing the speaker to fit into more
shallow ceiling areas.
Ideal for a wide variety of projects, the
Control 12C/T is switchable for use as either
an 8 ohm low-impedance speaker or as part
of a 70V or 100V distributed loudspeaker
system with a 15 Watt multi-tap transformer.
The speaker comes complete with two tile
rail supports, one C-ring support backing
plate, cutout template, paint shield and
grille. A safety seismic attachment ring is
provided on the top surface. Available in
white or black (-BK).
Loudspeaker
Included grille not shown.
Preliminary Specifications:
System: Frequency Range (-10 dB)1: 68 Hz – 17 kHz
Frequency Response (±3 dB)1: 95 Hz – 15 kHz
Power Capacity (at low-Z)2: 40 Watts Continuous Program Power
Nominal Sensitivity3: 84 dB
Nominal Coverage Angle3: 130° conical coverage
Directivity Factor (Q)3: 9.8
Directivity Index (DI)3: 7.4 dB
Rated Maximum SPL: 97 dB @ 1 m (3.3 ft) average, 103 dB peak
Nominal Impedance: 8 ohms (in direct/bypass 8Ω setting)
Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Transducers: Full-Range Driver: 76 mm (3 inch) with polypropylene cone, butyl rubber
Enclosure: Input Connector: Removable locking 4-pin connector with screw-down
Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru;
Strain Reliefs: Strain relief for two cables or two flex conduits via coupled
Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire
Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed,
Dimensions: 196 mm diameter x 138 mm depth from back of baffle
Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter
Ceiling Thickness Range: Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-
Safety Seismic Attachment: One point, top surface
Net Weight: 1.6 kg (3.5 lbs, one speaker)
Shipping Weight: 6.7 kg (14.7 lbs, pair in master carton)
Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or
Optional Accessories: MTC-24NC new construction bracket
1
Half-space (flush mounted in ceiling)
2
Continuous Pink Noise Rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous
Program Power is a conservative expression of the system’s ability to handle normal speech and music program material, and is
defined as 3 dB above the Continuous Pink Noise Rating.
3
Half-space (in ceiling) average 1 kHz to 16 kHz.
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
20 Watts Continuous Pink Noise
surround, Kapton™ voice coil former, high temperature
voice coil, aluminum coupling ring for low distortion and
HF extension
terminals. Max wire size 12 AWG (2.5 mm2)
Pin 4 = - Loop Thru
clamping mechanism
rating. Zinc-plated steel backcan
Suitable for use in air handling spaces, Signaling Speaker;
Transformer UL registered per UL1876; ROHS, C-tick
N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB
flammability rating; In accordance with IEC60849/EN60849
systems
(7.7 in diameter x 5.4 in depth)
(cardboard cutout template included)
ceiling dog-ears available for up to 55 mm (2.2 in) ceiling
thicknesses.
600 mm tile spans; optional MTC-48TR extension available
for larger 4 ft or 1200 mm tile spans), cutout template, paint
shield, removable locking multi-pin connector, grille.
MTC-24MR mud-ring construction bracket
MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to
55 mm (2.2 in, ordering one set = 24 dogears for 8 speakers)
MTC-48TR tile rail for 1200 mm (4 ft) tile spans
MTC-14WG (& 14WG-BK) high humidity grille
c Control 12C/T Compact Ceiling Loudspeaker
Frequency (Hz)
Frequency Response, Impedance:
Frequency Response in Half-Space (2p, mounted in ceiling)
Impedance at 8Ω (low-impedance) setting
95
40
85
75
SPL (dB)
65
55
20 100 1000 10000 20000
Dimensions:
196
Ø
166
[6.5]
Ø
[7.7]
30
20
Ohms
10
0
138
120
[4.7]
[5.4]
153
[6.0]
Dimensions in mm (inches)
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2013 JBL Professional
www.jblpro.com
SS C12CT
CRP
06/13
