Page 1
Janome US2004
Instruction Manual
MODEL US-2004
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 2
Do’s and Don’ts
1. Always be aware of the up-and-down movement of the needle and do not turn your attention
from the machine while it is running.
2.When leaving the sewing machine unattended, the main switch of the machine must be
switched off or the plug must be removed from the socket-outlet.
3.When servicing the sewing machine, or when removing covers or changing lamps, the
machine or the electrical set must be disconnected from the supply by removing the plug
from the socket/outlet.
4. Do not place anything on the foot control, otherwise the machine will start inadvertently, or
the control or motor may burn out.
5.The maximum permissible power for the sewing lamp bulb is 15 watts.
6.When using your sewing machine for the first time, place a piece of waste fabric under the
presser foot and run the machine without thread for a few minutes. Wipe away any oil which
may have appeared.
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 3
1
IMPORTANT SAFETY
INSTRUCTIONS
Your sewing machine is designed and constructed only for HOUSEHOLD use.
Read all instructions before using this sewing machine.
D ANGER - To reduce the risk of electric shock:
1. An appliance should never be left unattended when plugged in. Always unplug this appliance from
the electric outlet immediately after using and befor cleaning.
2. Always unplug before relamping. Replace bulb with same type rated 15 watts.
3. Do not reach for the appliance that has fallen into water. Unplug immediately.
4. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or
drop into water or other liquid.
WARNING - To reduce the risk of bur ns, fire, electric shock, or injury to persons:
1. Do not allow to be used as a toy. Close attention is necessary when this appliance is used by or near
children.
2. Use this appliance only for its intended use as described in this manual.
Use only attachments recommended by the manufacturer as contained in this manual.
3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the appliance to the nearest authorized
dealer or service center for examination, repair, electr ical or mechanical adjustment.
4. Never operate the appliance with any air opening blocked. Keep ventilation openings of the sewing
machine and foot controller free from accumulation of lint, dust, and loose cloth.
5. Never drop or insert any object into any opening.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being adminis-
tered.
8. To disconnect, turn all controls to the off ("0") position, then remove plug from outlet.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Keep fingers away from all moving parts. Special care is required around sewing machine needle.
11. Always use the proper needle plate. The wrong plate can cause the needle to break.
12. Do not use bent needles.
13. Do not pull or push fabric while stitching.
It may deflect the needle causing it to break.
14. Switch the sewing machine off ("0") when making any adjustment in the needle area, such as thread-
ing needle, changing needle, threading bobbin, or changing presser foot, and the like.
15. Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or
when making any other user servicing adjustments mentioned in the instruction manual.
SAVE THESE INSTRUCTIONS
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 4
2
TABLE OF CONTENTS
SECTION I ESSENTIAL PARTS
Names of Parts .................................................................................................................................................. 4
SECTION II GETTING READY TO SEW
Extension Table ................................................................................................................................................. 5
Standard Accessories and Storage Place ........................................................................................................ 5
Connecting the Machine to the Power Supply.................................................................................................. 6
Foot Control ....................................................................................................................................................... 6
Sewing Light....................................................................................................................................................... 7
To Remove and Attach the Presser Foot ......................................................................................................... 7
Changing Needle ............................................................................................................................................... 8
Thread and Needle Chart .................................................................................................................................. 8
Setting Spool Pins.............................................................................................................................................. 9
Removing or Inserting the Bobbin Case ........................................................................................................... 9
Winding the Bobbin.......................................................................................................................................... 10
Threading Bobbin Case ................................................................................................................................... 11
Threading the Machine .................................................................................................................................... 12
Drawing Up Bobbin Thread ............................................................................................................................. 13
Balancing Needle Thread Tension .................................................................................................................. 14
Pattern Selector Dial........................................................................................................................................ 15
Reverse Stitch Button...................................................................................................................................... 16
Dropping the Feed Dog ................................................................................................................................... 16
SECTION III BASIC SEWING
Straight Stitch Sewing ...................................................................................................................................... 17
To Change Sewing Direction........................................................................................................................... 17
Using the Seam Guides on the Needle Plate ................................................................................................. 18
Turning Square Corners .................................................................................................................................. 18
Zigzag Stitching ............................................................................................................................................... 19
SECTION IV UTILITY STITCHING
Overcasting ...................................................................................................................................................... 19
Multiple zigzag ................................................................................................................................................. 20
Attaching Buttons............................................................................................................................................. 21
Buttonhole ........................................................................................................................................................ 22
Corded Buttonhole ........................................................................................................................................... 23
Zipper Sewing .................................................................................................................................................. 24
Blind Stitch Hemming ...................................................................................................................................... 25
Rolled Hem....................................................................................................................................................... 26
SECTION V CARE OF YOUR MACHINE
Dismantling and Assembling Hook Race........................................................................................................ 27
Cleaning the Feed Dogs .................................................................................................................................. 28
Oiling the Machine ........................................................................................................................................... 28
Trouble Shooting.............................................................................................................................................. 29
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 5
3
SECTION I ESSENTIAL PARTS
Name of Parts
1 Reverse stitch button
2 Pattern selector dial
3 Bobbin winder stopper
4 Bobbin winder spindle
5 Spool pins
6 Bobbin winder thread guide
7 Thread guide
8 Thread take-up lever
9 Thread tension dial
10 Face plate
11 Thread cutter
12 Presser foot holder
13 Needle plate
14 Extension table
15 Carrying handle
16 Handwheel
17 Power switch
18 Machine socket
19 Needle clamp screw
20 Free arm
21 Presser foot lifter
1
2
3
4
56
7
8
9
10
11
12
13
14
15
21
16
17
18
20
19
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 6
4
Extension Table
The extension table provides added sewing surface
and can be easily removed for free arm sewing.
Detaching the table:
Pull the table away from the machine, as illustrated.
Attaching the table:
Push the extension table until it snaps into the
machine.
Advantages and uses of free arm sewing:
* Avoid fabric bunching around the needle when
bartacking to reinforce pockets, plackets and
waistlines.
* For stitching sleeves, waistbands, pants legs or
any circular garment area.
* For darning socks or mending knees, elbows or
areas of wear in children's clothes.
Standard Accessories and Storage Place
1 Zipper foot
2 Hemmer foot
3 Sliding buttonhole foot
4 Hem guide
5 Seam ripper
6 Large screwdriver
7 Small screwdriver
8 Set of needles
9 Bobbins
10 Oil
11 Extension table
SECTION II GETTING READY TO SEW
12
3
4
5
6
7
8910
11
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 7
5
Connecting the Machine to the Power Supply
Before connecting the power cord, mark sure the
voltage and frequency shown on the machine conform
to your electrical power.
1. Turn off the power switch 2.
2. Insert the machine plug 5 into the machine socket 4
.
3. Insert the power supply plug 1 into the outlet 3 .
4. Turn on the power switch 2 to turn on the power
and sewing light.
Foot control
Sewing speed can be varied by the foot control.
The harder you press on the control, the faster the
machine runs.
1 Power supply plug
2 Power switch
3 Outlet
4 Machine socket
5 Machine plug
6 Foot control
3
1
2
4
5
6
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 8
6
Sewing Light
The sewing light is located behind the face plate.
To change the bulb, take the face plate off the sewing
machine by removing the set screw.
* Unolug the power supply before changing the bulb.
(A) To remove ........... Turn to th e left.
To replace...........T ur n t o th e r ig ht .
(B) To remove ........... Push and twist to the left.
To replace...........Push and twist to the right.
To Remove and Attach the Presser Foot
To remove
Turn the handwheel toward you to raise the needle to
its highest position.
Raise the presser foot.
Press the lever on the back of the foot holder.
The presser foot will drop off.
To attach
Place the presser foot so the pin on the foot lies just
under the groove of the foot holder.
Lower the foot holder to lock the foot in place.
(A)
(B)
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 9
7
Changing Needle
Raise the needle by turning the handwheel toward you
and lower the presser foot.
Loosen the needle clamp screw by turning it
counterclockwise.
Remove the needle from the clamp.
Insert the new needle into the clamp with the flat side
away from you.
When inserting the needle into the clamp, push it up as
far as it will go and tighten the clamp screw firmly with
the screwdriver.
* Check your needles frequently for barbed or
blunted points. Snags and runs in knits, fine silks
and silk-like fabrics are permanent and are almost
always caused by a damaged needle.
Thread and Needle Chart
Fabrics Thread
Needle Size
Crepe de Chine, Voile, Fine Silk` 9
Lawn, Organdy, Fine Cotton or
Georgette,
Fine Synthetic 11
Tricot Fine Cotton
Covered
Polyester
Linens, Cotton, Pique, 50 silk 11
Serge, Double Knits,
50 to 80 Cotton or
Percale 50 to 60
14
Synthetic
Cotton Covered
Polyester
Denim, Tweed, 50 silk 14
Gabardine,
Coating, Drapery and 40 to 50 Cotton
or
Upholstery Fabric 40 to 50 16
Synthetic
Cotton Covered
Polyester
Light
weight
Medium
weight
Heavy
weight
* In general, fine thread and needles are used for
sewing thin fabrics, and thicker threads and needles
are used for sewing heavy fabrics. Always test
thread and needle size on a small piece of fabric
which will be used for actual sewing.
* Use the same thread for needle and bobbin.
* When sewing stretch, very fine fabrics and
synthetics, use a BLUE TIPPED needle.
The blue tipped needle effectively prevents skipped
stitches.
* When sewing very fine fabrics, sew over a piece of
paper to prevent yarn distortion.
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 10
8
Removing or Inserting the Bobbin Case
Open the hook cover.
Raise the needle by turning the handwheel toward you.
Take out the bobbin case by holding the latch.
When inserting the bobbin case, place the horn into
the recess of the hook race.
1
Hook cover
2 Latch
3 Horn
Setting Spool Pins
The spool pins are used for holding the spool of thread
in order to feed thread to the machine.
To use, pull up the spool pin. Push down for storage.
1
Upper thread
2 Hole
3 Tangle
NOTE: When using thread which has tendency to
tangle around spool pin, thread through the
hole of spool pin as shown.
The hole should face the thread spool.
1
3
1
2
3
2
1
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 11
9
Winding the bobbin
[1] Pull the handwheel out.
[2] Draw the thread from spool.
Guide the thread around the bobbin winder thread
guide.
[3] Insert the thread through the hole in the bobbin
from the inside to the outside.
Put the bobbin on the bobbin winder spindle.
[4] Push it to the right.
[5] With the free end of the thread held in your hand,
depress the foot control.
Stop the machine when it has made a few turns,
and cut the thread close to the hole in the bobbin.
[6] Depress the foot control again.
When the bobbin is fully wound, stop the machine.
Return the bobbin winder spindle to its original
position by moving the spindle to the left, and cut
the thread.
[7] Push the handwheel to the left.
(original position).
NOTE: Return the bobbin winder spindle when the
machine stops.
[1]
[2]
[3]
[4]
[5]
[6]
[7]
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 12
10
Threading Bobbin Case
[1] Place the bobbin into the bobbin case.
Make sure the thread unwinds in the direction of
arrow.
[2] Pull the thread into the bobbin case slot.
[3] Draw the thread under the tension spring and into
thedelivery eye.
* Leave about 10 cm (4") of free thread.
[1]
[2]
[3]
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 13
11
Threading the Machine
Raise the takeÐup lever to its highest position by
turning the handwheel toward you.
Raise the presser foot.
Place the spool on the spool pin as shown, with the
thread coming from back of the spool.
[1] Draw the thread into the thread guide using both
hands.
[2] While holding the thread near the spool, draw the
thread down into the tension area and then around
the check spring holder.
[3] Firmly draw the thread up and through the take-up
lever from right to left.
[4] Then draw the thread down and slip it into the lower
thread guide.
[5] Draw the thread down and slip it into the needle bar
thread guide.
[6] Thread the needle eye from front to back.
NOTE: You may want to cut the end of thread with the
sharp scissors for easier needle threading.
[1]
[3]
[2]
[4]
[5]
[6]
[1]
[2]
[3]
[4]
[5]
[6]
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 14
12

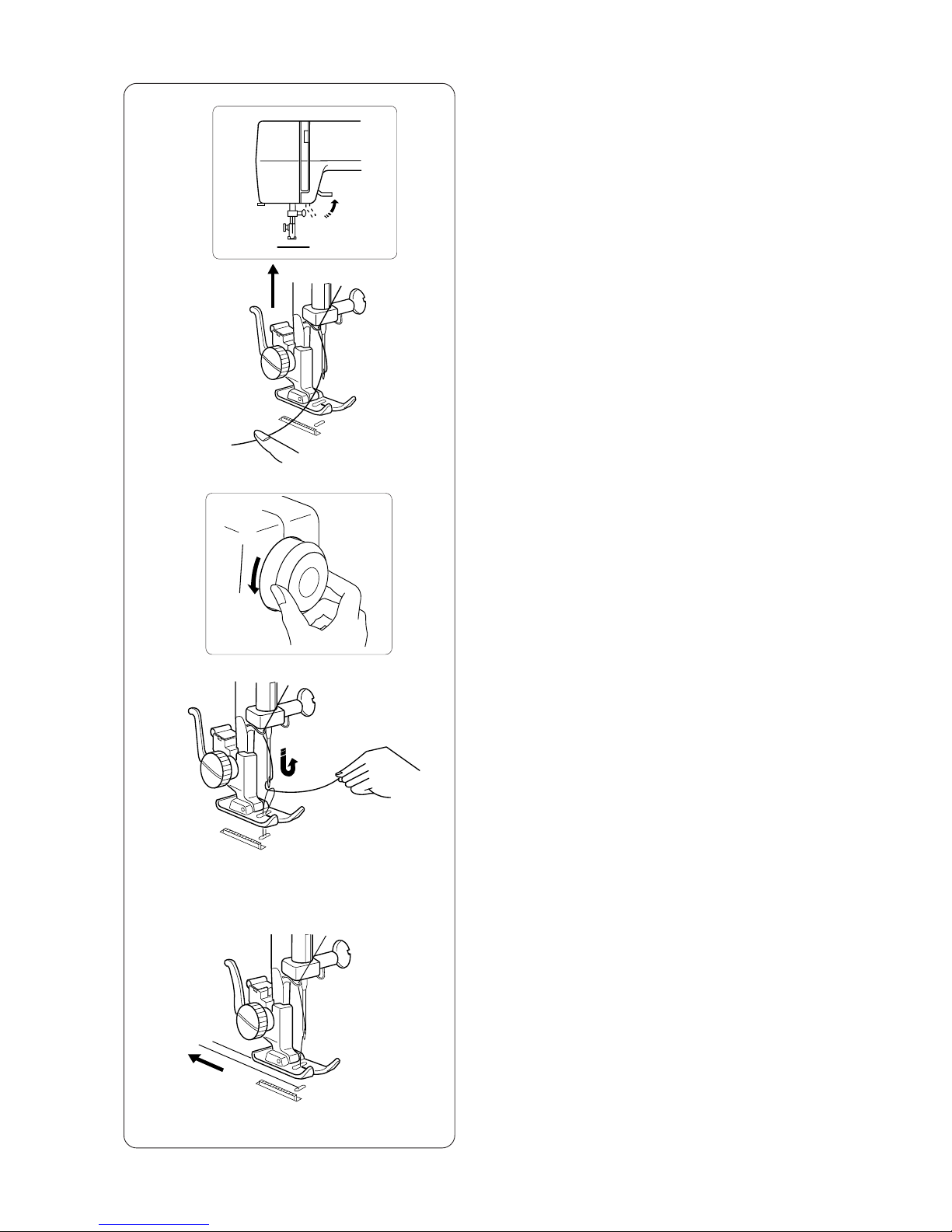

Drawing Up Bobbin Thread
[1] Raise the presser foot and hold the needle thread
lightly with your left hand.
[2] Turn the handwheel slowly toward you with your
right hand until the needle goes down and continue
turning the handwheel until the take-up lever is at
its highest position.
Lightly draw up the needle thread forming a loop of
the bobbin thread.
[4] Pull 15 cm (6") of both threads back and under the
presser foot.
[1]
[2]
[4]
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 15
13
Balancing Needle Thread Tension
The needle thread and the bobbin thread should
interlock in the center of two layers of the fabric in
straight seams.
1 Match the desired of the thread tension number
with the setting mark.
2 Loosen the needle thread tension by moving the
dial to a lower number.
3 Tighten the needle thread tension by moving the
dial to a higher number.
Thread Tension for Zigzag Sewing
To obtain better zigzag stitches, the upper tension
should be slightly weaker than in the case of straight
sewing.
The upper thread should appear slightly on the reverse
side of the fabric.
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 16
14
Pattern Selector Dial
Raise the needle above the fabric and match the
desired pattern with the setting mark by turning the
pattern selector dial.
ABH
C
D
E
F
G
HKJI
B
1
4
2
3
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 17
15
Reverse Stitch Button
As long as you keep the reverse stitch button
depressed, the machine sews backwards.
Dropping the Feed Dog
[1] Open the hook cover.
[2] To drop the feed dogs, pull down the lever and
move it in the direction of the arrow, as illustrated.
[3] To raise the feed dog, pull down the lever and
move it in the direction of the arrow, as illustrated.
* The feed dog must be up for normal sewing.
1
Hook cover
2 Lever
[1]
[2]
[3]
1
2
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 18
16
1 Stitch selector: A - E
2 Presser foot: Zigzag foot
3 Thread tension: 2-6
SECTION III BASIC SEWING
Straight Stitch Sewing
Raise the presser foot and position the fabric to a
stitching guide line on the needle plate.
Lower the needle into the fabric.
Lower the presser foot and smooth the threads toward
the back. Depress the foot control.
Gently guide the fabric along the guide line letting the
fabric feed by itself.
For fastening the ends of seams, press the reverse
stitch button and sew several reverse stitches.
Raise the presser foot and remove the fabric, drawing
the threads to the back.
The threads are cut the proper length for starting the
next seam.
To Change Sewing Direction
Stop the machine and turn the handwheel toward you
to bring the needle down into the fabric.
Raise the presser foot.
Pivot the fabric around the needle to change sewing
direction as desired. Lower the presser foot and
continue sewing.
A
C
D
E
B
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 19
17
Using the seam guides on the needle plate
The seam guides on the needle plate helps you
measure seam width.
* The numbers indicate the distance between the
center needle position and the guide line.
Numbers on the needle plate
Distance in centimeters
15 2010
1.3 1.6 1.9
6/8"5/8"4/8"3/8"
2.01.51.0 1.0
1 Guide lines
2 Cornering guide
3 Needle plate
4 Needle plate hole
5 Seam width from the center needle position
Turning square corners
To turn a square corner 1.6 cm (5/8") from the fabric
edge.
When the fabric edge facing you lines up with the
cornering guide as illustrated, stop stitching and lower
the needle by turning the handwheel toward you.
Raise the presser foot and turn the fabric to line the
edge with the 1.6 cm (5/8") seam guide.
Lower the presser foot and begin stitching in the new
direction.
2
Cornering guide
1
3
4
2
5
2
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 20
18
Zigzag Stitching
Simple zigzag stitching is widely used for overcasting
sewing on buttons, etc.
1 Stitch selector: F - I
2 Presser foot: Zigzag foot
3 Thread tension: 2-5
SECTION IV UTILITY STITCHING
Overcasting
This type of stitch is used on the seam allowance to
prevent fabric from fraying at raw edges.
1 Stitch selector: H
2 Presser foot: Zigzag foot
3 Thread tension: 1-4
1
2
3
F
G
HI
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
H
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 21
19
Multiple zigzag
1 Stitch selector: J
2 Presser foot: Zigzag foot
3 Thread tension: 1-4
This stitch is used to finish the seam allowance on
synthetics and other fabrics that tend to pucker.
It is also handy for darning and mending tears.
Place your fabric to allow a 1.5 cm (5/8") seam.
Trim the seam allowance after sewing.
J
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 22
20
Sewing Buttons
Tape the button over the placement mark.
A pin can be placed on top of the foot to from a shank.
Set the pattern selector at "F, G or H".
Align both holes of the button with the slot of the foot
and place the left hole of the button just below the
needle point.
Lower the foot and turn the pattern selector until the
needle point comes just above the right hole of the
button.
Sew about five stitches and raise the needle.
To strengthen the shank, cut the threads leaving a
20 cm (8") tail.
Bring the needle thread down through the hole in the
button and wind it around the shank.
Draw the thread to the wrong side and knot.
1 Stitch selector: F - H
2 Presser foot: Zigzag foot
3 Thread tension: 1-3
4 Feed dog: Dropped (See page 16 ).
F
G
H
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
4
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 23
21
[1] Carefully mark buttonhole length on fabric.
Place the fabric under the foot with the buttonhole
marking running toward you.
[2] Move the slider (A) toward you so that the top mark
(C) on the slider meets the start mark (B). Line up
the markings on the foot with the top mark on the
fabric. Lower the presser foot.
NOTE: The marking on the slider are engraved in
centimeters.
[3] Set the stitch selector at . Sew forward until you
reach the front marking of your buttonhole. Stop
sewing at a left stitch.
[4] Set the stitch selector at . Sew four (4) to six
(6) stitches. Stop sewing at a right stitch.
[5] Set the stitch selector at . Sew until you reach
the back marking of the buttonhole. Stop sewing at
a right stitch.
[6] Set the stitch selector at . Sew four (4) to six
(6) stitches. Stop sewing at a left stitch.
[7] Remove the fabric and open a hole with a seam
ripper/buttonhole opener.
Buttonhole
1 Stitch selector: BH
2 Presser foot: Sliding buttonhole foot
3 Thread tension: 1 - 5
(A)
(B)
(C)
BH
1
4
2
3
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
[1][2]
[3] [4]
[5]
[6]
[7]
1
424
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 24
22
1. When the buttonhole foot is raised, hook the cord
on the cord spur at the back of the buttonhole foot.
1 Spur
2. Bring the ends toward you under the buttonhole
foot until they clear the front end.
3. Hook the filler cord into the forks on the front of
foot to hole them tight.
4. Lower the needle into the garment where the
buttonhole will start and lower the foot.
5. Depress the foot control gently and sew the
buttonhole.
Each side of the buttonhole and the bartacks will be
sewn over the cord.
6. Remove the fabric from the machine and cut the
sewing threads.
7. Pull the left end of the filler cord to tighten it.
8. Thread the end through a darning needle, draw to
the other side of the fabric and cut.
Corded Buttonhole
1 Stitch selector: BH
2 Presser foot: Sliding buttonhole foot
3 Thread tension: 1 - 5
BH
1
4
2
3
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
1
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 25
23
Zipper Sewing
Pin or baste zipper tape to fabric and place it under the
foot.
Smooth the threads toward the back and lower the
foot.
To sew the left side of the zipper, guide the edge of
the zipper along the zipper teeth and stitch through the
garment and zipper tape.
Turn the fabric and sew the other side of the zipper in
the same way as you did the left side.
1 Stitch selector: B or C
2 Presser foot: Zipper foot
3 Thread tension: 3 - 6
C
B
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 26
24
Blind Stitch Hemming
[1] How to fold the fabric.
1
Wrong side of fabric
2 0.4 - 0.7 cm (5/32"- 1/4")
[2] Lower the presser foot, then loosen the foot holder
screw to place the hem guide between the screw
and the shank of foot holder.
Tighten the screw making sure the wall of hem
guide is placed in the middle of the toes of the
presser foot.
[3] Raise the presser foot and place the fabric under
the foot so that the soft fold rests against the wall
of hem guide.
Lower the foot, then stitch slowly for better control
so that the zigzag stitches fall on the hem
allowance and pierce the soft fold/ While sewing,
make sure the fold runs along the wall of hem
guide.
[4] Spread the fabric flat the right side facing up.
1 Stitch selector: K
2 Presser foot: Zigzag foot
Hem guide
3 Thread tension: 2 - 4
[1]
[2]
[3]
[4]
K
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
1
2
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 27
25
[1] Make a double 0.25 cm fold approximately 8 cm in
qlength.
1
0.25 cm
2 8 cm
[2] Lower the needle into the fabric at the point where
sewing is to begin, then lower the hemmer foot.
Sew 3 or 4 stitches while holding the needle and
bobbin thread.
[3] Lower the needle into the fabric and lift the
hemmer foot.
Insert the folded portion of the fabric into the curl
of the hemmer foot.
[4] Lower the hemmer foot, then sew by lifting up the
edge of the fabric to keep it feeding smoothly and
evenly.
[5] Trim about 0.7 cm from corners as illustrated, to
reduce bulk.
3
0.7 cm
Rolled Hem
1 Stitch selector: B or C
2 Presser foot: Hemmer foot
3 Thread tension: 2 - 6
C
B
I
A
B
C
D
E
F
G
H
J
K
1
4
2
3
1
2
3
1
2
3
3
[1]
[2]
[3]
[4]
[5]
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 28
26
Dismantling and Assembling Hook Race
Note: Turn off the power switch or unplug the
machine.
To dismantle hook race:
Raise the needle to its highest position and open the hook
cover.
Open the hinged latch of bobbin case and take it out of
the machine.
Open the hook race ring holders and remove the hook
race ring.
Remove the hook.
* Clean the hook race with a brush and a soft dry
cloth.
1 Bobbin case
2 Hook race ring holder
3 Hook race ring
4 Hook
5 Hook race
To assemble hook race:
Hold the hook by the center pin and fit it carefully back
into the hook race, forming a perfect circle with the shuttle
driver.
Attach the hook race ring making sure the bottom pin
fits into the notch.
Lock the hook race ring by turning the holders back into
position. Insert the bobbin case.
1 Pin
2 Notch
SECTION V CARE OF YOUR MACHINE
2
1
5
4
3
7
6
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 29
27
Cleaning the Feed Dogs
Remove the needle and the presser foot.
Remove the needle plate set screw and remove
the needle plate.
With a brush, clean out dust and lint clogging the feed
dog teeth.
Reset the needle plate.
Note: Turn off the power switch or unplug the
machine before cleaning the feed dog.
Oiling the Machine
Note: Turn off the power switch or unplug the
machine.
Oil the points as shown at least once a year.
Use good quality sewing machine oil.
One or two drops of oil is sufficient.
Remove excess oil, otherwise it may stain fabric.
If machine has not been used for an extended time,
oil it before sewing.
Oil behind the face plate
Remove the cap, screw and face plate.
Oil the point indicated in the illustration.
1 Cap
2 Screw
3 Face plate
Oiling the shuttle hook area
Open the hook cover by pulling down the embossed
part on the left side of the cover.
Oil the point indicated in the illustration.
4
Hook cover
1
2
3
4
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Page 30
28
See Page 12
See Page 14
See Page 8
See Page 8
See Page 17
See Page 8
See Page 11
Clean the bobbin case.
Exchange bobbin.
See Page 8
See Page 8
See Page 8
See Page 14
See Page 17
See Page 8
See Page 17
See Page 8
See Page 8
See Page 8
See Page 8
See Page 12
See Page 14
See Page 12
See Page 8
Make the
stitches denser.
See Page 14
See Page 8
See Page 28
Make the
stitches coarser.
See Page 6
See Page 27
See Page 10
See page 27
See Page 28
1. The needle thread is not threaded properly.
2. The needle thread tension is too tight.
3. The needle is bent or blunt.
4. The needle is incorrectly inserted.
5. The fabric is not being drawn to the back when sewing is finished.
6. The thread is either too heavy or too fine for the needle.
1. The bobbin thread is not threaded properly in the bobbin case.
2. Lint has collected in the bobbin case.
3. The bobbin is damaged and doesn't turn smoothly.
1. The needle is incorrectly inserted.
2. The needle is bent or blunt.
3. The needle clamp screw is loose.
4. The tension of the needle thread is too tight.
5. The fabric is not drawn to the back when sewing is finished.
6. The needle is too fine for the fabric being sewn.
7. The pattern selector dial had been turned while the needle was
in the material.
1. The needle is incorrectly inserted.
2. The needle is bent or blunt.
3. The needle and/or threads are not suitable for the work being
sewn.
4. A BLUE TIPPED needle is not being used for sewing stretch, very
fine fabrics and synthetics.
5. The needle thread is not threaded properly.
1. The needle thread tension is too tight.
2. The machine is not threaded correctly.
3. The needle is too heavy for the fabric being sewn.
4. The stitches are too coarse for the fabric being new line sewn.
* When sewing extremely light weight materials, place a sheet
of paper underneath the fabric.
1. The needle thread tension is too loose.
2. The needle is either too heavy or too fine for the thread.
1. The feed dog is packed with lint.
2. The stitches are too fine.
1. The machine is not plugged in.
2. Thread is caught in the hook race.
3. Handwheel has been disengaged for bobbin winding.
1. Threads have been caught in hook mechanism.
2. The feed dog is packed with lint.
Condition
The needle thread
breaks.
The bobbin thread
breaks.
The needle breaks.
Skipped stitches.
Seam puckering.
Stitches from loops
below the work
The cloth is not
feeding smoothly.
The machine does not
work.
The machine does not
run smoothly and is
noisy.
Reference
Cause
Troubleshooting
Janome us2004 Instruction Manual
www.aaasewing.com
US2004 Owners Manual/ User Guide
Loading...
