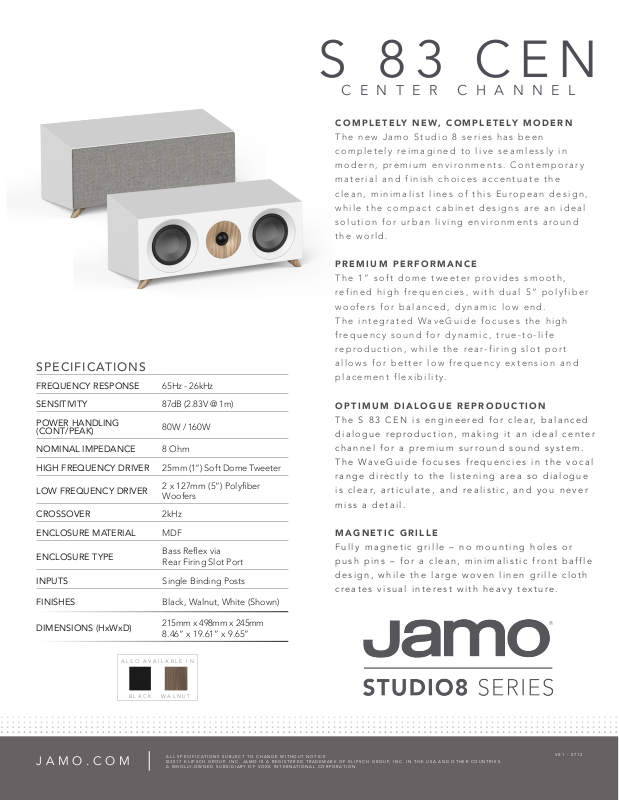

Jamo S 83 CEN User Manual
SPECIFICATIONS
FREQUENCY RESPONSE 65Hz - 26kHz
S 83 CEN
CENTER CHANNEL
COMPLETELY NEW, COMPLETELY MODERN
The new Jamo Studio 8 series has been
completely reimagined to live seamlessly in
modern, premium environments. Contemporary
material and finish choices accentuate the
clean, minimalist lines of this European design,
while the compact cabinet designs are an ideal
solution for urban living environments around
the world.
PREMIUM PERFORMANCE
The 1” soft dome tweeter provides smooth,
refined high frequencies, with dual 5” polyfiber
woofers for balanced, dynamic low end.
The integrated WaveGuide focuses the high
frequency sound for dynamic, true-to-life
reproduction, while the rear-firing slot port
allows for better low frequency extension and
placement flexibility.
SENSITIVITY 87dB (2.83V @ 1m)
POWER HANDLING
(CONT/PEAK)
NOMINAL IMPEDANCE 8 Ohm
HIGH FREQUENCY DRIVER 25mm (1”) Soft Dome Tweeter
LOW FREQUENCY DRIVER
CROSSOVER 2kHz
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE
INPUTS Single Binding Posts
FINISHES Black, Walnut, White (Shown)
DIMENSIONS (HxWxD)
ALSO AVAILABLE IN
BLACK WALNUT
80W / 160W
2 x 127mm (5”) Polyber
Woofers
Bass Reex via
Rear Firing Slot Port
215mm x 498mm x 245mm
8.46” x 19.61” x 9.65”
OPTIMUM DIALOGUE REPRODUCTION
The S 83 CEN is engineered for clear, balanced
dialogue reproduction, making it an ideal center
channel for a premium surround sound system.
The WaveGuide focuses frequencies in the vocal
range directly to the listening area so dialogue
is clear, articulate, and realistic, and you never
miss a detail.
MAGNETIC GRILLE
Fully magnetic grille – no mounting holes or
push pins – for a clean, minimalistic front baffle
design, while the large woven linen grille cloth
creates visual interest with heavy texture.
JAMO.COM
ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
©2017 KLIPSCH GROUP, INC. JAMO IS A REGISTERED TRADEMARK OF KLIPSCH GROUP, INC. IN THE USA AND OTHER COUNTRIES.
A WHOLLY-OWNED SUBSIDIARY OF VOXX INTERNATIONAL CORPORATION.
V01 - 0712
