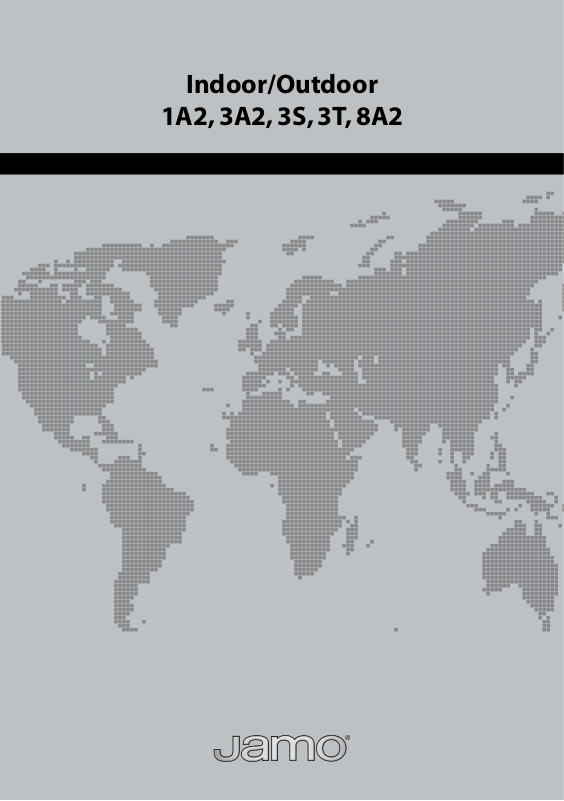

Indoor/Outdoor 1A2, 3A2, 3S, 3T, 8A2


Congratulations on your purchase of

Jamo Indoor/Outdoor speakers

Package content



Speaker (2)

Port plug “i” (4)

Allen wrench (1)

Assembled bracket (2)

Thumb screw “j” (4)

Manual (1)

Screw plug “g” (8)

Covers “k” (4)



The brackets comes pre-assembled. If disassembling the bracket for paint-ing, re-assemble it as follow: Place the curved bracket (a) between the wall bracket (b) and wall bracket cover

(c) as shown in fig. 1. Insert two 1” allen bolts (d) through wall bracket into wall bracket cover and tighten with the supplied allen wrench. Insert two ½” allen bolts (e) into each side of wall bracket and tighten towards curved bracket.

Fig. 1











































































































































Fig. 1

Mounting of bracket

The bracket can be mounted for horizontal or vertical placement of the speaker. Mount the bracket with four screws (not included) appropriate for the surface the bracket is mounted to (wood, brick, concrete or other). Take into account the weight of the speaker (specifications on back). A hole (f) in the middle of the bracket allows for running the speaker wire through the bracket if so desired. Cover the screws with four screw plugs (g) fig. 2.

Mounting of port plugs

If the front of the speaker is exposed to rain directly entering the bass reflex ports (under the grill), the ports should be closed to avoid filling the speaker with water. High moisture is not a problem. Remove the grill (h) from the speaker and insert two port plugs (i) into the bass ports. Re-install the grill. The speaker will reproduce less bass with the ports closed.


Connecting speaker wires

Loosen speaker terminals by turning counter clockwise. Strip ½”/12 mm in-sulation off each wire. Twist strands on each wire to form “solid” wire.

Insert one wire into each terminal and tighten terminal by turning clockwise. Make sure positive (+) is to red terminal and negative (-) to black terminal for correct phasing.

Adjustment of I/O 3T

This model is for 70V or 100V line installation. This is mainly used in com-mercial installations with many speakers and requires an amplifier with matching transformer outputs. A switch located next to the terminals al-lows for adjustments of the level of the speaker in 10W, 5W, 2.5W and 1.25W settings. Adjust the switch to the desired level on each speaker.

Mounting of speaker

Place the speaker inside the curved bracket as shown in fig. 2 and insert thumb screws (j) through each end of the curved bracket into the speaker.

Adjust the speaker to the desired angle and tighten the thumb screws. In-stall the covers (k) over the thumb screws. The curved bracket can be ad-justed in the wall bracket by loosening the two ½” allen bolts (e) and re-tighten them after adjustment.

Fig. 2









































































































































































































































































































































































The speaker and bracket can be painted. Spray painting is recommended. Paint all parts before assembling. Remove the grill from the speaker before painting and cover the front baffle (l) of the speaker. Apply many thin coats instead of a few thick coats to avoid the paint running or clogging the grill holes. Re-install grill after painting.
