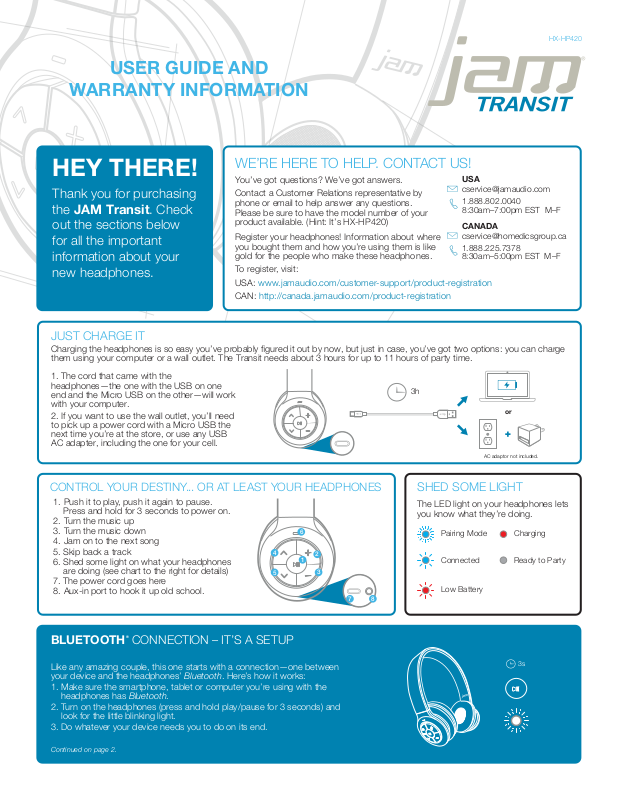

Jam HX-HP420 User Manual

70

55

R17

USER GUIDE AND

WARRANTY INFORMATION

HX-HP420

HEY THERE!

Thank you for purchasing
the JAM Transit. Check
out the sections below
for all the important
information about your
new headphones.

You’ve got questions? We’ve got answers.

Contact a Customer Relations representative by
phone or email to help answer any questions.
Please be sure to have the model number of your
product available. (Hint: It’s HX-HP420)

Register your headphones! Information about where
you bought them and how you’re using them is like
gold for the people who make these headphones.

To register, visit:

USA: www.jamaudio.com/customer-support/product-registration

CAN: http://canada.jamaudio.com/product-registration

JUST CHARGE IT

Charging the headphones is so easy you’ve probably figured it out by now, but just in case, you’ve got two options: you can charge
them using your computer or a wall outlet. The Transit needs about 3 hours for up to 11 hours of party time.

1. The cord that came with the
headphones—the one with the USB on one
end and the Micro USB on the other—will work
with your computer.

2. If you want to use the wall outlet, you’ll need
to pick up a power cord with a Micro USB the
next time you’re at the store, or use any USB
AC adapter, including the one for your cell.

3h

USA

[e-mail]

1.888.802.0040
8:30am–7:00pm EST M–F

CANADA

[e-mail]

1.888.225.7378
8:30am–5:00pm EST M–F

or

AC adaptor not included.

WE’RE HERE TO HELP. CONTACT US!

CONTROL YOUR DESTINY... OR AT LEAST YOUR HEADPHONES SHED SOME LIGHT

1. Push it to play, push it again to pause.
Press and hold for 3 seconds to power on.

2. Turn the music up

3. Turn the music down

4. Jam on to the next song

5. Skip back a track

6. Shed some light on what your headphones
are doing (see chart to the right for details)

7. The power cord goes here

8. Aux-in port to hook it up old school.

BLUETOOTH

Like any amazing couple, this one starts with a connection—one between
your device and the headphones’ Bluetooth. Here’s how it works:

1. Make sure the smartphone, tablet or computer you’re using with the
headphones has Bluetooth.

2. Turn on the headphones (press and hold play/pause for 3 seconds) and
look for the little blinking light.

3. Do whatever your device needs you to do on its end.

®

CONNECTION – IT’S A SETUP

6

4

5

2

1

3

Continued on page 2.

8

7

The LED light on your headphones lets
you know what they’re doing.

Pairing Mode

Connected

Low Battery

Charging

Ready to Party

3s

BLUETOOTH® CONNECTION, CONTINUED

4. Look for Jam Transit Headphones in your device’s Bluetooth list or
click YES.

5. Now hit PLAY on your headphones and crank it up—or down if
you’re lame.

The device and Bluetooth will find each other every time, just as long
as the headphones are set to Bluetooth and your device’s Bluetooth
is, you know—on.

If you’re connecting to a computer, you may have some extra steps
on that end. You’ll have to get that information from the computer
company.

Depending on your device you may be prompted to enter a pairing
code. If prompted, enter “0000” as the code.

Note: If you turn on your Transit Headphones but haven’t started the
party yet, they will automatically power off after 2 minutes of
unpaired inactivity.

Bluetooth

Devices

Jam Transit Headphones

®

on

>

2m

HOOKING UP OLD SCHOOL AUDIO, JACK

1. Plug one end of the cord into the headphones
and the other into the headphone jack on
your device.

2. Turn on the headphones.

3. Hit PLAY on your device and crank it up - or

COMING CLEAN

A soft, dry towel is all you need to
clean off your headphones. Using
water, harsh cleaners, or anything else
only starts messing with the mechanics
inside. So, yeah, don’t do it.

down if you’re lame.

You’ll have to play and pause the music from

your device, not your headphones. No
problem. You’re there anyway, right?

LOOK MA, NO HANDS!

When friends call to inturrupt your party of one—and you know they will—answer the phone without disconnecting from your JAM
Transit. Yes, that’s right. Your headphones have hands-free calling, too. How amazing is that? Here’s how it works:

1. Make sure your phone and headphones are connected through Bluetooth.

2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Transit.

3. If you’d rather not talk, hold down the PLAY/PAUSE button on your Transit for 1.5 seconds to ignore the call.

THE COOLEST PART: The Transit knows when a call is coming in and pauses the music before ringing. When you hang up, the music
starts where it left off—and so does the party. If it’s you making the call, just start dialing from your phone, and the Transit automatical­ly does its hands-free thing. Isn’t it refreshing to know your headphones totally get you?

Check out the chart below for a complete guide on handling calls with your Transit.

Situation

st

1

Incoming call

On call

nd

2

Incoming call

Both calls active

Short Press Play/Pause Button Long Press Play/Pause Button

Pick-Up call

End call

Call 1 on Hold, Pick-Up call 2

Move call from headphones to device

Reject call

Reject call 2

Hang up call 1, switch to call 2 Switch between call 1 and call 2

1 YEAR LIMITED WARRANTY

For detailed Warranty Instructions and Information visit:
USA: www.jamaudio.com/customer-support/warranty-1yr
CAN: http://canada.jamaudio.com/warranty-1yr

To obtain warranty service on your Jam product, contact a
Consumer Relations Representative by telephone or email for
assistance (You can find their contact info on page 1). Please
make sure to have the model number of the product available.
