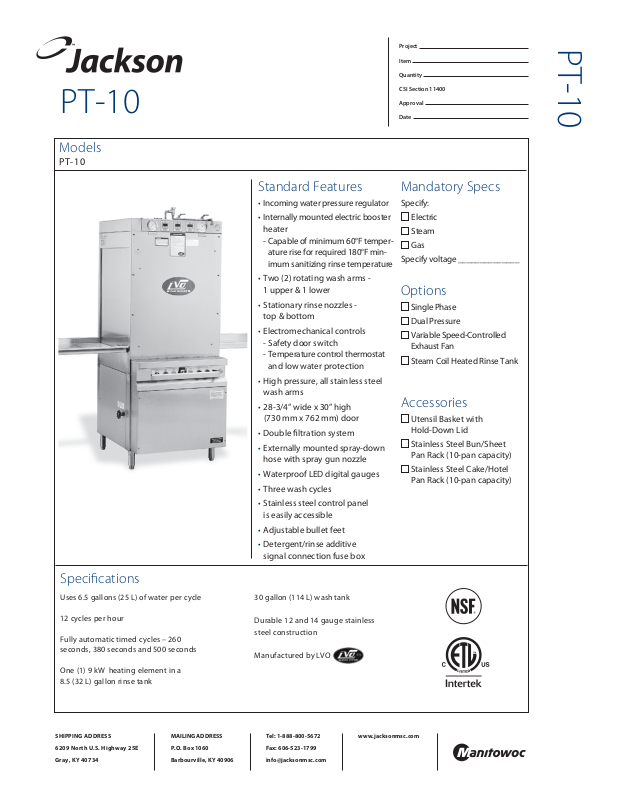

Jackson PT-10 Specifications
PT-10
Models
PT-10
Project
Item
Quantity
CSI Section 11400
Approval
Date
Standard Features Mandatory Specs
• Incoming water pressure regulator
• Internally mounted electric booster
heater
- Capable of minimum 60°F temper ature rise for required 180°F min imum sanitizing rinse temperature
• Two (2) rotating wash arms -
1 upper & 1 lower
• Stationary rinse nozzles -
top & bottom
• Electromechanical controls
- Safety door switch
- Temperature control thermostat
and low water protection
• High pressure, all stainless steel
wash arms
• 28-3/4” wide x 30” high
(730 mm x 762 mm) door
• Double ltration system
• Externally mounted spray-down
hose with spray gun nozzle
• Waterproof LED digital gauges
• Three wash cycles
• Stainless steel control panel
is easily accessible
• Adjustable bullet feet
• Detergent/rinse additive
signal connection fuse box
Specify:
Electric
Steam
Gas
Specify voltage ______________
Options
Single Phase
Dual Pressure
Variable Speed-Controlled
Exhaust Fan
Steam Coil Heated Rinse Tank
Accessories
Utensil Basket with
Hold-Down Lid
Stainless Steel Bun/Sheet
Pan Rack (10-pan capacity)
Stainless Steel Cake/Hotel
Pan Rack (10-pan capacity)
PT-10
Specifications
Uses 6.5 gallons (25 L) of water per cycle
12 cycles per hour
Fully automatic timed cycles – 260
seconds, 380 seconds and 500 seconds
One (1) 9 kW heating element in a
8.5 (32 L) gallon rinse tank
SHIP PING AD DRESS
6209 North U.S. Hi ghway 25E
Gray , KY 40 734
MAILING ADDR ESS
P.O. Box 106 0
Barbourville , KY 40906
30 gallon (114 L) wash tank
Durable 12 and 14 gauge stainless
steel construction
Manufactured by LVO
Tel: 1-888-8 00-5672
Fax: 606-523 -1799
info@jackson msc.com
www.jacksonm sc.com
PT-10
1/2 WATER
CONNECTION
77-1/2"
MODEL NO.
PT-10
Electric
PT-10
Gas
SIDE VIEW
43"
DOOR OPENING
WIDTH: 28-1/2"
HEIGHT: 30"
HEIGHT WITH DOORS
OPEN: 103-1/2"
1-1/2" DRAIN
VALVE
7.5HP
PUMP
MACHINE DIMENSIONS
82”
HEIGHT WITH
DOOR OPEN
103-1/2”
(2629 mm)
106”
(2692 mm)
(838 mm)
(838 mm)
HEIGHT WIDTH DEPTH WEIGHT CLASS CUBE HEIGHT WIDTH DEPTH
79-1/2”
(2019 mm)
(2083 mm)
33”
33”
REAR VIEW
RINSE
TANK
16-1/2"
43”
(1092 mm)
45”
(1143 mm)
1/2"
WATER
SUPPLY
HEATING
ELEMENT
7.5 HP
PUMP
1-1/2 DRAIN
DRAIN
HEIGHT
(216 mm)
(216 mm)
79-1/2"
8-1/2"
SHIPPING INFORMATION
8-1/2”
8-1/2”
950 lbs
(431 kg)
950 lbs
(431 kg)
FRONT VIEW
155
TEMP
PSI
LVO
PAN WASHER
ELECTRIC
HOOK UP
ELECTRIC
ENTRANCE
92.5
92.5
DIMENSION REQUIREMENTS GAS REQUIREMENTS
Wall Clearance (minimum) 16” (406 mm)
Wall Clearance (control panel side)
Wall Clearance (back)
Height Requirement (with door open)
Height Requirement (with door open) - Gas
Inside Chamber Clearance
36” (914 mm)
12” (305 mm)
103-1/2” (2629 mm)
106” (2692 mm)
29-1/2” (749 mm)
OPERATING CAPACITY
Cycles Per Hour
OPERATING CYCLE (seconds)
Light
Medium
Heavy
Light
Wash
180
300
420
Medium
12
8
Rinse Dwell Total Cycle
60
60
60
Heavy
6
20
20
20
OPERATING TEMPERATURES
Wash (minimum) 150° F (66° C)
Rinse (minimum)
180° F (82° C)
ELECTRICAL RATING
FULL LOAD AMPS
Electric
Steam Injectors
Steam Coils
Gas
208V
71.0
46.0
22.0
46.0
230V
65.2
42.6
20.0
42.6
460V
33.6
22.3
11.0
22.3
Gas Connection (NPT)
Natural Gas (inches-water column)
Propane (inches-water column)
3” stainless steel chimney on back of machine
STEAM REQUIREMENTS
Steam Connection (NPT)
Injectors (lbs per hour)
Coils (lbs per hour)
260
WATER REQUIREMENTS
380
500
Inlet Temperature (minimum)
Gallons Per Hour
Gallons Per Cycle
Waterline Size IPS (minimum)
Drainline Size IPS (minimum)
Flow Pressure (PSI)
Wash Tank Capacity
Rinse Tank Capacity
WASH PUMP MOTOR
Wash Pump Motor
HOW TO SPECIFY:
180
TEMP
205
TEMP
PSI
GND
PT-10
147.07
cu. ft.
147.07
cu. ft.
12"
6” STEAM
VENT
PRESSURE
REGULATOR
87”
(2210 mm)
87”
(2210 mm)
Minimum
Inlet
11.0”
14"
9-1/2"
FILL VALVE
(1168 mm)
(1168 mm)
Manifold
TOP VIEW
1/2" WATER
SUPPLY
33"
46”
46”
Main
3-1/2”6.0”
RINSE
SOLENOID
63-1/2”
(1613 mm)
63-1/2”
(1613 mm)
1/2”
BTUs
36,000
36,0006.0”
1/2”
15
33
140° F (60° C)
78 gal (295 L)
6.5 gal (25 L)
1/2”
1-1/2”
15-25
30 gal (114 L)
8.5 gal (32 L)
7.5 hp
45"
SHIP PING AD DRESS
6209 North U.S. Hi ghway 25E
Gray , KY 40 734
MAILING ADDR ESS
P.O. Box 106 0
Barbourville , KY 40906
Tel: 1-888-8 00-5672
Fax: 606-523 -1799
info@jackson msc.com
www.jacksonm sc.com
07610-002-97 -98 (06/10)
