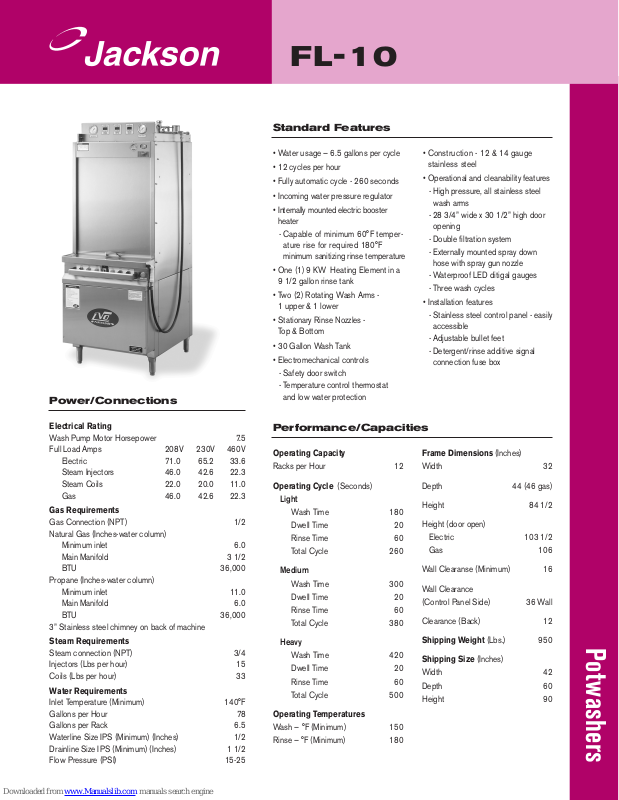

Jackson Potwashers FL-10 Specification Sheet

Power/Connections

FL-10

Standard Features

Water usage — 6.5 gallons per cycle

•

• 12 cycles per hour
Fully automatic cycle - 260 seconds

•

• Incoming water pressure regulator

• Internally mounted electric booster
heater

- Capable of minimum 60°F temper­ature rise for required 180°F
minimum sanitizing rinse temperature

• One (1) 9 KW Heating Element in a
9 1/2 gallon rinse tank

• Two (2) Rotating Wash Arms ­1 upper & 1 lower

• Stationary Rinse Nozzles ­Top & Bottom

• 30 Gallon Wash Tank

• Electromechanical controls

- Safety door switch

- Temperature control thermostat
and low water protection

Construction - 12 & 14 gauge

•
stainless steel

• Operational and cleanability features

- High pressure, all stainless steel
wash arms

- 28 3/4” wide x 30 1/2” high door
opening

- Double filtration system

- Externally mounted spray down
hose with spray gun nozzle

- Waterproof LED ditigal gauges

- Three wash cycles

• Installation features

- Stainless steel control panel - easily
accessible

- Adjustable bullet feet

- Detergent/rinse additive signal
connection fuse box

Electrical Rating

Wash Pump Motor Horsepower 7.5
Full Load Amps 208V 230V 460V

Electric 71.0 65.2 33.6
Steam Injectors 46.0 42.6 22.3
Steam Coils 22.0 20.0 11.0
Gas 46.0 42.6 22.3

Gas Requirements

Gas Connection (N
Natural Gas (Inc

Minimum inlet 6.0
Main Manifold 3 1/2
BTU 36,000

Propane (Inc

Minimum inlet 11.0
Main Manifold 6.0
BTU 36,000

3” Stainless steel chimney on back of machine

Steam Requirements

Steam connection (NPT) 3/4
Injectors (Lbs per hour)
Coils (Lbs per hour) 33

Water Requirements

emperature (Minimum) 140°F

Inlet T
Gallons per Hour 78
Gallons per Rack 6.5
Waterline Size I
Drainline Size IPS (Minimum) (Inches) 1 1/2
Flow Pressure (PSI) 15-25

PT) 1/2

hes-water column)

hes-water column)

S (Minimum) (Inc

P

hes) 1/2

15

Performance/Capacities

Operating Capacity

Racks per Hour 12

Operating Cycle (Seconds)

Light

Wash Time 180
Dwell Time 20
Rinse Time 60

otal Cycle 260

T

Medium

Wash Time 300

ime 20

Dwell T
Rinse Time 60
Total Cycle 380

Heavy

ash Time 420

W

ime

Dwell T

ime

Rinse T
Total Cycle 500

Operating T

ash —

W
Rinse — °F (Minimum) 180

emperatures

F (Minimum) 150

°

20
6

0

Frame Dimensions (Inches)
Width 32

Depth 44 (46 gas)

Height 84 1/2

Height (door open)

Electric 103 1/2
Gas 106

all Clearanse (Minimum) 16

W

Wall Clearance
(Control Panel Side)

Clearance (Back) 12

Shipping Weight (Lbs.) 950

Shipping Size (Inc

idth

W
Depth 60
Height

hes)

36 Wall

42

9

Potwashers

0

FL-10

Potwashers

Short Form Specifications

Item No. _______________
Unit shall be LVO/Jackson* FL-10 Front Load door style hot water sanitizing pot &

pan washer. Electrical characteristics to be ____ volts / 60 cycles / ___ phase oper­ation with a 260 second automatic cycle using 78 gallons of 180° F. final rinse water

. Stainless steel construction to include hood, frame, wash tank, and

per hour
adjustable feet. A 7.5 HP motor mounted to a pump with a impeller shall be mounted
to the machine frame. As standard the unit shall include:

• Single point connections for all utilities

• Three Wash times cycle switch

• Side mounted control box with electro-mechanical

• Built-in water pressure regulator
components.

Unit shall be NSF Certified and UL Listed.
*Units shall be manufactured by LVO Manufacturing Inc.

.jacksonmsc.com

www

1-888-800-5672

Note:

Height with door open —103-1/2"
Door open width — 28-3/4"
Height — 30"

8-00B 8/05

610-002-9

7

All specifications subject to change without notice.
