Page 1
JP-24/F, JP-24B/BF
HOT WATER SANITIZING
UNDERCOUNTER UNIT
INSTALLATION & OPERATIONINSTALLATION & OPERATION
MANUALMANUAL
Visit Jackson on the Internet at:
www.jacksonmsc.com
July 24, 2001 P/N 7610-002-49-78 (Rev. A)
Page 2
MANUFACTURERS WARRANTY
ONE YEAR LIMITED PARTS & LABOR WARRANTY
ALL NEW JACKSON DISHWASHERS ARE WARRANTED TO THE ORIGINAL PURCHASER TO BE FREE FROM
DEFECTS IN MATERIAL OR WORKMANSHIP, UNDER NORMAL USE AND OPERATION FOR A PERIOD OF (1) ONE
YEAR FROM THE DATE OF PURCHASE, BUT IN NO EVENT TO EXCEED (18) EIGHTEEN MONTHS FROM THE DATE
OF SHIPMENT FROM THE FACTORY.
Jackson MSC agrees under this warranty to repair or replace , at its discretion, any original part which fails under normal use due to faulty
material or workmanship during the warranty period, providing the equipment has been unaltered, and has been properly installed, maintained and operated in accordance with the applicable factory instruction manual furnished with the machine and the failure is reported to
the authorized service agency within the warranty period. This includes the use of factory specified genuine replacement parts, purchased
directly from a Jackson authorized parts distributor or service agency. Use of generic replacement parts may create a hazard and void warranty certification.
The labor to repair or replace such failed part will be paid by Jackson MSC, within the continental United States, Hawaii and Canada, dur ing the warranty period provided a Jackson MSC authorized service agency, or those having prior authorization from the factory, performs
the service. Any repair work by persons other than a Jackson MSC authorized service agency is the sole responsibility of the customer.
Labor coverage is limited to regular hourly rates, overtime premiums and emergency service charges will not be paid by Jackson MSC.
Accessory components not installed by the factory carry a (1) one year parts warranty only. Accessory components such as table limit
switches, pressure regulators, pre rinse units, etc. that are shipped with the unit and installed at the site are included. Labor to repair or
replace these components is not covered by Jackson MSC.
This warranty is void if failure is a direct result from shipping, handling, fire, water, accident, misuse, acts of god, attempted repair by unauthorized persons, improper installation, if serial number has been removed or altered, or if unit is used for purpose other than it was originally intended.
TRAVEL LIMITATIONS
Jackson MSC limits warranty travel time to (2) two hours and mileage to (100) one hundred miles. Jackson MSC will not pay for travel time
and mileage that exceeds this, or any fees such as those for air or boat travel without prior authorization.
WARRANTY REGISTRATION CARD
The warranty registration card supplied with the machine must be returned to Jackson MSC within 30 days to validate the warranty.
REPLACEMENT PARTS WARRANTY
Jackson replacement parts are warranted for a period of 90 days from the date of installation or 180 days from the date of shipment from
the factory, which ever occurs first.
PRODUCT CHANGES AND UPDATES
Jackson MSC reserves the right to make changes in design and specification of any equipment as engineering or necessity requires.
THIS IS THE ENTIRE AND ONLY WARRANTY OF JACKSON MSC. JACKSON’S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING
NEGLIGENCE, WITH RESPECT TO THE GOODS OR SERVICES COVERED HEREUNDER, SHALL IN NO CASE EXCEED THE PRICE
OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.
THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING FOR FITNESS OR MERCHANTABILITY, THAT ARE NOT SET
FORTH HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF. UNDER NO CIRCUMSTANCES WILL JACKSON MSC BE
LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR CONSEQUENTIAL, OR FOR THE DAMAGES IN THE NATURE OF PENALTIES,
ARISING OUT OF THE USE OR INABILITY TO USE ANY OF ITS PRODUCTS.
ITEMS NOT COVERED
This warranty does not cover cleaning or deliming of the unit or any component such as, but not limited to, wash arms, rinse arms or strain-
ers at anytime. Nor does it cover adjustments such as, but not limited to timer cams, thermostats or doors, beyond 30 days from the date
of installation. In addition, the warranty will only cover the replacement of wear items such as curtains, drain balls, door guides or gaskets
during the first 30 days after installation. Also, not covered are conditions caused by the use of incorrect (non-Commercial) grade deter gents, incorrect water temperature or pressure, or hard water conditions.
Page 3
TABLE OF CONTENTS
GENERAL PAGE
Specifications (JP-24/F)................................................................................ 1
Specifications (JP-24B/F).............................................................................. 2
INSTALLATION
Unpacking..................................................................................................... 3
Plumbing Connections.................................................................................. 3
Electrical Connections.................................................................................. 3
Detergent Control.......................................................................................... 4
OPERATIONAL START-UP & CHECK
Preparation................................................................................................... 5
Power Up...................................................................................................... 5
Initial Fill........................................................................................................ 5
DAILY OPERATION
Preparing the Dishes.................................................................................... 5
Daily Machine Preparation............................................................................ 5
Washing a Rack of Ware.............................................................................. 5
Shut Down and Cleaning.............................................................................. 5
TROUBLESHOOTING................................................................................................ 6

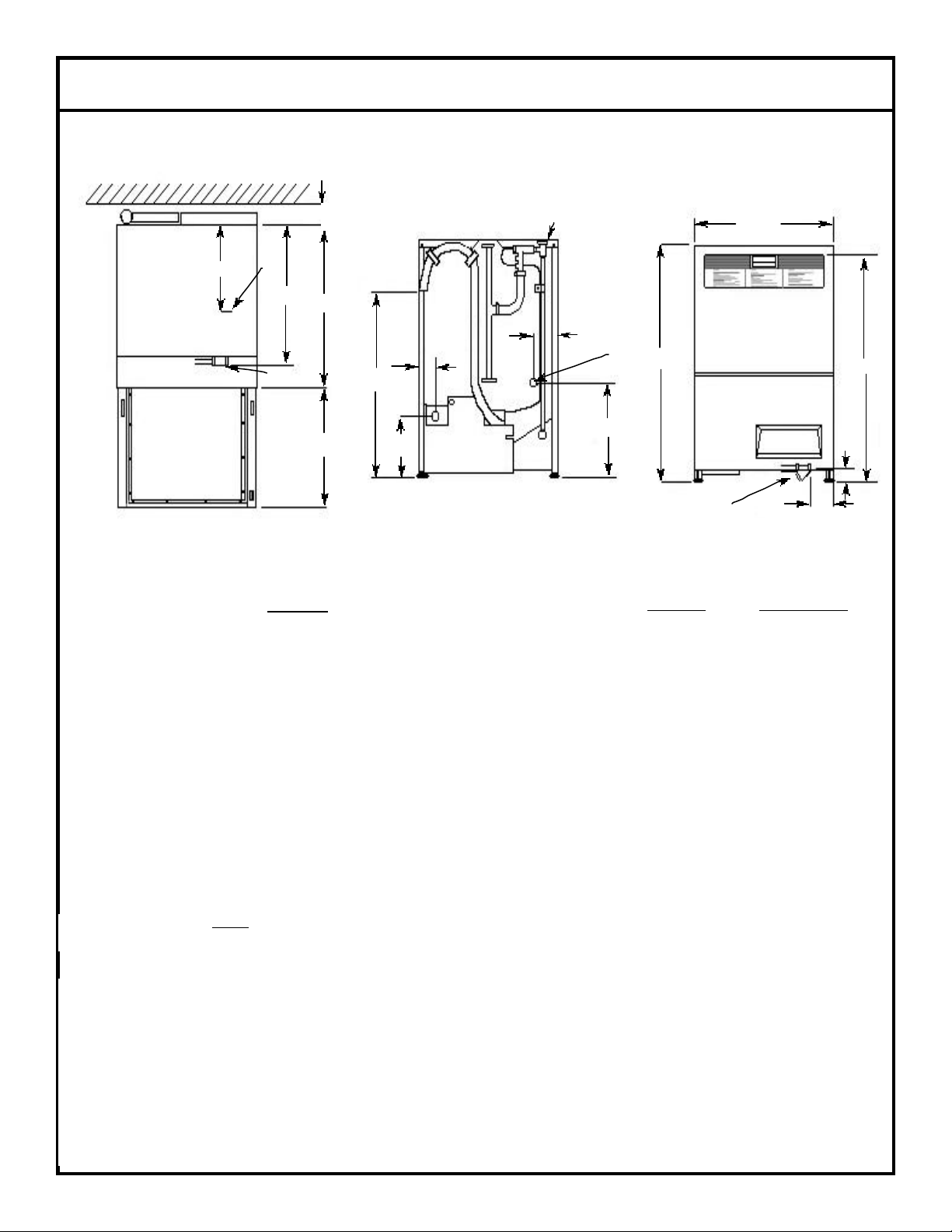

DIMENSIONS............................................................................................................. 7
JACKSON MAINTENANCE AND REPAIR CENTERS ............................................. 8

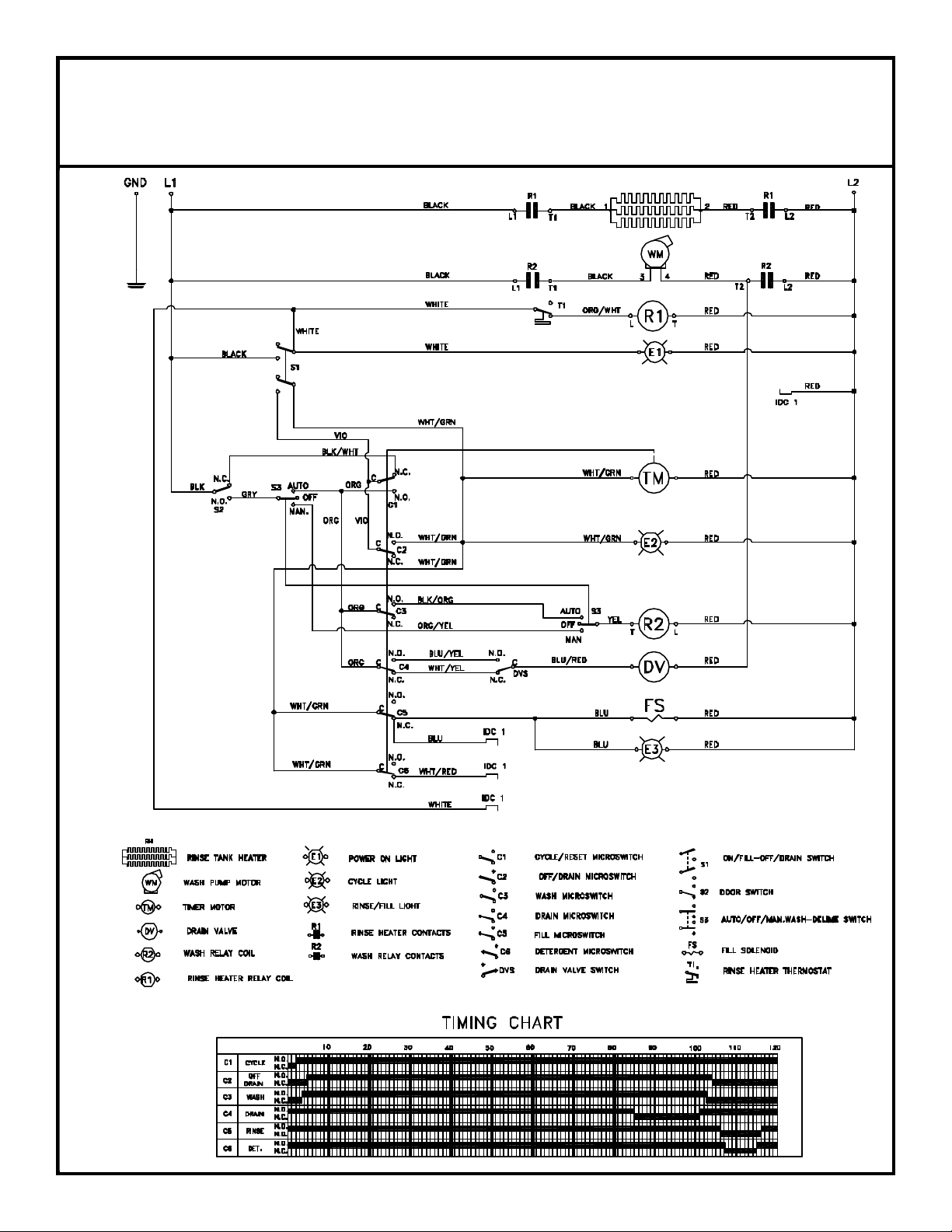

SCHEMATIC
JP-24/F 208-230 volt, 50-60 hertz, single phase......................................... 14
JP-24B/BF 208-230 volt, 50-60 hertz, single phase.................................... 15
IMPORTANT INFORMATION DATA SHEET............................................................. 16
i
Page 4
PERFORMANCE/CAPABILITIES
HEATER
TOTAL
OPERATING CAPACITY (RACKS/HOUR)
SPECIFICATIONS of JP-24/F
WATER REQUIREMENTS
RACKS PER HOUR 30
DISHES PER HOUR 600
GLASSES PER HOUR 600
OPERATING CYCLE (SECONDS)
WASH TIME 82
DRAIN TIME 28
RINSE TIME 10
TOTAL CYCLE TIME (MINUTES) 2
TANK CAPACITY (GALLONS)
WASH TANK 5.65
WASH PUMP CAPACITY
GALLONS PER MINUTE 60
TEMPERATURES
WASH---°F (MINIMUM) 150
INLET TEMPERATURE 180
GALLONS PER HOUR 52.3
WATER LINE SIZE I.P.S. (Minimum) 1/2”
DRAIN LINE SIZE I.P.S. (Minimum) 1 1/2”
FLOW PRESSURE P.S.I. (Optimum) 20
FLOW (GPM) 7.1
FRAME DIMENSIONS
HEIGHT, MINIMUM 33 1/4”
HEIGHT, MAXIMUM 34 1/4”
WIDTH 24 1/4”
DEPTH 22 5/8”
MAXIMUM INSIDE CLEARANCE HEIGHT 14 1/2”
MAXIMUM INSIDE CLEARANCE WIDTH 24 1/4”
MAXIMUM INSIDE CLEARANCE DEPTH 21 1/4”
DOOR OPEN DEPTH 39 1/2”
CLEARANCE, WALL TO MACHINE 2 1/2”
°F
RINSE---°F 180-195
ELECTRICAL REQUIREMENTS
WASH PUMP MOTOR HORSEPOWER 3/4
VOLTS HERTZ PHASE
208 60 1 1200W 4.3 5.2 9.5
230 60 1 1200W 5 5.2 10.5
HEATER
RATINGS
AMPS
MOTOR
AMPS
AMPS
1
Page 5
PERFORMANCE/CAPABILITIES
RATINGS
HEATER
AMPS
AMPS
TOTAL
AMPS
OPERATING CAPACITY (RACKS/HOUR)
SPECIFICATIONS of JP-24B/BF
WATER REQUIREMENTS
RACKS PER HOUR 30
DISHES PER HOUR 600
GLASSES PER HOUR 600
OPERATING CYCLE (SECONDS)
WASH TIME 82
DRAIN TIME 28
RINSE TIME 10
TOTAL CYCLE TIME (MINUTES) 2
TANK CAPACITY (GALLONS)
WASH TANK 5.65
RINSE TANK 3
WASH PUMP CAPACITY
GALLONS PER MINUTE 60
TEMPERATURES
INLET TEMPERATURE (40° Rise Heater) 140
INLET TEMPERATURE (70° Rise Heater) 110
GALLONS PER HOUR 52.3
WATER LINE SIZE I.P.S. (Minimum) 1/2”
DRAIN LINE SIZE I.P.S. (Minimum) 1 1/2”
FLOW PRESSURE P.S.I. (Optimum) 20
FLOW (GPM) 7.1
FRAME DIMENSIONS
HEIGHT, MINIMUM 33 1/4”
HEIGHT, MAXIMUM 34 1/4”
WIDTH 24 1/4”
DEPTH 22 5/8”
MAXIMUM INSIDE CLEARANCE HEIGHT 14 1/2”
MAXIMUM INSIDE CLEARANCE WIDTH 24 1/4”
MAXIMUM INSIDE CLEARANCE DEPTH 21 1/4”
DOOR OPEN DEPTH 39 1/2”
CLEARANCE, WALL TO MACHINE 2 1/2”
°F
°F
WASH---°F (MINIMUM) 150
RINSE---°F 180-195
ELECTRICAL REQUIREMENTS
WASH PUMP MOTOR HORSEPOWER 3/4
VOLTS HERTZ PHASE
208 60 1 6.7KW 32.2 5.2 37.4
230 60 1 8.2KW 35.7 5.2 42.9
208 60 1 8.2KW 39.4 5.2 44.6
230 60 1 10.0KW 43.5 5.2 48.7
HEATER
MOTOR
2
Page 6
INSTALLATION INSTRUCTIONS
VISUAL INSPECTION: Before installing the unit, check the container and machine for damage. A damaged container is an indicator that there may be some damage to the machine. If there is
damage to both the container and machine, do not throw away the
container. The dishmachine has been inspected and packed at
the factory and is expected to arrive to you in new, undamaged
condition. However, rough handling by carriers or others may
result in there being damage to the unit while in transit. If such a
situation occurs, do not return the unit to Jackson; instead, contact
the carrier and ask them to send a representative to the site to
inspect the damage to the unit and to complete an inspection
report. You must contact the carrier within 48 hours of receiving
the machine. Also, contact the dealer through which you purchased the unit.
UNPACKING THE DISHMACHINE: Once the machine has been
removed from the container, ensure that there are no missing
parts from the machine. This may not be obvious at first. If it is discovered that an item is missing, contact Jackson immediately to
have the missing item shipped to you.
LEVEL THE DISHMACHINE: The dishmachine is designed to
operate while being level. This is important to prevent any damage to the machine during operation and to ensure the best
results when washing ware. The unit comes with adjustable bullet
feet, which can be turned using a pair of channel locks or by hand
if the unit can be raised safely. Ensure that the unit is level from
side to side and from front to back before making any connections.
PLUMBING THE DISHMACHINE: All plumbing connections must
comply with all applicable local, state, and national plumbing
codes. The plumber is responsible for ensuring that the incoming
water line is thoroughly flushed prior to connecting it to any component of the dishmachine. It is necessary to remove all foreign
debris from the water line that may potentially get trapped in the
valves or cause an obstruction. Any valves that are fouled as a
result of foreign matter left in the water line, and any expenses
resulting from this fouling, are not the responsibility of the manufacturer.
CONNECTING THE DRAIN LINE: The JP-24 series machines
have a pumped (pressure) drain capable of pumping waste water
to a height of 24 inches from the floor to the kitchen’s drain system. These dishmachines are supplied with an 8 foot long hose
that extends from the rear side of the machine. There must also
be an air gap between the machine drain line and the floor sink or
drain. If a grease trap is required by code, it should have a flow
capacity of 12 gallons per minute.
WATER SUPPLY CONNECTION: Ensure that you have read the
section entitled “PLUMBING THE DISHMACHINE” above before
proceeding. Install the water supply line (1/2” pipe size minimum)
to the dishmachine line strainer using copper pipe. It is recommended that a water shut-off valve be installed in the water line
between the main supply and the machine to allow access for service. The water supply line is to be capable of 20 PSI “flow” pressure at the recommended temperature indicated on the data plate.
In areas where the water pressure fluctuates or is greater than the
recommended pressure, it is recommended that a water pressure
regulator be installed.
Do not confuse static pressure with flow pressure. Static pressure
is the line pressure in a “no flow” condition (all valves and services
are closed). Flow pressure is the pressure in the fill line when the
fill valve is opened during the cycle.
It is also recommended that a shock absorber (not supplied with
the JP-24 series model) be installed in the incoming water line.
This prevents line hammer (hydraulic shock), induced by the solenoid valve as it operates, from causing damage to the equipment.
PLUMBING CHECK: Slowly turn on the water supply to the
machine after the incoming fill line and the drain line have been
installed. Check for any leaks and repair as required. All leaks
must be repaired prior to placing the machine in operation.
ELECTRICAL POWER CONNECTION: Electrical and grounding
connections must comply with the applicable portions of the
National Electrical Code ANSI/NFPA 70 (latest edition) and/or
other electrical codes.
Disconnect electrical power supply and place a tag at the disconnect switch to indicate that you are working on the circuit.
The dishmachine data plate is located on the right side and to the
front of the machine. Refer to the data plate for machine operat ing requirements, machine voltage, total amperage load and serial number.
To install the incoming power lines, remove the kick panel. This
will require taking a phillips head screwdriver and removing the
two(2) screws at the bottom of the kick plate; then carefully lifting
the kickplate up and out of the way. Install 3/4” conduit into the
pre-punched holes in the back of the control box. Route power
wires and connect to power block and grounding lug. Install the
service wires (L1and L2) to the appropriate terminals as they are
marked on the terminal block. Install the grounding wire into the
lug provided.
It is recommended that “DE-OX” or another similar anti-oxidation
agent be used on all power connections.
VOLTAGE CHECK: Ensure that the power switch is in the OFF
position and apply power to the dishmachine. Check the incoming
power at the terminal block and ensure it corresponds to the volt age listed on the data plate. If not, contact a qualified service
agency to examine the problem. Do not run the dishmachine if the
voltage is too high or too low. Shut off the service breaker and
mark it as being for the dishmachine. Advise all proper personnel
of any problems and of the location of the service breaker.
Replace the control box cover and tighten down the screws.
3
Page 7
DETERGENT CONTROL
Detergent usage and water hardness are two factors that contribute greatly to how efficiently your dishmachine will operate. Using
detergent in the proper amount can become, in time, a source of substantial savings. A qualified water treatment specialist can tell you
what is needed for maximum efficiency from your detergent, but you should still know some basics so you’ll understand what they are
talking about.
First, you must understand that hard water greatly effects the performance of the dishmachine. Water hardness is the amount of dissolved calcium and magnesium in the water supply. The more dissolved solids in the water, the greater the water hardness. Hard water
works against detergent, thereby causing the amount of detergent required for washing to increase. As you use more detergent, your
costs for operating the dishmachine will increase and the results will decrease. The solids in hard water also may build-up as a scale
on wash and rinse heaters, decreasing their ability to heat water. Water temperature is important in removing soil and sanitizing dishes. If the water cannot get hot enough, your results may not be satisfactory. This is why Jackson recommends that if you have installed
the machine in an area with hard water, that you also install some type of water treatment equipment to help remove the dissolved
solids from the water before it gets to the dishmachine.
Second, hard water may have you adding drying agents to your operating cycle to prevent spotting, when the real problem is deposit ed solids on your ware. As the water evaporates off of the ware, the solids will be left behind to form the spotting and no amount of drying agent will prevent this. Again, using treated water will undoubtedly reduce the occurrences of this problem.
Third, treated water may not be suitable for use in other areas of your operation. For instance, coffee made with soft water may have
an acid or bitter flavor. It may only be feasible to install a small treatment unit for the water going into the dishmachine itself. Discuss
this option with your qualified water treatment specialist.
Even after the water hardness problems have been solved, there still must be proper training of dishmachine operators in how much
detergent is to be used per cycle. Talk with your water treatment specialist and detergent vendor and come up with a complete training program for operators. Using too much detergent has as detrimental effects as using too little. The proper amount of detergent must
be used for job. It is important to remember that certain menu items may require extra detergent by their nature and personnel need to
be made aware of this. Experience in using the dishmachine under a variety of conditions, along with good training in the operation of
the machine, can go a long way in ensuring your dishmachine operates as efficiently as possible.
Certain dishmachine models require that chemicals be provided for proper operation and sanitization. Some models even require the
installation of third-party chemical feeders to introduce those chemicals to the machine. Jackson does not recommend or endorse any
brand name of chemicals or chemical dispensing equipment. Contact your local chemical distributor for questions concerning these
subjects.
Some dishmachines come equipped with integral solid detergent dispensers. These dispensers are designed to accommodate detergents in a certain sized container. If you have such a unit, remember to explain this to your chemical distributor upon first contacting
them.
As explained before, water temperature is an important factor in ensuring that your dishmachine functions properly. The data plate located on each unit details what the minimum temperatures must be for either the incoming water supply, the wash tank and the rinse tank,
depending on what model of dishmachine you have installed. These temperatures may also be followed by temperatures that Jackson
recommends to ensure the highest performance from you dishmachine. However, if the minimum requirements are not met, the
chances are your dishes will not be clean or sanitized. Remember, a dish can look clean, but it may not be sanitized. Instruct your dishmachine operators to observe the required temperatures and to report when they fall below the minimum allowed. A loss of temperature can indicate a much larger problem such as a failed heater or it could also indicate that the hot water heater for your operation is
not up to capacity and a larger one may need to be installed.
There are several factors to consider when installing your dishmachine to ensure that you get the best possible results from it and that
it operates at peak efficiency for many years. Discuss your concerns with your local chemical distributor and water treatment specialist before there is a problem.
4
Page 8
OPERATION INSTRUCTIONS
PREPARATION: Before proceeding with the start-up of the unit,
verify the following:
1. The strainer is in place and is clean.
2. That the wash and rinse arms are screwed securely
into place and that their endcaps are tight. The wash
and rinse arms should rotate freely.
POWER UP: To energize the unit, turn on the power at the service
breaker. The voltage should have been previously verified as
being correct. If not, the voltage will have to be verified.
FILLING THE WASH TUB: For the initial fill, close the door and
depress the ON/FILL-OFF/DRAIN rocker switch in the ON position. The machine will run a partial cycle and fill to the factory preset level. Open the door and verify that the water level is correct.
Hereafter, the water level is controlled by the timer that has been
preset at the factory. Verify that there are no other leaks on the
unit before proceeding any further. The wash tub must be completely filled before operating the wash pump to prevent damage
to the component. Once the wash tub is filled, the unit is ready for
operation.
NOTE: This applies to “B” units only. Make sure the orange
wires at the heater contactor are connected properly. They
have been purposely disconnected at the factory to avoid
damage to the heater element when there is no water in the
booster heater.
The machine runs a complete cycle to drain and fill. If the
machine is not allowed to drain, the water will build up inside the
tub. After the initial fill, the rinse water for the current cycle will
become the wash water for the next cycle.
When the light goes out, close the door, the unit will start, run
through the cycle, and shut off automatically. Repeat this two
more times. The unit should now be ready to proceed with the
washing of ware.
WASHING A RACK OF WARE: To wash a rack, open the door
completely and slide the rack into the unit. Close the door and the
unit will start automatically. Once the cycle is completed, open the
door and remove the rack of clean ware. Replace with a rack of
soiled ware and close the door. The process will then repeat itself.
OPERATIONAL INSPECTION: Based upon usage, the pan
strainer may become clogged with soil and debris as the workday
progresses. Operators should regularly inspect the pan strainer to
ensure it has not become clogged. If the strainer does, it will
reduce the washing capability of the machine. Instruct operators
to clean out the pan strainer at regular intervals or as required by
work load.
SHUTDOWN AND CLEANING: At the end of the workday, close
the door. Start a cycle, then place the ON/FILL - OFF/DRAIN
SWITCH to the “ OFF/DRAIN” position. The unit will automatically drain and turn off. Once the wash tub is drained, remove he pan
strainer. Remove soil and debris from the strainer and set to the
side. Unscrew the wash and rinse arms from their manifolds.
Remove the endcaps and flush the arms with water. Use a brush
to clean out the inside of the arms. If the nozzles appear to be
clogged, use a toothpick to remove the obstruction. Wipe the
inside of the unit out, removing all soil and scraps. Reassemble
the wash and rinse arms and replace them in the unit. The arms
only need to be hand tight, do not use tools to tighten them down.
Reinstall the strainer and close the door.
WARE PREPARATION: Proper preparation of ware will help
ensure good results and less re-washes. If not done properly,
ware may not come out clean and the efficiency of the dishmachine will be reduced. It is important to remember that a dishmachine is not a garbage disposal and that simply throwing
unscraped dishes into the machine simply defeats the purpose
altogether of washing the ware. Scraps should be removed from
ware prior to being loaded into a rack. Pre-rinsing and pre-soaking are good ideas, especially for silverware and casserole dishes. Place cups and glasses upside down in racks so that they do
not hold water during the cycle. The dishmachine is meant not
only to clean, but to sanitize as well, to destroy all of the bacteria
that could be harmful to human beings. In order to do this, ware
must be properly prepared prior to being placed in the machine.
DAILY MACHINE PREPARATION: Refer to the section entitled
“PREPARATION” at the top of this page and follow the instructions
there. Afterwards, check that all of the chemical levels are correct
and/or that there is plenty of detergent available for the expected
workload.
WARM-UP CYCLES: For a typical daily start-up, it is recommended to run the machine through 3 cycles to ensure that all of
the cold water is out of the system and to verify that the unit is
operating correctly. To cycle the machine, ensure that the power
is on and that the tub has filled to the correct level. Open the door
and the cycle light will illuminate.
5
Page 9
TROUBLESHOOTING SECTION
Defective timer.
Replace timer.
Delime rinse heads.
Increase pipe size to machine.
Adjust thermostat.
Adjust the thermostat.
applied to machine, but when circuit breaker
WARNING: Inspection, testing and repair of electrical equipment should be performed only by qualified service personnel. Certain
procedures in this section require electrical tests or measurements while power is applied to the machine. Exercise
extreme caution at all times. If test points are not easily accessible, disconnect power, attach test equipment and
reapply power to test. When replacing electrical parts, disconnect power at source circuit breaker.
Symptom
Water overflow from bottom of door.
Wash motor doesn't operate on manual
wash.
Motor operates on manual wash but not on
automatic.
No water comes through the rinse arms
when the "ON/FILL" switch is depressed.
Little or no water coming through the rinse
assemblies.
Rinse water runs continuously with breaker
turned off.
Rinse doesn't operate on automatic during
timed cycle (but does operate in auto/fill
operation).
Rinse water runs continuously with power
to machine is turned off, water stops.
Possible Cause Action
Clogged drain. Remove obstruction.
Machine not level. Level machine, or increase height to the
front.
Excessive inlet pressure. Install pressure reducing valve, or adjust if
one is present. Ensure flow is 20 PSI.
Detergent foaming. Reduce detergent quantity.
Loose or broken wires. Reconnect or replace wires in motor.
Defective manual wash switch. Replace.
Defective motor starting relay. Replace.
Defective circuit in manual wash switch. Replace switch.
Water not turned on. Turn water on.
Defective solenoid valve. Replace solenoid valve.
Probes are dirty or coated. Clean probes.
Defective water level control. Replace.
Limed up rinse heads or piping.
Clean out the rinse feed pipes.
Low water pressure.
Adjust pressure regulator.
Defective plunger in solenoid valve. Replace plunger.
Defective diaphragm in solenoid valve. Clean holes in diaphragm.
Replace diaphragm.
Timer defective. Replace timer.
Defective water level control. Replace.
Probes are dirty or coated. Clean probes.
Wash temperature not at required reading
on thermometer.
Rinse water not at required temperature
range.
Machine doesn't drain when "OFF/DRAIN"
No indication of pressure.
Defective thermometer. Replace.
Defective thermostat.
Replace thermostat.
Rinse heater defective. Replace heater element.
Water level protection control device. Replace.
Thermometer is defective. Replace.
Thermostat is defective.
Replace if necessary.
Drain solenoid clogged. Remove obstruction.
Defective OFF/DRAIN switch. Replace.
Defective motor or motor start relay. Replace.
Defective drain solenoid. Replace.
Defective timer. Replace timer.
Water turned off. Turn water on.
1/4" test cock ball valve is closed. Open the ball valve.
6
Page 10
JP-24 DIMENSIONS
MIN. WALL
E
CLEARANCE
B
F
A
G
H
L
C
J
B
I
Legend:
K
A - Drain Connection flexible hose.
6’-0” free length, 1” ID x 1 3/8” OD
B - Electrical Connection.
C - Water Inlet 1/2” Female Pipe Thread, 2 1/2” AFF
D - Detergent Feeder Connection
OPTIONAL TOP & SIDES
M
D
O
N
C
LETTER DIMENSIONS
E 2-1/2”
F 12”
G 19”
H 22-5/8”
I 16-3/4”
J 24”
K 8-1/2”
L 2-3/4”
M 4-1/4”
N 13-1/4”
O 33-1/4”
P 24-1/4”
Q 31-3/4”
R 2-1/2”
S 3-3/4”
P
Q
R
S
Note: All dimensions from floor can be increased 1” with adjustable feet supplied.
DIMENSIONS
Height (minimum): 33-1/4” Inside Clearance Height: 14-1/2”
Height (maximum): 34-1/4” Inside Clearance Width: 20-1/4”
Width: 24-1/4” Inside Clearance Depth: 21-1/4”
Depth: 22-5/8” Door Open Depth: 39-1/2”
Wall Clearance (minimum): 2-1/2”
7
Page 11
JACKSON MAINTENANCE & REPAIR CENTERS (USA)
ALABAMA
Jones-McLeod Appliance
1616 7th Avenue North
Birmingham, AL 35203
(205) 251-0159
(800) 821-1150
(205) 322-1440 fax
Jones-McLeod Appliance
854 Lakeside Drive
Mobile, AL 36693
(334) 666-7278
(800) 237-9859
(334) 661-0223 fax
ALASKA
Restaurant Appliance Service
7219 Roosevelt Way NE
Seattle, WA 98115
(206) 524-8200
(800) 433-9390
(206) 525-2890 fax
ARIZONA
GCS Service, Inc. #78
5052 South 40th Street
Phoenix, AZ 85040
(602) 474-4510
(800) 510-3497
(602) 470- 4511 fax
Authorized Commercial
Food Equipment Service
4832 South 35th St.
Phoenix, AZ 85040
(602) 234-2443
(800) 824-8875
(602) 232-5862 fax
ARKANSAS
Bromely Parts & Service
10th & Ringo
P.O. Box 1688
Little Rock, AR 72202
(501) 374-0281
(800) 482-9269
(501) 374-8352 fax
Commercial Parts & Service
3717 Cherry Road
Memphis, TN 38118
(901) 366-4587
(800) 262-9155
(901) 366-4588 fax
CALIFORNIA
P & D Appliance
4220-C Roseville Road
North Highlands, CA 95660
(916) 974-2772
(800) 824-7219
(916) 974-2774
CALIFORNIA (cont)
P & D Appliance
100 South Linden Avenue
S. San Francisco, CA 94080
(650) 635-1900
(800) 424-1414
(650) 635-1919 fax
Barkers Food
Machinery Equipment
5367 Second Street
Irwindale, CA 91706
(626) 960-9390
(800) 258-6999
(626) 337-4541 fax
GCS Service, Inc. #24
1100 East Pico Blvd
Los Angeles, CA 90021
(213) 683-2090
(800) 327-1433
(213) 683-2099 fax
GCS Service, Inc. #24
650 S. Grand Avenue
Suite 111
Santa Ana, CA 92705
(714) 542-1798
(800) 540-0719
(714) 542-4787 fax
GCS Service, Inc. #52
360 Littlefield
S. San Francisco, CA 94080
(650) 635-0720
(800) 969-4427
(650) 871-4019 fax
GCS Service, Inc. # 84
9030 Kenamar Drive
Suite 313
San Diego, CA 92121
(858) 549-8411
(800) 422-7278
(858) 549-2323 fax
COLORADO
GCS Service, Inc. #60
10525 East 40th Ave.
Suite 206
Denver, CO 80239
(303) 371-9054
(800) 972-5314
(303) 371-4754 fax
COLORADO (cont)
Metro Appliance Service
1640 South Broadway
Denver, CO 80210
(303) 778-1126
(800) 525-3532
(303) 778-0268 fax
CONNECTICUT
GCS Service, Inc. #06
302 Murphy Road
Hartford, CT 06114
(860) 549-5575
(800) 423-1562
(860) 527-6355 fax
DELAWARE
Food Service Equipment
2101 Parkway South
Broomall, PA 19008
(610) 356-6900
(610) 356-2038 fax
GCS Service, Inc. #44
817 N. Third Street
P.O. Box 3564
Philadelphia, PA 19123
(215) 925-6217
(800) 441-9115
(215) 925-6208 fax
Elmer Schultz Service
36 Belmont Ave.
Wilmington, DE 19804
(302) 655-8900
(800) 225-0599
(302) 656-3673 fax
EMR Service Division
106 Willamsport Circle
Salisbury, MD 21804
(410) 543-8197
(410) 543-4038 fax
FLORIDA
GCS Service, Inc. #15
3373 N. W. 168th Street
Miami, FL 33056
(305) 621-6666
(800) 766-8966
(305) 621-6656 fax
Commercial Appliance Service
8416 Laurel Fair Circle
Building 6, Suite 114
Tampa, FL 33610
(813) 663-0313
(800) 282-4718
(813) 663-0212 fax
GCS Service, Inc. #14
3902 Corporex Park Drive
Suite 350
Tampa, FL 33619
(813) 626-6044
(800) 282-3008
(813) 621-1174
8
Page 12
JACKSON MAINTENANCE & REPAIR CENTERS (USA)
FLORIDA (cont)
GCS Service, Inc. # 13
4305 Vineland Road
Suite G-12
Orlando, FL 32811
(407) 841-2551
(800) 338-7322
(407) 423-8425 fax
Jones-McLeod Appliance
854 Lakeside Drive
Mobile, AL 36693
(334) 666-7278
(800) 237-9859
(334) 661-0223 fax
GEORGIA
GCS Service, Inc. #16
3127Presidential Dr.
Atlanta, GA 30340
(770) 452-7322
(300) 334-3599
(770) 452-7473 fax
Southeastern
Restaurant Service
2200 Norcross Pkwy,
Suite 210
Norcross, GA 30071
(770) 446-6177
(800) 235-6516
(770) 446-3157 fax
Whaley Foodservice Repairs
109-A Owens Industrial Drive
Savannah, GA 31405
(912) 447-0827
(888) 765-0036
(912) 447-0826 fax
HAWAII
Food Equipment Parts &
Service Co.
300 Puuhale Road
Honolulu, HI 96819
(808) 847-4871
(808) 842-1560 fax
IDAHO
Ron’s Service
703 E. 44th Street, Suite 10
Garden City, ID 83714
(208) 375-4073
(208) 375-4402 fax
Restaurant Appliance Service
7219 Roosevelt Way Ne
Seattle, WA 98115
(206) 524-8200
(800) 433-9390
(206) 525-2890 fax
ILLINOIS
INDIANA
IOWA
KANSAS
GCS Service Inc. #12
696 Larch Avenue
Elmhurst, IL 60126
(630) 941-7800
(800) 942-9689
(630) 941-6048 fax
Cone’s Repair Service
2408 40th Avenue
Moline, IL 61265
(309) 797-5323
(800) 716-7070
(309) 797-3631 fax
Eichenauer Services, Inc.
130 S. Oakland Street
Decatur, IL 62522
(217) 429-4229
(800) 252-5892
(217) 429-0226 fax
GCS Service, Inc. #80
9722 Reavis Park Drive
St. Louis, MO 63123
(314) 638-7444
(800) 284-4427
(314) 638-0135 fax
Commercial Parts and Service
5310 E. 25th Street
Indianapolis, IN 46218
(317) 545-9655
(800) 727-8710
(317) 549-6286 fax
Goodwin-Tucker Group
3509 Delaware Avenue
Des Moines, IA 50313
(515) 262-9308
(800) 372-6066
(515) 262-2936 fax
Cone’s Repair Service
1056 27th Ave. SW
Cedar Rapids, IA 52404
(319) 365-3325
(800) 747-3326
(319) 365-0885 fax
GCS Service Inc. #82
6107 Connecticut
Kansas City, MO 64120
(816) 920-5999
(800) 229-6477
(816) 920-7387 fax
KENTUCKY
Certified Service Center
Ramco Business Park
4283 Produce Road
Louisville, Ky 40218
(502) 964-7007
(800) 637-6350
(502) 964-7202 fax
Commercial Parts & Service
4204 South Brook Street
Louisville, KY 40214
(502) 367-1788
(800) 752-6160
(502) 367-0400 fax
Certified Service Center
1051 Goodwin Drive
Lexington, KY 40505
(606) 254-8854
(800) 432-9269
(606) 231-7781 fax
Commercial Parts & Service
1002 Nandino Blvd.
Lexington, KY 40511
(606) 255-0746
(800) 432-9260
(606) 255-0748 fax
LOUISIANA
Bana Parts, Inc.
1501 Kueble Street
Harahan, LA 70123
(504) 734-0076
(800) 325-7543
(504) 734-8456 fax
Bana Parts, Inc.
4028 Greenwood Road
Shreveport, LA 71109
(318) 631-6550
(800) 832-6550
(318) 636-5675 fax
MAINE
GCS Service, Inc. #09
180 Second Street
Chelsea, MA 02150
(617) 889-9393
(800) 225-1155
(617) 889-1222 fax
Massachusetts Restaurant
Supply
34 South Street
Somerville, MA 02143
(617) 868-1930
(800) 338-6737
(617) 868-5331 fax
9
Page 13
JACKSON MAINTENANCE & REPAIR CENTERS (USA)
MARYLAND
GCS Service, Inc. #07
2660 Pittman Drive
Silver Spring, MD 20910
(301) 585-7550 (DC)
(410) 792-0388 (Balt)
(800) 638-7278
(301) 495-4410 fax
EMR Service Division
700 East 25th Street
Baltimore, MD 21218
(410) 467-8080
(800) 879-4994
(410) 467-4191 fax
EMR Service Division
106 Willamsport Circle
Salisbury, MD 21804
(410) 543-8197
(888) 687-8080
(410) 548-4038 fax
EMR Service Division
2626 Pittman Drive
Silver Spring, MD 20910
(301) 588-8080
(800) 348-2365
(301) 588-6985 fax
MASSACHUSETTS
GCS Service, Inc. #09
180 Second Street
Chelsea, MA 02150
(617) 889-9393
(800) 225-1155
(617) 889-1222 fax
Massachusetts Restaurant
Supply
34 South Street
Somerville, MA 02143
(617) 868-1930
(800) 338-6737
(617) 868-5331 fax
Ace Service Co.
95 Hampton Avenue
Needham, MA 02494
(781) 449-4220
(800) 225-4510 MA & NH
(781) 444-4789 fax
GCS Service, Inc. #06
302 Murphy Road
Hartford, CT 06114
(860) 549-5575
(800) 723-1562
(860) 527-6355 fax
MICHIGAN
GCS Service, Inc. #20
31829 West Eight Mile Road
Livonia, MI 48152
(248) 426-9500
(800) 772-2936
(248) 426-7555 fax
Jackson Service
3980 Benstein Road
Commerce Township, MI 48382
(248) 363-4159
(800) 332-4053
(248) 363-5448 fax
MINNESOTA
GCS/Metro Service, Inc.
2857 Louisiana Avenue N.
Minneapolis, MN 55427
(612) 546-4221
(800) 345-4221
(612) 546-4286 fax
MISSISSIPPI
Commercial Parts & Service
5755 Gallant Drive
Jackson, MS 39206
(601) 956-7800
(800) 274-5954
(601) 956-1200 fax
Commercial Parts & Service
3717 Cherry Road
Memphis, TN 38118
(901) 366-4587
(800) 262-9155
(901) 366-4588 fax
MISSOURI
GCS Service, Inc. #82
6107 Connecticut
Kansas City, MO 64120
(816) 920-5999
(800) 229-6477
(816)920-7387 fax
GCS Service, Inc. # 80
9722 Reavis Park Drive
St. Louis, MO 63123
(314) 638-7444
(800) 284-4427
(314) 638-0135 fax
Kammerlin Parts & Service
2728 Locust Street
St. Louis, MO 63103
(314) 535-2222
(314) 535-6205 fax
MONTANA
Restaurant Appliance Service
7219 Roosevelt Way NE
Seattle, WA 98115
(206) 524-8200
(800) 433-9390
(206) 525-2890 fax
NEBRASKA
Goodwin-Tucker Group
815 N. 19th Street
Omaha, NE 68102
(402) 345-7400
(800) 228-0342
(402) 346-6145 fax
NEVADA
GCS Service, Inc. #77
3585 East Patrick Lane
Suite 1000
Las Vegas, NV 89102
(702) 450-3495
(800) 500-9060
(702) 450-3491 fax
Burney’s Commercial Service
4480 Aldevaran Avenue
Las Vegas, NV 89103
(702) 736-0006
(702) 798-7531 fax
NEW HAMPSHIRE
GCS Service, Inc. #09
180 Second Street
Chelsea, MA 02150
(617) 889-9393
(800) 225-1155
(617) 889-1222 fax
Massachusetts Restaurant
Supply
34 South Street
Somerville, MA 02143
(617) 868-1930
(800) 338-6737
(617) 868-5331 fax
Ace Service Co.
95 Hampton Avenue
Needham, MA 02494
(781) 449-4220
(800) 225-4510 MA & NH
(781) 444-4789 fax
NEW JERSEY
Jackson Faspray Service
155 Sargeant Avenue
Clifton, NJ 07013
(973) 471-8000
(800) 356-6740
(973) 471-1289 fax
10
Page 14
JACKSON MAINTENANCE & REPAIR CENTERS (USA)
NEW JERSEY (cont)
GCS Service, Inc. #44
817 N. Third Street
Philadelphia, PA 19123
(215) 925-6217
(800) 441-9115
(215) 925-6208 fax
Food Service Equipment
2101 Parkway South
Broomall, PA 19123
(610) 356-6900
(610) 356-2038 fax
NEW MEXICO
Stove Parts Supply Co.
2120 Solana Street
Ft. Worth, TX 76117
(817) 831-0381
(800) 433-1804
(817) 834-7754 fax
NEW YORK
GCS Service, Inc. #01
932 Grand Street
Brooklyn, NY 11211
(718) 486-5220
(800) 969-4271
(718) 486-6772 fax
Duffy’s Equipment Service
3138 Oneida Street
Sauquiot, NY 13456
(315) 737-9401
(800) 443-8339
(315) 737-7132 fax
B.E.S.T., Inc.
3003 Genesee Street
Buffalo, NY 14225
(716) 893-6464
(800) 338-5011
(716) 893-6466 fax
Appliance Installation &
Service Corp.
1336 Main Street
Buffalo, NY 14209
(716) 884-7425
(800) 722-1252
(716) 884-0410 fax
Northern Parts & Service
21 Northern Avenue
Plattsburgh, NY 12903
(518) 563-3200
(800) 634-5005
(800) 782-5424 fax
NEW YORK (cont)
Jackson Faspray Service
155 Sargeant Avenue
Clifton, NJ 07013
(973) 471-8000
(800) 356-6740
(973) 471-1289 fax
NORTH CAROLINA
Whaley Foodservice Repairs
8334-K Arrowridge Blvd.
Charlotte, NC 28273
(704) 529-6242
(704) 529-1558 fax
Whaley Foodservice Repairs
203-D Creek Ridge Road
Greensboro, NC 27406
(336) 333-2333
(336) 333-2533 fax
Whaley Foodservice Repairs
335-105 Sherwee Drive
Raleigh, NC 27603
(919) 779-2266
(919) 779-2224 fax
Whaley Foodservice Repairs
6418-101 Amsterdam Way
Wilmington, NC 28405
(910) 791-0000
(910) 791-6662 fax
NORTH DAKOTA
GCS/Metro Service Inc.
2857 Louisiana Avenue N.
Minneapolis,MN 55427
(612) 546-4221
(800) 345-4221
(612) 546-4286 fax
OHIO
Certified Service Center
890 Redna Terrace
Cincinnati, OH 45215
(513) 772- 6600
(800) 543-2060
(513) 612-6600 fax
Commercial Parts &
Service of Columbus
1150 West Mound Street
Columbus, OH 43223
(614) 221-0057
(800) 837-8327
(614) 221-3622 fax
OHIO (cont)
Electrical Appliance
Repair Service
5805 Valley Belt Road
Cleveland, OH 44131
(216) 459-8700
(800) 621-8259
(216) 459-8707 fax
OKLAHOMA
Krueger Inc.
100 NE 24th Street
Oklahoma City, OK 73105
(405) 528-8883
(800) 522-8069
(405) 528-5405 fax
Hagar Restaurant Equipment
1229 W. Main Street
Oklahoma City, OK 73106
(405) 235-2184
(800) 445-1791
(405) 236-5592 fax
OREGON
Ron’s Service
16364 SW 72nd Ave.
Portland, OR 97224
(503) 624-0890
(800) 851-4118
(503) 684-6107 fax
PENNSYLVANIA
GCS Service, Inc. #44
817 N. Third Street
P.O. Box 3564
Philadelphia, PA 19123
(215) 925-6217
(800) 441-9115
(215) 925-6208 fax
Elmer Schultz Service
540 North 3rd Street
Philadelphia, PA 19123
(215) 627-5400
(215) 627-5408 fax
Food Service Equipment
2101 Parkway South
Broomall, PA 19008
(610) 356-6900
(610) 356-2038
A.I.S. Commercial Parts &
Service
1816 West 26th Street
Erie, PA 16508
(814) 456-3732
(800) 332-3732
(814) 452-4843 fax
11
Page 15
JACKSON MAINTENANCE & REPAIR CENTERS (USA)
PENNSYLVANIA (cont)
GCS Service, Inc. #44
4400 Lewis Road, Suite E
Harrisburg, PA 17111
(717) 564-3282
(800) 367-3225
(717) 564-9286 fax
K & D Parts & Service
1833-41 N. Cameron Street
Harrisburg, PA 17103
(717) 236-9039
(800) 932-0503
(717) 238-4367 fax
AFS-Authorized Factory
Service, Co.
940 FIrst Avenue
Coraopolis, PA 15108
(412) 262-2330
(800) 222-8767
(412) 262-2245 fax
GCS Service, Inc. #48
210 Vista park Drive
Pittsburgh, PA 15205
(412) 787-1970
(800) 738-1221
(412) 787-5005 fax
RHODE ISLAND
GCS Service, Inc. #90
1002 Waterman Ave.
E. Providence, RI 02914
(401) 434-6803
(800) 462-6012
(401) 438-9400 fax
SOUTH CAROLINA
Whaley Foodservice Repairs
I-26 & US1
P.O. Box 4023
West Columbia, SC 29170
(803) 791-4420
(800) 877-2662
(803) 794-4630 fax
Whaley Foodservice Repairs
748 Congaree Road
Greenville, SC 29607
(864) 234-7011
(800) 494-2539
(864) 234-6662 fax
Whaley Foodservice Repairs
1406-C Commerce PI.
Myrtle Beach, SC 29577
(843) 626-1866
(843) 626-2632 fax
SOUTH CAROLINA (cont)
Whaley Foodservice Repairs
4740-A Franchise St.
N. Charleston, SC 29418
(843) 760-2110
(843) 760-2255 fax
SOUTH DAKOTA
Metro Commercial
Service, Inc.
2857 Louisiana Avenue N.
Minneapolis, MN 55427
(612) 546-4221
(800) 345-4221
(612) 546-4286 fax
TENNESSEE
Commercial Parts & Service
3717 Cherry Road
Memphis, TN 38118
(901) 366-4587
(800) 262-9155
(901) 366-4588 fax
Commercial Parts & Service
748 Fesslers Lane
Nashville, TN 37210
(615) 244-8050
(800) 831-7174
(615) 244-8885 fax
Commercial Appliance Service
919 8th Ave. South
Nashville, TN 37203
(615) 254-0906
(800) 476-0906
(615) 254-0919 fax
TEXAS
GCS Service, Inc. #90
2422 Arbuckle Court
Dallas, TX 75229
(972) 484-2954
(800) 422-5026
(972) 484-2531 fax
Stove Parts Supply Co.
2120 Solana Street
Ft. Worth, TX 76117
(817) 831-0381
(800) 433-1804
(817) 834-7754 fax
GCS Service, Inc. #88
8150 Westpark
Houston, TX 77063
(713) 785-9187
(800) 868-6957
(713) 785-3979 fax
TEXAS (cont)
Armstrong Repair Center
5750-A Royalton
Houston, TX 77081
(713) 666-7100
(800) 392-5325
(713) 661-0520 fax
Commercial Kitchen Repair
1377 N. Brasos
P.O. Box831128
San Antonio, TX 78207
(210) 735-2811
(800) 292-2120
(210) 735-7421 fax
UTAH
Lamonica’s Restaurant
Equipment Service
6182 S. Stratler Avenue
Murray, UT 84107
(801) 263-3221
(800) 527-2561
(801) 263-3229 fax
VERMONT
Authorized Appliance
Servicenter of Vermont
74 River Street
Rutland, VT 05701
(802) 775-5588
(800) 874-1080
(802) 775-9593 fax
Northern Parts & Service
4874 S. Catherine Street
Plattsburg, NY 12901
(518) 563-3200
(800) 634-5005
(800) 782-5424 fax
GCS Service, Inc. #09
180 Second Street
Chelsea, MA 02150
(617) 889-9393
(800) 225-1155
(617) 889-1222 fax
VIRGINIA
GCS Service, inc. #18
2421 Grenoble Road
Richmond, VA 23294
(804) 672-1700
(800) 899-5949
(804) 672-2888 fax
Daubers, Inc.
7645 Dynatech Court
Springfield, VA 22153
(703) 866-3600
(800) 554-7788
(703) 866-4071 fax
12
Page 16
JACKSON MAINTENANCE & REPAIR CENTERS (USA & CANADA)
VIRGINIA (cont)
GCS Service, Inc. #18
5760 Northampton Blvd.
Suite 106
Virginia Beach, VA 23455
(757) 464-3500
(800) 476-4278
(757) 464-4106 fax
GCS Service, Inc. #07
2660 Pittman Drive
Silver Spring, MD 20910
(301) 585-7550 (DC)
(410) 792-0388 (Balt)
(800) 638-7278
(301) 495-4410 fax
WASHINGTON
Restaurant Appliance Service
7219 Roosevelt Way NE
Seattle, WA 98115
(206) 524-8200
(800) 433-9390
(206) 525-2890
WEST VIRGINIA
AFS-Authorized Factory
Service, Inc.
Rt.-1 Box 288
S. Charleston, WV 25312
(304) 344-8225
(800) 654-4606
(304) 344-8248 fax
WYOMING
Metro Appliance Service
1640 South Broadway
Denver, CO 80210
(303) 778-1126
(800)525-3532
(303) 778-0268 fax
CANADA
Garland Commercial Ranges,
Ltd.
1177 Kamato Road
Mississauga, Ontario L4W 1X4
(905) 624-0260
(800) 427-6668
(905) 624-0623 fax
WISCONSIN
Appliance Service Center, Inc.
2439 Atwood Avenue
Madison, WI 53704
(608) 246-3160
(800) 236-7440
(608) 246-2721 fax
Appliance Service Center, Inc.
6843 W. Belloit Road
West Allis, WI 53219
(414) 543-6460
(800) 236-6460
(414) 543-6480 fax
Appliance Service Center, Inc.
786 Morris Ave.
Green Bay, WI 54304
(920) 496-9993
(800) 236-0871
(920) 496-9927 fax
13
Page 17
JP-24/F
ELECTRICAL DIAGRAM
208-230 VOLT - 50/60 HERTZ - 1 PHASE
14
Page 18
JP-24B/BF
ELECTRICAL DIAGRAM
208-230 VOLT - 50/60 HERTZ - 1 PHASE
15
Loading...
