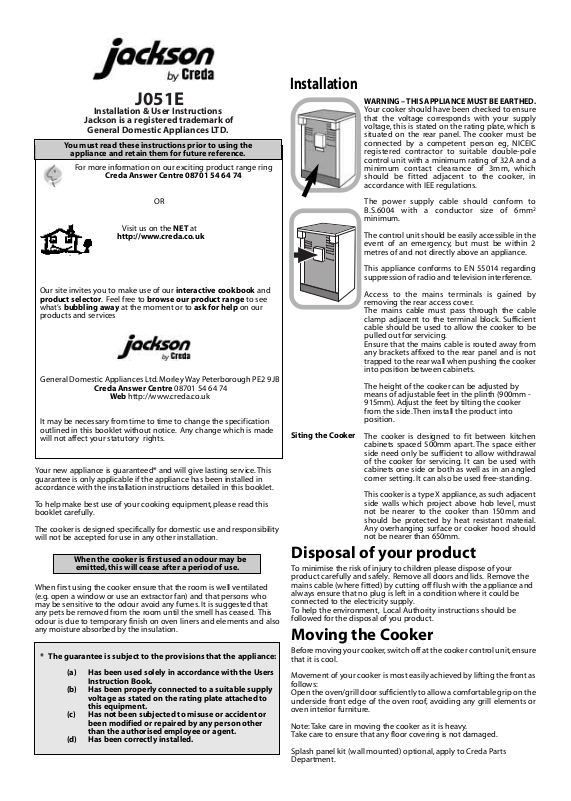

Jackson J051E User Manual

J051E

Installation & User Instructions

Jackson is a registered trademark of

General Domestic Appliances LTD.

You must read these instructions prior to using the

appliance and retain them for future reference.

For more information on our exciting product range ring

Creda Answer Centre 08701 54 64 74

Installation

WARNING – THIS APPLIANCE MUST BE EARTHED.

Your cooker should have been checked to ensure
that the voltage corresponds with your supply
volt

age,
situated
connected by a competent person eg, NICEIC
registered contractor to suitable double-pole
control unit with a minimum rating of 32A and a
minimum contact clearance of 3mm, which
should be fitted adjacent to the cooker, in
accordance with IEE regulations.

this is stated on the rating plate, which is

on the rear panel. The cooker must be

OR

Visit us on the NET at

http://www.creda.co.uk

Our site invites you to make use of our interactive cookbook and
product selector. Feel free to browse our product range to see

what’s bubbling away at the moment or to ask for help on our
products and services

General Domestic Appliances Ltd.Morley Way Peterborough PE2 9JB

Creda Answer Centre 08701 54 64 74

Web http://www.creda.co.uk

It may be necessary from time to time to change the specification
outlined in this booklet without notice. Any change which is made
will not affect your statutory rights.

Your new appliance is guaranteed* and will give lasting service. This
guarantee is only applicable if the appliance has been installed in
accordance with the installation instructions detailed in this booklet.

To help make best use of your cooking equipment,please read this
booklet carefully.

The cooker is designed specifically for domestic use and responsibility
will not be accepted for use in any other installation.

Siting the Cooker

The power supply cable should conform to
B.S.6004 with a conductor size of 6mm
minimum.

The control unit should be easily accessible in the
event of an emergency, but must be within 2
metres of and not directly above an appliance.

This appliance conforms to EN 55014 regarding
suppression of radio and television interference.

Access to the mains terminals is gained by
removing the rear access cover.
The mains cable must pass through the cable
clamp adjacent to the terminal block. Sufficient
cable should be used to allow the cooker to be
pulled out for servicing.
Ensure that the mains cable is routed away from
any brackets affixed to the rear panel and is not
trapped to the rear wall when pushing the cooker
into position between cabinets.

The height of the cooker can be adjusted by
means of adjustable feet in the plinth (900mm ­915mm). Adjust the feet by tilting the cooker
from the side.Then install the product into
position.

The cooker is designed to fit between kitchen
cabinets spaced 500mm apart. The space either
side need only be sufficient to allow withdrawal
of the cooker for servicing. It can be used with
cabinets one side or both as well as in an angled
corner setting. It can also be used free-standing.

This cooker is a type X appliance,as such adjacent
side walls which project above hob level, must
not be nearer to the cooker than 150mm and
should be
Any overhanging
not be nearer than 650mm.

protected by heat resistant material.

surface or cooker hood should

2

When the cooker is first used an odour may be

emitted,this will cease after a period of use.

When first using the cooker ensure that the room is well ventilated
(e.g.open a window or use an extractor fan) and that persons who
may be sensitive to the odour avoid any fumes.It is suggested that
any pets be removed from the room until the smell has ceased. This
odour is due to temporary finish on oven liners and elements and also
any moisture absorbed by the insulation.

* The guarantee is subject to the provisions that the appliance:

(a) Has been used solely in accordance with the Users

Instruction Book.

(b) Has been properly connected to a suitable supply

voltage as stated on the rating plate attached to
this equipment.

(c) Has not been subjected to misuse or accident or

been modified or repaired by any person other
than the authorised employee or agent.

(d) Has been correctly installed.

Disposal of your product

To minimise the risk of injury to children please dispose of your
product carefully and safely. Remove all doors and lids. Remove the
mains cable (where fitted) by cutting off flush with the appliance and
always ensure that no plug is left in a condition where it could be
connected to the electricity supply.
To help the environment, Local Authority instructions should be
followed for the disposal of you product.

Moving the Cooker

Before moving your cooker, switch off at the cooker control unit,ensure
that it is cool.

Movement of your cooker is most easily achieved by lifting the front as
follows:
Open the oven/grill door sufficiently to allow a comfortable grip on the
underside front edge of the oven roof, avoiding any grill elements or
oven interior furniture.

Note:Take care in moving the cooker as it is heavy.
Take care to ensure that any floor covering is not damaged.

Splash panel kit (wall mounted) optional, apply to Creda Parts
Department.

Safety Information

When used properly your appliance is completely safe but as
with any electrical product there are certain precautions that

PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR

must be observed.

APPLIANCE.

Always

● Remove all packing from the appliance before switching on for
the first time.

● Understand the controls prior to using the appliance.

● Keep children away from the appliance when cooking as the

surfaces will get extremely hot during and after use.

● Turn controls off when not in use.

● Stand back when opening an oven door to allow any build up of

steam or heat to disperse.

●

Always use dry good quality oven gloves when removing items
from the oven/grill.

● Always place pans centrally over the hotplate making sure handles
are kept away from the edge of the hob and cannot become heated
by other hotplates or pans.

●

Always take care to avoid heat or steam burns when operating the
controls.

● Always turn off the electricity supply at the wall switch and allow
the appliance to cool before cleaning (or changing an oven lamp if
fitted).

●

Always make sure the shelves are in the correct position before
switching on the oven or grill.

● Always keep the oven/grill door closed when the appliance is not in
use.

● Always keep the appliance clean as a build up of grease or fat from
cooking can cause a fire.

●

Always follow the basic principles of food handling and hygiene to
prevent the possibility of bacterial growth.

● Always keep ventilation slots clear of obstructions.

● Always refer servicing to a qualified appliance service engineer.

● Always take care when removing items from the grill compartment

when the lower oven is in use as the contents will be hot

● Always turn off the electricity supply to the appliance at the wall
switch should any glass panel (if fitted) crack or shatter and then
DO NOT USE THE APPLIANCE until repaired.

● During use, the oven becomes hot. Care should be taken to avoid
touching heating elements inside the oven.

SAFETY ADVICE IN CASE OF A CHIP-PAN FIRE

In the event of a chip pan fire or any other pan fire.

1. TURN OFF THE COOKER APPLIANCE AT THE WALL SWITCH.

2. COVER THE PAN WITH A FIRE BLANKET OR DAMP CLOTH, this will
smother the flames and extinguish the fire.

3.

LEAVE THE PAN TO COOL FOR AT LEAST 60 MINUTES BEFORE
MOVING IT.Injuries are often caused by picking up a hot pan and
rushing outside with it.

NEVER USE A FIRE EXTINGUISHER TO PUT OUT A PAN FIRE as the

force of the extinguisher is likely to tip the pan over.

Never use water to extinguish oil or fat fires.

Features

Hob ventilation slots

1.0kW
Hotplate

1.5kW
Hotplate

Oven Rod
Shelves

Door
Switch

Oven
Door

1.5kW
Hotplate

1.0kW
Hotplate

Control
Panel

Meat/Grill
pan with
wire food
support and
removable
handle

Credaclean
Oven
Liners

Never

● Never leave children unsupervised where a cooking appliance is
installed as all surfaces will be hot during and after its use.

● Never allow anyone to sit or stand on any part of the appliance.

●

Never store items above the appliance that children may attempt to
reach.

● Never leave anything on the hob surface when unattended and not
in use.

● Never remove the oven shelves whilst the oven is hot.

● Never heat up unopened food containers as pressure can build up

causing the container to burst.

● Never store chemicals/food stuffs or pressurised containers in or on
the appliance, or in cabinets immediately above or next to the
appliance.

● Never place flammable or plastic items on or near the hob.

● Never fill a deep fat frying pan more than 1/3 full of oil, or use a lid.

DO NOT LEAVE DEEP FAT FRYING PANS UNATTENDED WHILE
COOKING.

● Never use the appliance as a room heater.

● Never use the grill to warm plates.

● Never dry any items on either the hob or oven doors.

● Never install the appliance next to curtains or other soft furnishings.

● Never operate the grill with the grill door closed as this will cause

the appliance to over heat.

● Never use steam cleaners.

Storage
Compartment
Door

Plinth
Ventilation
Slots

Storage Compartment

To open the storage compartment door gently
pull down from both sides together.
On closing the door ensure that the catch
engages correctly.
Take care as accessible surfaces inside the
storage compartment may become hot when
the oven is in use.
The storage compartment is ideal for storing
saucepans, meat pans, etc.Do not use it for
storing combustible materials, flammable liquids
or aerosols.
