Jackson DISHSTAR HT-E-SEER Manual

Download

Page 1

DishStar HT-E Manual • 07610-004-43-79-L

Page 2

MANUFACTURER'S LIMITED WARRANTY

(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)

WARRANTY REGISTRATION:

To register your Jackson Dishmachine’s warranty go to www.jacksonwws-warranty.com or call 1-888-800-5672. Failure to register the Dishmachine will void the warranty.

ONE YEAR LIMITED PARTS AND LABOR WARRANTY

For a period of one (1) year from date of original installation of a new Jackson Dishmachine (but in no event to exceed eighteen (18) months from date of shipment from Jackson’s factory), Jackson WWS, Inc. (Jackson) will repair or replace, at its discretion, any original part that proves defective in materials or workmanship at the time the Dishmachine was purchased; provided that (i) the Dishmachine has not been altered, (ii) the Dishmachine has been properly installed, maintained, and operated under normal use conditions and in accordance with the applicable installation, operation and service manual available on the Jackson website, and (iii) a warranty claim is reported to a Jackson Authorized Service

Agency within the warranty period. This warranty includes replacement with Jackson specied genuine replacement

parts, purchased directly from a Jackson Authorized Parts Distributor or Service Agency. Use of generic replacement parts may create a hazard and shall void this warranty.

THIS WARRANTY DOES NOT APPLY OUTSIDE THE UNITED STATES AND CANADA.

Jackson will pay the labor to repair or replace a defective original part as a part of the warranty, provided that a Jackson Authorized Service Agency performs the labor. Any repair or replacement work by anyone other than a Jackson Authorized Service Agency is the sole responsibility of the purchaser. Labor coverage is limited to regular hourly rates; Jackson will not pay overtime premiums or emergency service charges. Accessory components (such as table limit switches, pressure regulators, and drain water tempering kits) that are not installed by Jackson at the factory and are shipped with the Dishmachine carry only a (1) one-year parts warranty. Labor to repair or replace these components is not included in the warranty or covered by Jackson. Booster heaters not manufactured by Jackson are not covered by this warranty but are warranted by their respective manufacturers.

This warranty is void if any defect or failure is a direct result from shipping, handling, re, water, accident, alteration, modication, misuse, abuse, ood, acts of God, burglary, casualty, attempted repair by unauthorized persons, use of

replacement parts not authorized by Jackson, improper installation, installation not in accordance with local electrical and plumbing codes, if the serial number has been removed or altered, if the Dishmachine is used for any purpose other than originally intended, or if the equipment is installed for residential use. Jackson does not authorize any other entity or person, including, without limitation, any entity or person who deals in Jackson Dishmachines, to change this warranty or create any other obligation in connection with Jackson Dishmachines.

TRAVEL LIMITATIONS:

Jackson limits warranty travel time to the customer site within 50 miles of the Jackson authorized service agent’s o󰀩ce

and during regular business hours. Jackson will not pay for travel time and mileage that exceeds these limits, or any fees such as those for air or boat travel without prior authorization.

REPLACEMENT PARTS WARRANTY:

For a period of (90) ninety days from the date of installation by a Jackson Authorized Service Agency (but in no event to exceed (180) one-hundred-eighty days from the date of purchase from a Jackson Authorized Parts Distributor or Service Agency), Jackson will repair or replace, at its discretion, any Jackson genuine replacement parts that prove defective in materials or workmanship at the time the replacement parts were installed. This warranty does not include paying the labor to repair or replace the replacement part. This warranty is subject to all conditions, exclusions and limitations applicable to the Dishmachine.

Page 3

MANUFACTURER'S LIMITED WARRANTY (CONT.)

(APPLICABLE ONLY IN THE UNITED STATES AND CANADA)

PRODUCT CHANGES:

Jackson reserves the right to make changes in design and specication of any component of the Dishmachine as

engineering or necessity requires.

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE OR MERCHANTABILITY, THAT ARE NOT SET FORTH HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF.

LIMITATION OF REMEDIES AND LIABILITIES:

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN.

UNDER NO CIRCUMSTANCES WILL JACKSON BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR FOR DAMAGES IN THE NATURE OF PENALTIES. JACKSON’S LIABILITY ON ANY CLAIM OF ANY KIND WITH RESPECT TO THE GOODS OR SERVICES COVERED HEREUNDER SHALL IN NO CASE EXCEED THE PRICE OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.

ITEMS NOT COVERED:

THIS WARRANTY DOES NOT COVER (1) ADJUSTMENTS INCLUDING, BUT NOT LIMITED TO, TIMER CAMS, THERMOSTATS, DOORS, TANK HEATER ADJUSTMENTS OR CLUTCHES; (2) AIR FREIGHT OR OVERNIGHT FREIGHT; (3) ANY AMOUNT EXCEEDING ORIGINAL PURCHASE PRICE; (4) CLEANING OF DRAIN VALVES, GAS LINES, RINSE/WASH NOZZLES, STRAINERS, SCREENS, OR SPRAY PIPES; (5) CLEANING OR DELIMING OF THE DISHMACHINE OR ANY COMPONENT INCLUDING, BUT NOT LIMITED TO, WASH ARMS, RINSE

ARMS AND STRAINERS; (6) CONDITIONS CAUSED BY THE USE OF INCORRECT (NON-COMMERCIAL)

GRADE DETERGENTS; (7) CORROSION FROM CHEMICALS DISPENSED IN EXCESS OF RECOMMENDED CONCENTRATIONS; (8) COSMETIC DAMAGE, INCLUDING BUT NOT LIMITED TO, SCRATCHES, DENTS, CHIPS, AND OTHER DAMAGE TO THE DISHMACHINE FINISHES, UNLESS SUCH DAMAGE RESULTS FROM DEFECTS IN MATERIALS AND WORKMANSHIP AND IS REPORTED TO JACKSON WITHIN (30) THIRTY DAYS FROM THE DATE OF INSTALLATION; (9) DAMAGE CAUSED BY LABOR DISPUTE; (10) DAMAGES RESULTING FROM IMPROPER CONNECTION TO UTILITY SERVICE; (11) DAMAGES RESULTING FROM WATER CONDITIONS, INADEQUATE OR EXCESSIVE WATER PRESSURE, ACCIDENTS, ALTERATIONS, IMPROPER USE, ABUSE, HANDLING, OVERLOADS, TAMPERING, IMPROPER INSTALLATION OR FAILURE TO FOLLOW MAINTENANCE AND OPERATING PROCEDURES; (12) DISCOLORATION, RUST OR OXIDATION OF SURFACES RESULTING FROM CAUSTIC OR CORROSIVE ENVIRONMENTS, INCLUDING, BUT NOT LIMITED TO, HIGH SALT CONCENTRATIONS, HIGH MOISTURE OR HUMIDITY, OR EXPOSURE TO CHEMICALS; (13) ELECTRIC BOOSTERS, FEED LINES, FLEX HOSE, FUSES, GARBAGE DISPOSALS, OR GAS PILOTS; (14) EXCESSIVE LIME, MINERAL, OR ALKALINE BUILDUP; (15) EXPENSES DUE TO DISCONNECTION, DELIVERY, RETURN AND REINSTALLATION; (16) FAILURE OF ELECTRICAL COMPONENTS DUE TO CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (17)

FAILURE OF FACILITY WATER HEATER TO MAKE TEMPERATURE; (18) FAILURE TO MAINTAIN WATER HARDNESS

LOWER THAN 3.0 GRAINS, PH BETWEEN 7.0 AND 8.5 AND TOTAL DISSOLVED SOLIDS BELOW 250 PPM; (19) FAILURE TO COMPLY WITH LOCAL ELECTRICAL BUILDING CODES; (20) LEAKS OR DAMAGE RESULTING FROM SUCH LEAKS CAUSED BY THE INSTALLER, INCLUDING THOSE AT MACHINE TABLE CONNECTIONS, OR BY CONNECTION OF CHEMICAL DISPENSING EQUIPMENT INSTALLED BY OTHERS; (21) OPENING OR CLOSING OF UTILITY SUPPLY VALVES OR SWITCHING OF ELECTRICAL SUPPLY CURRENT; (22) PERFORMANCE OF REGULAR MAINTENANCE AND CLEANING AS OUTLINED IN THE OPERATOR’S GUIDE; (23) REMOVAL OR REINSTALLATION OF INACCESSIBLE DISHMACHINES OR BUILT-IN FIXTURES THAT INTERFERE WITH SERVICING, REMOVAL OR REPLACEMENT OF THE DISHMACHINE; (24) REPLACEMENT WEAR ITEMS INCLUDING, BUT NOT LIMITED TO, CURTAINS, DRAIN BALLS, DOOR GUIDES, GASKETS, O-RINGS, SEALS, SQUEEZE TUBES, AND BEARINGS; (25) RESIDENTIAL USE; (26) USE WITH UTILITY SERVICE OTHER THAN THAT DESIGNATED ON THE RATING PLATE.

Page 4

REVISION HISTORY

Revision

Letter

A 4-11-17 JH N/A Initial release of the manual.

B 4-27-17 JH N/A

C 6-4-17 JH 8523 Added the 460 V machine to the manual.

D 9-5-17 JH 8532

E 1-15-18 JH

F 2-5-19 JH

G 4-24-19 JH QOF 19-553 Updated 208-230 V schematic.

H 5-4-20 JH

J 11-16-20 JH N/A

K 2-5-21 JH 8810

L 6-28-21 JH

Revision

Date

Made by Applicable ECNs Details

Corrected pg. 2. Updated pg. 4 due to heaters not running simultaneously. Added description of the three cycles to the Operation section. Replaced item #14 on pg. 27 with new P/N. Added 1/4" brass plug to the rinse tank. Changed rinse heater P/N to 04540004-45-12 on pg. 39. Added wash heater, thermostat, probe, and tting to pg. 44.

Updated the schematic to revision B.

Updated depiction of the air-gap on pg. 6. Removed references to "screen" on pg. 20. Added communication cable (05700-004-33-64) to pg. 24. Corrected chemical tubes on pg. 28 and added tube length and color. Removed ll line (05700-002-62-37) from wash hub on pg. 33. Replaced 7/8" discharge hose with 5/8" discharge hose (05700004-46-28) on pg. 33. Updated view of inlet plumbing on pg. 37 to show angle of elbow

and adapter.

8537 8574

8585 8599 8619

8648

8664

8709 8721

QOF-19-730

8808

QOF 20-931

Added the HT-E-SEER to the manual. Updated the Door Assembly pages. Added item

#10 on pg. 48. Corrected P/N for item #10 on pg. 52.

Added PRV to view on pg. 3. Added note about hot water heaters to pg. 7. Added

motor rotation section to pg. 9. Added programming instructions and fault codes to pgs.

22–26. Updated P/N for item #2 on pg. 29. Updated pg. 31 to show panel and membrane together. Added item #14 on pg. 33. Updated item #11 on pg. 40. Added Door Interlock to pg. 41. Changed rinse arm bearing assembly on pg. 44. Changed rinse arm bearing kit P/N on pg. 44. Updated SEER plumbing, pgs. 48–49. Added note about water connection point to pg. 48. Updated pgs. 54–55. Added back panel and gaskets to pg. 56. Added new drain water tempering kit and 460 V drain water tempering kit to

pg. 57. Updated schematics on pgs. 58–59.

Revised Programming Chemical Feeder Pumps section. Updated pump assemblies on

pgs. 38-39. Added drip shield and gasket to pg. 39. Updated P/N for item #12 on pg.

57. Added wash heater gasket to pg. 59. Updated SEER System pages.

Revised drain line size. Updated dimensional drawing. Added F12 in Fault Codes

section. Corrected P/N of Item #8 on pg. 33. Adjusted quantities on pg. 42. Updated Item #3 on pg. 46.

Changed Priming Chemical Feeder Pumps section. Added spacer and updated blower

wheel P/N on SEER System pages.

Updated Fault Codes section. Changed pressure regulator on SEER unit. Updated rinse plumbing assembly. Removed resistor and bracket from electrical panels.

Page 5

NOMENCLATURE

DishStar® HT-E

Undercounter dishmachine; high-temperature, hot-water

sanitizing, with a booster tank and detergent

and rinse-aid chemical feeder pumps.

DishStar® HT-E-SEER

Undercounter dishmachine; high-temperature, hot-water

sanitizing, with a booster tank and detergent

and rinse-aid chemical feeder pumps. Equipped with Steam

Elimination and Energy Recovery System (SEER).

The manufacturer provides technical support for all of the dishmachines detailed in this manual. We strongly recommend that you refer to this manual before making a call to our technical support

sta󰀨. Please have this manual

open when you call so that our

sta󰀨 can refer you, if necessary,

to the proper page. Technical support is not available on holidays.

Contact technical support toll free at 1-888-800-5672.

Technical support is available for service personnel only.

Page 6

GUIDES

Symbols ............................................................................................................................................ 1

Abbreviations & Acronyms ............................................................................................................... 1

SPECIFICATIONS

HT-E Dimensions ............................................................................................................................. 2

HT-E-SEER Dimensions .................................................................................................................. 3

HT-E Operating Parameters ............................................................................................................. 4

HT-E-SEER Operating Parameters .................................................................................................. 5

Electrical Requirements ...................................................................................................................6

INSTRUCTIONS

Installation Instructions ..................................................................................................................... 7

Inspection......................................................................................................................... 7

Unpacking ........................................................................................................................ 7

Plumbing .......................................................................................................................... 7

Water Supply Connections .............................................................................................. 7

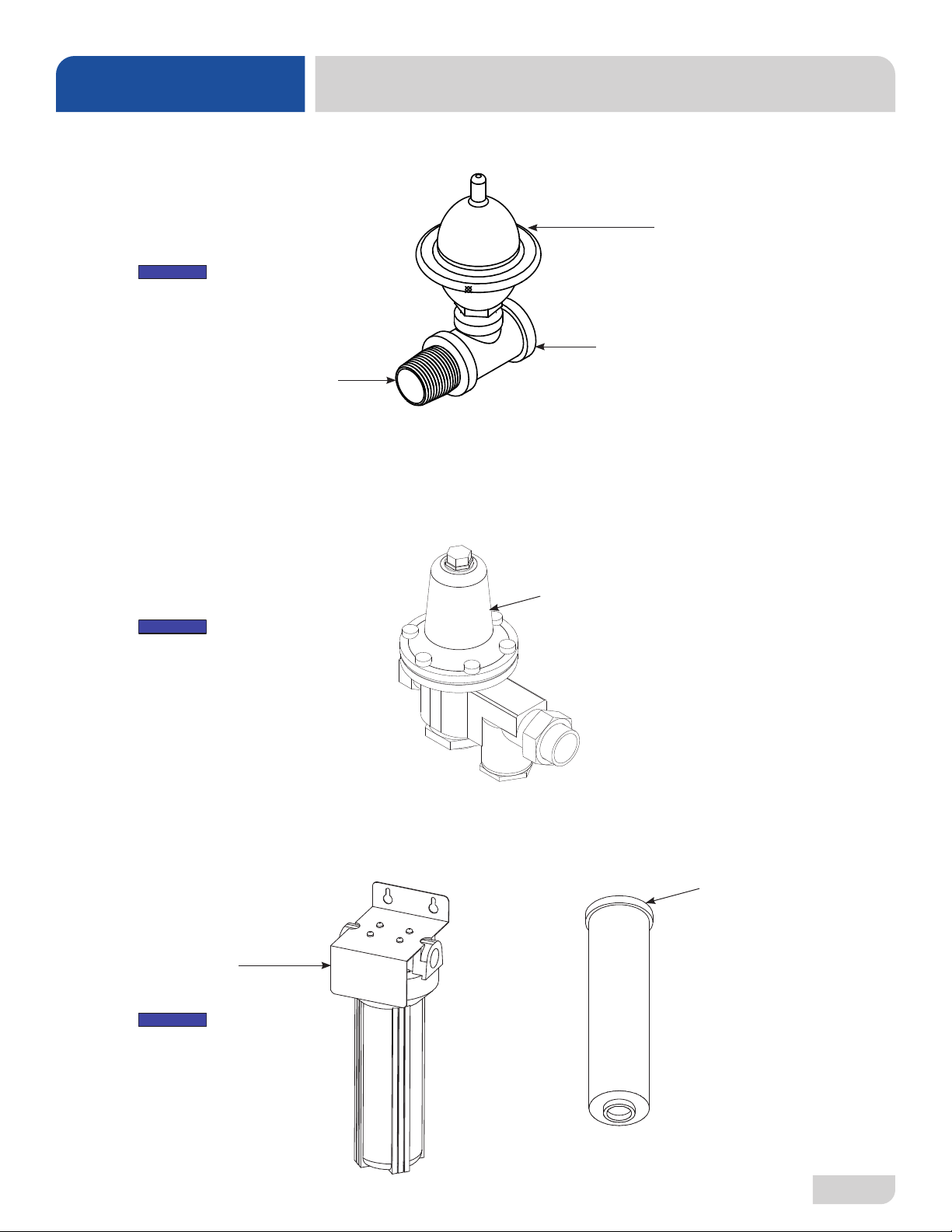

Pressure Regulator .......................................................................................................... 8

Shock Absorber ............................................................................................................... 8

Connecting the Drain Line ............................................................................................... 8

Plumbing Check ............................................................................................................... 8

Electrical Power Connections .......................................................................................... 9

Motor Rotation ................................................................................................................. 9

Voltage Check ................................................................................................................ 10

Surrounding Area ........................................................................................................... 10

Temperature Setpoints ................................................................................................... 10

Leveling.......................................................................................................................... 10

Chemical Feeder Equipment ......................................................................................... 10

Preparing Chemical Feeder Pumps ................................................................................11

Priming Chemical Feeder Pumps ...................................................................................11

Programming Chemical Feeder Pumps ......................................................................... 12

Operating Instructions ....................................................................................................................15

Preparation .................................................................................................................... 15

Power Up ....................................................................................................................... 15

Filling the Wash Tub ...................................................................................................... 15

Ware Preparation ........................................................................................................... 16

Washing a Rack of Ware ............................................................................................... 16

Operational Inspection ................................................................................................... 18

Shutdown & Cleaning .................................................................................................... 18

Deliming ......................................................................................................................... 20

Detergent Control........................................................................................................... 21

Page 7

TABLE OF CONTENTS

MAINTENANCE

Preventative Maintenance .............................................................................................................. 22

TROUBLESHOOTING

Programming .................................................................................................................................. 24

Fault Codes .................................................................................................................................... 26

Troubleshooting .............................................................................................................................. 29

PARTS

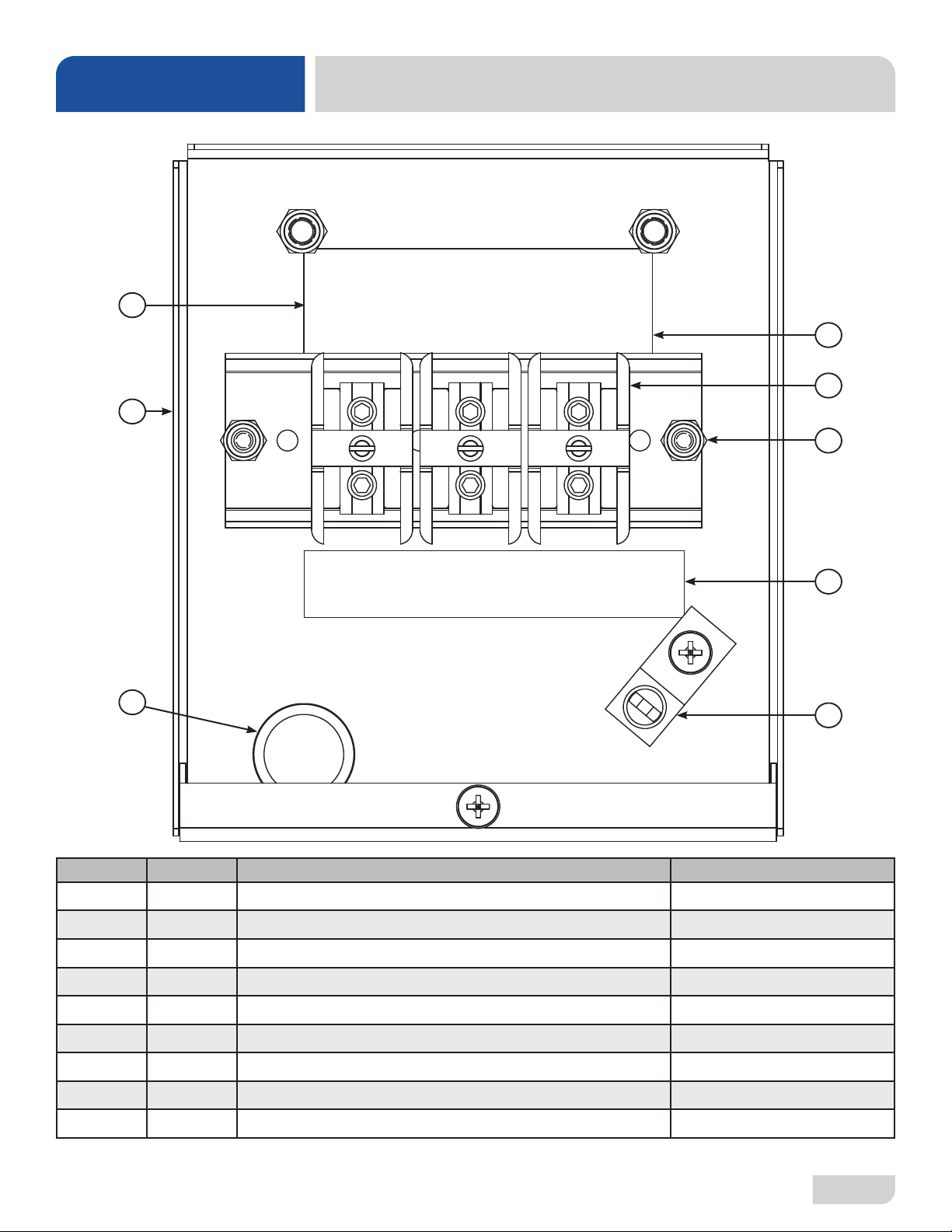

Terminal Block Box, 208/230 V ...................................................................................................... 31

Terminal Block Box, 460 V ............................................................................................................. 32

Control Kick Panel .......................................................................................................................... 33

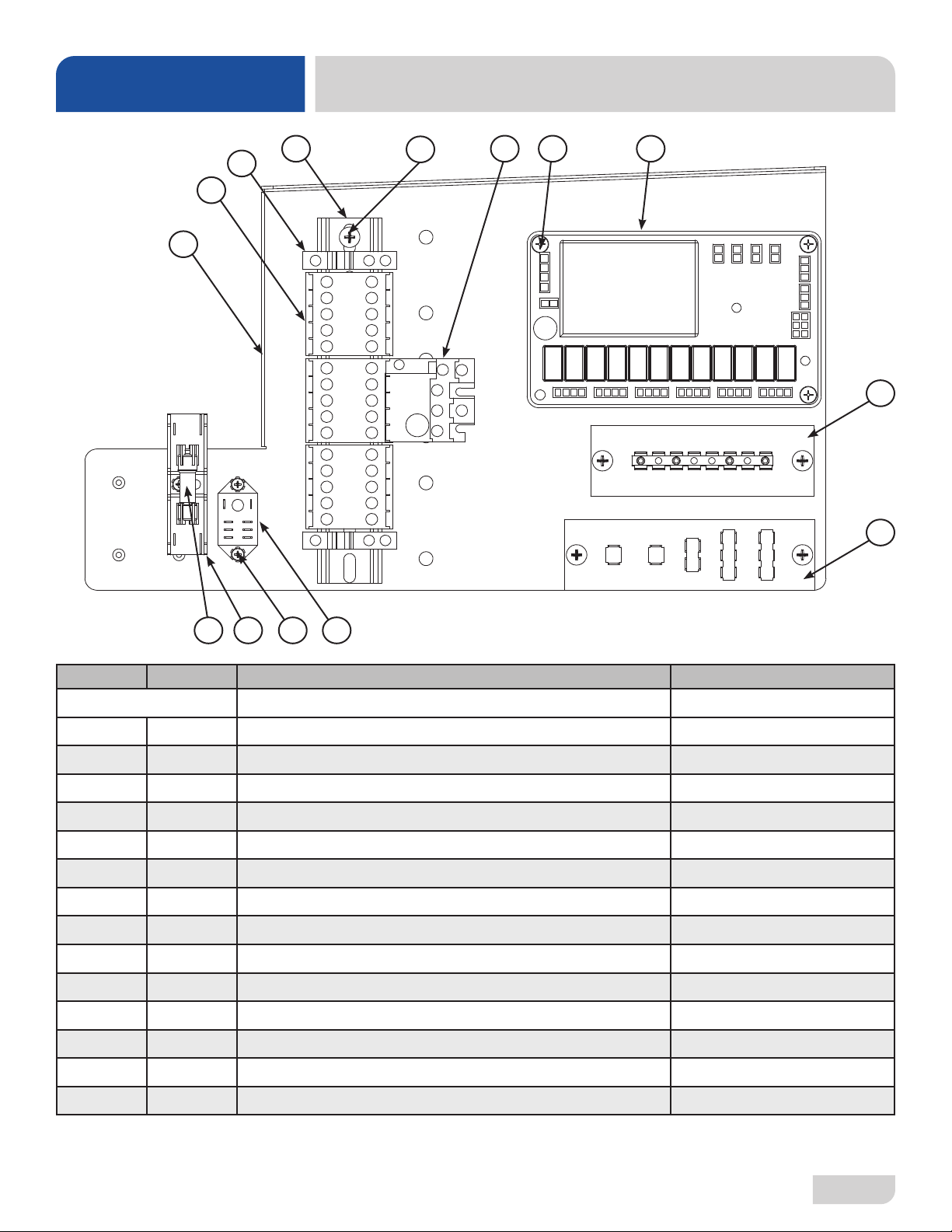

HT-E Electrical Panel, 208/230 V ................................................................................................... 34

HT-E Electrical Panel, 460 V .......................................................................................................... 35

HT-E-SEER Electrical Panel, 208/230 V ........................................................................................ 36

HT-E-SEER Electrical Panel, 460 V ............................................................................................... 37

Chemical Feeder Pumps ................................................................................................................ 38

Door ................................................................................................................................................ 40

Miscellaneous Door Components ..................................................................................................42

HT-E-SEER Door Interlock ............................................................................................................. 43

Wash & Motor ................................................................................................................................. 44

Rinse Manifold ................................................................................................................................46

Plumbing Options ........................................................................................................................... 47

HT-E Plumbing ............................................................................................................................... 48

HT-E-SEER Plumbing .................................................................................................................... 50

Rinse Plumbing ..............................................................................................................................52

Rinse Tank ...................................................................................................................................... 54

SEER System .................................................................................................................................56

Stands & Panels ............................................................................................................................. 58

Miscellaneous Parts .......................................................................................................................59

SCHEMATICS

208/230 V, 50/60 Hz, 1 Phase ....................................................................................................... 60

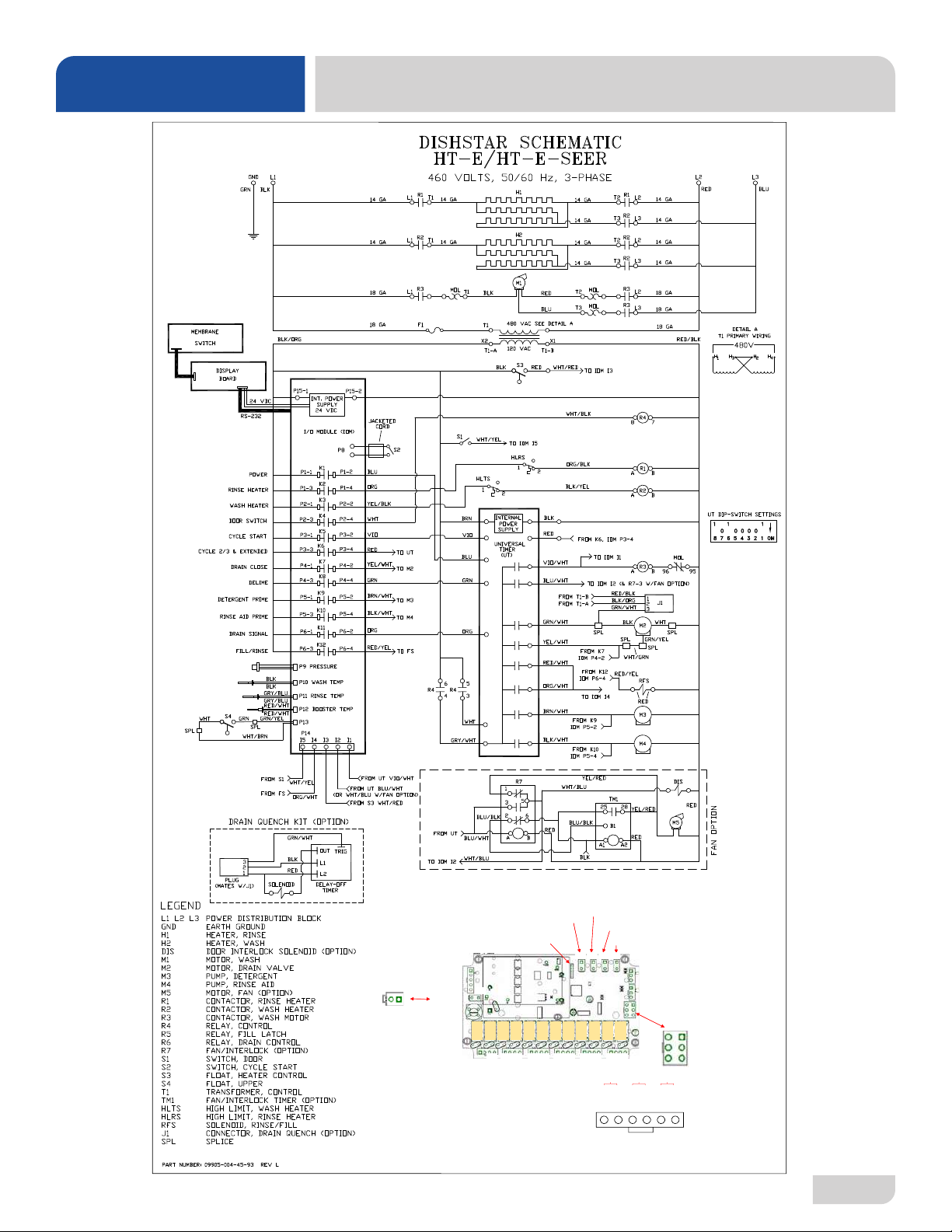

460 V, 60 Hz, 3 Phase ................................................................................................................... 61

iii

Page 8

GUIDES

NOTICE

SYMBOLS

- Risk of Injury to Personnel

WARNING

- Risk of Damage to Equipment

CAUTION

- Risk of Electrical Shock

- Caustic Chemicals

- Reference Data Plate

- Lockout Electrical Power

- Important Note



- Instructions Hyperlink

ABBREVIATIONS & ACRONYMS

ANSI - American National Standards Institute GHT - Garden Hose Thread GPG - Grains per Gallon GPM - Gallons per Minute HP - Horse Power Hz - Hertz ID - Inside Diameter kW - Kilowatts NFPA - National Fire Protection Association NPT - National Pipe Thread OD - Outside Diameter PRV - Pressure Regulating Valve PSI - Pounds per Square Inch V - Volts

07610-004-43-79-L

Page 9

SPECIFICATIONS

LEGEND

A - Electrical Connection

B - Water Inlet (with 6' Hose) (3/4" Male GHT, connect to true 1/2" ID line, MIN 110 °F)

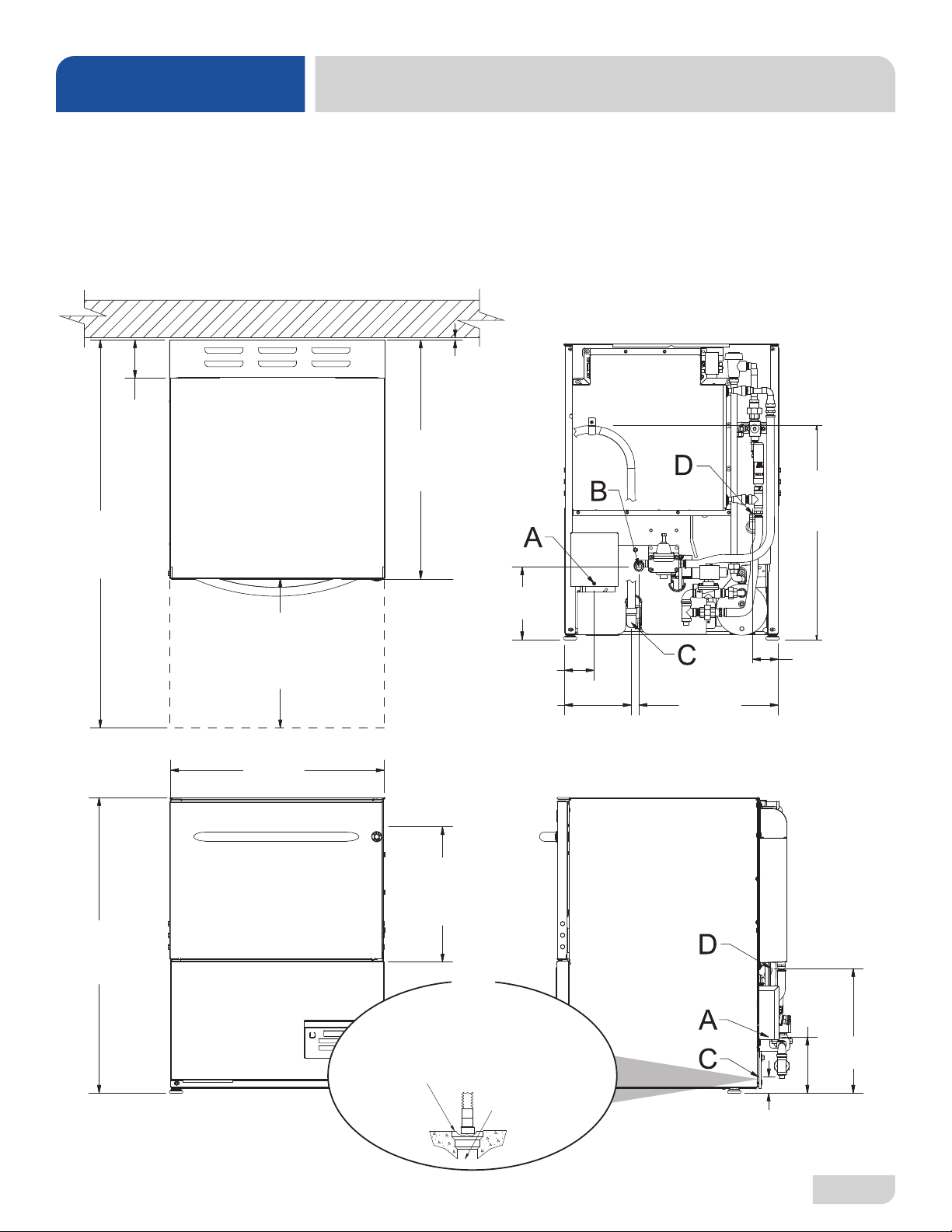

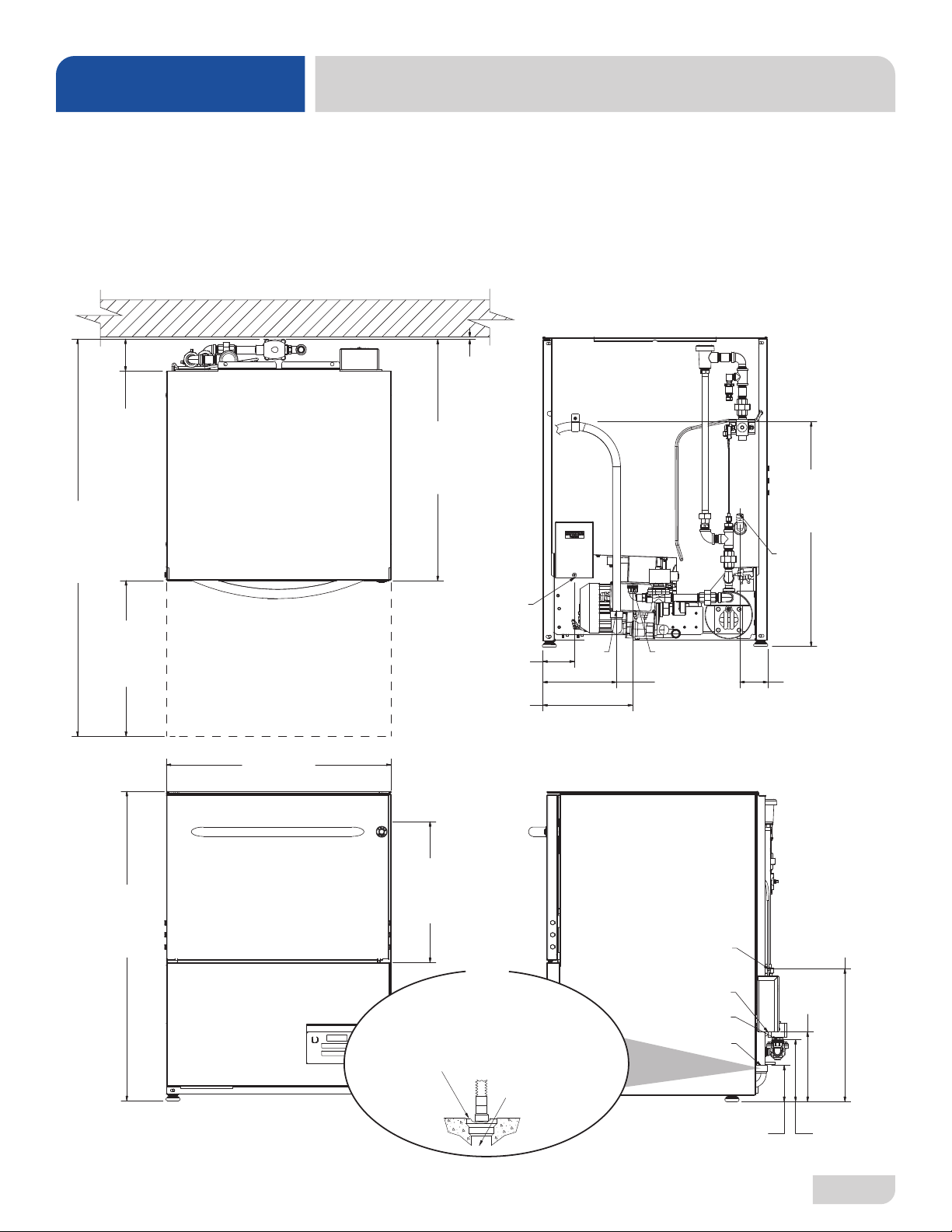

HT-E DIMENSIONS

C - Drain Hose (5/8" ID, install into 1 1/2" MIN Drain with Air-gap)

D - Chemical Port

1/4

[7 mm]

All dimensions from the floor can be increased 1” using the machine’s adjustable feet.

[88 mm]

42 3/4

[1087 mm]

3 1/2

16 3/4

[426 mm]

DOOR OPEN

TOP

24 1/4

[615 mm]

[660 mm]

3 3/8

[87 mm]

9 3/4

[246 mm]

BACK

[202 mm]

≤ 24

[610 mm]

[76 mm]

07610-004-43-79-L

33 5/16

[846 mm]

14 1/4

[362 mm]

CLEARANCE

Install Machine Drain Hose into 1 1/2 [38 mm] MIN Floor Drain or Sink

Do NOT install Drain Hose to “bottom” of Floor Drain or Sink. This can cause splashback.

SIDEFRONT

14 1/4

D A

[363 mm]

7 1/2

[190 mm]

B C

3 7/8

[99 mm]

6 5/8

[169 mm]

Page 10

SPECIFICATIONS

LEGEND

A - Electrical Connection

B - Water Inlet (with 6' Hose) (3/4" Male GHT, connect to true 1/2" ID line, 40–90 °F)

HT-E-SEER DIMENSIONS

C - Drain Hose (5/8" ID, install into 1 1/2" MIN Drain with Air-gap)

D - Chemical Port

1/4

[7 mm]

All dimensions from the floor can be increased 1” using the machine’s adjustable feet.

4 3/8

[110 mm]

43 5/8

[1108 mm]

TOP

16 3/4

[426 mm]

24 1/4

[615 mm]

DOOR OPEN

26 7/8

[692 mm]

8 1/4

[210 mm]

3 3/8

[87 mm]

7 1/2

[190 mm]

BACK*

≤ 24

[610 mm]

[76 mm]

15 5/8

[398 mm]

33 5/16

[846 mm]

*Back and side views shown with back panel removed.

07610-004-43-79-L

14 1/4

[362 mm]

Install Machine Drain Hose into 1 1/2 [38 mm] MIN Floor Drain or Sink

CLEARANCE

Do NOT install Drain Hose to “bottom” of Floor Drain or Sink. This can cause splashback.

SIDE*FRONT

[152 mm]

14 1/4

[363 mm]

1 3/4

[44 mm]

Page 11

SPECIFICATIONS

NOTICE

HT-E OPERATING PARAMETERS

DishStar HT-E

Operating Capacity:

Racks per Hour 27

Dishes per Hour 675

Glasses per Hour 972

Tank Capacity (Gallons):

Wash Tank 3

Rinse Tank 1.66

Always refer to the machine data plate for specic electrical and water

requirements. The material provided on this page is for reference only and is subject to change without notice.

Incoming water is from a

"hot" water line.

Cycle Times (Seconds):

Cycle I

Wash 80

Rinse 9

Dwell 11

Total 100

Cycle II

Wash 148

Rinse 9

Dwell 11

Total 168

Cycle III

Wash 248

Rinse 9

Dwell 11

Total 268

Water Temperatures (°F):

Minimum Wash Temperature 155

Minimum Rinse Temperature 180

Minimum Incoming Water Temperature 110

Other Water Requirements:

Water Flow Pressure (PSI) 10

Flow Rate Minimum (GPM) 4.33

Water Line Size (NPT) 3/4" Male GHT

Connect to true 1/2" ID Line

Drain Line Size (NPT) 5/8" ID

Connect to MIN 1 1/2" Drain with Air-gap

07610-004-43-79-L

Page 12

NOTICE

SPECIFICATIONS

HT-E-SEER OPERATING PARAMETERS

DishStar HT-E-SEER

Operating Capacity:

Racks per Hour 20

Dishes per Hour 500

Glasses per Hour 720

Tank Capacity (Gallons):

Wash Tank 3

Rinse Tank 1.66

Always refer to the machine data plate for specic electrical and water

requirements. The material provided on this page is for reference only and is subject to change without notice.

Incoming water is from a

"cold" water line.

Cycle Times (Seconds):

Cycle I

Wash 80

Rinse 9

Dwell 11

SEER 45

Total 145

Cycle II

Wash 148

Rinse 9

Dwell 11

SEER 45

Total 213

Cycle III

Wash 248

Rinse 9

Dwell 11

SEER 45

Total 313

Water Temperatures (°F):

Minimum Wash Temperature 155

Minimum Rinse Temperature 180

Minimum Incoming Water Temperature 40

Maximum Incoming Water Temperature 90

Other Water Requirements:

Water Flow Pressure (PSI) 10

Flow Rate Minimum (GPM) 4.33

Water Line Size (NPT) 3/4" Male GHT

Connect to true 1/2" ID Line

Drain Line Size (NPT) 5/8" ID

Connect to MIN 1 1/2" Drain with Air-gap

07610-004-43-79-L

Page 13

NOTICE

SPECIFICATIONS

ELECTRICAL REQUIREMENTS

DishStar HT-E/HT-E-SEER

Electrical Characteristics

All electrical ratings provided in this manual are for reference only. Always refer to the machine data plate to get exact electrical information for this machine. All electrical work performed on machines should be done in accordance with applicable local, state, territorial, and national codes. Work should only be

performed by qualied electricians and authorized service agents.

Amperage loads for motors and heaters are indicated on the machine data plate.

The electrical congurations are as follows:

Available Electrical Characteristics:

• 208 V, 60 Hz, Single-phase

• 230 V, 60 Hz, Single-phase

• 460 V, 60 Hz, Three-phase

Available Wash Motors:

• 1 HP (208/230 V)

• 3/4 HP (460 V)

Available Wash Tank Heaters:

• 3.3 kW (208 V)/4 kW (230 V)

• 4 kW (460 V)

VOLTS 208 230 460

PHASE 1 1 3

FREQ 60 60 60

WASH

MOTOR

5.0 A 5.0 A 2.0 A

AMPS

WASH

HEATER

15.9 A 17.4 A 4.6 A

AMPS

RINSE

HEATER

19.7 A 21.7 A 6.3 A

AMPS

TOTAL

LOAD

24.7 A* 26.7 A* 8.3 A*

Available Rinse Tank Heaters:

• 4.1 kW (208 V)/5.45 kW (230 V)

• 5.45 kW (460 V)

*The DishStar® HT-E is designed so the heaters never run simultaneously. Total Load is based on the higher of the two loads.

07610-004-43-79-L

Page 14

INSTALLATION

NOTICE

INSTRUCTIONS

INSPECTION

Do not throw away

packaging if damage is

evident!

UNPACKING

PLUMBING

The plumber must ush

the incoming water line!

Before installing the machine, check packaging and machine for damage. Damaged packaging might be an indication of damage to the machine. If there is any type of damage to both packaging and unit, do not throw away the packaging. The machine has been inspected at the factory before shipping and is expected to arrive in new, undamaged condition. However, rough handling by carriers or others might result in damage to the machine while in transit. If this occurs, do not return the machine to the manufacturer. Instead, contact the carrier and ask them to send a representative to the site to inspect the damage and request that an inspection report be completed.

Contact the carrier within 48 hours of receiving the machine as well as the dealer that

sold you the machine.

The machine should be unpacked and removed from the pallet before installing. Open the front door and remove all materials from inside. Once unpacked, verify there are no missing parts. If a part is missing, contact the manufacturer immediately.

All plumbing connections must be made to adhere to local, state, territorial, and national codes. The installing plumber is responsible for ensuring the incoming

water lines are ushed of debris before connecting to the machine. Note that chips

and materials from cutting processes can become lodged in the solenoid valves and prevent them from opening or closing. Any valves that are found to be fouled or defective because of foreign matter left in the water line, and any subsequent damage, are not the responsibility of the manufacturer.

WATER SUPPLY CONNECTIONS:

WATER HARDNESS

HIGHER THAN 3 GPG

A water hardness test

must be performed.

See the HT-E Dimensions or HT-E-SEER Dimensions page (depending on your

model) and reference item "B" for water inlet connection location.

The manufacturer does NOT endorse "Tankless On-demand" water heaters for use with their dishmachines. The manufacturer DOES endorse, and highly recommends, the standard "Tank" style water heaters, sized to properly handle the water heating requirements of the facility.

A water hardness test must be performed. There is a hardness test kit on the warning tag attached to the incoming plumbing connection on the back of the machine. If

water hardness is higher than 3 GPG and a water softener is not being used, install

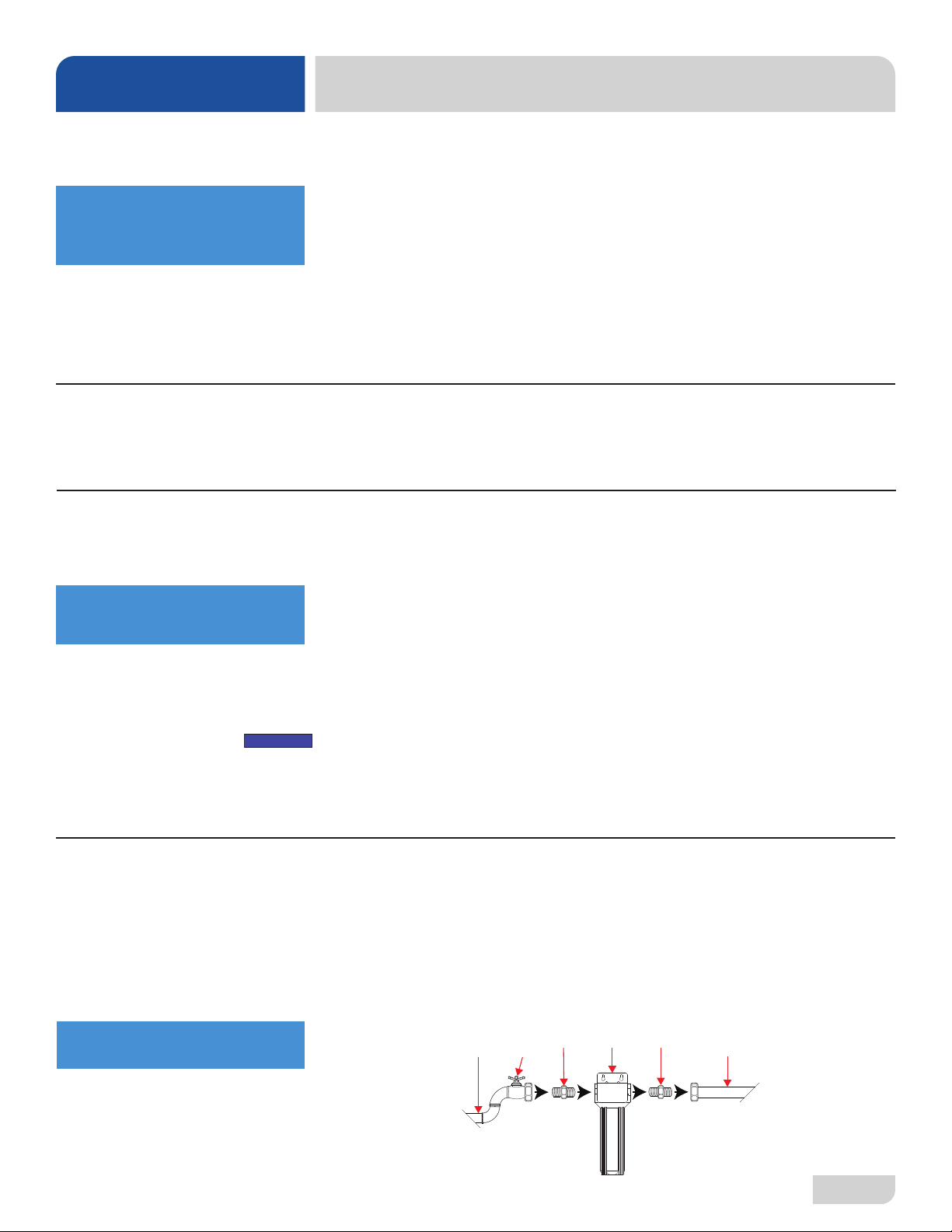

an SPS (see Plumbing Options page) into the water line between the facility water line

and the machine water line (installed at the factory). Observe proper inlet/outlet water directions. A water shut-o󰀨 valve should be installed before installing the SPS to allow access for service. The water supply must be capable of a minimum of 10 PSI “ow”

pressure at the recommended temperature indicated on the data plate.

Shut-off

Adapter AdapterSPS Machine

Valve

*Adapters needed will vary.

Water Line

Example

Facility

Water Line

07610-004-43-79-L

Page 15

INSTALLATION

INSTRUCTIONS

WATER SUPPLY CONNECTIONS:

WATER HARDNESS

LOWER THAN 3 GPG

PRESSURE

REGULATOR

Take care not to confuse

static pressure with

ow pressure!

SHOCK ABSORBER

If water hardness tests at 3 GPG or lower, connect the machine water line (installed at the factory) to the facility water line. A water shut-o󰀨 valve should be installed in

the water line between the facility supply and the machine to allow access for service.

The water supply line must be capable of a minimum of 10 PSI “ow” pressure at the

recommended temperature indicated on the data plate.

The manufacturer recommends the installation of a pressure regulating valve (PRV)

in the incoming water line to ensure proper owrate at all times and o󰀨ers them as

an option (see the Plumbing Options page). The PRV comes standard on the HT-ESEER. Do not confuse static pressure with ow pressure. Static pressure is the line

pressure in a “no ow” condition (all valves and services are closed). Flow pressure is the pressure in the ll line when the ll valve is opened during the cycle.

The manufacturer also recommends the installation of a shock absorber on the

incoming water line and o󰀨ers them as an option (see the Plumbing Options page). A

shock absober comes standard on the HT-E-SEER. This prevents water hammer or hydraulic shock—induced by the solenoid valve as it operates—from causing damage

to the equipment.

CONNECTING THE

DRAIN LINE

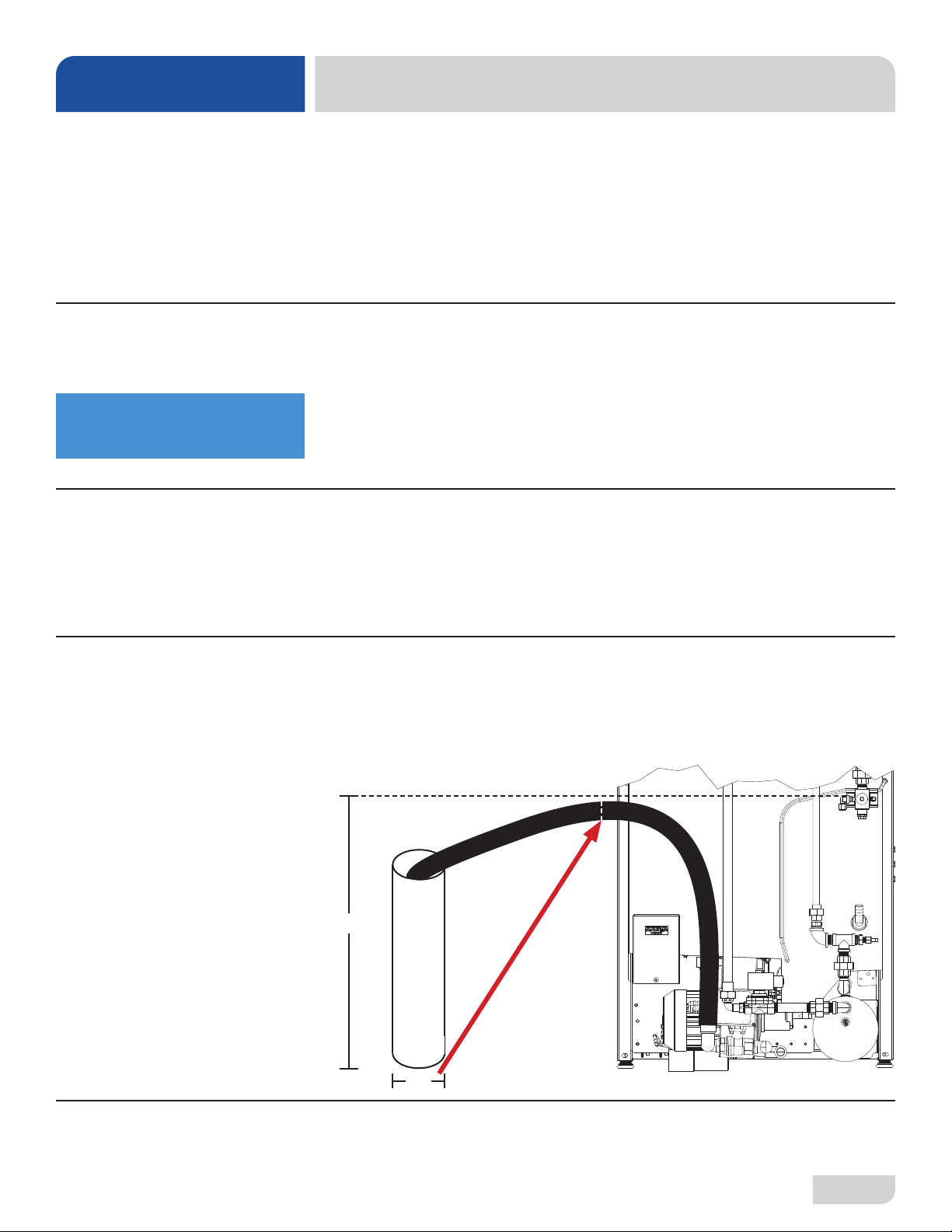

The machine has a pumped (pressure) drain capable of pumping waste water to

a height of 24” above the oor to the kitchen’s drain system. Each dishmachine is

supplied with a drain hose. When installed, it will extend from the rear side of the

machine. There must be an air-gap between the machine drain line and the oor sink

or drain at least 1.5 times larger than the drain hose. If a grease trap is required by

code, it should have a ow capacity of 12 GPM.

Air-gap

≤24”

1.5x

PLUMBING CHECK

07610-004-43-79-L

After installing the incoming ll line and drain line, turn on the water supply to the machine. Check for any leaks and repair as required. All leaks must be repaired before operating the machine.

Page 16

INSTALLATION

INSTRUCTIONS

ELECTRICAL POWER

CONNECTIONS

Disconnect electrical

power at the breaker or

disconnect switch and

tag-out in accordance with

procedures and codes.

On the 460 V machine, the

imbalanced wild leg goes

to L3.

Electrical and grounding conductors must comply with the applicable portions of the

National Electric Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.

The data plate is located on the left-front of the dishmachine. Refer to the data plate for machine operating requirements, machine voltage, total amperage, and serial number.

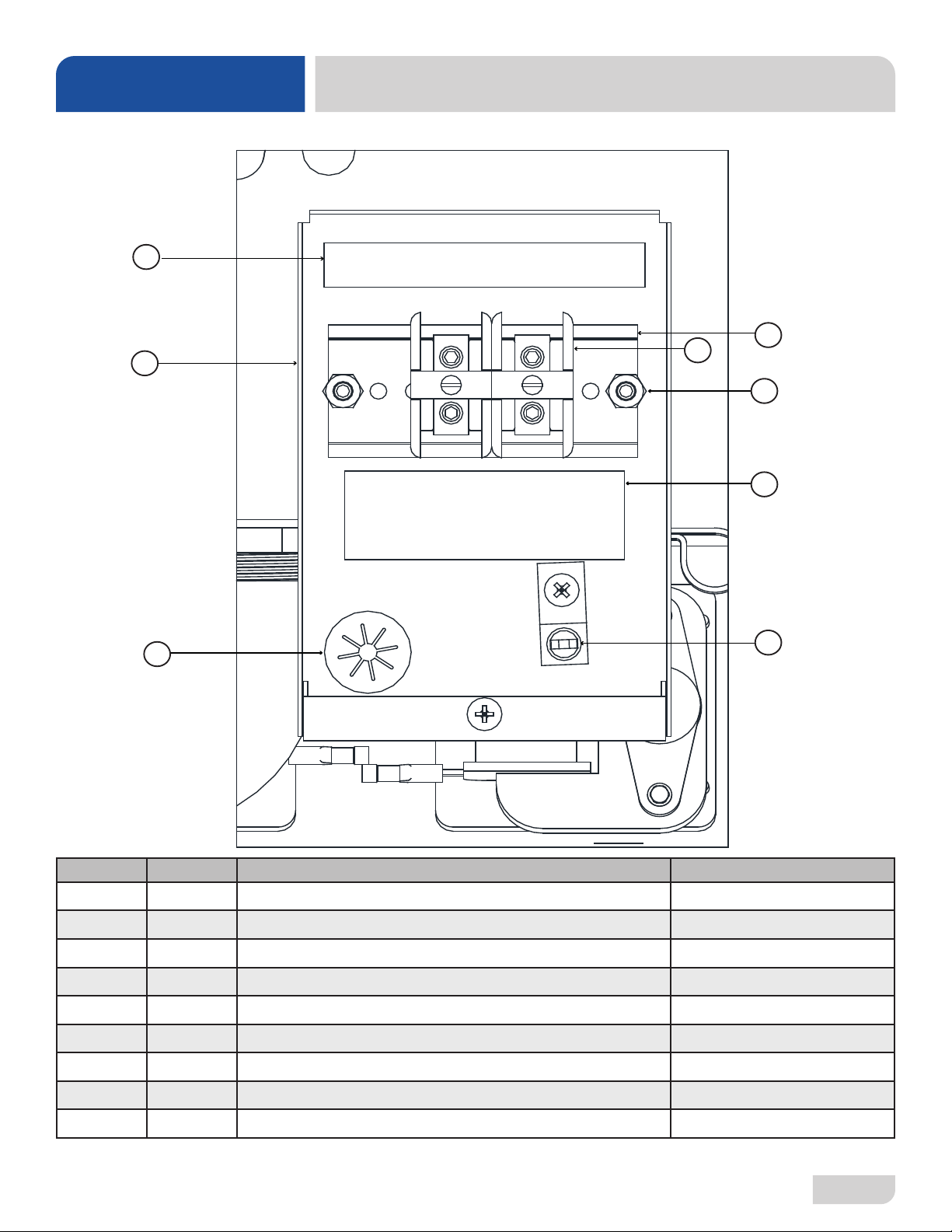

Remove the back panel and set aside. Remove the terminal block box cover. Install

3/4” conduit into the hole in the bottom of the terminal block box. Route power wires and connect to terminal block. Install the grounding wire onto the lug provided. “DE-OX” or

another similar anti-oxidation agent should be used on all power connections.

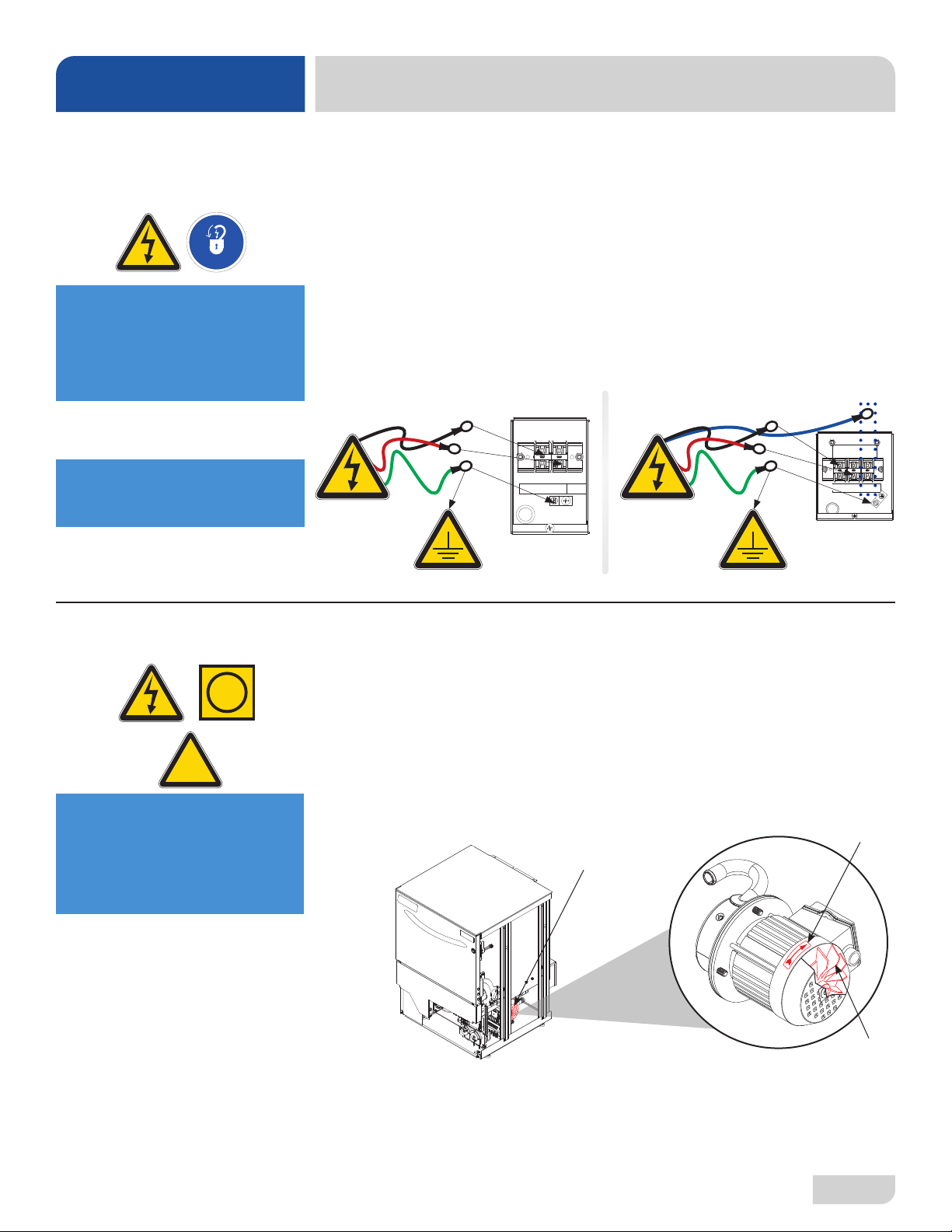

208/230 V 460 V

3Φ

L1 N

Ground

L1 L2 L3

Ground

MOTOR ROTATION

CAUTION

CAUTION! On 3-Phase

machines only, correct

pump motor rotation

must be veried

before operation!

On 3-Phase machines only, correct pump motor rotation must be veried before

the machine is operated. Failure to do so can result in damage to the machine and components.

1. Follow the Filling the Wash Tub section.

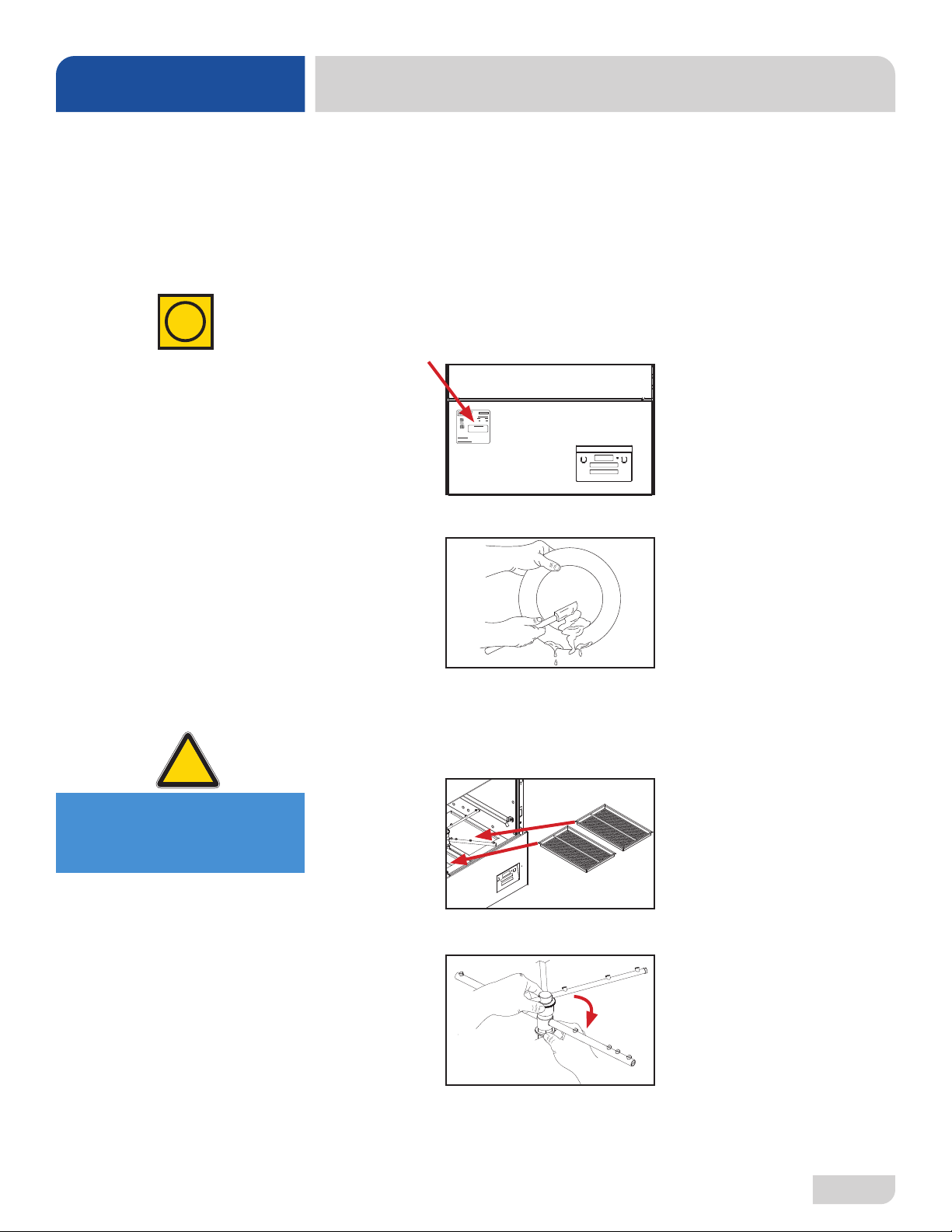

2. Using a 7/16 nutdriver, remove front kick panel and keep hardware. Using a phillips screwdriver, remove right dress panel and keep hardware. Leave start switch wires connected.

3. Locate the wash pump motor and identify the arrow decal which shows the correct motor rotation.

Wash Pump Motor

4. Press the Start button on the right dress panel and immediately open the door.

Arrow Decal

Motor Fan

07610-004-43-79-L

5. This will stop the cycle. Observe rotation of motor fan.

6. If incorrect, disconnect electrical power and reverse the L1 and L2 connections at terminal block shown in the section above. Replace panels.

Page 17

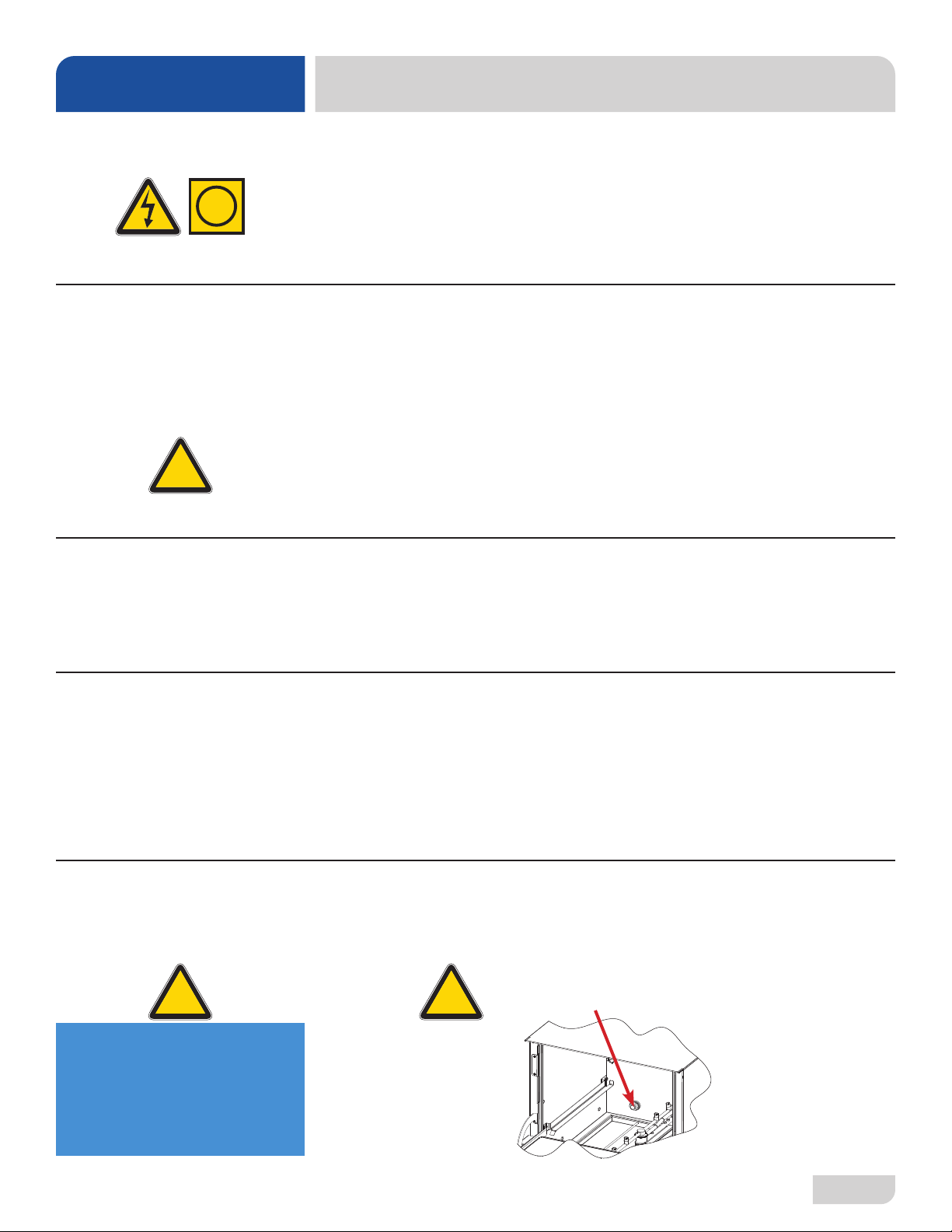

INSTALLATION

INSTRUCTIONS

VOLTAGE CHECK

SURROUNDING AREA

CAUTION

TEMPERATURE

SETPOINTS

Apply power to machine. Check the incoming power at the terminal block and ensure

it corresponds with the voltage listed on the data plate. If not, contact a qualied

service agency to examine the problem. Do not run the machine if voltage is too high or too low. Advise all proper personnel of the location of the breaker and any problems. Replace the terminal block box cover and tighten-down the screws.

This is a commercial machine and reaches temperatures that can exceed those

generated by a residential machine. Surrounding countertops, cabinets, ooring material, and subooring material must be designed and/or selected with these higher

temperatures in mind.

CAUTION! Damage to materials not recommended for higher temperatures will not be covered under warranty or by the manufacturer.

The temperature setpoints on this unit have been set at the factory. They should only be adjusted by an authorized service agent.

LEVELING

CHEMICAL FEEDER

EQUIPMENT

CAUTION

CAUTION! Using deionized

water or other aggressive

uids will result in

corrosion and failure of

components and will void

the warranty.

A level machine is important to prevent any damage to the machine during operation and to ensure the best possible results. The machine comes equipped with adjustable bullet feet which can be turned using a pair of pliers. Since this machine is an undercounter unit, it should be leveled as close as possible to the unit's location before it is pushed under the counter.

The bottom of the chemical container cannot be located any higher than 8” from the oor. If the unit is equipped with the 6” or 18” table stand, the highest position will be 14” or 26” respectively from the oor.

CAUTION! Chemical tube must not

CAUTION

extend past port into wash chamber.

07610-004-43-79-L

Page 18

INSTALLATION

NOTICE

INSTRUCTIONS

PREPARING

CHEMICAL

FEEDER PUMPS

PRIMING CHEMICAL

FEEDER PUMPS

CAUTION

Machines with serial numbers

before 21A390814 prime

dierently. Click here to open

manual with old instructions.

This machine is supplied with detergent and rinse-aid chemical feeder pumps.

Locate the open ends of the chemical tubes with the tube sti󰀨eners and place each

one in the appropriate container.

• Red Tubing = Detergent • Blue Tubing = Rinse-aid

Chemical feeder pumps need priming when the machine is rst installed or if the

chemical lines have been removed and air was allowed to enter.

CAUTION! Water must be in the sump and wash tank before dispensing chemicals.

1. Verify the proper chemical tube sti󰀨ener inlet is in the proper container.

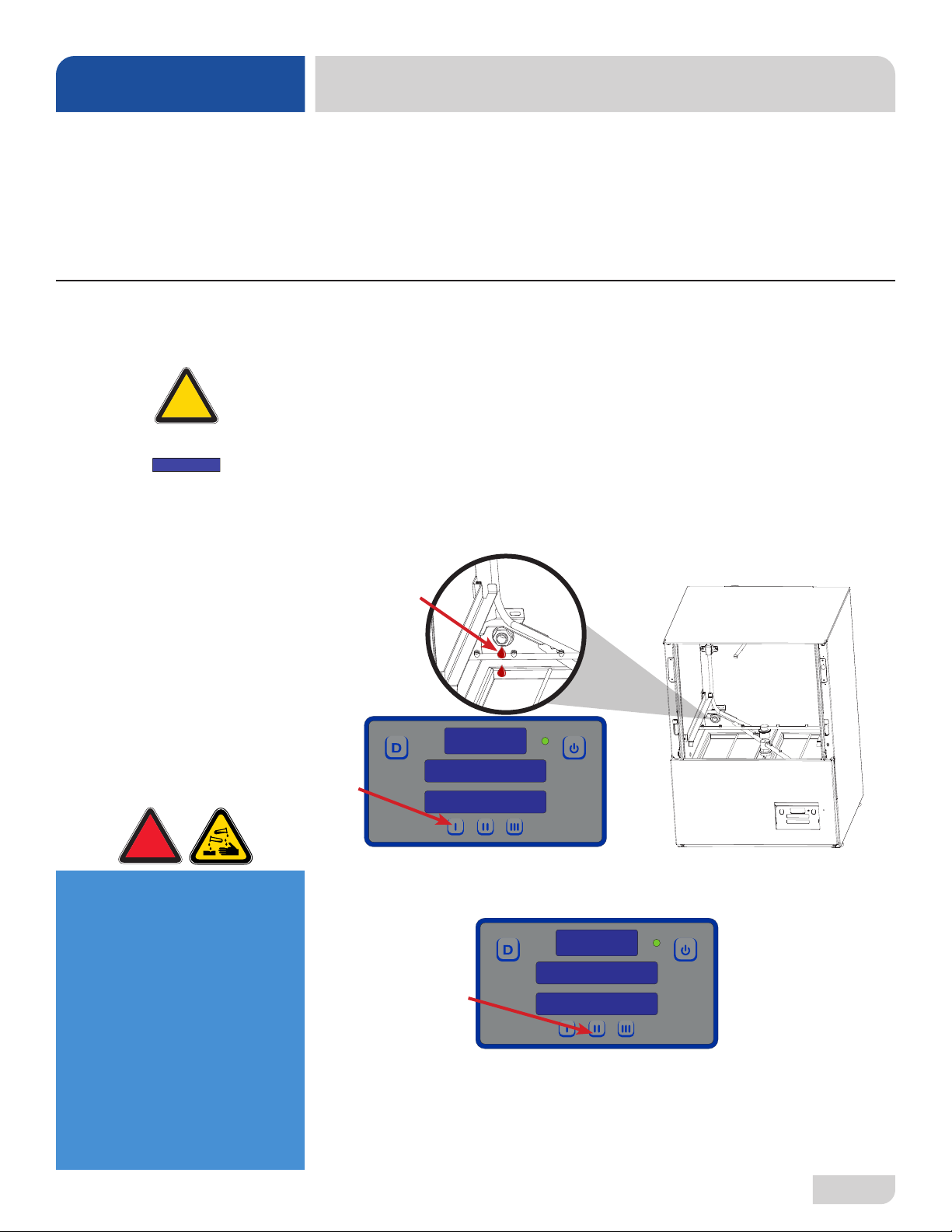

2. To prime detergent pump, press and hold I button until display shows timer. Priming cycle defaults to 70 seconds. Observe wash tank during priming cycle. If too much detergent, press I button to stop priming cycle. If not enough, run priming cycle again.

WARNING

WARNING! Some of the

chemicals used in

dishwashing may cause

chemical burns if they

come in contact with skin.

Wear protective gear when

handling these chemicals.

If any skin comes in

contact with these

chemicals, immediately

follow the instructions

provided with the

chemicals for treatment.

07610-004-43-79-L

DETERGENT PRIME

3. To prime rinse-aid pump, press and hold II button until display shows timer. Priming cycle defaults to 180 seconds.

180

RINSE AID PRIME

4. The amount of detergent might need adjustment depending on water quality and type of detergent. The amount of rinse-aid might need adjustment depending on water hardness and results. Refer to next section for instructions on adjusting amount of chemicals being dispensed.

Page 19

INSTALLATION

1 2 3 4 5 6 7 8

LIGHTS TIME

1 2 3 4 5 6 7 8

INSTRUCTIONS

PROGRAMMING

CHEMICAL

FEEDER PUMPS

DIP-switch Settings

(0 = On, X = O󰀨)

X X X

0 0 0 0 0

8 7 6 5 4 3 2 1

Universal timer is

located above chemical

feeder pumps. Use Parts

section of this manual

for reference.

←

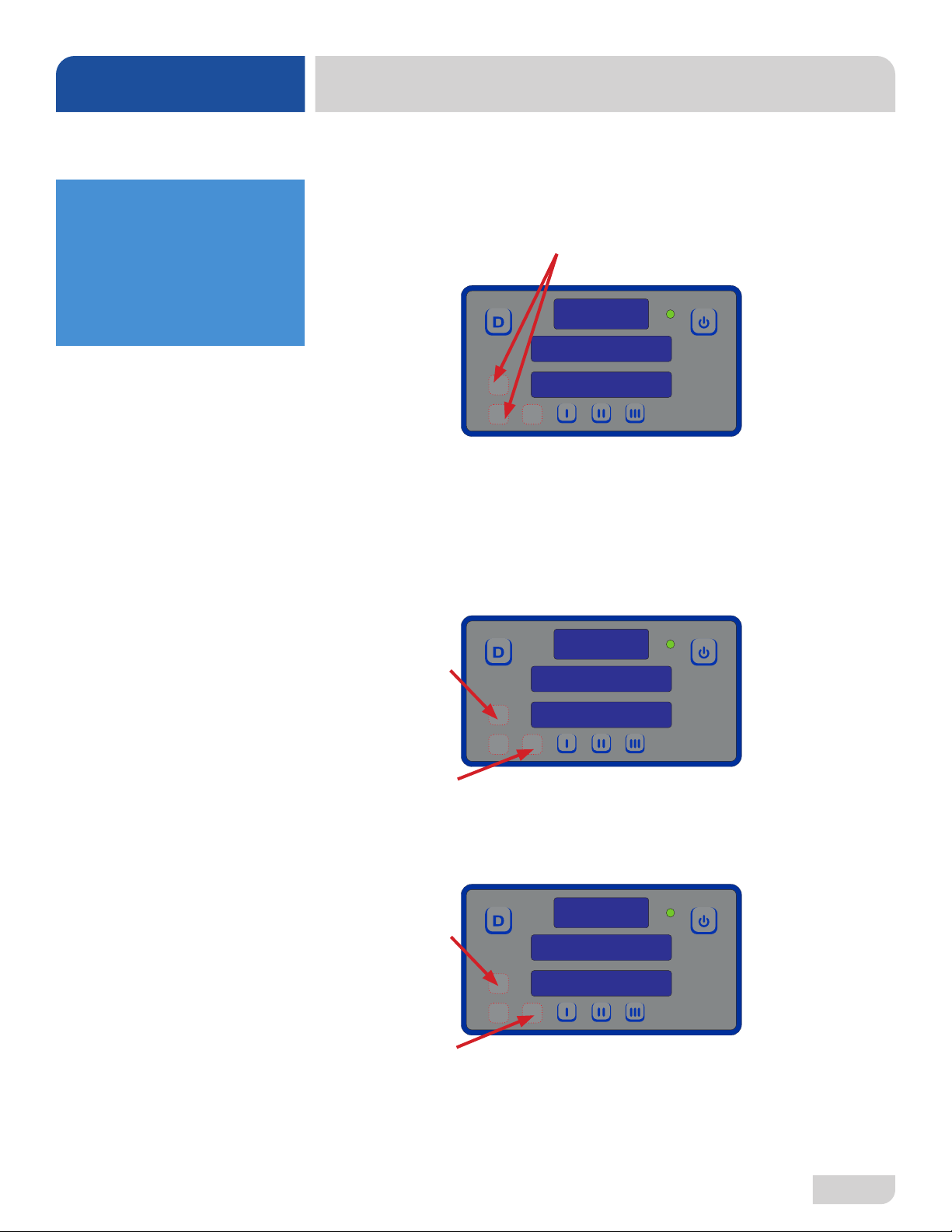

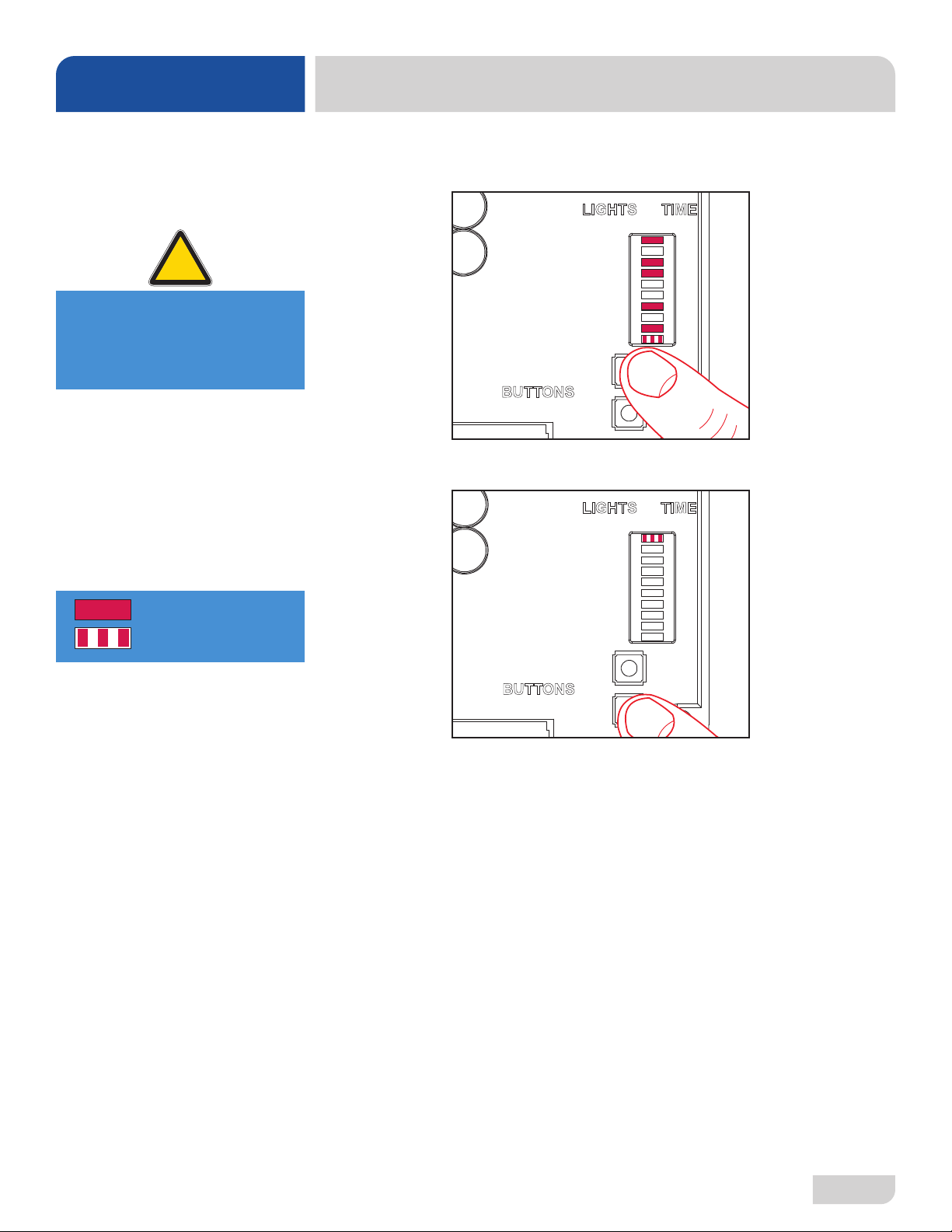

To access programming mode, machine must be ON and “READY” (between cycles).

The PROGRAM (PGM) light will be ashing.

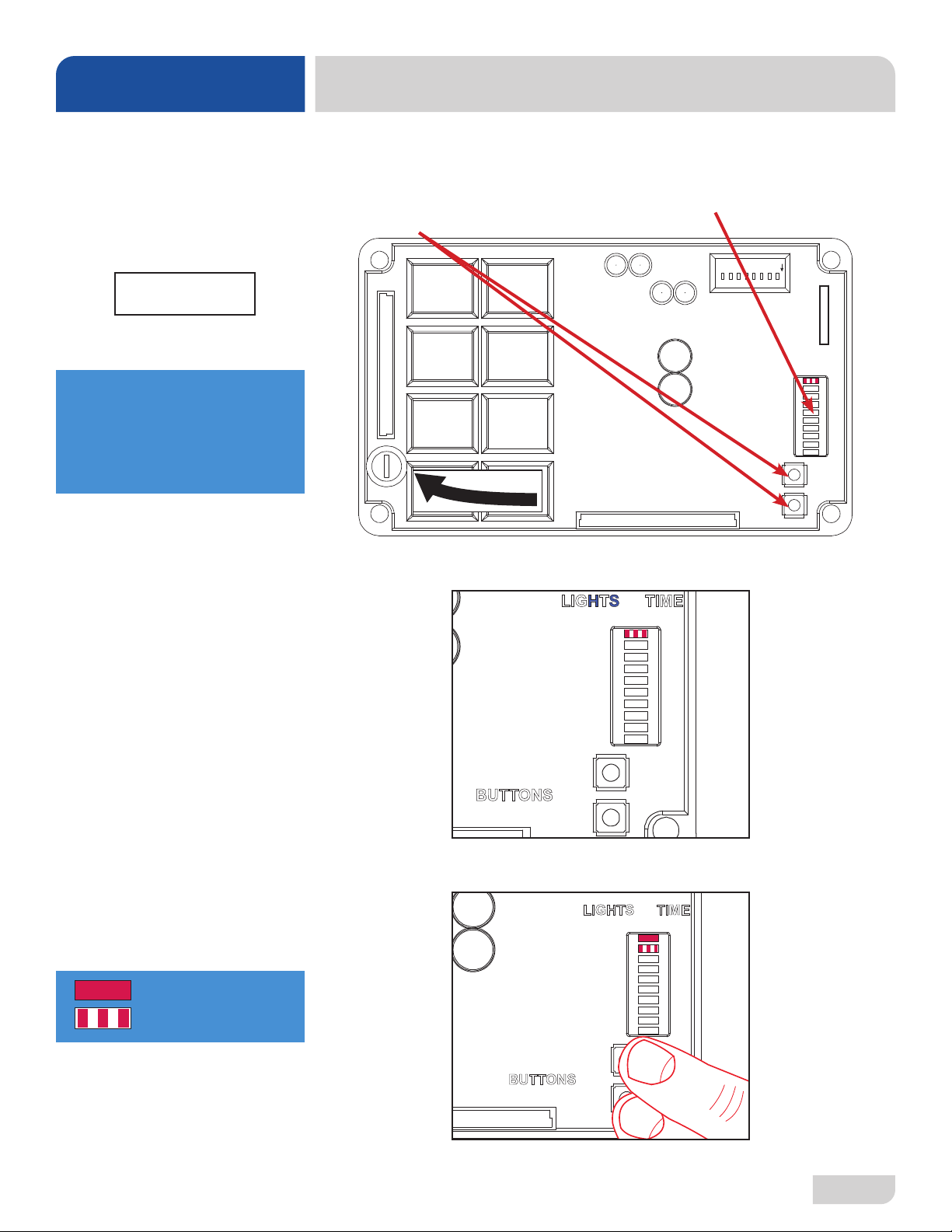

1. Locate universal timer. On the timer, locate programming board and programming buttons.

8 7 6 5 4 3 2 1

2. Programming board and buttons are not labeled on the timer. Use the graphic below for reference.

= Light Steady

= Light Flashing

PGM

MOVE

A B C D E F G H

SEC

8 4 2 1

0.8

0.4

0.2

0.1

BUTTONS

ENTER

3. Press and hold both the MOVE and ENTER buttons simultaneously for two seconds then release. PGM light will go steady and light A will start ashing.

BUTTONS

LIGHTS TIME

PGM

A B C D E F G H

MOVE

ENTER

SEC

0.8

0.4

0.2

0.1

8 4 2 1

07610-004-43-79-L

Page 20

INSTALLATION

1 2 3 4 5 6 7 8

INSTRUCTIONS

PROGRAMMING

CHEMICAL

FEEDER PUMPS

G = Detergent

H = Rinse-aid

In this example,

detergent is selected.

= Light Steady

= Light Flashing

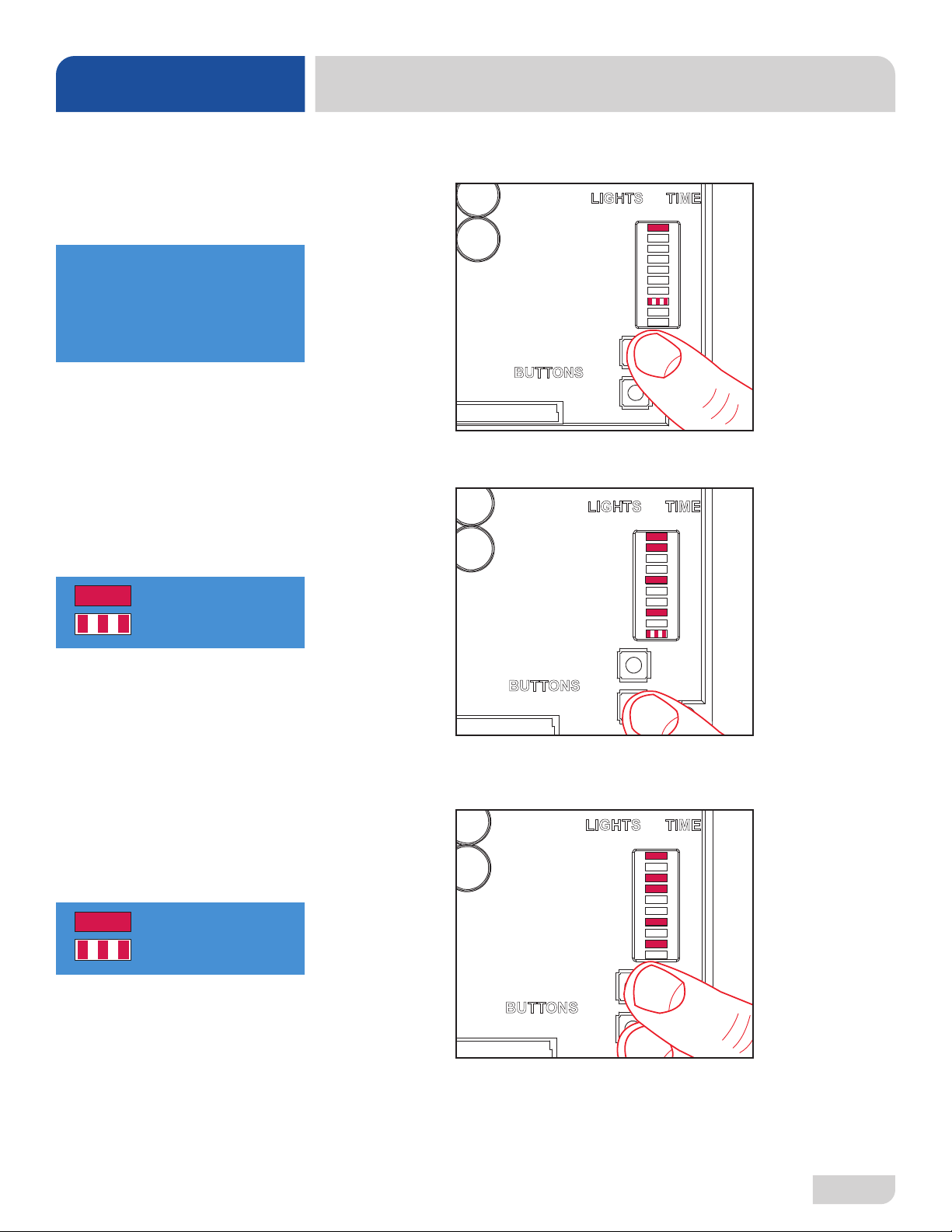

4. Press MOVE button to move the ashing light to G or H (options A–F are not

adjustable).

BUTTONS

LIGHTS TIME

PGM

A B C D E F G H

MOVE

ENTER

SEC

0.8

0.4

0.2

0.1

8 4 2 1

5. Press ENTER button. PGM light will stay steady, lights for the current time setting will come on, and ACCEPT light will start ashing.

LIGHTS TIME

PGM

A B C D E F G H

MOVE

SEC

0.8

0.4

0.2

0.1

8 4 2 1

Example here shows

current setting for

detergent dispensing

time at 9.2 seconds (each selected time

option is added to get

the total).

BUTTONS

ENTER

07610-004-43-79-L

= Light Steady

= Light Flashing

6. Press MOVE button to cycle through the di󰀨erent time options. To choose a time option, press ENTER while the light is ashing on that option. To deselect the

option, press ENTER again.

LIGHTS TIME

PGM

A B C D E F G H

MOVE

SEC

8 4 2 1

0.8

0.4

0.2

0.1

Example here

shows setting for

detergent dispensing

time changed to

6.5 seconds (each

selected time option

is added to get the

total).

BUTTONS

ENTER

Page 21

INSTALLATION

1 2 3 4 5 6 7 8

INSTRUCTIONS

PROGRAMMING

CHEMICAL

FEEDER PUMPS

CAUTION

CAUTION! Light for

each desired option

must be steady before

pressing ENTER.

= Light Steady

= Light Flashing

7. Once all desired time options are selected, press MOVE button until ACCEPT

light is ashing (lights for selected time options should still be steady).

LIGHTS TIME

PGM

A B C D E F

MOVE

SEC

0.8

0.4

0.2

0.1

8 4 2 1

BUTTONS

ENTER

8. Press ENTER button. This saves the changed parameters and exits the

programming mode. PGM light will go from steady to ashing.

LIGHTS TIME

PGM

A B C D E F G H

SEC

0.8

0.4

0.2

0.1

8 4 2 1

MOVE

BUTTONS

ENTER

9. To change any other values, repeat the process above. To revert back to a previous setting, repeat the process above and change parameters back to previous settings.

In programming mode, if there have been no keypad inputs for approximately two

minutes, the system will automatically exit out of programming mode. Any changes

to parameters will be lost when programming mode is automatically exited.

07610-004-43-79-L

Page 22

OPERATION

OPERATING INSTRUCTIONS

PREPARATION

CAUTION

CAUTION! The Preparation

section must be followed

before operating machine!

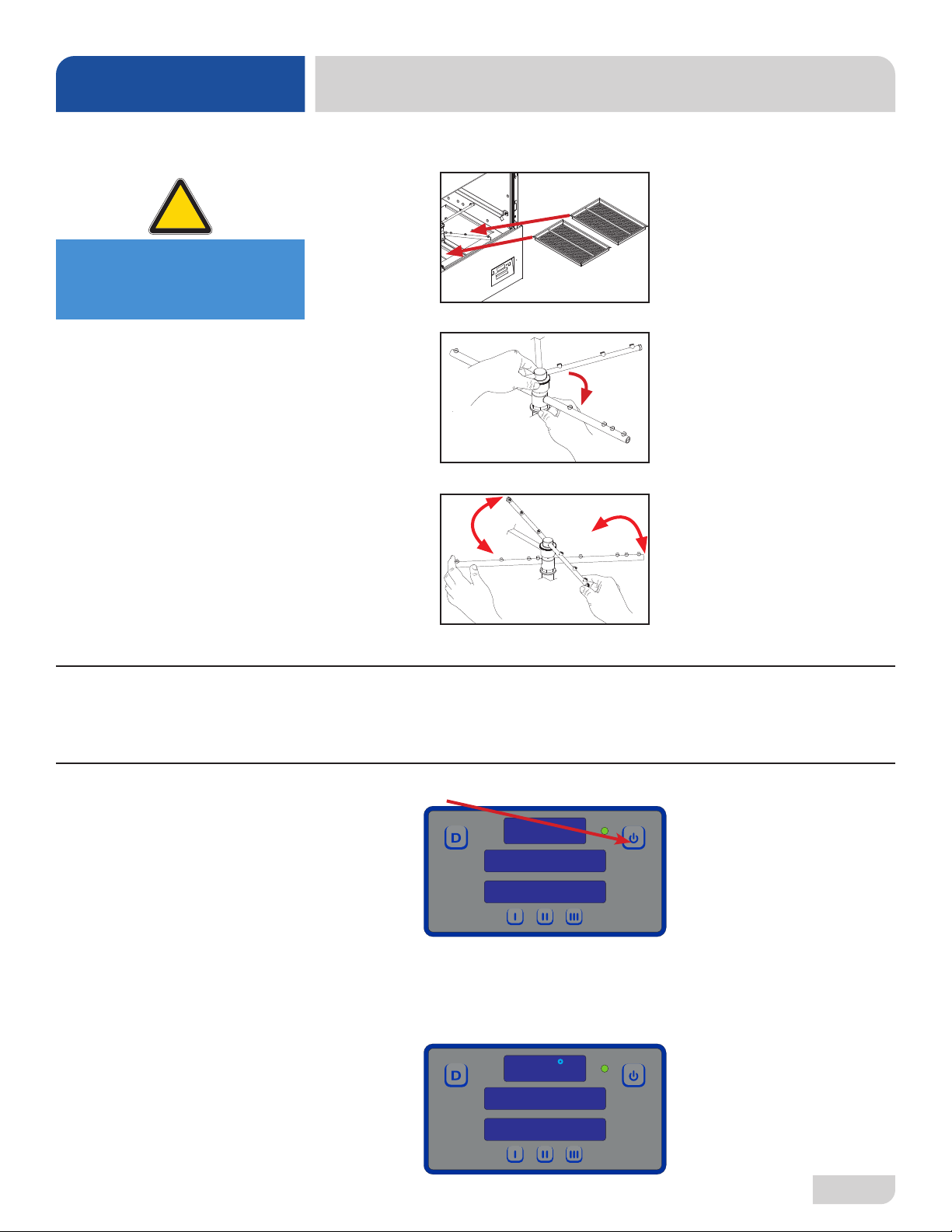

1. Verify strainers are in place and clean.

2. Ensure wash and rinse arms are screwed securely in place and end-caps are tight.

3. Verify wash and rinse arms rotate freely.

POWER UP

FILLING THE

WASH TUB

4. Conrm chemical levels are correct.

To energize the machine, turn on the power at the service breaker. The voltage should

have been previously veried as correct. If not, the voltage must be veried before

energizing the machine.

1. Press the Power button.

2. The machine will automatically begin the fill cycle.

3. Once the wash tub is filled, the machine displays "HEATING."

4. Wait for wash temperature to display at least 155 °F and for the status to display "READY" before operating the machine.

155 F

07610-004-43-79-L

READY CYCLE 1

Page 23

OPERATION

OPERATING INSTRUCTIONS

WARE

PREPARATION

WASHING A RACK

OF WARE

Proper ware preparation helps ensure good results and fewer re-washes. If not done

properly, ware might not come out clean and the e󰀩ciency of the dishmachine will

be reduced. Scraps should always be removed from ware before being loaded into a rack. Pre-rinsing and pre-soaking are good ideas, especially for silverware and casserole dishes.

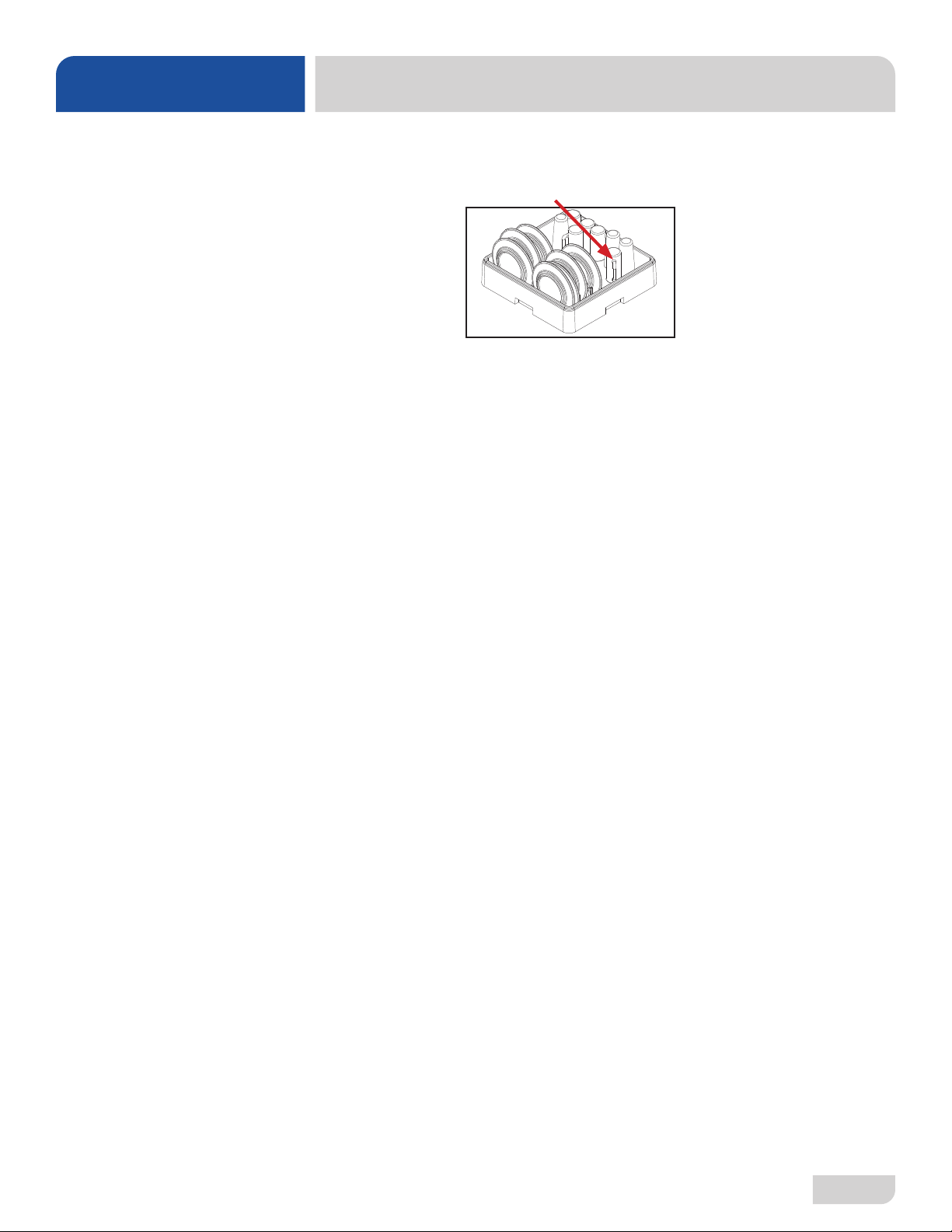

Place cups and glasses upside-down in racks so they don't hold water during the cycle. The machine sanitizes as well as cleans. To do this, ware must be properly prepared before being placed in the machine.

1. Follow the Filling the Wash Tub section, ensuring temperature is at least 155 °F

and the status displays "READY."

155 F

READY CYCLE 1

2. Open the door completely.

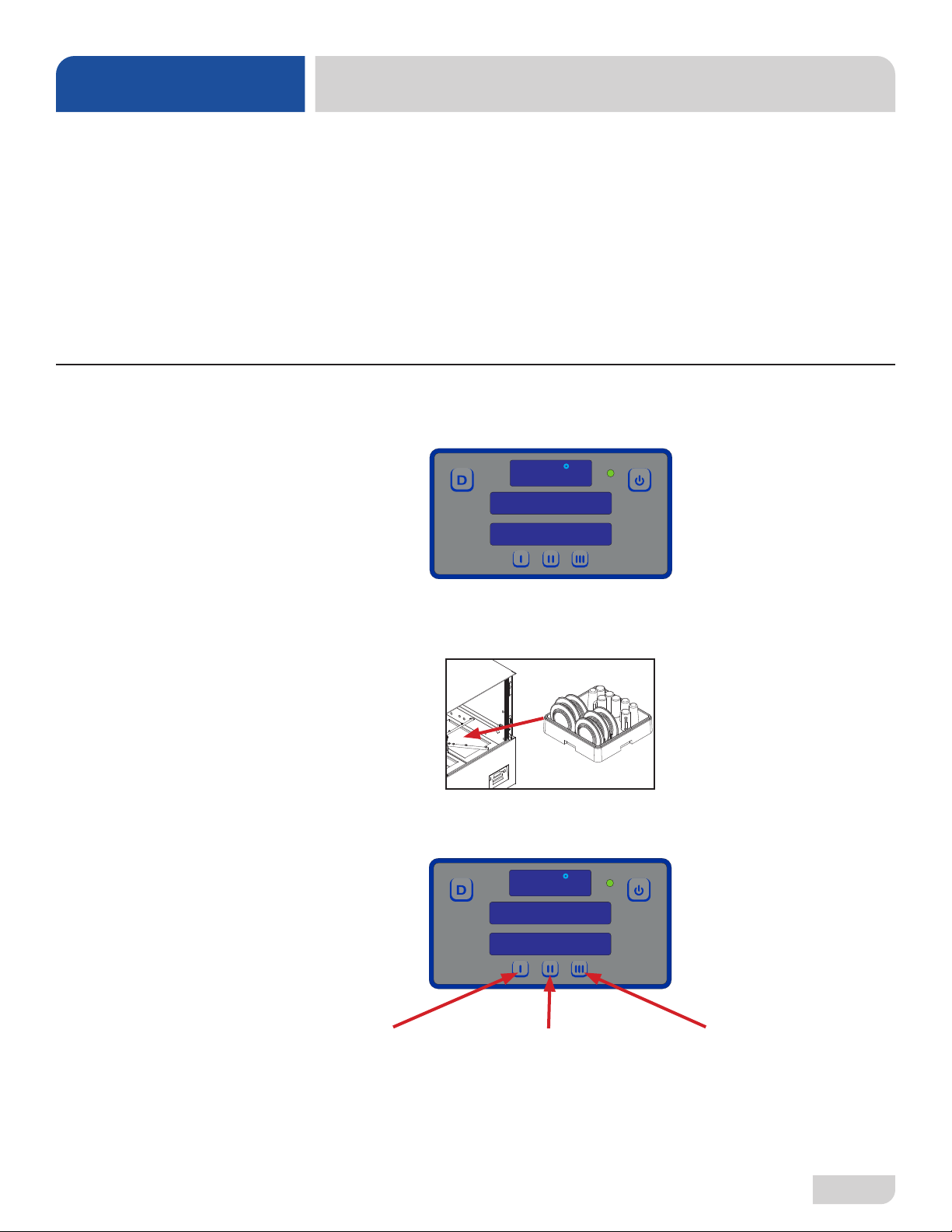

3. Slide the rack into the machine.

4. Close the door.

5. Choose the cycle.

155 F

READY CYCLE 1

Cycle I

100 Seconds

Normally-soiled Ware

Cycle II

168 Seconds

Heavily-soiled Ware

Cycle III

268 Seconds

Extremely-soiled Ware

07610-004-43-79-L

If Cycle II or Cycle III is chosen, the machine will stay in that cycle until another is chosen.

Page 24

OPERATION

OPERATING INSTRUCTIONS

WASHING A RACK

OF WARE

Temperature shown is the minimum required

temperature.

Temperature shown is the minimum required

temperature.

6. Press the Start button and the machine will begin the wash cycle.

155 F

WASHING CYCLE 1

7. After the wash cycle is complete, the machine will automatically enter the rinse cycle.

180 F

RINSING 10 PSI

8. Once the rinse cycle is complete, the machine will automatically enter the sanitize cycle.

SANITIZE CYCLE 1

9. After the sanitize cycle is complete, the machine will automatically go back to

being "READY." Open door and remove rack of ware. To start another cycle, load

another rack of ware, close door, and push the Start button.

155 F

READY CYCLE 1

07610-004-43-79-L

Page 25

OPERATION

OPERATING INSTRUCTIONS

OPERATIONAL

INSPECTION

SHUTDOWN &

CLEANING

Based on use, the strainers might become clogged with soil and debris as the workday progresses. Operators should regularly inspect the strainers to ensure they have not become clogged. Clogged strainers will reduce the washing capability of the machine. Instruct operators to clean out the strainers at regular intervals or as required by workload.

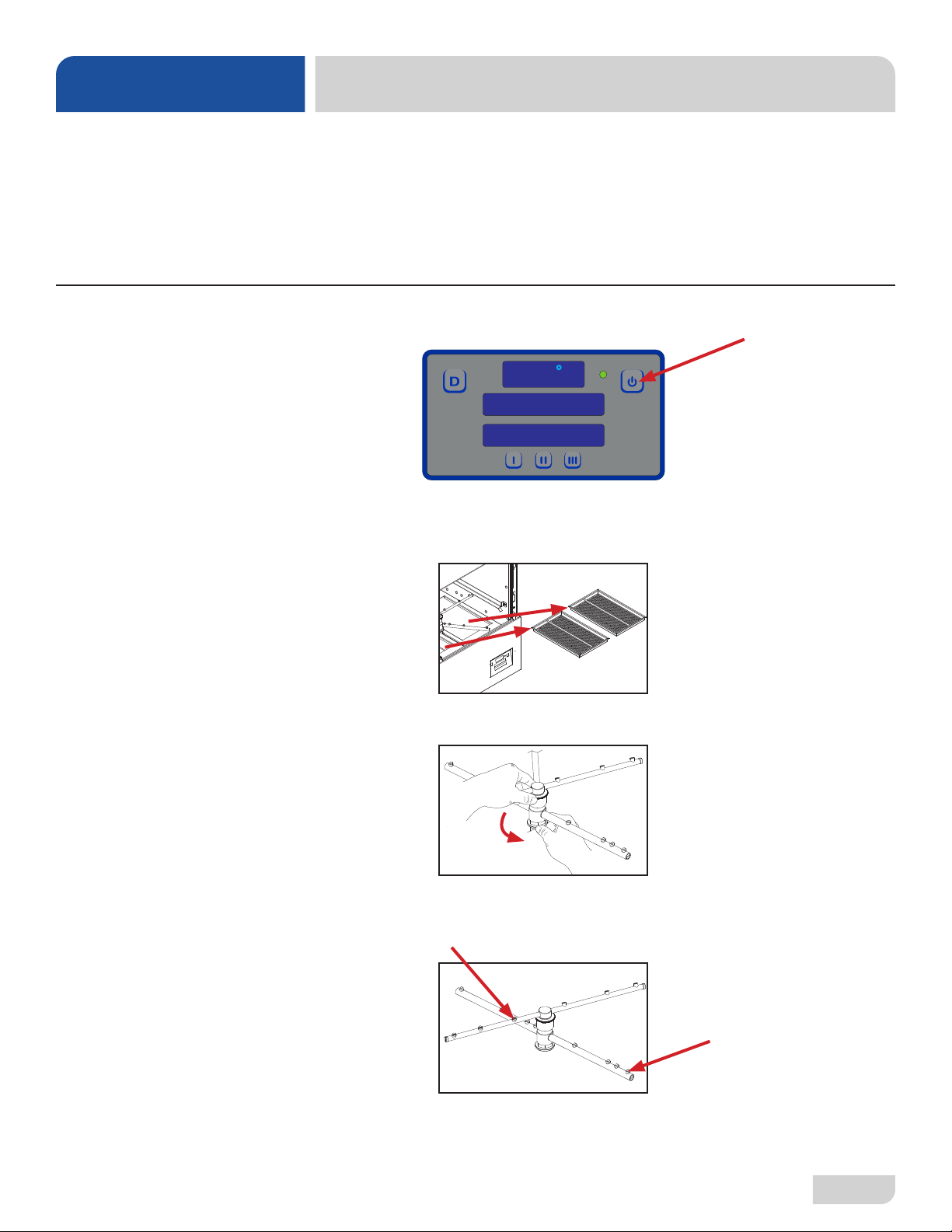

1. Close the door and turn the machine off by pushing the Power button.

155 F

READY CYCLE 1

2. The drain valve will activate and empty the machine of water.

3. When draining stops and the display is off, open door and remove and clean the strainers and set aside.

4. Unscrew the wash and rinse arms from their manifolds.

5. Verify the nozzles and arms are free from obstruction. If clogged, remove endcaps, clean nozzles with a brush, and flush with fresh water.

07610-004-43-79-L

Page 26

OPERATION

OPERATING INSTRUCTIONS

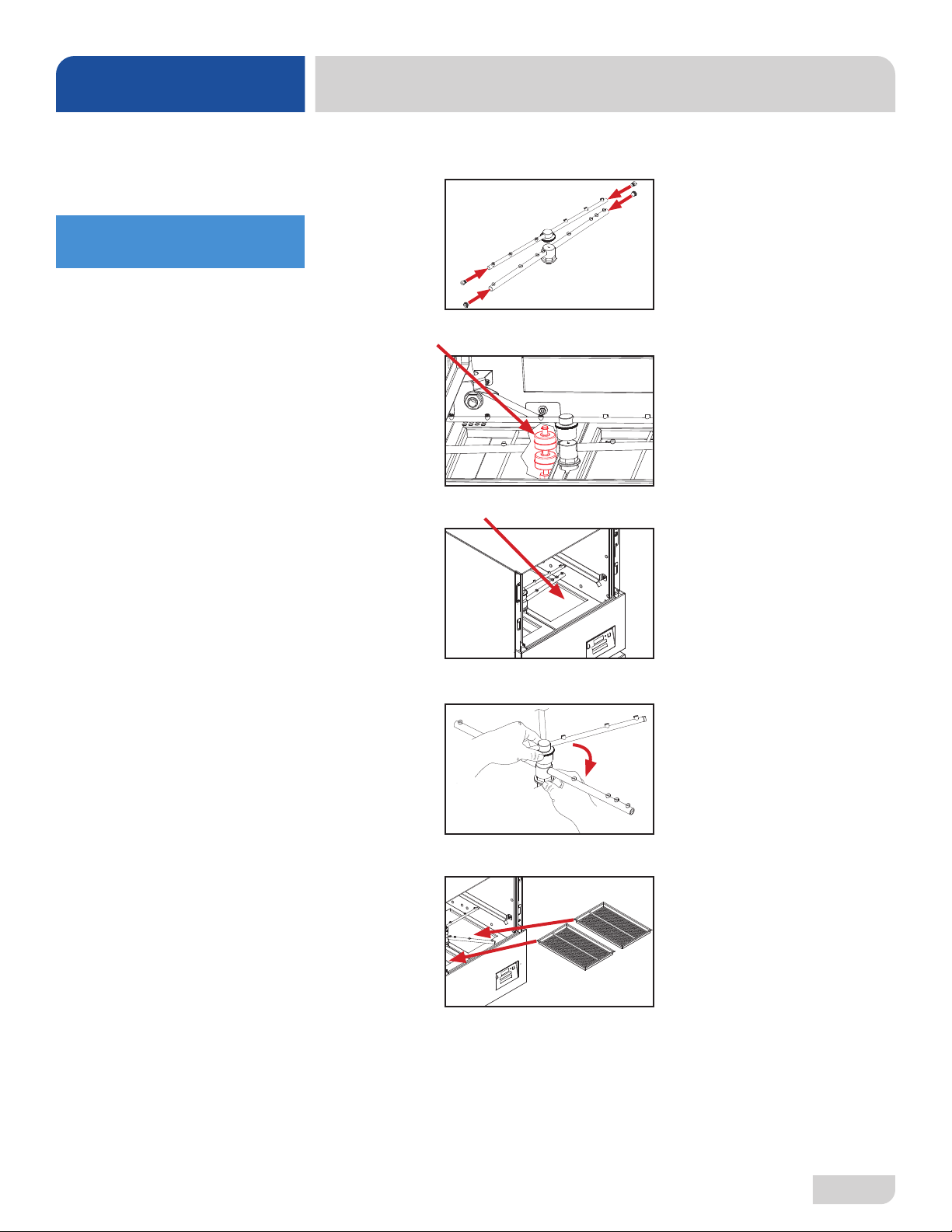

SHUTDOWN &

CLEANING

Use a screwdriver to ensure

end-caps are tight.

6. Replace end-caps and use a screwdriver to ensure they are tight.

7. Ensure the float (located under left strainer) is free of debris.

8. Spray or wipe out interior of machine.

9. Replace wash and rinse arms.

10. Replace the strainers and ensure they are laying flat.

11. Use stainless steel polish to clean and protect outside of machine.

07610-004-43-79-L

Page 27

OPERATION

DELIMING

If the machine is equipped

with an SPS and lime is

becoming a frequent

problem, the cartridge

needs to be replaced.

To order a replacement

cartridge, see the

Plumbing Options page.

In order to maintain the machine at its optimum performance level, lime and corrosion deposits must be removed. The frequency for deliming will be based on water conditions. A deliming solution is available from your chemical supplier. Read and follow all instructions on the label.

To delime machine:

1. Remove the rinse arms and place in sink with deliming solution (leave for the amount of time recommended by the chemical supplier).

2. Replace the rinse arms.

3. If machine is full of water, close door, press the Power button, and allow machine to drain and shut-o󰀨.

4. Follow the Filling the Wash Tub section of this manual.

5. Open the door and add the amount of deliming solution recommended by the chemical supplier.

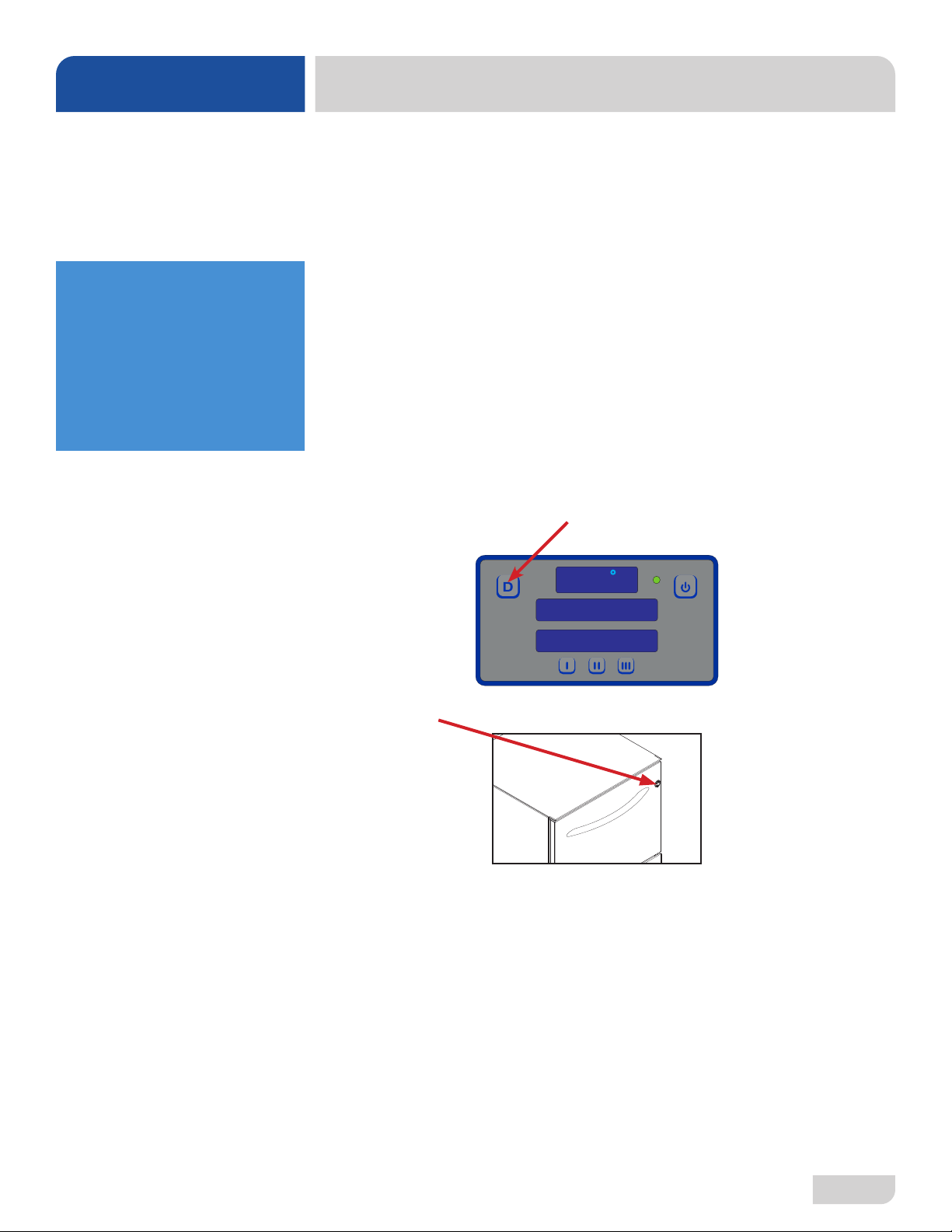

6. Close the door and press the Delime button on the display. The status will

display "DELIME."

155 F

DELIME ON

7. Press the Start button.

8. The machine will delime, drain, and rell.

9. Wait ve minutes, then inspect the machine. If the machine is not delimed, run again.

10. When clean, press the Delime button. The status will display "READY."

11. Run the machine through two regular cycles to remove residual deliming solution.

12. The machine is now ready for normal operation.

07610-004-43-79-L

Page 28

OPERATION

DETERGENT CONTROL

DETERGENT

CONTROL

Detergent usage and water hardness are two factors that greatly contribute to the

machine's operating e󰀩ciency. Using the proper amount of detergent can become a source of substantial savings. A qualied water-treatment specialist can determine what is needed for maximum e󰀩ciency from the detergent.

• Hard water greatly a󰀨ects the performance of the machine, causing the amount of detergent required for washing to increase. If the machine is installed in an area with hard water, the manufacturer recommends the installation of water treatment equipment.

• Deposited solids from hard water can cause spotting that will not be removed with a drying agent. Treated water will reduce this occurence.

• Treated water might not be suitable for use in other areas of operation and it might be necessary to install a water treatment system for the water going to the

machine only. Discuss this option with a qualied water treatment specialist.

• Properly train operators on how much detergent is to be used per cycle. Meet with a water treatment specialist and chemical supplier to discuss a complete training program for operators.

• Water temperature is an important factor in ensuring the machine functions properly, and the machine's data plate details what the minimum temperatures

must be for the incoming water supply, the wash tank, and the rinse tank. If minimum requirements are not met, it's possible that dishes will not be clean or sanitized.

• Instruct operators to observe the required temperatures and to report when they fall below the minimum allowed. A loss of temperature can indicate a larger problem.

07610-004-43-79-L

Page 29

MAINTENANCE

PREVENTATIVE MAINTENANCE

PREVENTATIVE

MAINTENANCE

The manufacturer of this machine highly recommends that any maintenance and

repairs not specically discussed in this manual only be performed by qualied service

personnel. Performing maintenance on the machine may void a warranty.

By following the operating and cleaning instructions in this manual, users should get

the most e󰀩cient results from the machine. As a reminder, here are some steps to ensure that the machine is used properly:

1. Ensure that the water temperatures match those listed on the machine data plate (on the front-left of machine).

XXXXXXXXX

SERIALNO.:

60Hz 1 PH 2 WIRE

MODEL:DISHSTAR HT-E

208 VOLT

230 VOLT

5.0A

WASH MOTOR

5.0A

1 HP

4 KW

17.4A

15.9A3.3 KW

WASH HEATER

19.7A

21.7A

4.1 KW

5 KW

RINSE HEATER

26.7A24.7A

TOTALLOAD

NOTE: WASHAND RINSE HEATER DO NOT OPERATE

4000897

AT THE SAME TIME. ELECTRICALLOADS BASED ON WASH

Conforms to NSF Std 3

MOTORAND RINSE HEATER (HIGHESTAMPDRAW)

OPERATING PARAMETERS

155°F

MINIMUM WASH TEMP

180°F

MINIMUM RINSE TEMP

110°F

MIN. INCOMING WATER TEMP

Intertek 4000897

80 SEC

WASH CYCLE TIME

Conforms to ULStd 921

Conforms to CSA

9 SEC

RINSE CYCLE TIME

Std C22.2 No.168

10PSI

WATER FLOW PRESSURE

CAUTION: IF THIS MACHINE IS CONNECTED TOACIRCUIT PROTECTED BYFUSES, USEONLY30ANON-TIMEDELAYFUSE ORO VERCURRENT PROTECTION. ATTENSION:SECONNECTERAUNMINIMUMD’ALIMENTATION30A MPERES DELAI FUSIBLE DE TYPE NON-TEMPS OU LAPROTECTION CONTRE LES SURINTENSITES.

MINIMUM CIRCUITAMPACITY @208 VOLTS: 26.0AMPS

Made in the USA

@230 VOLTS: 28.0AMPS

Jackson WWS , Inc

6209 N US HWY25E

MAXIMUM OVERCURRENT PROTECTION

Gray, KY40734

@208 VOLTS: 30AMPS

(606) 523-9795

@230 VOLTS: 30AMPS

09905-004-42-87D

2. Remove as much soil as possible from ware before loading into racks.

CAUTION

CAUTION! Do NOT beat

strainers to remove

soil and debris!

3. Ensure that strainers are in place, laying at in tub, and free of soil and debris

before operating the machine. To clean strainers, wipe them out with a rag and rinse under a faucet. For stubborn debris, a toothpick can be used. Do not beat strainers on waste cans; once bent, they will not work properly.

4. Ensure all wash and rinse arms are secure in the machine before operating.

07610-004-43-79-L

Page 30

MAINTENANCE

PREVENTATIVE MAINTENANCE

PREVENTATIVE

MAINTENANCE

5. Do not overll racks.

6. Ensure that glasses are placed upside-down in the rack.

7. Ensure that all chemicals being injected into machine have been veried at the correct concentrations.

8. Clean the machine at the end of every workday (see Shutdown and Cleaning section).

9. If hard water is present, install an SPS into the water line connecting to the machine (see Water Supply Connections section).

10. Always contact a qualied service agency whenever a serious problem arises.

11. Follow all safety procedures, whether listed in this manual or put forth by local,

state, or national codes/regulations.

07610-004-43-79-L

Page 31

TROUBLESHOOTING

PROGRAMMING

MODEL

CONFIRMATION

To access programming mode, the machine should be on and not in cycle.

The machine's program number must be correct to ensure the machine works

properly. To conrm the program number:

1. Press and hold the I and III buttons until “Program” ashes (2–3 seconds).

PROGRAM

2. Conrm bottom display shows “8.” If not, contact a qualied service agency.

PROGRAM

3. Press the Delime button to exit.

READY

CYCLE 1

150 F

07610-004-43-79-L

Page 32

TROUBLESHOOTING

PROGRAMMING

USER SETUP

A transparent guide to

locating the programming

buttons is included with

the machine, behind the

control kick panel. Lay the

guide over the display and

press where indicated.

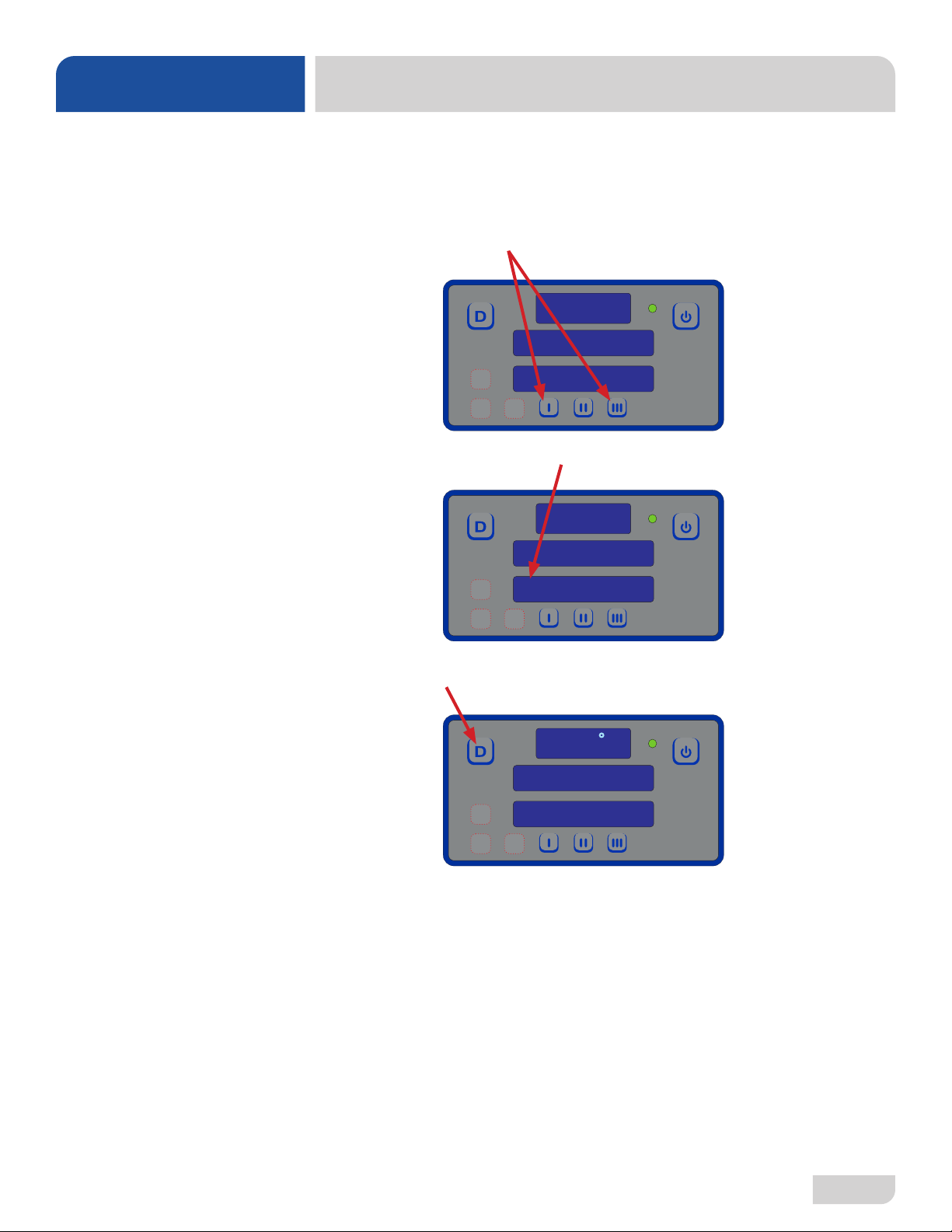

To access programming mode, the machine should be on and not in cycle.

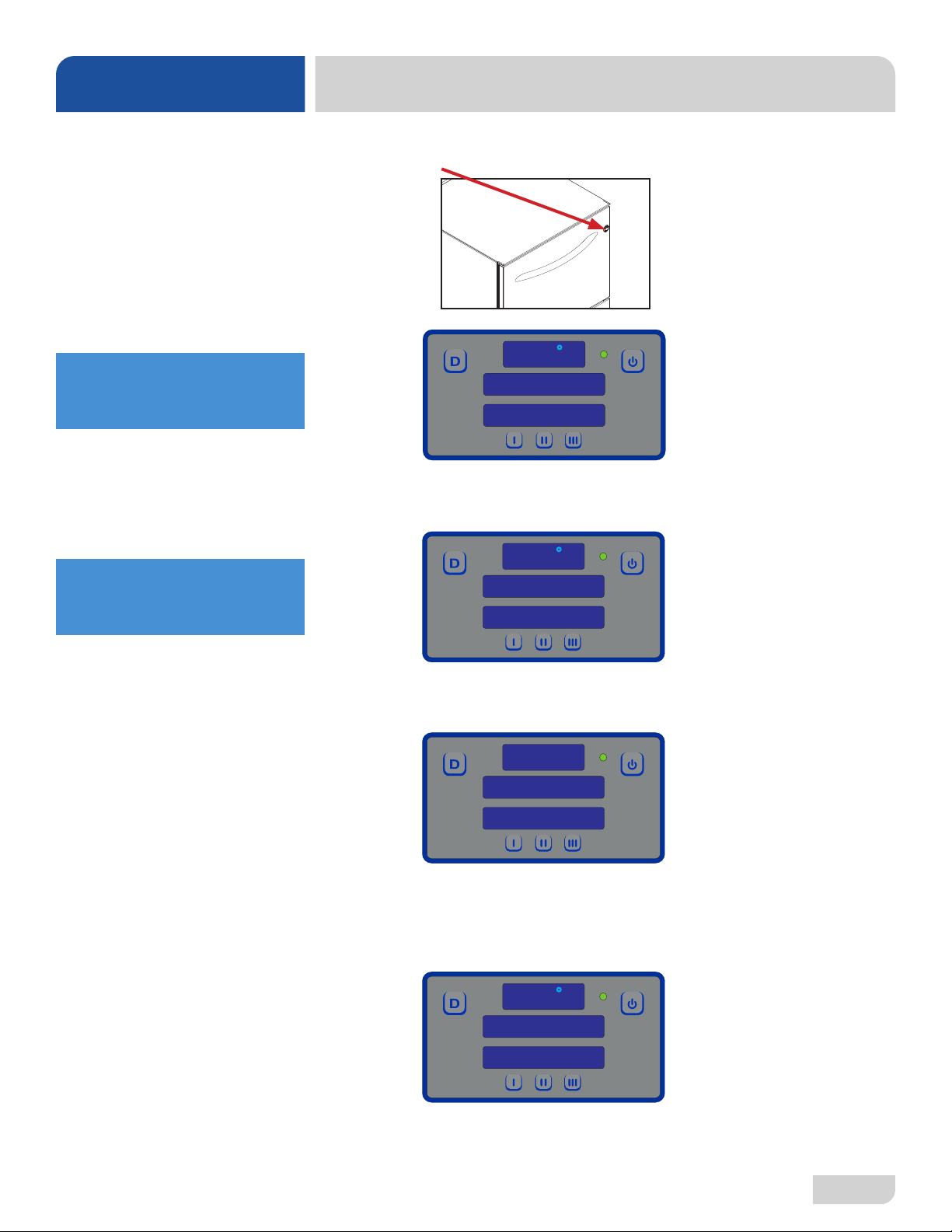

The programming buttons (Up-arrow, Down-arrow, and Select) are hidden on the

display and are shown below outlined with red dots.

1. Press and hold the Up-arrow and Down-arrow buttons until “Setup” ashes (2–3 seconds).

SETUP

2. The display will then change to “Version” and show the rmware versions of the IO module and PCB, Digital Display.

3. Use the Up-arrow button to cycle through the categories (will be ashing).

• Language • Wash O󰀨set

• Temperature Scale • Rinse O󰀨set

• Wash Temperature • Boost O󰀨set

• Boost Temperature • Spare O󰀨set

LANGUAGE

4. Press the Select button to choose the category you want to change.

• Regardless of the category, Steps 5–7 remain the same.

5. Use the Up-arrow button to change the options (will be ashing). Numerical options are shown in the top window.

LANGUAGE

ENGLISH

6. Press the Select button to accept the changes.

7. Press the Delime button to exit.

07610-004-43-79-L

Page 33

TROUBLESHOOTING

DISPLAY SHOWS POSSIBLE CAUSES REMEDY

1. Verify incoming water pressure is 10 ± 2 PSI.

“F1 Service needed,” “No water in Booster”

“F2 Service needed,”

“Check booster

thermostat”

“F3 No water in wash tank,” “Check inlet water and door”

"F4 Service needed," "Check incoming power"

1. Low or no water pressure.

2. Faulty inlet valve or ll relay.

3. Contactor to booster heater not turning o󰀨.

4. Faulty temperature input (P12) on IO

module.

5. Faulty temperature probe (T3).

6. Faulty oat switch allows heaters to

operate with no water in tub.

1. Contactor to booster heater not turning o󰀨.

2. Faulty temperature input (P12) on IO module.

3. Faulty temperature probe (T3).

1. Malfunction of ll solenoid or ll relay.

2. Door is open, which inhibits ll mode.

3. Faulty door switch.

1. Incoming power not properly connected.

2. L3 is missing (3-phase machines only).

2. Verify that ll relay is supplying voltage to ll solenoid.

Replace faulty component.

3. Check for welded contacts. Verify that output from IO module turns o󰀨 when above the set temperature.

4. Substitute a 1.2 kΩ resistor for T3, and verify that booster heater turns o󰀨. If not, replace IO module.

5. Verify that the booster-probe resistance is correct with

respect to temperature (see table on pg. 24). If not, replace T3.

6. Replace oat switch.

1. Check for welded contacts. Verify that output from IO

module turns o󰀨 when above the set temperature.

2. Substitute a 1.2 kΩ resistor for T3, and verify that booster heater turns o󰀨. If not, replace IO module.

3. Verify that the booster probe resistance is correct with respect to temperature (see table on pg. 24). If not, replace T3.

1. Replace faulty component.

2. Close door to activate door switch.

3. Replace or adjust door switch.

1. Check connections to heater.

2. Verify that L3 is present and connected properly.

FAULT CODES

“F5 Service needed,”

“Check booster thermostat and high

limit”

07610-004-43-79-L

1. Faulty temperature input (P12) on IO module.

2. Faulty temperature probe (T3).

3. Faulty high-limit switch.

4. Faulty booster heater.

5. Booster-heater contactor not energizing.

1. Substitute a 1.8 kΩ resistor for T3, and verify that booster

heater turns on. If not, replace IO module.

2. Verify that T3 resistance is consistent with the table on pg. 24. If not, replace T3.

3. Replace high-limit switch.

4. Check booster heater for proper resistance. Replace if

incorrect.

5. Verify that drive voltage to contactor coil is present during a call for heat and that contactor closes. If voltage is present, replace contactor. If voltage is not present, check wiring.

Page 34

TROUBLESHOOTING

DISPLAY SHOWS POSSIBLE CAUSES REMEDY

1. Verify incoming water pressure is 10 ± 2 PSI.

1. Low or no water pressure.

2. Verify that ll relay is supplying voltage to ll solenoid.

2. Faulty inlet valve or ll relay.

Replace faulty component.

FAULT CODES

“F6 Service needed,” “No water in wash tank”

“F7 Service needed,”

“Check wash tank

thermostat”

“F8 No water in wash

tank,” “Check inlet water and door”

“F9 Service needed,”

“Check incoming

power”

“F10 Service needed,”

“Check wash tank thermostat and high

limit”

"F11 Service needed," "Check wash tank thermostat"

3. Contactor to wash heater not turning o󰀨.

4. Faulty temperature input (T1) on IO

module.

5. Faulty temperature probe (T1).

6. Faulty oat switch allows heaters to

operate with no water in tub.

1. Contactor to wash heater not turning o󰀨.

2. Faulty temperature input (P10) on IO module.

3. Faulty temperature probe (T1).

1. Malfunction of ll solenoid or ll relay.

2. Door is open, which inhibits ll mode.

3. Faulty door switch.

1. Incoming power not properly connected.

2. L3 is missing (3-phase machines only).

1. Faulty temperature input (T1) on I/O

module.

2. Faulty temperature probe (T1).

3. Faulty high-limit switch.

4. Faulty wash heater.

5. Wash-heater contactor not energizing.

Faulty temperature probe (T1). Replace probe that connects to P10.

3. Check for welded contacts. Verify that output from IO module turns o󰀨 when above the set temperature.

4. Substitute a 1.2 kΩ resistor for T1, and verify that wash heater turns o󰀨. If not, replace IO module.

5. Verify that T1 resistance is correct with respect to

temperature (see table on pg. 24). If not, replace T1.

6. Replace oat switch.

1. Check for welded contacts. Verify that output from IO

module turns o󰀨 when above the set temperature.

2. Substitute a 1.2 kΩ resistor for T1, and verify that wash heater turns o󰀨. If not, replace IO module.

3. Verify that T1 resistance is correct with respect to temperature (see table on pg. 24). If not, replace T1.

1. Replace faulty solenoid or ll relay.

2. Close door to activate door switch.

3. Replace or adjust door switch.

1. Check connections to heater.

2. Verify that L3 is present and connected properly.

1. Substitute a 1.8 kΩ resistor for T1, and verify that wash heater turns on. If not, replace I/O module.

2. Verify that T1 resistance is correct with respect to

temperature (see table on pg. 24). If not, replace T1.

3. Replace high-limit switch.

4. Check wash heater for proper resistance. Replace if

incorrect.

5. Verify that drive voltage to contactor coil is present during a call for heat and that contactor closes. If voltage present, replace contactor. If voltage not present, check wiring.

07610-004-43-79-L

Page 35

TROUBLESHOOTING

DISPLAY SHOWS POSSIBLE CAUSES REMEDY

"F12 Service needed," "Check booster thermostat"

"F13 Communication error," "Check 6-pin cable"

Faulty temperature probe (T3). Replace probe that connects to P13.

1. Fully disconnect 6-pin cable at each end, and reconnect

1. Loose connection in 6-pin cable between

display board and I/O module.

2. Faulty 6-pin cable between display board

and I/O module.

3. Faulty communication port on I/O module

or display board.

each end until a click is heard.

2. Inspect for broken wire or unseated terminal by gently pulling on each wire at each end of the cable. Reseat any loose terminals by inserting it fully into the housing using long-nosed pliers. Replace cable if broken wire is found.

3. Temporarily substitute a veried good display board, and check if F13 message recurs. If so, repeat substitution with a good I/O module.

FAULT CODES

1. Low or no water pressure.

"F14 Service needed," "Check incoming

water pressure or

pressure switch"

"F15 Sanisure violation"

"F16 LLC violation" Faulty or corroded probe. Clean or replace probe.

"F17 Excessive inlet temp"

2. Faulty pressure switch.

3. Faulty ll valve or ll valve not receiving

power.

1. Faulty booster heater.

2. Faulty heater contactor.

Inlet water supply too hot. Ensure inlet water supply is at required temperature.

1. Verify correct PSI.

2. Replace pressure switch.

3. Check continuity and replace if faulty.

1. Check amperage on heater.

2. Check voltage on contactor coil and L1 and L2 legs.

RESISTANCE-TO-TEMPERATURE VALUES

R (kΩ) °F

11.58 69.8

10.37 75.2

9.30 80.6

7.78 89.6

3.05 140.0

2.54 150.8

2.18 159.8

1.58 179.6

1.45 185.0

1.33 190.4

1.16 199.4

0.96 212.0

07610-004-43-79-L

Page 36

TROUBLESHOOTING

WARNING! Inspection, testing, and repair of electrical equipment should only be performed by qualied service

WARNING

OBSERVATION POSSIBLE CAUSE REMEDY

Water overow

from bottom of door.

personnel. Certain procedures in this section require electrical tests or measurements while power is applied to the machine. Exercise extreme caution at all times. If test points are not easily accessible, disconnect power, attach test equipment, and reapply power to test. When replacing electrical parts, disconnect power at circuit breaker.

1. Clogged drain.

2. Machine not level.

1. Remove obstruction.

2. Level machine or increase height to the front.

TROUBLESHOOTING

Wash motor doesn’t operate on wash.

Little or no water coming through the rinse assemblies.

3. Excessive inlet pressure.

4. Detergent foaming.

5. Wash or rinse arm end-cap missing.

1. Loose or broken wires.

2. Defective Start button.

3. Defective motor contactor.

1. Limed-up rinse heads or piping.

2. Low water pressure.

3. Install pressure regulating valve or adjust if one is present. Ensure ow meets data plate specication.

4. Reduce detergent quantity.

5. Replace.

1. Reconnect or replace wires in motor.

2. Adjust button or replace.

3. Replace.

1. Delime rinse heads.

2. Increase pipe size to machine. Adjust pressure regulating valve.

07610-004-43-79-L

Page 37

TROUBLESHOOTING

WARNING! Inspection, testing, and repair of electrical equipment should only be performed by qualied service

WARNING

OBSERVATION POSSIBLE CAUSE REMEDY

Rinse water runs continuously with breaker

turned o󰀨.

1. Defective plunger in solenoid valve.

2. Defective diaphragm in solenoid valve.

1. Replace plunger.

2. Replace diaphragm.

TROUBLESHOOTING

Wash temperature not within range.

Rinse temperature not within range.

Machine doesn’t drain when power button is pressed.

1. Water level low.

2. RTD setpoint too low.

3. Defective RTD.

4. Wash heater defective.

5. Defective heater contactor R1.

1. RTD is defective.

2. Incoming rinse water does not meet minimum criteria indicated machine data plate.

3. Rinse heaters damaged.

4. Setpoint screens set low.

1. Drain clogged.

2. Defective drain valve.

1. Check water level. If low, run new ll cycle.

2. Adjust setpoint.

3. Replace RTD.

4. Replace heater element.

5. Replace contactor.

1. Replace if necessary.

2. Adjust as required.

3. Check amperages. Replace if necessary.

4. Adjust rinse tank setpoint.

1. Remove obstruction.

2. Replace.

Incorrect water pressure displayed during Fill or Rinse.

07610-004-43-79-L

1. Water turned o󰀨.

2. Transducer disconnected.

3. Pressure transducer defective.

1. Turn water on.

2. Verify wiring.

3. Replace pressure transducer.

Page 38

PARTS

TERMINAL BLOCK BOX, 208/230 V

ITEM QTY DESCRIPTION PART NUMBER

1 1 Power Connection Decal 09905-011-47-35

2 1 Terminal Block Box 05700-004-36-47

1 Terminal Box Cover (Not Shown) 05700-003-27-70

3 1 Strain Relief 05975-003-37-56

4 1 Terminal Block Track 05700-000-43-60

5 2 Terminal Block 05940-500-02-19

6 2 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00

7 1 Decal, L1, N 09905-011-62-72

8 1 Ground Lug 05940-200-76-00

07610-004-43-79-L

Page 39

PARTS

TERMINAL BLOCK BOX, 460 V

ITEM QTY DESCRIPTION PART NUMBER

1 1 Power Connection Decal 09905-011-47-35

2 1 Terminal Block Box 05700-004-44-79

1 Terminal Box Cover (Not Shown) 05700-004-44-80

3 1 Strain Relief 05975-210-03-00

4 1 Terminal Block Track 05700-004-44-72

5 3 Terminal Block 05940-500-02-19

6 2 Locknut, 8-32 Low Prole 05310-004-23-83

7 1 Decal, L1, L2, L3 09905-101-12-66

8 1 Ground Lug 05940-200-76-00

07610-004-43-79-L

Page 40

PARTS

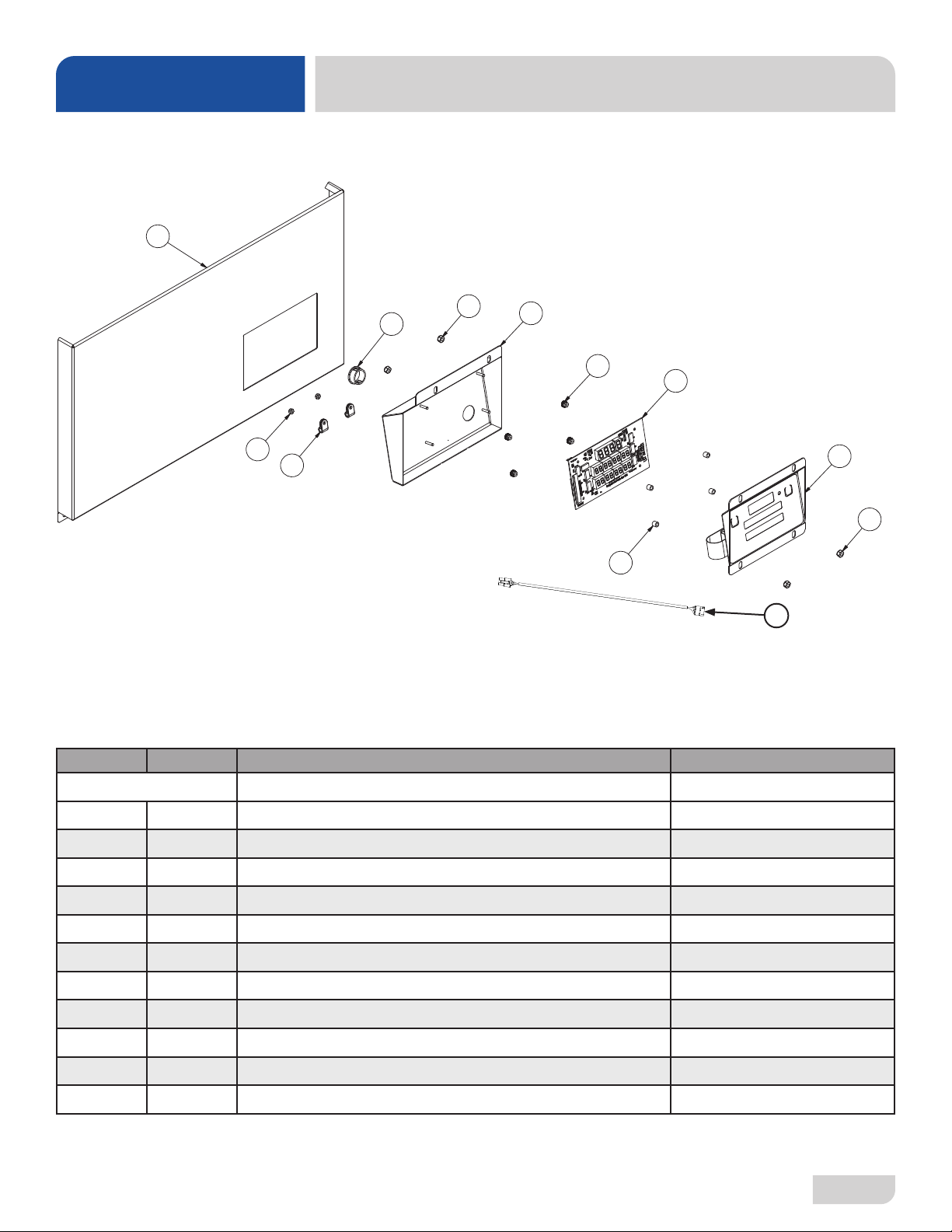

CONTROL KICK PANEL























ITEM QTY DESCRIPTION PART NUMBER

Complete Control Kick Panel Assembly 05700-004-41-87

1 1 Control Kick Panel 05700-004-41-86

2 2 Locknut, 6-32 Hex with Nylon Insert 05310-373-03-00

3 2 P-clamp, 1/4" ID 05975-002-61-42

4 1 Bushing, Snap 05975-210-09-00

5 4 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00

6 1 Cover, Display 05700-004-46-05

7 4 Nut, Thumb 6-32 Nylon 05310-002-83-12

8 1 PCB, Digital Display 05945-004-46-18

9 4 Spacer, Unthreaded, 9/32" Nylon 05975-004-47-89

10 1 Panel & Membrane Switch Assembly 05700-004-58-72

11 1 Communication Cable 05700-004-33-64

07610-004-43-79-L

Page 41

PARTS

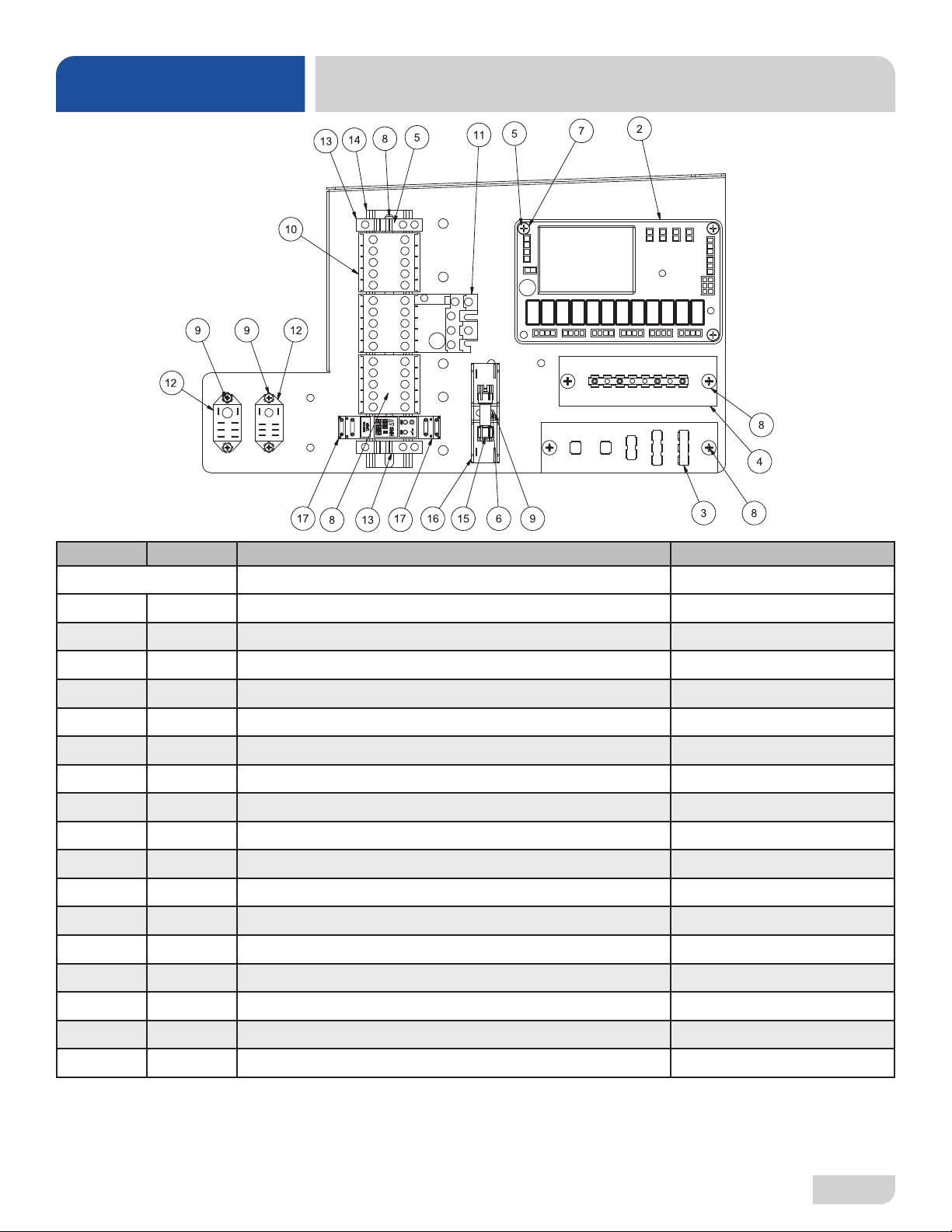

HT-E ELECTRICAL PANEL, 208/230 V

2 3

4 5

ITEM QTY DESCRIPTION PART NUMBER

Complete HT-E Electrical Panel Assembly, 208/230 V 05700-004-42-07

1 1 Electrical Panel 05700-004-40-63

2 3 Contactor, 208/230 V 05945-002-74-20

3 13 Screw, 10-32 x 5/8" 05305-003-02-12

4 3 Screw, 10-32 x 1” 05305-002-19-42

5 1 I/O Module 06401-004-76-15

6 1 Terminal Board 05940-004-21-34

7 1 Terminal Board 05940-002-78-97

8 1 Relay 05945-111-89-75

9 5 Screw, 6-32 x 3/8” 05305-002-25-91

07610-004-43-79-L

Page 42

PARTS

HT-E ELECTRICAL PANEL, 460 V

6 7 8

11121314

ITEM QTY DESCRIPTION PART NUMBER

Complete HT-E Electrical Panel Assembly, 460 V 05700-004-44-50

1 1 Electrical Panel 05700-004-40-63

2 3 Contactor, 460 V 05945-111-60-07

3 2 End-cap, Contactor 05940-111-60-30

4 1 Dinrail, 7 3/4" 05700-002-79-13

5 6 Screw, 10-32 x 5/8" 05305-003-02-12

6 1 Motor Overload, 1.35–2 A 05945-111-60-08

7 3 Screw, 10-32 x 1” 05305-002-19-42

8 1 I/O Module 06401-004-76-15

9 1 Terminal Board 05940-004-21-34

10 1 Terminal Board 05940-002-78-97

11 1 Relay 05945-002-47-41

12 3 Screw, 6-32 x 3/8” 05305-002-25-91

13 1 Fuse Holder 05920-011-72-89

14 1 Fuse, 1/2 A 05920-011-72-88

07610-004-43-79-L

Page 43

PARTS

HT-E-SEER ELECTRICAL PANEL, 208/230 V

ITEM QTY DESCRIPTION PART NUMBER

Complete HT-E-SEER Electrical Panel Assembly, 208/230 V 05700-004-51-91

1 1 Electrical Panel 05700-004-40-63

2 1 I/O Module 06401-004-76-15

3 3 Contactor, 208/230 V 05945-002-74-20

4 1 Terminal Board 05940-002-78-97

5 1 Terminal Board 05940-004-21-34

6 2 Relay 05945-111-89-75

7 18 Fastener 05340-111-58-10

8 5 Nut, Plated 05340-118-04-00

9 3 Screw, 10-32 x 1” 05305-002-19-42

10 15 Screw, 10-32 x 5/8" 05305-003-02-12

11 5 Screw, 6-32 x 3/8” 05305-002-25-91

12 1 Dinrail, 2” 05700-002-36-09

13 1 Timer, Universal Digital 05945-004-22-78

07610-004-43-79-L

Page 44

PARTS

HT-E-SEER ELECTRICAL PANEL, 460 V

ITEM QTY DESCRIPTION PART NUMBER

Complete HT-E-SEER Electrical Panel Assembly, 460 V 05700-004-51-92

1 1 Electrical Panel 05700-004-40-63

2 1 I/O Module 06401-004-76-15

3 1 Terminal Board 05940-002-78-97

4 1 Terminal Board 05940-004-21-34

5 9 Fastener 05340-111-58-10

6 6 Nut, Plated 05340-118-04-00

7 3 Screw, 10-32 x 1” 05305-002-19-42

8 6 Screw, 10-32 x 5/8" 05305-003-02-12

9 6 Screw, 6-32 x 3/8” 05305-002-25-91

10 3 Contactor, 460 V 05945-111-60-07

11 1 Motor Overload, 1.35–2 A 05945-111-60-08

12 2 Relay 05945-002-47-41

13 2 End-cap, Contactor 05940-111-60-30

14 1 Dinrail, 7 3/4" 05700-002-79-13

15 1 Fuse, 1/2 A 05920-011-72-88

16 1 Fuse Holder 05920-011-72-89

17 1 Timer, Universal Digital 05945-004-22-78

07610-004-43-79-L

Page 45

PARTS

Complete Peri-pump Panel Assembly, 208/230 V

05700-004-42-08

Complete Peri-pump Panel Assembly, 460 V

05700-004-44-45

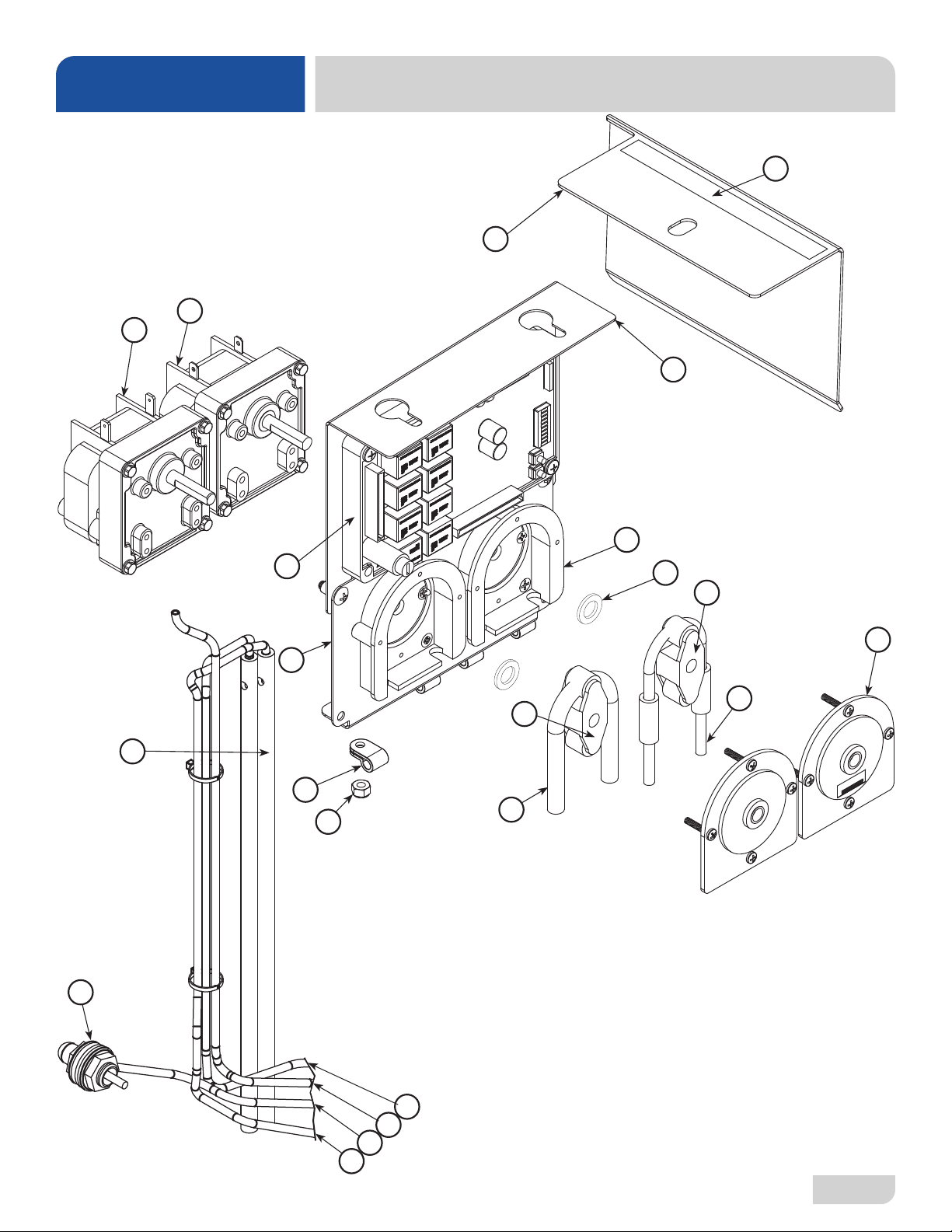

CHEMICAL FEEDER PUMPS

07610-004-43-79-L

Page 46

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 2 Sti󰀨ener, Chemical Tube 05700-002-66-49

2 1 Chemical Port Assembly 05700-004-30-86

3 1 Tubing, Red, 1/4" x 120" 05700-011-37-15

4 1 Tubing, Red, 1/4" x 80" 05700-011-37-14

5 1 Tubing, Clear, 1/8" x 120" 05700-002-76-14

6 1 Tubing, Clear, 1/8" x 48" 05700-002-76-15

1 Complete Peri-pump Assembly, 36 RPM, 208/230 V 05700-004-71-53

1 Motor Only, Peri-pump, 36 RPM, 208/230 V 04320-111-47-47

1 Motor Only, Peri-pump, 36 RPM, 115 V (for 460 V Machine) 04320-111-35-14

1 Complete Peri-pump Assembly, 14 RPM, 208/230 V 05700-004-71-52

1 Motor Only, Peri-pump, 14 RPM, 208/230 V 04320-111-47-46

Complete Peri-pump Assembly,

36 RPM, 115 V (for 460 V machine)

Complete Peri-pump Assembly,

14 RPM, 115 V (for 460 V machine)

CHEMICAL FEEDER PUMPS

05700-004-71-60

05700-004-78-21

1 Motor Only, Peri-pump, 14 RPM, 115 V (for 460 V Machine) 04320-111-35-13

9 1 Panel, Outer Control 05700-004-41-89

10 2 Pump Housing, Clear 04320-004-59-41

11 1 Roller, Red Dot 04320-111-36-70

12 1 Tube, 8" 04320-004-92-38

13 2 Pump Cover, Clear 04320-004-59-45

15 1 Roller, Purple Dot 04320-004-59-43

16 4 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00

17 4 P-clamp, 1/4" 05975-002-61-42

18 1 Plate, Peri-pump 05700-004-36-03

19 1 Universal Timer 05945-003-75-23

20 1 Drip Shield 05700-004-73-80

21 1 Gasket, Drip Shield 05330-002-86-09

22 2 Washer, Thrust 04320-004-75-85

1 Tube, 8", 208/230 V 05700-003-22-89

1 Tube, 8", 460 V 05700-111-35-29

07610-004-43-79-L

Page 47

PARTS

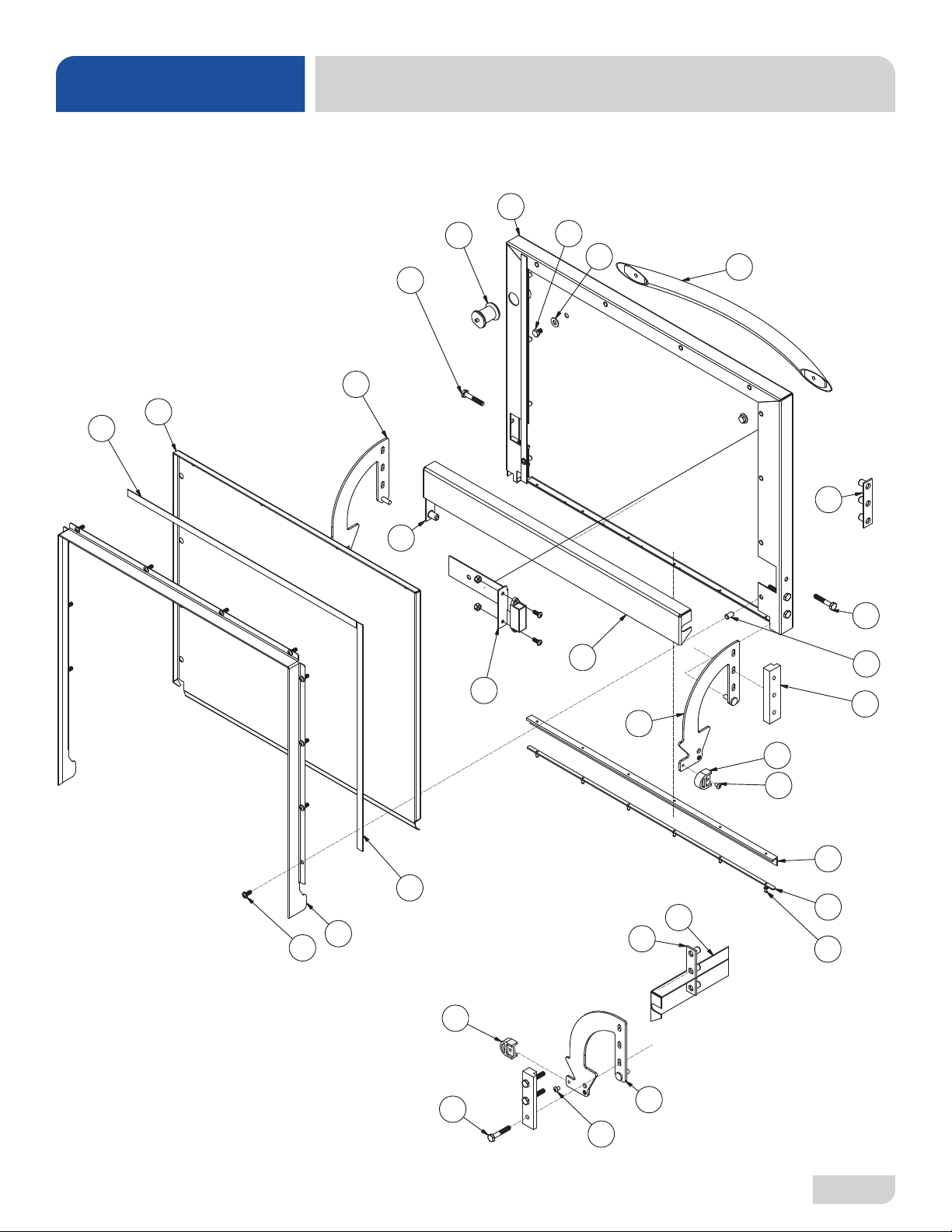

DOOR

Complete Door Assembly

05700-004-36-53































































07610-004-43-79-L

+,1*($66(0%/<

Page 48

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 1 Outer Door Weldment 05700-004-52-86

2 2 Screw, 10-32 x 1/4" 05305-173-01-00

3 2 Bolt, 1/4-20 x 3/8" Hex 05305-274-20-00

4 2 Washer, 1/4-20 ID 05311-174-01-00

5 1 Gasket, Door 20" 05330-003-58-35

6 2 Gasket, Door 17 1/8" 05330-003-58-36

7 12 Fastener, 10-32 05340-111-58-10

8 1 Door Handle 05700-003-26-62

9 2 Stop, Door Hinge 05700-003-32-55

10 1 Hinge, Left 05700-003-32-71

11 1 Hinge, Right 05700-003-32-72

12 1 Inner Door 05700-003-33-21

13 1 Baffle, Door 05700-003-33-38

DOOR

14 2 Hinge Spacer 05700-003-33-42

15 1 Switch Assembly 05700-003-34-80

16 2 Retaining Plate 05700-011-44-37

17 1 Channel, Door Seal 05700-003-55-49

18 6 Screw, 1/4-20 x 1 1/2" Hex Head 05305-274-23-00

19 1 Gasket, Door L 05330-004-36-05

20 1 Gasket Clamp 05700-004-36-56

21 6 Pop Rivet, 1/8" x 3/8" 05320-003-06-98

22 12 Screw, 10-32 x 1/2" with Washer 05305-002-32-37

23 1 Bracket, Door Magnet 05700-004-52-73

07610-004-43-79-L

Page 49

PARTS

Parts are not shown to scale in relation to each other.

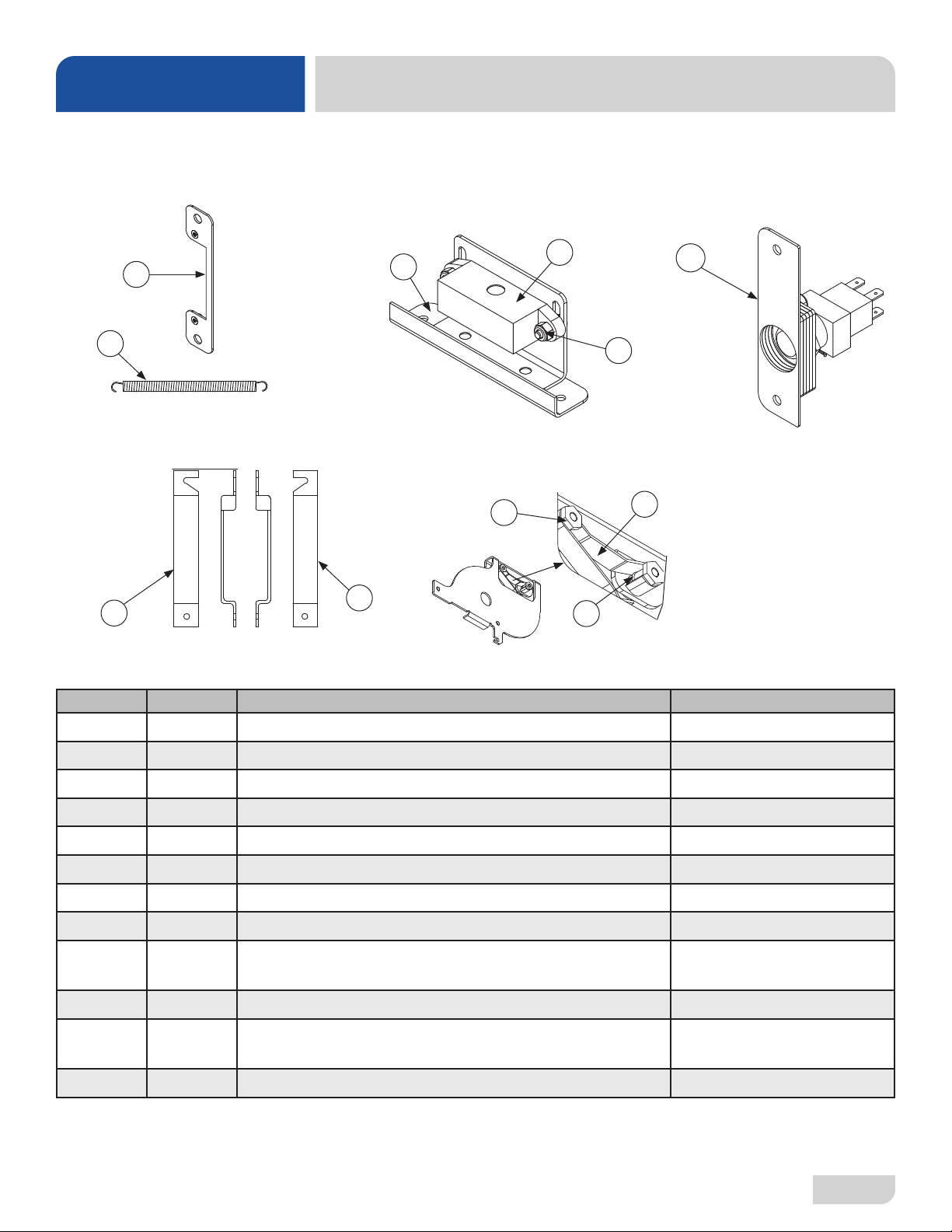

MISCELLANEOUS DOOR COMPONENTS

ITEM QTY DESCRIPTION PART NUMBER

1 1 Switch Mounting Plate Assembly 05700-003-33-54

2 2 Door Spring 05700-003-32-85

3 1 Cover, Left Hinge Weldment 05700-004-36-80

4 1 Cover, Right Hinge Weldment 05700-004-36-81

Hinges secured with Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00

5 2 O-ring 05330-003-32-34

6 2 Latch Spring 05340-004-67-82

7 4 Latch Nut 05700-003-32-33

9 1 Door Switch 05930-003-31-44

11 1 Complete Switch Mount Assembly 06401-004-47-76

07610-004-43-79-L

2 2

1 1

Locknut, 6-32 Hex with Nylon Insert Screw, 6-32 x 1/4”

Door Switch Bracket Door Switch & Bracket Assembly

05310-373-03-00 05305-171-01-00

05700-003-31-43 05700-003-32-21

Page 50

PARTS

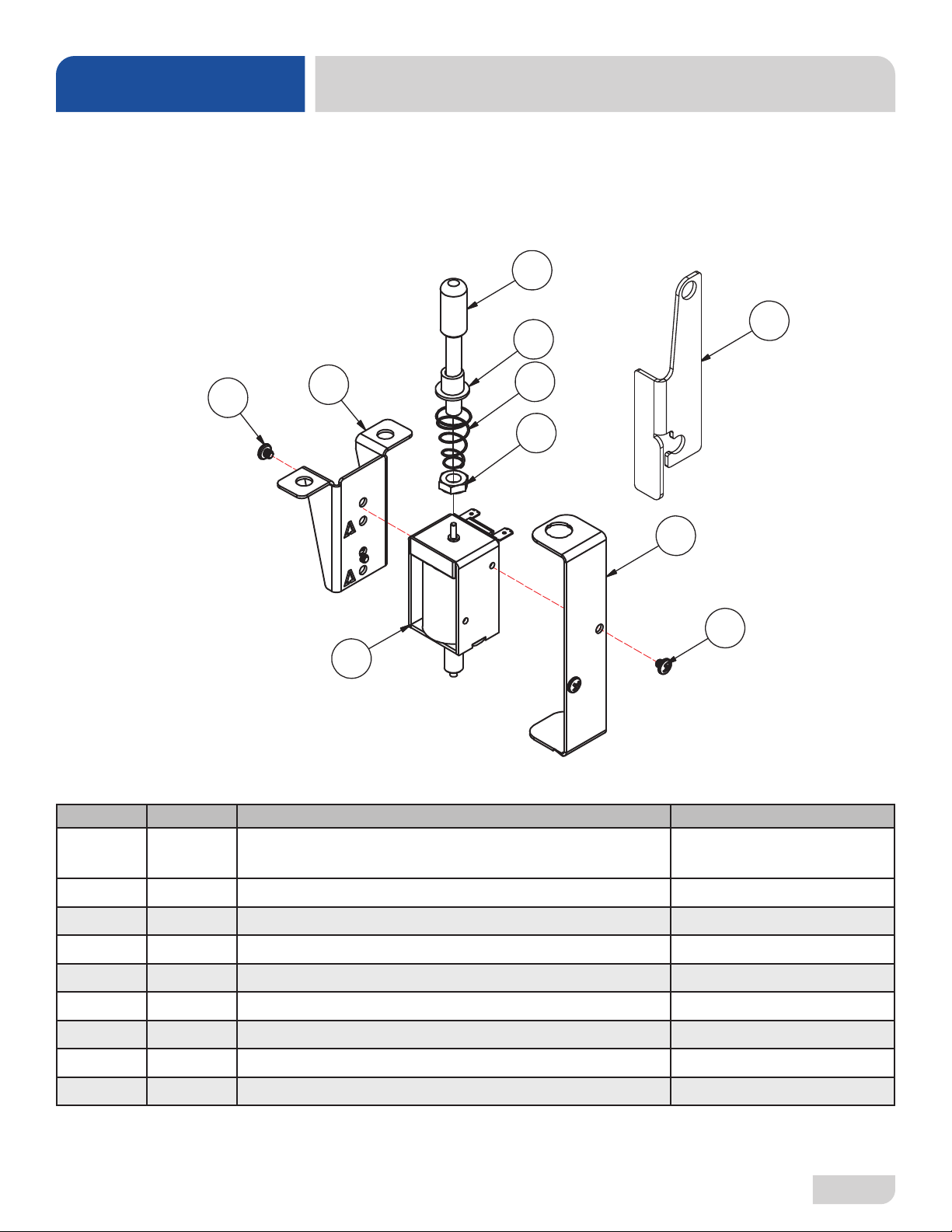

HT-E-SEER DOOR INTERLOCK

Complete Door Interlock Assembly, 208/230 V

05700-004-47-47

Complete Door Interlock Assembly, 115 V (for 460 V Machine)

05700-004-52-89





















'(7$,/$

ITEM QTY DESCRIPTION PART NUMBER

1 1

Solenoid, Door Interlock, 208/230 V Solenoid, Door Interlock, 115 V (for 460 V Machine)

05999-004-47-49 05700-004-52-88

2 1 Solenoid Stop 05700-004-47-51

3 1 Bearing, Dry Running Sleeve, 1/4" ID 03120-004-47-52

4 1 Locknut, 1/4-20 Low Prole with Nylon Insert 05310-374-02-00

5 1 Bracket, Solenoid 05700-004-50-99

6 1 Bracket, Solenoid Guide 05700-004-51-00

7 4 Screw, 6-32 x 1/8", Pan Head Phillips 05305-004-51-01

8 1 Spring, Conical Compression 05340-004-47-53

9* 1 Guide Plate, Door Interlock 05700-004-47-40

*Item not included in part number of complete door interlock assembly and must be ordered separately.

07610-004-43-79-L

Page 51

PARTS

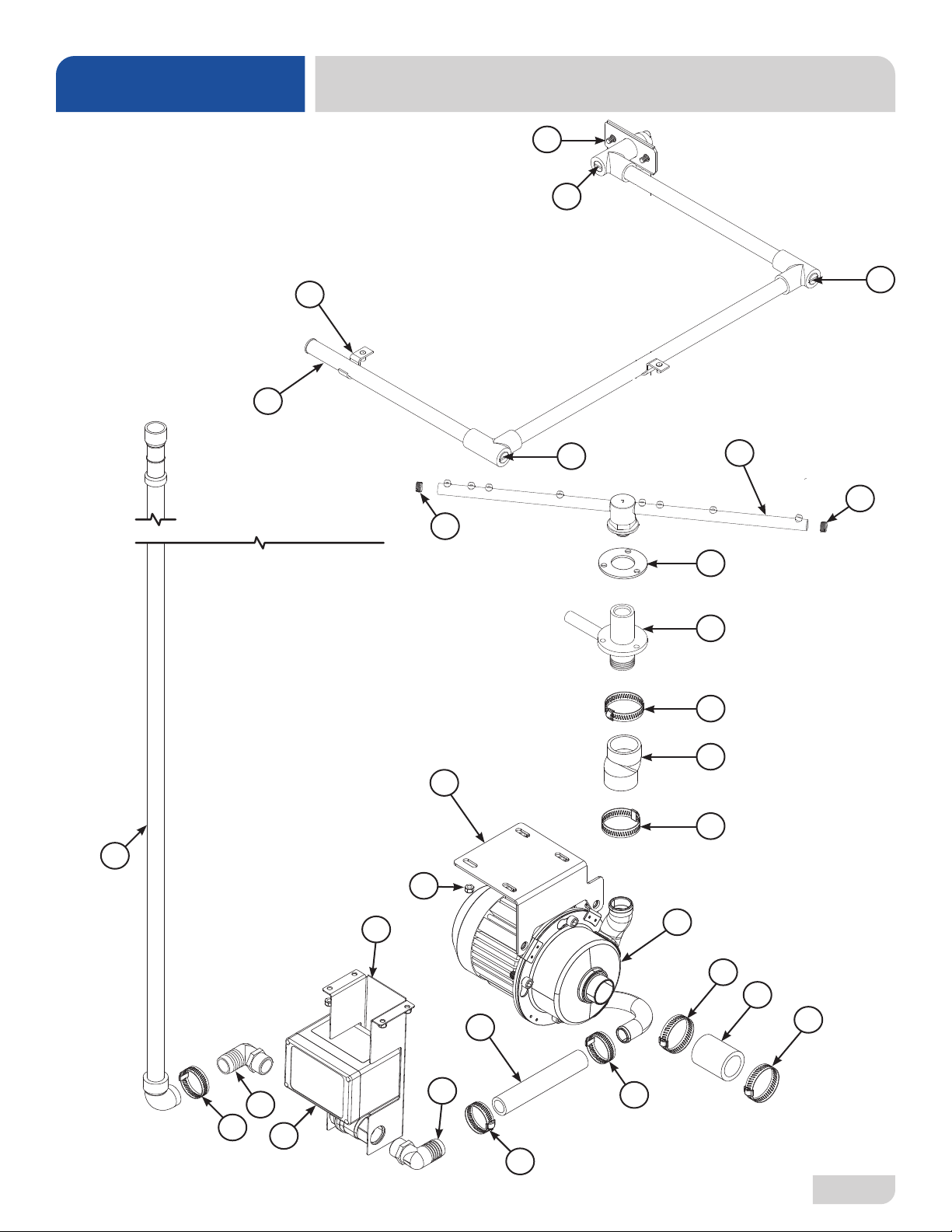

WASH & MOTOR

07610-004-43-79-L

Page 52

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 1 Wash Arm Assembly 05700-021-39-23

2 1 Motor Support 05700-004-40-61

3 1 Wash Halo 05700-004-42-21

4 2 Pipe Clamp 05700-000-35-06

5 5 Wash Arm End-cap 05700-003-31-59

6 2 Screw, 1/4-20 x 1/2" 05307-011-36-96

7 4 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00

8 1 Manifold Gasket 05330-002-34-77

9 1 Wash Hub 05700-004-43-04

WASH & MOTOR

11 1 Discharge Hose, 5/8" x 8" 05700-004-46-28

12 1 Hose, 1 1/4" x 2 3/4" 05700-011-44-48

13 4 Clamp, 1 1/16" to 2" 04730-719-18-00

14 1 Hose, Manifold Bottom 05700-001-22-92

15 3 Clamp, 13/16" to 1 1/2" 04730-719-06-09

16 2 Hosebarb, 90-Degree, 3/4" x 1" 04730-011-65-87

19 1 Drain Hose 04720-004-32-00

1 Pump and Motor, 208/230 V 06105-004-35-22

1 Pump and Motor, 460 V 06105-003-52-78

1 Drain Valve Assembly, 208/230 V 04730-003-33-64

1 Drain Valve Assembly, 115 V (for 460 V Machine) 04730-003-34-60

1 Bracket, Drain Valve Support, 208/230 V 05700-004-35-85

1 Bracket, Drain Valve Support, 460 V 05700-004-42-01

07610-004-43-79-L

Page 53

PARTS

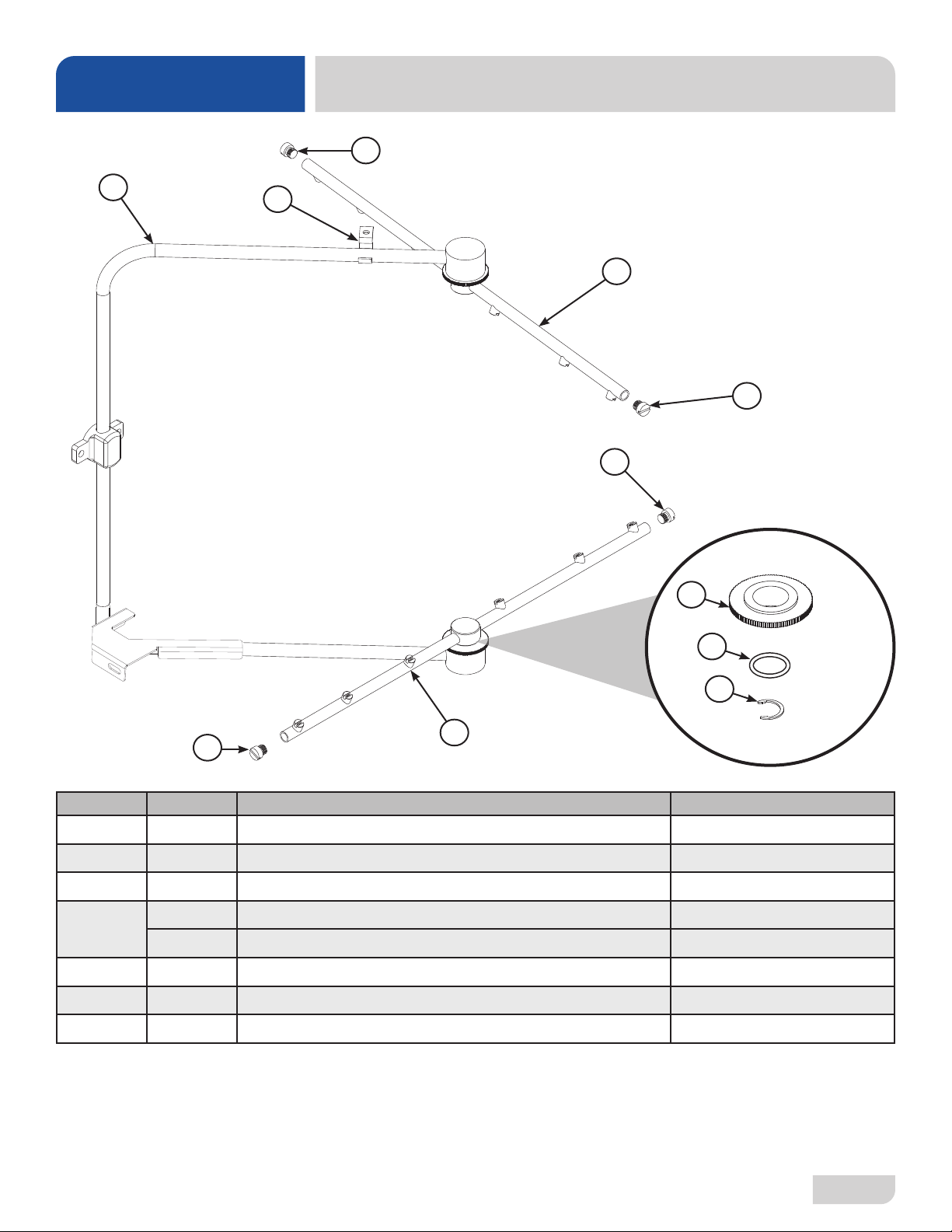

RINSE MANIFOLD

Rinse Arm Bearing Kit

06401-004-57-50

ITEM QTY DESCRIPTION PART NUMBER

1 1 Complete Rinse Manifold Assembly 05700-004-40-58

2 1 Pipe Clamp 05700-000-35-06

3 4 Rinse Arm End-cap (includes o-ring) 05700-004-34-62

2 Complete Rinse Arm Assembly 05700-004-39-39

2 Rinse Arm 05700-004-38-75

5 2 Bearing Assembly, Rinse Arm 05700-004-54-71

6 2 O-ring (included in item #5) 05330-002-60-69

7 2 Retaining Ring 05340-112-01-11

07610-004-43-79-L

Page 54

PARTS

NOTICE

SHOCK ABSORBER (WATER ARRESTOR) OPTION

HT-E-SEER has a water arrestor as

standard equipment. See the HT-E-SEER

Plumbing page.

Nipple, 1/2” NPT, Brass

04730-207-15-00

PRESSURE REGULATING VALVE (PRV) OPTION

PLUMBING OPTIONS

Water Arrestor, 1/2”

06685-100-05-00

Tee, 1/2” x 1/2” x 1/2”

04730-211-27-00

Water Arrestor Repair Kit

(Plunger & O-ring)

06401-003-06-23

HT-E-SEER has a PRV as standard

equipment. See the HT-E-SEER

Plumbing page.

SPS System

04730-003-28-03

Pressure Regulating Valve, 1/2”

04820-100-04-07

SCALE PREVENTION SYSTEM (SPS) OPTION

Replacement Cartridge

(inspect at least every 6 months)

04730-003-28-04

Replacement Test Strip

(Not Shown)

06401-003-28-06

Must be installed vertically. The provided

bracket is secured to the wall. Observe

proper inlet/outlet water directions (ow

directions are molded into the top of the

head). Line pressure should be released

before changing cartridges. Machine

should be delimed before installation.

07610-004-43-79-L

Page 55

PARTS

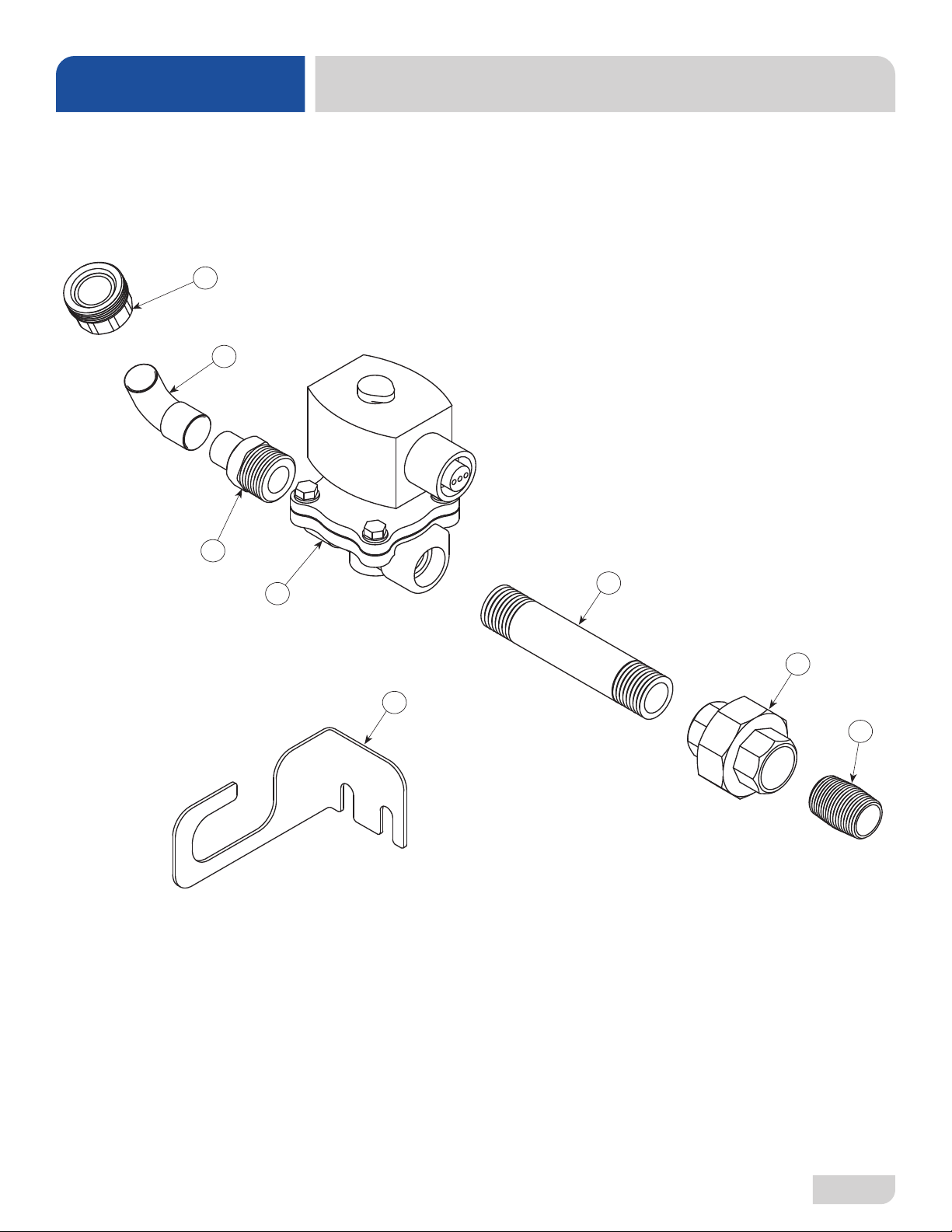

HT-E PLUMBING

Complete Inlet Plumbing Assembly, 208/230 V

05700-004-09-03

Complete Inlet Plumbing Assembly, 115 V (for 460 V Machine)

05700-004-44-40

*Item not included in part number of complete plumbing assembly and must be ordered separately.

07610-004-43-79-L

Page 56

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 1

2 1 Union, 1/2" x 1/2" Brass 04730-003-62-44

3 1 Nipple, 1/2" Close Brass 04730-207-15-00

4 1 Nipple, 1/2" x 4" NPT Brass 04730-207-04-00

5 1 Adapter, 1/2" Fitting, Male 04730-011-59-53

6 1 Elbow, 1/2" 04730-406-31-01

7 1 Hose Adapter 04720-004-24-68

8* 1 Bracket, Plumbing Support 05700-004-56-19

*Item not included in part number of complete plumbing assembly and must be ordered separately.

Valve, 1/2", 208/230 V Valve, 1/2", 115 V (for 460 V Machine)

HT-E PLUMBING

04810-003-71-56 04810-003-71-55

07610-004-43-79-L

Page 57

PARTS

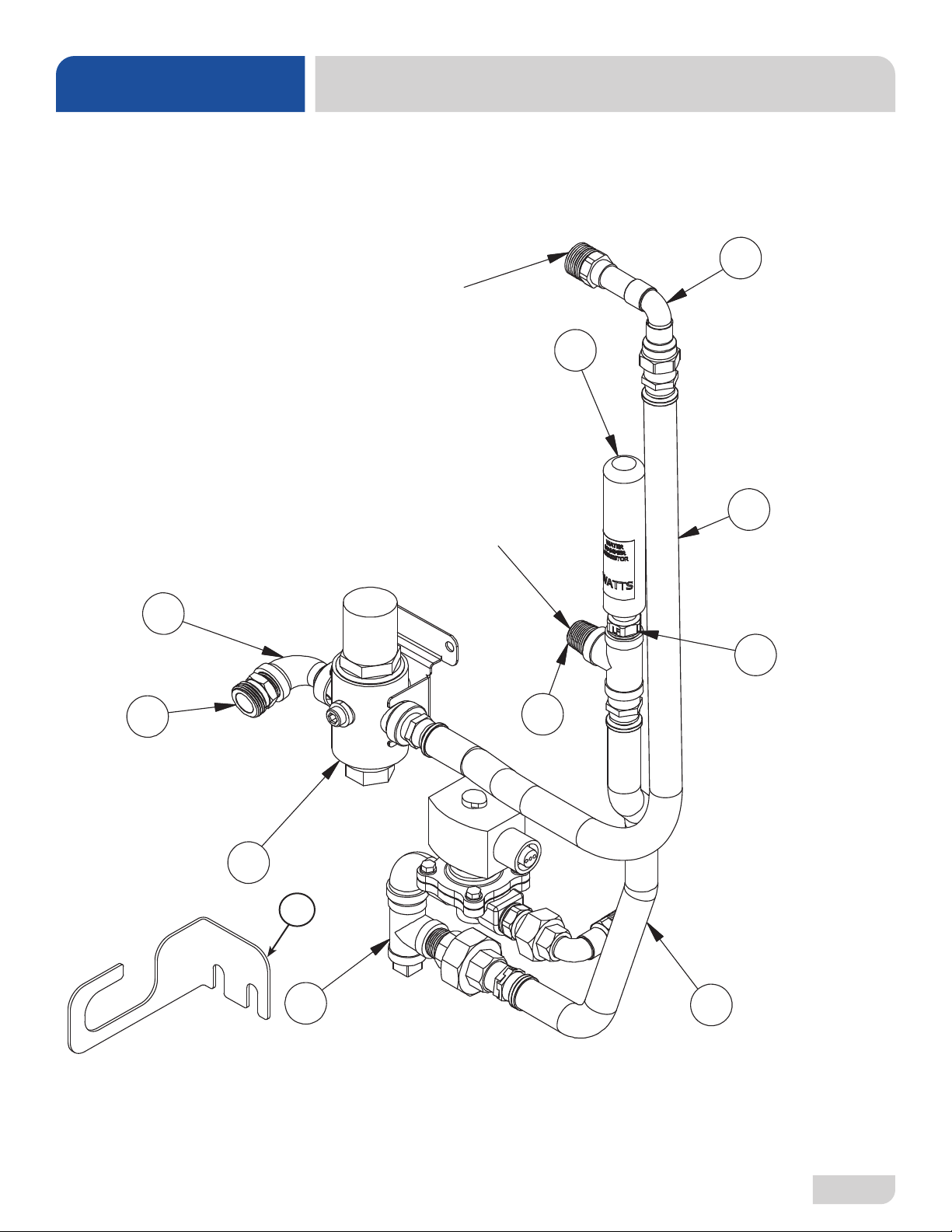

HT-E-SEER PLUMBING

Complete SEER Plumbing Assembly, 208/230 V

05700-004-63-79

Complete SEER Plumbing Assembly, 460 V

05700-004-78-45

CONNECTS TO

COLD WATER INLET

ON SEER SYSTEM

CONNECTS TO HOT

WATER OUTLET ON

SEER SYSTEM

11*

07610-004-43-79-L

*Item not included in part number of complete SEER plumbing assembly and must be ordered separately.

Page 58

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 1

2 1 Pressure Regulating Valve, Dial-set 05700-004-94-35

3 1 Booster Tank Discharge Assembly 05700-004-55-97

4 1 Tee, 1/2" Brass 04730-211-27-00

5 1 Nipple, 1/2" Close Brass 04730-207-15-00

6 1 Water Hammer Arrestor, 1/2" 04730-004-58-56

7 1 SEER Inlet Plumbing Assembly 05700-004-60-46

8 1 Elbow, 90-degree, 1/2" Street Brass 04730-206-08-00

9 1 Adapter, Double Male, 3/4-11.5 x 1/2-14 04720-004-51-55

10 1 Inlet Hose Assembly 05700-004-71-02

11* 1 Bracket, Plumbing Support 05700-004-56-19

Inlet Plumbing Assembly, 208/230 V Inlet Plumbing Assembly, 115 V (for 460 V Machine)

HT-E-SEER PLUMBING

05700-004-53-98 05700-004-78-48

*Item not included in part number of complete SEER plumbing assembly and must be ordered separately.

07610-004-43-79-L

Page 59

PARTS

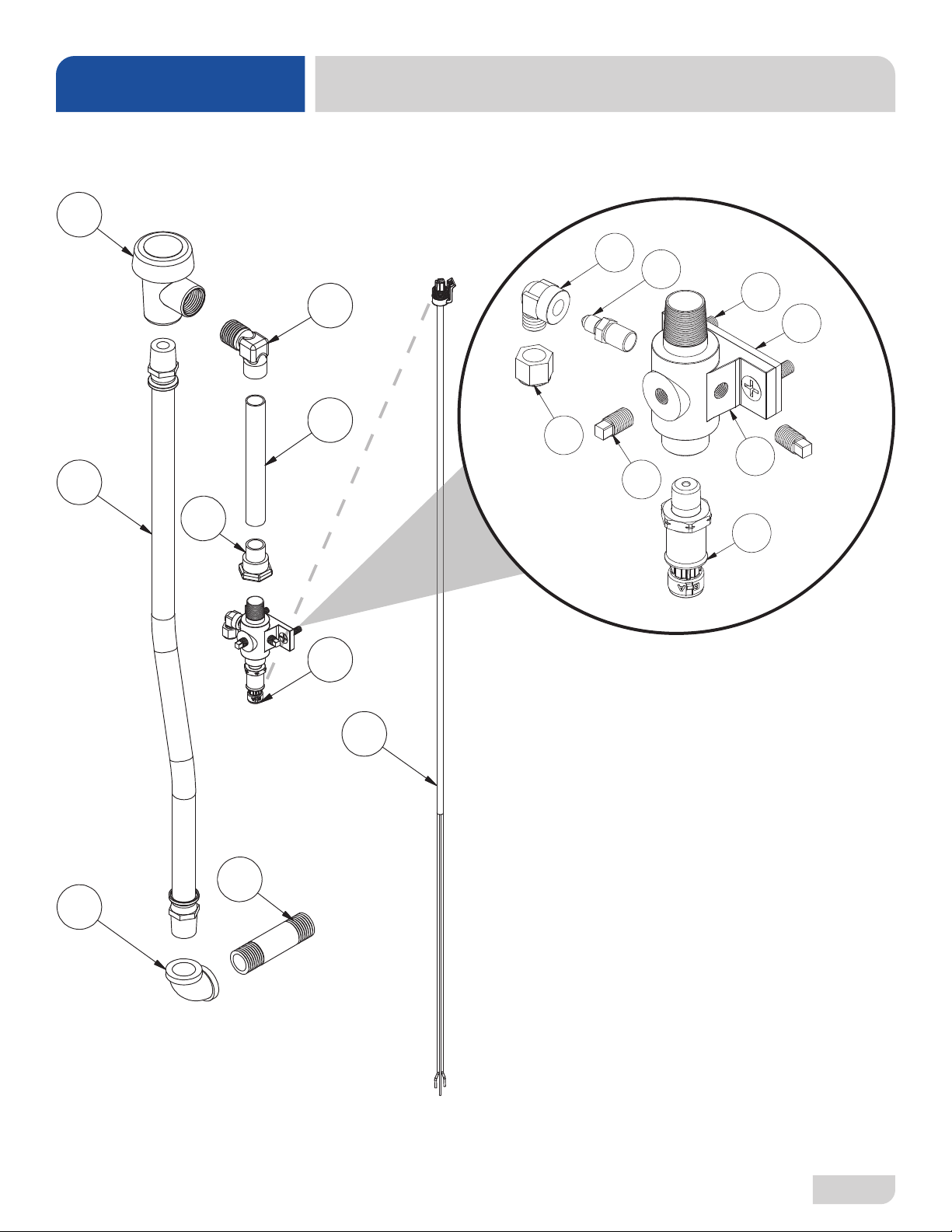

RINSE PLUMBING

Complete Rinse Plumbing Assembly

05700-004-43-02

07610-004-43-79-L

Page 60

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 1 Vacuum Breaker, 1/2" Brass 04820-003-06-13

2 1 Hose, Red, 1/2" ID, 19" 05700-004-33-84

3 1 Nipple, 1/2" x 3", Brass 04730-004-20-10

4 1 Elbow, 1/2", 90-degree, Brass 04730-011-42-96

5 1 Elbow, 90-degree 04730-406-32-01

6 1 Pipe, 4 3/4", Copper 05700-002-91-02

7 1 Adapter, 1/2" 04730-002-64-68

RINSE PLUMBING

8a 8b 8c 8d 8e 8f 8g 8h

9 1 Harness, Transducer 05700-004-33-62

1 1 2 1 1 1 2 1

Complete Rinse Injector Assembly

Rinse Injector Only

Gasket, Rinse Injector Screw, 1/4-20 x 1"

Check Valve Fitting, Outlet Elbow

Nut, Tube, 1/8" Plug, 1/8" Brass

Pressure Transducer

05700-004-43-86

09515-004-22-73 05330-003-75-91 05305-011-81-58 04820-111-51-14 04820-111-51-18 04730-011-59-45 04730-209-07-37 05945-004-17-01

07610-004-43-79-L

Page 61

PARTS

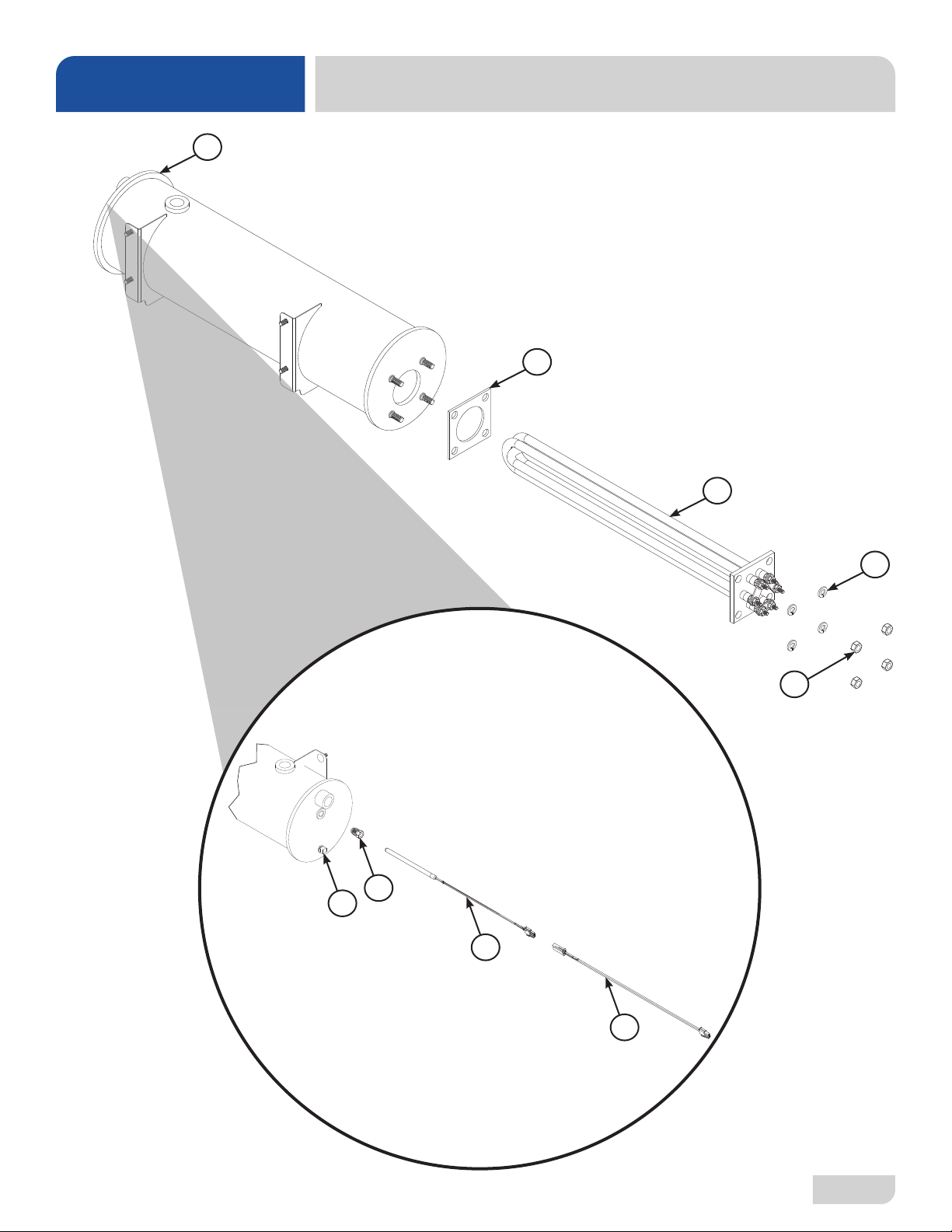

RINSE TANK

Front of Rinse Tank

Back of Rinse Tank

07610-004-43-79-L

Page 62

PARTS

ITEM QTY DESCRIPTION PART NUMBER

1 Rinse Tank, 208/230 V 05700-004-41-88

1 Rinse Tank, 460 V 05700-004-44-46

2 1 Heater Gasket 05330-011-47-79

RINSE TANK

4 4 Lockwasher, Split 5/16" 05311-275-01-00

5 4 Nut, Hex 5/16-18 05310-275-01-00

6 1 Cable, Temperature Probe 05700-004-33-23

7 1 Thermistor Probe, 4" with 18" Cable 06685-004-34-58

8 1 Fitting, 1/4", Brass Nut/Sleeve 05310-924-02-05

9 1 Plug, 1/4" Brass 04730-209-01-00

10 1 Thermostat, Rinse Tank High-limit (Not Shown) 05930-004-33-12

1 Rinse Heater, 5.45 kW, 208-230 V 04540-004-45-12

1 Rinse Heater, 5.45 kW, 460 V 04540-121-65-99

07610-004-43-79-L

Page 63

PARTS

NOTICE

Before ordering SEER System parts, see note on the next page.

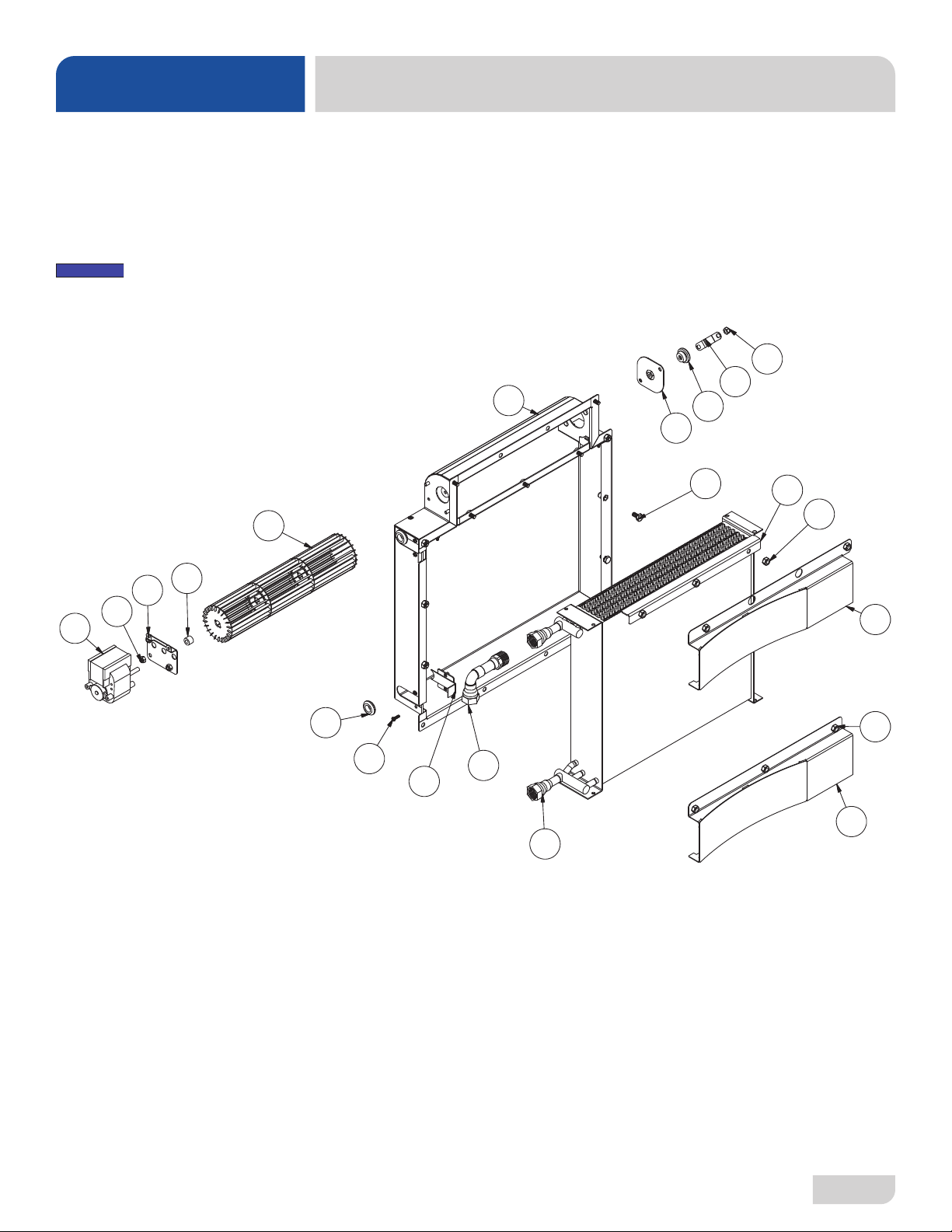

SEER SYSTEM

Complete SEER System Assembly, 208/230 V

05700-004-63-06

Complete SEER System Assembly, 115 V (for 460 V Machine)

05700-004-64-72

07610-004-43-79-L

Page 64

PARTS

NOTICE

ITEM QTY DESCRIPTION PART NUMBER

1 1

2 1 Wheel, Blower 05999-004-59-13

3 1 Bracket, Bearing Boot 05700-004-50-94

4 1 Bushing and Housing Assembly 03120-004-50-88

5 5 Locknut, 10-24 Hex with Nylon Insert 05310-373-01-00

6 1 Bracket, Motor Adjustment 05700-004-58-81

7 2 Grommet, Push-in, 3/4" ID 05330-004-59-14

8 2 Bracket, Enclosure Filler Plate 05700-004-58-93

9 1 Diversion Plate 05700-004-59-04

10 1 Upper Shield 05700-004-58-98

11 1 Heat Exchanger, 3/8" Tubes 04420-004-58-96

12 12 Locknut, 1/4-20 Hex with Nylon Insert 05310-374-01-00

Motor, Fan, 208/230 V Motor, Fan, 115 V (for 460 V Machine)

SEER SYSTEM

05999-004-63-31 05999-004-64-71

13 8 Screw, 6-32 x 1/2" 05305-004-23-63

14 1 Condenser Assembly 05700-004-58-94

15 2 Bolt, 1/4-20 x 1/2" 05305-274-02-00

16 1 Plumbing, SEER Inlet 05700-004-60-46

17 1 Bracket, Bearing Hard Stop 05700-004-67-53

18 1 Lower Shield 05700-004-63-04

19 1 Spacer, 1/2" OD 1/4" ID Nylon, Black 03120-004-95-13

Machines with serial numbers before 19G376587 have an older version of the SEER System. Click here to open manual which contains the older version.

07610-004-43-79-L

Page 65

PARTS

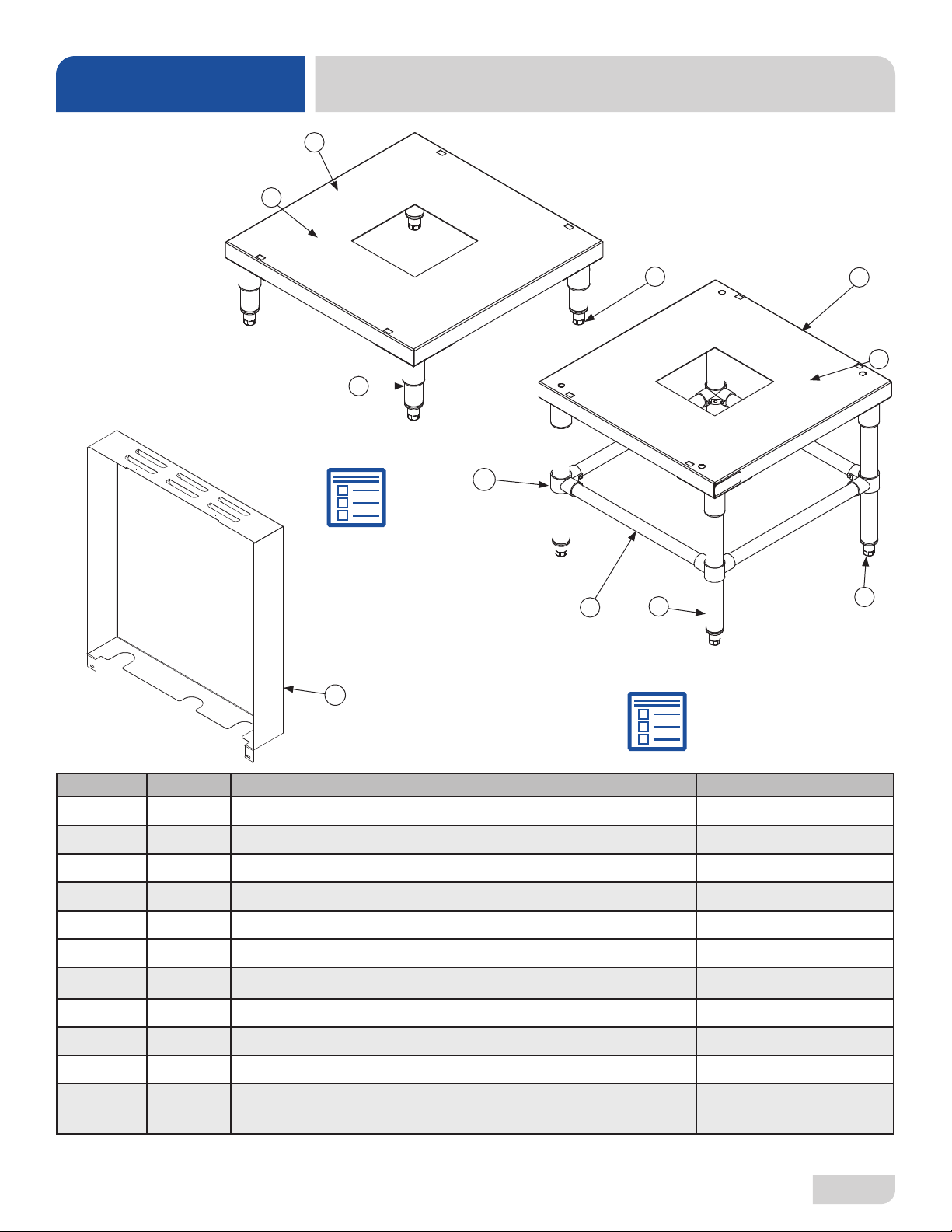

STANDS & PANELS

6" Stand

Install Instructions



18" Stand

Install Instructions



ITEM QTY DESCRIPTION PART NUMBER

1 1 6” Stand Assembly 05700-003-34-24

2 1 Stand 05700-002-88-82

3 4 6” Leg 05700-021-61-10

4 4 Bullet Foot 05340-108-01-03

5 1 18” Stand Assembly 05700-003-34-25

6 1 Stand 05700-002-88-82

7 4 Bullet Foot 05340-108-01-03

8 4 18” Leg 05700-002-89-47

9 4 Cross Brace 05700-003-25-90

10 4 Cross Member Bracket 04730-003-25-89

11a

07610-004-43-79-L

Back Panel

Edge Guard, Back Panel (Not Shown)

05700-004-58-14

05330-002-83-04

Page 66

PARTS

 

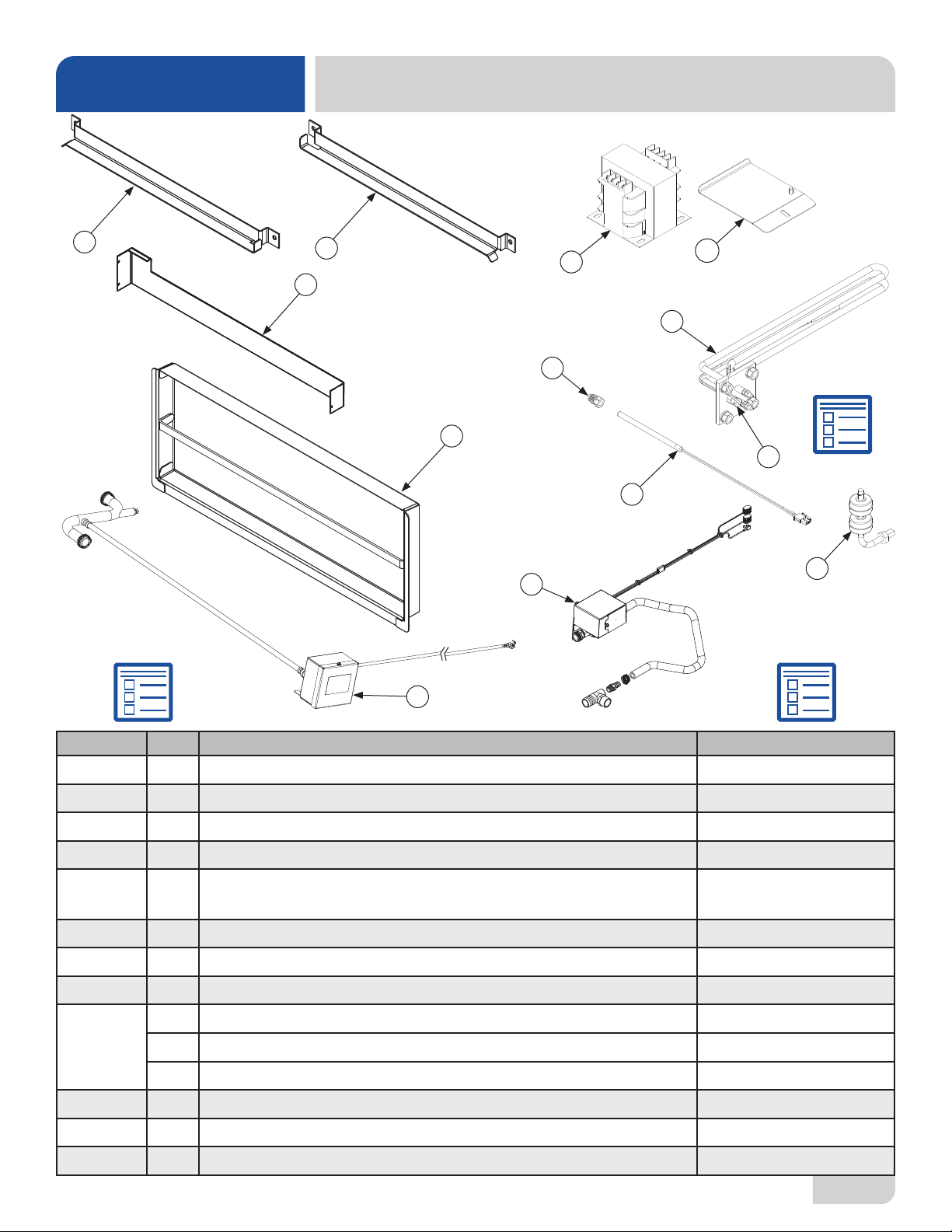

MISCELLANEOUS PARTS

Parts are not shown

to scale in relation

to each other.

460 V Drain Water Tempering

Kit Install Instructions

Wash Heater Replacement

Instructions



208-230 V Drain Water Tempering

Kit Install Instructions

ITEM QTY DESCRIPTION PART NUMBER

1 1 Rail, Left Rack 05700-031-37-88

2 1 Rail, Right Rack 05700-031-37-88

3 1 Splash Shield 05700-003-33-51

4 1 Strainer 05700-004-09-43

5a 5b

6 1 Dual Float Switch 06680-121-70-16

7 1 Thermistor Probe, 4" with 18" Cable 06685-004-34-58

8 1 Probe Fitting, 1/4" Brass 05310-924-02-05

10 1 Thermostat, Wash Tank High-limit with Compression Fitting 05930-004-33-15

11 1 Transformer, 460 V 05950-011-50-70

12 1 Transformer Bracket, 460 V 05700-004-44-55

07610-004-43-79-L

1 Wash Heater, 4 kW, 208-230 V 04540-003-99-44

1 Wash Heater, 4 kW, 460 V 04540-004-12-29

1 Gasket, Wash Heater (Not Shown) 05330-011-61-34

Drain Water Tempering Kit, 208-230 V Drain Water Tempering Kit, 460 V

06401-004-60-64 06401-004-56-12

Page 67

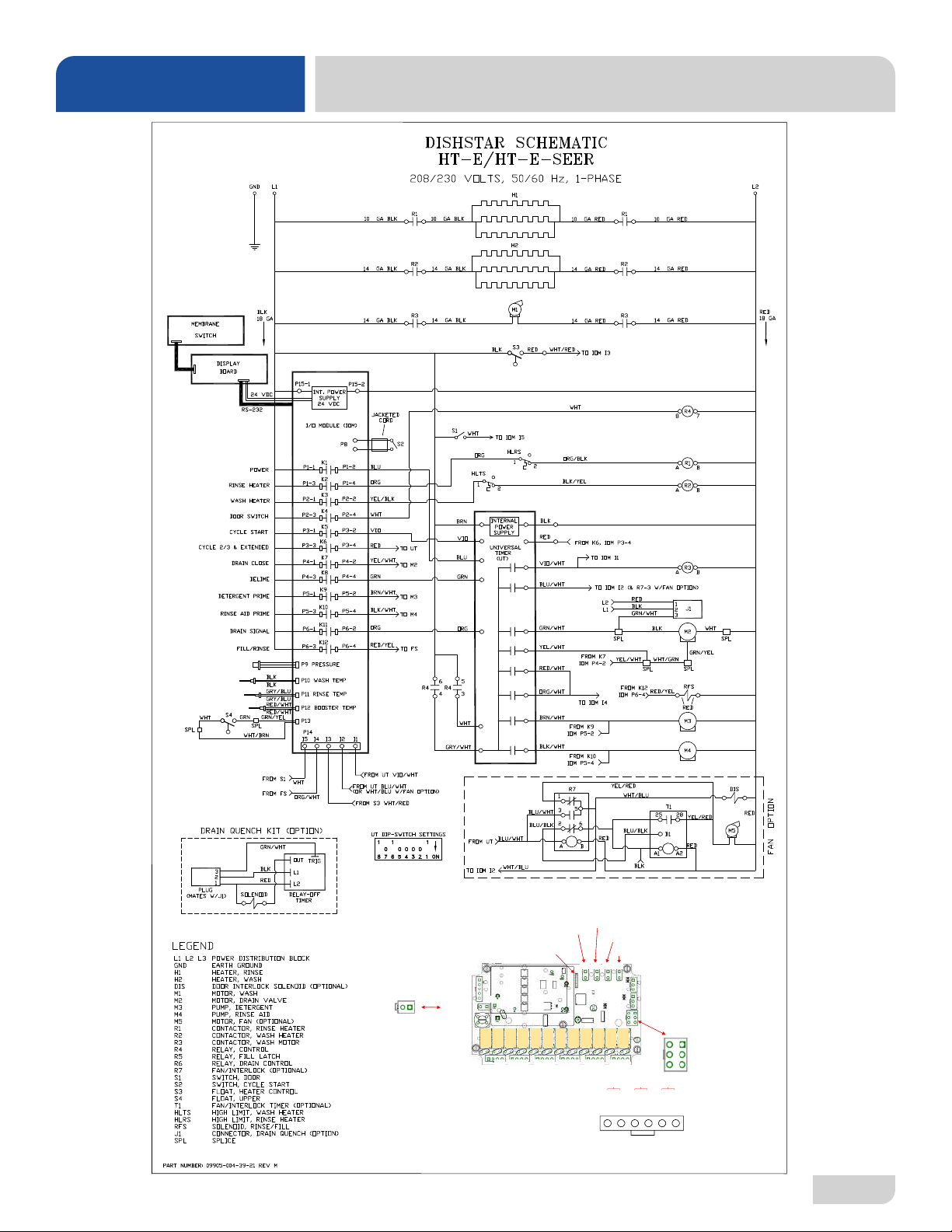

SCHEMATICS

208/230 V, 50/60 HZ, 1-PHASE

07610-004-43-79-L

InputAssignments

I1 Wash I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals

L1 L2/N

RelayAssignments

K1 Power K2 Boosterheater K3 Washheater K4 Variesbymodel K5 Variesbymodel K6 Variesbymodel K7 Variesbymodel K8 Variesbymodel K9 Variesbymodel K10 Variesbymodel K11 Variesbymodel K12 Variesbymodel

ACsignals

P14

I1 I2 I3

{

I4 I5

P15

ACpoweri n

K2K3K4K5K6K7K8K9K10K11K

K1 K4K3 K6K5 K8K7 K10K9 K12K11

P1 P2 P3 P4 P5 P6

ConnectionDiagramforIOModule

Programming

header

P10P11P12P13

Temperature Sensorinputs

PAIR1

CORRESPONDINGCONNECTOR

TODISPLAYPCBPN05945‐004‐36‐33

W H

VDCOUT Analoginput DCRTN VDCOUT LOGICINPUT DCRTN

24VDCOUT/RS‐232

BLK

GRN

BLK

PAIR2 PAIR3

56612 3

BLK(DCRTN)

RED(+24VDC)

WHT

Interconnectcableis Belden9745060U500

3twistedpairs

L K

Connectorsshownintop view(wire‐insertionend)

Page 68

SCHEMATICS

460 V, 60 HZ, 3-PHASE

07610-004-43-79-L

InputAssignments

I1 Wash I2 Cycle I3 Float I4 Rinse I5 Door/Chemicals

L1 L2/N

RelayAssignments

ACsignals

P14

I1 I2 I3

{

I4 I5

P15

ACpowerin

K2K3K4K5K6K7K8K9K10K11K

K1 K4K3 K6K5 K8K7 K10K9 K12K11

P1 P2 P3 P4 P5 P6

ConnectionDiagramforIOModule

Programming

header

P10P11P12P13

Temperature Sensorinputs

PAIR1

B L K

CORRESPONDINGCONNECTOR

TODISPLAYPCBPN05945‐004‐36‐33

PAIR2 PAIR3

VDCOUT Analoginput DCRTN VDCOUT

LOGICINPUT

DCRTN

24VDCOUT/RS‐232

BLK

GRN

BLK

566123

BLK(DCRTN)

RED(+24VDC)

WHT

Interconnectcableis Belden9745060U500

3twistedpairs

L K

Connectorsshownintop view(wire‐insertione nd)

Page 69

Page 70

Jackson WWS, Inc. • 6209 N. US Hwy 25E • Gray, KY 40734 USA

1.888.800.5672 • www.jacksonwws.com

DishStar HT-E Manual • 07610-004-43-79-L
