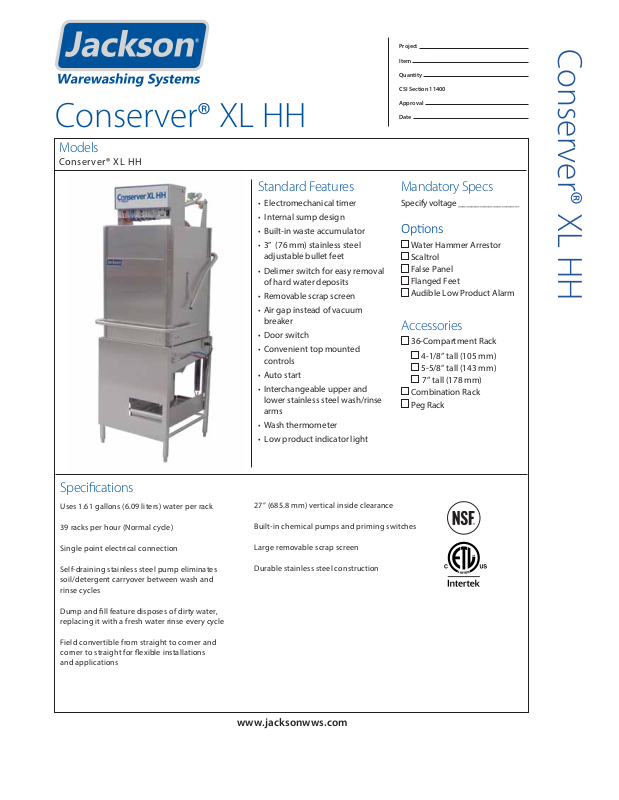

Jackson Conserver XL HH User Manual
Conserver® XL HH
Models
Conserver® XL HH
Standard Features Mandatory Specs
• Electromechanical timer
• Internal sump design
• Built-in waste accumulator
• 3” (76 mm) stainless steel
adjustable bullet feet
• Delimer switch for easy removal
of hard water deposits
• Removable scrap screen
• Air gap instead of vacuum
breaker
• Door switch
• Convenient top mounted
controls
• Auto start
• Interchangeable upper and
lower stainless steel wash/rinse
arms
• Wash thermometer
• Low product indicator light
Project
Item
Quantity
CSI Section 11400
Approval
Date
Specify voltage _____________
Opons
Water Hammer Arrestor
Scaltrol
False Panel
Flanged Feet
Audible Low Product Alarm
Accessories
36-Compartment Rack
4-1/8” tall (105 mm)
5-5/8” tall (143 mm)
7” tall (178 mm)
Combination Rack
Peg Rack
Conserver® XL HH
_
Specifications
Uses 1.61 gallons (6.09 liters) water per rack
39 racks per hour (Normal cycle)
Single point electrical connection
Self-draining stainless steel pump eliminates
soil/detergent carryover between wash and
rinse cycles
Dump and ll feature disposes of dirty water,
replacing it with a fresh water rinse every cycle
Field convertible from straight to corner and
corner to straight for exible installations
and applications
27” (685.8 mm) vertical inside clearance
Built-in chemical pumps and priming switches
Large removable scrap screen
Durable stainless steel construction
www.jacksonwws.com
Conserver® XL HH
Legend:
E1: Main Electrical Connection (1-1/8" DIA Hole)
W: Main Inlet Water Connection (1/2" NPT - Female)
D: Drain Connection (2" NPT - Male)
DET: Detergent Bulkhead Access (
SAN: Sanitizer Inlet
RA: Rinse Aid Inlet
ALL DIMENSIONS ARE +1/2"
3
6
4
in
E1
7
" DIA Hole)
8
1
29
in
4
[743 mm]
3
5
in
4
[146 mm]
[174 mm]
1
24
in
2
[620 mm]
3
in
67
4
[1721 mm]
29
[748 mm]
1
DET
SAN
RA
in
2
W
[2019 mm]
DOORS OPEN
76 in
[1928 mm]
79
1
in
2
1
33
in
2
[853 mm]
1
2
in
2
[63 mm]
D
13 in
[328 mm]
4 in
[102 mm]
4 in
[102 mm]
MINIMUM
MODEL NO.
Conserver®
XL HH
MINIMUM
MACHINE DIMENSIONS
30-3/8”
WIDTH BETWEEN
DISHTABLES
HEIGHT WIDTH DEPTH WEIGHT CLASS CUBE HEIGHT WIDTH DEPTH
79”
(2007 mm)
(772 mm)
25-1/4”
(641 mm)
1 in
[24 mm]
1
13
in
4
[339 mm]
29-1/2”
(749 mm)
31 in
[787 mm]
DRAIN
HEIGHT
9-3/4”
(248 mm)
3/4” (19mm)
20-1/2” (521mm)
SHIPPING INFORMATION
300 lbs
(136 kg)
92.5
64.9
cu. ft.
POWER REQUIREMENTS PERFORMANCE CAPABILITIES
Electrical Requirement 115V/60HZ/1PH - 11.4A
15AService Breaker Size
WATER REQUIREMENTS
RECOMMENDEDMINIMUM
Inlet Temperature
Wash Operating Temperature
Rinse Operating Temperature
120˚F (49 ˚C)
120˚F (49 ˚C)
120˚F (49 ˚C)
140˚F (60 ˚C)
140˚F (60 ˚C)
140˚F (60 ˚C)
Flow Pressure (PSI)
Wash Pump Motor Horsepower
Pump Capacity (GPM)
Minimum Chlorine Required (PPM)
HOW TO SPECIFY:
Conserver® XL HH
3
9
in
4
[248 mm]
TABLE DIMENSIONS
CONNECTION TO DISHMACHINE
1-1/2” (381mm) ROLL
83”
(2108 mm)
33”
(838 mm)
43”
(1092 mm)
20
1
55
50
Jackson WWS, Inc.
Shipping Address: 6209 North U.S. Highway 25E, Gray, KY 40734
Mailing Address: P.O.Box 1060, Barbourville, KY 40906
Telephone: 888-800-5672 • Fax: 606-523-1799
Email: info@jacksonwws.com
07610-004-27-61 [01/05/16]
www.jacksonwws.com
We reserve the right to change specications in this bulletin without incurring any obligation for equipment previously or subsequently sold.
