Jabra
Connect 4s
User manual
GN Audio A/S
© 2021
registered trademark of
included herein are the property of their respective owners.
The Bluetooth
Bluetooth SIG, Inc. and any use of such marks by
. All rights reserved. Jabra® is a
GN Audio A/S
®
word mark and logos are owned by the
. All other trademarks
GN Audio A/S
is under license.
Made in China
MODEL: PHS002W
Declaration of Conformity can be found on
www.jabra.com/doc
1. Welcome .........................................4
2. Speaker overview ..........................5
2.1 Turn on the jabra Connect 4s
2.2 Charging the Jabra Connect 4s
3. Connecting ..................................... 7
3.1 Connect to mobile device (Bluetooth)
3.2 Connect to Bluetooth headset
4. How to use the
Jabra Connect 4s ....................... 10
4.1 Multiple call handling
4.2 Switch between bluetooth devices
4.3 Voice guidance on/o
4.4 Smart button
5. Software ...................................... 14
5.1 Jabra direct
5.2 Update Jabra Connect 4s firmware
6. Support ........................................ 15
6.1 FAQ
6.2 How to care for your
Jabra Connect 4s
ENGLISH
3
1. Welcome
Thank you for purchasing the Jabra Connect 4s.
We hope you will enjoy it!
JABRA CONNECT 4S FEATURES
Answer, end, reject and mute calls.
Connect to computer via USB or Jabra Link 370.
Connect wirelessly to mobile device via
Bluetooth.
Portable design.
Omni-directional microphone.
Wideband audio for exceptional sound
quality.
LED, audio indicators and voice guidance.
Up to 15 hours talk time.
Interact with your voice assistant (phone
dependent) or speed dial with the one-touch
Smart button* (must be enabled in Jabra
Direct).
ENGLISH
4
2. Speaker overview
Mute microphone
Bluetooth
Volume
down
Answer call
On/O
Battery level
Volume up
Smart button
End/reject call
ENGLISH
*
5

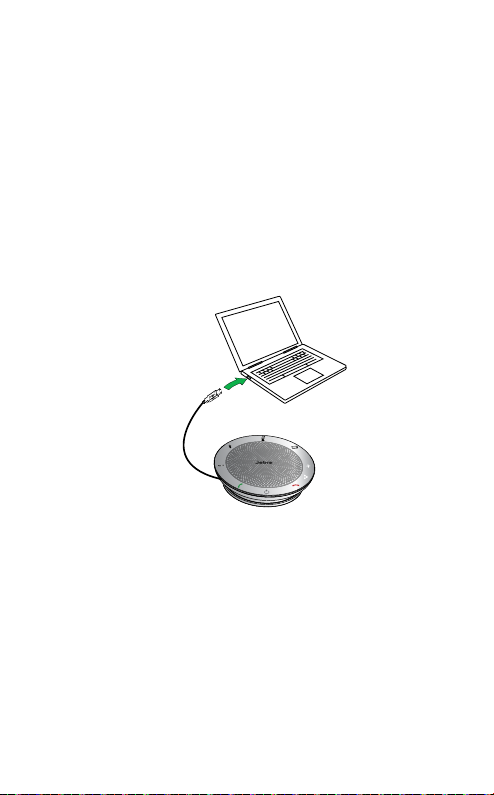

2.1 Turn on the jabra Connect 4s
Plug the Jabra Connect 4s USB cable into
any available USB port on your computer, or
Press and hold (2 secs) the On/Off button to
turn the Jabra Connect 4s on or off.
2.2 Charging the Jabra Connect 4s
ENGLISH
Plug the Jabra Connect 4s USB cable into any
available USB port on your computer to charge
the battery. The battery light is red when
charging, and green for 1 minute when fully
charged.
6
3. Connecting
1. Plug the Jabra Connect 4s USB cable into
any available USB port on your computer.
2. Select the Jabra Connect 4s as the default
audio device in Windows Control Panel
sound settings, and in your softphone audio
settings.
ENGLISH
7
3.1 Connect to mobile device
(Bluetooth)
1. Press and hold (2 secs) the Bluetooth button
on the Jabra Connect 4s until the Bluetooth
light flashes blue. Release the button when
you hear the connection instructions.
2. Enable Bluetooth on your mobile device, and
select the Jabra Connect 4s from the list of
available Bluetooth devices. If prompted for a
password enter 0000.
ENGLISH
8
3.2 Connect to Bluetooth headset
For privacy, a bluetooth headset can be
connected to the Jabra Connect 4s.
1. Plug the Jabra Connect 4s into any available
USB port on your computer.
2. Put the Bluetooth headset into pairing mode
(refer to your headset manual for
instructions).
3. Press and hold (8 secs) the Bluetooth button
on the Jabra Connect 4s until the Bluetooth
light flashes blue and then flashes green.
Release the button when you hear ‘Connect
to headset’.
4. The connection is established when the light
turns solid blue.
ENGLISH
9
4. How to use the
Jabra Connect 4s
Mute microphone
Bluetooth
Battery level
ENGLISH
Volume
down
Answer call
On/O
Volume up
Smart button
End/reject call
On/O
Answer call Tap the Answer call button
End call
Reject call
Speaker volume
Battery status
Press and hold (2 secs) the
On/O button until the lights
flash
Tap the End/reject call
button
Tap the End/reject call
button
Tap the Volume up or
Volume down button
Tap the Battery status
button to display the current
battery level
10
Connect with
new Bluetooth
device
Reconnect/
disconnect
with Bluetooth
device
Mute
microphone
Voice assistant
(o by default,
Smartphone
dependent)
Speed dial
(o by default,
computer or
Smartphone
dependent)
Press and hold (2 secs) the
Bluetooth button to connect
with a new Bluetooth device
Tap the Bluetooth button to
reconnect/disconnect with a
Bluetooth device
Tap the Mute microphone
button
Press the Smart button (use
Jabra Direct to enable voice
assistants, e.g. Siri, Google
Assistant, Cortana)
Press the Smart button (use
Jabra Direct to enable speed
dial)
4.1 Multiple call handling
The Jabra Connect 4s can accept and handle
multiple calls simultaneously.
Put current call
on hold and
answer incoming
call
Switch between
held call and
active call
Reject incoming
call
Tap the Answer call button
Tap the Answer call button
Tap the End/reject call
button
ENGLISH
11
4.2 Switch between bluetooth devices
1. Press and hold the Bluetooth button and tap
the Volume up or Volume down button to
cycle between the connected devices. The
connected devices will be announced.
2. Release the Bluetooth button when the
correct device is announced. The Jabra
Connect 4s will establish a connection with
the device(s). When a connection has been
established the device(s) will be announced.
4.3 Voice guidance on/o
To turn voice guidance on/off, press and hold
(8 secs) the Mute button until you hear ‘Voice
guidance off’ or ‘Voice guidance on’.
ENGLISH
NOTE: Not all voice prompts will be disabled when voice
guidance is turned off.
12
4.4 Smart button
The Smart button is off by default.
To use the Smart button to activate your
smartphone’s voice assistant (e.g. Siri, Google
Assistant, Cortana) or to speed dial a phone
number on your smartphone or computer,
install Jabra Direct on your computer and
enable the Smart button in the Connect 4s
settings.
ENGLISH
13
5. Software
5.1 Jabra direct
Jabra Direct is software designed to support,
manage and enable optimal functionality for
Jabra devices. It is highly recommended to
download and install Jabra Direct.
Download the latest version - jabra.com/direct
5.2 Update Jabra Connect 4s firmware
Firmware updates improve performance or
add new functionality to Jabra devices.
To update firmware:
1. Connect to a computer via USB.
2. Download and install Jabra Direct.
3. Check for the latest firmware via Jabra Direct.
You will receive notifications whenever there
is an update for your device.
ENGLISH
14
6. Support
6.1 FAQ
View the FAQs on Jabra.com/connect4s.
6.2 How to care for your
Jabra Connect 4s
Always store the Jabra Connect 4s with the
power off and safely protected.
Avoid storage at extreme temperatures
(above 70°C/158°F or below -20°C/-4°F). This
can shorten battery life and may affect
operation. High temperatures may also
degrade performance.
Do not expose the Jabra Connect 4s to rain
or other liquids.
ENGLISH
15
ENGLISH
jabra.com/connect4s
16
REV A
