JABRA ROX WIRELESS
User Manual
jabra.com/roxwireless
© 2013 GN Netcom A/S. All rights reserved. Jabra® is a registered
trademark of GN Netcom A/S. All other trademarks included herein
are the property of their respective owners. The Bluetooth
mark and logos are owned by the Bluetooth SIG, Inc. and any use
®
word
of such marks by GN Netcom A/S is under license. (Design and
specifications subject to change without notice).
MADE IN CHINA
MODEL: OTE16
Declaration of Conformity can be found on www.jabra.com/CP/US/declarations-of-
conformity
CONTENTS
1. WELCOME .......................................... 4
2. HEADSET OVERVIEW ......................... 5
2.1 INCLUDED ACCESSORIES
3. HOW TO WEAR ..................................6
3.1 CHANGING EARGELS
3.2 WEARING THE EARWINGS
3.3 WEARING THE FITCLIP
3.4 HOWTOWEAR VIDEOS
3.5 MAGNETIC EARBUDS
4. HOW TO CHARGE THE BATTERY ..... 10
5. HOW TO CONNECT ........................... 11
5.1 CONNECT WITH A BLUETOOTH DEVICE
5.2 CONNECT WITH AN NFC DEVICE
5.3 CONNECT MULTIPLE DEVICES
6. HOW TO USE ................................... 13
6.1 MULTIPLE CALL HANDLING
6.2 LIST OF VOICE GUIDANCE
7. SUPPORT ..........................................18
7.1 FAQ
7.2 HOW TO CARE FOR YOUR HEADSET
english
8. TECHNICAL SPECIFICATIONS ...........19
jabra rox WIrELESS
3
1. WELCOME
Thank you for using the Jabra Rox Wireless. We
hope you will enjoy it!
JABRA ROX WIRELESS FEATURES
Cable controls for easy music and call
management
Life proof: weather and dust resistant
Premium materials: Kevlar reinforced cable
design, solid steel earbuds
Magnetic earbuds: Save battery when the
headset is not in use
NFC for easy pairing
english
jabra rox WIrELESS
4
2. HEADSET OVERVIEW
LED
indicator
Charging
cover
Fitclip
(optional
wearing
style)
Magnetic
earbuds
NFC zone
(button side)
ColorCore
TM
EarGel
Volume up
button
Multi-function
button
Volume down
button
english
Charging
port
Microphone
Charging cover
2.1 INCLUDED ACCESSORIES
4 ColorCore EarGelsTM 3 EarWings
(Small, medium, large)
USB cable
jabra rox WIrELESS
5
3. HOW TO WEAR
jabra
jabra
3.1 CHANGING EARGELS
Choose between 4 Colorcore Eargels for optimal
fit and comfort.
english
jabra rox WIrELESS
6
3.2 WEARING THE EARWINGS
Choose between 3 EarWing sizes for optimal fit
and stability.
1. Align the L or R on the EarWing with the L or R
on the earbud and gently pull the EarWing onto
the earbud. Adjust by rotating, if needed.
2. When wearing the headset, the EarWing fits into
the ridge of the ear. Ensure the EarWing does
not cover the microphone.
english
jabra rox WIrELESS
7
3.3 WEARING THE FITCLIP
Attach the fitclip to the cable, and adjust for
optimal fit.
english
jabra
jabra
3.4 HOWTOWEAR VIDEOS
You can watch how-to-wear instructional videos
for the ColorCore EarGels
jabra.com/roxwireless.
TM
, EarWings and fitclip at
jabra rox WIrELESS
8
3.5 MAGNETIC EARBUDS
The earbuds are magnetic. Join or separate them
to turn Standby mode on/off, or end/answer a
call.
Standby mode ON
Standby mode OFF
english
jabra
NOTE: The headset will power off after 5 minutes when the
magnetic earbuds are separated and the headset is not
connected to a mobile device.
jabra rox WIrELESS
jabra
9
4. HOW TO CHARGE THE
BATTERY

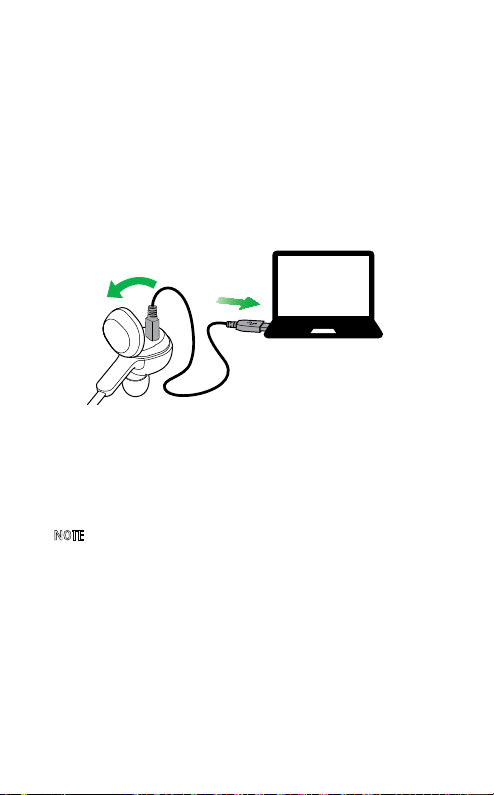

Remove the charging cover on the right earbud to
expose the micro-USB port. Plug the USB cable into
the headset and the PC to begin charging.
jabra
It takes approx. 2.5 hours to fully charge the
headset.
NOTE: For safety reasons, it is recommended not to use the
headset while it is charging.
english
jabra rox WIrELESS
10
5. HOW TO CONNECT
5.1 CONNECT WITH A BLUETOOTH DEVICE
1. Ensure the headset earbuds are separated.
2. Press and hold (5 secs) the Multi-function
button until the LED rapidly flashes blue.
3. Wear the headset, and follow the voice-guided
pairing instructions to pair to your Bluetooth
device.
NOTE: After you have connected once, simply turn on the device
to connect automatically.
jabra
english
jabra rox WIrELESS
11
5.2 CONNECT WITH AN NFC DEVICE
1. Ensure that NFC is enabled on your mobile
device.
2. Ensure that the magnetic earbuds are separated.

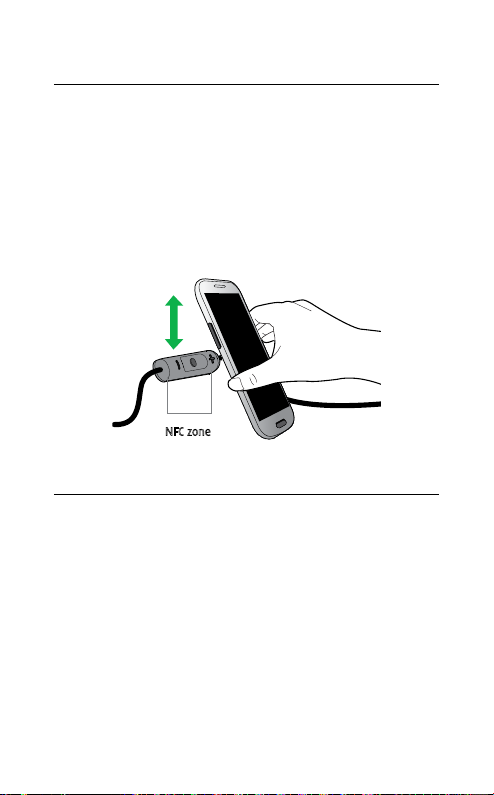

3. Slowly slide the NFC zone of the headset (button
side of the control box) directly against the NFC
device until an NFC connection is confirmed.
NFC zone
5.3 CONNECT MULTIPLE DEVICES
It is possible to connect multiple mobile devices to
the headset using Bluetooth or NFC.
If two mobile devices are connected to the headset
at the same time and one of the devices loses
connection, the Multi-function button will control
the remaining connected device (Pause/Play for
Music and Answer/End for calls). To reconnect the
disconnected device go to it’s Bluetooth menu and
reconnect.
jabra rox WIrELESS
english
12
6. HOW TO USE
LED indicator
Charging
cover
Fitclip
(optional
wearing
style)
Standby on/
off
NFC zone
(button side)
ColorCore
TM
EarGel
Volume up
button
Multi-function
button
Volume down
button
english
jabra rox WIrELESS
13

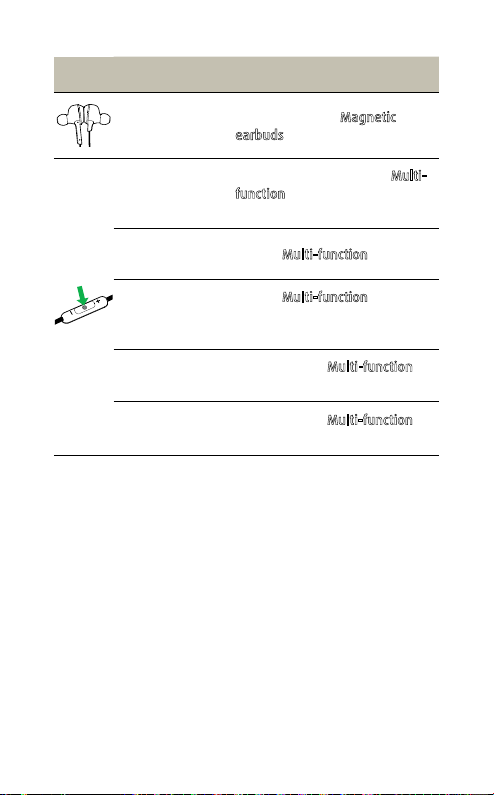

FUNCTION ACTION
Standby mode
on/off
Turn on/off
Play/pause
music
Answer/end
call
Reject call
Redial last
number
Join/separate the Magnetic
earbuds
Press and hold (3 sec) the
function button until the LED
flashes
Multi-function button
Tap the
Multi-function button,
Tap the
or separate/join the magnetic
earbuds
Double-tap the
button
Double-tap the
button when not on a call
Multi-function
Multi-function
Multi-
english
jabra rox WIrELESS
14
Adjust volume
Mute
Skip track
forward
Skip track back
Tap the
Volume up or Volume
down button
Tap the
Volume up and Volume
down button at the same time
Press and hold (2 secs) the
Volume up button
Press and hold (2 secs) the
Volume back button until you
hear a beep, and press and hold
Volume back button again
the
english
Restart track
Battery status
Press and hold (2 secs) the
Volume back button
Tap the
Volume up or Volume
down button when not on a call
or listening to music
jabra rox WIrELESS
15
6.1 MULTIPLE CALL HANDLING
The headset can accept and handle multiple calls
simultaneously.
FUNCTION ACTION
End current call and
answer incoming call
Switch between held call
and active call
Put current call on hold
and answer incoming call
Reject incoming call,
when on a call
Tap the Multi-
function button
Press and hold (2
secs) the
function button
Press and hold (2
secs) the
function button
Double-tap the
Multi-function
button
english
Multi-
Multi-
jabra rox WIrELESS
16
6.2 LIST OF VOICE GUIDANCE
CLICK TO LISTEN WHAT YOU HEAR
To connect Jabra Rox wireless, go to
the Bluetooth menu on your phone and
select it from the list
Connected
Two devices connected
Disconnected
Call ended
Redialling
Recharge battery
Battery low
Battery medium
Battery full
Muted
english
Unmuted
jabra rox WIrELESS
17
7. SUPPORT
7.1 FAQ
View the comprehensive FAQ on Jabra.com/roxwireless
Q Why do I hear crackling noises?
A Bluetooth is a radio technology that is sensitive to
objects between the headset and the connected
device. Ensure the headset and the connected device
are within range (up to 10m/33ft).
Q What is the range of the headset?
A The Jabra Rox Wireless supports the following maxi-
mum ranges:
Q Why do I not hear anything?
A You might need to increase the speaker volume, or
ensure that the headset is connected to a device.
Q I am having Bluetooth connection problems
A Check your mobile device’s Bluetooth menu and
delete/forget the headset. Re-connect the headset to
your Bluetooth device following the Bluetooth connection instructions.
10m/33ft.
7.2 HOW TO CARE FOR YOUR HEADSET
Always store the headset with the power off
and safely protected.
Avoid storage at extreme temperatures (above
65°C/149°F or below -10°C/14°F). This can
shorten battery life and may affect the headset.
jabra rox WIrELESS
english
18
8. TECHNICAL
SPECIFICATIONS
JABRA ROX WIRELESS SPECIFICATION
Weight: 19g
Dimensions:
Microphones: MEMS microphone
Speaker: 6 mm dynamic speaker
Operating range: 10m/33ft (phone dependent)
Bluetooth version: 3.0
Paired devices:
Supported Bluetooth
profiles:
Talk/music time: Up to 5.5 hours
Standby time: Up to 8 days
Operating temperature: -10°C to 55°C (14°F to 133°F)
Storage temperature: -10°C to 65°C (14°F to 149°F)
Pairing passkey or PIN: 0000
H 16.5mm x W 20mm x D
16mm
Up to 8, connected to two at
the same time (MultiUse™)
A2DP (v1.2), Hands Free Profile
(v1.6), Headset profile (v1.2),
AVRCP (v1.4)
english
jabra rox WIrELESS
19
english
www.jabra.com/roxwireless
jabra rox WIrELESS
20
REV C
