J5create USB VGA Display Adapter User Manual
JUA190 V1.0
USB VGA Display Adapter
User Manual
2
Table of Contents
INTRODUCTION .................................................................................................................... 3
Functions .............................................................................................................................. 3
Highlighted Features .......................................................................................................... 3
Required Environments ...................................................................................................... 5
Physical Specifications ...................................................................................................... 5
Resolutions and Color Depth ............................................................................................ 6
Package Contents ............................................................................................................. 6
GETTING STARTED –Notes for Before Installation ............................................................... 7
INSTALLATION FOR WINDOWS 8/ 7 ..................................................................................... 8
Device Driver Installation .................................................................................................. 8
Verify Device Driver Installation ..................................................................................... 15
Device Driver Un-installation .......................................................................................... 16
INSTALLATION FOR WINDOWS XP/VISTA .......................................................................... 17
Device Driver Installation ................................................................................................ 17
Verify Device Driver Installation ..................................................................................... 25
Device Driver Un-installation .......................................................................................... 27
FUNCTIONS INSTRUCTIONS: WINDOWS 8/ 7 ..................................................................... 28
Display ID ........................................................................................................................... 28
Display Resolution ............................................................................................................ 29
Display Orientation ........................................................................................................... 30
Identify Monitors ............................................................................................................... 35
Multi-Display Control Panel ............................................................................................ 35
Display Setting ................................................................................................................... 36
Fix Position.......................................................................................................................... 36
FUNCTIONS INSTRUCTIONS: WINDOWS VISTA/XP ............................................................ 37
Display ID ........................................................................................................................... 37
Display Rotation ................................................................................................................ 39
Display Mode .................................................................................................................... 39
Identify Monitor ................................................................................................................. 41
Multi-Display Control Panel ............................................................................................ 42
Display Setting ................................................................................................................... 42
TROUBLE SHOOTING .......................................................................................................... 44
REGULATORY COMPLIANCE ............................................................................................. 47
WARRANTY OF j5 create ................................................................................................... 48
USB DISPLAY ADAPTER USER MANUAL
3
INTRODUCTION
Thank you for purchasing the j5 create USB 2.0 Display Adapter! This
adapter acts as an external graphics card for your PC. It allows you to
add an additional VGA(JUA190) monitor/display through your USB 2.0
port. No need to open up the computer to add an expensive graphics
card, with the USB 2.0 Display Adapter you simply load the drivers, plug in
the adapter to the USB port, then plug in the VGA monitor cable into the
adapter and you are ready. The j5 create USB 2.0 Display Adapter
supports three viewing modes. Primary mode, allows you to have
individual applications open on each monitor, vastly improving
productivity. Extended mode allows you to extend your desktop across
multiple displays, great for spreadsheets. Mirroring mode is used to clone
one screen onto another, ideal for presentations. With “Plug & Play”
functionality between your computer and 2nd monitor or projector, you
will be able to create a new visual environment in seconds.
In addition, j5 create has developed this compact design for the
sophisticated user who cares about function as well as elegance.
Functions
Add an additional monitor without adding an expensive, internal
video card, avoiding complicated installation
Hot swappable USB enables you to add or remove monitors
without rebooting your system
Move and view your large spreadsheets across two screens
without overlapping windows
Multitask with larger landscape/desktop space
Ideal for viewing multiple windows at the same time
Great for multitasking in a wide variety of applications including:
Phone centers, Stock Markets, Hospitals, Graphic Design, Editing,
Accounting, Etc.
A must have for surfing the web and working on your
email/facebook/twitter accounts all at the same time.
Highlighted Features
4
Supports display resolution:1680 X 1050 @ 32bit
Plug-and-Play USB connectivity
Allows for up to 6 adapters in Windows
Supports Display Modes: Primary, Extended, Mirror
Display Rotation: 0°, 90°, 180°, 270°
Aluminum enclosure that is non-toxic and recyclable
Easy driver install
Friendly software:
o Identify Monitors
o Multi-Display Control Panel
o Shortcut to access Windows
o Display setting dialog
Usage
Editor:
• Efficient editing of documentation on one screen and
researching reference materials on the other
Presentation:
• Use mirror mode while your laptop is plugged into a projector
through the USB Display Adapter
• Use Primary mode to have two monitors and/or projectors for
creative displays
Office:
• Dual display scenario: view large spreadsheets across 2 screens
with display continuity. (For example: Excel document)
• Independent: using desk space and doing multi-jobs at the same
time- increase efficiency.
• Read and reply to email on one screen and open attachments
on the other
Graphics Workstation:
• Design and check reference material at the same time.
• More space for tablets and photo/video editing
Entertainment:
• Watch TV/Movie while searching the program preview
• Play games online on one screen with the strategy guide on the
other screen
Stock Market Trading:
• Monitor multiple stock markets and market news simultaneously
USB DISPLAY ADAPTER USER MANUAL
5
Coding/Programming:
• Allows effective code programming on one screen and software
program companion on the other screen.
Required Environments
Microsoft Windows 8, 7, Vista, XP (32-bit or 64-bit) Compatible
Available USB 2.0 port
Temperature: Operating: -50°F~131°F
Non- Operating : -77°F~167°F
Minimum System Requirements
QTY
1~2 Dongle
3～4 Dongles
CPU
Intel/AMD Dual core1.5
GHz or above
Intel / AMD QUAD CORE
2.4GHz or above
RAM
512 MB or Higher
2 GB or Higher
USB
An independent power supply is required when using
the USB HUB to connect multiple dongles.
This device is intended for ‘Office Applications’ and not for ‘Home
Entertainment’ & ‘Video Playback‘.
note:
Due to constant advancements in technology we, at j5 create, make it a priority
to give you the latest drivers available for our products. To ensure that your
device is equipped with the most current driver, please visit our website at
www.j5create.com and install the latest driver for this model.
Physical Specifications
Model: JUA190
Interface
Host Interface
USB 2.0 Type-A Connector
Video Interface
VGA-DB 15 pin Female Connector
Power
Power Mode
Bus-powered
Power Consumption
≦500mA
Physical Specification
Housing Material
Aluminum
6
Dimensions
Main body: 45(W)x 80(H)x17(D) mm
Cable length: 100 cm
Weight
Approximately 72g
Resolutions and Color Depth
Aspect Ratio
Resolution
Color Depth
Wide Screen Display
16:10
1680 x 1050
16,32 bits
16:9
1600 x 900
16,32 bits
16:10
1440 x 900
16,32 bits
16:9
1360 x 768
16,32 bits
16:10
1280 x 800
16,32 bits
15:9
1280 x 768
16,32 bits
16:9
1280 x 720
16,32 bits
Standard Display
4:3
1600 X 1200
16,32 bits
4:3
1400 x 1050
16,32 bits
5:4
1280 x 1024
16,32 bits
4:3
1280 x 960
16,32 bits
4:3
1152 x 864
16,32 bits
4:3
1024 x 768
16,32 bits
4:3
800 x 600
16,32 bits
Package Contents
USB VGA Display Adapter(JUA190)
Quick Installation Guide
Driver CD with E-Manual
USB DISPLAY ADAPTER USER MANUAL
7
GETTING STARTED –Notes for Before Installation
Install driver completely before inserting the USB Display Adapter
USB Cable into your computer
Run the setup program as an administrator to avoid errors in
installation
Uninstall the previous driver first before updating the latest driver
Connect the VGA connector of USB Display Adapter to the VGA
cable of display device first before connecting to USB port of
computer
It is recommended to use an independent power supply for USB
Hub while multiple dongles are connected to the USB Hub
The display screen will flash during installation
8
INSTALLATION FOR WINDOWS 8/ 7
Device Driver Installation
This section illustrates the procedure for device driver installation for
Windows 7. To start, insert the Driver CD into your computer’s CD-ROM drive.
The setup program should be launched automatically. If Autorun does not
begin, go to “Computer”, Click on your optical drive, and manually run the
setup CD by double-clicking on “Setup.exe”
※Please make sure the USB cable of USB Display Adapter is unplugged
from your PC or Notebook before executing the installation program.
1. The installation page will be launched. To start click on “ Install the Latest
Driver”. Please make sure the network is available or press “Install Driver”
to start the installation
2. After pressing the installation option, the InstallShield Wizard will launch,
click Next> to continue
USB DISPLAY ADAPTER USER MANUAL
9
3. Read the license agreement and check “I accept the terms of the
license agreement.” Click Next > to accept it and continue.
10
4. Driver installation proceeding…..
5. When Install Shield Wizard is complete, select “Yes, I want to restart my
computer now.” Click Finish to restart.
USB DISPLAY ADAPTER USER MANUAL
11
6. After your computer is rebooted, connect the external display device
(monitor/ projector) to the VGA connector of the USB Display Adapter
and turn on the display device.
7. Connect the USB Display Adapter into an available USB 2.0 port of a PC
or Notebook, After Inserting the USB Display Adapter into an USB 2.0 port,
the “Installing device driver software” message will pop up.
If the Driver software was installed successfully the following message
should appear:
If you’re not going to install another USB Display Adapter, restart your PC.
The functions of the USB Display Adapter will be activated after the
computer restarted.
Multi USB Display Adapter Installation
For installation of multiple USB Display Adapters, during the “Install Shield
Wizard complete” step, select “No, I will restart my computer later.” and
click Finish to continue next step below
12
A. Connect all external display devices (monitor/ projector) to the VGA
connector of USB Display Adapters and switch power on.
B. Connect the USB Display Adapter into an available USB 2.0 port of a PC
or Notebook.

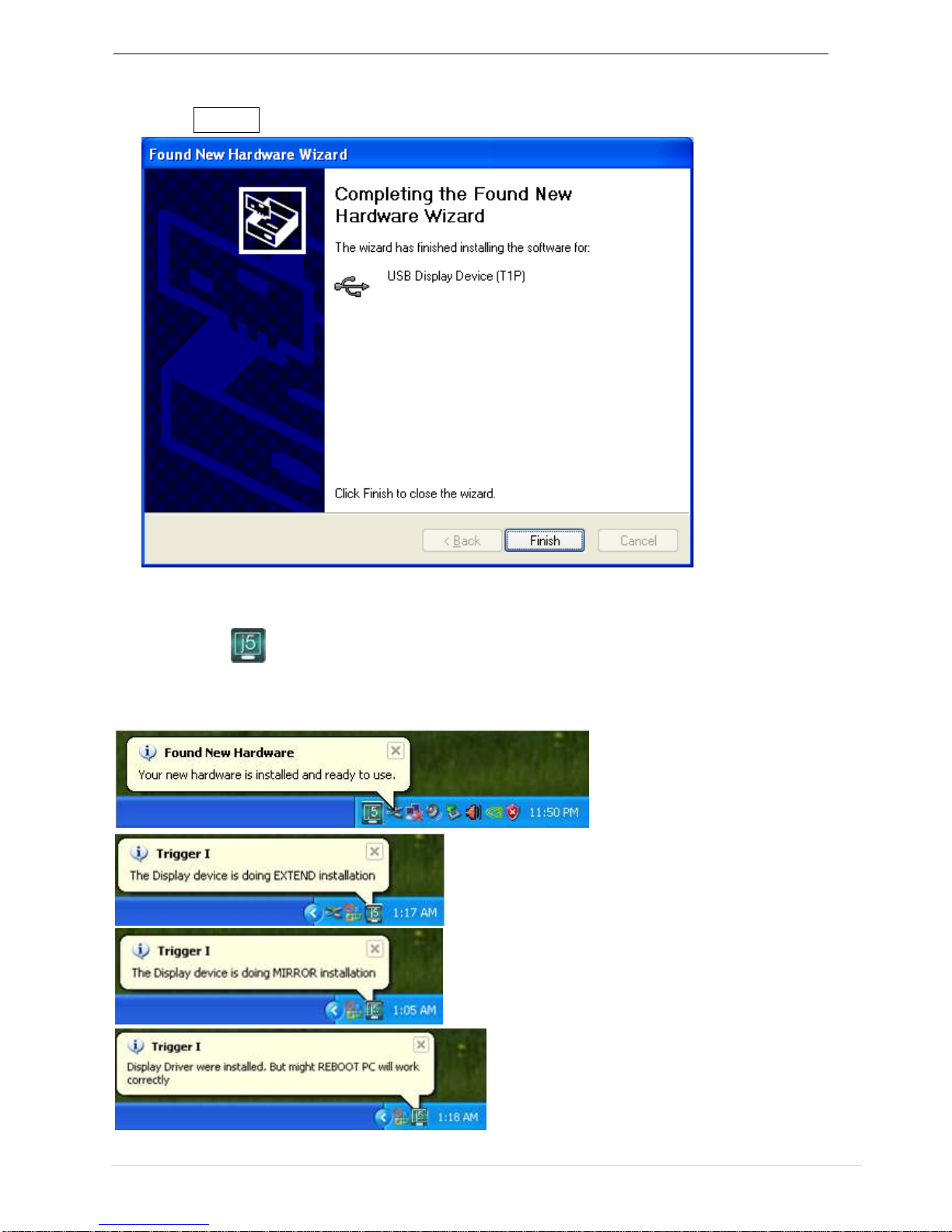

After Inserting an USB Display Adapter into a USB 2.0 port, the systems will
automatically start the installation procedure and the prompt message will
pop-up on the task bar.
The Device driver software was installed properly,
If you are going to install more USB Display Adapters, repeat step A& B or
restart computer.
USB DISPLAY ADAPTER USER MANUAL
13
The functions of the USB Display Adapter will be activated after the
computer restarted. You might see the extend display shown on the display
device.

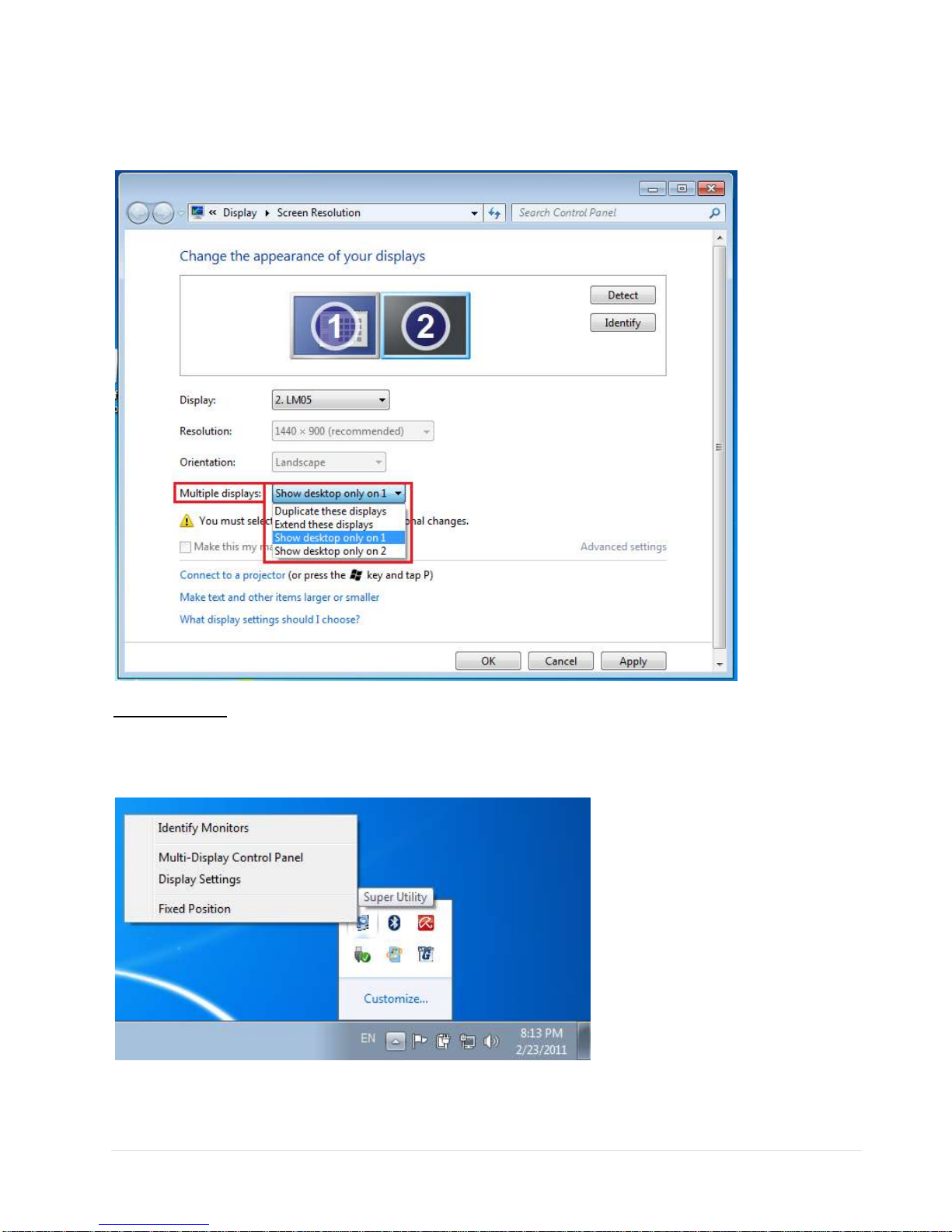

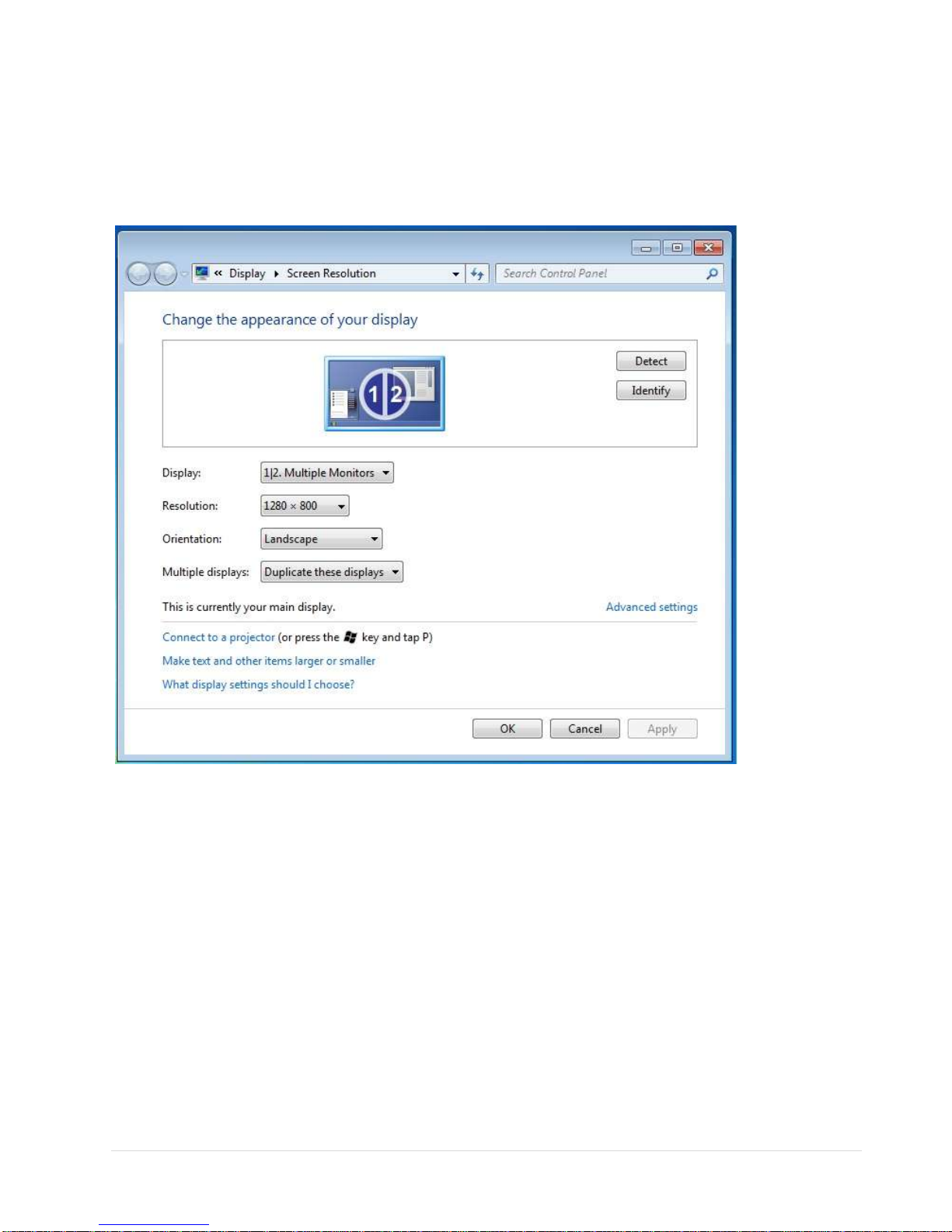

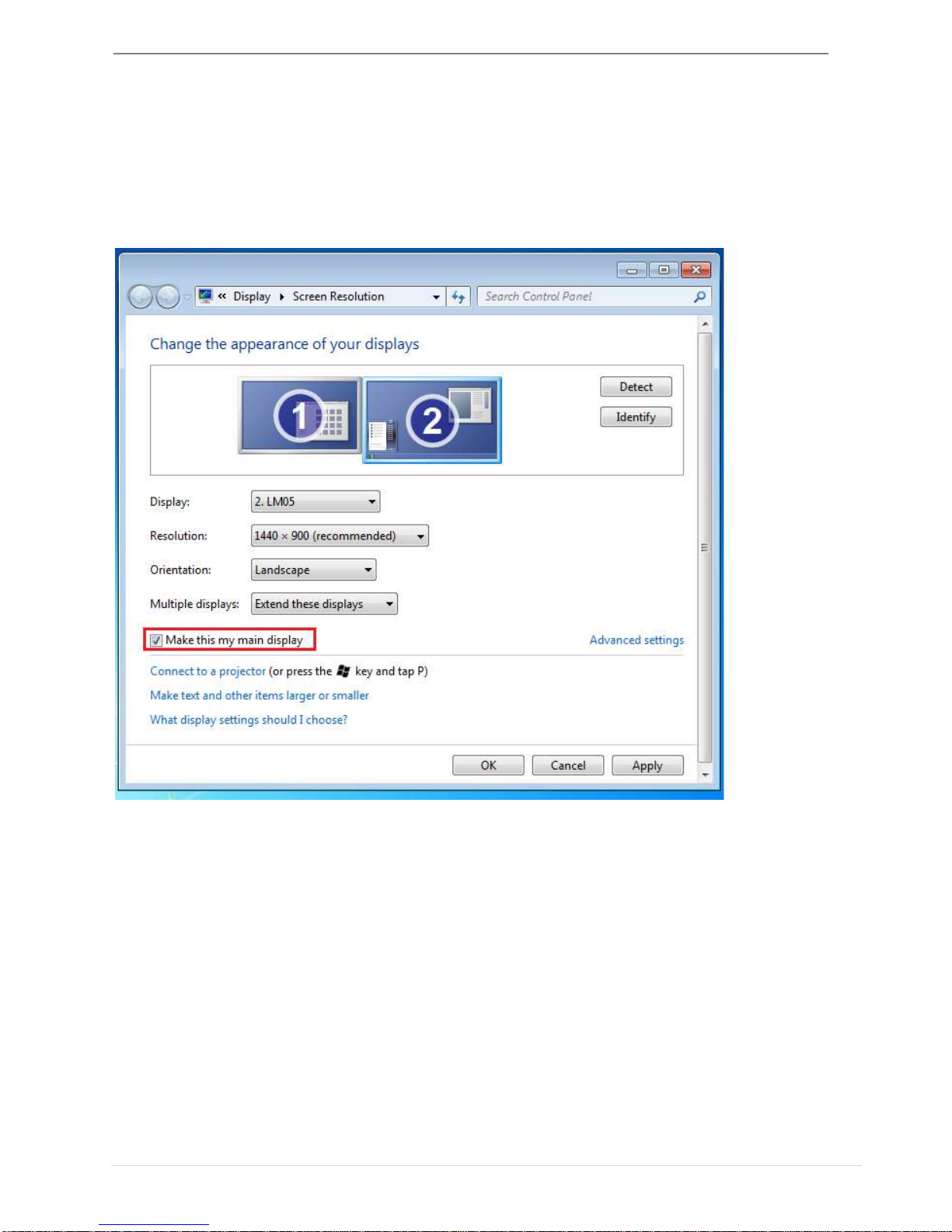

You can modify the corresponding position of each extend display via
display settings. Go to “START” → “Control Panel” → “Appearance and

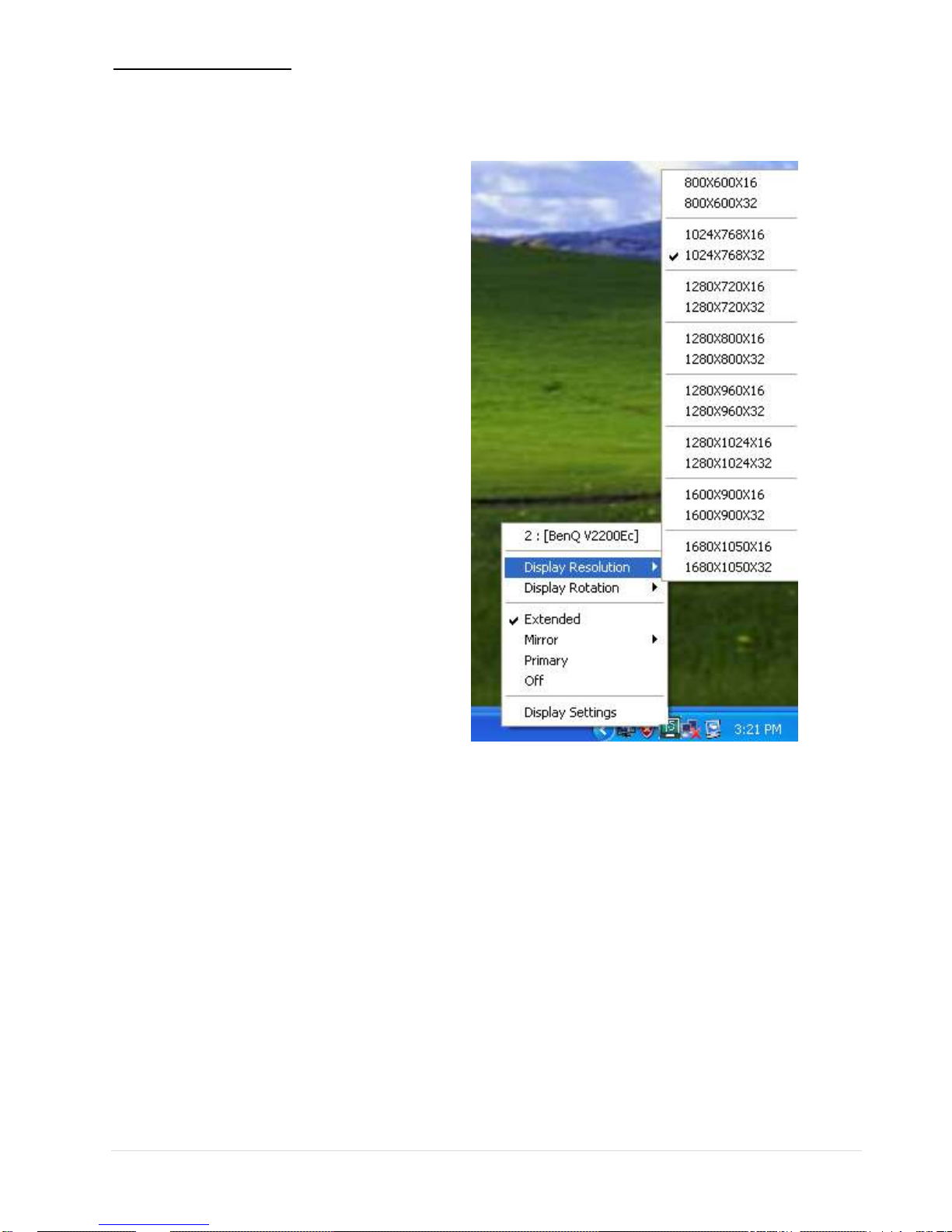

Personalization” → “Adjust screen resolution”
※ Right-click on the desktop and go to “Screen Resolution”
When the ‘Screen Resolution’ window appears, each monitor’s number
can be identified by clicking “Identify.” Drag the monitor to the location
you want.
14
USB DISPLAY ADAPTER USER MANUAL
15
Verify Device Driver Installation
The following procedure helps you to verify the driver installation status of
the USB Display Adapter.
Right-click “My Computer” “Manager” “Device Manager” click “+”
sign of “Display Adapter” “Universal Serial Bus controllers”
The picture below shows the installation process for a Single USB Display
Adapter
The picture below shows the installation process for a Multiple USB Display
Adapter
Loading...
