Wormhole Switch
JUC100 New Version
User Manual
Manuel de l'utilisateur
Bedienungsanleitung
Manual del usuario
JUC100
Wormhole Switch
JUC100 New Version
User Manual
JUC100
WORMHOLE SWITCH

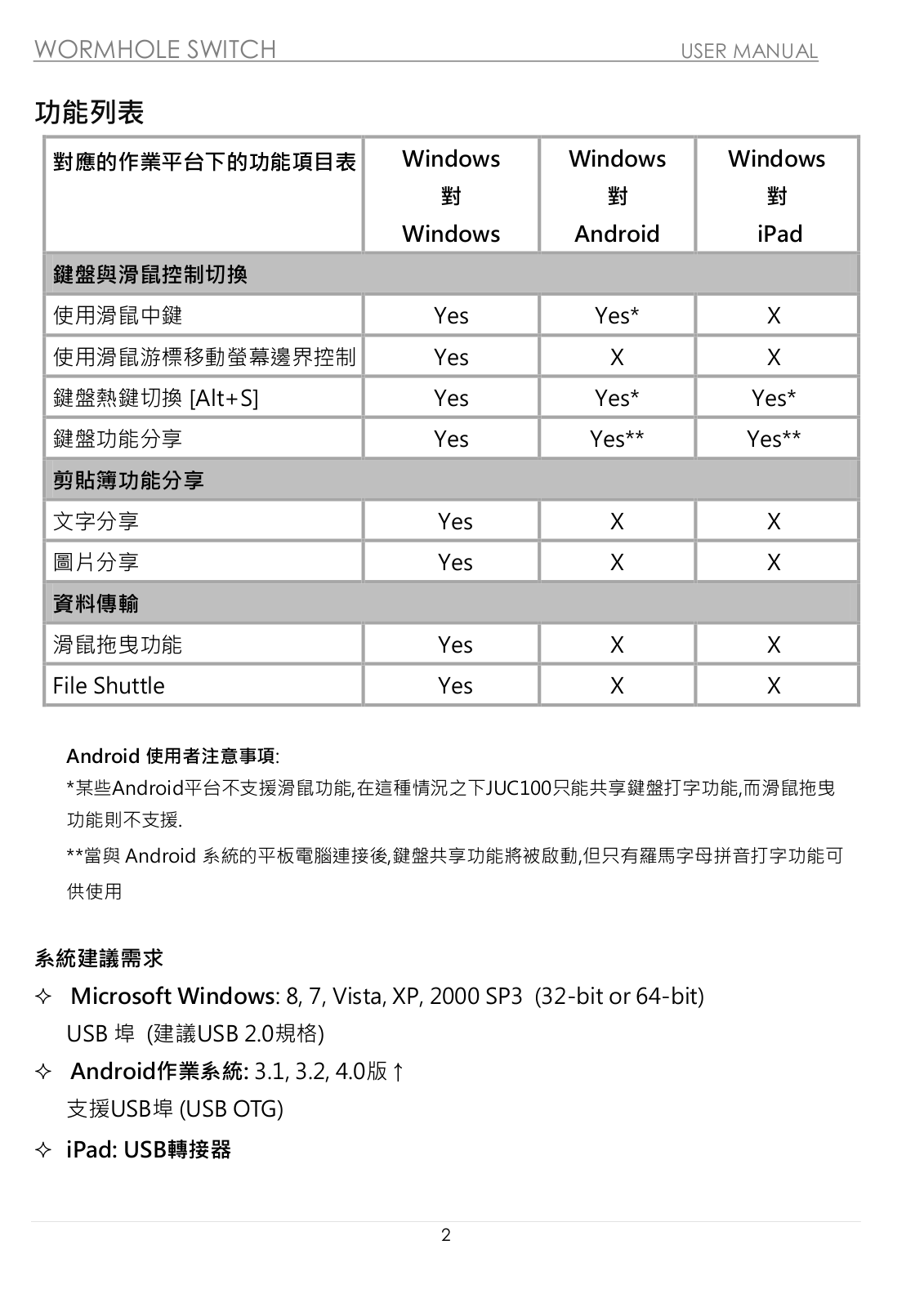

FUNCITON LIST
USER MANUAL
Function Behavior for Operation |
Windows |
Windows |
Windows |
System |
to |
to |
to |
|
Windows |
Android |
iPad |
Keyboard & Mouse Control Switching
|
|
Use Mouse Middle button |
Yes |
Yes* |
X |
||
|
|
Use Mouse Move off the edge of |
Yes |
X |
X |
||
|
|
screen |
|
|
|
|
|
|
|
Hotkey Toggle [Alt+S] |
Yes |
Yes* |
Yes* |
||
|
|
Keyboard Control Sharing |
Yes |
Yes** |
Yes |
||
|
|
Clipboard Sharing |
|
|
|
|
|
|
|
Text Share |
Yes |
X |
X |
||
|
|
Picture Share |
Yes |
X |
X |
||
|
|
Data Transfer |
|
|
|
|
|
|
|
Drag and Drop |
Yes |
X |
X |
||
|
|
File Shuttle |
Yes |
X |
X |
||
Note for Android User:
*Some Android platforms and iPad don’t support a cursor function. In that case, the
JUC100 can only share the keyboard and not the mouse.
**When Android OS tablet is connected, the keyboard sharing will be active, but only Roman Alphabet is supported by Android.
Required Environments
Microsoft: Windows 8 , 7, Vista, XP, 2000 SP3 (32-bit or 64-bit) Available USB port (USB 2.0 is recommended)
Android: 3.1, 3.2, 4.0↑ Available USB port (USB OTG)
iPad: USB Connection Kit

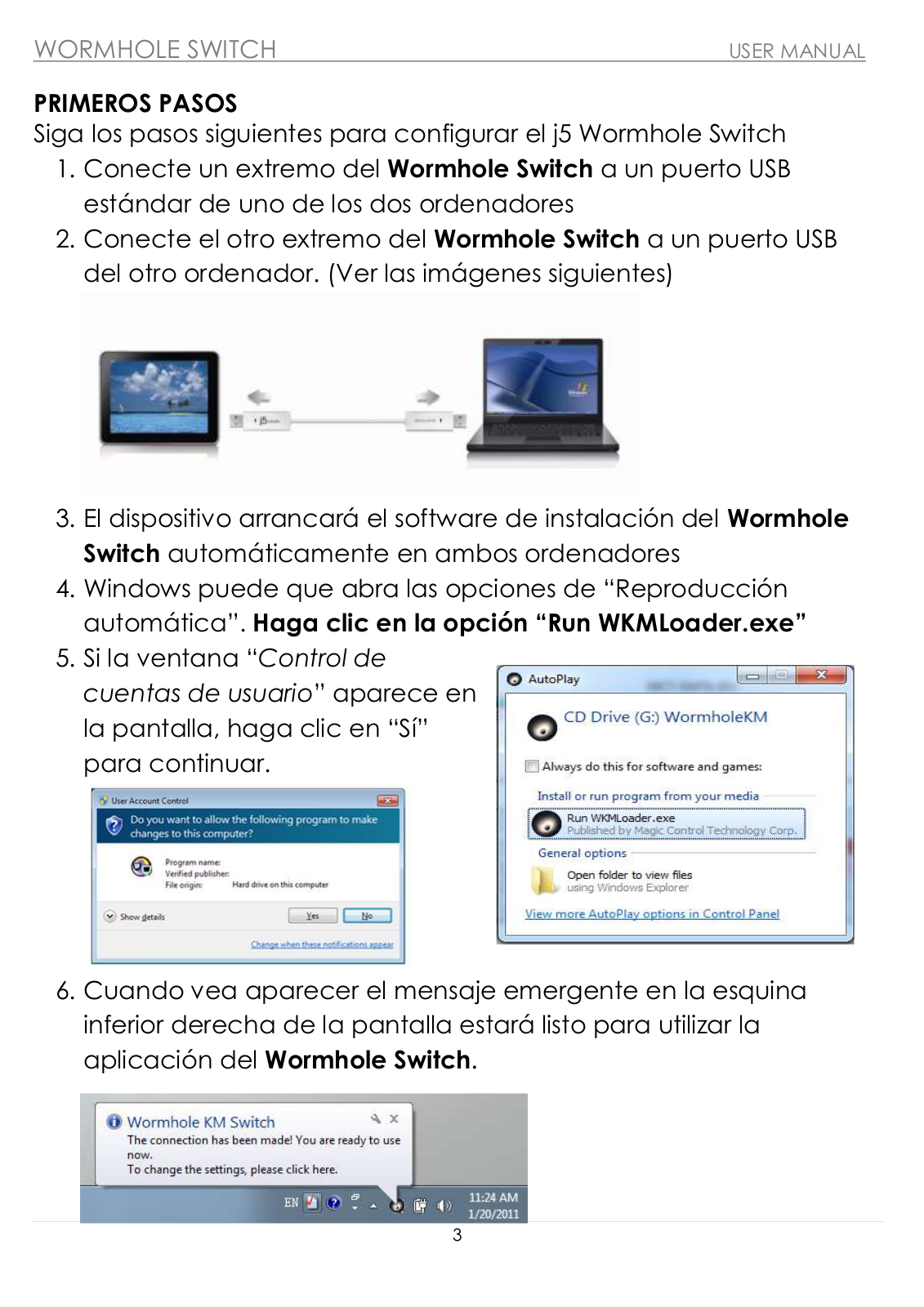

GETTING STARTED
Follow the below steps to configure the j5 Wormhole Switch
1.Connect one end of the Wormhole Switch to a standard USB port on one of the two computers
2.Connect the other end of the Wormhole Switch to a USB port on the second computer. (Please see below pictures)
3
WORMHOLE SWITCH |
USER MANUAL |
3.The device will automatically start Wormhole Switch software installation on both computers
4.Window might open “AutoPlay” options. Please Click on The option “Run WKMLoader.exe”
5.If the “User Account Control” window appears on the screen,
Click “Yes” to continue.
6.When you see the pop-up message appear at the bottom right of the screen then you are ready to operate the Wormhole Switch application.

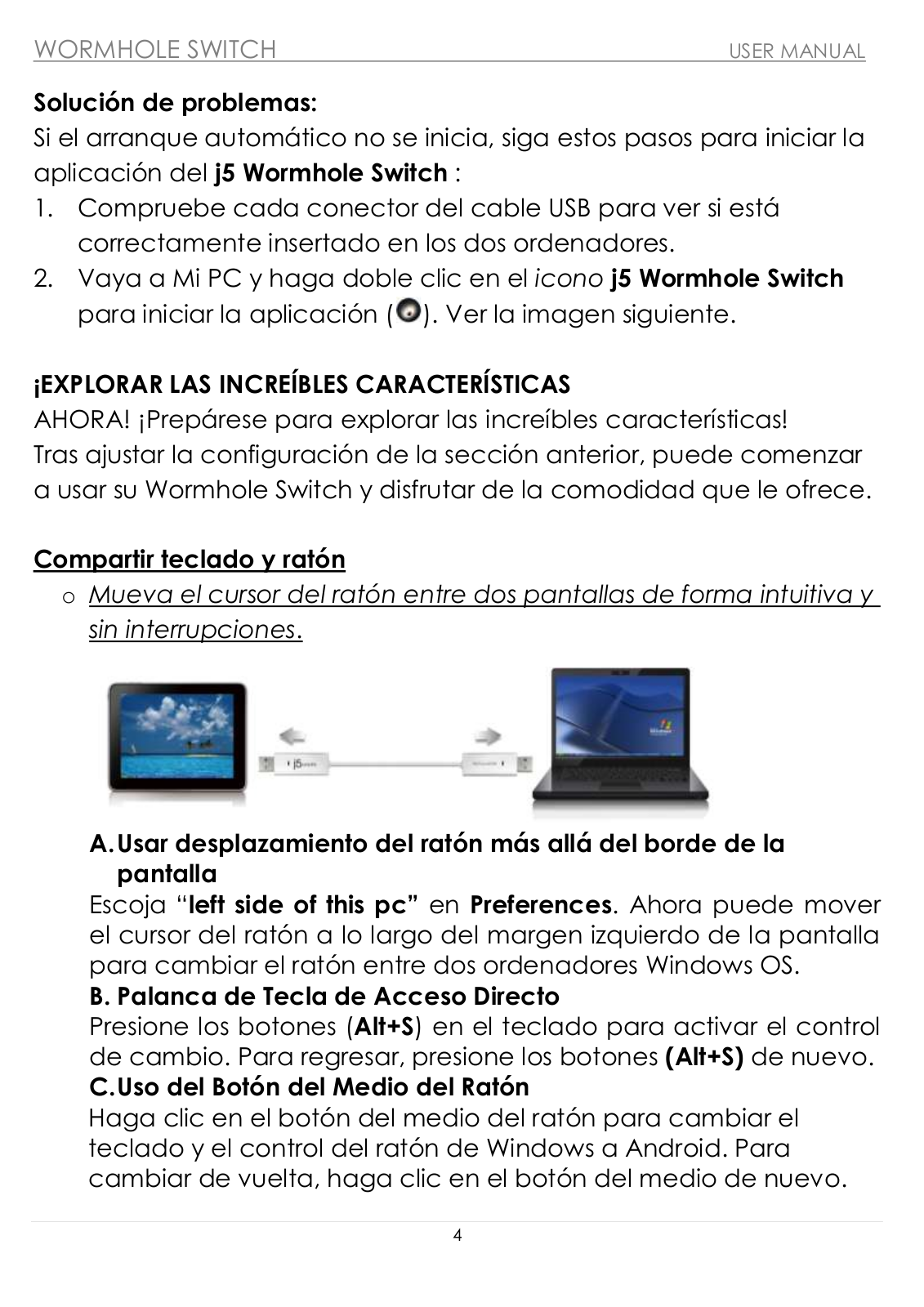

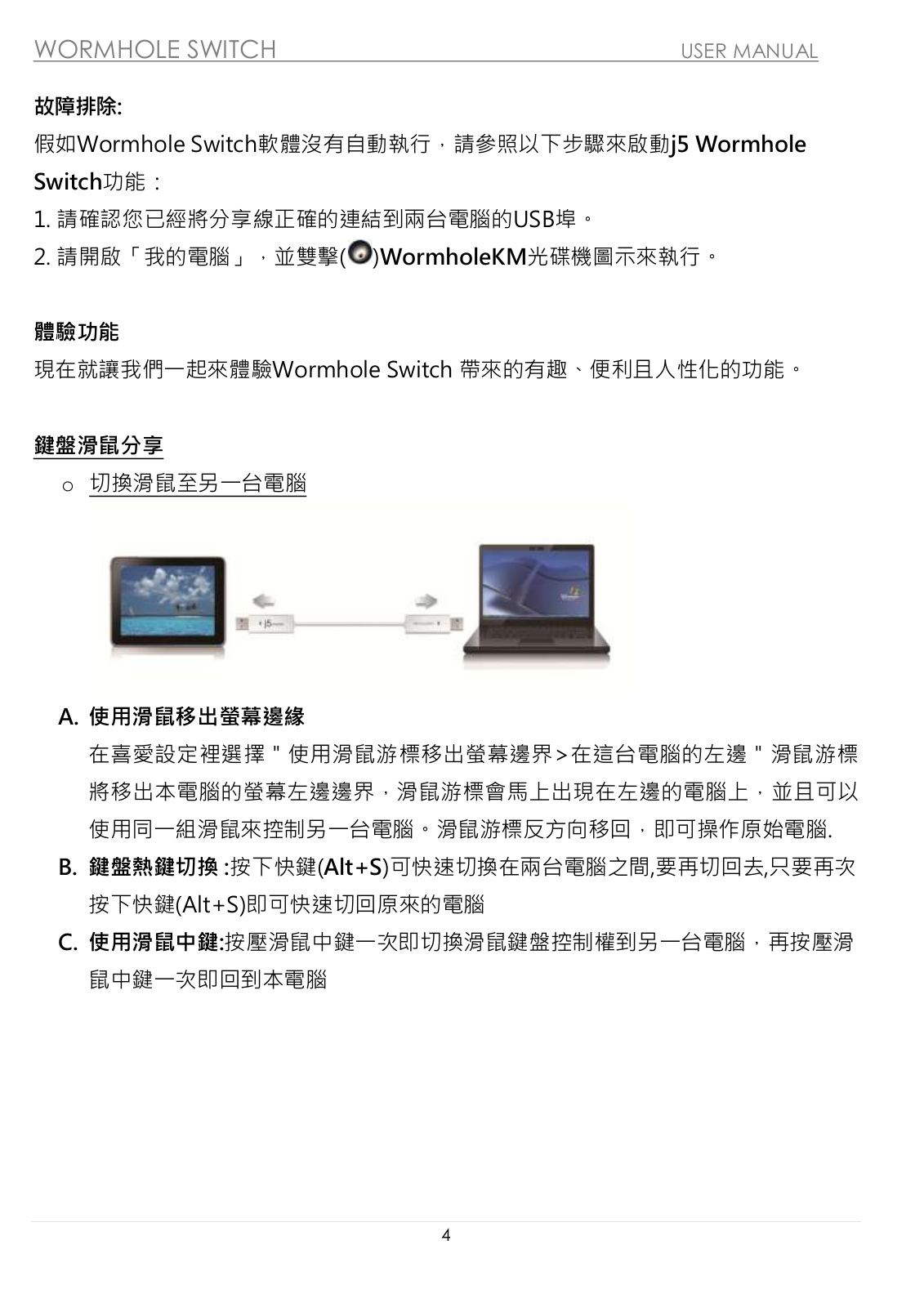

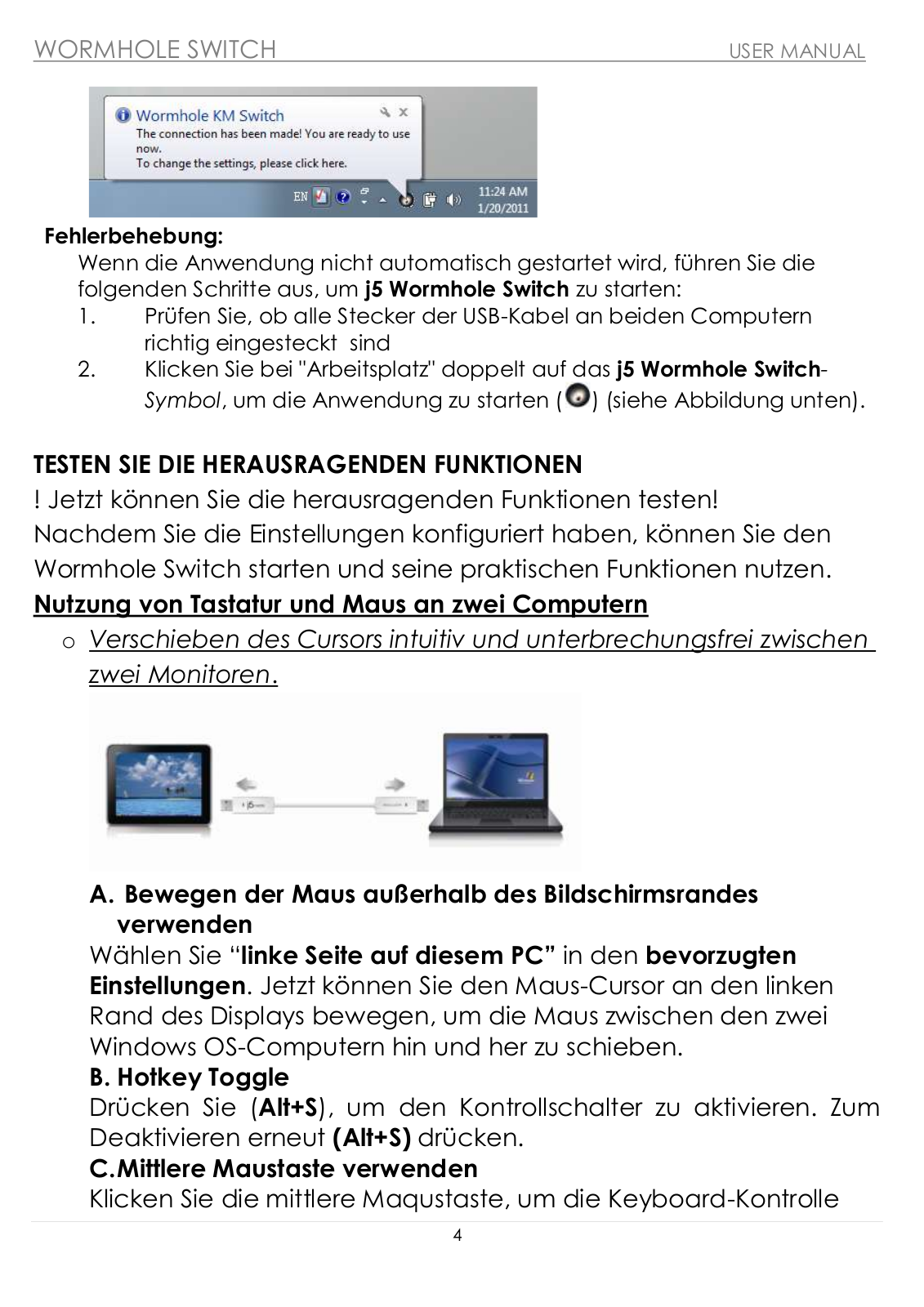

Troubleshooting:
If auto-run is not launched, please follow the step below to start the j5 Wormhole Switch application:
1.Check each connector on the USB cable that it is correctly inserted on your two computers.
2.Go to My Computer and double-click the j5 Wormhole Switch icon to start the application (
).
4
WORMHOLE SWITCH |
USER MANUAL |
EXPLORE THE OUTSTANDING FEATURES
After configuring the settings on the previous section, you can start playing your Wormhole Switch and enjoying the convenience it brings to you.
Sharing Keyboard and Mouse
oMove mouse cursor between two displays intuitively and seamlessly.
A.Use mouse to move off the edge of the screen
Choose “left side of this pc” in Preferences. Now you can move the mouse cursor across the left edge of the display to switch the mouse between the two Windows OS computers.
B. Hotkey Toggle
Press both (Alt+S) buttons on the keyboard to activate the control switching. To switch back, just press both (Alt+S) buttons again.
C.Use Mouse Middle Button
Click the middle button of the mouse to switch the keyboard and mouse control from Windows to Android. To switch back, just click the middle button again.

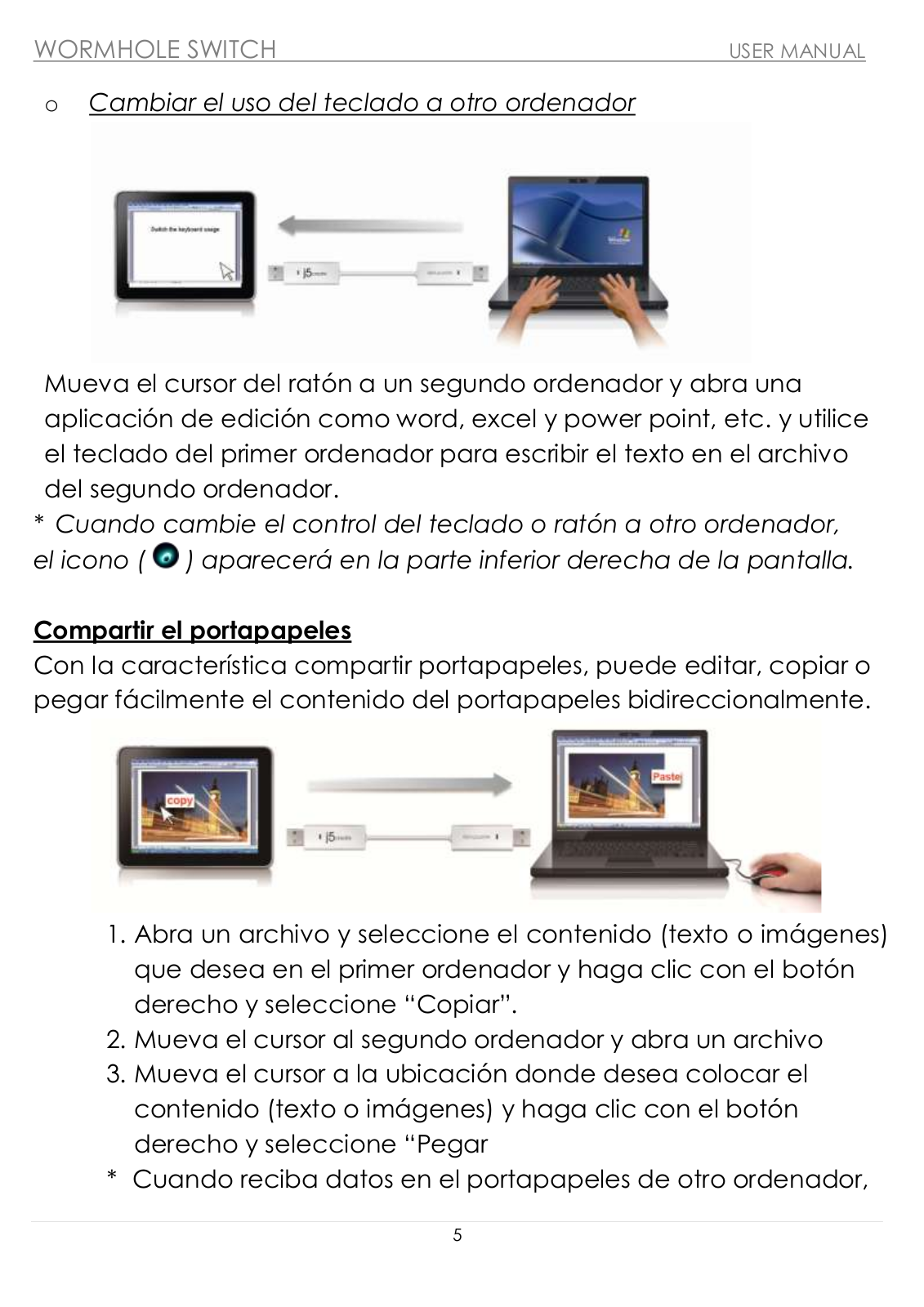

o Switch the Keyboard usage to another computer
Move the mouse cursor to the second computer and open any Editing applications such as word, excel, power point, etc. and use the keyboard of the first computer to type the text on the file
5
WORMHOLE SWITCH |
USER MANUAL |
of the second computer.
Note: Recommendation when additional keyboard/mouse is plugged-in: A Third set of USB Mouse and keyboard must be used in combination when connected to an open USB port on the wormhole docking station.
When using a Non-Combination set of USB Mouse or Keyboard, the wormhole docking station will default to its limited screen switching function mode only.
*When switching the keyboard or mouse control to another computer, the (
) icon appears at the bottom right of the screen.

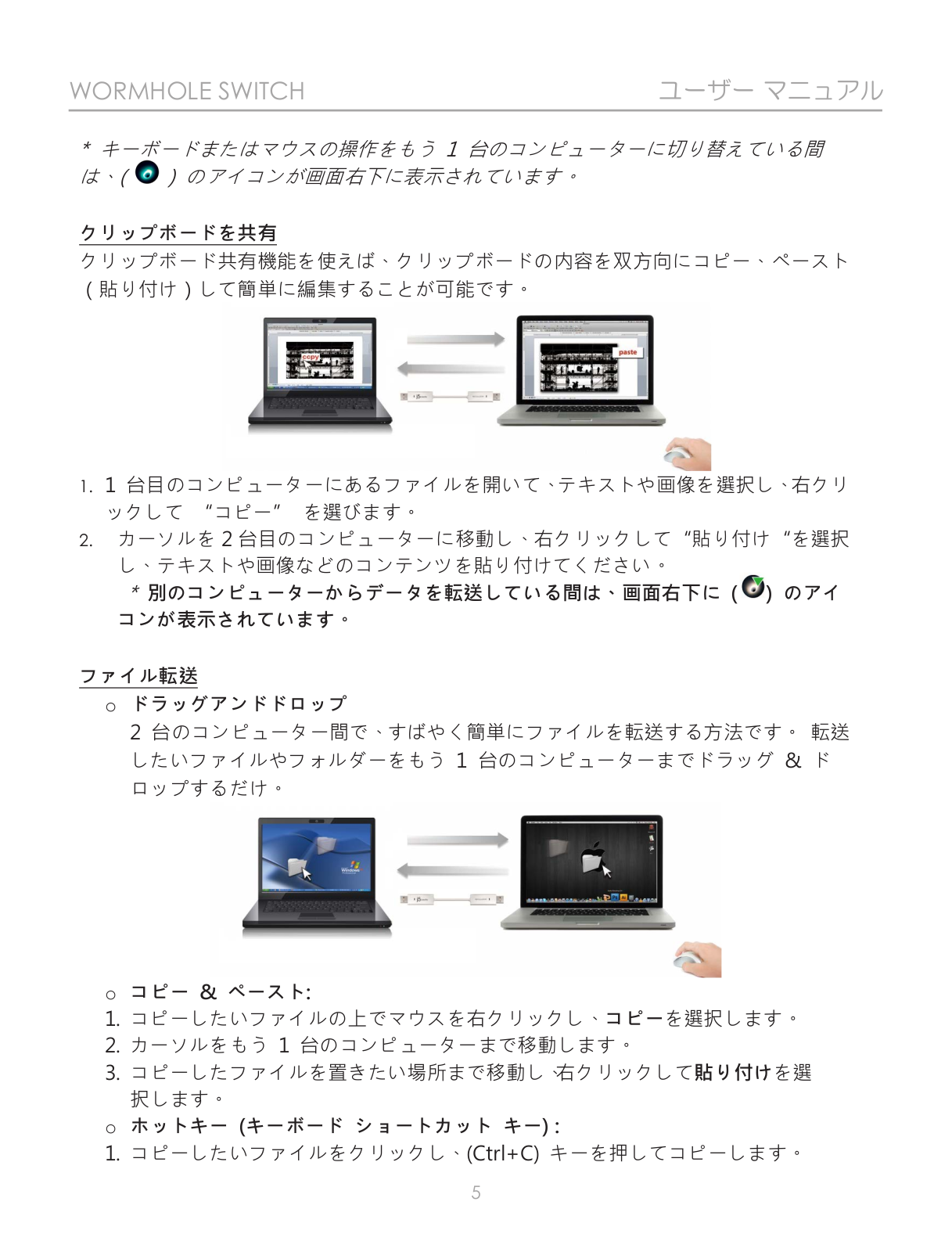

Clipboard Sharing
With the clipboard sharing feature you can easily edit copy or paste clipboard content bi-directionally.
1.Open a file and select the content (text/ pictures) you want in the first computer, and right-click and select “Copy”.
2.Move the cursor to the second computer, and open any file
3.Move the cursor to the location you want to place the Content (text/ pictures), and right-click and select “Paste
*When receiving clipboard data from another computer, the
(
) icon appears at the bottom right of the screen.
6
WORMHOLE SWITCH |
USER MANUAL |

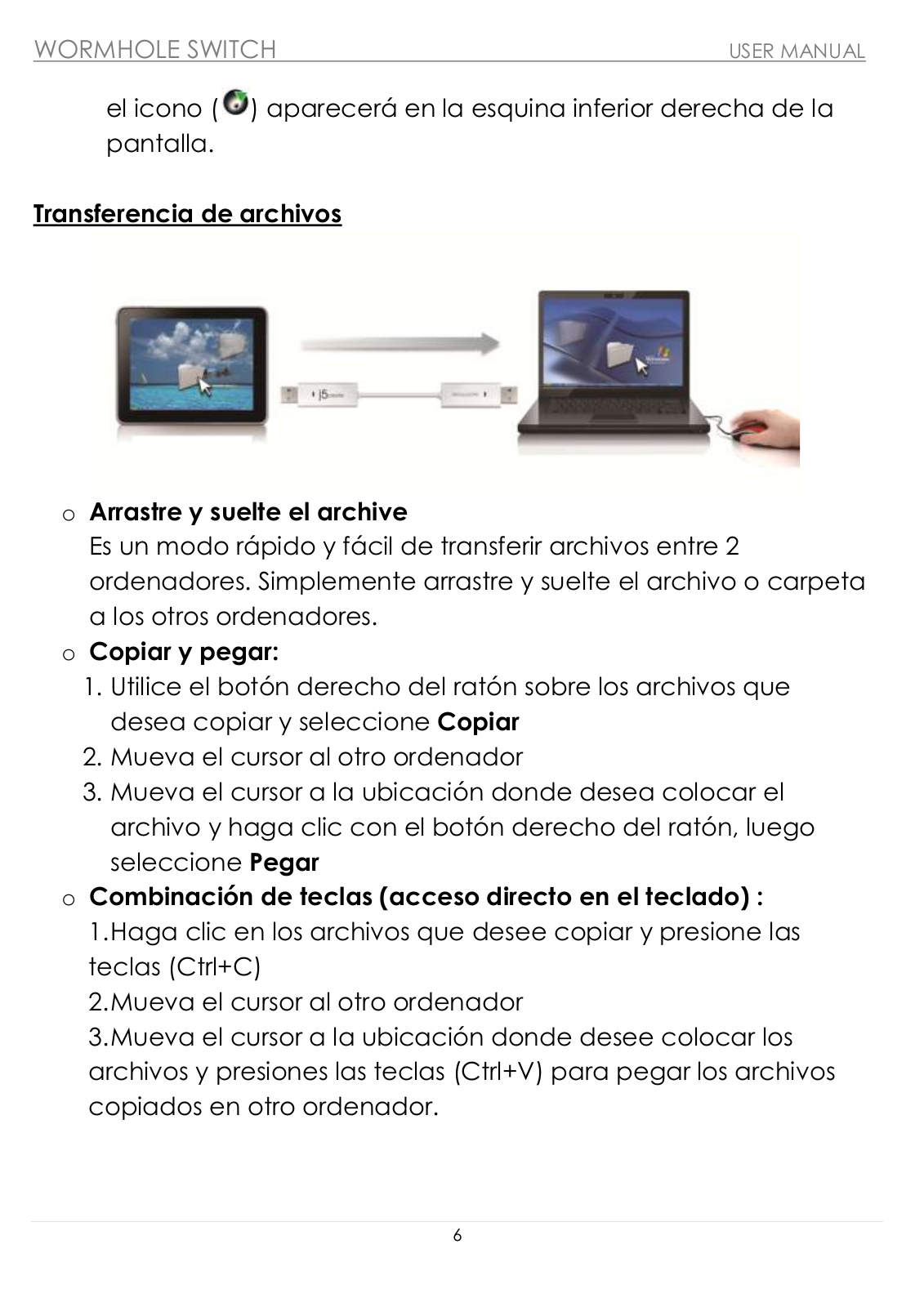

File Transferring
oDrag & Drop: It is an easy and fast way to transfer files between 2 computers. Just drag and drop the file or folder to
the other computers.
oCopy & Paste:
1.Use Mouse Right-click on the files that you want to copy and select Copy
2.Move the cursor to the other computer
3.Move the cursor to the location that you would like to place the file, and Right-click on mouse, then select
Paste
oHotkeys (Shortcut on Keyboard) :
1.Click on the files that you would like to copy, and press the (Ctrl+C) Keys
2.Move the cursor to the other computer
3.Move the cursor to the location that you would like to place the files, and press the (Ctrl+V) Keys to paste the copied files to another computer.
7
WORMHOLE SWITCH |
USER MANUAL |

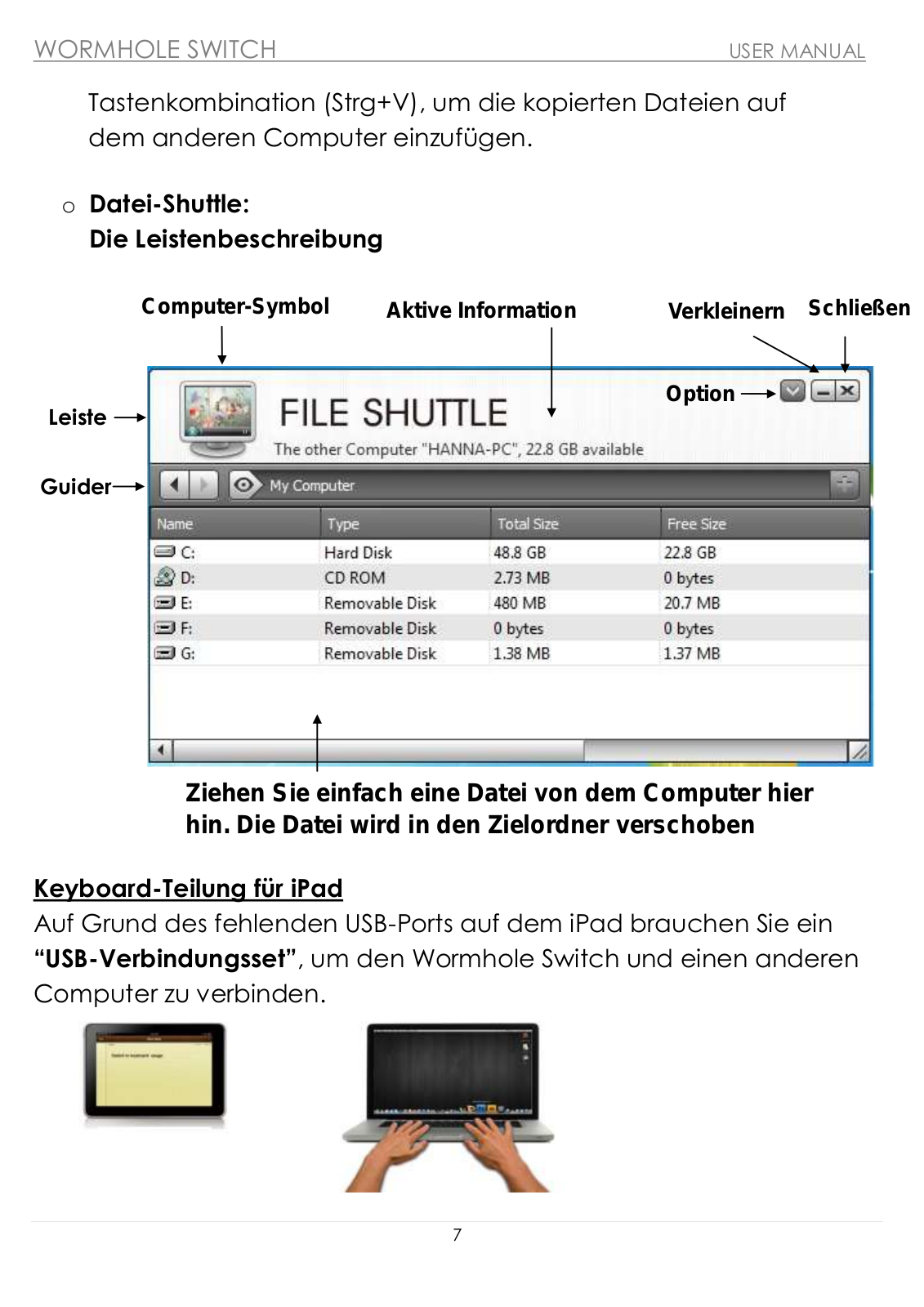

oFile Shuttle (
) :
The bar description
Computer Icon |
Active Information |
Minimize |
Close |
|
|
||
|
|
Option |
|
The bar
Guider
File List
Simply Drag a file from your computer to here. The file will copy to the destination of another computer.
Keyboard sharing for iPad
Due to the lack of a USB port on the iPad, you will need a “USB connection kit” to connect the Wormhole Switch and other Computer.
Please follow the steps below:
1.Connect USB connection kit to iPad connector
2.Connect Wormhole Switch to a computer and an iPad
3.Press “Alt+S” on computer to switch the usage of Keyboard to iPad
4.You can touch the screen on the iPad to the location you want to start.
5.Now, you are ready to type on the iPad.
8
WORMHOLE SWITCH |
USER MANUAL |

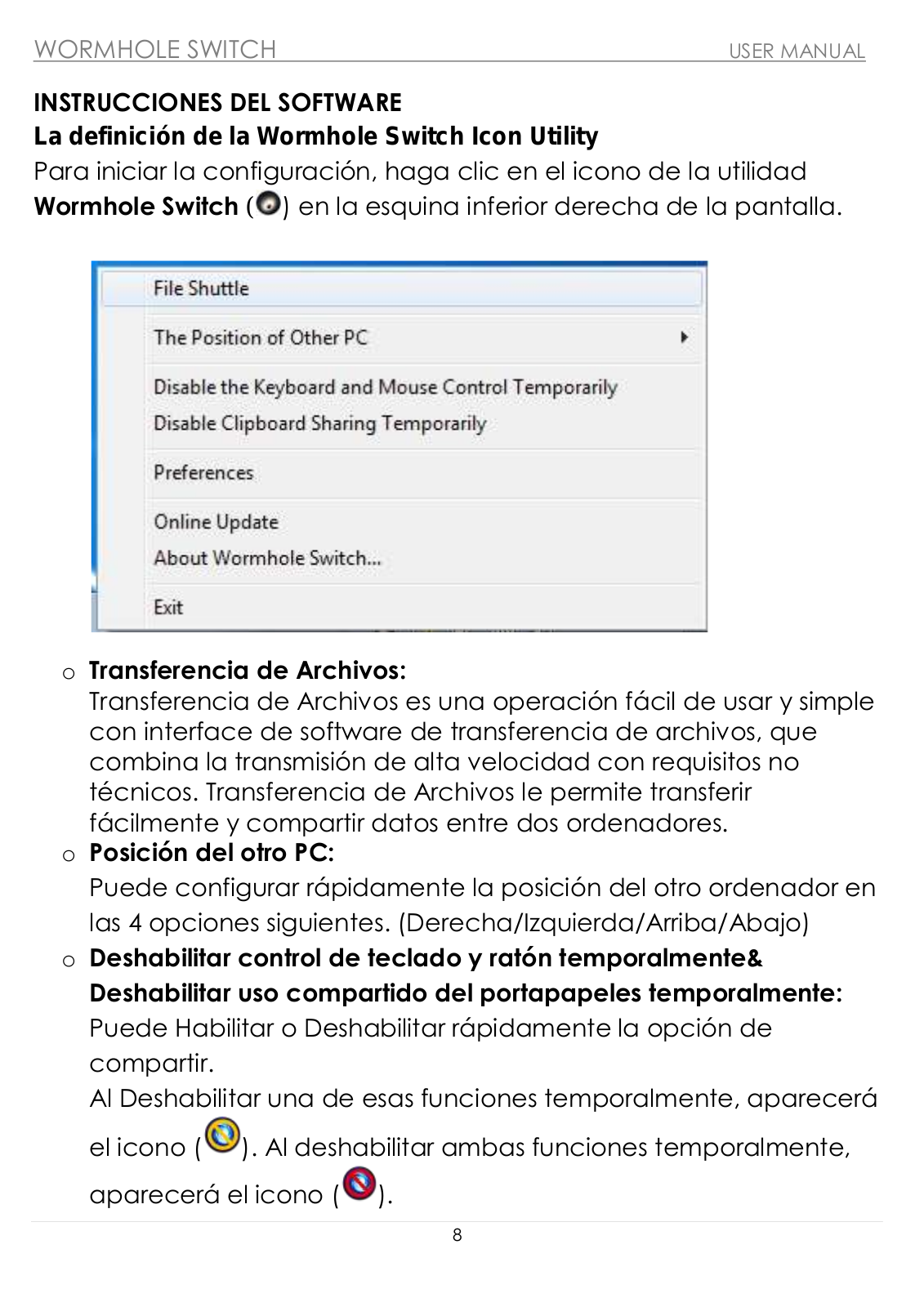

SOFTWARE INSTRUCTIONS
Wormhole Switch Utility Icon Function
To begin set up, please click the Wormhole Switch Utility Icon(
)
oFile Shuttle:
It is a user-friendly and simple operation with a data transmission software interface, which combines high speed transmission with
nontechnical requirements. File Shuttle allows you to easily transfer and share data between two computers.
oThe Position of Other PC:
You can quickly set up the position of the other computer by using one of the 4 options (Right/Left/Up/Down)

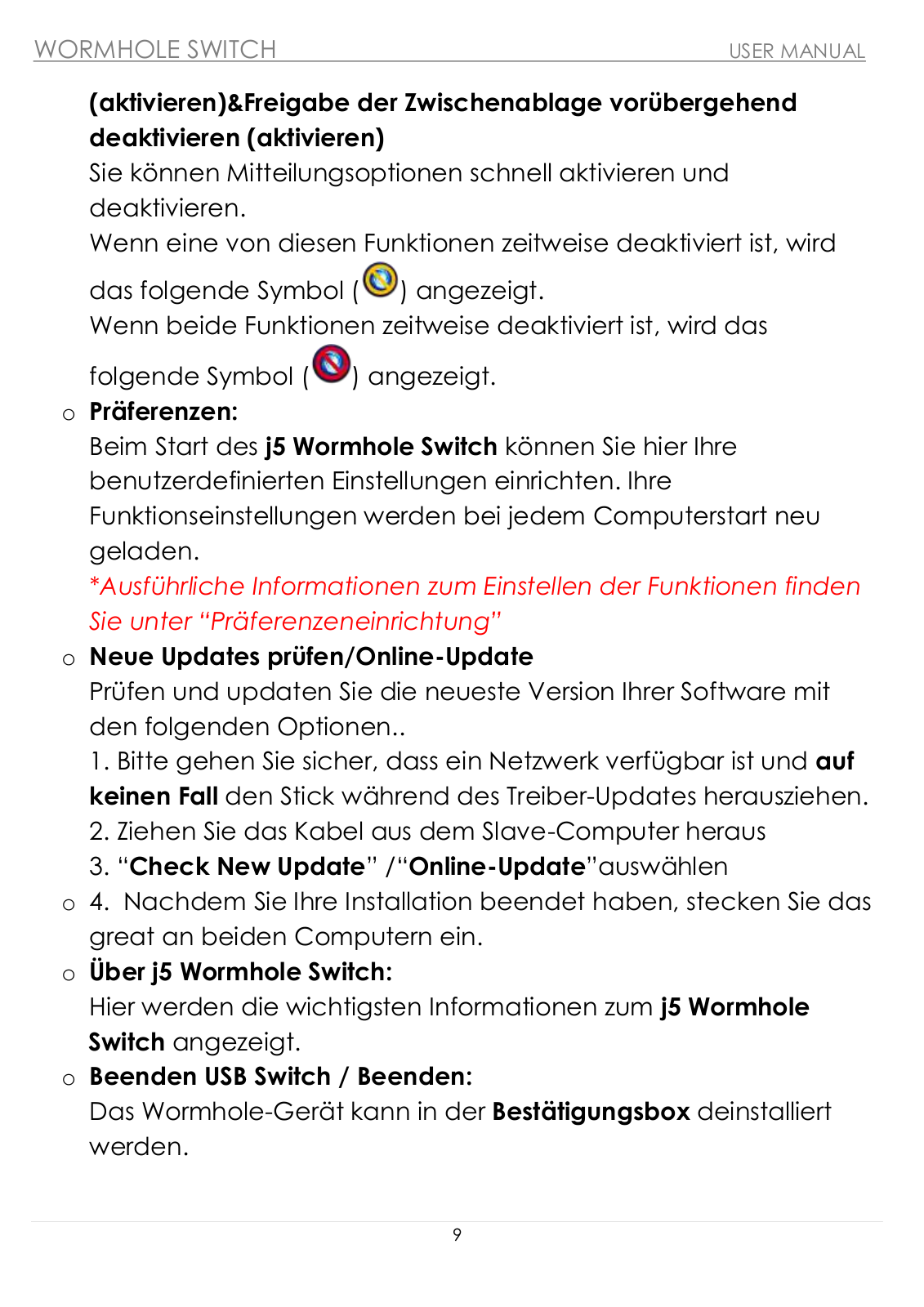

oDisable (Enable) the Keyboard and Mouse Control Temporarily& Disable (Enable) Clipboard Share Temporarily:
You can quickly Disable or Enable sharing option.
If Disabling one of those functions temporarily, the icon (
) will be shown.If Disabling both functions temporarily, the icon (
)
will be shown.
oPreferences:
You can change your preferences in the "Wormhole Switch Preference Setup". Your settings will be saved every time you restart your computer.
*For detailed function settings, please refer to “Preference setup”
9
WORMHOLE SWITCH |
USER MANUAL |
oOnline Update
Check and update the latest version of software for Wormhole.
1.Please make sure your network is available and Do Not unplug the Wormhole during the driver update.
2.Remove the Wormhole cable from the slave computer.
3.Select “Online Update”
4.After you have finished the installation process, re-plug the
Wormhole device into both computers.
oAbout the Wormhole Switch:
Information about the j5 create Wormhole Switch can be found here.
oQuit USB Switch / Exit:
The Wormhole device can be uninstalled in the Confirmation box.

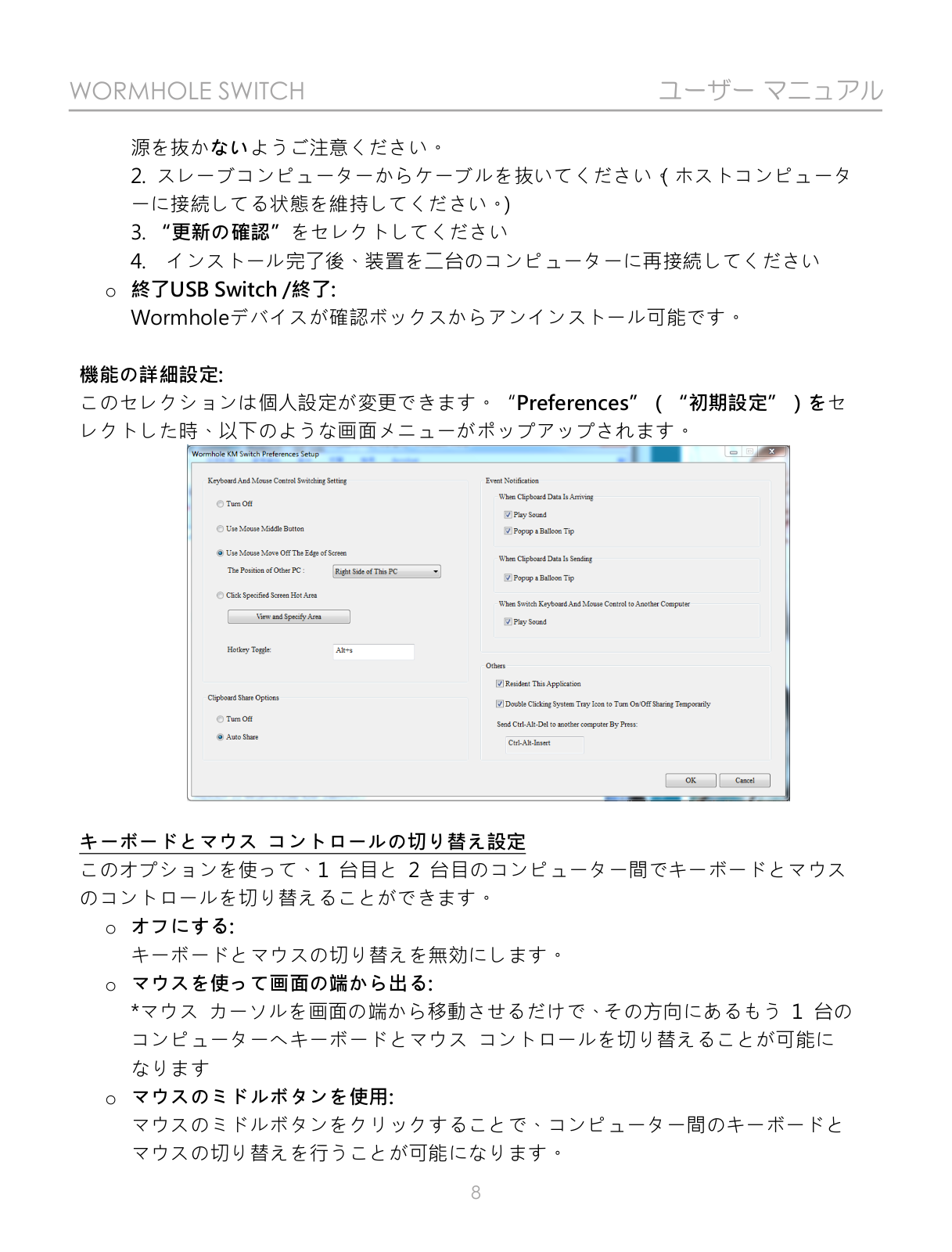

PREFERENCES SETUP:
This selection allows you to change your preferences. When you select Preferences, the window below will pop up.
Keyboard & Mouse Control Switching Settings
This option allows you to switch the control of the keyboard and mouse from one computer to another.
oTurn Off
Disable Keyboard and Mouse Control Switching Sharing.
o Use Mouse to Move Off the Edge of Screen:
10
WORMHOLE SWITCH |
USER MANUAL |
* To switch the control of Keyboard and Mouse from one computer to another, simply move the mouse off the edge of the screen
oUse Mouse Middle Button:
Click the middle button of the mouse to switch the keyboard
and mouse from one computer to another.
oHotkey
You can setup the hotkey to activate the control switching. The default hotkey is (Alt+S)
Clipboard Share Options
This option allows you to enable or disable the clipboard sharing feature.
oTurn Off
Disable clipboard sharing.
o Auto Share
Enable clipboard sharing.
Event Notification
This option allows you to set the type of notification you receive when Clipboard Data is arriving / sending or when switching the control of the keyboard and mouse to another computer. You can choose to play a sound or to display a pop-up balloon tip.

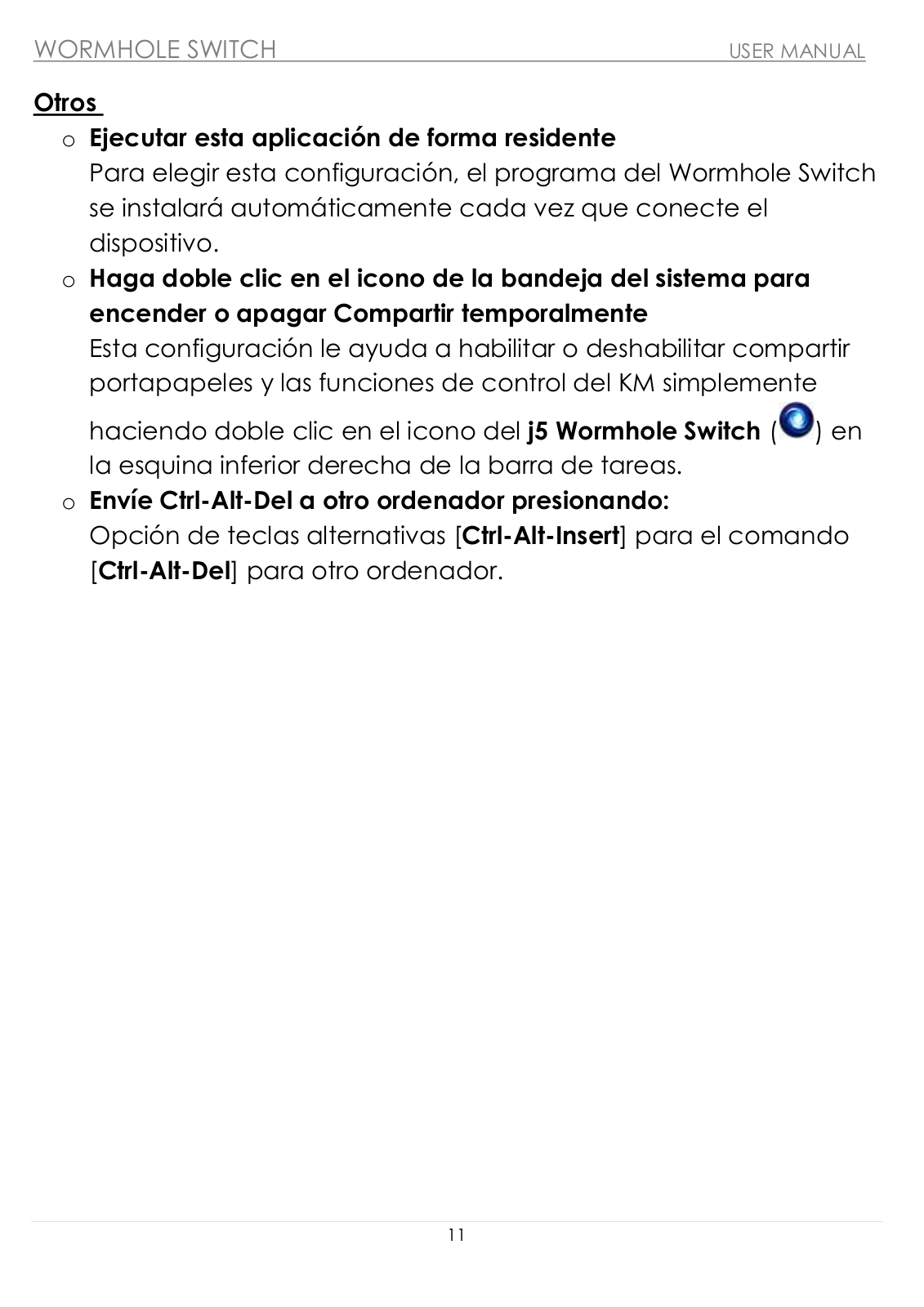

Others
oResident This Application
When you choose this setting the Wormhole Switch program automatically sets up every time you plug in the Wormhole device.
oDouble Click the System Tray Icon to Turn Sharing On/Off Temporarily
11
WORMHOLE SWITCH |
USER MANUAL |
Enable/disable the clipboard sharing and Keyboard and Mouse
control functions by simply double clicking the icon (
) on the bottom right hand side of the taskbar
oSend Ctrl-Alt-Del to another computer:
This option allows for alternative key options for the [Ctrl-Alt-Del] command for the second computer.

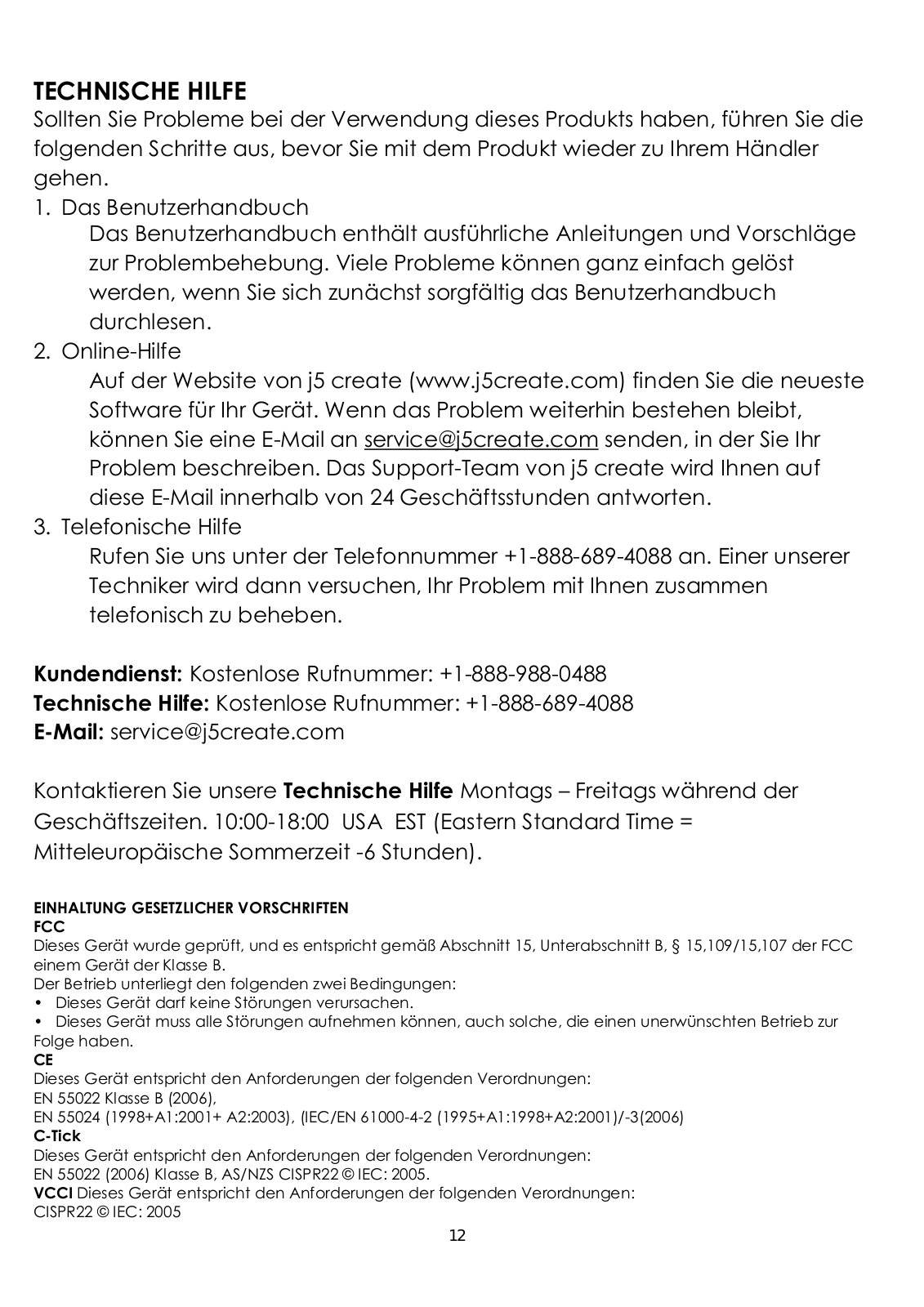

TECHNICAL SUPPORT
If you have any issue using this product please follow instruction below before returning this product to the store.
1.The User Manual
It contains the detail instruction and troubleshooting section. Many common issues can be easily resolved by reading the user manual.
2.Online Support
Please visit the j5 create website (www.j5create.com) to find the latest software for your device. If you are still experiencing the same issue, you can submit a description of your problem via email service@j5create.com . Our j5 create technical service support team will reply to you within the next 24 business hours.
3.Telephone Support
Please feel free to call us at +1-888-689-4088 and one of our support technicians will be happy to assist you
Customer Service:Toll free number: +1-888-988-0488 Technical Support: Toll free number: +1-888-689-4088 Email: service@j5create.com
Please contact Technical Support during business hours. 10:00AM- 6:00PM E.S.T MondayFriday for further assistance.
12
WORMHOLE SWITCH |
USER MANUAL |
REGULATORY COMPLIANCE FCC
This equipment has been tested and found to comply with FCC Part 15 Subpart B § 15.109/15.107 Class B. Operation is subject to the following two conditions:
•This device may not cause harmful interference
•This device must accept any interference, including interference that may cause undesired operation of the device.
CE
This equipment is in compliance with the requirements of the following regulations: EN 55022 Class B (2006),
EN 55024 (1998+A1:2001+ A2:2003), (IEC/EN 61000-4-2 (1995+A1:1998+A2:2001)/-3(2006)
C-Tick
This equipment is in compliance with the requirements of the following regulations: EN 55022 (2006) Class B, AS/NZS CISPR22 © IEC: 2005.
VCCI
This equipment is in compliance with the requirements of the following regulations: CISPR22 © IEC: 2005
WARRANTY OF j5 create
j5 create offers a limited 2-year warranty. User’s wear & tear damage is not included.
The user shall call or email j5 create customer service with defect information of the product and obtain a return authorization number.
Users are responsible for one way return freight cost and we will take care of one way freight back. In order to obtain a return authorization, user should have the following information handy when calling or emailing the service team:
(i)a copy of original purchase invoice to verify your warranty
(ii)a product serial number
(iii)a description of the problem
(iv)a return Material authorization number
(v)customer’s Name, address, and telephone number
j5 create does not warrant that the operation of the product will be uninterrupted or error-free. j5 create is not responsible for damage arising from failure to follow instructions relating to the product’s use. This warranty does not apply to:(a) consumable parts, unless damage has occurred due to a defect in materials or workmanship; (b) cosmetic damage, including but not limited to scratches, dents ,and broken plastic on ports; (c) damage caused by use with non-j5 create products; (d) damage cause by natural disasters ( flood, fire, earthquake, lighting strike, typhoon etc.,)(e) damage caused by human misuse( lost, accident, abuse, misuse or other external causes) (f) damage caused by operating the product outside the permitted or intended uses described by j5 create ; (g) damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of j5 create or a j5 create Authorized Service Provider; (h) a product or part that has been modified to alter functionality or capability without the written permission of j5 create; or (i) if any j5 create serial number on the product has been removed or defaced.
If such a situation occurs, j5 create will calculate the cost of materials and repair for your reference. This warranty is given by j5 create in lieu of any other warranties express or implied.
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not make any representations or warranties (implied or otherwise) regarding the accuracy and completeness of this document and shall in no event be liable for any loss of profit or any commercial damage, including but not limited to special, incidental, consequential, or other damage. No part of this document may be reproduced or transmitted in any form by any means, electronic or mechanical, including photocopying, recording or information recording and retrieval systems without the expressed written permission of the manufacturer.
13
14
15
Wormhole Switch
JUC100 New Version
Manuel de l'utilisateur
JUC100
WORMHOLE SWITCH |
|
|
USER MANUAL |
||

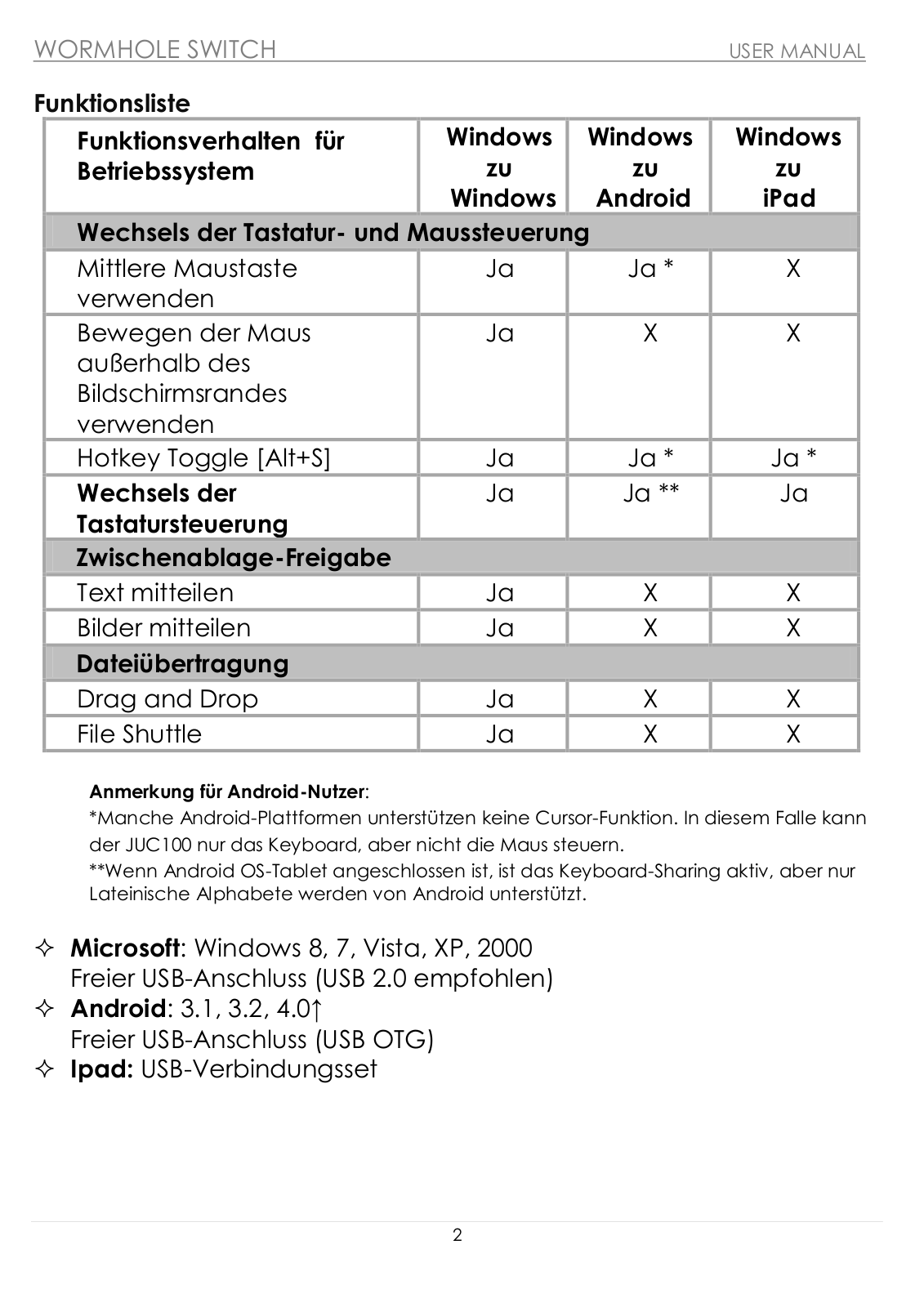

Liste des fonctions |
|
|
|
|
|
|
|
|
|
|
|
|
Comportement en fonction |
Windows |
Windows |
Windows |
|
|
du Systè me d'exploitation |
à |
à |
à |
|
|
|
Windows |
Android |
iPad |
|
|
Paramè tres de commutation de contrô le du clavier et de la souris |
|
|||
|
Utilisation du bouton |
Oui |
Oui * |
X |
|
|
central de la souris |
|
|
|
|
|
Utilisez la souris pour |
Oui |
X |
X |
|
|
dé placer au-delà du bord |
|
|
|
|
|
de l'é cran |
|
|
|
|
|
Raccourci clavier [Alt+S] |
Oui |
Oui * |
Oui * |
|
|
commutation de contrô le |
Oui |
Oui ** |
Oui |
|
|
du clavier |
|
|
|
|
|
Partage du presse-papiers |
|
|
|
|
|
Partages texte |
Oui |
X |
X |
|
|
Partages image |
Oui |
X |
X |
|
|
|
|
|
|
|
|
Data Transfer |
|
|
|
|
|
glisser/dé placer |
Oui |
X |
X |
|
|
File Shuttle |
Oui |
X |
X |
|
|
|
|
|
|
|
Remarque pour les utilisateurs d'Android:
*Certaines plates-formes Android ne supportent pas une fonction curseur. Dans ce cas, le JUC100 ne peux que partager le clavier et non la souris.
**Lorsque l'OS Android tablette est connecté e, le partage du clavier sera actif, mais seul l'alphabet romain est pris en charge par Androi.
Windows: Windows 8 / 7 / Vista / XP / 2000
Un port USB disponible (USB 2.0 est recommandé )
Android: 3.1, 3.2, 4.0↑
Un port USB disponible (USB OTG)
IPad : Kit de connexion USB
2
WORMHOLE SWITCH
MISE EN ROUTE
USER MANUAL
Suivez les é tapes ci-dessous pour configurer le j5 Wormhole Switch
1.Connectez une extré mité du Wormhole Switch à un port USB standard sur l'un des deux ordinateurs
2.Branchez l'autre extré mité du Wormhole Switch à un port USB sur le second ordinateur. (Reportez-vous aux photos ci-dessous)
3.L'appareil dé marrera automatiquement l'installation du logiciel Wormhole Switch sur les deux ordinateurs
4.La fenê tre « Exé cution automatique » peut s'ouvrir. Cliquez sur l'option
«Exé cuter WKMLoader.exe »
5.Si la fenê tre « Contrô le de compte
utilisateur » apparaît à l'é cran, cliquez sur “Oui” pour continuer.
6.Lorsque vous voyez le message apparaître en bas à droite de l'é cran, vous ê tes alors prê t à utiliser l'application Wormhole Switch.
3
WORMHOLE SWITCH |
USER MANUAL |
Dé pannage:
Si l'exé cution automatique n'est pas lancé e, veuillez suivre les é tapes ci-dessous pour dé marrer l'application j5 Wormhole Switch:
1.Vé rifiez que chaque connecteur sur le câ ble USB est correctement insé ré sur vos deux ordinateurs.
2.Allez dans Poste de travail et double-cliquez sur l'icô ne du j5 Wormhole Switch pour lancer l'application (
). Voir l'image cidessous.
EXPLORER LES CARACTERISTIQUES EXCEPTIONNELLES
MAINTENANT! Pré parez-vous à explorer les caracté ristiques exceptionnelles!
Aprè s avoir configuré les paramè tres de la section pré cé dente, vous pouvez commencer à utiliser votre Wormhole Switch et appré cier la commodité qu'il vous offre.
Partage du clavier et de la souris
oDé placez le curseur de la souris entre les deux é crans de maniè re intuitive et transparente.
A.Utilisez la souris pour dé placer le bord de l'é cran
Choisissez "cô té gauche de ce PC" dans les Pré fé rences. Maintenant vous pouvez dé placer le curseur de la souris sur le bord gauche de l'é cran pour passer de la souris entre les deux ordinateurs Windows.
B.Hotkey Basculer
4
WORMHOLE SWITCH |
USER MANUAL |
Appuyez sur les deux boutons (Alt + S) sur le clavier pour activer la commutation de contrô le. Pour revenir, appuyez simplement sur les deux boutons (Alt + S) à nouveau.
C. Utilisation de la souris bouton du milieu
Cliquez sur le bouton du milieu de la souris pour basculer le clavier et la souris de contrô le de Windows à Android. Pour revenir, cliquez simplement sur le bouton du milieu nouveau.
oBasculez l'utilisation du clavier sur un autre ordinateur
Dé placez le curseur de la souris vers le deuxiè me ordinateur et ouvrez une application d'é dition telle que Word, Excel et Power Point, etc et utilisez le clavier du premier ordinateur pour taper le texte sur le fichier du deuxiè me ordinateur.
*Lors du passage du contrô le du clavier ou de la souris à un autre
ordinateur, l'icô ne (
) apparaît en bas à droite de l'é cran.
Partage du presse-papiers
Avec la fonctionnalité de partage du presse-papiers, vous pouvez facilement modifier, copier ou coller le contenu du presse-papiers dans les deux directions.
5
WORMHOLE SWITCH |
USER MANUAL |
1.Ouvrez un fichier et sé lectionnez le contenu (texte/images) dé siré dans le premier ordinateur, et faites un clic droit et sé lectionnez
“Copier”.
2.Dé placez le curseur sur le deuxiè me ordinateur, et ouvrez un fichier quelconque
3.Dé placez le curseur à l'endroit où vous souhaitez placer le contenu
(texte/images), et faites un clic droit et sélectionnez “Coller”
*Lors de la ré ception de donné es du presse-papiers d'un autre
ordinateur, l'icô ne (
) apparaît en bas à droite de l'é cran.
Transfert de fichiers
oGlisser/dé placer:
C'est un moyen facile et rapide de transfé rer des fichiers entre 2 ordinateurs. Il suffit de glisser/dé placer le fichier ou le dossier sur
l'autre ordinateur.
oCopier et coller:
1.Utilisez le clic droit de la souris sur les fichiers que vous souhaitez copier et sé lectionnez Copier
2.Dé placez le curseur sur l'autre ordinateur
3.Dé placez le curseur à l'endroit où vous souhaitez placer le fichier, et faites un clic droit de la souris, puis sé lectionnez
Coller
6
WORMHOLE SWITCH
o Raccourcis clavier :
USER MANUAL
1.Cliquez sur les fichiers que vous souhaitez copier et appuyez sur les touches (Ctrl+C)
2.Dé placez le curseur sur l'autre ordinateur
3.Dé placez le curseur à l'endroit où vous souhaitez placer les fichiers, et appuyez sur les touches (Ctrl + V) pour coller les fichiers copié s vers un autre ordinateur.
o Navette fichier::
La dé finition de la navette fichier
Icô ne d'ordinateur |
minimise |
Ferme |
|
||
|
|
|
La barre |
Option |
|
|
|
|
Guide |
|
|
Liste des
fichiers
Il suffit de glisser un fichier depuis votre ordinateur vers ici. Le fichier va copier sur la destination d'un autre ordinateur.
Partage de clavier pour iPad
En raison de l'absence d'un port USB sur l'IPAD, vous aurez besoin d'un "kit de connexion USB" pour connecter le commutateur Wormhole et autre ordinateur.
7
WORMHOLE SWITCH USER MANUAL
S'il vous plaît suivez les é tapes ci-dessous:
1.Connectez connexion USB au connecteur IPAD
2.Connectez Commutateur Wormhole à un ordinateur et un iPad 3.Appuyez "Alt + S" sur l'ordinateur pour passer de l'utilisation de clavier pour iPad
4.Vous pouvez toucher l'é cran sur l'IPAD à l'emplacement que vous souhaitez dé marrer.
5.Maintenant, vous ê tes prê t à taper sur l'IPAD.
INSTRUCTIONS DU LOGICIEL
La dé finition de l'utilitaire d'icô ne de Wormhole Switch
Pour commencer la configuration, veuillez cliquer sur l'icô ne de l'utilitaire Wormhole Switch (
) en bas à droite de l'é cran.
oNavette Fichier(File Shuttle):
Navette fichier est une opé ration conviviale et simple avec une interface de donné es du logiciel de transmission, qui combine la transmission haute vitesse avec les exigences non techniques.
Navette fichier vous permet de facilement transfé rer et partager des donné es entre deux ordinateurs.
* Pour les caracté ristiques dé taillé es de cette fonction, ré fé rezvous à «la dé finition navette Fichier"
8
WORMHOLE SWITCH |
USER MANUAL |
oLa position de l'autre PC:
Vous pouvez dé finir rapidement la position de l'autre ordinateur
parmi les 4 options ci-dessous. (Right/Left/Up/Down)
oDisable (Enable) the Keyboard and Mouse Control Temporarily& Disable (Enable) Clipboard Share Temporarily:
Vous pouvez rapidement dé sactiver ou activer l'option de partage.
Si la dé sactivation de l'une de ces fonctions est à titre temporaire, l'icô ne (
) s'affiche. Si la dé sactivation de ces deux fonctions est
à titre temporaire, l'icô ne (
) s'affiche.
oPré fé rences:
Pour lancer le j5 Wormhole Switch, vous pouvez configurer les paramè tres dé siré s dans Ré glage des pré fé rences. Vos
paramè tres de fonctions seront dé finis à chaque dé marrage de
votre ordinateur.
*Pour le paramé trage dé taillé de la fonction, reportez-vous à « Ré glage des pré fé rences »
oMise à jour en ligne
Check and update the latest version of software for Wormhole.
1.S'il vous plaît, assurez-vous que le ré seau est disponible et ne dé branchez rien pendant la mise à jour du pilote.
2.Retirez le câ ble de l'ordinateur esclave
3.Sélectionnez ‘’mise à jour en ligne"
4.Lorsque vous avez terminé la fiche processus d'installation dans le dispositif à deux ordinateurs. Maintenant, votre Wormhole a la
derniè re version du logiciel et est prê t à l'emploi.
oA propos de j5 Wormhole Switch:
Toutes les informations de j5 Wormhole Switch s'afficheront ici
oQuitter USB Switch / Quitter:
Wormhole Switch peut ê tre dé sinstallé dans la boîte de confirmation
9
Loading...
