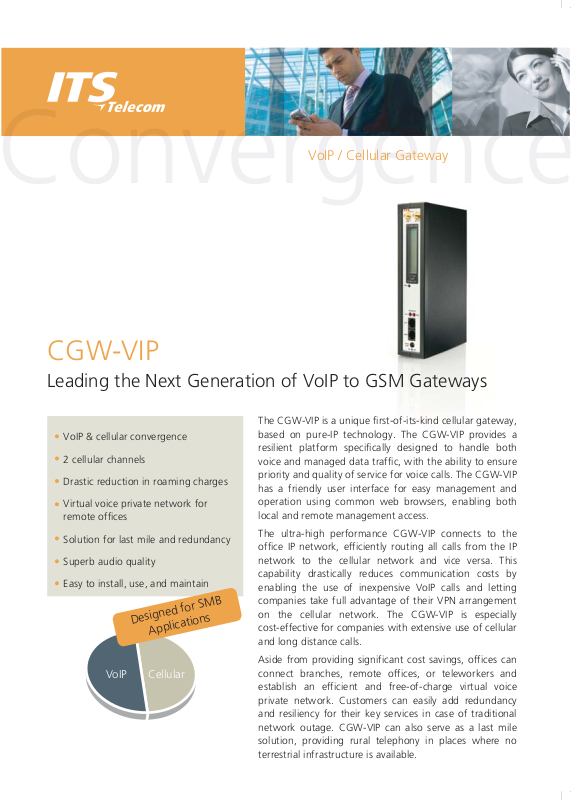

VoIP / Cellular Gateway
CGW-VIP
Leading the Next Generation of VoIP to GSM Gateways
The CGW-VIP is a unique first-of-its-kind cellular gateway,
VoIP & cellular convergence
2 cellular channels
Drastic reduction in roaming charges
Virtual voice private network for
remote offices
based on pure-IP technology. The CGW-VIP provides a
resilient platform specifically designed to handle both
voice and managed data traffic, with the ability to ensure
priority and quality of service for voice calls. The CGW-VIP
has a friendly user interface for easy management and
operation using common web browsers, enabling both
local and remote management access.
Solution for last mile and redundancy
Superb audio quality
Easy to install, use, and maintain
Designed for SMB
Applications
VoIP Cellular
The ultra-high performance CGW-VIP connects to the
office IP network, efficiently routing all calls from the IP
network to the cellular network and vice versa. This
capability drastically reduces communication costs by
enabling the use of inexpensive VoIP calls and letting
companies take full advantage of their VPN arrangement
on the cellular network. The CGW-VIP is especially
cost-effective for companies with extensive use of cellular
and long distance calls.
Aside from providing significant cost savings, offices can
connect branches, remote offices, or teleworkers and
establish an efficient and free-of-charge virtual voice
private network. Customers can easily add redundancy
and resiliency for their key services in case of traditional
network outage. CGW-VIP can also serve as a last mile
solution, providing rural telephony in places where no
terrestrial infrastructure is available.
VoIP / Cellular
Main Features
Supports VoIP, SIP, and GSM connections
•
•
Interoperates with all standard IP-PBX/soft
switch equipment
Embedded web server
•
Local and remote management via
•
user-friendly web interface
•
Local and remote upgrades of
configuration files and firmware
Supports registration of SIP extensions
•
•
Enables creation of a virtual office with
remote extensions
•
Built-in firewall and NAT
Built-in Least-Cost-Routing (LCR)
•
•
CLIP/CLIR
Perfect for
VoIP / Cellular
CGW-VIP
VoIP Cellular Gateway
VoIP Communication GSM Communication
Cellular
Network
Remote Branch
IP Phone SIP Soft Phone
Ethernet
Local or remote configuration IP Phone
Local office
Cost-effective connectivity through the ITS Telecom VoIP Cellular Gateway
Teleworker
VoIP
VoIP
Cellular Operator 1
GSM
CGW-VIP
GSM
GSM
Cellular Operator 2
GSM
Cellular User
•
Offices with extensive use of
cellular calls
Remote or in-field users (Voice
•
VPN)
Long distance or international calls
•
Remote branches
•
Business continuity, back up of
•
PSTN and landline VoIP
Headquarters
29 Hametzuda St.
Azur 58001, Israel
Tel: +972 3 5576868
Fax: +972 3 5576942
its@its-tel.com
www.its-tel.com
USA
500A Lake St. Ramsey, NJ 07446
Tel: 201 785 8912
Toll-free: 800 991 8186
Fax: 201 785 8916
its.usa@its-tel.com
www.its-tel.com
Technical Specications
Interfaces
LAN / WAN 10/100 Base-T, RJ-45
VoIP
Voice signaling: SIP
Local SIP server/register
Codecs: G.711 PCM (µ/A-Law), G.729*
Echo canceler: G.168-2002
Cellular
GSM module: integrated quad band
850/900/1800/1900 MHz
GSM module: 2
Antenna: 2 external 2,5 dB 50 Ω
impedance, 2m cable length, SMA
Antenna interface: SMA connector
*Future option
Administration
SIM installation: standard SIM card holder
GUI: web-browser based interface
Remote access interfaces: LAN
MMI: LCD, LEDs
Hardware
Dimensions: (H*W*D): 214*129*46 mm /
8.4*5*1.8”
Weight (unit only): 0.8 kg / 2.64 lbs
Weight (packing): 1.4 kg / 3.1 lbs
Operating temperature: 0ºC – 40ºC / 32ºF –
104ºF
Humidity: 5% – 95%
Power supply: 9 VDC 2.6A
I82001418 Ver.2
