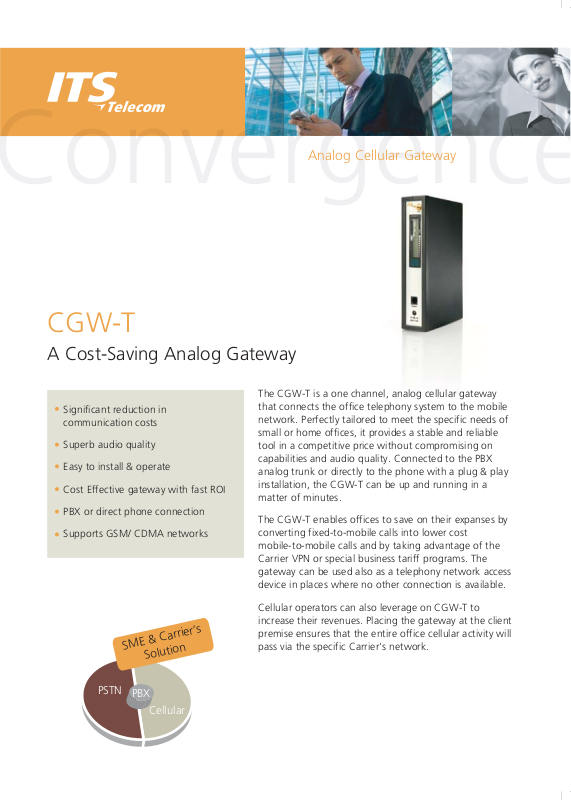

CGW-T
A Cost-Saving Analog Gateway
The CGW-T is a one channel, analog cellular gateway
Significant reduction in
communication costs
Superb audio quality
Easy to install & operate
Cost Effective gateway with fast ROI
PBX or direct phone connection
Supports GSM/ CDMA networks
that connects the office telephony system to the mobile
network. Perfectly tailored to meet the specific needs of
small or home offices, it provides a stable and reliable
tool in a competitive price without compromising on
capabilities and audio quality. Connected to the PBX
analog trunk or directly to the phone with a plug & play
installation, the CGW-T can be up and running in a
matter of minutes.
The CGW-T enables offices to save on their expanses by
converting fixed-to-mobile calls into lower cost
mobile-to-mobile calls and by taking advantage of the
Carrier VPN or special business tariff programs. The
gateway can be used also as a telephony network access
device in places where no other connection is available.
Analog Cellular Gateway
SME & Carrier’s
Solution
PSTN
PBX
Cellular operators can also leverage on CGW-T to
increase their revenues. Placing the gateway at the client
premise ensures that the entire office cellular activity will
pass via the specific Carrier's network.
Cellular
Analog Gateway
Main Features
Dual-band GSM engine
•
Toll Restrictions
•
Call Duration control
•
Output volume control
•
•
Easy DTMF programming, no PC required
CLIP / CLIR
•
Software upgradeable
•
Informative LCD: system & calling status
•
Powerful features: LCR table, Roaming,
•
Call Barring, Loop disconnect & Reverse
Polarity, CLIP / CLIR and more
Analog
CGW-T
Analog Cellular Gateway
Cellular
Network
CGW-T
Direct phone
Connection
Cost-effective connectivity through the ITS Teleco CGW-T
PBX
Analog
Network Access or
Backup System
Extensions
Low-Cost
Mobile-to-Mobile
Connection
Expensive
Connectivity Fees
GSM CDMA
$
PSTN
Perfect Solution for:
•
Cellular operators
•
Small and home offices with extensive
usage of cellular calls
•
Remote or in-field workers (VPN)
•
Offices without PSTN connectivity
•
Temporary or off-site offices
(Construction sites, survey camps)
•
And more...
Headquarters
29 Hametzuda St.
Azur 58001, Israel
Tel: +972 3 5576868
Fax: +972 3 5576942
its@its-tel.com
www.its-tel.com
USA
500A Lake St. Ramsey, NJ 07446
Tel: 201 785 8912
Toll-free: 800 991 8186
Fax: 201 785 8916
its.usa@its-tel.com
www.its-tel.com
Technical Specications
System
Connections: 2 Wire FXS for PBX CO line
GSM Network Type: GSM Phase II
GSM Module: Integrated dual-band
(900/1800, 850/1900 MHz)
Transmission Power:
Max. 2W / 900MHz
Max. 2W / 850MHz
Max. 1W / 1800MHz
Max. 1W / 1900MHz
Receiver Sensitivity: 104 dBm
SIM card: 3V (plug-in, small)
Off-hook AC Impedance: 600Ω
On-hook Line Voltage: 48VDC
Off-hook Line Current Maximum: 25Am
Off-hook Loop resistance threshold: 800Ω
Dial Tone Frequency: 400Hz
Ringing Voltage: 48Vrms, 25Hz
Supported Dialing Type: DTMF
Power Supply Input: 110VAC / 60Hz ;
220VAC / 50Hz
Power supply output: 9VDC, 800mA
Administration
DTMF programming
Control & Maintenance
CLIP/CLIR
SIM protection from unauthorized removal
Gain control
Network lock
Hardware specification
LCD 2x16
Dimensions (HxWxD): 215x45x130mm /
8.4x1.7x5.18"
Weight: 0.8Kg/ 1.76Lbs
Temperature Range 0°C-45°C / 32°F-113°F
Maximum Relative Humidity: 95%
Installation
Wall mounting
Antennas
Antenna: SMA Female
Antenna Cable Length: 2m (6.56ft)
Impedance Antenna: 50Ω
I82001438 Ver.1
