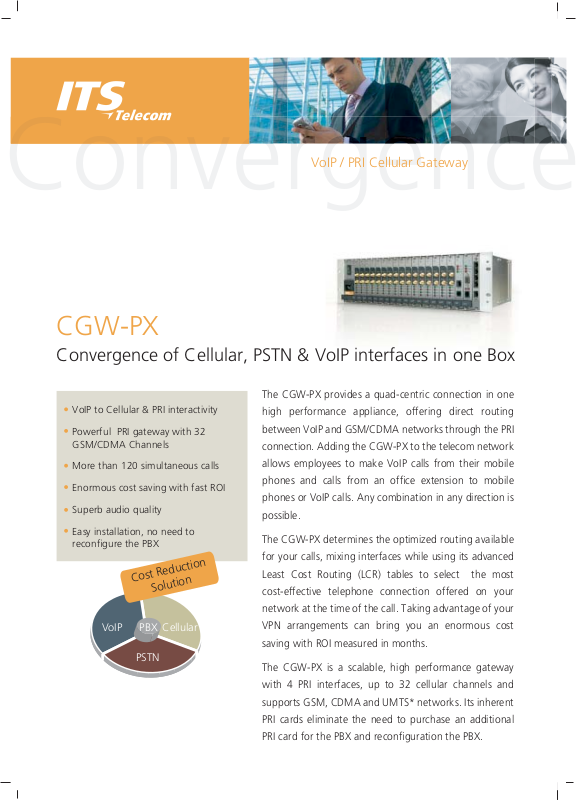

Its telecom CGW-PX User Manual
VoIP / PRI Cellular Gateway
CGW-PX
Convergence of Cellular, PSTN & VoIP interfaces in one Box
The CGW-PX provides a quad-centric connection in one
VoIP to Cellular & PRI interactivity
high performance appliance, offering direct routing
Powerful PRI gateway with 32
GSM/CDMA Channels
More than 120 simultaneous calls
Enormous cost saving with fast ROI
Superb audio quality
Easy installation, no need to
reconfigure the PBX
Cost Reduction
Solution
VoIP
Cellular PBX
PSTN
between VoIP and GSM/CDMA networks through the PRI
connection. Adding the CGW-PX to the telecom network
allows employees to make VoIP calls from their mobile
phones and calls from an office extension to mobile
phones or VoIP calls. Any combination in any direction is
possible.
The CGW-PX determines the optimized routing available
for your calls, mixing interfaces while using its advanced
Least Cost Routing (LCR) tables to select the most
cost-effective telephone connection offered on your
network at the time of the call. Taking advantage of your
VPN arrangements can bring you an enormous cost
saving with ROI measured in months.
The CGW-PX is a scalable, high performance gateway
with 4 PRI interfaces, up to 32 cellular channels and
supports GSM, CDMA and UMTS* networks. Its inherent
PRI cards eliminate the need to purchase an additional
PRI card for the PBX and reconfiguration the PBX.
Digital & VoIP
Main Features
Embedded VoIP, PRI and Cellular interfaces
•
Up to 32 cellular channels - Hot swap
•
support
4 SIM cards per channel
•
PRI switching
•
Up to 4 PRI trunks
•
*
Supports GSM, CDMA & UMTS
•
•
Cost saving Least Cost Routing table
Remote CDR downloading utility
•
Web-based management & control
•
System alarms: SMS and E-mail
•
System status online monitoring
•
Number portability support (optional)
•
CLIP Routing
•
Prepaid SIM card administration
•
•
User friendly GUI application
Headquarters
29 Hametzuda St.
Azur 58001, Israel
Tel: +972 3 5576868
Fax: +972 3 5576942
its@its-tel.com
www.its-tel.com
USA
500A Lake St. Ramsey, NJ 07446
Tel: 201 785 8912
Toll-free: 800 991 8186
Fax: 201 785 8916
its.usa@its-tel.com
www.its-tel.com
networks
VoIP / Cellular
CGW-PX
VoIP / PRI / Cellular Gateway
Cellular
Network
32 Cellular Channels
PSTN
Alternative
PRI
VםIP PBX Web Management VoIP Extensions
PRI
TCP/IP
VoIP
Network
Convergence of Cellular, PSTN & VoIP interfaces in one solution
PRI PRI
PBX
Extensions
GSM
CDMA UMTS
Technical Specifications
System
PRI trunks: Up to 4
Intelligent routing: Return mobile calls
directly to the calling DDI (Direct-Dial-In)
Least Cost Routing
Incoming & outgoing calls control
Prepaid capability
PRI NT/TE Master/Slave
System functionality timer
Administration
System alarms: SMS and E-mail
Online monitoring
CDR: Remote CDR downloading utility
Administration: Remote IP/ web
application/ local serial port
PRI & cellular channel grouping
VoIP
Voice signaling: SIP or H323
Voice codecs:
G.711, G.723.1 , G.729 AB, G.726/G 727,
NetCoder
Echo Canceler:
G.168 compliant 32, 64 msec echo tail 128
msec tail available with reduced channel
capacity
Control protocols: MGCP or MEGACO
IP transport: RTP / RTCP per RFC 3550 /
3551 DTMF over RTP per RFC 2833
Fax: T38 compliant (real-time fax)
Interface: 10/100 BaseT
Digital PSTN protocols: CAS ( T1 robbed
bit, MFC/R2 numerous country variants;
CCS - ISDN PRI: numerous country variants
including ETSI, EURO ISDN, ANSI NI2, DMS,
5ESS, Japan INS1500
Cellular
Type: GSM / CDMA
SIM cards per cellular channel: 4
Cellular channels: Up to 32- Hot swap
support
SIM card code protection
Frequency range: 900/1800 MHz or
850/1900 MHz
Cellular Connectivity audio signaling
SIM card type: Small 3V or 5V
Antenna impedance: 50Ω
Signaling: European-wide ISDN signalling
(ETSI recommendations I.431, Q.921,
Q.931 and ETS standards 300 011, ETS 300
125, ETS 300 102-1 and ETS 300 156)
Hardware specification
Dimensions (HxWxD):
132.5*344*483mm / 52.1*135.4*190.1”
Weight: 8.5Kg/ 18.76Lbs
Temperature Range 0°C-50°C / 32°F-122°F
Maximum Relative Humidity: 95%
Power supply: 100-240VAC / 50-60Hz
* Future option
I82001422 Ver.1
