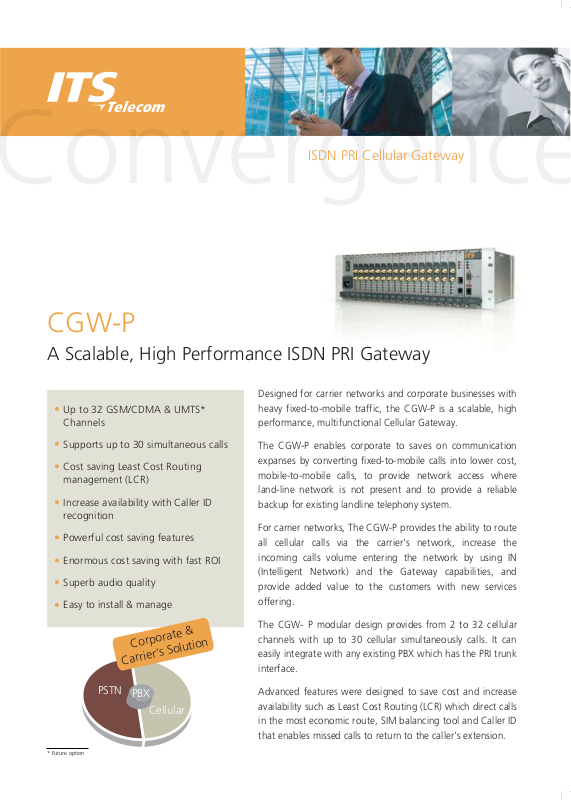

Its telecom CGW-P User Manual
ISDN PRI Cellular Gateway
CGW-P
A Scalable, High Performance ISDN PRI Gateway
Designed for carrier networks and corporate businesses with
Up to 32 GSM/CDMA & UMTS*
Channels
heavy fixed-to-mobile traffic, the CGW-P is a scalable, high
performance, multifunctional Cellular Gateway.
Supports up to 30 simultaneous calls
Cost saving Least Cost Routing
management (LCR)
Increase availability with Caller ID
recognition
Powerful cost saving features
Enormous cost saving with fast ROI
Superb audio quality
Easy to install & manage
Corporate &
Carrier’s Solution
PSTN
* Future option
PBX
Cellular
The CGW-P enables corporate to saves on communication
expanses by converting fixed-to-mobile calls into lower cost,
mobile-to-mobile calls, to provide network access where
land-line network is not present and to provide a reliable
backup for existing landline telephony system.
For carrier networks, The CGW-P provides the ability to route
all cellular calls via the carrier's network, increase the
incoming calls volume entering the network by using IN
(Intelligent Network) and the Gateway capabilities, and
provide added value to the customers with new services
offering.
The CGW- P modular design provides from 2 to 32 cellular
channels with up to 30 cellular simultaneously calls. It can
easily integrate with any existing PBX which has the PRI trunk
interface.
Advanced features were designed to save cost and increase
availability such as Least Cost Routing (LCR) which direct calls
in the most economic route, SIM balancing tool and Caller ID
that enables missed calls to return to the caller's extension.
Digital Gateway
Main Features
Up to 4 SIM cards per cellular channel
•
Cost saving Least Cost Routing table
•
Remote CDR downloading utility
•
Local / Remote management PC Utility &
•
Terminal IP Maintenance
System alarms: SMS and E-mail
•
•
System status online monitoring
•
Number portability support (optional)
•
CLIP Routing
•
Prepaid SIM card administration
•
Cellular modules hot redundancy
Perfect Solution for:
•
Telecom operators
•
System integrators
•
From medium to large organizations
•
And more...
Headquarters
29 Hametzuda St.
Azur 58001, Israel
Tel: +972 3 5576868
Fax: +972 3 5576942
its@its-tel.com
www.its-tel.com
USA
500A Lake St. Ramsey, NJ 07446
Tel: 201 785 8912
Toll-free: 800 991 8186
Fax: 201 785 8916
its.usa@its-tel.com
www.its-tel.com
Digital
CGW-P
ISDN PRI / Cellular Gateway
Cellular
Network
CGW-P
PRI
PBX
32 Cellular Channels
PRI
Extensions
Cost-effective connectivity through the ITS Telecom CGW-P
Technical Specications
System
1 PRI trunk (E1 / T1)
PRI NT/TE Master/Slave
Incoming & outgoing calls routing
algorithm
Intelligent routing: Return mobile calls
directly to the calling DDI (Direct-Dial-In)
Incoming call’s CLIP Routing; fixed
extension routing
Outgoing call’s Least Cost Routing tables
SIM card’s Prepaid capability (Prepaid time
or Amount of calls)
Emergency call’s handling
System functionality timer
Dialed number manipulation
Administration
System alarms: SMS and E-mail
Online monitoring
CDR: Remote CDR downloading utility
Remote IP/ local serial port
PRI & cellular channels grouping
Interface: 10/100 BaseT
Cellular
Type: GSM / CDMA / UMTS*
SIM cards per cellular channel: 4
Cellular channels: Up to 32- Hot swap
support
* Future option
$
Expensive
Connectivity Fees
Low-Cost
Mobile-to-Mobile
Connection
GSM CDMA UMTS
Network Access or
Backup System
PSTN
SIM card code protection
Frequency range: 900/1800 MHz or
850/1900 MHz
Cellular Connectivity audio signaling
SIM card type: Small 3V
Antenna impedance: 50Ω
Signaling: European-wide ISDN signaling
(ETSI recommendations I.431, Q.921,
Q.931 and ETS standards 300 011, ETS 300
125, ETS 300 102-1 and ETS 300 156)
Hardware specification
Dimensions (HxWxD): 133*443*290mm /
5.24*17.6*11.42”
19" rack, 3U
Weight: 6.5Kg/ 14.33Lbs
Temperature Range: 0°C-45°C /
32°F-113°F
Maximum Relative Humidity: 95%
Power supply: 100-240VAC / 50-60Hz
Antennas: Directional- 7.5db, Omni- 2.5db
I82001434 Ver.1
