www.isys-group.com
iTerra Lite
User Guide
iSys - The Imaging Systems Group Inc. © Copyright 2009 |
Rev 002 |
Table of Contents
Ordering Replacement Supplies |
4 |
Unpacking |
5 |
Interface Setup & Configuration |
5 |
Driver Installation for Windows XP |
6 |
Driver Installation for Windows Vista |
15 |
Connectivity Interface Change (Parallel to Network) |
23 |
Connectivity Interface Change (Network to Parallel) |
24 |
Printing Preferences |
26 |
Loading Consumables |
27 |
Print media |
27 |
Installing fan fold paper |
27 |
Install ink cartridges |
27 |
Installation of the Desktop Input and Output media Trays |
28 |
Desktop input tray installation |
28 |
Desktop output tray installation |
29 |
Installation of the Rack Input and Output Media Trays |
30 |
Rack mount input tray installation |
30 |
Rack mount output tray installation |
31 |
Installation of optional rack input bottom tray (for rack install only) |
32 |
Operation |
33 |
Menu guide settings |
33 |
Changing menu settings |
33 |
Menu options |
33 |
Maintenance |
35 |
Replacing ink cartridges |
35 |
Print engine expectant life cycle |
35 |
Removal of old print engine |
36 |
Installing a new print engine |
38 |
Troubleshooting |
39 |
Service & Support |
42 |
Specifications |
42 |
Functional |
42 |
Electrical |
43 |
Physical |
43 |
Operating environment |
43 |
Safety Information |
43 |
Warranty |
46 |
2
iSys is an ISO 9001 Registered Firm
Thank you for selecting the iTerra Lite. iSys will make every effort to assist you with operation of your new printer. It is our sincere desire that your ownership experience meets your highest expectations.
This user guide is provided to help you easily install and operate your new printer. It contains important information on the features and functions of the iTerra Lite. Please read this manual before using the printer, in particular the Installation and Operation Chapters, and the “Regular Maintenance” section in the Maintenance Chapter. Pay special attention to warnings, cautions and notes.
WARNING: A WARNING indicates the potential for personal injury.
CAUTION: A CAUTION provides additional information which, if ignored, may result in equipment malfunction, damage or personal injury.
NOTE: A NOTE indicates special attention is required.
This Symbol indicates an area of possible concern due to static discharge into the circuitry. When you see this symbol in the manual, please observe proper precautions to minimize damage to circuitry.
ILLUSTRATIONS: Illustrations and components are representative only. Your unit may differ slightly from those pictured in this document.
Need Help?
If you require additional assistance or information, please contact the iSys Technical Support team at:
iSys - The Imaging Systems Group Inc.
911 28th Street N.E.
Calgary, AB T2A 7X1
Canada
Toll Free in North America: 1-800-415-4797
Phone: (403) 204-5212
Fax: (403) 204-1971
E-mail: support@isys-group.com
THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. EXCEPT AS PROVIDED BY LOCAL LAW, THE IMAGING SYSTEMS GROUP INC. (ISYS) MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ISYS SHALL NOT BE LIABLE FOR ERRORS CONTAINED HEREIN OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE FURNISHING, PERFORMANCE OR USE OF THIS MATERIAL.
Trademarks: Centronics is a trademark of Centronics Data Corp. Veratec is a Trademark of Xerox Corp.
3
Ordering Replacement Supplies
To purchase Ink Cartridges or Media Online visit our website at www.isys-media.com
Using non-Qualified iTerra Lite media and consumables will void the printers’ warranty.
•Reach iSys toll free by phone at 1-866-415-4797 within North America or 1-403-204-5200 globally.
•Reach iSys by fax at 1-403-204-1971.
•All prices in US dollars.
•Credit Cards accepted.
•Sales tax, and shipping and handling are added where applicable.
•An iSys purchase can be used to order products directly if the order value is over $500, excluding freight and taxes and if you have been approved for credit.
Paper
Media |
iSys Part Number |
|
1000 Sheet Standard Coated Fanfold – 8 Per Case |
iJ-SCFF1000 |
|
Ink Cartridges |
|
|
Description |
iSys Part Number |
|
Black – 1 Cartridge |
iJ-BK56 |
|
Color (CMY) – 1 Cartridge |
iJ-CMY57 |
|
Black – 20 Per Case |
IJ-BK56-20 |
|
Color (CMY) – 20 Per Case |
IJ-CMY57-20 |
|
Kits |
|
|
Description |
iSys Part Number |
|
20 |
Black Ink Cartridges |
IJ8-KIT |
20 |
Color (CMY) Ink Cartridges |
|
16 |
Boxes of 1000 Sheet Standard Coated Fanfold |
|
4
Unpacking
Shipments are thoroughly checked for completeness. Please confirm receipt of the following:
iTerra Lite Printer
AC Power Cord
Black Ink Cartridge
Color Ink Cartridge
Driver and User Guide CD
Sample Paper
Centronics™ - IEEE DB25M to CE36M Cable (Standard unless Network or USB Connectivity)
Network Card (Optional – Mounted Internally at Factory)
USB External Dongle (Optional)
Confirm that any specified options are present, such as a data cable. Inspect the printer and components for any damage that may have occurred during shipment. Report any damage to the carrier of the shipment, and to your Imaging Systems Group Inc. product representative.
Keep the box and packaging for future shipping in the event of servicing or upgrading issues. This product must be returned to our factory in the original or proper packaging material. The Imaging Systems Group Inc will not cover damage caused during return shipping or due to improper packaging. Please ensure all ink cartridges are removed before shipping & the print carriage returned to right hand cradle assembly. (Refer to section ‘Install Ink Cartridge’, without reinstalling another cartridge).
Interface Setup & Configuration
Plug the power cord into a grounded AC outlet. Ensure your power source can supply this unit and any other units sharing the same outlet. See specifications for watt usage of this unit.
Centronics™
Connect Centronics™ cable to the parallel port on your host computer and to the Centronics™ port on the back of your iTerra Lite. Ensure cables are locked in place to ensure proper connection.
NOTE: The iSys Fast Port must be installed to get optimal data transfer to printer or printer may print at slower speeds when using Centronics™.
To install FAST PORT
Insert Disc provided by iSys
Select the Set up File under the Fast Port Folder
Follow these steps:
1.Install Shield Wizard – Press Next
2.Input user name and organization – Press Next
3.Destination Folder. Change the folder name or Press Next to Install
4.Install Wizard Completed – Press Finish
5.A “readme.txt” file will pop up and give you the instructions to ensure FAST PORT installed.
Using iSys Fast Port
1.After running setup.exe, an icon “Fast Port” will appear on the Desktop.
2.To use the Fast Port, double click the icon then set the port speed and restart the computer. Once your computer has restarted, set the BIOS parallel setting to ECP. If your BIOS setting does not have this option, you cannot use fast speed mode for iSys printers in your computer.
3.Fast Port is specially designed for iSys printers. You may need to change the speed mode back to slow mode while using other printers.
4.This program will only affect the speed of the LPT ports.
5
Driver Installation for Windows XP
STEP 1
Go to Windows Start h Settings h Printers and Faxes hAdd a printer
STEP 2
Welcome to the Add Printer Wizard h Press Next
6
STEP 3
Select Local printer attached to this computer h Press Next
STEP 4
Select Create a new port: Type of port h Standard TCP/IP Port h Press Next
7
STEP 5
Welcome to the Add Standard TCP/IP Printer Port Wizard h Press Next
STEP 6
Enter the printers IP Address into the box h Press Next
8

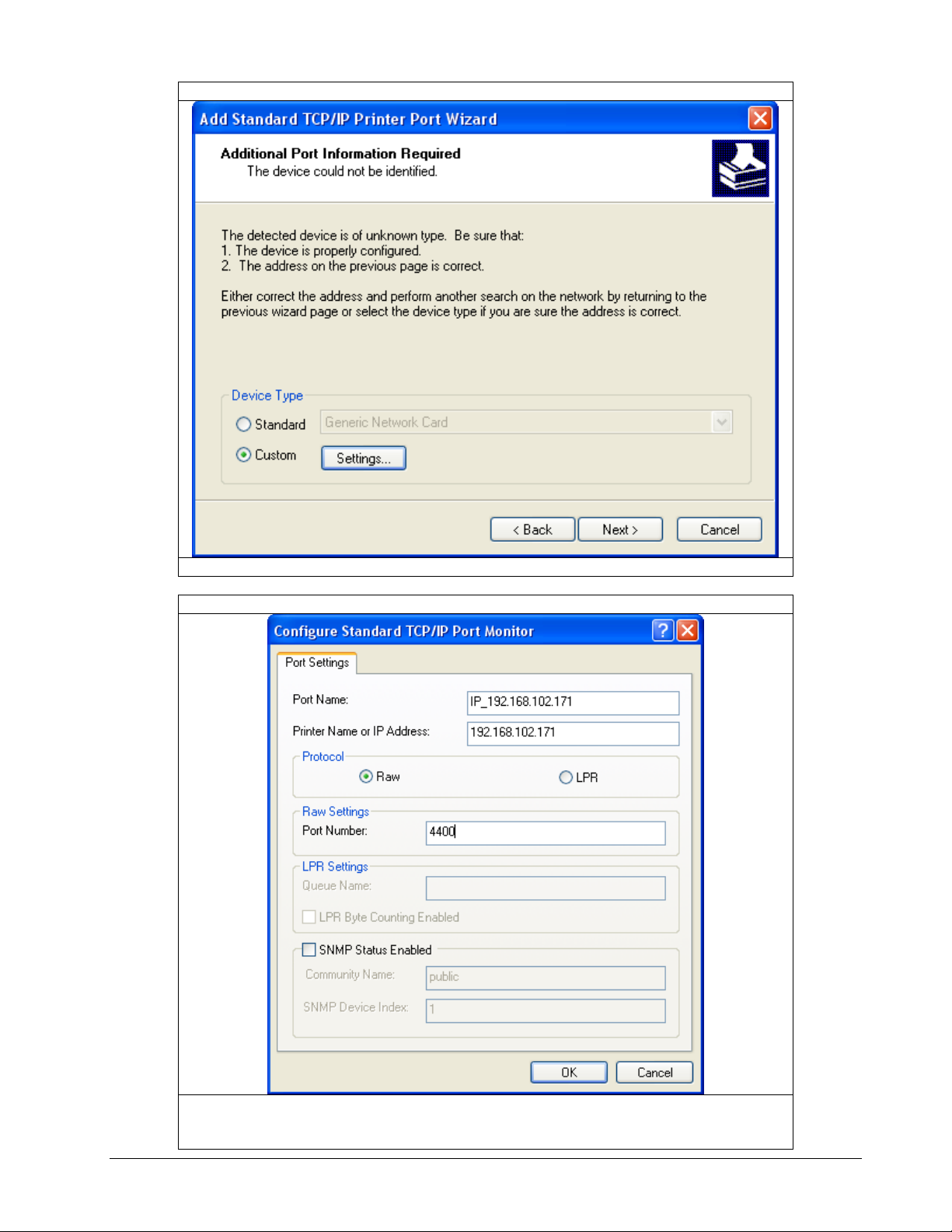

STEP 7
Under Device Type h Select Custom h Settings
STEP 8
Select Raw hPort Number 4400 h Press OK
OR
Select LPR hQueue Name d1prn h Press OK (SHOWN IN STEP 9)
9
STEP 9
Select LPR hQueue Name d1prn h Press OK
OR
Select Raw hPort Number 4400 h Press OK (SHOWN IN STEP 8)
STEP 10
Under Device Type h Select Customh Press Next
10
STEP 11
Completing the Add Standard TCP/IP Printer Port Wizard h Press Finish
STEP 12
Select Have Disk
11
STEP 15
Locate the iTerra Lite driver file (.inf) h Press OK
STEP 16
Select the iSys iTerra Lite Printer h Press Next
12

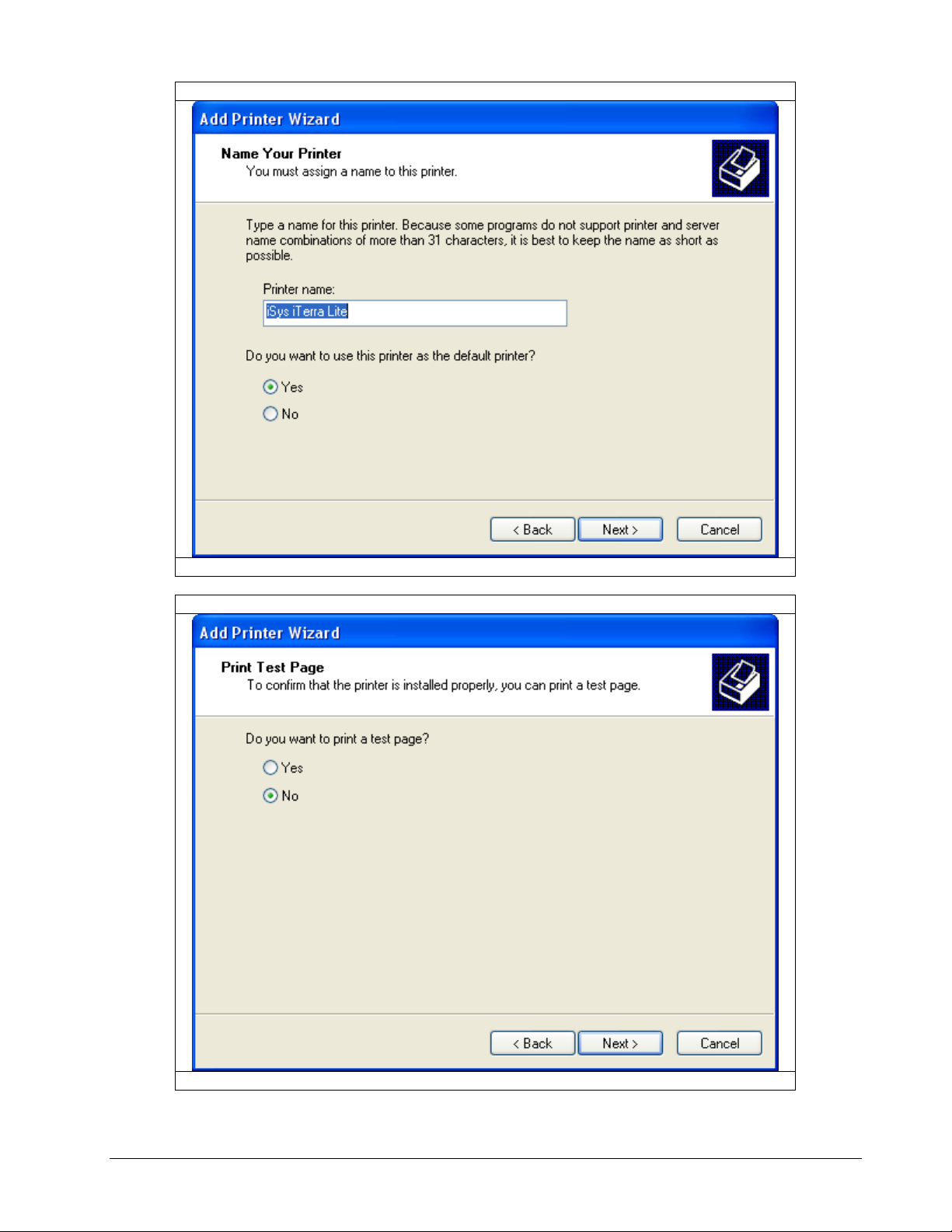

STEP 17
Add the Printer name
STEP 18
Select Yes or No to print a test page h press Next
13
STEP 19
If this message appears after installing the driver h Select Continue Anyway
STEP 20
Completing the Add Printer Wizard h press Finish
14
