TTI-7 Data Logging and Calibration Software
The purpose of the Model TTI-7 software is to provide easy to use and accurate temperature measurement, data logging
and automated temperature calibration.
It also provides easy PC operation for the control of instrument/digital thermometers using resistance thermometers or
thermocouples and a range of temperature-controlled sources (liquid baths, metal block calibrators and furnaces).
Many temperature points in a temperature source can be automatically selected and measured and both referenced and
unknown test probes can be scanned at many temperature points in the temperature source.
The software also enables the complete calibration routine results at several temperature points to be downloaded to a
report writer and also provides a graphical plot section incorporating flexible features such as recording and referencing
any channel on the system.
SOFTWARE
SOFTWARE
108/software

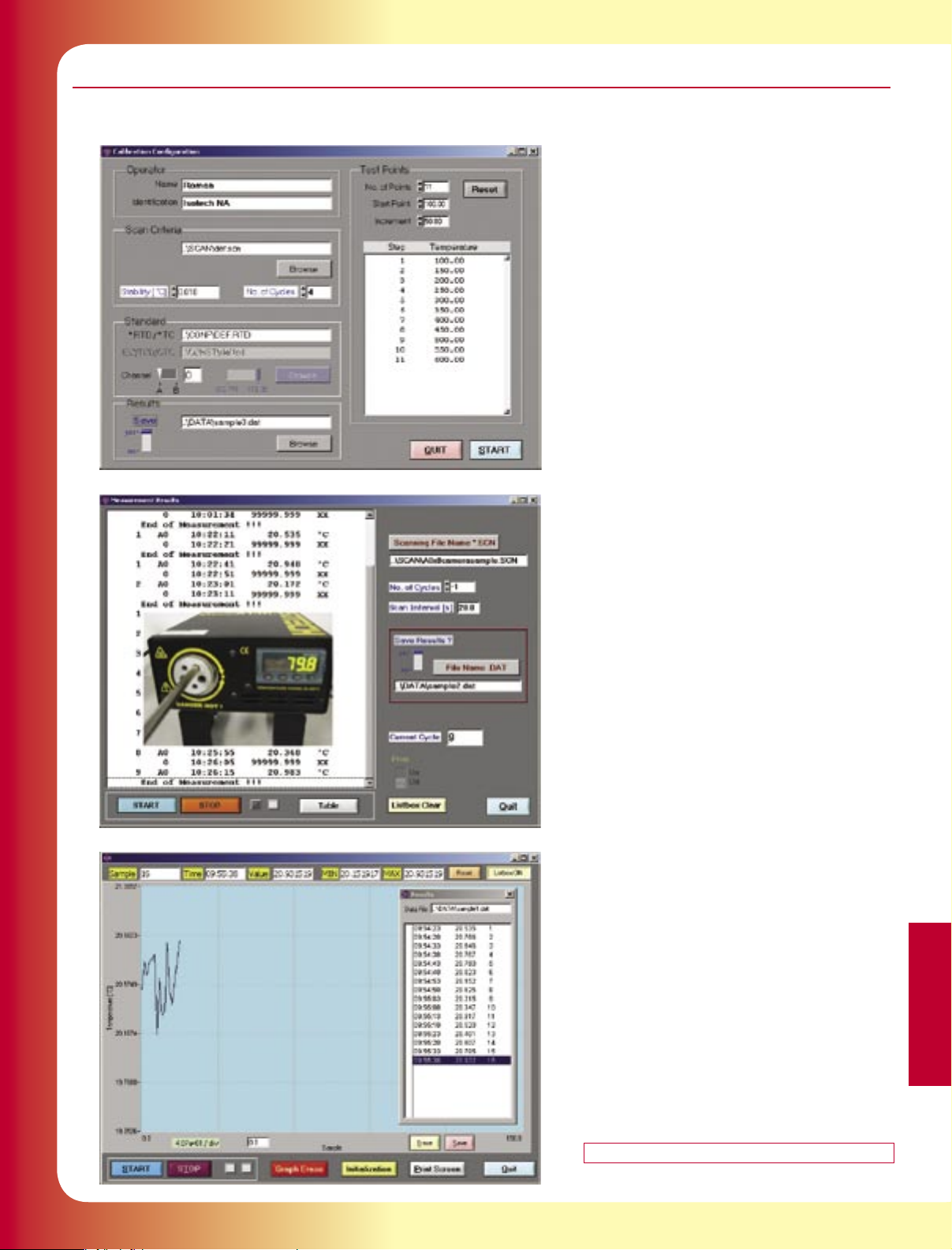

TTI-7 Software, continued
Key Features
• Scanning routine of a number of
channels/probes
• Virtual calibration channels (digital
camera, manual entry, data from
different instruments)
• Reference probe calibration data entry
for absolute measurement to ITS-90 on
reference probe channels
• Controls temperature source at test
point and records values of channels
as required for one or more sets of
readings
• A standard data logging and
measurement routine for a number of
probes on the instrument scanner
• A graphical plot section with flexible
features to record any channel on the
system, including the digital data points
plotted
• A Data Logger section to download
the data recorded on the instrument’s
internal memory for use on external
“field/site” applications
• The Model TTI-7 is suitable for all highprecision applications in temperature
laboratories and other industrial
applications where temperature
calibrations are needed
SOFTWARE
SOFTWARE
HOW TO ORDER
TTI-7 Data Logging and Calibration Software
