Clean Base™ Automatic Dirt Disposal
For Roomba® i Series Robot Vacuums
Owner’s Guide
Safety Information
Important Safety Information
This owner's guide includes information for Regulatory Model(s): ADE-N1 and ADE-N2.
SAVE THESE INSTRUCTIONS
WARNING: When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS
WARNING: To reduce the risk of injury or damage, read and follow the safety precautions when
setting up, using and maintaining your robot.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov/product
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Risk of electric shock Class II equipment Read operator’s
Risk of fire For indoor use only
Separate Supply Unit Rated power input, a.c.
Rated power
output, d.c.
Rated power
input, d.c.
manual
Keep out of reach
of children
General symbol for
recycling
BFP
Backfeed Protection
EN
WARNING: Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a hazardous situation that, if not avoided, could
result in minor or moderate injury.
NOTICE:
Indicates a hazardous situation that, if not avoided, could
result in property damage.
GENERAL
WARNING
• This product is not a toy. Small children and pets should be
supervised when the product is operating.
• Do not sit or stand on this product.
• This product comes with a region approved power supply cord
and is designed to be plugged into a standard household AC
power outlet only. Do not use any other power supply cord. For
replacement cords, please contact Customer Care to ensure
proper selection of country specific power supply cord.
• Do not disassemble or open the dirt disposal unless instructed to
do so. There are no user serviceable parts inside. Refer servicing to
qualified service personnel.
• Risk of electric shock, use indoors in dry location only.
• Do not handle this product with wet hands.
• Store and operate this product in room temperature
environments only.
AUTOMATIC DIRT DISPOSAL
WARNING
• To reduce the risk of electric shock, unplug your dirt disposal
before cleaning.
• Do not pour any liquids into the device and do not immerse in water.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
• Use only as described in this manual.
• Do not use with damaged cord or plug. If appliance is not
working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any
opening blocked; keep free of dust, lint, hair, and anything that
may reduce air flow.
• In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and o by the utility.
NOTICE
• Product may not be used with any type of power converter.
Use of power converters will immediately void the warranty.
• If you live in an area prone to electrical storms, it is recommended
that you use additional surge protection. Your dirt disposal may
be protected with a surge protector in the event of severe
electrical storms.
• Do not use without dust bag and/or filters in place.
• To properly maintain your dirt disposal, do not place foreign
objects inside and ensure it is clear of debris.
• Always disconnect your robot from the dirt disposal before
cleaning or maintaining it.
About Your Clean Base™ Automatic Dirt Disposal
Front View
LED Indicator
IR Window
Charging
Contacts
Debris
Evacuation Port
Top View
Blower Cover
Canister Lid
Exhaust Vent
Wheel Wells
Bag Guide Rails
Debris Evacuation
Tube
Bag Presence
Sensor
Back View
Cord Wrap
Bottom View
Debris
Evacuation Tube
ENEN
Roomba® i Series Clean Base™ Automatic Dirt Disposal Owner’s Guide 1
Using Your Automatic
Dirt Disposal

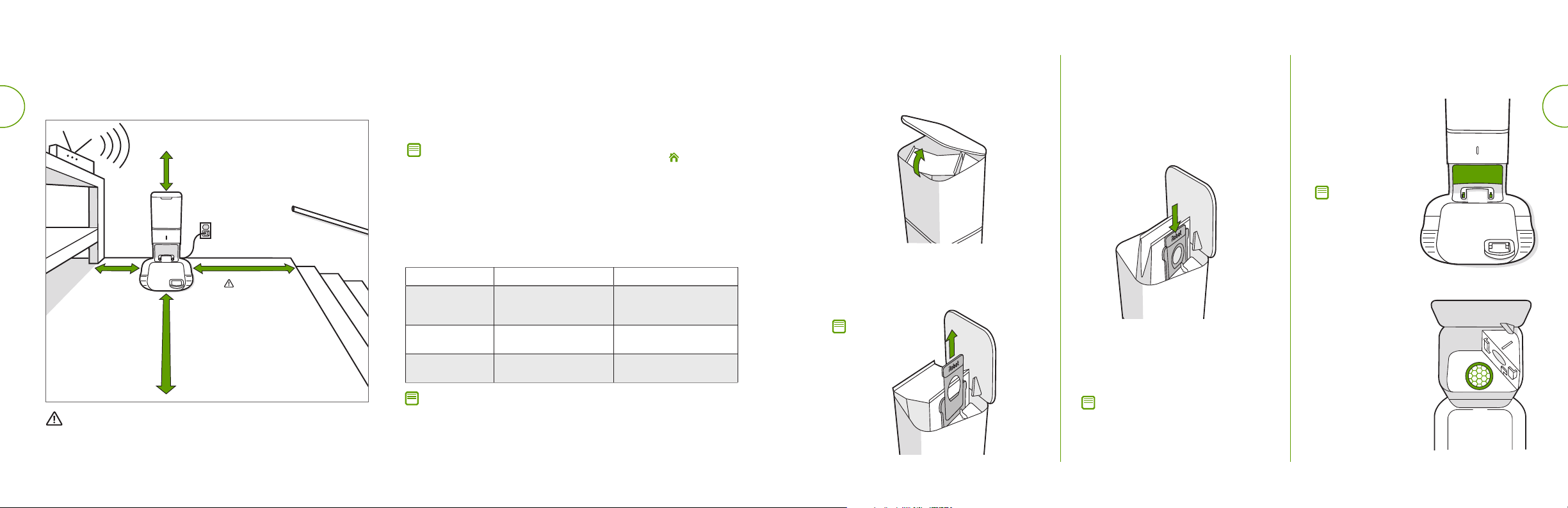

Positioning the Clean Base™ Automatic Dirt Disposal
Good Wi-Fi® Coverage
1ft (0.3 m)
above
About Your Automatic Dirt Disposal
While cleaning, your robot will automatically return to the dirt disposal to
empty its bin and recharge as needed.
The dirt disposal’s LED indicator will turn solid red when a new bag is
needed. If a clog is detected, the dirt disposal will trigger additional
attempts to automatically clear the clog.
Note: If you place your robot on the dirt disposal by hand, it will not empty
automatically. In this case, use the iRobot HOME App or the button on your
robot to manually empty your robot's bin.
Care and Maintenance
Care and Maintenance Instructions
To keep your dirt disposal running at peak performance, follow these
care procedures:
Replacing the Bag
Lift up on the canister lid to open.
1
Discard the used bag.
3
Install a new bag, sliding the
4
plastic card into the guide rails.
Cleaning the IR Window
and Charging Contacts
Inspect the sensors
and charging contacts
to make sure they
are clear of debris.
Wipe with a clean,
dry cloth.
Note: Do not
spray cleaning
solution directly
onto sensors
or into sensor
openings.
ENEN
1.5 ft (0.5 m)
both sides
4 ft (1.2 m)
in front
WARNING: To prevent the risk of your robot falling downstairs, ensure that
the charging station is placed at least 4 feet (1.2 meters) away from stairs.
2 For more information, visit global.irobot.com
4 ft (1.2 m)
from stairs
*Objects are not to scale.
Dock Part Care Frequency Replacement frequency
Bags
Charging Contacts
IR Window
Blower Cover
inside canister
Note: iRobot manufactures various replacement parts and assemblies. If you
think you need a replacement part, please contact iRobot Customer Care for
more information.
Once every month
Once every month (remove
debris from blower cover)
-
Bags should be replaced
when prompted by the LED
indicator / app
-
-
Pull up on the plastic card to remove
2
the bag from the canister.
Note: This will
seal the bag so
dust and debris
cannot escape.
Removing Debris
from Blower Cover
Inspect blower cover
Press down on the lid making
5
sure it is completely closed.
Note: To achieve optimal performance
with your robot and automatic dirt
disposal, clean and/or replace your
robot's filter as needed.
Roomba® i Series Clean Base™ Automatic Dirt Disposal Owner’s Guide 3
for any lint or debris
built-up, and wipe
with a clean dry cloth
to remove.
Troubleshooting
iRobot Customer Care
Regulatory Information
Your dirt disposal will tell you if something is wrong via an LED indicator on
the front of the canister and through the iRobot HOME App.
LED Indicator Common Error How to Fix
Solid Red Bag full or missing 1. Replace bag if it is full or missing.
2. Make sure the bag is securely
inserted.
3. If problem persists, remove any debris
from the port on the bottom of your
robot and the dirt disposal.
Blinking Red There is a leak or
a clog in the dock
evacuation path
1. Make sure the canister lid is pushed
down and firmly sealed. Tap the
button on your robot to manually
empty the bin.
2. Remove any debris from the port on
the bottom of your robot and dirt
disposal.
3. Unplug the dirt disposal from the wall.
Place it on its side and inspect the
debris evacuation tube for debris. If
necessary, remove the tube to clear
any debris.
USA & Canada
If you have questions or comments about your dirt disposal, please
contact iRobot before contacting a retailer.
You can start by visiting global.irobot.com for support tips, frequently
asked questions and information about accessories. This information
can also be found in the iRobot HOME App. If you need further
assistance, call the US Customer Care team at (877) 855-8593.
iRobot USA Customer Care Hours
• Monday to Friday, 9AM – 9PM Eastern Time
• Saturday and Sunday 9AM – 6PM Eastern Time
Outside USA & Canada
Visit global.irobot.com to:
• Learn more about iRobot in your country
• Get hints and tips to improve your product performance
• Get answers to questions
• Contact your local support center
This device complies with part 15 of the FCC Rules and ICES-003.
Operation is subject to the following two conditions: 1) This device may
not cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired
operation.
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two conditions: 1)
This device may not cause interference, and 2) this device must accept
any interference, including interference that may cause undesired
operation of the device.
• Changes or modifications not expressly approved by iRobot
Corporation could void the user’s authority to operate the
equipment.
• This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules
as well as ICES-003 Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference to radio
communication will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
• Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce
potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than the necessary for
successful communication.
• FCC Radiation Exposure Statement: This product complies with
FCC §2.1093(b) for portable RF exposure limits, set forth for an
uncontrolled environment and is safe for the intended operation as
described in this manual.
• ISED Radiation Exposure Statement: This product complies with the
Canadian Standard RSS-102 for portable RF exposure limits, set
forth for an uncontrolled environment and is safe for the intended
operation as described in this manual.
ENEN
4 For more information, visit global.irobot.com
Roomba® i Series Clean Base™ Automatic Dirt Disposal Owner’s Guide 5
©2018 iRobot Corporation, 8 Crosby Drive, Bedford, MA 01730 USA. All rights reserved.
iRobot, Roomba, and Virtual Wall are registered trademarks of iRobot Corporation.
HomeBase+ is a trademark of iRobot Corporation. Wi-Fi and the Wi-Fi logo are
registered trademarks of Wi-Fi Alliance.
WC#: 4632118v2
Loading...
