T30 and T45 Tumblers

Refer to Installation manual for full instructions.

4-08-43R5 August 2011

Table of

Contents

Tumblers – T30 and T45.................................................................... 2

Introduction...................................................................................... 2

Model Identification .................................................................. 2

Specifications and Dimensions ........................................................ 4

Cabinet Dimensions................................................................... 5

Exhaust Outlet Locations........................................................... 6

Gas Connection Locations......................................................... 7

Electrical Connection Locations................................................ 8

Steam Connection Locations ..................................................... 9

Installation........................................................................................ 10

Pre-Installation Inspection ......................................................... 10

Exhaust Requirements ..................................................................... 12

Layout ........................................................................................ 12

Make-Up Air.............................................................................. 12

Venting ...................................................................................... 12

Individual Venting..................................................................... 13

Manifold Venting....................................................................... 14

Electrical Requirements for Gas and Steam Models ....................... 18

Electrical Requirements for Electric Models................................... 20

means without the expressed written consent of the publisher.

1

4-08-43

Introduction

S

T A

R T

2 5

C

H I G H T E M P

M E D T E M P

L O

W T E

M

P

N

O H E

A

T

1

2

3

S E L E

C

T T E M P

I N S E R

T C O I N

P U S H S T A R

T

1

2

3

S E L E

C

T T E M P

I N S E R

T C O I N

P U S H S T A R

T

S T

A R T

2

5

C

H I G H T E M P

M E D T E M P

L O W T E M P

N O H E A T

T477C

Tumblers – T30 and T45

T477C

Model Identification

Gas Steam Electric

T30 T45

Includes models with the following control suffixes:

3O – DX4 OPL EO – LED OPL SD – single drop 3V – DX4 vended QT – dual digital timer SX – single drop, prep for coin 3X – DX4 prep for coin

IPD30STG2-ITT30L IPD30STG2-ITT30N IPD30STS2-ITT30S IPD30STE2-ITT30E

IPD45STG2-ITT45L IPD45STG2-ITT45N

Not Applicable Not Applicable

4-08-43

2

Tumblers – T30 and T45

1

1 Serial Plate

Conversion Table

Multiply By To Obtain Multiply By To Obtain

Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars

Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm

Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms

Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.

Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.

2

lb/inch

ft

(psi) 6.895 kPa CFM 0.471 liters/second

3

28.32 Liters kW 3414 Btu/hr.

TMB1974N

3

4-08-43

Specifications and Dimensions

Specifications T30 T45

Noise level measured during operation at operator position of 3.3 feet (1 meter) in front of machine and

5.2 feet (1.6 meters) from floor.

Net Weight (approximate): Pounds (kg)

Cylinder Size: Inches (mm)

Cylinder Capacity (dry weight) Pounds (kg)

Drive Motor Horsepower**

Fan Motor Horsepower**

50 Hertz 340

Maximum Airflow per Pocket**: C.F.M. (l/sec)

Maximum Static Back Pressure*: Inches W.C. (mbar)

60 Hertz 400

50 Hertz 0.8

60 Hertz 0.9

Tumblers – T30 and T45

66 dBA 67 dBA

544

(247)

30 x 26

(762 x 660)

2 x 30

(2 x 13.6)

(305)

33 x 30

(838 x 762)

2 x 45

(2 x 20.5)

1/4 1/2

N/A

(160)

(189)

(283)

N/A

(2.0)

(2.3)

673

600

0.9

Gas Connection

Gas Burner Rating**: Btu/hr (kW, Mj/hr)

Heating Element Rating**:

Steam Connection

Steam Coil Rating at 100 psig**: Boiler Horsepower (Btu/hr) (recommended operating pressure 80-100 psig)

* with both pockets running

** for each pocket

N/A = Not Applicable

Gas Models

Electric Models

Steam Models

1/2 in. NPT 1/2 in. NPT

73,000

(21.4, 77)

95,000

(27.8, 100.2)

21 kW N/A

3/4 in. NPT N/A

3.2

N/A

(111,000)

4-08-43

4

Tumblers – T30 and T45

TMB2332N

C

E

F

H

J

B

D

G I

A

Cabinet Dimensions

TMB2332N

ModelsABCDE

T30

T45

28 in.

(711 mm)

31.88 in.

(810 mm)

49 in.

(1245 mm)

50.4 in.

(1280 mm)

48.25 in.

(1226 mm)

49.3 in.

(1252 mm)

11.4 in.

(290 mm)

10.3 in.

(262 mm)

10.7 in.

(272 mm)

9.3 in.

(236 mm)

Models F G H I J

T30

T45

25.02 in.

(636 mm)

29.37 in.

(746 mm)

42.76 in.

(1086 mm)

48.62 in.

(1235 mm)

27.38 in.

(695 mm)

30.50 in.

(775 mm)

31.5 in.

(800 mm)

34.5 in.

(876 mm)

76.25 in.

(1937 mm)

81.25 in.

(2063.75 mm)

NOTE: To meet ADA compliance, install a 4 inch

(102 mm) riser on T30 models only.

5

4-08-43

Exhaust Outlet Locations

TMB1969N

B

C

A

Tumblers – T30 and T45

Models

T30

T45

Rear Exhaust

Diameter A B C

Elliptical

Fits 8 in. (203 mm)

Elliptical

Fits 10 in. (254 mm)

36.54 in.

(928 mm)

40.88 in.

(1038 mm)

4.25 in.

(108 mm)

4.75 in.

(121 mm)

TMB1969N

62.42 in.

(1585 mm)

66.00 in.

(1676 mm)

4-08-43

6

Tumblers – T30 and T45

TMB1970N

A

B

C

1

Gas Connection Locations

1 1/2 in. NPT

Models

Non-CE and

Non-Australian

T30

CE and

Australian

T45

TMB1970N

Gas Connection

ABC

75.20 in.

(1910 mm)

75.28 in.

(1912 mm)

78.75 in.

(2000 mm)

1.74 in.

(44 mm)

2.5 in.

(64 mm)

4.12 in.

(105 mm)

36.84 in.

(936 mm)

30.60 in.

(777 mm)

42.88 in.

(1089 mm)

7

4-08-43

Electrical Connection Locations

TMB1971N

A

B

E

D

C

GAS AND STEAM ELECTRIC

Tumblers – T30 and T45

Models

T30

T45

N/A = Not Applicable

TMB1971N

Electric Service

Gas and Steam Models Electric Models

ABCDE

59 in.

(1498 mm)

62.5 in.

(1588 mm)

1.75 in.

(44 mm)

1.75 in.

(44 mm)

35.63 in.

(905 mm)

73.21 in.

(1859 mm)

N/A N/A N/A

2.28 in.

(58 mm)

4-08-43

8

Tumblers – T30 and T45

C

D

A

B

A

B

Steam Connection Locations

Models

Inlet Outlet

ACBD

T30

(Upper)

T30

(Lower)

73.93 in.

(1877 mm)

36.35 in.

(923 mm)

NOTE: All connections use 3/4 inch NPT pipe.

9

6.29 in.

(160 mm)

6.29 in.

(160 mm)

62.71 in.

(1592 mm)

25.13 in.

(638 mm)

TMB1972N

2.39 in.

(61 mm)

2.39 in.

(61 mm)

4-08-43

Tumblers – T30 and T45

Installation

Pre-Installation Inspection

Upon delivery, visually inspect the crate, carton and

parts for any visible shipping damage. If the crate,

carton, or cover is damaged or signs of possible

damage are evident, have the carrier note the condition

on the shipping papers before the shipping receipt is

signed, or advise the carrier of the condition as soon as

it is discovered.

Remove the crate and protective cover as soon as

possible and check the items listed on the packing list.

Advise the carrier of any damaged or missing articles

as soon as possible. A written claim should be filed

with the carrier immediately if articles are damaged or

missing.

IMPORTANT: Warranty is void unless tumbler is installed according to instructions in this manual. Installation should comply with minimum specifications and requirements detailed herein, and with applicable local gas fitting regulations, municipal building codes, water supply regulations, electrical wiring regulations, and any other relevant statutory regulations. Due to varied requirements, applicable local codes should be thoroughly understood and all pre-installation work arranged for accordingly.

4-08-43

10

Tumblers – T30 and T45

WARNING

To reduce the risk of severe injury, clearance of tumble dryer cabinet from combustible construction must conform to the minimum clearances.

W056R1

7

2

4

6

3

1

5

NOTE: Shaded areas indicate adjacent structure.

1 0.5 in. (13 mm) recommended between machines for removal or installation. 2 Allow 2 – 4 in. (51 – 102 mm) opening at top of machine to aid in removal or installation. A removable trim piece

may be used to conceal the opening; zero clearance allowed for trim.

3 4 in. (102 mm) Maximum Header Thickness 4 12 in. (305 mm) Minimum Clearance 5 24 in. (610 mm) Minimum, 36 in. (914 mm) recommended for maintenance purposes. 6 Provision for Make-Up Air: Minimum 1.5 square feet T30 models, minimum 2 square feet T45 models. Location

for reference only. May be anywhere behind tumbler.

7 0.25 in. (6 mm) recommended for removal or installation purposes, zero clearance allowed.

Figure 1

11

TMB2110N

4-08-43

Tumblers – T30 and T45

WARNING

A drying tumble dryer produces combustible lint. To reduce the risk of fire, the tumble dryer must be exhausted to the outdoors.

W057R1

To reduce the risk of fire and accumulation of combustible gases, DO NOT exhaust tumble dryer air into a window well, gas vent, chimney or enclosed, unventilated area such as an attic wall, ceiling, crawl space under a building, or concealed space of a building.

W059R1

WARNING

To reduce the risk of fire due to increased static pressure, we do not recommend installation of in-line secondary lint filters or lint collectors. If secondary systems are mandated, frequently clean the system to assure safe operation.

W749

WARNING

Improperly sized or assembled ductwork causes excess back pressure which results in slow drying, lint collecting in the duct, lint blowing back into the room, and increased fire hazard.

W355

Exhaust Requirements

Layout

Whenever possible, install tumblers along an outside

wall where duct length can be kept to a minimum, and

make-up air can be easily accessed. Elbows and long

vents tend to increase drying time. Construction must

not block the airflow at the rear of the tumbler. Doing

so would prevent adequate air supply to the tumbler’s

combustion chamber.

Make-Up Air

A tumbler is forced air exhausted and requires provisions

for make-up air to replace air exhausted by the tumbler.

Venting

IMPORTANT: Installing in-line filters or lint collectors will cause increased static pressure. Failure to maintain the secondary lint system will decrease tumbler efficiency and may void machine warranty.

For maximum efficiency and minimum lint accumulation, tumbler air must be exhausted to the outdoors by the shortest possible route.

Proper sized exhaust ducts are essential for proper operation. All elbows should be sweep type. Exhaust ducts must be assembled so the interior surfaces are smooth, so the joints do not permit the accumulation of lint. DO NOT use plastic or thin foil ducts – rigid metal ducts are recommended. Use exhaust ducts made of sheet metal or other noncombustible material. DO NOT use sheet metal screws or fasteners on exhaust pipe joints which extend into the duct and catch lint. Use of duct tape or pop-rivets on all seams and joints is recommended, if allowed by local code.

IMPORTANT: Do not obstruct the flow of

combustion and ventilation air.

Make-up air openings should be as close to the

tumbler(s) as possible.

The required make-up air opening to the outside for

tumbler (includes both pockets) is:

each

220 square inches (1418 sq. cm) for T30 models

288 square inches (1856 sq. cm) for T45 models

Make-up air openings with louvers will restrict

airflow. The opening must be increased to compensate

for area taken up by louvers.

Make-up air openings for a room containing

tumbler(s) and/or gas fired hot water heater or other

gravity vented appliances must be increased

sufficiently to prevent downdrafts in any of the vents

when all tumblers are in operation. Do not locate

gravity vented appliances in the same room as

tumblers. If it is necessary to duct make-up air to the

tumbler(s), increase the area of the ductwork by 25%

to compensate for any restriction in air movement.

4-08-43

Verify that old ducts are thoroughly cleaned out before installing new tumbler(s).

NOTE: Exhaust ducts must be constructed of sheet metal or other noncombustible material. Such ducts must be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than 0.0195 inches (0.495 mm) thick. Local codes may require additional thickness.

Where the exhaust duct pierces a combustible wall or ceiling the opening must be sized per local codes. The space around the duct may be sealed with non-combustible material. Refer to Figure 2.

12

Tumblers – T30 and T45

IMPORTANT: For best performance provide an

individual exhaust duct for each tumbler. Do not

install a hot water heater in a room containing

tumblers. It is better to have the water heater in a

separate room with a separate air inlet.

Individual Venting

For maximum efficiency and performance, it is preferred

to exhaust tumbler(s) individually to the outdoors.

IMPORTANT: At no point may the cross sectional

area of installed venting be less than the cross

sectional area of the exhaust outlet of the tumbler.

The exhaust duct must be designed so the static back

pressure measured 12 inches (305 mm) from the

exhaust outlet does not exceed the maximum

allowable pressure specified on the installation sticker

on the rear of the tumbler.

NOTE: Static back pressure must be measured

with both pockets running.

The maximum allowable length venting of the same

diameter as the exhaust thimble is 14 feet (4.3 m) and

two 90° elbows or equivalent. If the equivalent length

of a duct required for an installation exceeds the maximum

allowable equivalent length, the diameter of a round duct

must be increased by 10% for each additional 20 feet

(6.1 m). Cross section area of a rectangular duct must

be increased by 20% for each additional 20 feet (6.1 m).

Refer to Table 1 to determine equivalent venting.

Duct

Diameter

10 in. (254 mm) 12 in. (305 mm) 14 in. (355.6 mm) 16 in. (406.4 mm) 18 in. (457.2 mm)

Equivalent Length (feet) = 1.17 x Duct Diameter (inches)

Equivalent Length of Rigid

Straight Duct

One 90° elbow = 11.6 ft. (3.5 m) One 90° elbow = 14 ft. (4.3 m) One 90° elbow = 16 ft. (4.9 m) One 90° elbow = 18.7 ft. (5.7 m) One 90° elbow = 21 ft. (6.4 m)

Table 1

Example: A 12 inch (305 mm) diameter duct’s equivalent length of 14 feet (4.3 m) of duct and two 90° elbows is:

Equivalent Length = 14 feet + (2) 90° elbows

= 14 feet + 14 feet + 14 feet = 42 feet (12.8 m)

With the tumbler in operation, and both pockets running, airflow at any point in the duct should be at least 1200 feet per minute (366 meters per meter) to ensure that lint remains airborne. If 1200 feet per minute cannot be maintained, schedule monthly inspections and cleaning of the ductwork.

NOTE: The maximum length of a flexible metal

duct must not exceed 2.4 m (7.87 ft.) as required to

meet UL2158, clause 7.3.2A.

13

4-08-43

Tumblers – T30 and T45

TMB2103N

1

2

3

4

5

1 Removable strip of panel in framing wall to permit removal of tumbler from framing wall 2 Partition or bulkhead 3 Minimum distance between exhaust opening and roof, ground or other obstruction: 36 in. (914 mm) 4 2 in. (51 mm) minimum clearance on both sides of duct 5 Exhaust airflow – maximum length of duct: 14 ft. (4.3 m)

Figure 2

NOTE: Do not install wire mesh or screen in

exhaust duct opening to avoid lint build-up or

impacting proper discharge of air from tumblers.

NOTE: Where exhaust duct pierces a combustible

wall or ceiling, the opening must be sized per local

codes.

NOTE: Inside of duct must be smooth. Do not use

sheet metal screws to join sections.

Consult your local building code for regulations which

may also apply.

Manifold Venting

While it is preferable to exhaust tumblers individually to the outdoors, a main collector duct may be used if it is sized according to Figure 4 or Figure 5. This illustration indicates minimum diameters, and should be increased if the collector length exceeds 14 feet (4.3 m) and two 90° elbows. The diameter of a round duct must be increased by 10% for each additional 20 feet (6.1 m). Cross sectional area of a rectangular or square duct must be increased 20% for each additional 20 feet (6.1 m). Refer to Table 2 or Tabl e 3 to determine equivalent ducting sizing. The collector duct may be rectangular or square in cross section, as long as the area is not reduced. Provisions MUST be made for lint removal and cleaning of the collector duct.

TMB2103N

4-08-43

14

Tumblers – T30 and T45

T438i

The vent collector system must be designed so the

static back pressure measured 12 inches (305 mm)

from the exhaust outlet does not exceed the maximum

allowable pressure specified on the installation sticker

on the rear of tumbler. Static back pressure must be

measured with all tumblers vented into the collector

operating.

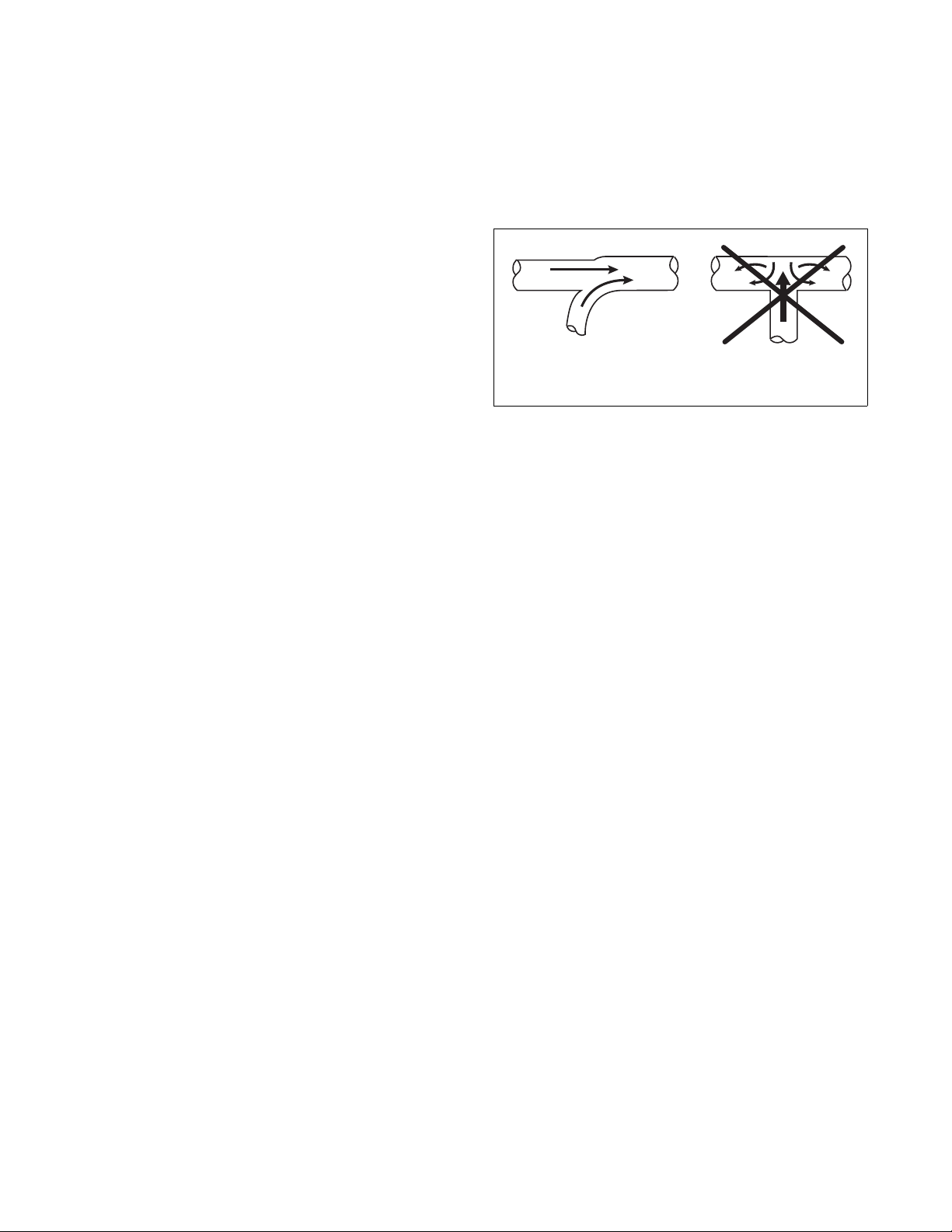

NOTE: Never connect a tumbler duct at a 90°

angle to the collector duct. Refer to Figure 3. Doing

so will cause excessive back pressure, resulting in

poor performance. Never connect two tumbler

exhaust ducts directly across from each other at the

point of entry to the collector duct.

With the tumbler in operation, and both pockets running, airflow at any point in the duct should be at least 1200 feet per minute (366 meters per meter) to ensure that lint remains airborne. If 1200 feet per minute cannot be maintained, schedule monthly inspections and cleaning of the ductwork.

T438I

Figure 3

15

4-08-43

1 NOTE: Where the exhaust duct pierces a

LKJ I HG F

E

DC BA

3

1

2

ONE MANIFOLD ASSEMBLY

combustible wall or ceiling, the opening MUST be sized per local codes.

Tumblers – T30 and T45

TMB2019N

2 Outlet Duct Diameter 3 45° Typical

Duct

Station

A

B

C

D

E

F

G

H

I

J

K

L

Figure 4

T30 T45

8 in. (203 mm) Duct 10 in. (254 mm) Duct

8 in. (203 mm) 10 in. (254 mm)

12 in. (305 mm) 15 in. (381 mm)

15 in. (381 mm) 18 in. (457 mm)

17 in. (432 mm) 21 in. (533 mm)

19 in. (483 mm) 24 in. (610 mm)

21 in. (533 mm) 26 in. (660 mm)

23 in. (584 mm) 28 in. (711 mm)

24 in. (610 mm) 30 in. (762 mm)

26 in. (660 mm) 32 in. (813 mm)

27 in. (686 mm) 33 in. (838 mm)

28 in. (711 mm) 35 in. (889 mm)

30 in. (762 mm) 36 in. (914 mm)

Table 2

4-08-43

16

Tumblers – T30 and T45

1

2

3

LK

J

I

L

KJ

I

CONTINUE

TO A

CONTINUE

TO A

TWO MANIFOLD ASSEMBLIES

1 NOTE: Where the exhaust duct pierces a

combustible wall or ceiling, the opening MUST be sized per local codes.

Duct

Station

A

B

C

D

E

F

G

H

I

J

K

8 in. (203 mm) Duct 10 in. (254 mm) Duct

T30 T45

12 in. (305 mm) 15 in. (381 mm)

17 in. (432 mm) 22 in. (559 mm)

22 in. (559 mm) 26 in. (660 mm)

25 in. (635 mm) 30 in. (762 mm)

27 in. (686 mm) 34 in. (864 mm)

30 in. (762 mm) 37 in. (940 mm)

33 in. (838 mm) 40 in. (1016 mm)

34 in. (864 mm) 43 in. (1092 mm)

37 in. (940 mm) 46 in. (1168 mm)

39 in. (991 mm) 47 in. (1194 mm)

40 in. (1016 mm) 50 in. (1270 mm)

TMB2018N

2 Outlet Duct Diameter 3 45° Typical

Figure 5

L

17

43 in. (1092 mm) 51 in. (1295 mm)

Table 3

4-08-43

Tumblers – T30 and T45

Electrical Requirements for Gas and

Steam Models

Refer to Table 4 and Tab le 5 .

NOTE: Minimum wire sizes are obtained from

Canadian Electrical Code for 75°C Conductors

and are intended for use as a guideline only.

Electrical connections should be made only by a

qualified electrical contractor in accordance with

all applicable local and national requirements.

For T30 Gas and Steam Models

(For Total Machine):

Serial Plate Voltage

120V/60 Hz/1ph

208-240V/60Hz/1ph

100V/60Hz/1ph

Terminal Block

Connections

Required

L1, Neutral,

and ground

L1, L2, Neutral,

and ground

L1, Neutral,

and ground

Current

(Amps)

NOTE: Electrical specifications below are subject to change without notice. Always refer to product serial plate for most current specifications of product being installed.

NOTE: Use copper conductors only.

NOTE: 3 Phase Only – Each tumbler must be connected to its own individual branch circuit breaker, not fuses, to avoid the possibility of “single phasing” and causing premature failure of the motor(s).

Recommended

Fuse or

Breaker Rating

(Amps)

16.0 20 1 12 (3.31)

8.0 10 2 14 (2.08)

22.0 30 1 10 (5.26)

Breaker

Poles

Recommended

Minimum

Conductor Size

(AWG [mm2])

200-220V/60Hz/1ph

100V/50Hz/1ph

200V/50Hz/1ph

230-240V/50Hz/1ph

200-208V/60Hz/3ph

240V/60Hz/3ph

200V/50Hz/3ph

230-240V/50Hz/3ph

380V/50 or 60Hz/3ph

400-415V/50Hz/3ph

460-480V/60Hz/3ph

* 3 Phase machines should not have fuses, breakers only.

L1, Neutral,

and ground

L1, Neutral,

and ground

L1, Neutral,

and ground

L1, Neutral,

and ground

L1, L2, L3, and ground

11.6 15 1 14 (2.08)

24.2 35 1 8 (8.37)

15.0 20 1 12 (3.31)

6.4 10* 3 14 (2.08)

5.8 10* 3 14 (2.08)

7.0 10* 3 14 (2.08)

3.0 10* 3 14 (2.08)

3.2 10* 3 14 (2.08)

3.3 10* 3 14 (2.08)

4-08-43

Table 4

18

Tumblers – T30 and T45

For T45 Gas Models (For Total Machine):

Serial Plate

Voltag e

208–240V/60Hz/1ph

200–208V/60Hz/3ph

240V/60Hz/3ph

200V/50Hz/1ph

230-240V/50Hz/1ph

Terminal Block

Connections

Required

Current (Amps)

Recommended Fuse

or Breaker Rating

(Amps)

Breaker

Poles

Minimum

Conductor Size

(AWG [mm2])

L1, L2, Neutral and ground 12.0 15 2 14 (2.08)

L1, L2, L3 and ground 9.6 15 3 14 (2.08)

L1, Neutral and ground 11.2 15 1 14 (2.08)

L1, Neutral and ground 10.8 15 1 14 (2.08)

Tab le 5

Recommended

19

4-08-43

Tumblers – T30 and T45

Electrical Requirements for Electric

Models

Refer to Table 6.

NOTE: Minimum wire sizes are obtained from

Canadian Electrical Code for 75°C Conductors

and are intended for use as a guideline only.

Electrical connections should be made only by a

qualified electrical contractor in accordance with

all applicable local and national requirements.

For 21 kW T30 Electric Models:

Serial Plate

Voltage

200-208V/60Hz/3ph*

200V/50Hz/3ph*

230-240V/50Hz/3ph*

240V/60Hz/3ph*

380V/50 or 60Hz/3ph*

Terminal Block

Connections

Required

L1, L2, L3, and ground

Current

(Amps)

62** 80 3 4 (21.2)

60** 80 3 4 (21.2)

55** 70 3 4 (21.2)

54** 70 3 4 (21.2)

33** 45 3 8 (8.37)

NOTE: Electrical specifications below are subject to change without notice. Always refer to product serial plate for most current specifications of product being installed.

NOTE: Connect to individual branch circuit.

NOTE: 3 Phase Only – Each tumbler must be connected to its own individual branch circuit breaker, not fuses, to avoid the possibility of “single phasing” and causing premature failure of the motor(s).

Recommended Breaker Rating

(Amps)

Breaker

Poles

Recommended

Minimum

Conductor Size

(AWG [mm2])

400-415V/50Hz/3ph*

460-480V/60Hz/3ph*

* These serial plate voltages are only options available on the T30 electric models. Current (Amp) is for one pocket only. ** Per heater on T30 electric models, each has two heaters.

L1, L2, L3, and ground

31** 40 3 8 (8.37)

27** 35 3 8 (8.37)

Table 6

4-08-43

20

IPSO T30, T45 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
