1. AZ Mount ProTM Altazimuth Mount Overview
Introducing the AZ Mount Pro
setup.
We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up
routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the
power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on
board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro
calculates its global position as well as the telescope orientation. Automatically the mount slews the
instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright
object is in the center of the view, to activate tracking and GOTO functionality.
Features:
33lb primary payload and 10lb secondary payload capacity, with a mount weighing only 13lbs
Whisper quiet low-power consumption stepper motors
Go2Nova
screen
Zero backlash driver system
On board rechargeable lithium ion battery for up to 10 hours of use
Built-in WIFI adapter for full ASCOM, iOptron Commander
Serial port for computer control and firmware upgrades
Retractable counter weight shaft
Position memorization at power interruption
Die-cast aluminum body
3-Point easy level adjustment on tripod
6 inch dual dovetail saddle (Losmandy/Vixen styles)
Stands a mere 10 inches tall (mount head only)
Built-in 32-channel GPS receiver
Automatic position and angular detection sensors
Aluminum carrying case
®
8407 hand controller featuring 212K+ object library with an 8 line illuminated LCD
TM
altazimuth mount featuring "level and go" intuitive GOTO
TM
and Sky Safari wireless control
5
Page 6
2. AZ Mount ProTM Mount Assembly
2.1. Parts List1
The mount head (#8920) is shipped in an aluminum carrying case, which includes:
AC adapter for mount battery charging (100V~240V AC input, 12.6V/2000mA DC output)
4P4C RJ9 (4 pin connector) to DB9 RS232 serial cable for firmware upgrade and computer
control.
If you are ordering a AZMP mount system (#8900), there will be another package with:
2” stainless steel tripod (#8121ACC)
4.5kg counterweight X1(#3006-10)
Level adjustment screw X3 (#8340)
OPTIONAL PARTS
#8953 Secondary Vixen-style dovetail saddle
#3006-10 4.5kg counterweight
#3006-05 2kg counterweigh
#8321ACC MiniTower 1.5” tripod
#8034 Tri-Pier
#8034-RC Tri-Pier with rolling case
#8032 MiniPier
#8340-Pier Level adjustment screw with center post (for using with Pier and Tri-Pier)
#8345 USB to RS232 Converter with FTDI chipset
ONLINE RESOURCES (click on the “Support” menu at www.iOptron.com)
Quick Start Guide
This instruction manual
Tips for set up
Hand controller and mount firmware upgrades (check online for latest version)
ASCOM and Commander
Reviews and feedback from other customers
Accessories
1
US market only. Actual contents may vary.
6
Page 7
2.2. Identification of Parts
1. Altitude Lock2. Counterweight Shaft
3. Counterweight Shaft Lock4. AZMP Mount Body
5. Tripod Bolt6. Tripod Support Spreader
7. Tripod Lock8. Dovetail Saddle Lock Screw
9. Level Adjustment Screw 10. Tripod Knob
11. Bubble Level 12. Hand Controller hanger
13. Vixen/Losmandy Dual Saddle14. Hand Controller Socket (HBX)
15. RS232 Socket 16. Battery Status LED
17. Power Switch 18. Battery Charging Socket

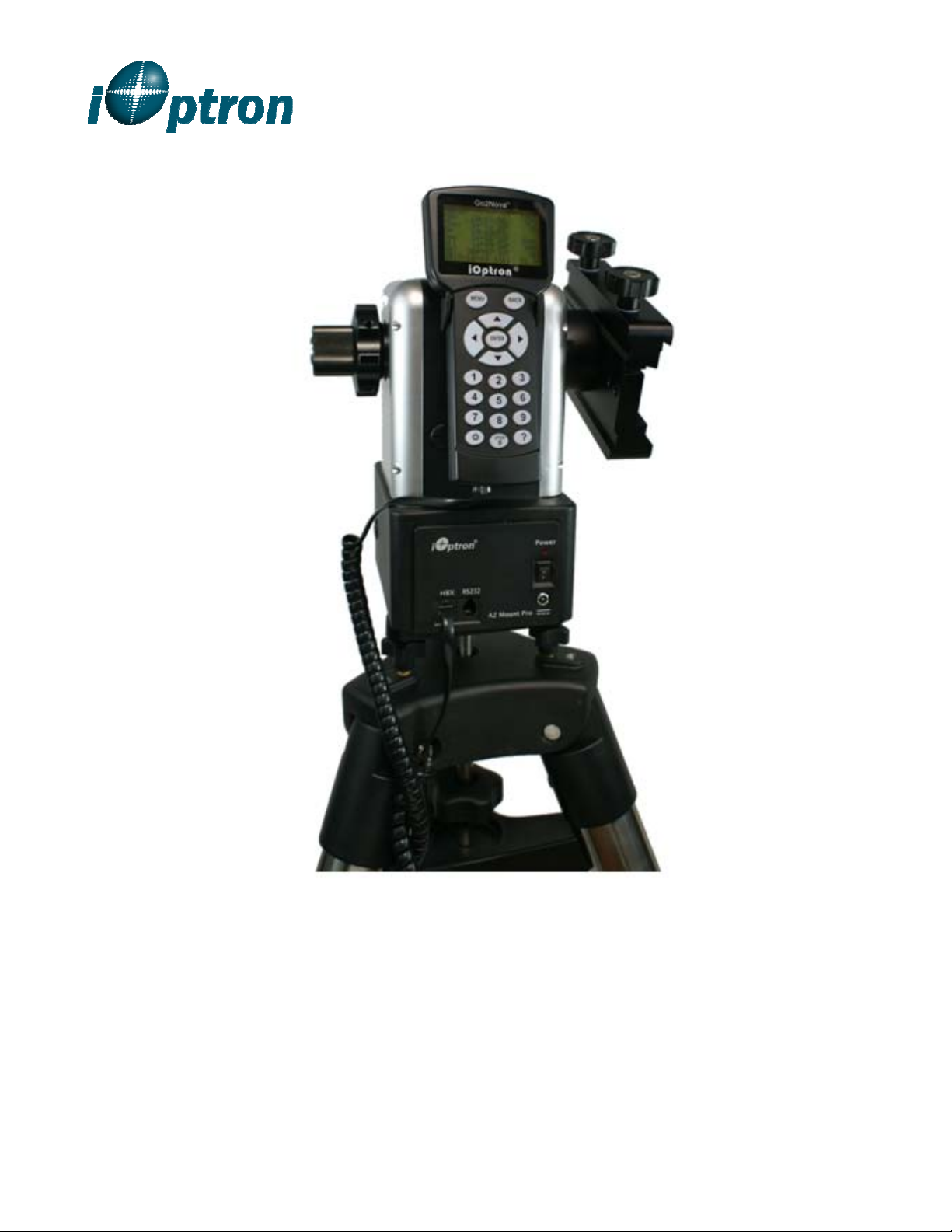

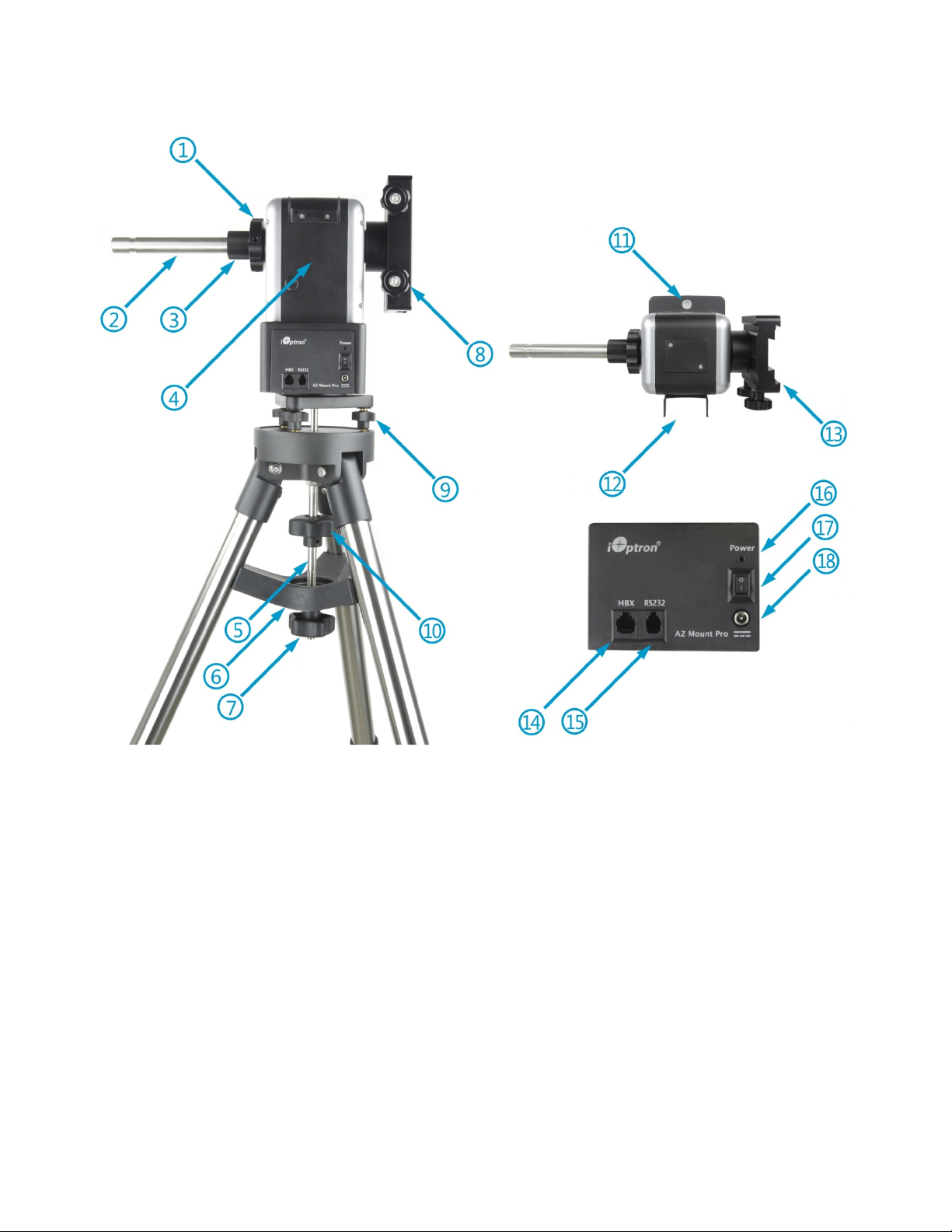

Figure 1. AZMP mount assembly
7
Page 8
2.3. Go2Nova® 8407 Hand Controller
DEC+
RA+
RA-
DEC-
HBX
Port
Serial
Port

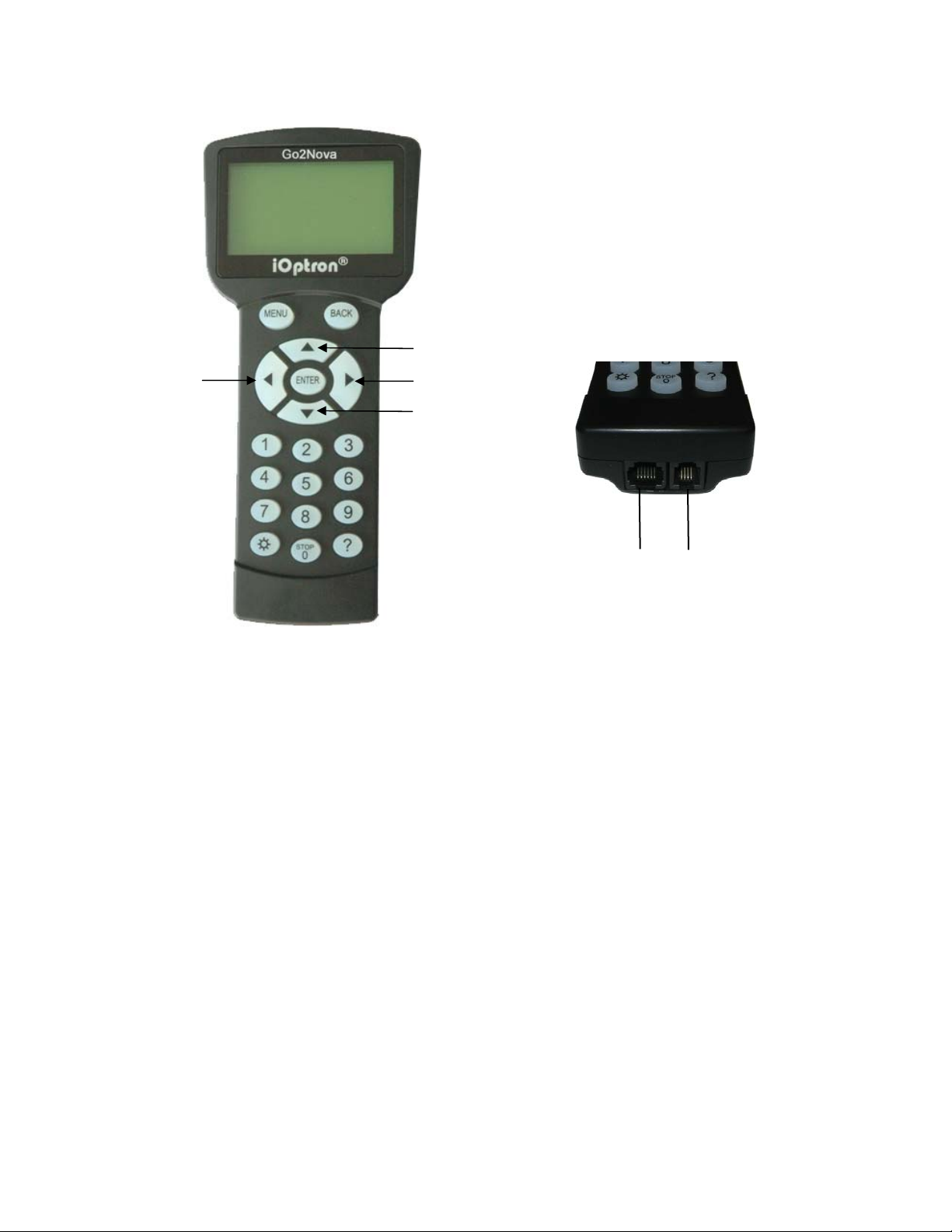

Figure 2. Go2Nova® 8407 hand controller
The Go2Nova® 8407 hand controller (HC) shown in Figure 2 is the standard controllers that
used for the AZMP mount. It has an integrated temperature controller that ensures it can be operated
as low as -20ºC (-4ºF). It has a large LCD screen, function, direction and number keys on the front; a
red LED reading light on the back; and a HBX port (6-pin) and a RS232 serial port (4-pin) at the bottom.
2.3.1. Key Description
MENU Key: Press “MENU” to enter the Main Menu.
BACK Key: Move back to the previous screen, or end/cancel current operation, such as
slewing.
ENTER Key: Confirm an input, go to the next menu, select a choice, or slew the telescope to
a selected object.
Arrow (▲▼◄►) Keys: The arrow keys are used to control the movement of DEC and R.A.
axes. Press and hold ▲(DEC+),▼(DEC-) buttons to move a telescope along the DEC
direction, ◄(R.A.+), ►(R.A.-) to move a telescope along the RA direction. They are also used
to browse the menu or move the cursor while in the menu. Press and holding an arrow key for
a fast scrolling.
Number Keys: Input numerical values. Also used to adjust speeds. The speed selections are
Light Key(☼): Turns on/off the red LED reading light on the back of the controller.
Help (?) Key: Identify and display bright stars or objects where the telescope points to.
STOP/0 Key: Stop the mount during GOTO. Also toggling between start and stop tracking.
HBX (Handbox) port: connect the HC to the AZMP mount using a 6P6C RJ11 cable.
8
Page 9
Serial port (i.e., RS232 port): connect the HC to a Computer for HC firmware upgrade via a
RS232-RJ9 cable.
2.3.2. The LCD Screen
The 8407 HC has a large 8-line, 21-character per line LCD screen, which displays all the
information as shown in Figure 3. The user interface is simple and easy to operate.

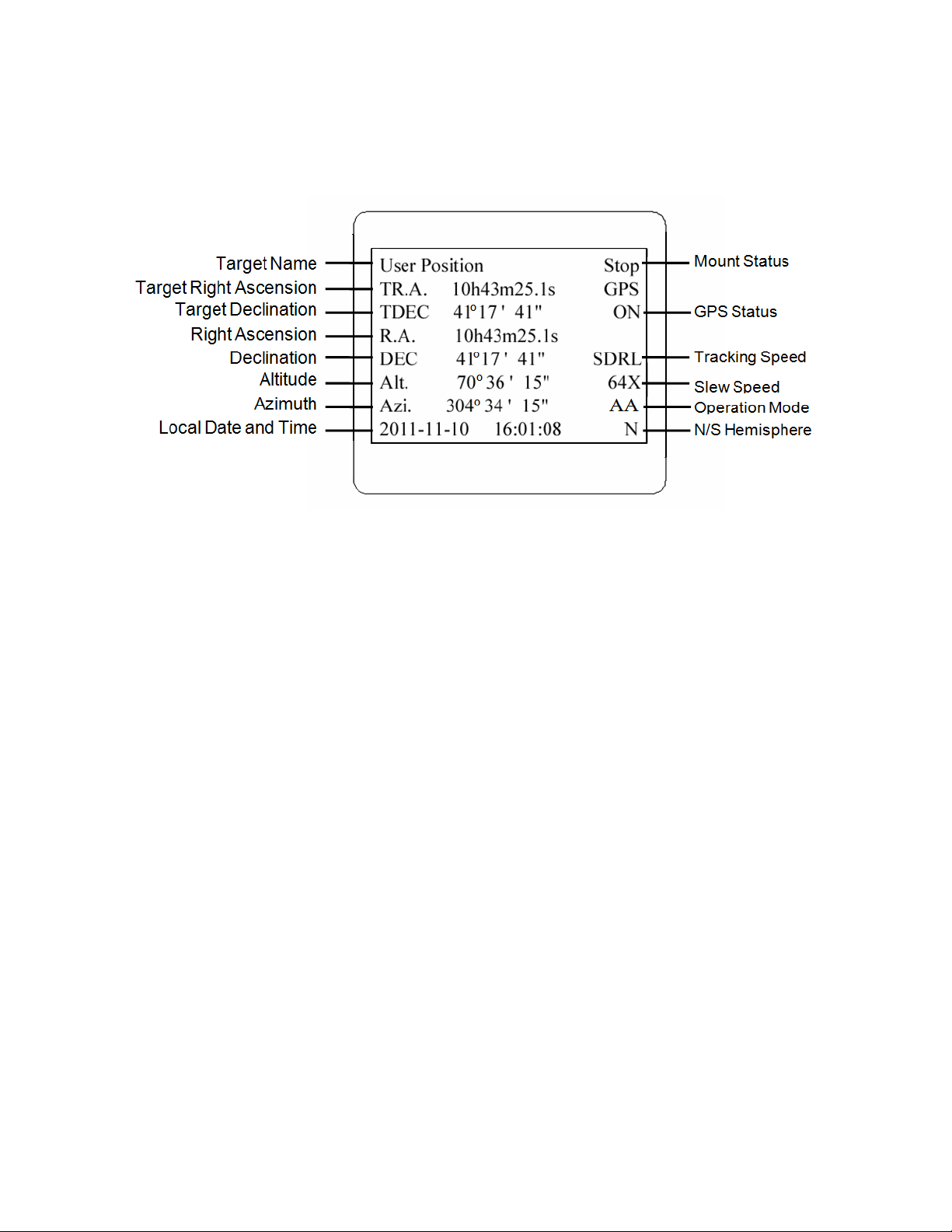

Figure 3. 8407+ HC LCD Information Screen
1. Target Name/Mount Position: displays the name of the target that telescope is currently pointed to
or the current mount position.
Zero Position: The reference position for the mount. It will be displayed when moved to Zero
Position using “Goto Zero Position”;
User Position: The mount is point to a user defined position, which could be a particular
celestial object or simply a position determined by pressing an arrow key;
An object name, such as “Mercury” or “Andromeda Galaxy”: Name of the star or celestial
object that the mount is currently slewing to or tracking.
2. Target R.A.: Right Ascension (R.A.) of the target object.
3. Target Declination: Declination (DEC) of the target object.
4. Right Ascension: Current R.A. of the telescope.
5. Declination: Current DEC of the telescope.
6. Altitude: Altitude of the telescope (degrees vertical from the local horizon - zenith is 90º).
7. Azimuth: Azimuth of the telescope (north is 0º, east 90º, south 180º, and west 270º).
8. Local Date and Time: display local time in a format of YYYY-MM-DD HH:MM:SS.
9. Mount Status: Display current operation status of the mount.
Stop: mount is not moving;
Slew: mount is moving with an arrow key is pressed or a GOTO command, such as “Select
and Slew” or “Goto Zero Position”;
Tracking: mount is at a tracking status.
10. GPS status: When the power is turned on, the initial GPS status will be “GPS ON”, which means
that the mount is connected to its GPS receiver and is seeking a satellite signal. When the GPS
receiver finds the satellites and receives the GPS signal, the status will change to “GPS OK”.
11. Tracking speed: Display current tracking rates of the mount
9
Page 10
SDRL: mount is tracking at a sidereal speed;
Solar: mount is tracking at a solar speed;
Lunar: mount is tracking at a lunar speed;
King: mount is tracking at a King speed;
CSTM: mount us tracking at a customer defined speed.
12. Slew speed: It has 9 speeds: 1X, 2X, 8X, 16X, 64X, 128X, 256X, 512X, MAX (2400X,~10º/sec).
13. Operation Mode: AA is for alt-azimuth mode.
2.4. Check Hand Controller Battery
The hand controller has a real time clock (RTC) which should display the correct time every time
the mount is turned on. If the time is incorrect, please check the battery inside the hand
controller and replace it if needed. The battery is a 3V, CR1220 button battery.
10
Page 11
3. AZ Mount ProTM Mount Assembly
3.1. Un-package the Mount
Remove the AZ Mount ProTM (AZMP) mount from the aluminum carrying case. Make sure that
the Altitude Lock is fully tightened. Charge the mount using the included AC battery charging to fully
charge the mount, until the LED indicator on the AC adapter changed to green.
Warning: Make sure use the included battery charger to charge the mount. DO NOT plug in
any standard AC/DC adapter. NEVER charge the battery when it is below 0°C.
A slowly flashing battery status LED indicates the battery is low, which you still have about 30
minutes of operation time. You may keep using the mount by plugging in the battery charger. NEVER
use the mount this way when it is below 0°C. iOptron is NOT responsible for any damages and
consequences caused by misuse.
If you are running out of the battery during an observation session, you may also plug in a 12V
DC power source, such as iOptron PowerWeight
temperature is above 0°C.
Full charge the battery every 6 month if the mount is not used.
TM
battery counterweight, for temporary use if the
3.2. Tripod Setup
Evenly extend tripod legs to a desired length. Then lock legs using the locking knobs on sides.
Set the tripod upward. If set a tripod on an uneven surface, make sure the tripod head is leveled.
5mm.

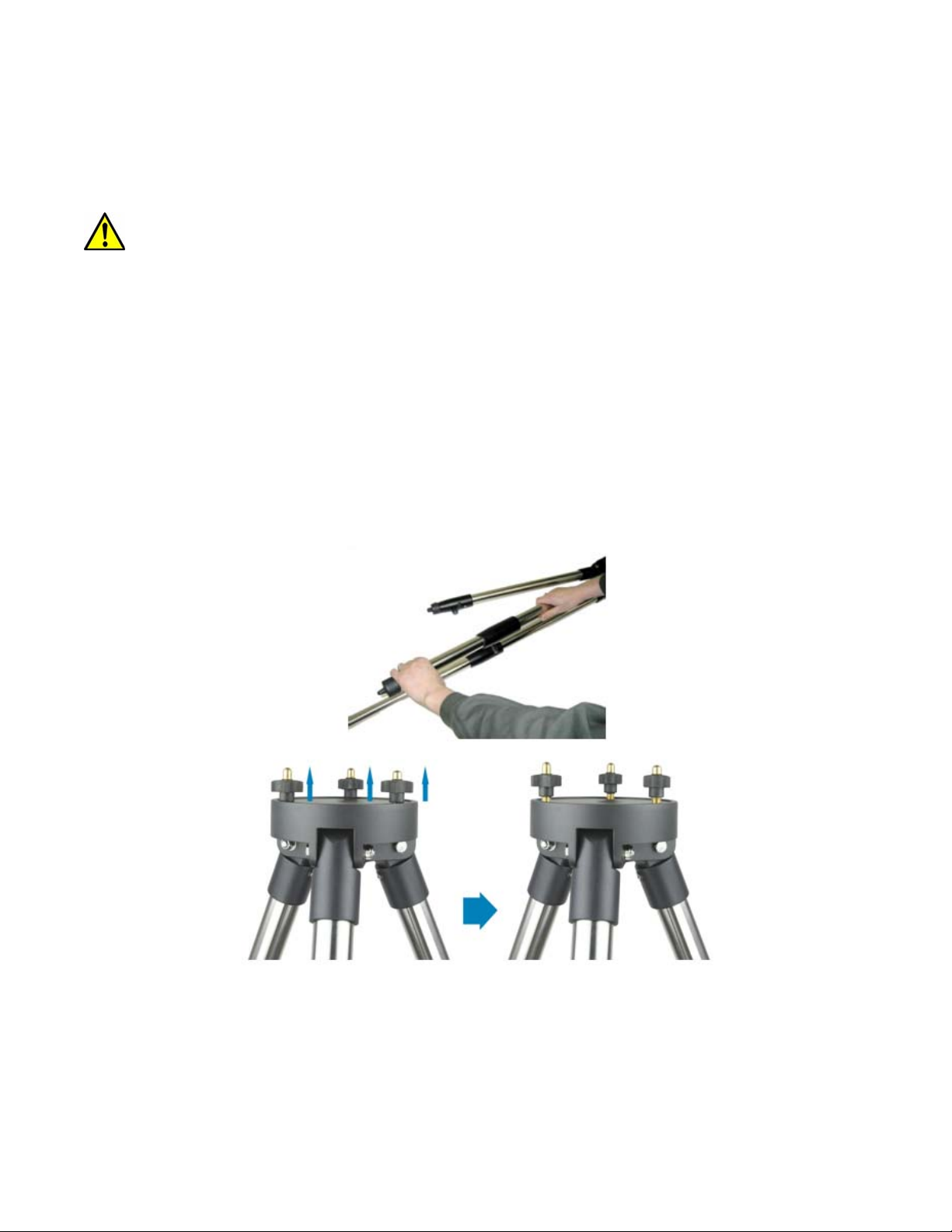

Figure 4 Set up tripod
Install three star-shaped adjustment screws onto the tripod head. Raise the screws up about
11
Page 12
3.3. Attach Mount
Carefully position telescope mount onto the tripod by aligning the three holes on the bottom of
the mount base to the three level adjustment screws on the top of the tripod.
Figure 5 Attach mount
Thread the tripod bolt into the bottom of the mount while holding the mount with your hand.
Slightly tighten the tripod bolt by turning the tripod bolt lock knob.
3.4. Level Mount
Adjust level adjustment screws to level the mount using the bubble level on the base. You may
use a torpedo level on the opposite side of the bubble level to assist the leveling.
Figure 6 Level mount
3.5. Lock Mount
Tighten the bolt lock knob to secure the mount. Slide tripod
support spreader onto the bottom of bolt. Position the three edges to
fit against the three tripod legs. Then hand tighten tripod lock knob
to secure the tripod support spread in place.
3.6. Attach Telescope
Attach a telescope to dual dovetail saddle. Make sure that the telescope objective end is
pointing to the direction as the arrow mark on the dovetail pointed to. The dovetail saddle can be
12
Figure 7 Lock mount
Page 13
rotated freely when the altitude lock knob is released. Fully tighten the altitude lock knob afterwards.
Tighten two dovetail saddle lock screws to secure the telescope.

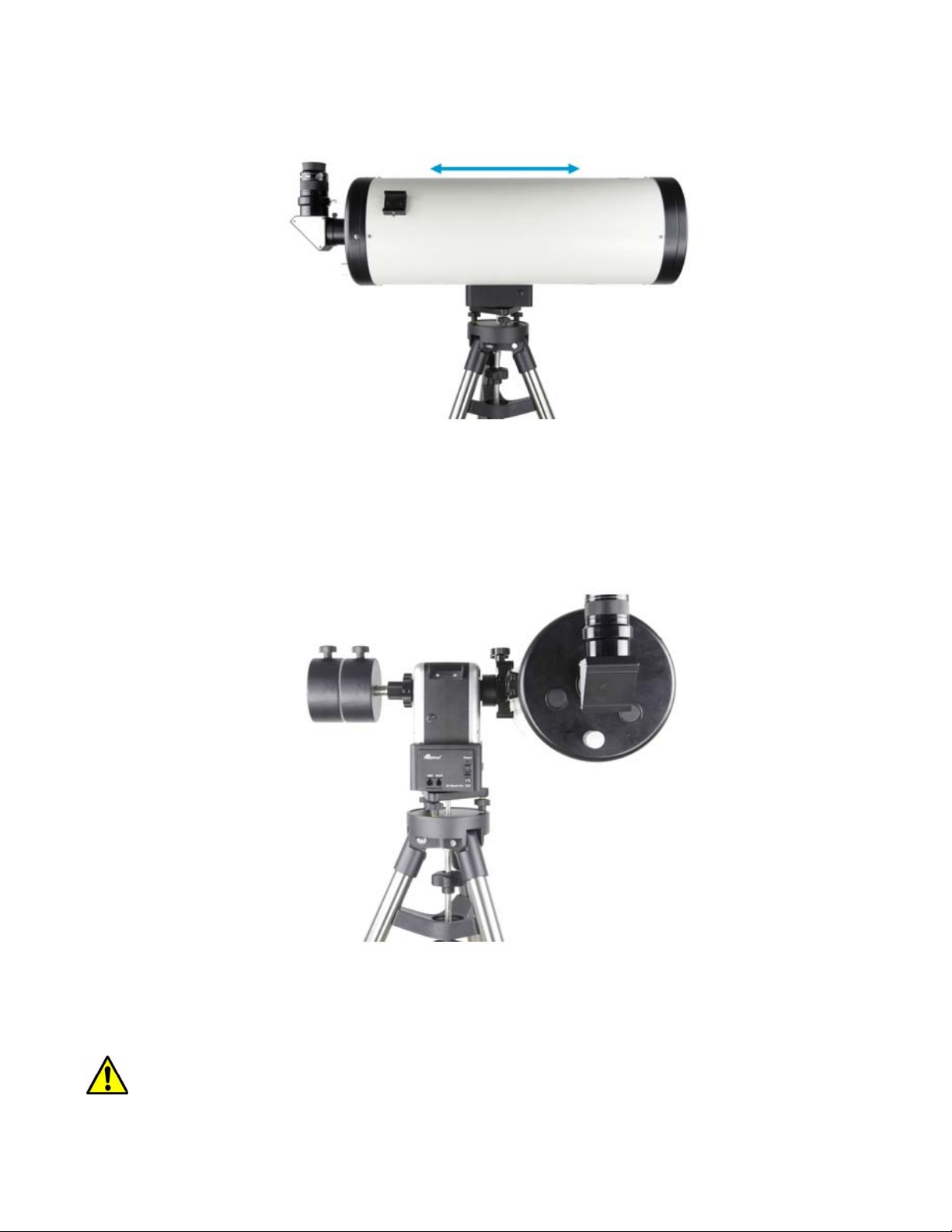

Figure 8 Install the telescope along the arrow direction on dovetail saddle

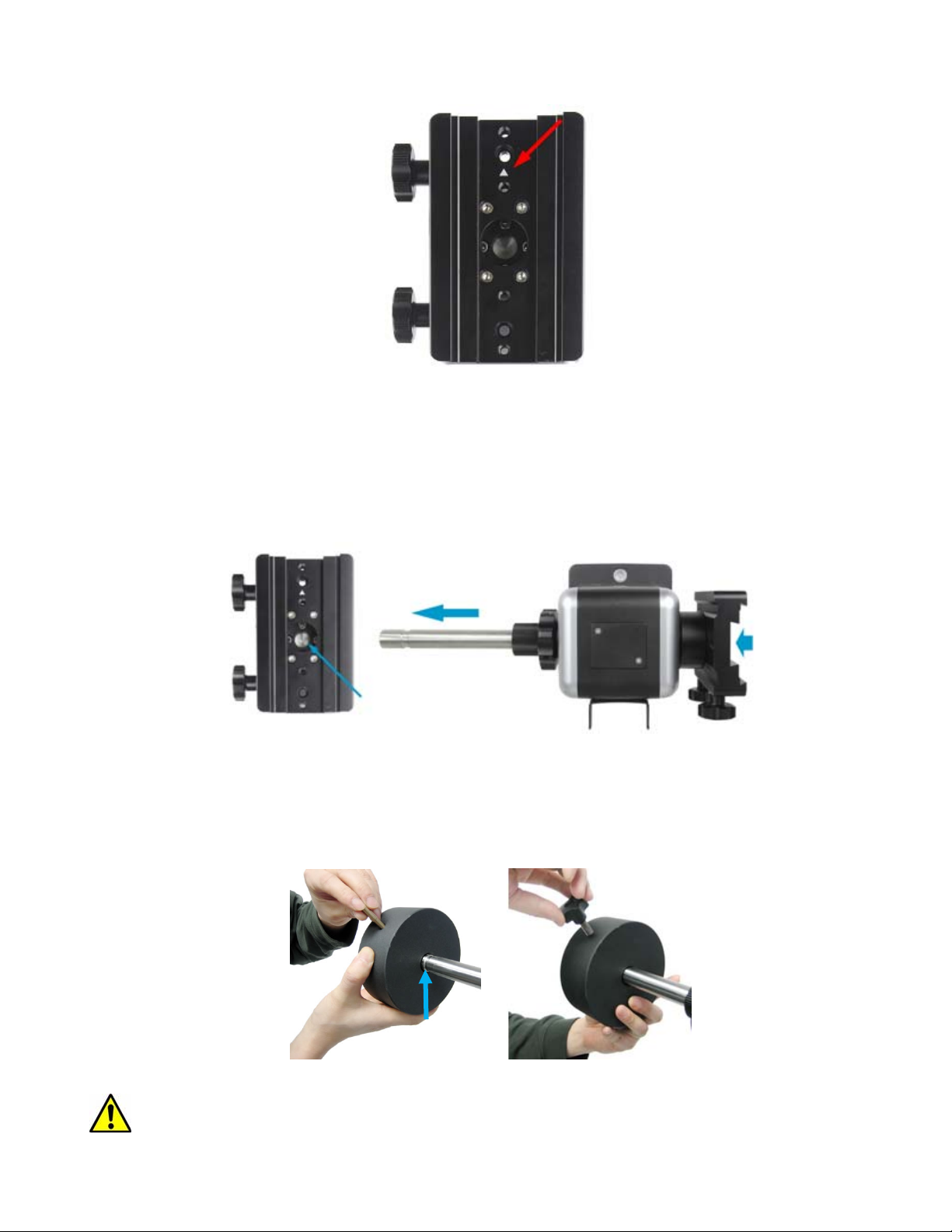

Make sure the altitude lock knob is tightened. Back out CW shaft lock screw slightly. Push the
CW shaft out of the mount from the center of the dovetail saddle. Retighten the CW shaft lock screw.
Figure 9 Push the counterweight shaft out from the mount
Slide the counterweight onto the CW shaft, with large opening hole facing inward, if the CW
has a stepped CW shaft hole. Insert the brass pin into the hole on the CW. Secure the CW by
tightening the CW lock knob. (The groove on the CW shaft is designed for secondary dovetail saddle
use.)
Groove
Figure 10 Install CW and CW lock
Warning: Counterweight is heavy. Please handle with care to avoid injury.
13
Page 14
3.8. Balance Payload
After attaching scope and accessories, the mount needs to be balanced. To balance in altitude
direction, release the altitude lock knob, rotate the scope to horizontal position. Move the telescope
back and forth to find the balance point and lock the altitude lock knob.
CAUTION: The telescope may swing freely when the altitude lock knob is released.
Add one (1) 4.5kg CW if the scope at the primary side is over 5kg, and add two (2) 4.5kg CWs if
the payload is over 10kg.
Note: This number is estimated and telescope size dependent.
Note: if you have a light scope less than 10 lb, attach a CW is optional. However, a CW is always
helpful to balance the OTA in order to have smooth and accurate GOTO and tracking.
Figure 11 Heavy/large scope with two CWs
A simple and safe method to estimate the CW and its position is by calculating the torques
(weight times the distance to the center) of the payload and CW, and making them equal or close.
NOTE: Please re-check leveling before operation the mount.
14
Page 15
3.9. Connect Cable
Connect the Go2Nova® 8407 Hand Controller to the HBX port on the mount panel using the
supplied coiled control cable. Put the hand controller onto the hand controller hanger.
3.10. Install Second Telescope
An optional secondary saddle (#8953) is available for dual balanced OTAs. To install a
secondary dovetail saddle, loose the CW shaft lock and push the CW shaft out to a desired length.
Lock the CW shaft lock. Slide the secondary CW onto the CW shaft and tighten the secondary dovetail
saddle lock.
After you mount a secondary OTA onto the secondary dovetail holder, make sure you align it
with the primary OTA. This alignment is easier to be done during the daytime. Point the primary
telescope to a target at a remote building or flagpole and center the target in the eyepiece. Loosen the
secondary dovetail saddle lock. Rotate the secondary OTA around the counterweight shaft. Center the
object in the eyepiece of the secondary OTA. If the secondary OTA is tilted, it can be adjusted by
adjusting two tilting adjustment screws as shown in Figure 12 (M6 x 12mm Allen set screws). The
maximum payload on secondary side is 5kg (11lbs).

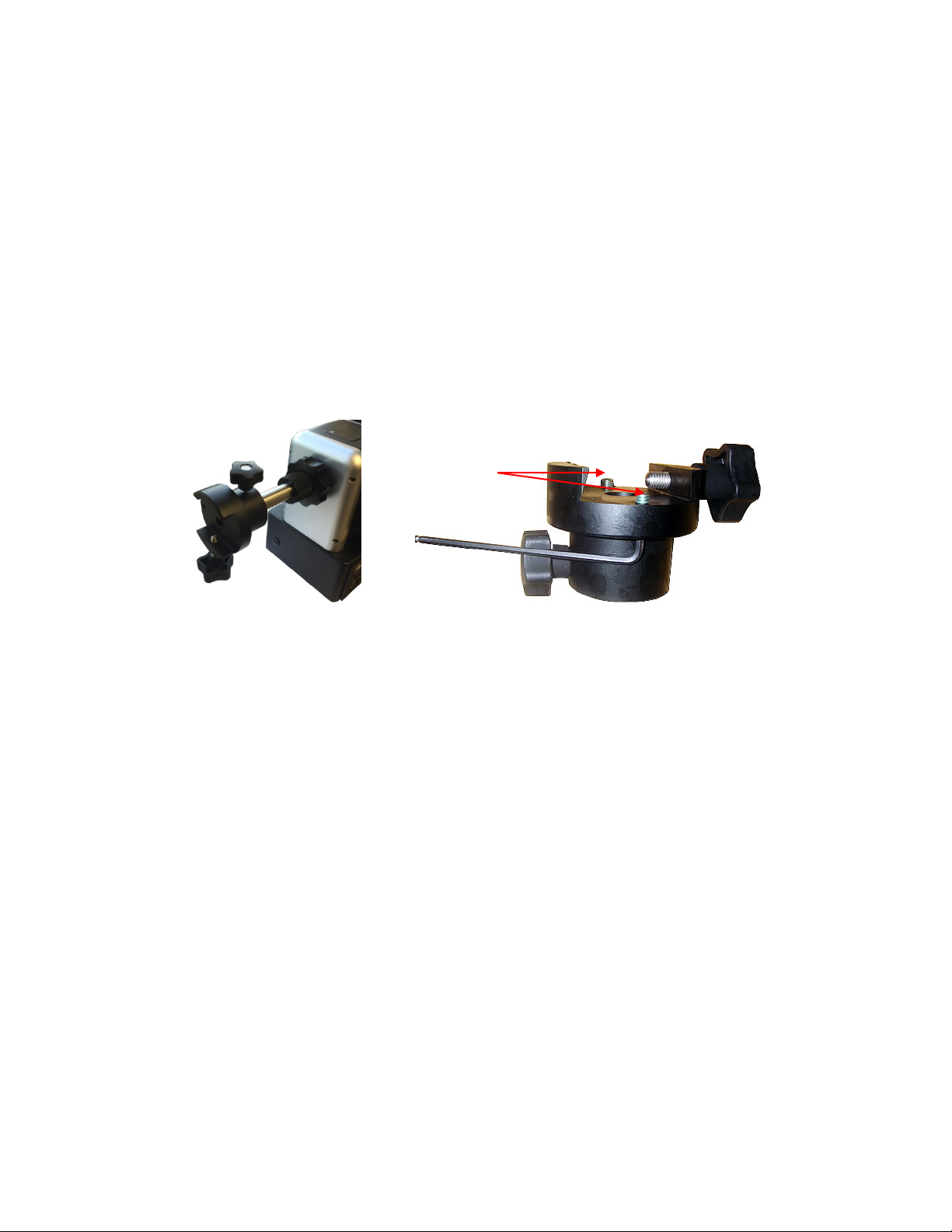

M6 set screws
Figure 12. Secondary dovetail saddle and set screws
A combination of a light OTA and a CW can be used to balance a heavier primary OTA.
15
Page 16
4. AZ Mount ProTM Mount Operation
4.1. Power the Mount and GO
Assemble your mount. Make sure the mount is leveled.
Just flip the power switch ON and wait! The mount will first perform an Assistant Alignment
Wizard which will determine the Zero Position, i.e. the South and Zenith. Then the mount will pick up
GPS signal. Lastly the mount will GOTO a bright star for a Star Calibration. Follow the instruction on the
hand controller screen to center the bright star. If the star displayed is blocked by a tree or building, just
press the BACK button to go to next one.
Now you can use “Select and Slew” to go to any objects!
Note: The date and time displayed on the hand controller may differ from your local time. Just ignore it.
You can change it later.
4.2. GOTO a Celestial Object
Press MENU on the hand controller and select “Select and Slew”. Select a category, such as
“Named Star”, and then select a star of interest, and press ENTER. The telescope will slew to the
object and automatically start tracking. If the target is not centered in your eyepiece, use “Sync to
Target” to improve the performance. Press MENU => “Sync to Target” and enter the star you are
observing. Use the arrow keys (►, ◄, ▼, and ▲) to center it, press a number key to change the star
moving speed.
4.3. Solar Observation
Press MENU => “Sync to Target” on the hand controller, then follow the instruction on the hand
controller screen to select a catalog, here is “Solar System”, and then select “Sun” and use the arrow
keys to center it and press ENTER.
Change the tracking rate to Solar by press MENU => “Settings” => “Set Tracking Rate” =>
“Solar”
4.4. Enter Initial Information
After turn on the mount power, the mount will ask if you want to run the “assist alignment

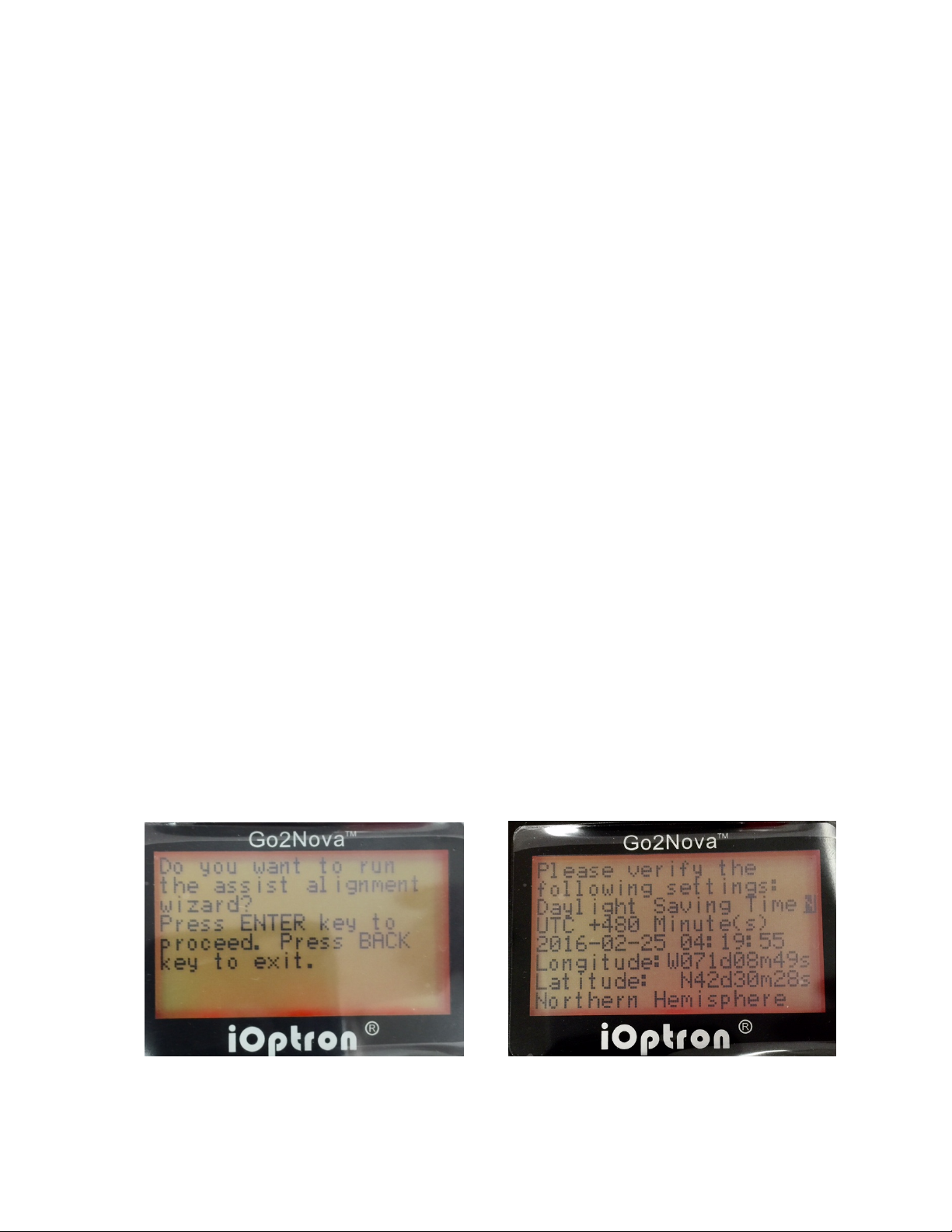

wizard,” as shown in LEFT screen in Figure 13. Press ENTER or do nothing to start the wizard. Or
press BACK to cancel.
Figure 13 Initial hand controller screen
16
Page 17
The mount will start to perform self calibration by rotating in both altitude and azimuth
directions to find the Zero Position, i.e., the mount’s “S” (bubble level) facing south and the telescope
tube pointing up at the zenith.
When it stops, the hand controller will display your current time and site info (RIGHT screen of
Figure 13).
If all the information is correct, you may press ENTER to confirm and skip waiting for GPS
signal. Or if the mount could not pick up the GPS signal (the mount won’t advance to next step to start
slewing), you can manually change it by setting Daylight Saving Time (DST) to Y(es) or N(o); adjusting
the date and time; inputting your location coordinates; entering the time zone offset to the UTC.
Warning: If you enter your data, make sure they are complete and correct. Or just let the mount
computer and GPS do the job for you.
4.5. Set Up the Mount Manually
In the event that the mount does not perform well for assistant align wizard and/or star
calibration, or you would like to set up the mount quickly as a MiniTower mount, you may do the
following:
1. Assemble the tripod and install the mount onto the tripod;
2. Level the mount;
3. Attach OTA, accessories and CW(s), balance the mount;
4. Turn on the mount. Press BACK button to skip the Alignment Wizard when the HC asks;
5. Press number 9 button to change the slew speed to MAX;
6. Slew the mount in azimuth to double check the leveling;
7. Slew the bubble level side facing south. Slew the telescope to point to Zenith;
8. Press MENU=> “Zero Position”=> “Set Zero Position”=>ENTER to set the current
position as zero Position;
9. Press MENU=”Settings”=>”Set Time and Site” to set the Daylight Saving Time (Y/N),
UTC, as well as current time and location info. The press ENTER.
10. Do a Star Alignment, or “Select and Slew” followed by “Sync to Target” to align the mount.
11. Now happy GOTO!
4.6. Manual Operation of the Mount
The mount can now be used to observe astronomical objects using the HC. Use the arrow keys
to point the telescope to the desired part of the sky. Use the number keys to change the slewing speed.
Press the STOP/0 button to start tracking.
4.7. Position Memorization
The AZMP mount can memorize its current position if the power is interrupted, either during
tracking or slewing. You only need to use “Select and Slew” to go to the same object after power is
restored if the mount Is not physically moved. No alignment is needed.
4.8. Star Identifying Function
The 8407+ hand controller has a star identification function. After setting the correct local time
and location and completing polar alignment, slew the telescope to a bright star manually or using the
GOTO function. Press the ? key to identify the star that the telescope is pointing to, as well as nearby
bright stars if there is any.
17
Page 18
4.9. Turn Off the Mount
When you have finished your observation, simply turn the mount power off and disassemble the
mount and tripod.
18
Page 19
5. Complete Functions of Go2Nova® Hand Controller
5.1. Slew to an Object
Press MENU => “Select and Slew.” Select an object that you would like to observe and press
the ENTER key.
The Go2Nova
database of over 212,000 objects. Use the ► or ◄ button to move the cursor. Use the number buttons
to enter the number, or the ▼ or ▲ button to change a number. Hold a button to fast scroll through the
list. The “
below the horizon. In some catalogs the stars below the horizon will not be displayed on the hand
controller.
” symbol indicates that the object is above the horizon, and the “” symbol means it is
5.1.1. Solar System
There are 9 objects in the Solar System catalog.
5.1.2. Deep Sky Objects
This menu includes objects outside our Solar System such as galaxies, star clusters, quasars,
and nebulae.
Named Objects: consists of 60 popular deep sky objects with their common names. A list of
named deep sky objects is included in Appendix E.
®
8407 hand controller (HC V2 with 150429 Catalog) for an AZMP mount has a
Messier Catalog: consists of all 110 Messier objects.
NGC Catalog: consists of 7,840 objects
IC Catalog: consists of 5,386 objects.
PGC Catalog: consists of 73,197 objects.
Caldwell Catalog: consists of 109 objects.
Abell Catalog: consists of 4,076 objects.
Herschel Catalog: consists of 400 objects.
5.1.3. Stars
Named Stars: consists of 259 stars with their common names. They are listed alphabetically;
a list is included in Appendix E.
Double/Multi Stars: consists of 208 binary stars; a list is attached in Appendix E.
Hipparcos (HIP) Catalog: consists of 120,404 records.
5.1.4. Comets
This catalog contains 15 comets.
5.1.5. Asteroids
This catalog contains 116 asteroids.
5.1.6. Constellations
This catalog consists of 88 modern constellations with their names. They are listed
alphabetically; a list is attached in Appendix E.
19
Page 20
5.1.7. Custom Objects
This allows the storage of up to 60 user-defined objects, including comets.
5.1.8. Custom R.A. DEC
Here you can go to a target by entering its R.A. and DEC coordinates.
5.2. Sync to Target
This operation will match the telescope's current coordinates to Target Right Ascension and
Declination. After slewing to an object, press MENU => “Sync to Target” => ENTER. Follow the screen
to perform the sync. Using this function will re-calibrate the computer to the selected object. Multiple
syncs can be performed if needed. This operation is most useful to find a faint star or nebula near a
bright star.
You can change the slew rate to make the centering procedure easier. Simply press a number
(1 through 9) key to change the speed. The default slew rate is 64x.
“Sync to Target” will improve the local GOTO accuracy near by the synced star, which is useful
for finding a faint object nearby.
5.3. Alignment
This function is used to align the telescope mount. Please keep in mind that LEVELING is the
most critical part of goto and tracking accuracy.
5.3.1. One Star Alignment
Press MENU => “Alignment” => “One Star Align”. A list of alignment stars that are above the
horizon is computed based on your local time and location. With the mount in the Zero Position, use
the▲ and ▼ buttons to select a star and press ENTER. Center the target in your eyepiece using the
arrow keys. Press ENTER when finished. If your mount is well leveled, one star alignment should be
sufficient for good GoTo accuracy. To increase the pointing accuracy over the sky, you may choose to
do a two star and three star alignment.
5.3.2. Two Star Alignment
Two Star Align can improve the mount’s average goto pointing accuracy. Two star alignment
requires a wider view of the sky, since the two align stars need to be far apart. Press MENU =>
“Alignment” => “Two Star Polar Align.” A list of alignment stars that are above the horizon is
computed based on your local time and location. With the mount at the Zero Position, use the ▲ and ▼
buttons to select the first alignment star and press ENTER. Center the target in your eyepiece using the
arrow keys after the mount slews to it. Press ENTER when finished. The hand controller will prompt you
to choose a second star. After selecting and centering the second star, the two-star alignment is
finished.
5.3.3. Three Star Alignment
The three-star alignment will further improve the average pointing accuracy based on 3-point
sky model.
Press MENU => “Alignment” => “Three Star Align.” A list of alignment stars that are above the
horizon is computed based on your local time and location. With the mount at the Zero Position, use
the▲ and ▼ buttons to select the first alignment star and press ENTER. Center the target in your
eyepiece using the arrow keys. Press ENTER when finished. The hand controller will prompt you to
choose a second star. Select third star after the mount aligned to the second star.
20
Page 21
5.3.4. Solar System Alignment
This function uses a planet or the moon as an alignment object. Press MENU => “Alignment”
=> “Solar System Align” for a list of available alignment objects.
5.3.5. Clear Alignment Data
The alignment data will be kept for your next observation session. This function will clear all
alignment data created during one star, two star or three star alignment process.
5.4. Settings
5.4.1. Set Time and Site
The AZ Mount Pro mount is equipped with a GPS receiver which will receive the time, longitude
and latitude information for your current location from satellites after a link is established. However,
there are still some parameters which need to be entered to reflect your location, such as time zone
information and whether daylight saving time is currently in effect. This information will be stored in the
hand controller memory along with longitude and latitude coordinates until they need to be updated.
NOTE: you don’t need to do anything if the mount is in an automatic mode, even the time zone
is wrong.
A clear sky and open space outside is needed for the GPS to establish a link with the satellites.
The GPS is installed on the top of the main board under main control board cover. If the GPS module
has difficulty receiving the satellite signal, you may rotate the R.A. axis to one side to exposure the
GPS module.
To set up the controller, press MENU=>“Settings”
Select and Slew
Sync. to Target
Alignment
Settings
Edit User Objects
Firmware Information
Zero Position
Press ENTER and select “Set Time and Site”
Set Time and Site
Set Beep
Set Display
Set Tracking Rate
HBX Heating ON/OFF
Wi-Fi Option
Language
Press ENTER. A time and site information screen will be displayed:
Daylight Saving Time Y
UTC +480 Minute(s)
2016-03-09 10:19:18
Longitude:W071d08m50s
Latitude: N42d30m32s
Northern Hemisphere
21
Page 22
Set Local Time
The time will be updated automatically when the GPS receiver has established its link with the
GPS satellites. In the event that the GPS module is unable to establish a link to the satellites, local time
can be entered manually. Use the ◄ or ► key to move the cursor _ and use the number keys to
change the numbers. Use the ▲ or ▼ button to toggle between “Y” and “N” for Daylight Saving Time,
or “+” and “-“ for UTC (Coordinated Universal Time) setting. Hold the arrow key to fast forward or
rewind the cursor.
In order to make the Hand Controller reflect your correct local time, time zone information has to be entered. Press the ◄ or ► key, move the cursor to the third line “UTC -300 Minute(s)” to set the
time zone information (add or subtract 60 minutes per time zone). For example:
Boston is “UTC -300 minutes”
Los Angeles is “UTC -480 minutes”
Rome is “UTC +60 minutes”
Beijing is “UTC +480 minutes”
Sydney is “UTC +600 minutes”
All the time zones in North America are “UTC –“, as shown in the following table, so ensure the
display shows “UTC -” instead of “UTC +” if in North or South America.
Time Zone Hawaii Alaska Pacific Mountain Central Eastern
Hour behind UT -10 -9-8-7-6 -5
Enter UTC -600 -540-480-420-360 -300
To adjust minutes, move the cursor to each digit and use the number keys to input the number
directly. Use ▲ or ▼ key to toggle between “+” and “-”. After the time zone information is entered, press
ENTER and go back to the previous screen. Note that fractional time zones can be entered.
Do not manually add or subtract an hour from displayed time to reflect Daylight Saving Time
(DST). Only select “Y” after DST begins.
For other parts of the world you can find your “time zone” information from the internet.
Set Observation Site Coordinate
The third and fourth lines display the longitude and latitude coordinates respectively. The
longitude and latitude coordinates will be automatically updated when the GPS picks up a satellite
signal. “W/E” means Western/Eastern Hemisphere; “N/S” means Northern/Southern Hemisphere; “d”
means degree; “m” means minute; and “s” means second.
If, for any reason, your GPS does not pick up the satellite signal, you can manually enter your
longitude and latitude coordinates. Press the ◄ or ► key to move the cursor, use the ▲ or ▼ key to
toggle between “W” and “E”, and “N” and “S”, and use the number keys to change the numbers. It is
always a good idea to do your homework and get longitude and latitude coordinates before traveling to
a new observation site.
The site coordinates information can be found from your smart phone, GPS receiver or via the
internet. Site information in decimal format can be converted into d:m:s format by multiplying the
decimal numbers by 60. For example, N47.53 can be changed to N47º31'48”: 47.53º = 47º +0.53º,
0.53º=0.53x60'=31.8', 0.8'=0.8x60"=48". Therefore, 47.53º=47º31'48" or 47d31m48s.
Select N/S Hemisphere
This option is active only if the latitude of observation site is below 10°. If polar axis is aligned to
the North Celestial Pole, then set the mount to Northern Hemisphere. If the polar axis is pointing to the
South Celestial Pole, set the mount to Southern Hemisphere. Use the ▲ or ▼ key to toggle between
“Northern Hemisphere” and “Southern Hemisphere”.
22
Page 23
The time and site information will be stored inside the hand controller’s memory chip. If you are
not traveling to another observation site, they do not need to be changed.
Check Hand Controller Battery
The hand controller has a real time clock (RTC) which should display the correct time every time
the mount is turned on. If the time is incorrect, please check the battery inside the hand
controller and replace it if needed. The battery is a 3V, CR1220 button battery.
5.4.2. Set Beep
The Hand Controller allows a user to turn off the beep partially, or even go to a silent mode. To
change this setting press MENU => “Settings” => “Set Beep”,
Set Time and Site
Set Beep
Set Display
Set Tracking Rate
HBX Heating ON/OFF
Wi-Fi Option
Language
Select one of three available modes:
"Always On” – a beep will be heard on each button operation or mount movement;
“On but Keyboard” – a beep will be heard only when the mount is slewing to the object or there
is a warning message;
“Always Off” – all sounds will be turned off, including the SUN warning message.
5.4.3. Set Display
Press MENU => “Settings” => “Set Display”,
Set Time and Site
Set Beep
Set Display
Set Tracking Rate
HBX Heating ON/OFF
Wi-Fi Option
Language
Use the arrow keys to adjust LCD display contrast, LCD backlight intensity, and keypad’s
backlight intensity.
5.4.4. Set Tracking Rate
You can set up the mount tracking rate by selecting “Set Tracking Rate”.
Set Time and Site
Set Beep
Set Display
Set Tracking Rate
HBX Heating ON/OFF
Wi-Fi Option
Language
23
Page 24
Then the user can select “Sidereal Rate”, “Lunar Rate”, “Solar Rate”, “King Rate”, and “User
Defined Speed”. The “User defined speed” can be adjusted from 0.9900X to 1.0100X of sidereal.
When use “Select and Slew” to Moon or Sun, “Lunar Rate” or “Solar Rate” will be used
automatically. “Sidereal Rate” will be used for other object tracking.
The “King Rate”, developed by Edward S. King, corrects the tracking rate of a telescope to
account for atmospheric refraction. This is more useful for unguided tracking.
5.4.5. Set Altitude Limit
Set the tracking limit in altitude, a useful function for tracking an object all the way to below the
horizon when set it at a minus number (degree). The default setting is 0. The mount will stop tracking
when the telescope is point to horizon. Use this function at your own risk.
5.4.6. Set Heating OFF/ON
Turn on/off the controller LCD back heater. When “Heating” is set to ON, the heater will
automatically be turned on when the ambient temperature reaches 0°C (32°F) and shut off at 10°C.
5.4.7. Wi-Fi Option
AZ Mount Pro mount has a built-in Wi-Fi adapter that allows a user to wirelessly control the
mount via SmartPhone/Tablet/Computer.
Set Time and Site
Set Beep
Set Display
Set Tracking Rate
HBX Heating ON/OFF
Wi-Fi Option
Language
Wi-Fi Status: indicates if the Wi-Fi is turned on and password pretected. Password can be
set after internet login
IP Addess & Socket: the parameters needed for settiing up a manual WI-Fi access, such as
SkySafari
SSID: Wi-Fi broadcast ID, which can be changed.
Wi-Fi ON/OFF: turn ON/OFF Wi-Fi connection
Restart: restart the Wi-Fi adapter
Restore to Factory: restore the Wi-Fi factory setting
5.4.8. Language
Select one of supported menu languages.
5.5. Edit User Objects
Besides various star lists available in the hand controller, you can add, edit or delete your own
user-defined objects. This is especially useful for newly found comets. You can also add your favorite
observation object into the user object list for easy sky surfing. Up to 60 comets and other user objects
can be stored.
24
Page 25
5.5.1. Customer Comets
Press MENU => “Edit User Objects” to set user objects.
Custom Comets
Other Objects
Select “Custom Comets” to add/browse/delete the user-defined comet list. Find the orbit
parameters of a comet in the SkyMap format. For example, the C/2012 ISON has an orbit parameter:
Add a New Comet
Browse Comets
Delete a Comet
Delete All Comets
The hand controller will display the parameter entry screen:
Enter Comet Parameter
Date: 0000-00-00.0000
q: 0.000000
e: 0.000000
ω: 000.0000
Ω: 000.0000
i: 000.0000
Enter the parameters using the arrow buttons and number keys. Press ENTER and a
confirmation screen will be displayed. Press ENTER again to store the object under the assigned user
object number, or press BACK button to cancel.
5.5.2. Enter Other Objects or Observation List
Press MENU => “Edit User Objects” to set user objects.
Custom Comets
Other Objects
Select “Other Objects” to enter you own object:
Add a New Object
Browse Objects
Delete One Object
Delete All Objects
Select “Add a New Object”. A screen will be displayed asking you to Enter R.A. and DEC
coordinates:
25
Page 26
Enter R.A. and DEC
R.A.: 00h00m00s
DEC: +00d00m00s
You may enter the R.A. and DEC coordinates of the object you want to store, and press ENTER
to confirm.
A more useful application of this function is to store your favorite viewing objects before heading
to the field. When the “Enter R.A. and DEC” screen appears, press the MENU button. It brings up the
catalogs that you can select the object from. Follow the screen instructions to add your favorite objects.
Press BACK button to go back one level.
Press the BACK button to go back to the object entry submenu. You may review the records or
delete those that are no longer wanted. Press the BACK button to finish the operation. Now you can
slew to your favorite stars from “Custom Objects” catalog using “Select and Slew.”
5.6. Firmware Information
This option will display the mount type, firmware version information for the hand controller
(HC), Main board (Main), Azimuth motor board (Azi), and Altitude motor board (Alt).
5.7. Zero Position
5.7.1. Goto Zero Position
This moves your telescope to its Zero Position. The mount memorizes its Zero Position. The
power on position is not necessary the zero position.
5.7.2. Set Zero Position
This set the Zero Position for the firmware.
The Zero Position reference will be an undefined value after firmware upgrade or HC battery
replacement. You can use this function to set the zero position reference.
Press the ENTER after moving the mount to Zero Position with the hand controller.
26
Page 27
6. Wi-Fi Operation
6.1. Wi-Fi Connection
6.1.1. For a Windows/Mac Operation System

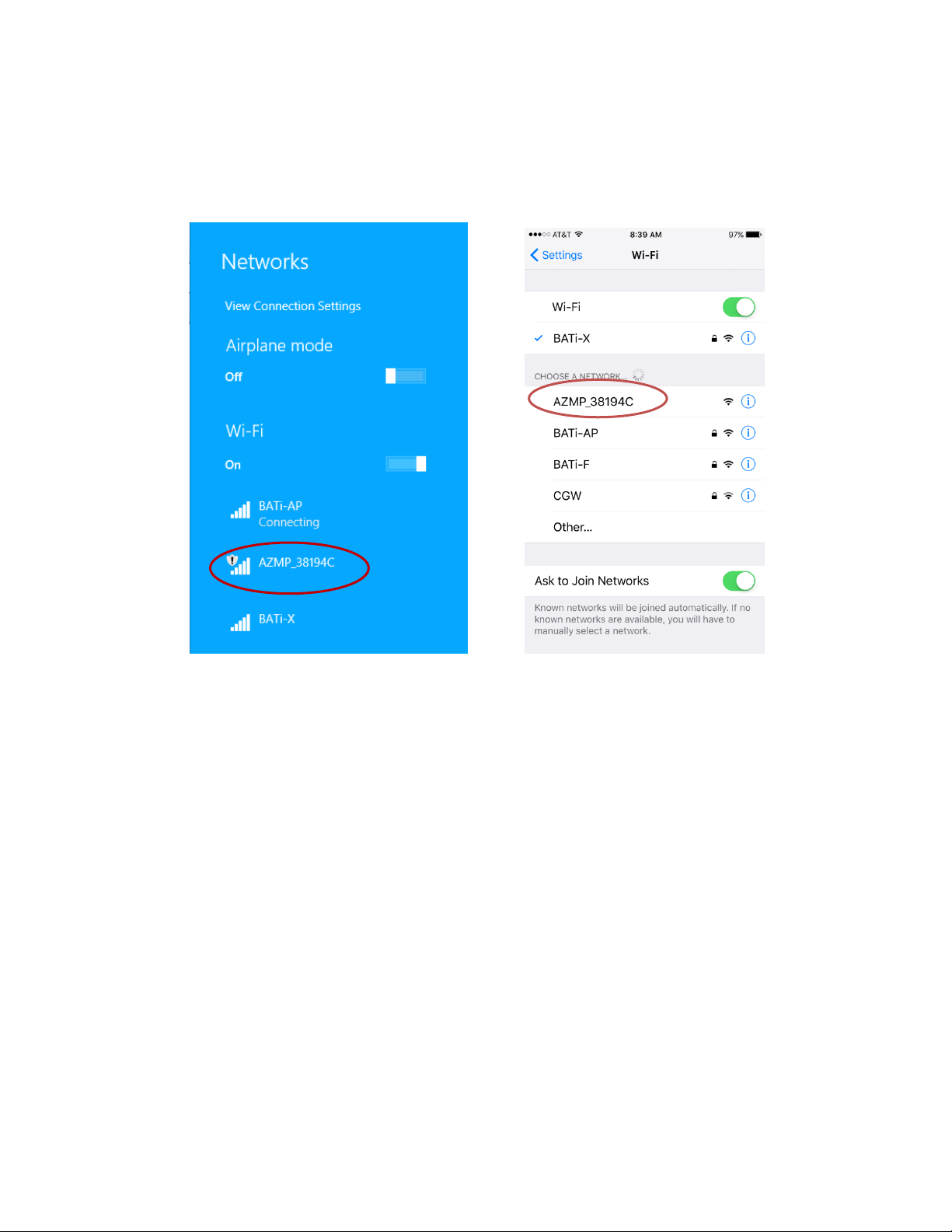

Open the Wi-Fi connection panel on your device, Find a Wi-Fi SSID called “AZMP_XXXXXX”,
as shown in Figure 14(a), then connect.
(a) (b)
Figure 14. Wi-Fi connection panel (a) PC and Mac, (b) iOS
6.1.2. Tablet/SmartPhone with iOS
Connect the iOS Tablet/SmartPhone to the AZMP_XXXXXX wireless network, as shown in
Figure 14(b).
6.1.3. Tablet/SmartPhone with Other OS
Open the Wi-Fi connection panel on your device, Find a Wi-Fi SSID called “AZMP_XXXXXX”,
then connect.
6.2. Connect the Mount
6.2.1. Windows
After connecting a computer to AZMP Wi-Fi network, launch the iOptron Commander. Select
iOptron StarFi/Built-in Wi-Fi to connect the mount to your computer via Wi-Fi/Ethernet connection
(Figure 15). Check the Mount Panel, as shown in Figure 15, to open iOptron Commander Mount Panel
(Figure 16).
27
Page 28
Figure 15 iOptron Commander Connection
Figure 16 iOptron Commander Mount Panel
Now you can use iOptron Commander to direct control the AZMP mount, or use your favorite
ASCOM compatible software to control the mount.
6.2.2. Mac OS
You need planetarium software that runs on Mac OS and has an embedded AZMP mount drive,
such as Sky Safari. Check the software for support information.
6.2.3. Tablet/SmartPhone with Sky Safari

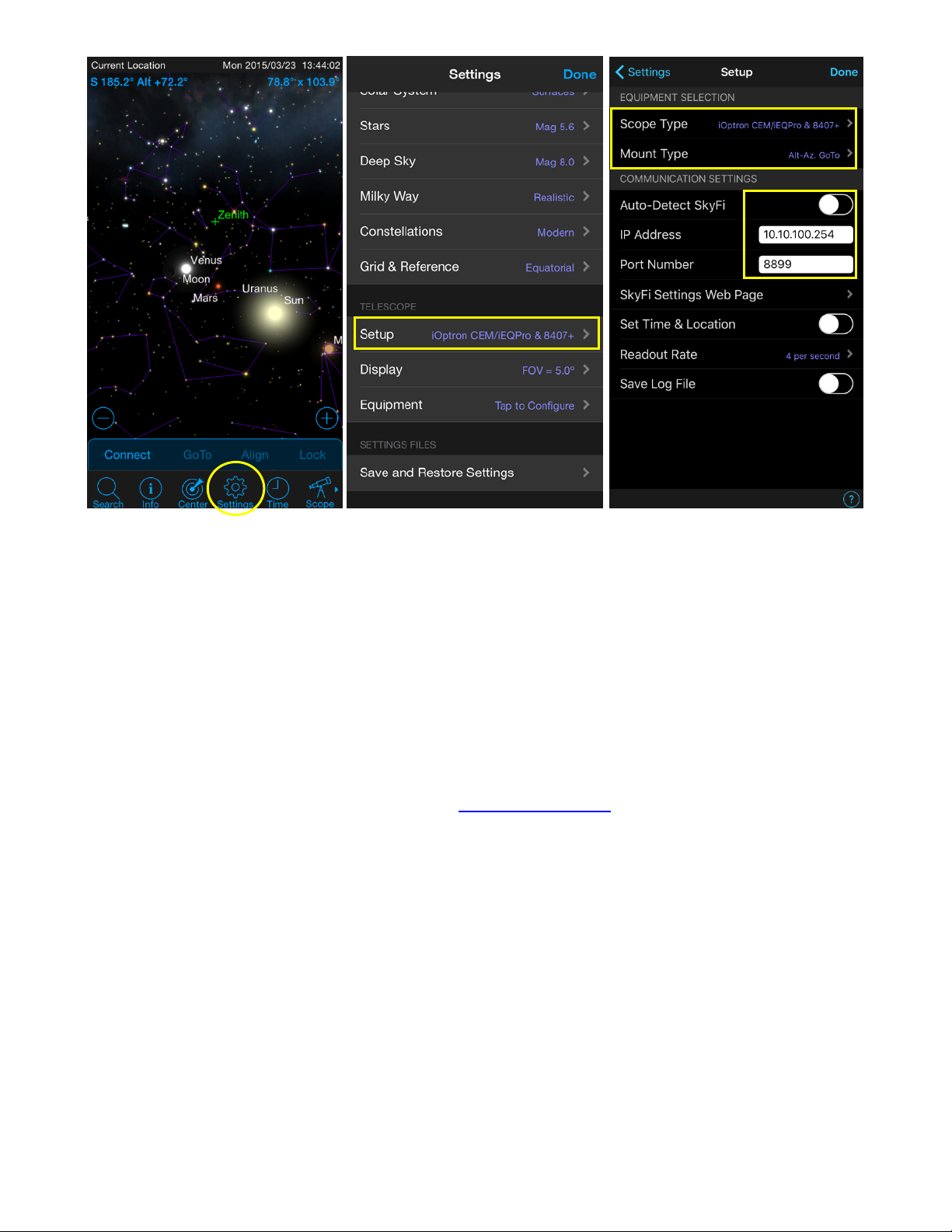

The App needs be configured first.
Click on Settings.
Click on Setup.
Select Scope Type as iOptron CEM/iEQPro & 8407+ and Mount Type should be Alt-Az.
GoTo.
Turn off Auto-Detect SkyFi. Change the IP Address to 10.10.100.254 and Port Number to
8899. Click Done.
28
Page 29
Figure 17 Using Sky Safari on a SmartPhone/Tablet
This procedure only needs to be performed once unless you have changed your AZMP Wi-Fi
settings.
Then click on the Scope icon and tap on Connect to connect the mount. Now you can perform
GOTO and Slew from your SmartPhone/Tablet.
6.3. Wi-Fi Configuration
The AZMP Wi-Fi is shipped with no password protection. You can change the SSID and enable
password protection so only you can make the connection.
To change the Wi-Fi settings:
Connect the computer/tablet/SmartPhone to AZMP Wi-Fi;
Open the internet browser and type in http://10.10.100.254
A login window will open. Enter “admin” as both User Name and Password;
Go to AP Settings;
Now you can change the SSID name from AZMP_XXXXXX to Your Name, enable WPA2
encryption, etc.;
You may also go to account to change login name and password;
Restart the mount.
Note:
1. Please keep the Wi-Fi at AP (access point) mode, unless you know how to setup the ST
mode.
2. If ever you forgot your password, use the hand controller “Restore to Factory” to reset the
WI-FI adapter to factory default settings.
;
29
Page 30
7. Maintenance and Servicing
7.1. Maintenance
The AZ Mount Pro mount is designed to be maintenance free. Do not overload the mount. Do
not drop the mount as this will damage the mount and / or permanently degrade GOTO performance
and tracking accuracy. Use a wet cloth to clean the mount and hand controller. Do not use solvent.
If your mount is not to be used for an extended period, dismount the OTAs and
counterweight(s).
7.2. iOptron Customer Service
If you have any question concerning your mount contact iOptron Customer Service Department.
Customer Service hours are 9:00 AM to 5:00 PM, Eastern Time, Monday through Friday. In the unlikely
event that the mount requires factory servicing or repairing, write or call iOptron Customer Service
Department first to receive an Return Merchandise Authorization Number (RMA#) before returning the
mount to the factory. Please provide details as to the nature of the problem as well as your name,
address, e-mail address, purchase information and daytime telephone number. We have found that
most problems can be resolved by e-mails or telephone calls. So please contact iOptron first to avoid
returning the mount for repair.
It is strongly suggested that to send technical questions to support@ioptron.com
U.S. 1.781.569.0200.
7.3. Product End of Life Disposal Instructions
This electronic product is subject to disposal and recycling regulations that vary by
country and region. It is your responsibility to recycle your electronic equipment per your
local environmental laws and regulations to ensure that it will be recycled in a manner
that protects human health and the environment. To find out where you can drop off your
waste equipment for recycling, please contact your local waste recycle/disposal service
or the product representative.
7.4. Battery Replacement and Disposal Instructions
Battery Disposal: Batteries contain chemicals that, if released, may affect the
environment and human health. Batteries should be collected separately for recycling,
and recycled at a local hazardous material disposal location adhering to your country and
local government regulations. To find out where you can drop off your waste battery for
recycling, please contact your local waste disposal service or the product representative.
. Call in the
30
Page 31
Appendix A. Technical Specifications
Mount Altazimuth Mount
Body material Die-cast aluminum
System GOTONOVA®
Primary payload 33 lb
Secondary payload 10 lb
Mount weight 13 lb (including CW shaft and battery)
Gear Aluminum worm wheel/Brass worm gear
Motor 128X microstep stepper motor
Resolution 0.1 arc seconds
Transmission Synchronous belt
Tracking Automatic
Tracking rate sidereal, solar, lunar, King and user defined
Hand Controller Go2Nova® 8407 with 212,000+ object database
Battery charger 100-240V AC input /12.6V DC 2000mA output (Included)
Wireless control Yes, full control via built-in WIFI adapter
Firmware upgrade Yes, via serial (RS232) port on mount and hand controller
Computer control Yes. PC (ASCOM) and Mac/Tablet/SmartPhone
Counterweight 10 lb (optional for #8900)
Tripod/Pier/Tri-Pier Optional for #8900
Operation temperature -10ºC ~ 40ºC
Warranty
6" VIXEN/LOSMANDY-D dual saddle
Optional secondary Vixen saddle
Two year limited for mount
90 day limited for battery
31
Page 32
Appendix B. AZ Mount Pro Go2Nova® 8407 HC MENU
MENU
Select and Slew
Solar System
Mercury
Venus
Mars
Jupiter
Saturn
Uranus
Neptune
Sun
Moon
Deep Sky Ob jects
Named Objects
Stars
Comets
Asteroids
Constellations
Custom Objects
Messier Catalog
NGC Catalog
IC Cat alog
PGC Catalog
Cald well Catalog
Abell Catalog
Herschel Catalog
Named Stars
Double/Multi Stars
Hipparcos Catalog
User D ef ined Comets
Other Objects
Custom R.A. and DEC
32
Page 33
Sync. To Target
Alignment
One Star Alignment
Two S tar Alig nent
Three Star Alignment
Solar System Align
Clear Alignment Data
Settings
Set Time and Site
Set Beep
Always On.
On b ut Keyboard .
Always Off .
Set Display
Set Tracking Rate
Set Altitude Limit
Set Heating OFF/ON
Wi-Fi Op tions
Sid ereal Rate
Lunar Rate
SolarRate
King Rate
User D ef ined Speed
Wi-Fi Status
IP A d d res s & So cket
SSID
WI-Fi ON/OFF
Restart
Restore to Factory
Languag e
33
Page 34
Edit User Objects
Custom Comets
Ad d a New Comet
Browse Comets
Delete a Comet
Clear All Comets
Other Objects
Ad d a New Object
Browse Objects
Delete an Object
Clear All Objects
Firmware Inf ormation
Zero Position
Goto Zero Position
Set Zero Position
34
Page 35
Appendix C. Firmware Upgrade
The firmware in the 8407 Hand Controller and control board can be upgraded by the customer.
Please check iOptron’s website, http://www.iOptron.com, under Support > Firmware/Software for
details.
35
Page 36
Appendix D. Computer Control an AZMP Mount
The AZ Mount Pro mount can be controlled by a SmartPhone, a tablet or a computer. It is supported by
two types of computer connections:
Connect to a computer via RS232 serial port. An optional RS232 to USB adapter (iOptron
part #8435) is needed if your computer does not have a serial port, like most of the laptops
on the market today. Follow the adapter instructions to install the adapter driver. The mount
can be controlled via ASCOM protocol (Windows OS), or directly by some software, such as
Sky Safari (Mac OS)
Connect wirelessly via built-in Wi-Fi connection. The mount can be controlled via ASCOM
protocol (Windows OS), SmartPhone/tablet and Mac OS wirelessly (with supported
software, such as Sky Safari.
To control the mount via ASCOM protocol, you need:
1. Download and install the latest ASCOM Platform, currently 6.1 SP1, from http://www.ascom-
standards.org/. Make sure your PC meets the software requirement. For 6.1 SP1, Windows
XP users should install .NET Framework 4 (not the Client Profile). Windows Vista and
Windows 7 users should install .NET Framework 4.5.2. Windows 8 and 8.1 users do not
need install any additional components.
2. Download and install the latest iOptron ASCOM drive for AZMP from iOptron website.
3. Planetarium software that supports ASCOM protocol. Follow software instructions to select
the iOptron Telescope.
Please refer to iOptron website, www.iOptron.com
detail.
, under Support > iOptron ASCOM Driver for more
36
Page 37
Appendix E. Go2Nova® 8407 Hand Controller Star List
Messier Catalog
This table is licensed under the GNU Free Documentation License. It uses material from the Wikipedia
1RigelKentaurus A53HIP 95771105 HIP 40167157 HIP 28790
2Rigel54HIP 30867106 HIP 40817158 HIP 4675
3Gacrux55HIP 35363107 HIP 81292159 HIP 31676
4Sargas56HIP 94761108 HIP 80197160 HIP 10176
5Castor A57HIP 21683109 HIP 88060161 HIP 25950
6Mizar58HIP 8497110 HIP 42637162 HIP 117931
7Almach59HIP 26199111 HIP 21039163 HIP 81914
8Algieba60HIP 104521112 HIP 100965164 HIP 21242
9Aludra61HIP 116389113 HIP 25768165 HIP 86831
10Iritjinga(Cen)62HIP 17797114 HIP 93717166 HIP 115272
11Zubenelgenubi63HIP 21036115 HIP 79980167 HIP 46657
12Alcyone64HIP 107310116 HIP 12086168 HIP 41404
13Cor Caroli65HIP 72659117 HIP 90968169 HIP 29388
14Acamar66HIP 21029118 HIP 22531170 HIP 49321
15Adhafera67HIP 42726119 HIP 34065171 HIP 84054
16Rasalgethi68HIP 18255120 HIP 79607172 HIP 39035
17Meissa69HIP 9153121 HIP 109786173 HIP 25303
18Graffias(Zeta)70HIP 88267122 HIP 56280174 HIP 52520
19Alya71HIP 85829123 HIP 51561175 HIP 95398
20HIP 4800272HIP 43937124 HIP 107930176 UCAC4 277-135548
21HIP 9594773HIP 71762125 HIP 97966177 HIP 32609
22HIP 2089474HIP 80047126 HIP 117218178 HIP 101765
23HIP 7439575HIP 58484127 HIP 82676179 HIP 24825
24HIP 2707276HIP 25142128 HIP 111546180 HIP 31158
25HIP 2654977HIP 54204129 HIP 29151181 HIP 3885
26HIP 8566778HIP 76669130 HIP 107253182 HIP 93371
27HIP 7437679HIP 99770131 HIP 88136183 HIP 36345
28HIP 3448180HIP 101027132 HIP 81702184 HIP 108364
29HIP 5325381HIP 74911133 HIP 97423185 HIP 50939
30HIP 9967582HIP 35210134 HIP 30444186 HIP 76603
31HIP 6300383HIP 26235135 HIP 66400187 HIP 32269
32HIP 4310384HIP 40321136 HIP 17579188 HIP 42516
33HIP 11099185HIP 70327137 HIP 35785189 HIP 62807
34HIP 2063586HIP 26221138 HIP 81641190 UCAC4 226-128246
35HIP 8860187HIP 80473139 HIP 7751191 HIP 94913
36HIP 248488HIP 78105140 HIP 21148192 HIP 94336
37HIP 9197189HIP 79043141 HIP 9021193 HIP 107299
38HIP 7937490HIP 61418142 HIP 97816194 HIP 59984
39HIP 10253291HIP 91919143 HIP 88818195 HIP 16411
40HIP 5215492HIP 41639144 HIP 36817196 HIP 23287
41HIP 3722993HIP 104214145 HIP 25695197 HIP 105637
42HIP 3041994HIP 23734146 HIP 98819198 HIP 108925
43HIP 10891795HIP 60189147 HIP 61910199 HIP 103814
44HIP 5341796HIP 66821148 HIP 111643200 HIP 58112
45HIP 6527197HIP 14043149 HIP 80399201 HIP 109354
46HIP 6766998HIP 5737150 HIP 83478202 HIP 43822
47HIP 10531999HIP 84626151 HIP 101123203 HIP 21986
48HIP 80582100 HIP 60904152 HIP 28271204 HIP 17470
49HIP 8832101 HIP 58684153 HIP 64246205 HIP 35960
50HIP 69483102 HIP 5131154 HIP 96895206 HIP 42936
51HIP 92946103 HIP 115126155 HIP 35564207 HIP 19272
52HIP 86614104 HIP 62572156 HIP 37843208 HIP 76143
41
Page 42
Deep Sky Object
ID No.OBJ ECTNGC # Mes sier # IC# A(Abe ll) U(UGC)
2. iOptron mount has two (2) year limited warranty
A. iOptron warrants your telescope, mount, or controller to be free from defects in materials and workmanship for two years. iOptron will
repair or replace such product or part which, upon inspection by iOptron, is found to be defective in materials or workmanship. As a
condition to the obligation of iOptron to repair or replace such product, the product must be returned to iOptron together with proof-ofpurchase satisfactory to iOptron.
B. The Proper Return Merchant Authorization Number must be obtained from iOptron in advance of return. Call iOptron at
1.781.569.0200 to receive the RMA number to be displayed on the outside of your shipping container.
All returns must be accompanied by a written statement stating the name, address, and daytime telephone number of the owner,
together with a brief description of any claimed defects. Parts or product for which replacement is made shall become the property of
iOptron.
The customer shall be responsible for all costs of transportation and insurance, both to and from the factory of iOptron, and shall be
required to prepay such costs.
iOptron shall use reasonable efforts to repair or replace any telescope, mount, or controller covered by this warranty within thirty days of
receipt. In the event repair or replacement shall require more than thirty days, iOptron shall notify the customer accordingly. iOptron
reserves the right to replace any product which has been discontinued from its product line with a new product of comparable value and
function.
This warranty shall be void and of no force of effect in the event a covered product has been modified in design or function, or subjected
to abuse, misuse, mishandling or unauthorized repair. Further, product malfunction or deterioration due to normal wear is not covered by
this warranty.
IOPTRON DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, WHETHER OF MERCHANTABILITY OF FITNESS FOR A
PARTICULAR USE, EXCEPT AS EXPRESSLY SET FORTH HERE. THE SOLE OBLIGATION OF IOPTRON UNDER THIS LIMITED
WARRANTY SHALL BE TO REPAIR OR REPLACE THE COVERED PRODUCT, IN ACCORDANCE WITH THE TERMS SET FORTH
HERE. IOPTRON EXPRESSLY DISCLAIMS ANY LOST PROFITS, GENERAL, SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES WHICH MAY RESULT FROM BREACH OF ANY WARRANTY, OR ARISING OUT OF THE USE OR INABILITY TO USE
ANY IOPTRON PRODUCT. ANY WARRANTIES WHICH ARE IMPLIED AND WHICH CANNOT BE DISCLAIMED SHALL BE LIMITED
IN DURATION TO A TERM OF TWO YEARS FROM THE DATE OF ORIGINAL RETAIL PURCHASE.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty
lasts, so the above limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
iOptron reserves the right to modify or discontinue, without prior notice to you, any model or style telescope.
If warranty problems arise, or if you need assistance in using your telescope, mount, or controller contact:
NOTE: This warranty is valid to U.S.A. and Canadian customers who have purchased this product from an authorized iOptron dealer in
the U.S.A. or Canada or directly from iOptron. Warranty outside the U.S.A. and Canada is valid only to customers who purchased from
an iOptron Distributor or Authorized iOptron Dealer in the specific country. Please contact them for any warranty.
iOptron Corporation
Customer Service Department
6E Gill Street
Woburn, MA 01801
www.ioptron.com
support@ioptron.com
Tel. (781)569-0200
Fax. (781)935-2860
Monday-Friday 9AM-5PM EST
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
